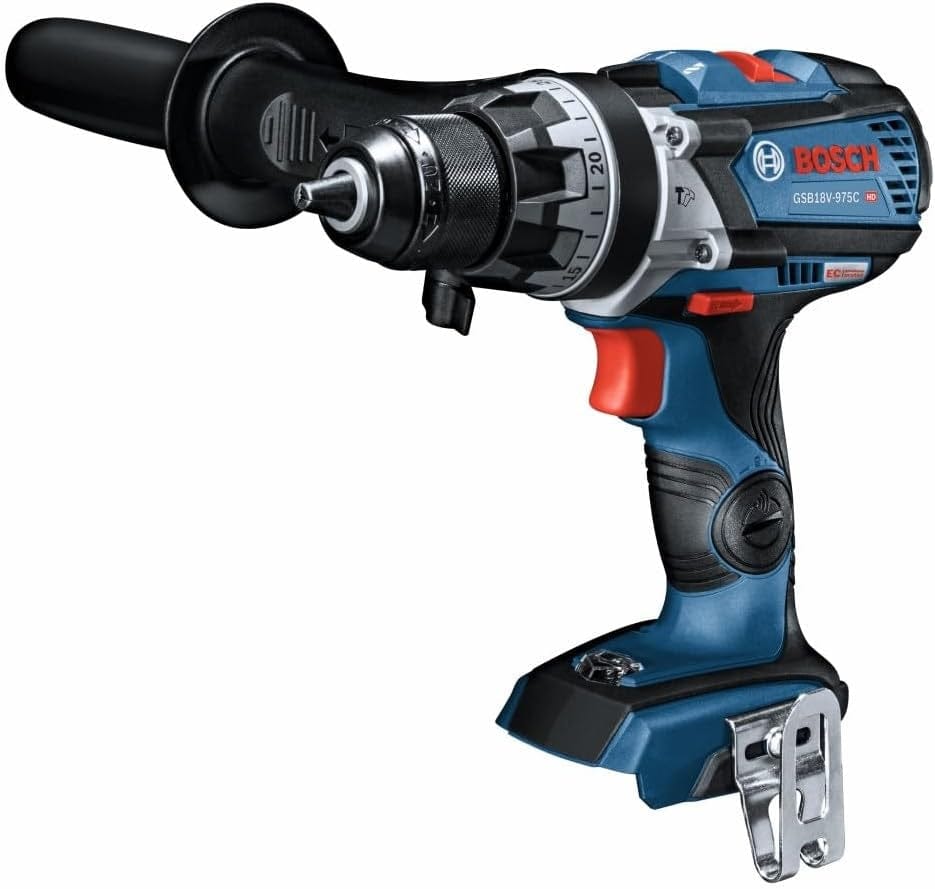

A three-quarter studio shot of the Bosch GSB18V-975CN 18V hammer drill/driver in blue and black with an all-metal chuck, red trigger, and 360-degree side handle.
Diagram of the GSB18V-975CN hammer drill/driver detailing a rapid mode selector, two-speed transmission, brushless motor, Bluetooth connectivity for the Bosch Toolbox app, precision clutch with 25 settings, and KickBack Control technology.

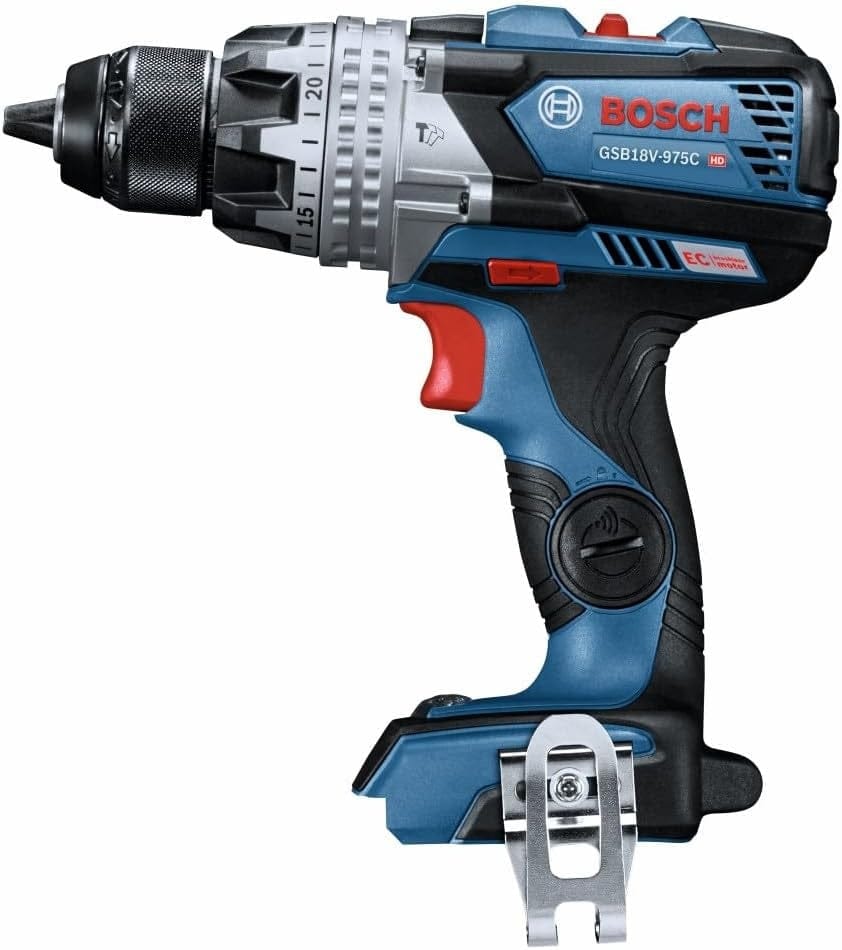

Side profile view of the Bosch 18V hammer drill/driver showing the mode selection ring, the red trigger, the variable speed switch, and the metal belt clip.

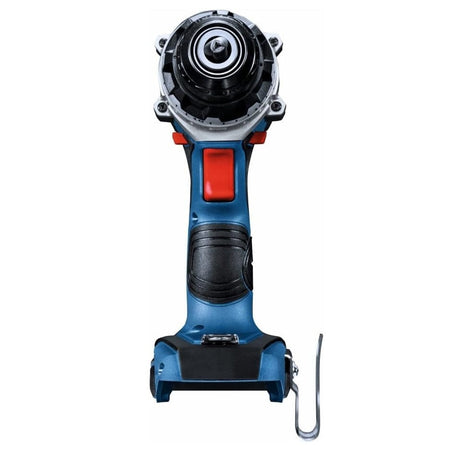

Direct front view of the Bosch hammer drill/driver showing the keyless all-metal chuck, the red trigger, and the handle ergonomics.
Rear view of the Bosch hammer drill/driver showing the motor housing vents and the metal belt clip at the base of the handle.
Action shot of a person using the Bosch hammer drill with a dust collection shroud attached to drill into a light-colored masonry wall.
Action shot showing a worker using the hammer drill/driver with a hole saw attachment to cut a hole into a stainless steel sink.
A worker on a construction site standing near a steel frame holding the Bosch 18V hammer drill/driver at their side.
Close-up action shot of the Bosch hammer drill being used to drill into a wooden floor plate at a construction site with wood shavings visible.

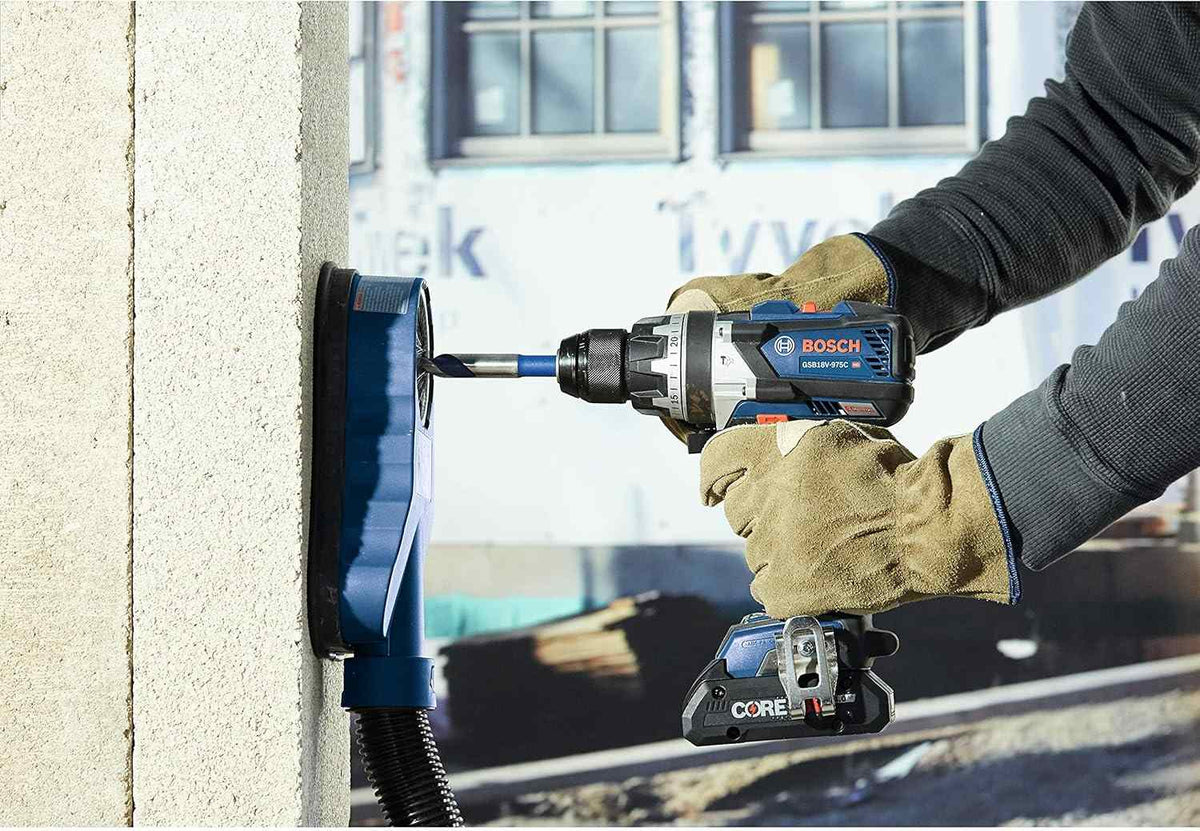

Action shot of a person using the hammer drill with a dust extraction system to drill into the side of a concrete building pillar.

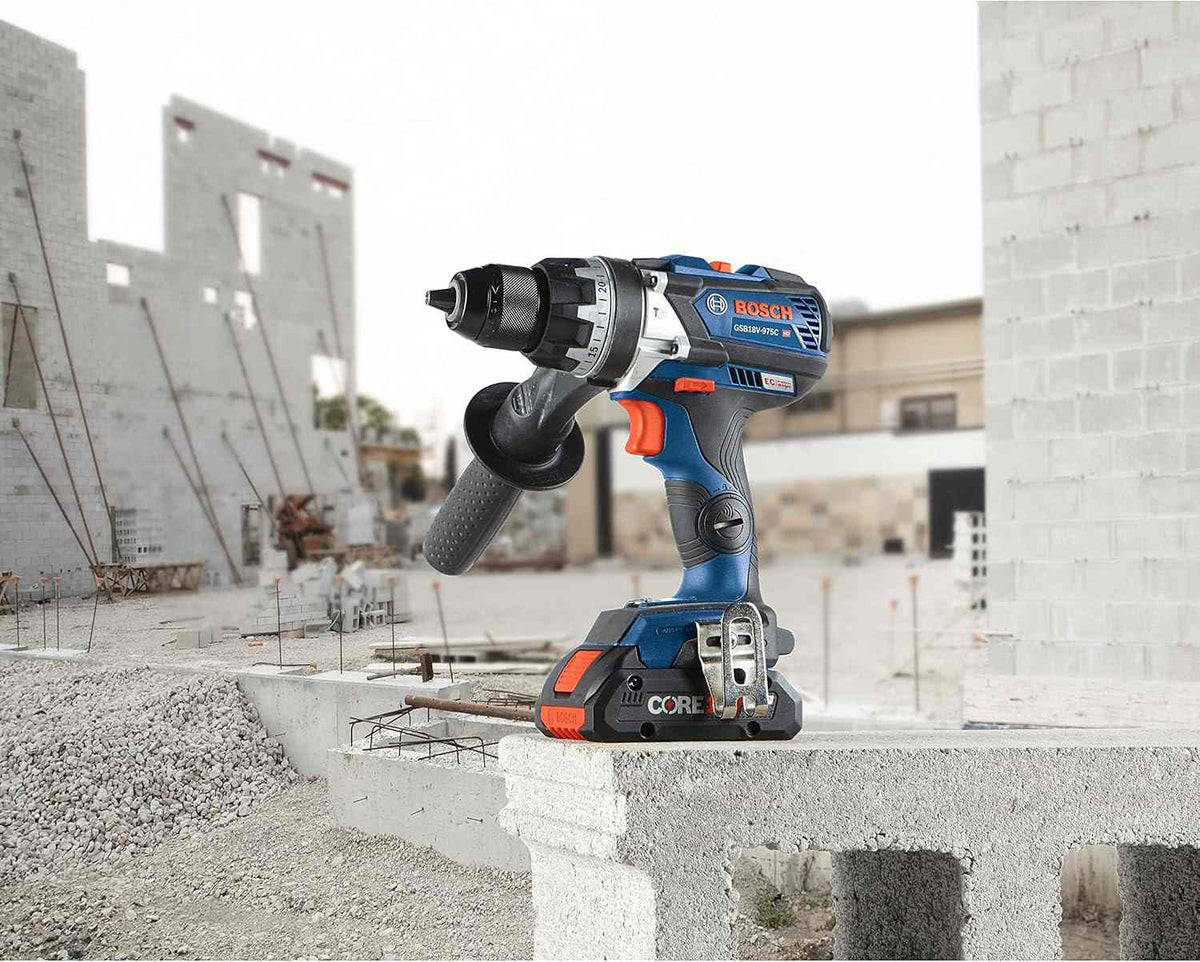

The Bosch 18V hammer drill/driver with a side handle and CORE18V battery sitting on a concrete block at a construction site.
Warranty graphic for Bosch 18V bare tools showing a 5-year tool limited warranty effective June 1, 2023.
AMPShare multi-brand compatible 18V battery system graphic showing five different Bosch 18V batteries.
Graphic showing recommended Bosch CORE18V 4Ah, 6Ah, and 8Ah batteries as part of the AMPShare 18V battery system.
A three-quarter studio shot of the Bosch GSB18V-975CN 18V hammer drill/driver in blue and black with an all-metal chuck, red trigger, and 360-degree side handle.
Diagram of the GSB18V-975CN hammer drill/driver detailing a rapid mode selector, two-speed transmission, brushless motor, Bluetooth connectivity for the Bosch Toolbox app, precision clutch with 25 settings, and KickBack Control technology.
Side profile view of the Bosch 18V hammer drill/driver showing the mode selection ring, the red trigger, the variable speed switch, and the metal belt clip.
Direct front view of the Bosch hammer drill/driver showing the keyless all-metal chuck, the red trigger, and the handle ergonomics.
Rear view of the Bosch hammer drill/driver showing the motor housing vents and the metal belt clip at the base of the handle.
Action shot of a person using the Bosch hammer drill with a dust collection shroud attached to drill into a light-colored masonry wall.
Action shot showing a worker using the hammer drill/driver with a hole saw attachment to cut a hole into a stainless steel sink.
A worker on a construction site standing near a steel frame holding the Bosch 18V hammer drill/driver at their side.
Close-up action shot of the Bosch hammer drill being used to drill into a wooden floor plate at a construction site with wood shavings visible.
Action shot of a person using the hammer drill with a dust extraction system to drill into the side of a concrete building pillar.
The Bosch 18V hammer drill/driver with a side handle and CORE18V battery sitting on a concrete block at a construction site.
Warranty graphic for Bosch 18V bare tools showing a 5-year tool limited warranty effective June 1, 2023.
AMPShare multi-brand compatible 18V battery system graphic showing five different Bosch 18V batteries.
Graphic showing recommended Bosch CORE18V 4Ah, 6Ah, and 8Ah batteries as part of the AMPShare 18V battery system.
BOSCH

Bosch Hammer Drill GSB18V-975CN 18V Brushless Driver (1/2 Inch Keyless Chuck 975 In-Lbs Torque KickBack Control Masonry Wood Fastening Bare Tool)

Only 2 left
SKU: GSB18V-975CN
$169.00 USD

Description

Bosch Promtional Logo Logout

Industrial 18V Brushless 1/2-Inch Hammer Drill for High-Torque Structural Masonry Drilling and KickBack Control Protection

The Bosch GSB18V-975CN 18V Brushless Connected-Ready 1/2-Inch Hammer Drill Driver delivers professional-grade mechanical drilling precision and high-torque fastening under extreme jobsite loads. Engineered with a high-efficiency brushless motor, this cordless tool minimizes rotational surface resistance while outputting a massive 975 In.-Lbs. of maximum torque and up to 31,500 beats per minute (BPM) for fast penetration in masonry, concrete, and steel. The compact, balanced housing integrates an active sensor-based KickBack Control system that instantly kills power during sudden bit bind-ups, solving the physical strain and wrist injury problems common in heavy wood boring. Featuring a 25+1 setting precision clutch, a 2-speed metal transmission, and compatibility with the PRO360 digital tracking system, this high-performance tool operates with extreme control while maintaining a lightweight footprint of only 3.4 lbs. **Battery and charger sold separately.

Best Used For:

  • Structural Concrete and Masonry Boring: Drilling high-speed anchors, tapcons, and conduit pass-through holes in concrete, stone, and brick structures using percussion hammer mode.
  • Heavy-Duty Timber Fastening: Driving large lag screws, structural ledger screws, and self-tapping fasteners cleanly into framing timbers and glue-laminated lumber.
  • Large Diameter Hole Sawing: Running aggressive wood spade bits, auger bits, and multi-material hole saws through dense dimensional framing headers.

Key Performance & Safety Features

  • Brushless Motor Technology: Maximizes runtime and tool longevity while generating up to 975 In.-Lbs. of industrial-grade maximum torque.
  • Active KickBack Control: Integrated electronic sensor reduces sudden rotational torque reactions during unexpected bind-up scenarios, protecting the user.
  • Heavy-Duty All-Metal Chuck: 1/2-inch keyless chuck delivers premium bit grip pressure to prevent slippage during high-stress percussion drilling.
  • Precision Clutch Settings: 25+1 distinct mechanical torque configurations eliminate over-driving, head stripping, and structural material damage.
  • Two-Speed Transmission: Dual gear settings optimize performance between high power (0-480 RPM) and high speed (0-2,100 RPM) for diverse workpieces.
  • Connected-Ready System: Allows the installation of an optional Bluetooth module to customize tool parameters via the Bosch PRO360 app interface.

What's Included

  • (1) Bosch GSB18V-975C 18V Brushless Connected-Ready 1/2" Hammer Drill/Driver
  • (1) Heavy-Duty Belt Clip
  • (1) Auxiliary Side-Assist Handle

Technical Specifications

Specification Value
Brand Bosch
Model Number GSB18V-975CN
Maximum Torque 975 In.-Lbs.
Maximum Impact Speed 0 - 31,500 BPM
Rotational Speed Range 0 - 480 / 0 - 2,100 RPM
Chuck Size / Type 1/2 in (Keyless All-Metal)
Clutch Settings 25 + 1
Bare Tool Weight 3.4 lbs.
Voltage 18V
Chassis Tool Length 7.6 in
Chassis Tool Height 8.4 in
Chassis Tool Width 3.0 in

Pro-Tip: When using carbide-tipped masonry bits in concrete or dense brick, verify the selector collar is rotated entirely to the hammer icon. Apply constant, firm inline pressure without forcing the tool; letting the high-velocity 31,500 BPM percussive action do the cutting ensures maximum bit life and avoids thermal breakdown.
