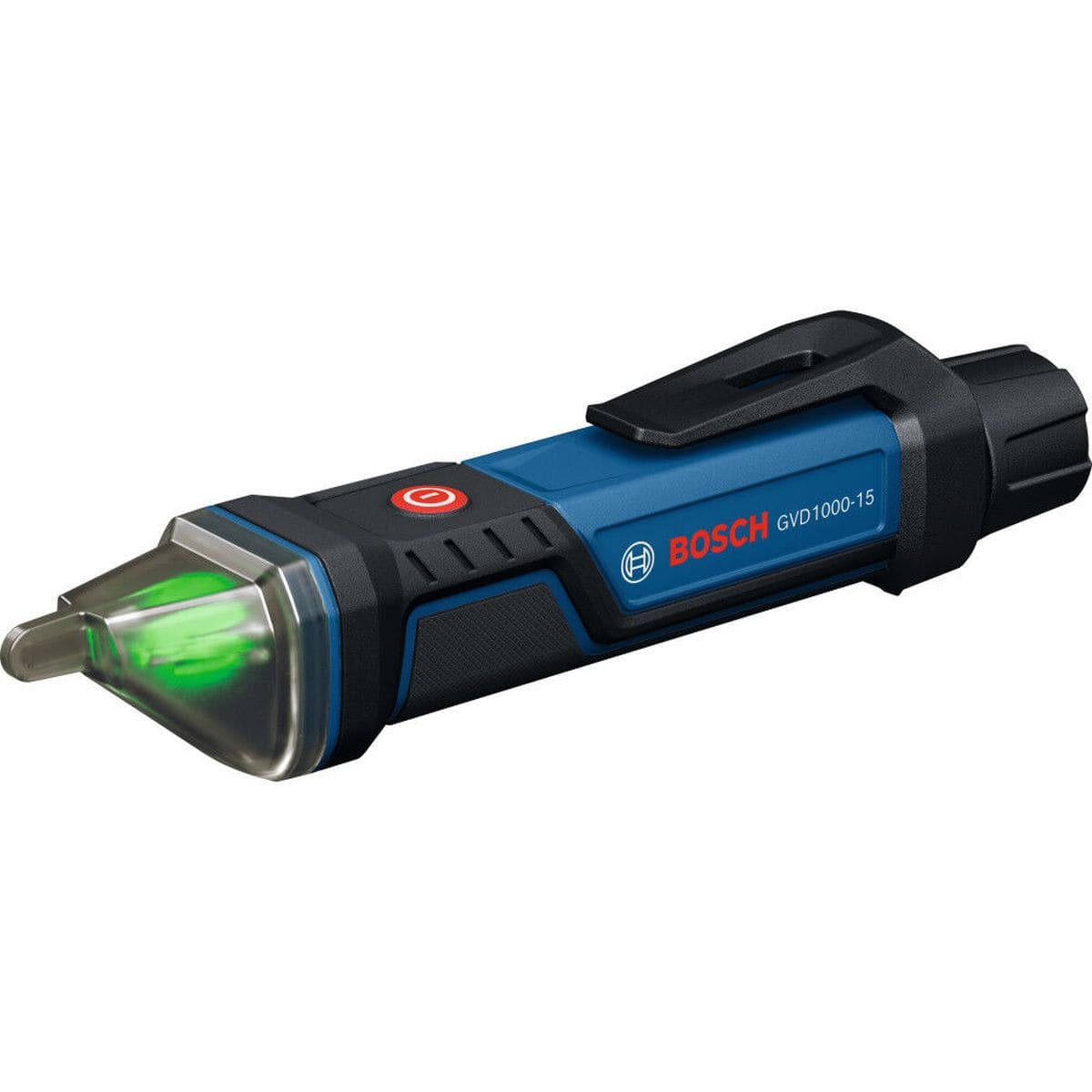

A close-up studio perspective view of the standalone Bosch GVD1000-15 Non-Contact Voltage Tester Pen isolated against a white background. This high-conversion product shot showcases the signature blue and black rubberized body housing, a robust built-in pocket clip, an intuitive red power button, and a transparent multi-angle sensor tip glowing with a bright green LED notification light.

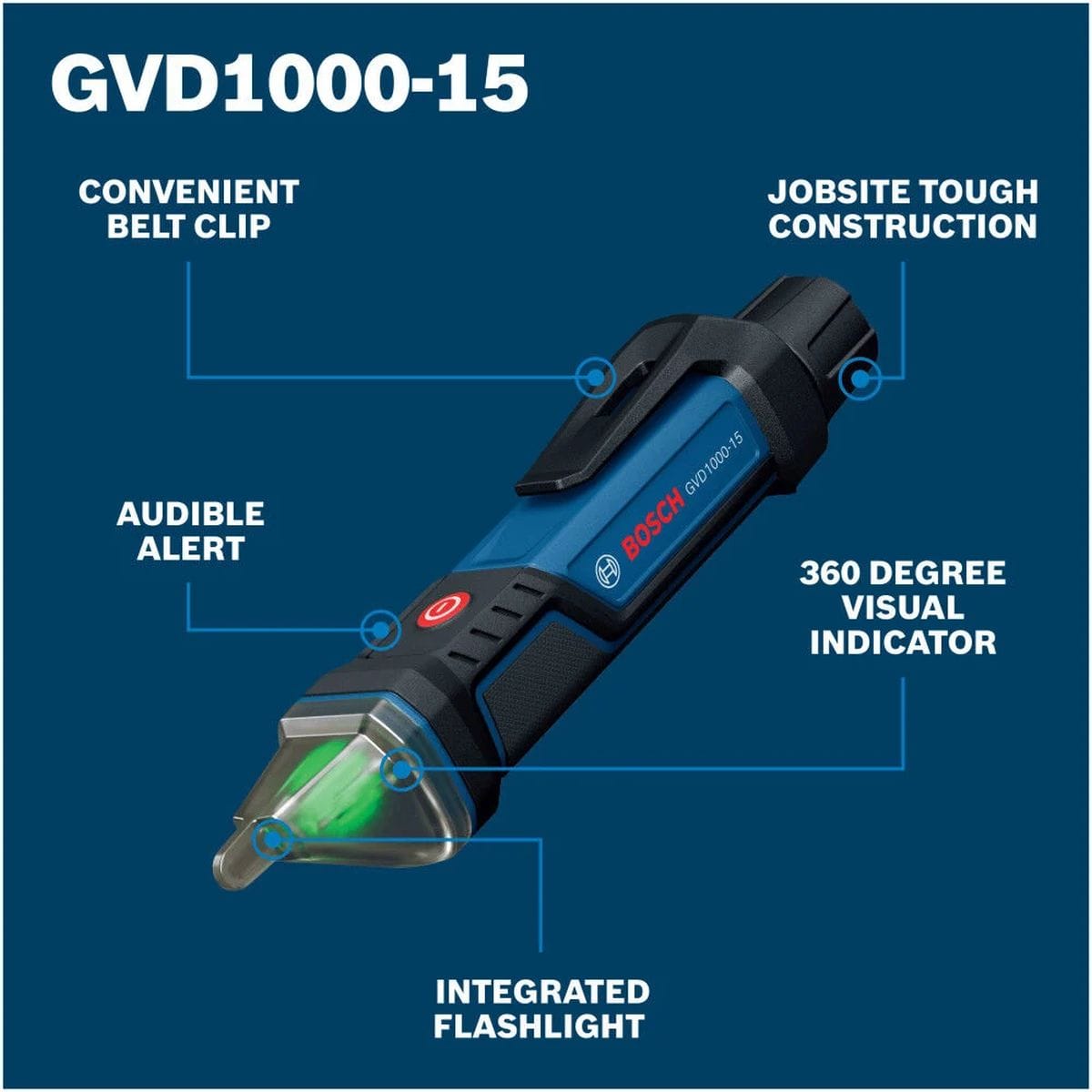

An informational product feature diagram for the Bosch GVD1000-15 voltage detector pen layout. Set against a clean dark blue backdrop, labeled lines point out the core structural benefits for search engine algorithms, including the convenient belt clip, loud audible alert buzzer, jobsite tough construction, 360 degree visual indicator tip, and integrated flashlight.

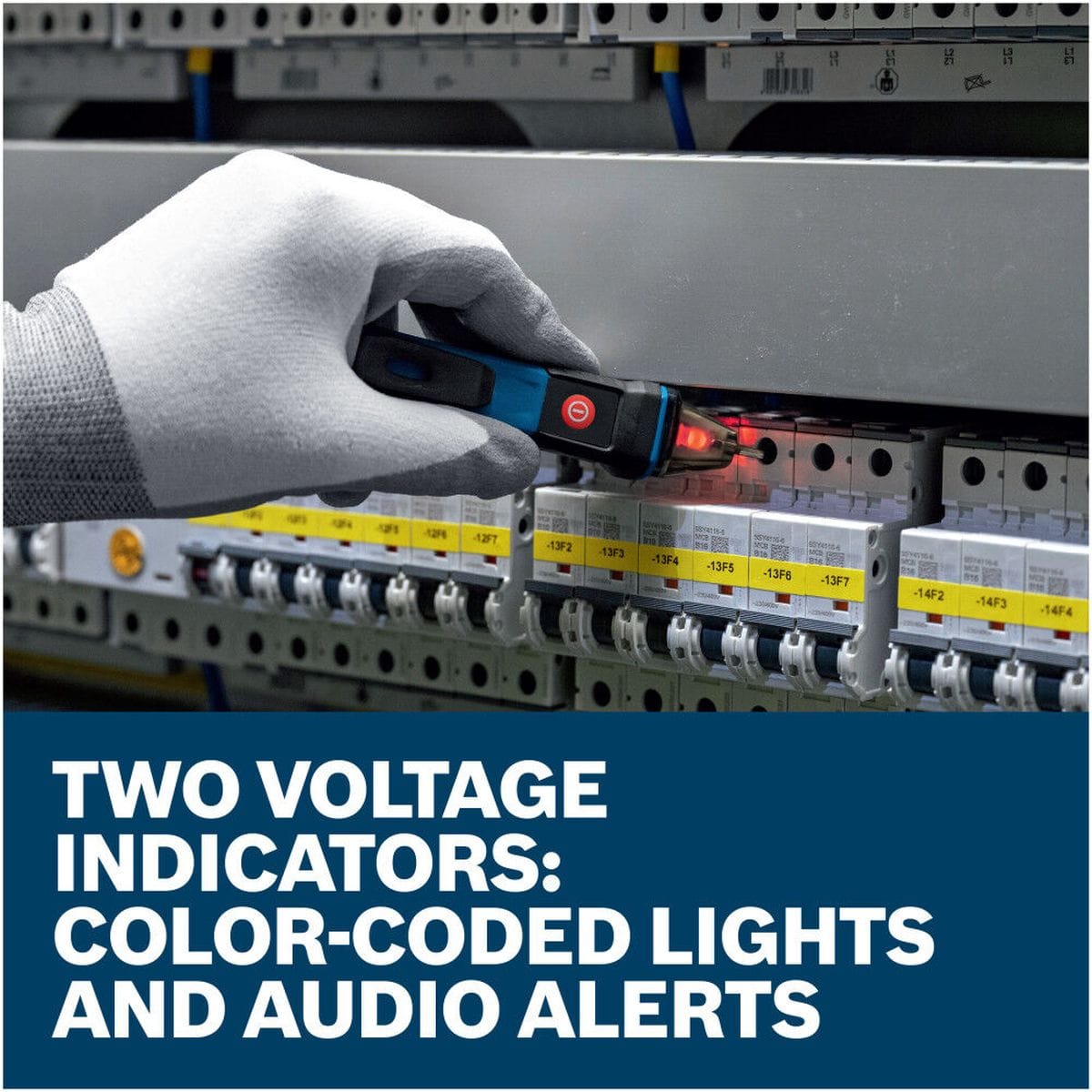

A close-up view of a professional technician's gloved hand holding the Bosch GVD1000-15 tester stick up to a row of commercial circuit breakers. The clear tip glows a strong red to signal active current presence, set above a high-contrast marketing text banner that reads Two voltage indicators: color-coded lights and audio alerts.

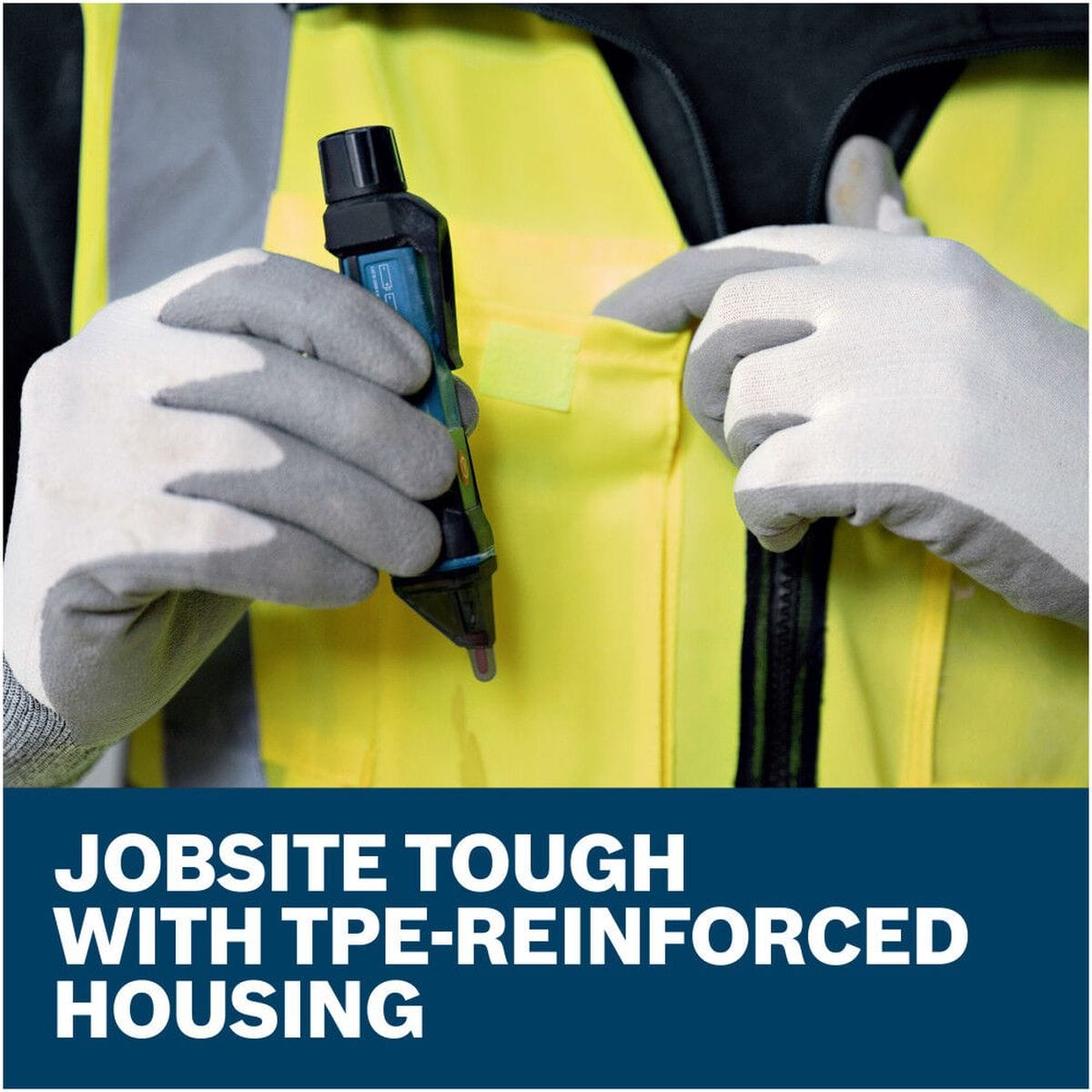

A field contractor wearing protective work gloves pulling the slim Bosch GVD1000-15 non-contact voltage detector pen out from the front pocket of a high-visibility yellow safety vest. The image features a lower text graphic stating Jobsite tough with TPE-reinforced housing, highlighting the tool's impact-resistant construction.

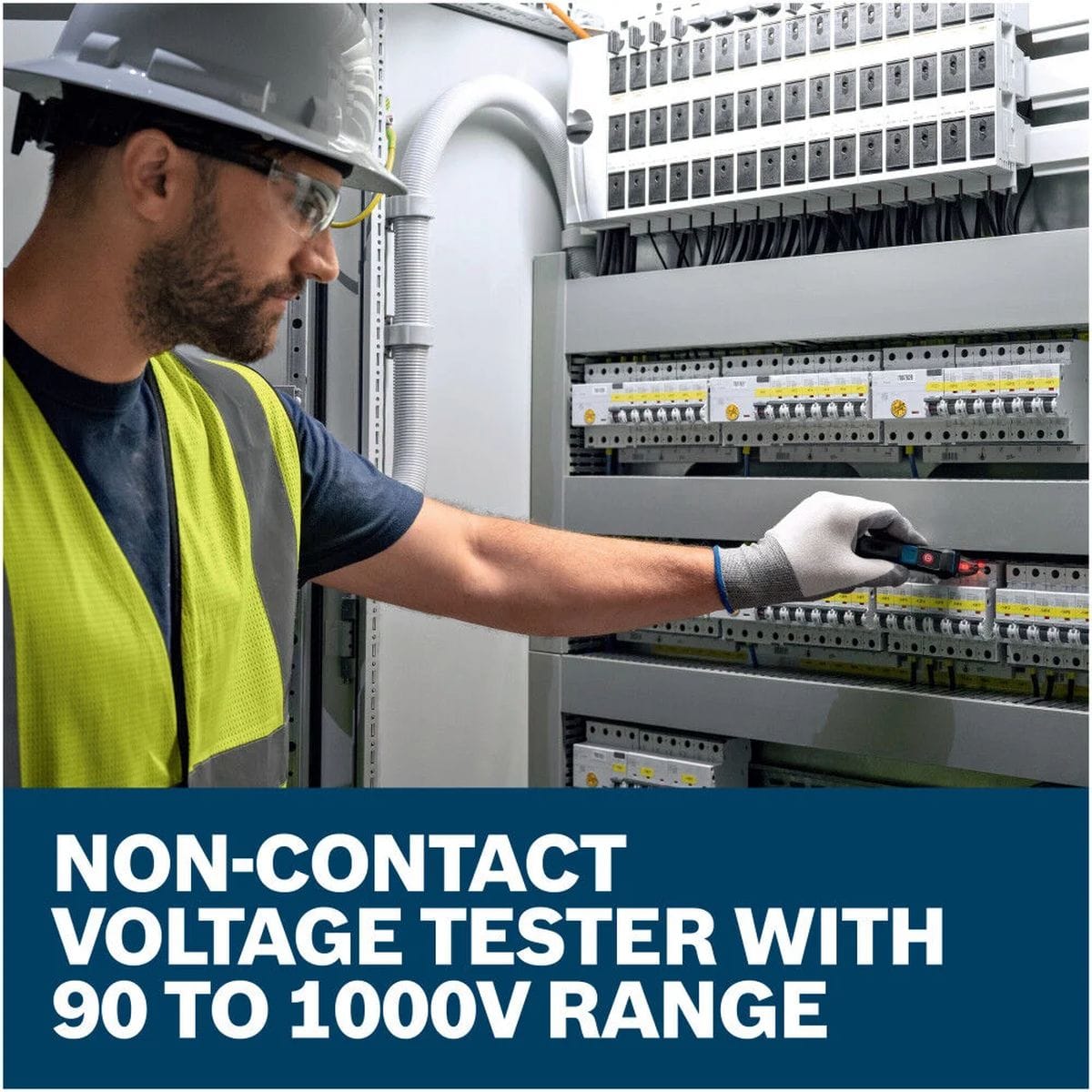

An electrician outfitted with a protective hard hat and clear safety glasses using the Bosch GVD1000-15 NCV stick to safely scan a large commercial power distribution panel cabinet. The descriptive layout features a lower text banner reading Non-contact voltage tester with 90 to 1000V range, showcasing live wire testing utility.

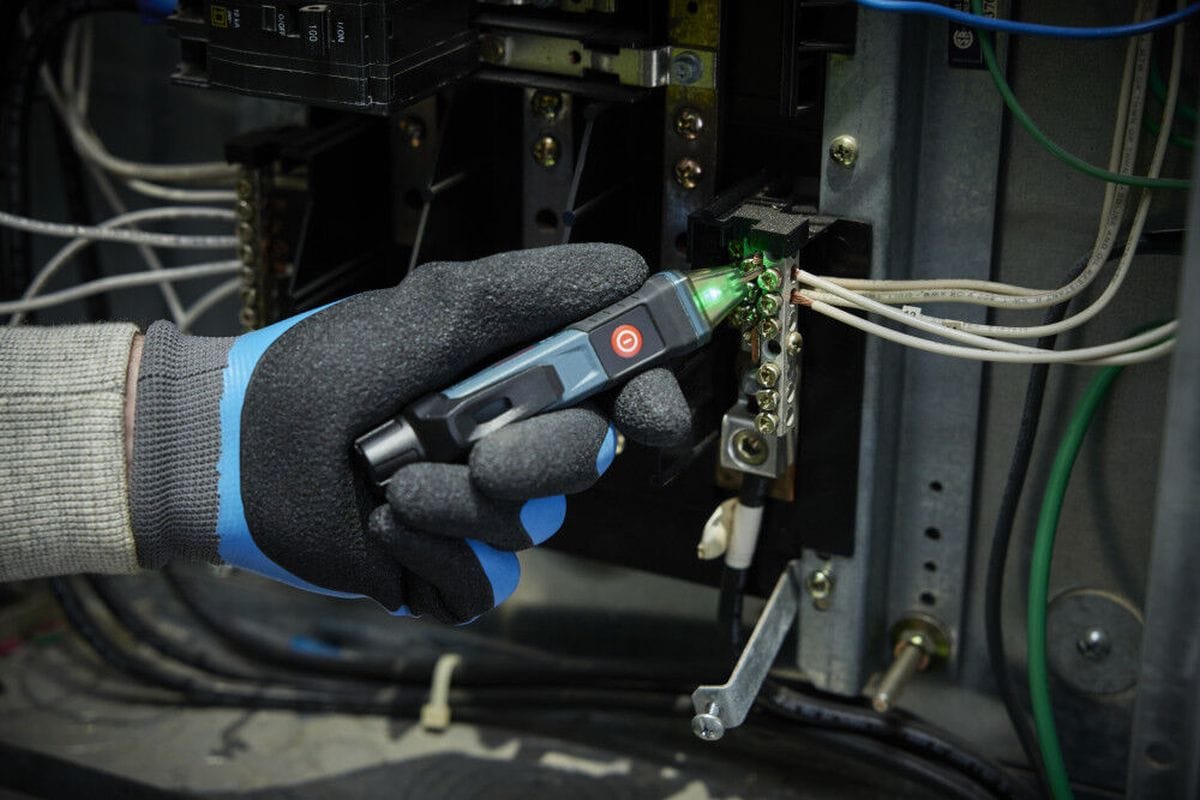

A real-world maintenance application showing a gloved technician using the Bosch GVD1000-15 circuit detector stick to inspect a neutral grounding bus terminal block inside an electrical panel box. The transparent indicator tip glows green, verifying a safe, de-energized connection before running structural repairs.
Official Bosch Measuring and Layout Tools product warranty details graphic on a dark blue background card. The clean marketing card indicates a standard 1 year tool limited warranty policy alongside an additional 1 year bonus extension available when you register the newly purchased product online within eight weeks.
A close-up studio perspective view of the standalone Bosch GVD1000-15 Non-Contact Voltage Tester Pen isolated against a white background. This high-conversion product shot showcases the signature blue and black rubberized body housing, a robust built-in pocket clip, an intuitive red power button, and a transparent multi-angle sensor tip glowing with a bright green LED notification light.
An informational product feature diagram for the Bosch GVD1000-15 voltage detector pen layout. Set against a clean dark blue backdrop, labeled lines point out the core structural benefits for search engine algorithms, including the convenient belt clip, loud audible alert buzzer, jobsite tough construction, 360 degree visual indicator tip, and integrated flashlight.
A close-up view of a professional technician's gloved hand holding the Bosch GVD1000-15 tester stick up to a row of commercial circuit breakers. The clear tip glows a strong red to signal active current presence, set above a high-contrast marketing text banner that reads Two voltage indicators: color-coded lights and audio alerts.
A field contractor wearing protective work gloves pulling the slim Bosch GVD1000-15 non-contact voltage detector pen out from the front pocket of a high-visibility yellow safety vest. The image features a lower text graphic stating Jobsite tough with TPE-reinforced housing, highlighting the tool's impact-resistant construction.
An electrician outfitted with a protective hard hat and clear safety glasses using the Bosch GVD1000-15 NCV stick to safely scan a large commercial power distribution panel cabinet. The descriptive layout features a lower text banner reading Non-contact voltage tester with 90 to 1000V range, showcasing live wire testing utility.
A real-world maintenance application showing a gloved technician using the Bosch GVD1000-15 circuit detector stick to inspect a neutral grounding bus terminal block inside an electrical panel box. The transparent indicator tip glows green, verifying a safe, de-energized connection before running structural repairs.
Official Bosch Measuring and Layout Tools product warranty details graphic on a dark blue background card. The clean marketing card indicates a standard 1 year tool limited warranty policy alongside an additional 1 year bonus extension available when you register the newly purchased product online within eight weeks.
BOSCH

Bosch Voltage Tester GVD1000-15 Non Contact Pen (1000V AC CAT IV 1000V Continuous Self Test Live Wire Audio Visual Detector Sensor Tool)

In stock
SKU: GVD1000-15
$33.95 USD

Description

Bosch Promtional Logo Logout

Bosch PRO GVD1000-15 Non-Contact Voltage Tester Pen CAT IV 1000V

The Bosch PRO GVD1000-15 Non-Contact Voltage Tester Pen operates as a frontline electrical safety and diagnostic instrument engineered to detect live AC voltage up to 1,000V across outlets, terminals, switches, and distribution panels without direct metal contact. Powered by an internal electromagnetic NCV induction sensor, this 0.245-pound tester pen features an automatic continuous self-test circuit that verifies system functionality before and during operation. Built with a TPE-reinforced overmolded housing and certified to CAT IV 1000V safety standards, this compact sensor tool utilizes dual audio-visual alerts—including a loud acoustic alarm and green/red color-coded LED cues—to isolate live electrical potential inside commercial junction boxes and high-energy sub-panels.

Best Used For:

  • Live Circuit & Breaker Verification: Checking AC potential up to 1,000V across commercial breaker panels, disconnect switches, and wall outlets prior to servicing.
  • Conductor & Junction Box Troubleshooting: Tracing live wire runs and identifying energized terminals inside crowded electrical junction boxes without stripping wire insulation.
  • High-Energy Utility Feed Inspections: Performing quick, non-invasive voltage checks on primary service entrances and industrial distribution systems under CAT IV 1000V safety environments.

Key Performance & Safety Features

  • Continuous Automatic Self-Test Circuit: Runs internal functional checks continuously before and during testing to ensure sensor accuracy and user safety.
  • Dual Audio-Visual Notification System: Combines a loud high-volume acoustic alarm with vivid LED indicators (Green = Safe, Red = Live Voltage Detected).
  • CAT IV 1000V Certified Safety Rating: Rigorously tested and certified to withstand extreme electrical surges in primary utility feeds and industrial sub-panels.
  • TPE-Reinforced Overmolded Housing: Thermoplastic elastomer chassis with a non-slip rubber grip offers superior drop resistance and jobsite impact protection.
  • Electromagnetic NCV Induction Sensor: High-sensitivity non-contact induction tip detects AC voltage through wire insulation without touching live conductors.
  • Slim Pen Profile with Heavy-Duty Pocket Clip: Lightweight, ergonomic pen layout slides easily into shirt or tool belt pockets for rapid diagnostic access.

What's Included

  • (1) Bosch GVD1000-15 Non-Contact Voltage Tester Pen
  • (2) Standard AAA Alkaline Batteries

Technical Specifications

Brand Manufacturer Bosch
Model Designation SKU GVD1000-15
Maximum AC Voltage Detection 1,000 V AC
Safety Classification Rating CAT IV 1,000 V Certified
Non-Contact Sensor Technology Electromagnetic NCV Induction Sensor
Self-Test Protocol Continuous Automatic Internal Verification
Visual Alert System Color-Coded Dual-LED (Green = Safe / Red = Live)
Acoustic Alert System High-Volume Audio Alarm Beeper
Housing Construction Material TPE-Reinforced with Ergonomic Rubber Grip
Tool Structural Height 2.3 in. (58.4 mm)
Net Dry Tool Weight 0.245 lbs. (3.92 oz.)
Assembled Package Weight 0.25 lbs. (4.0 oz.)
Power Source Supply (2) AAA Alkaline Batteries (Included)
Standard Warranty Period 1-Year Limited (Expandable to 2-Year with Registration)

Pro-Tip: Always observe the green LED indicator before touching any wire or breaker terminal. The steady green light confirms that the GVD1000-15 internal batteries are charged and the automatic self-test circuit is actively functioning, ensuring that a lack of red light truly indicates a dead circuit rather than a powered-off tester.
