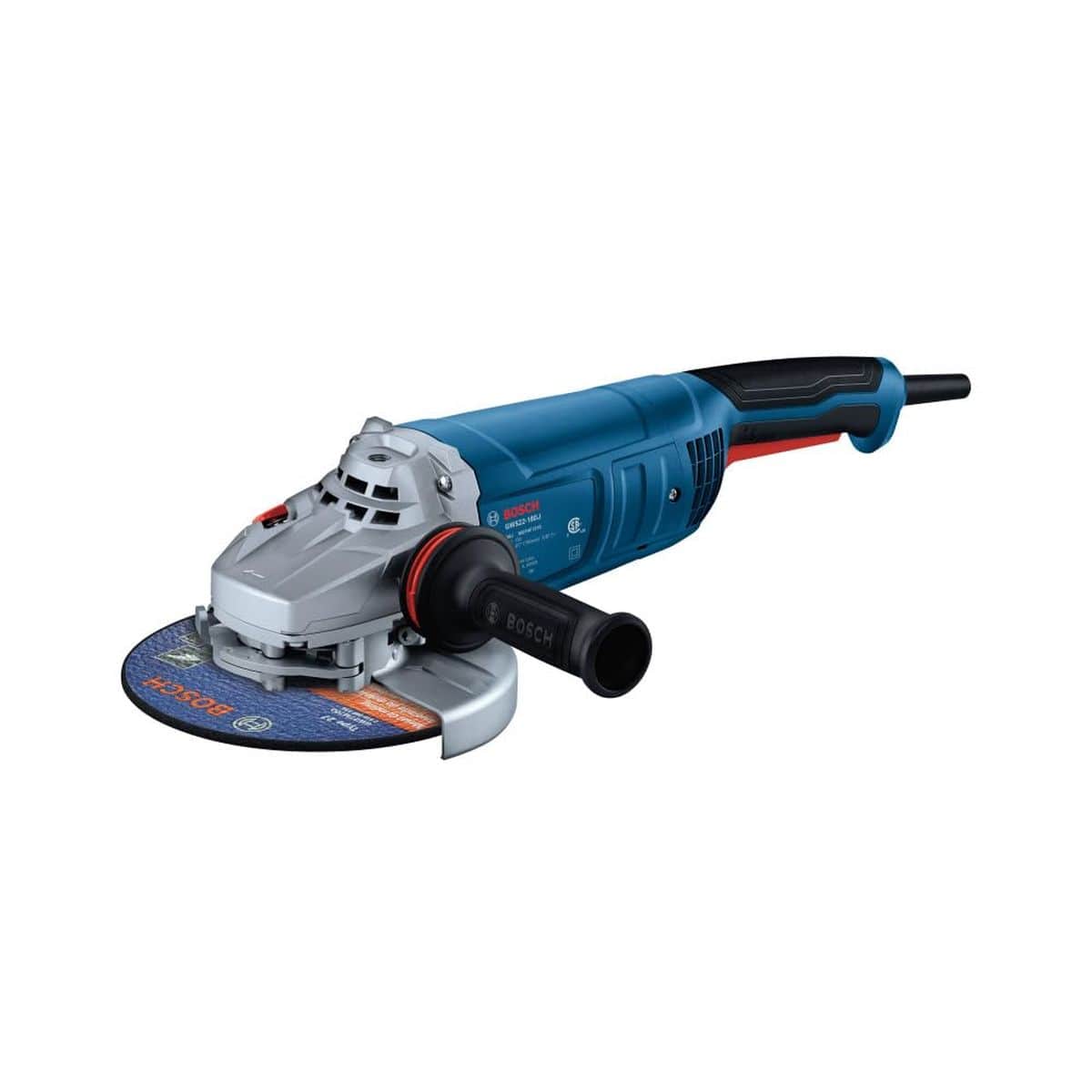

A comprehensive studio product catalog view of the Bosch GWS22-180J 7-Inch Large Angle Grinder positioned diagonally against a clean white background. This industrial power tool highlights its blue and black structural composite housing, silver metal gear enclosure, red trigger mechanism, attached auxiliary side handle, and a thick 7-inch abrasive metal grinding wheel disc locked tightly under its protective safety steel guard.

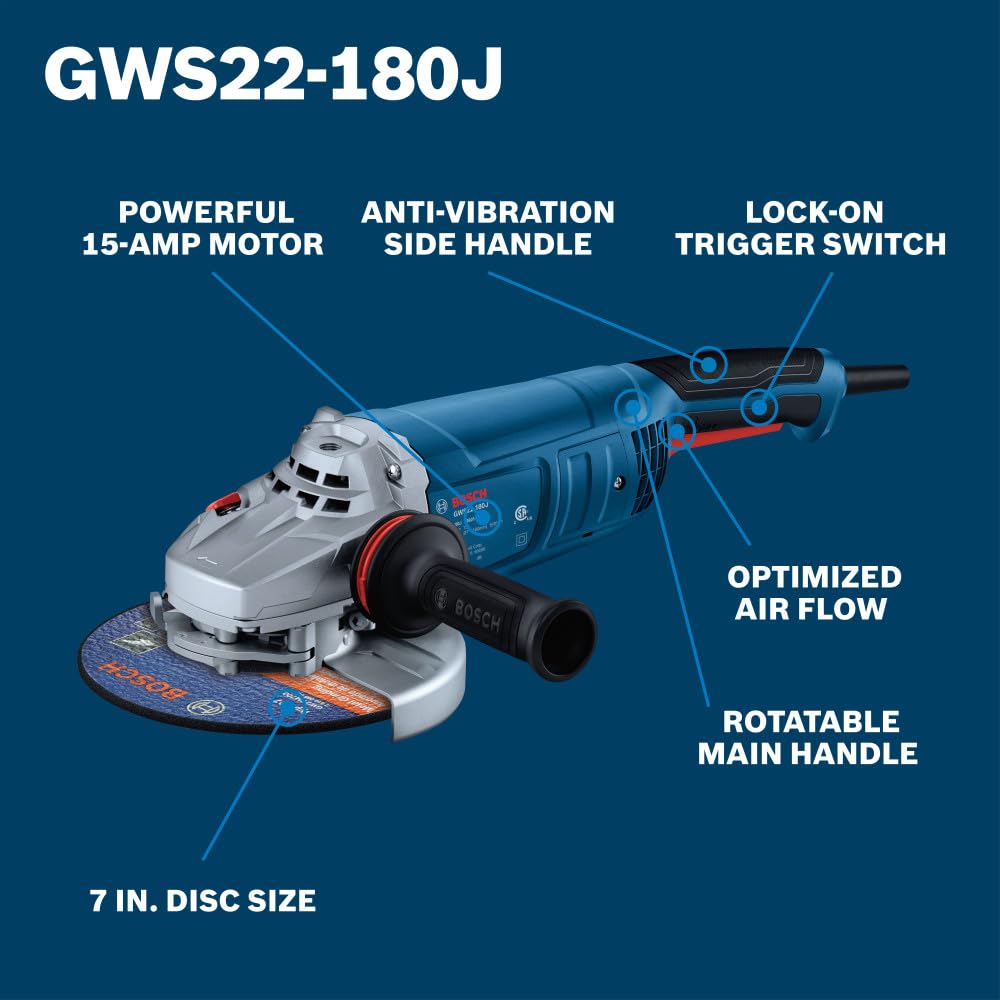

Bosch GWS22-180J 7-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, rotatable main handle, and 7-inch disc size capacity.

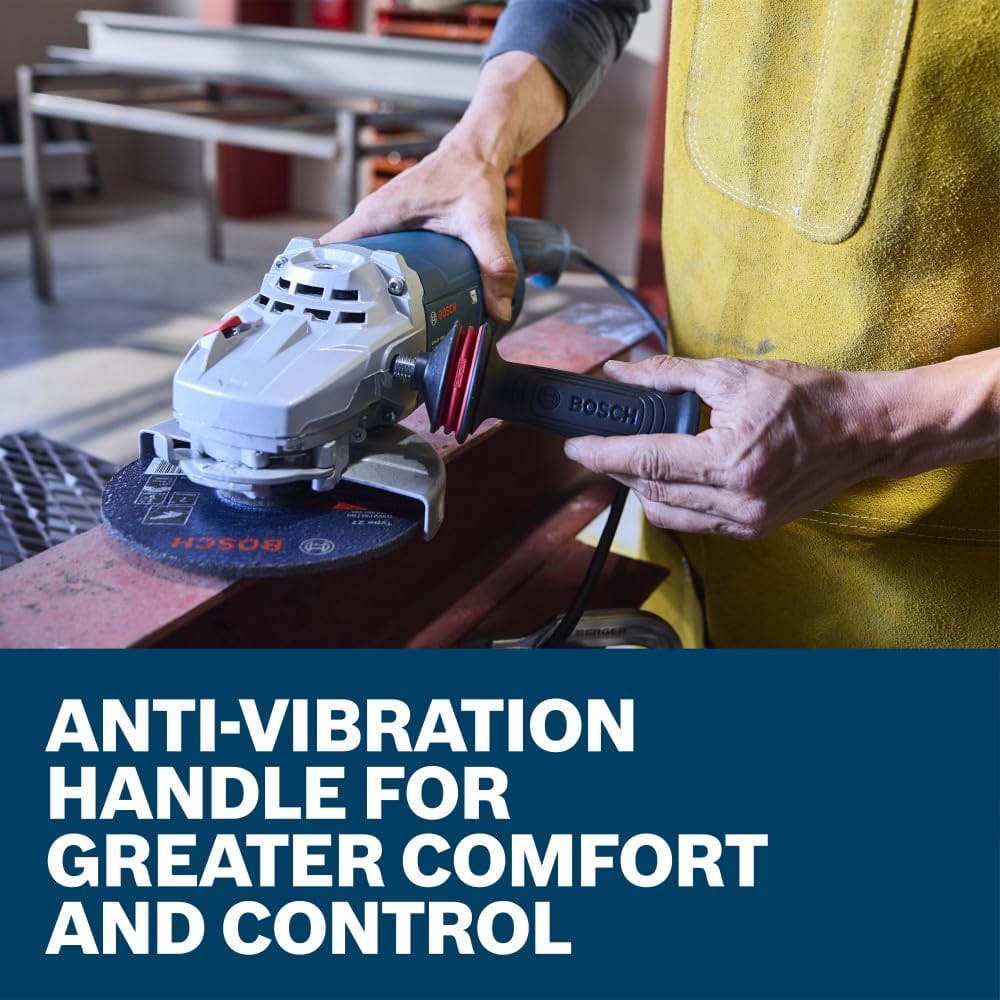

A close-up product use view capturing a workshop fabricator's hand positioning an auxiliary side handle onto the silver gear housing of the Bosch GWS22-180J metal angle grinder. Set precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the shot underscores how the dampening grip framework maximizes physical stability on the job.

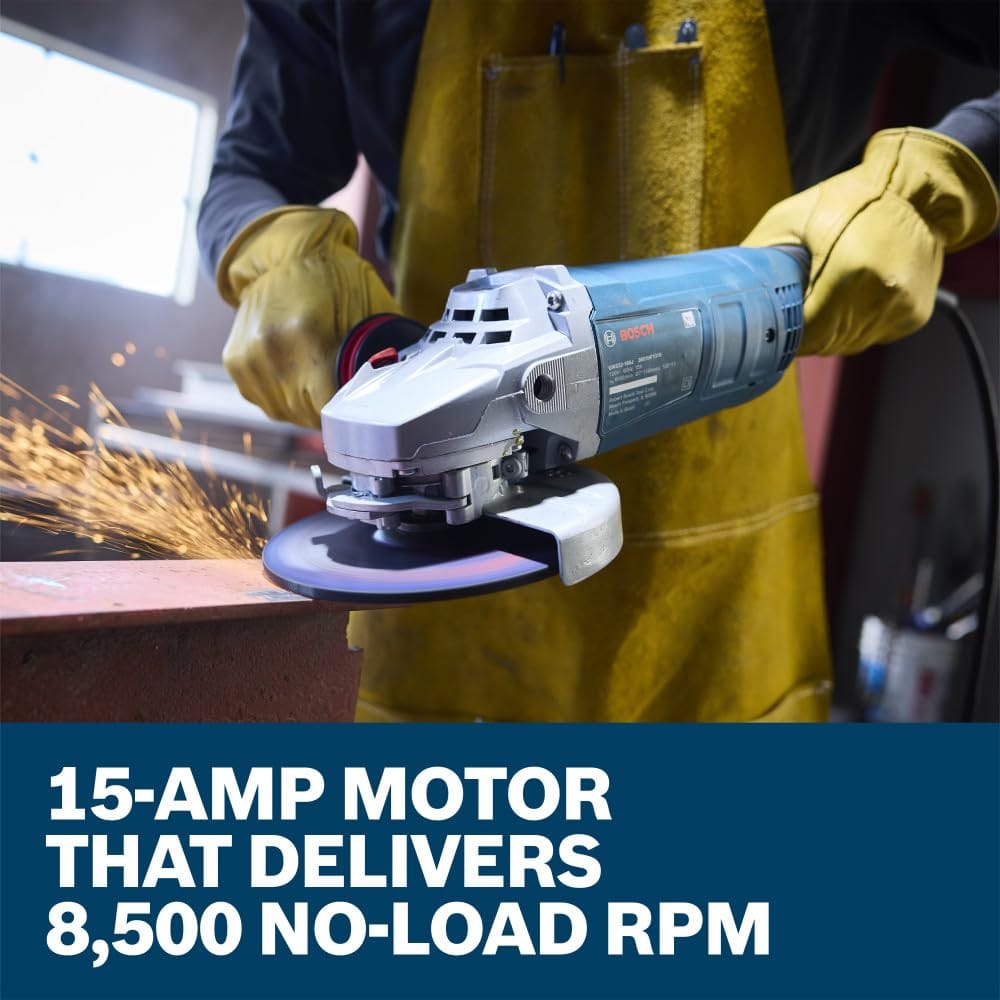

An action close-up showing a workshop fabricator wearing bright yellow leather safety welding gloves and a matching heavy leather apron operating the Bosch 15-Amp metal angle grinder. The tradesman applies steady mechanical pressure to grind down a thick steel frame bar workpiece on a table setup, set above a lower marketing text banner reading 15-Amp motor that delivers 8,500 no-load RPM.

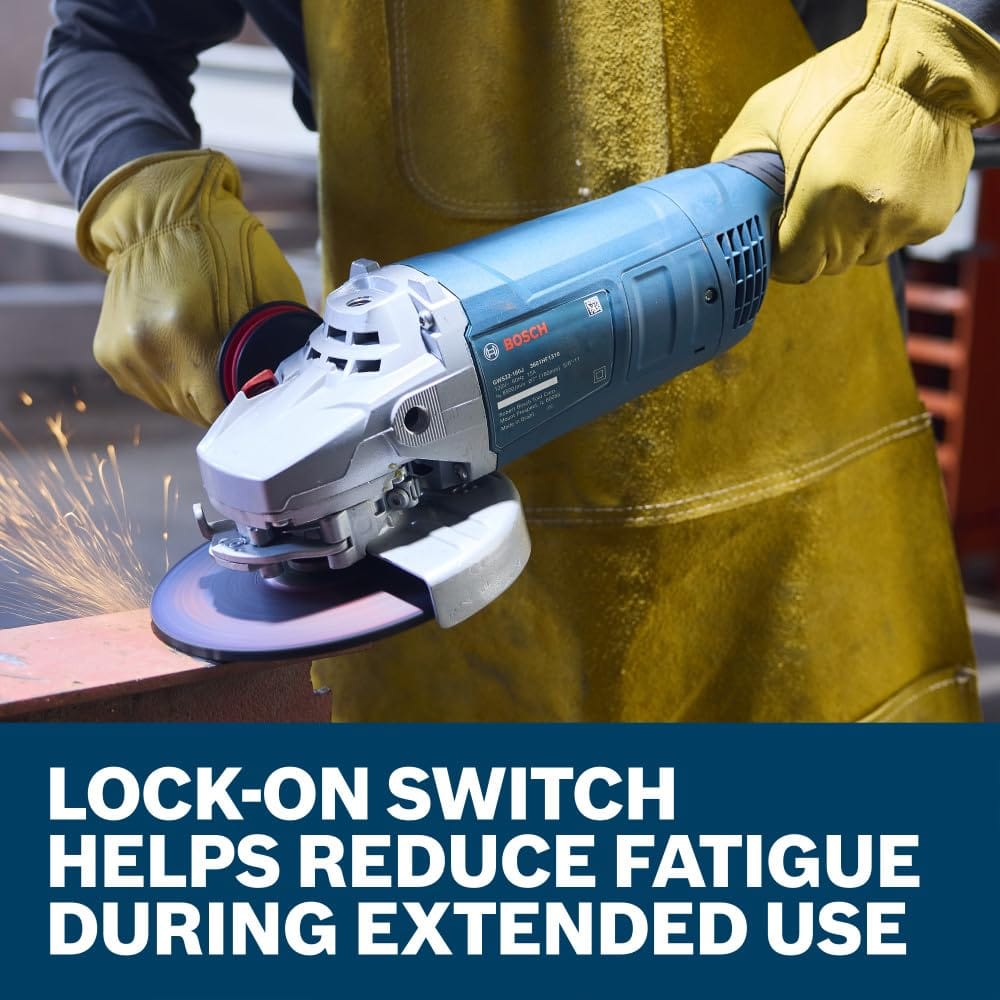

A close-up field shot capturing a shower of bright orange friction sparks spraying backwards from the cutting path as an operator uses the Bosch GWS22-180J 7-inch grinder to notch a carbon steel metal angle beam. Pictured above a matching dark blue graphic text box that reads Lock-on switch helps reduce fatigue during extended use, the view highlights the continuous material removal power of this metal processing machine.
Official corded tool product limited warranty details graphic layout sheet for the Bosch GWS22-180J 15-Amp large angle grinder platform. Set on a uniform dark blue backdrop, the clean design layout states a standard 1 year tool consumer replacement protection policy alongside specialized digital support links and toll-free service telephone lines.
A standalone studio product view identical to file GWS22-180J.jpg displaying the isolated profile of the Bosch GWS22-180J 7-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and indicators to focus exclusively on the aerodynamic motor body casing, rotatable handle structure, and robust backing flange nut array.
New Bosch 15-amp Large Angle Grinders | Bosch WOC 2026 promotional video
A comprehensive studio product catalog view of the Bosch GWS22-180J 7-Inch Large Angle Grinder positioned diagonally against a clean white background. This industrial power tool highlights its blue and black structural composite housing, silver metal gear enclosure, red trigger mechanism, attached auxiliary side handle, and a thick 7-inch abrasive metal grinding wheel disc locked tightly under its protective safety steel guard.
Bosch GWS22-180J 7-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, rotatable main handle, and 7-inch disc size capacity.
A close-up product use view capturing a workshop fabricator's hand positioning an auxiliary side handle onto the silver gear housing of the Bosch GWS22-180J metal angle grinder. Set precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the shot underscores how the dampening grip framework maximizes physical stability on the job.
An action close-up showing a workshop fabricator wearing bright yellow leather safety welding gloves and a matching heavy leather apron operating the Bosch 15-Amp metal angle grinder. The tradesman applies steady mechanical pressure to grind down a thick steel frame bar workpiece on a table setup, set above a lower marketing text banner reading 15-Amp motor that delivers 8,500 no-load RPM.
A close-up field shot capturing a shower of bright orange friction sparks spraying backwards from the cutting path as an operator uses the Bosch GWS22-180J 7-inch grinder to notch a carbon steel metal angle beam. Pictured above a matching dark blue graphic text box that reads Lock-on switch helps reduce fatigue during extended use, the view highlights the continuous material removal power of this metal processing machine.
Official corded tool product limited warranty details graphic layout sheet for the Bosch GWS22-180J 15-Amp large angle grinder platform. Set on a uniform dark blue backdrop, the clean design layout states a standard 1 year tool consumer replacement protection policy alongside specialized digital support links and toll-free service telephone lines.
A standalone studio product view identical to file GWS22-180J.jpg displaying the isolated profile of the Bosch GWS22-180J 7-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and indicators to focus exclusively on the aerodynamic motor body casing, rotatable handle structure, and robust backing flange nut array.
New Bosch 15-amp Large Angle Grinders | Bosch WOC 2026 promotional video
BOSCH

Bosch Angle Grinder GWS22-180J 7 Inch 15 Amp Corded Heavy Duty (8500 RPM 5/8-11 Spindle Lock On Switch Metal Cutting Grinding Sanding Tool)

Only 2 left
SKU: GWS22-180J
$219.00 USD

Description

Bosch Promtional Logo Logout

Bosch GWS22-180J 7 Inch 15 Amp Corded Large Angle Grinder

The Bosch GWS22-180J 7-Inch 15-Amp Large Angle Grinder serves as a heavy-duty metal cutting and surface preparation power tool engineered to slice carbon steel beams, grind multi-pass weld joints, and bevel iron pipes. Powered by a high-output 15.0-amp motor producing 8,500 no-load RPM, this corded 7-inch angle grinder features a 5/8-11 UNC spindle arbor, a continuous lock-on trigger switch, and a net tool weight of 9.7 pounds. Equipped with a soft-start torque system, restart interlock protection, and a Vibration Control auxiliary side handle, this 120V grinder includes dedicated protective guards for both metal cutting and surface grinding applications across pipe fitting and structural steel fabrication.

Best Used For:

  • Structural Steel & Pipe Slicing: Cutting through thick carbon steel beams, iron channels, structural plates, and beveling heavy-wall industrial pipe ends.
  • Multi-Pass Weld Joint Grinding: Flushing down multi-pass weld seams, removing slag, and prepping joint edges for certified structural welding.
  • Continuous Metal Surface Prep & Scale Removal: Stripping deep rust, mill scale, epoxy coatings, and corrosion across wide steel plates using the lock-on trigger switch.

Key Performance & Safety Features

  • High-Torque 15.0 Amp Motor: Industrial electric motor generates 8,500 RPM to sustain rapid stock removal rates and maintain wheel speed under structural load.
  • Continuous Lock-On Trigger Switch: Lock-on feature keeps the motor engaged continuously during long grinding passes, reducing operator hand strain and grip fatigue.
  • Vibration Control Auxiliary Side Handle: Shock-absorbing side handle dampens mechanical vibration to enhance tracking control and user comfort over long shifts.
  • Smooth Torque Soft-Start Control: Limits initial power surges at startup to eliminate aggressive torque twists when engaging the motor.
  • Smart Restart Interlock Protection: Prevents automatic motor reactivation following jobsite power supply disconnections or generator breaker trips.
  • Dual-Guard Utility Package: Includes Type A closed cutting guard and Type B open grinding guard for immediate jobsite compliance.

What's Included

  • (1) Bosch GWS22-180J 7-Inch 15-Amp Large Angle Grinder
  • (1) Type A (41/1A) Closed Metal Cutting Wheel Safety Guard
  • (1) Type B (27) Open Face Metal Grinding Wheel Safety Guard
  • (1) Vibration Control Auxiliary Side Handle
  • (1) Heavy-Duty Inner Support Backing Flange
  • (1) Threaded Outer Disc Lock Nut
  • (1) Dual-Pin Spanner Lock Nut Wrench

Technical Specifications

Brand Manufacturer Bosch
Model Identification Number SKU GWS22-180J
Motor Electrical Amperage 15.0 A
System Operating Voltage 120V AC Standard Power
No-Load Dynamic Rotation Speed 8,500 RPM
Wheel Disc Capacity Diameter 7.0 in. (177.8 mm)
Spindle Arbor Thread Size 5/8 in. - 11 UNC Threading
Switch Control Mechanism Continuous Lock-On Trigger Switch
Motor Overload Protection Sensors Yes (Integrated Thermal Monitoring)
Tool Structural Dimensions 18.5 in. L x 5.3 in. W x 4.3 in. H
Net Tool Assembled Weight 9.7 lbs. (4.40 kg)
Dust Shroud System Compatibility Bosch 19DC-7 (Cutting Hood) / Bosch 18SG-7 (Grinding Hood)

Pro-Tip: Always verify that you have mounted the correct guard before starting work: use the Type A closed guard for abrasive cut-off operations and the Type B open guard for surface grinding wheels. Matching the guard to the wheel type prevents dangerous abrasive fragments from flying toward the operator in the event of wheel breakage.
