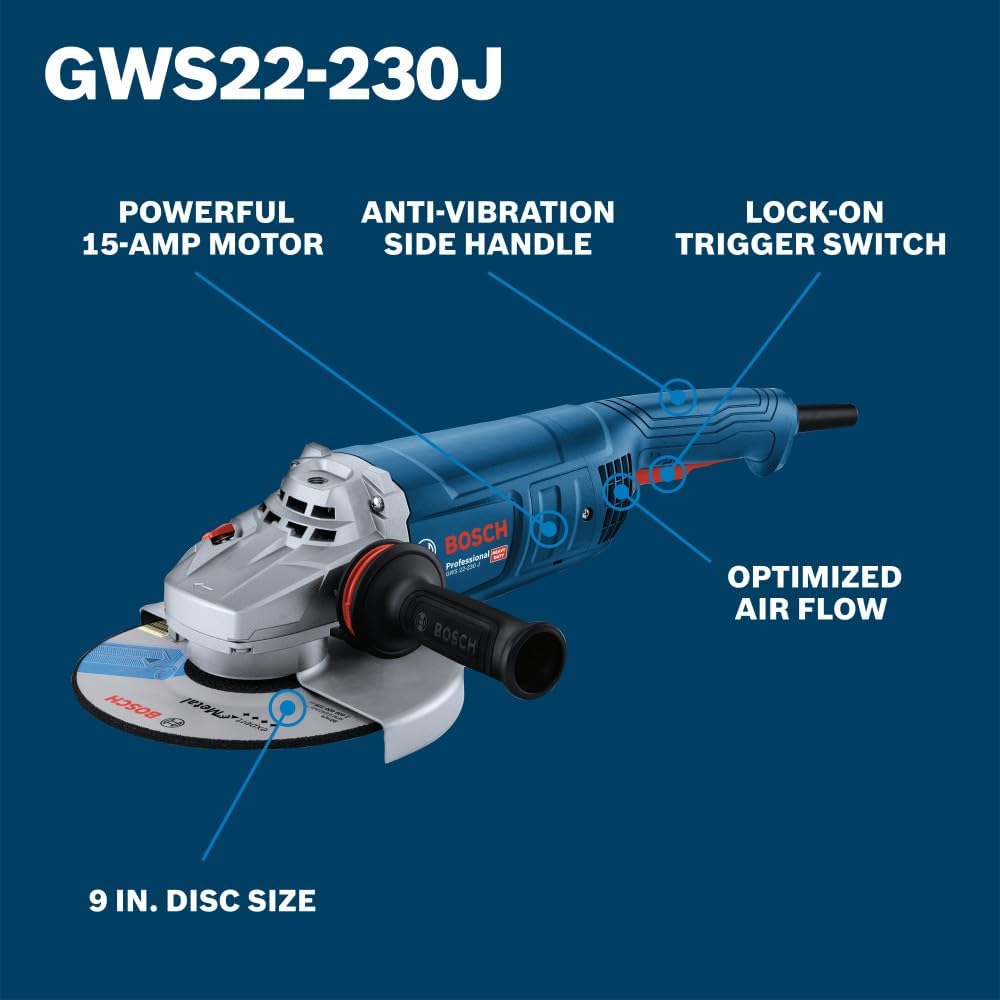

Bosch GWS22-230J 9-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, and 9-inch disc size capacity.

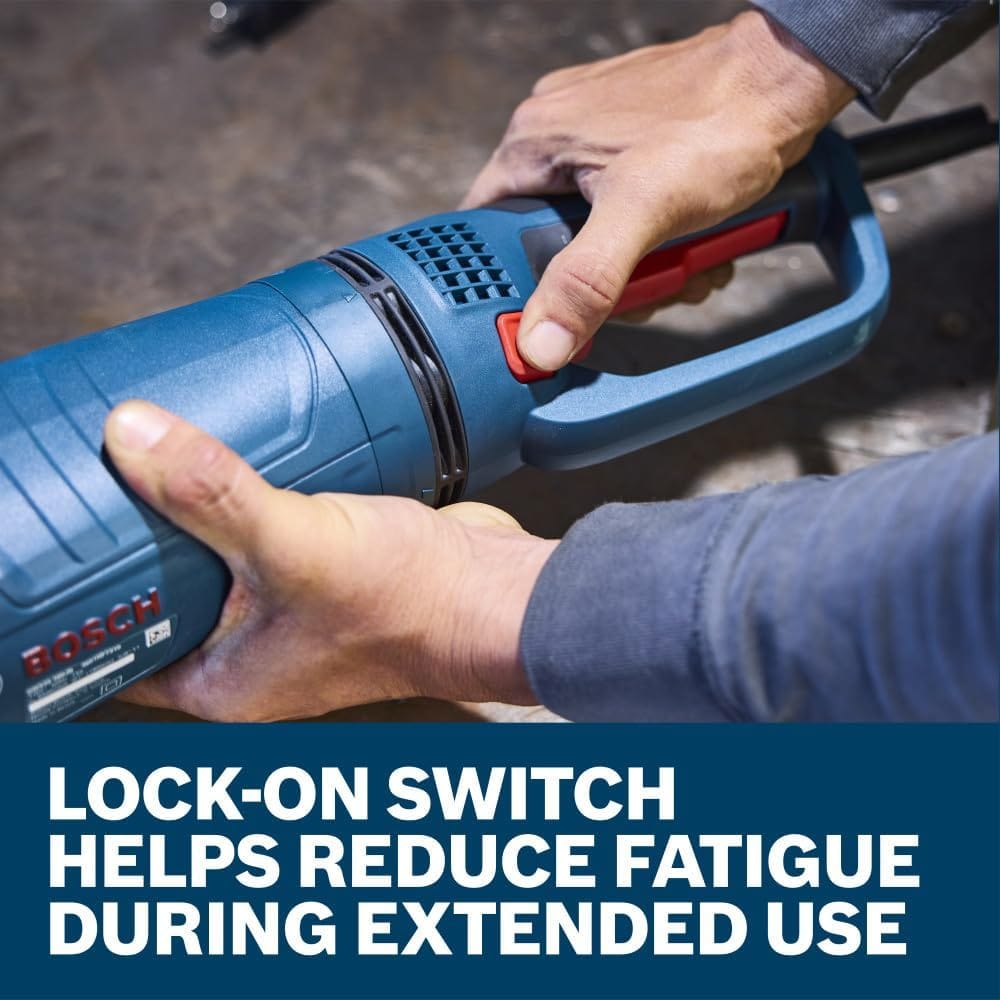

A close-up view of an operator's hands engaging the red trigger switch on the ergonomic handle of the Bosch GWS22-230J angle grinder. Set precisely above a bold blue lower text box that states Lock-on switch helps reduce fatigue during extended use, the shot highlights the user-friendly switch mechanism built for prolonged operation.

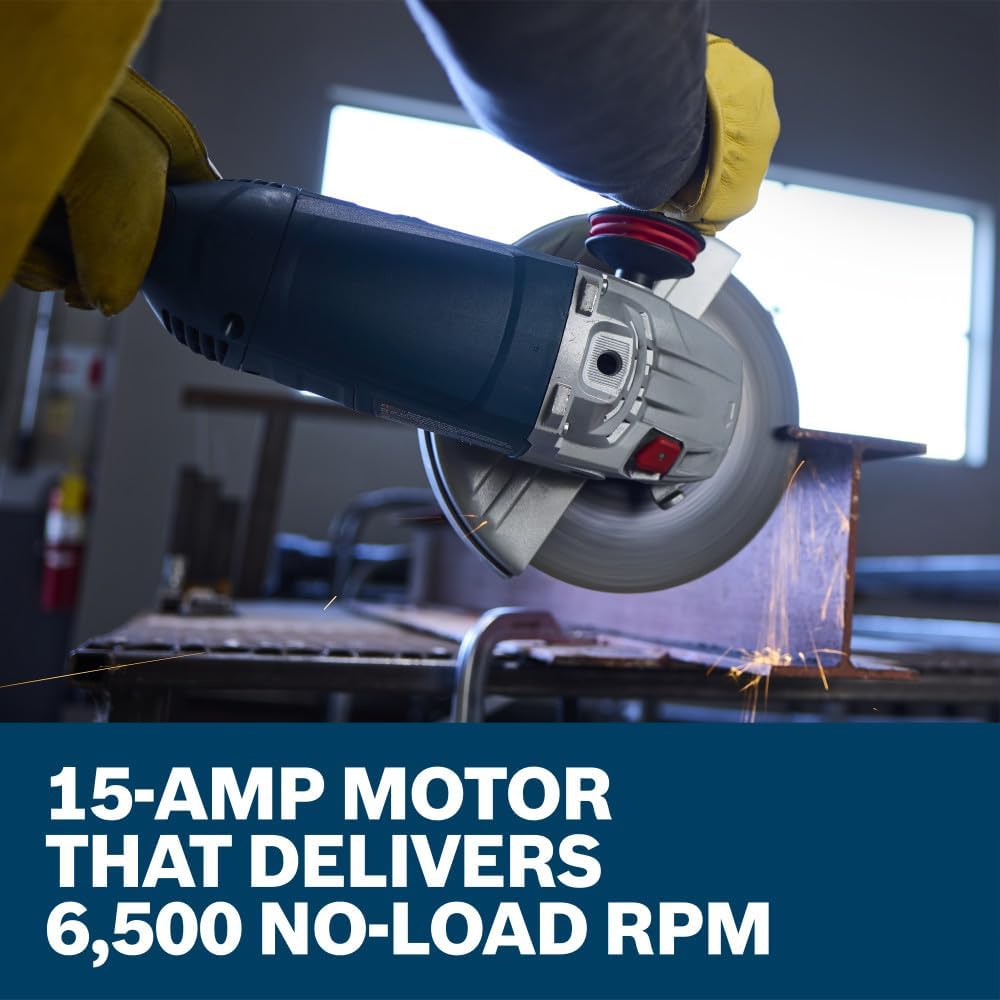

An action close-up showing a workshop fabricator wearing bright yellow leather safety welding gloves operating the Bosch 15-Amp metal angle grinder. The tradesman applies steady mechanical pressure to cut through a thick steel frame bar workpiece on a table setup, set above a lower marketing text banner reading 15-Amp motor that delivers 6,500 no-load RPM.

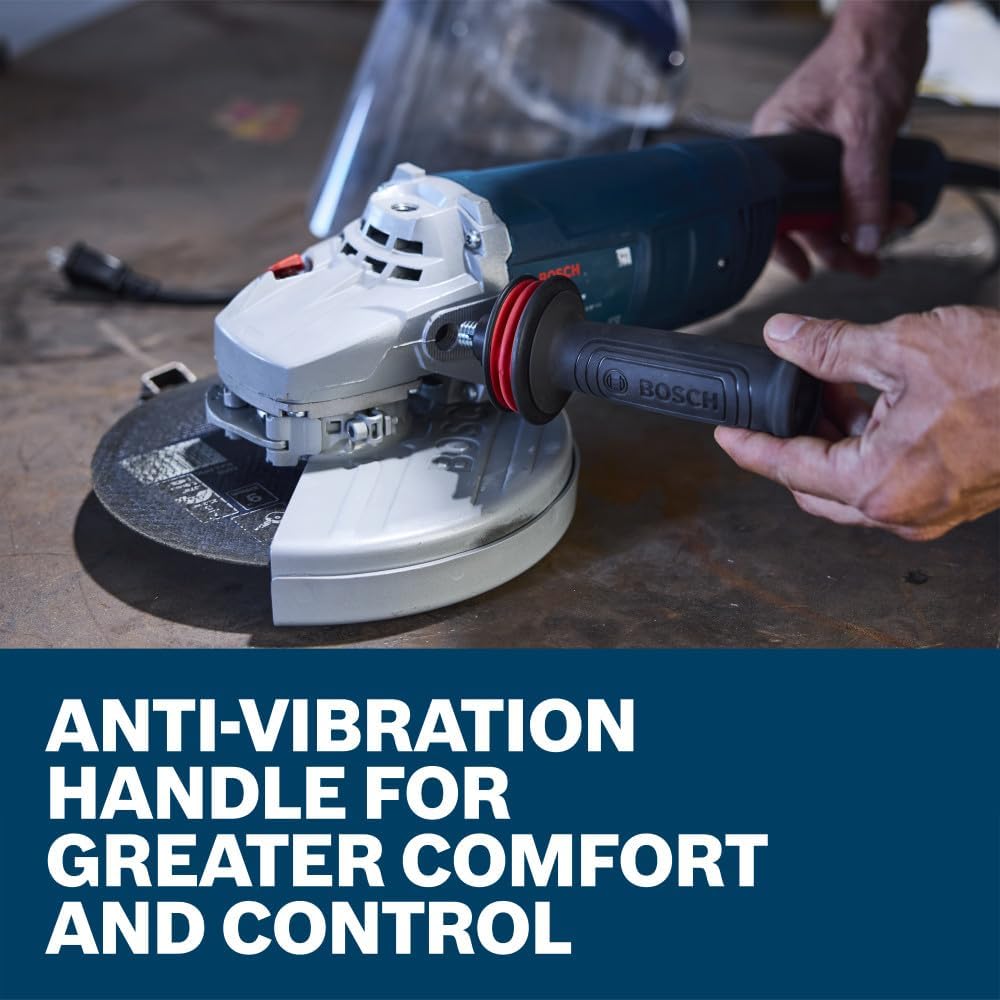

A close-up product use view capturing a workshop fabricator's hand mounting the Vibration Control auxiliary side handle onto the silver metal gear housing of the Bosch GWS22-230J industrial angle grinder. Sized precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the image highlights how the shock-absorbing grip setup stabilizes heavy grinding tasks.

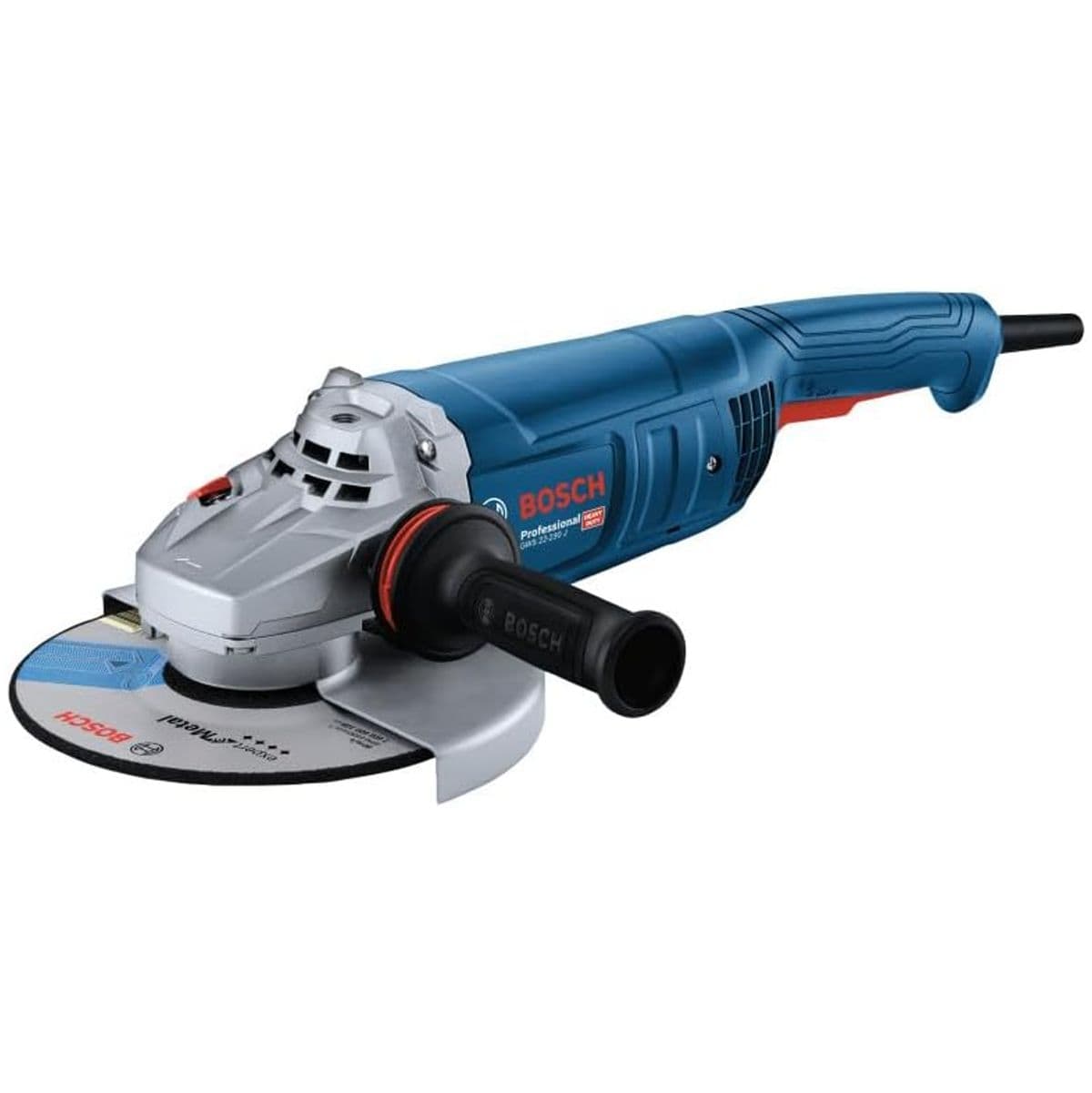

A standalone studio product view displaying the isolated profile of the Bosch GWS22-230J 9-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and indicators to focus exclusively on the aerodynamic motor body casing, robust aluminum gear head housing, and heavy-duty backing flange nut array.
A comprehensive studio product catalog view of the Bosch GWS22-230J 9-Inch Large Angle Grinder positioned diagonally against a clean white background. This industrial power tool highlights its blue and black structural composite housing, silver metal gear enclosure, red trigger mechanism, attached auxiliary side handle, and a thick 9-inch abrasive metal grinding wheel disc locked tightly under its protective safety steel guard.
Bosch GWS22-230J 9-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, and 9-inch disc size capacity.
A close-up view of an operator's hands engaging the red trigger switch on the ergonomic handle of the Bosch GWS22-230J angle grinder. Set precisely above a bold blue lower text box that states Lock-on switch helps reduce fatigue during extended use, the shot highlights the user-friendly switch mechanism built for prolonged operation.
An action close-up showing a workshop fabricator wearing bright yellow leather safety welding gloves operating the Bosch 15-Amp metal angle grinder. The tradesman applies steady mechanical pressure to cut through a thick steel frame bar workpiece on a table setup, set above a lower marketing text banner reading 15-Amp motor that delivers 6,500 no-load RPM.
A close-up product use view capturing a workshop fabricator's hand mounting the Vibration Control auxiliary side handle onto the silver metal gear housing of the Bosch GWS22-230J industrial angle grinder. Sized precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the image highlights how the shock-absorbing grip setup stabilizes heavy grinding tasks.
A standalone studio product view displaying the isolated profile of the Bosch GWS22-230J 9-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and indicators to focus exclusively on the aerodynamic motor body casing, robust aluminum gear head housing, and heavy-duty backing flange nut array.
BOSCH

Bosch Angle Grinder GWS22-230J 9 Inch 15 Amp Corded Heavy Duty (6500 RPM 5/8-11 Spindle Lock On Switch Metal Cutting Grinding Sanding Tool)

Only 2 left
SKU: GWS22-230J
$249.00 USD

Description

Bosch Promtional Logo Logout

Bosch GWS22-230J 9 Inch 15 Amp Corded Large Angle Grinder

The Bosch GWS22-230J 9-Inch 15-Amp Large Angle Grinder operates as an industrial-strength fabrication power tool engineered to cut structural steel beams, level concrete headers, and grind thick multi-pass weld joints. Driven by a high-output 15.0-amp motor delivering 6,500 no-load RPM, this corded 9-inch angle grinder features a 5/8-11 UNC spindle arbor, a continuous lock-on trigger switch, rear air-intake cooling, and a net tool weight of 9.7 pounds. Built with soft-start electronics, restart protection, and a Vibration Control auxiliary side handle, this 120V grinder includes dedicated protective guards for both metal cutting and surface grinding across masonry and structural steel projects.

Best Used For:

  • Heavy Structural Steel Slicing & Beam Cutting: Slicing thick carbon steel I-beams, iron channels, structural plates, and heavy cast-iron components.
  • Commercial Weld Joint Grinding & Concrete Leveling: Flushing down multi-pass weld seams and leveling rough poured concrete headers or masonry block walls.
  • Expansive Surface Prep & Scale Removal: Stripping deep rust, mill scale, epoxy coatings, and slag across wide metal surfaces using the lock-on trigger switch.

Key Performance & Safety Features

  • High-Torque 15.0 Amp Motor: Industrial electric motor generates 6,500 RPM to sustain rapid material removal rates and maintain wheel speed under structural load.
  • Extended 9-Inch Wheel Capacity: Large-format 9-inch disc footprint covers more surface area per pass to reduce job completion times on expansive metal assemblies.
  • Continuous Lock-On Trigger Switch: Ergonomic trigger lock keeps the motor engaged continuously during long runs to eliminate hand strain and grip fatigue.
  • Vibration Control Auxiliary Side Handle: Shock-absorbing side handle dampens mechanical vibration to enhance tracking control and user comfort over long shifts.
  • Smooth Torque Soft-Start Control: Limits initial power surges at startup to eliminate aggressive torque twists when engaging the motor.
  • Smart Restart Interlock Protection: Prevents automatic motor reactivation following jobsite power supply disconnections or generator breaker trips.

What's Included

  • (1) Bosch GWS22-230J 9-Inch 15-Amp Large Angle Grinder
  • (1) Type A (41/1A) Closed Metal Cutting Wheel Safety Guard
  • (1) Type B (27) Open Face Metal Grinding Wheel Safety Guard
  • (1) Vibration Control Auxiliary Side Handle
  • (1) Heavy-Duty Inner Support Backing Flange
  • (1) Threaded Outer Disc Lock Nut
  • (1) Dual-Pin Spanner Lock Nut Wrench

Technical Specifications

Brand Manufacturer Bosch
Model Identification Number SKU GWS22-230J
Motor Electrical Amperage 15.0 A
System Operating Voltage 120V AC Standard Power
No-Load Dynamic Rotation Speed 6,500 RPM
Wheel Disc Capacity Diameter 9.0 in. (228.6 mm)
Spindle Arbor Thread Size 5/8 in. - 11 UNC Threading
Switch Control Mechanism Continuous Lock-On Trigger Switch
Motor Overload Protection Sensors Yes (Integrated Thermal Monitoring)
Tool Structural Dimensions 18.5 in. L x 5.3 in. W x 4.3 in. H
Net Tool Assembled Weight 9.7 lbs. (4.40 kg)
Dust Shroud System Compatibility Bosch 19DC-9 / 19DC-7 (Cutting) & Bosch 18SG-7 (Grinding)

Pro-Tip: When grinding concrete or masonry headers with diamond cup wheels, connect a compatible Bosch dust collection shroud (such as the 18SG-7) to a vacuum system. Containing airborne silica dust protects motor bearings from premature abrasive wear while maintaining compliance with OSHA jobsite air safety standards.
