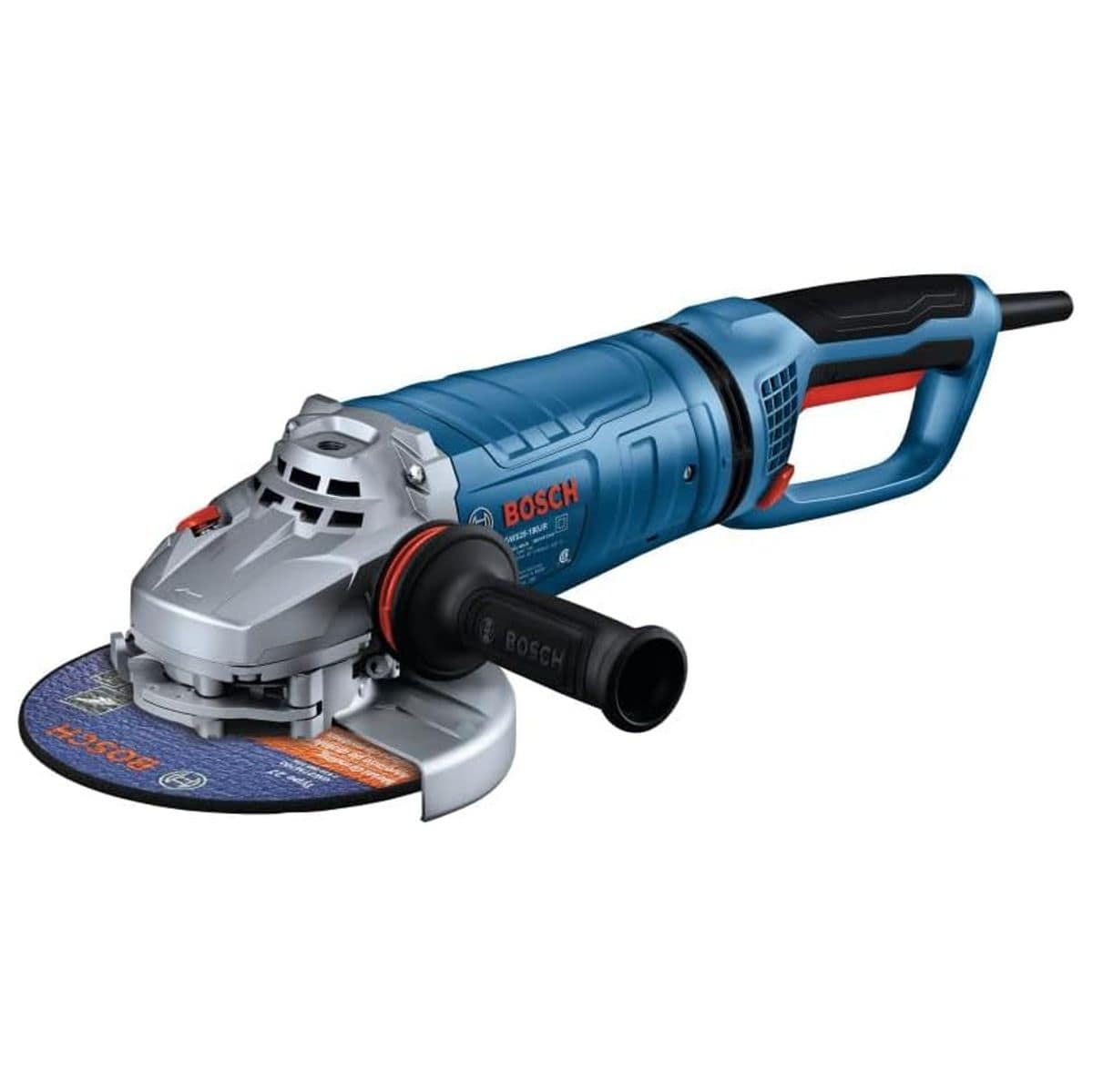

A comprehensive studio product view of the Bosch GWS25-180JR 7-Inch 15-Amp Large Angle Grinder positioned diagonally against a crisp white background. This industrial power tool highlights its blue and black structural composite housing, silver metal gear enclosure, red trigger mechanism, attached auxiliary side handle, and a thick 7-inch abrasive metal grinding wheel disc locked tightly under its protective safety steel guard.

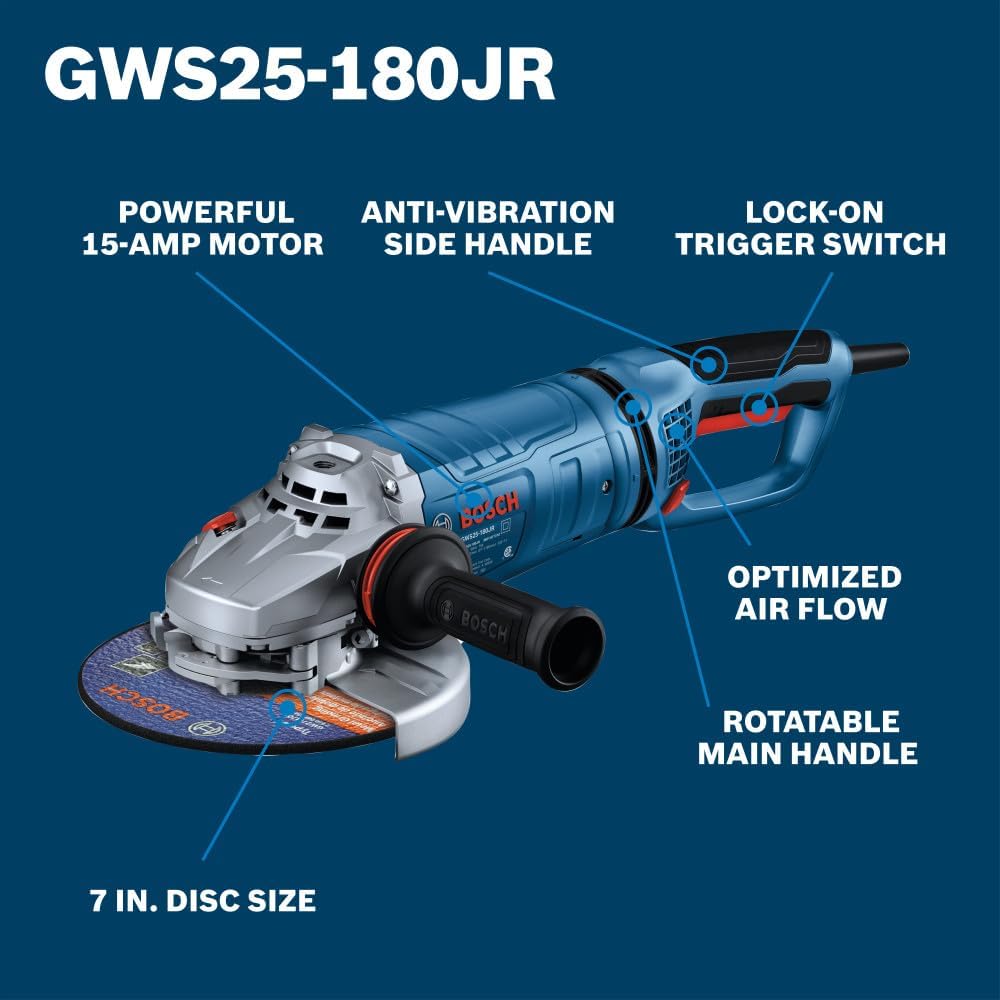

Bosch GWS25-180JR 7-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, rotatable main handle, and 7-inch disc size capacity.

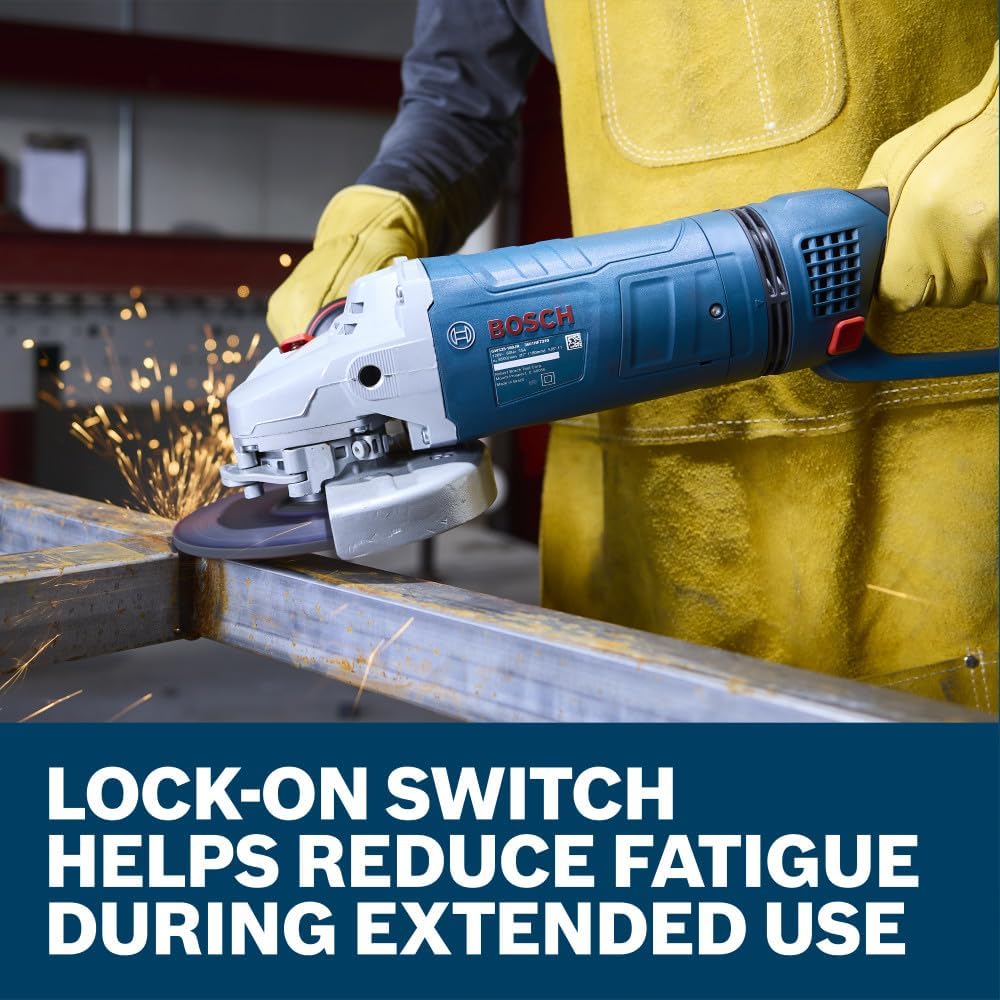

An action close-up showing a workshop fabricator wearing bright yellow leather safety welding gloves and a matching heavy leather apron operating the Bosch 15-Amp metal angle grinder. The tradesman applies steady mechanical pressure to grind down a thick steel frame bar workpiece on a table setup, set above a lower marketing text banner reading Lock-on switch helps reduce fatigue during extended use.

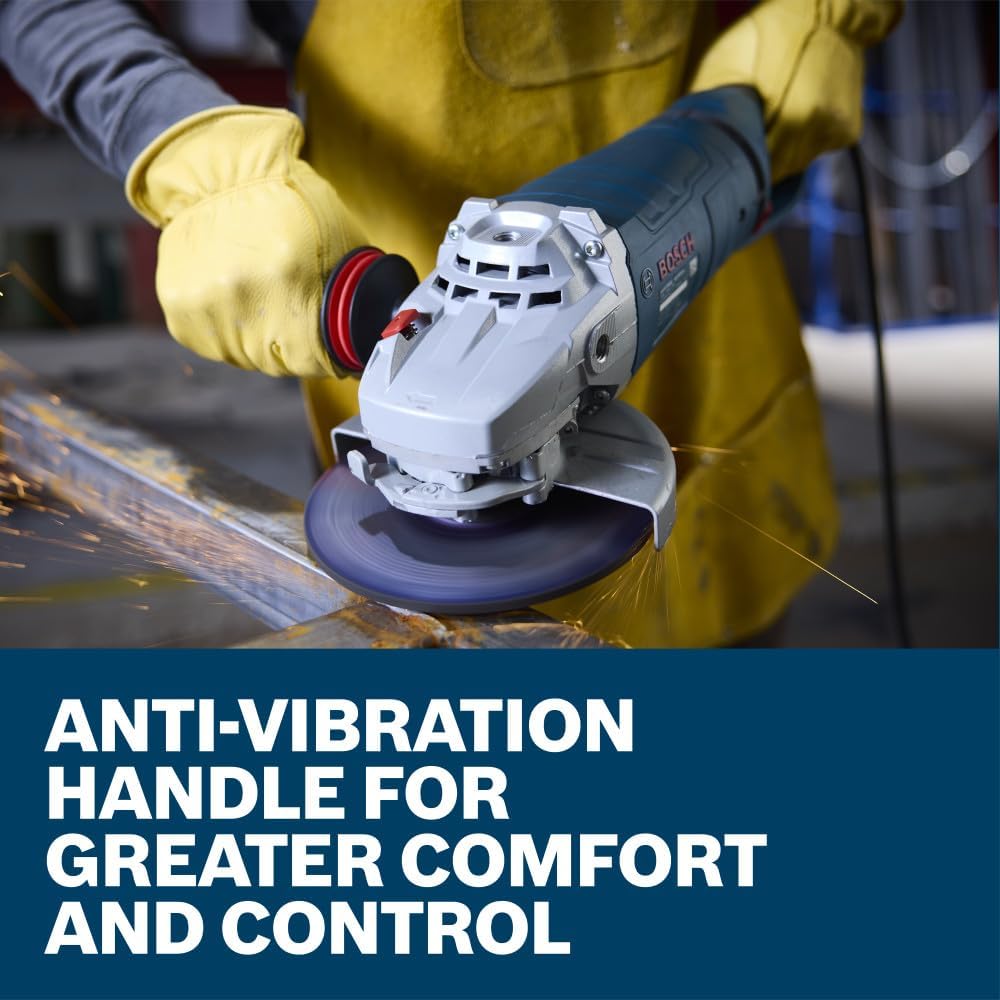

A professional technician handling the Bosch GWS25-180JR heavy-duty corded angle grinder to smooth out raw structural components inside an industrial workspace. Sized precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the close-up shot underscores how the dampening side handle stabilizes tracking to protect hand comfort.

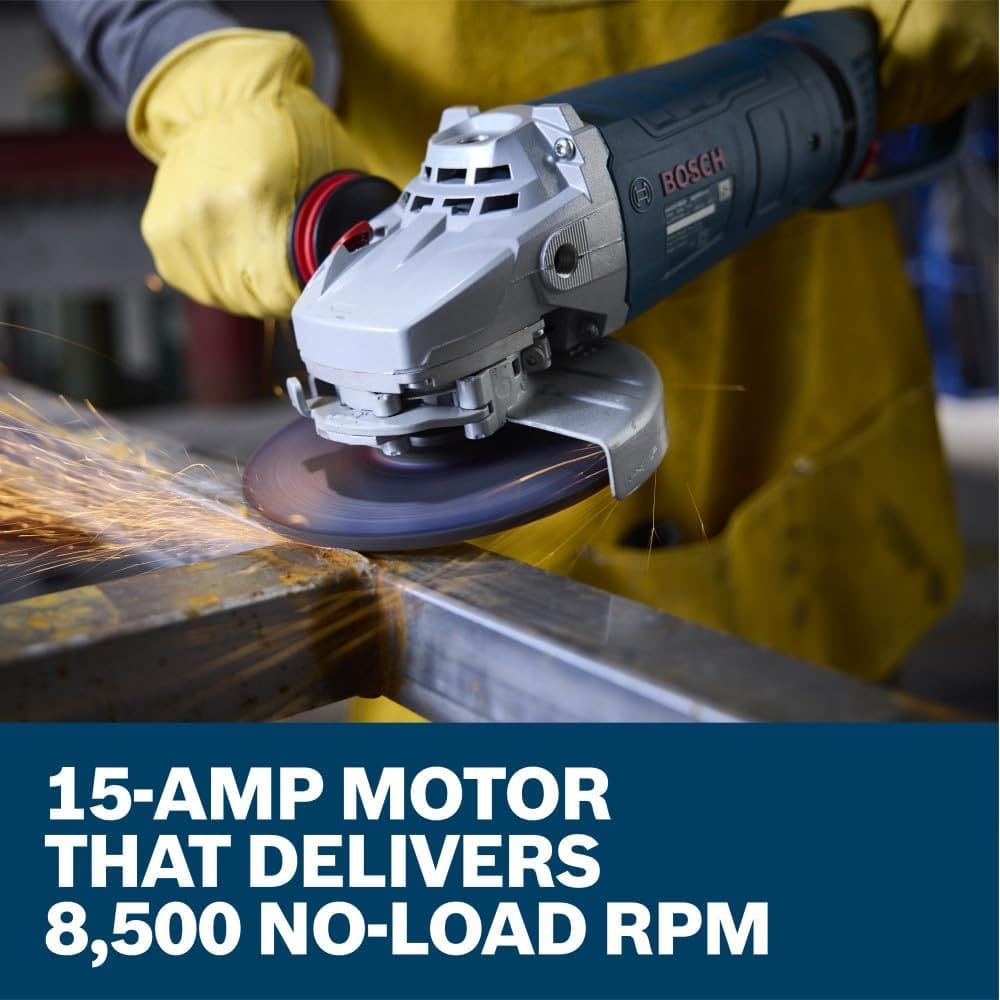

A close-up field shot capturing a shower of bright orange friction sparks spraying backwards from the cutting path as an operator uses the Bosch GWS25-180JR 7-inch grinder to notch a carbon steel metal angle beam. Pictured above a matching dark blue graphic text box that reads 15-Amp motor that delivers 8,500 no-load RPM, the view highlights the raw material removal power of this metal processing machine.
Official corded tool product limited warranty details graphic layout sheet for the Bosch GWS25-180JR 15-Amp large angle grinder platform. Set on a uniform dark blue backdrop, the clean design layout states a standard 1 year tool consumer replacement protection policy alongside specialized digital support links and toll-free service telephone lines.
A standalone studio product view identical to file GWS25-180JR.jpg displaying the isolated profile of the Bosch GWS25-180JR 7-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and accessories to focus exclusively on the aerodynamic motor body casing, rotatable handle structure, and robust backing flange nut array.
New Bosch 15-amp Large Angle Grinders | Bosch WOC 2026 promotional video
A comprehensive studio product view of the Bosch GWS25-180JR 7-Inch 15-Amp Large Angle Grinder positioned diagonally against a crisp white background. This industrial power tool highlights its blue and black structural composite housing, silver metal gear enclosure, red trigger mechanism, attached auxiliary side handle, and a thick 7-inch abrasive metal grinding wheel disc locked tightly under its protective safety steel guard.
Bosch GWS25-180JR 7-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, rotatable main handle, and 7-inch disc size capacity.
An action close-up showing a workshop fabricator wearing bright yellow leather safety welding gloves and a matching heavy leather apron operating the Bosch 15-Amp metal angle grinder. The tradesman applies steady mechanical pressure to grind down a thick steel frame bar workpiece on a table setup, set above a lower marketing text banner reading Lock-on switch helps reduce fatigue during extended use.
A professional technician handling the Bosch GWS25-180JR heavy-duty corded angle grinder to smooth out raw structural components inside an industrial workspace. Sized precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the close-up shot underscores how the dampening side handle stabilizes tracking to protect hand comfort.
A close-up field shot capturing a shower of bright orange friction sparks spraying backwards from the cutting path as an operator uses the Bosch GWS25-180JR 7-inch grinder to notch a carbon steel metal angle beam. Pictured above a matching dark blue graphic text box that reads 15-Amp motor that delivers 8,500 no-load RPM, the view highlights the raw material removal power of this metal processing machine.
Official corded tool product limited warranty details graphic layout sheet for the Bosch GWS25-180JR 15-Amp large angle grinder platform. Set on a uniform dark blue backdrop, the clean design layout states a standard 1 year tool consumer replacement protection policy alongside specialized digital support links and toll-free service telephone lines.
A standalone studio product view identical to file GWS25-180JR.jpg displaying the isolated profile of the Bosch GWS25-180JR 7-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and accessories to focus exclusively on the aerodynamic motor body casing, rotatable handle structure, and robust backing flange nut array.
New Bosch 15-amp Large Angle Grinders | Bosch WOC 2026 promotional video
BOSCH

Bosch GWS25-180JR 7 Inch Large Angle Grinder 15 Amp Corded Heavy Duty Metal Cutting Wheel Surface Disc Grinding Sanding Power Tool Protective Guards

Only 2 left
SKU: GWS25-180JR
$249.00 USD

Description

Bosch Promtional Logo Logout

Bosch GWS25-180JR 7 Inch 15 Amp Corded Large Angle Grinder

The Bosch GWS25-180JR 7-Inch 15-Amp Large Angle Grinder operates as an industrial surface preparation and metal cutting power tool engineered to slice carbon steel beams, grind heavy weld seams, and strip rust scale across large metal assemblies. Driven by a high-output 15.0-amp motor producing 8,500 no-load RPM, this corded 7-inch angle grinder features a rotatable main handle, a 5/8-11 UNC spindle arbor, a continuous lock-on trigger switch, and a net tool weight of 10.9 pounds. Equipped with soft-start motor control, restart interlock protection, and a Vibration Control auxiliary side handle, this 120V grinder includes dedicated protective guards for both metal cutting and grinding applications in structural steel and commercial pipe fabrication.

Best Used For:

  • Structural Steel Slicing & Beveling: Cutting through carbon steel I-beams, iron channels, structural metal plates, and beveling heavy-wall industrial pipe profiles.
  • Commercial Weld Cleaning & Smoothing: Grinding down thick multi-pass weld seams, removing slag, and prepping joint edges for certified structural welding.
  • Continuous Heavy Metal Surface Preparation: Stripping deep rust, mill scale, epoxy coatings, and corrosion across expansive steel surfaces using the lock-on trigger.

Key Performance & Safety Features

  • High-Torque 15.0 Amp Motor: Industrial electric motor cranks out 8,500 RPM to sustain high material removal rates in carbon steel, cast iron, and metal weldments.
  • Continuous Lock-On Trigger Switch: Ergonomic lock-on button keeps the motor engaged during long runs, reducing hand strain during extended grinding passes.
  • Multi-Position Rotatable Main Handle: Rear main handle turns and locks to provide optimal hand placement and body posture for vertical or horizontal cutting angles.
  • Vibration Control Side Grip: Shock-absorbing auxiliary handle dampens mechanical vibration to reduce operator fatigue and improve handling control.
  • Smooth Torque Soft-Start Control: Limits initial power surges at startup to eliminate aggressive torque twists when engaging the motor.
  • Smart Restart Interlock Protection: Prevents automatic motor reactivation following jobsite power supply interruptions, trips, or generator resets.

What's Included

  • (1) Bosch GWS25-180JR 7-Inch 15-Amp Large Angle Grinder
  • (1) Type A (41/1A) Closed Metal Cutting Wheel Safety Guard
  • (1) Type B (27) Open Face Metal Grinding Wheel Safety Guard
  • (1) Vibration Control Auxiliary Side Handle
  • (1) Heavy-Duty Inner Support Backing Flange
  • (1) Threaded Outer Disc Lock Nut
  • (1) Specialized Dual-Pin Spanner Lock Nut Wrench

Technical Specifications

Brand Manufacturer Bosch
Model Identification Number SKU GWS25-180JR
Motor Electrical Amperage 15.0 A
System Operating Voltage 120V AC Standard Power
No-Load Dynamic Rotation Speed 8,500 RPM
Wheel Disc Capacity Diameter 7.0 in. (177.8 mm)
Spindle Arbor Thread Size 5/8 in. - 11 UNC Threading
Switch Control Mechanism Continuous Lock-On Trigger Switch
Motor Overload Protection Sensors Yes (Integrated Thermal Monitoring)
Tool Structural Dimensions 20.3 in. L x 5.3 in. W x 4.3 in. H
Net Tool Assembled Weight 10.9 lbs. (4.94 kg)
Dust Shroud Compatibility Bosch 19DC-7 (Cutting Hood) / Bosch 18SG-7 (Grinding Hood)

Pro-Tip: When grinding expansive steel plates for long periods, engage the lock-on trigger and use both hands to support the weight of the grinder via the rotatable handle and Vibration Control side grip. Maintaining a consistent 15 to 30 degree disc angle across the workpiece prevents surface gouging and maximizes grinding wheel life.
