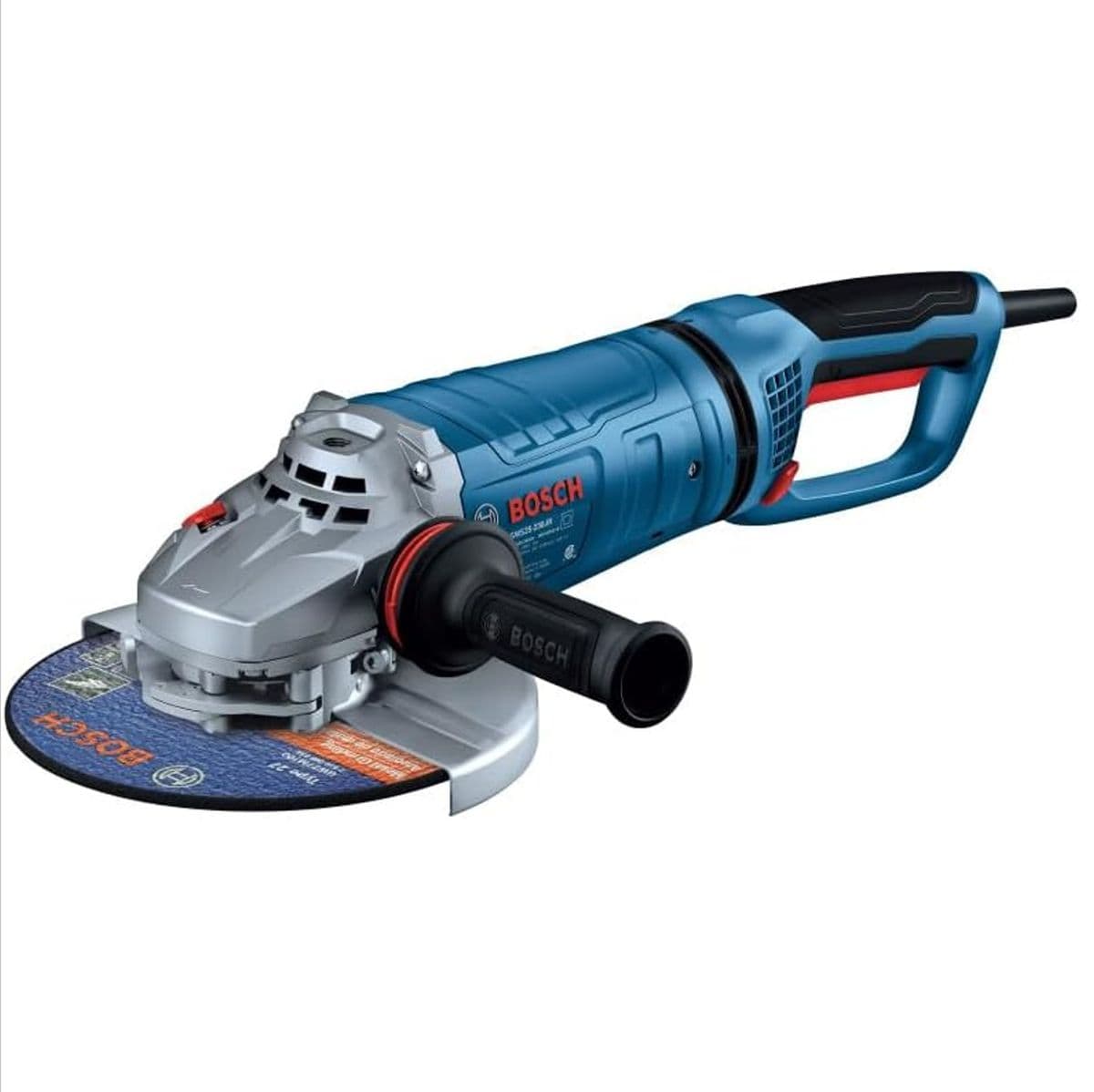

A comprehensive studio product catalog view of the Bosch GWS25-230JR 9-Inch Large Angle Grinder positioned diagonally against a clean white background. This industrial power tool highlights its blue and black structural composite housing, silver metal gear enclosure, red trigger mechanism, attached auxiliary side handle, and a thick 9-inch abrasive metal grinding wheel disc locked tightly under its protective safety steel guard.

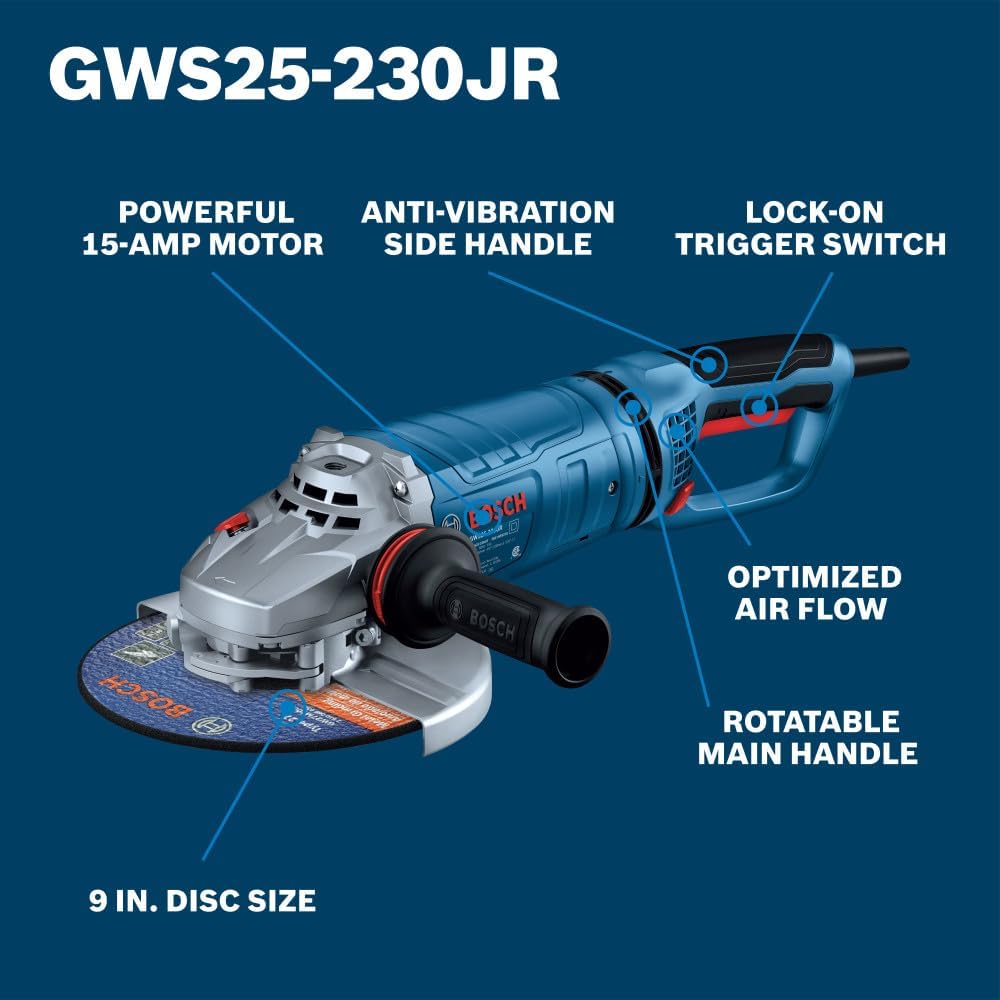

Bosch GWS25-230JR 9-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, rotatable main handle, and 9-inch disc size capacity.

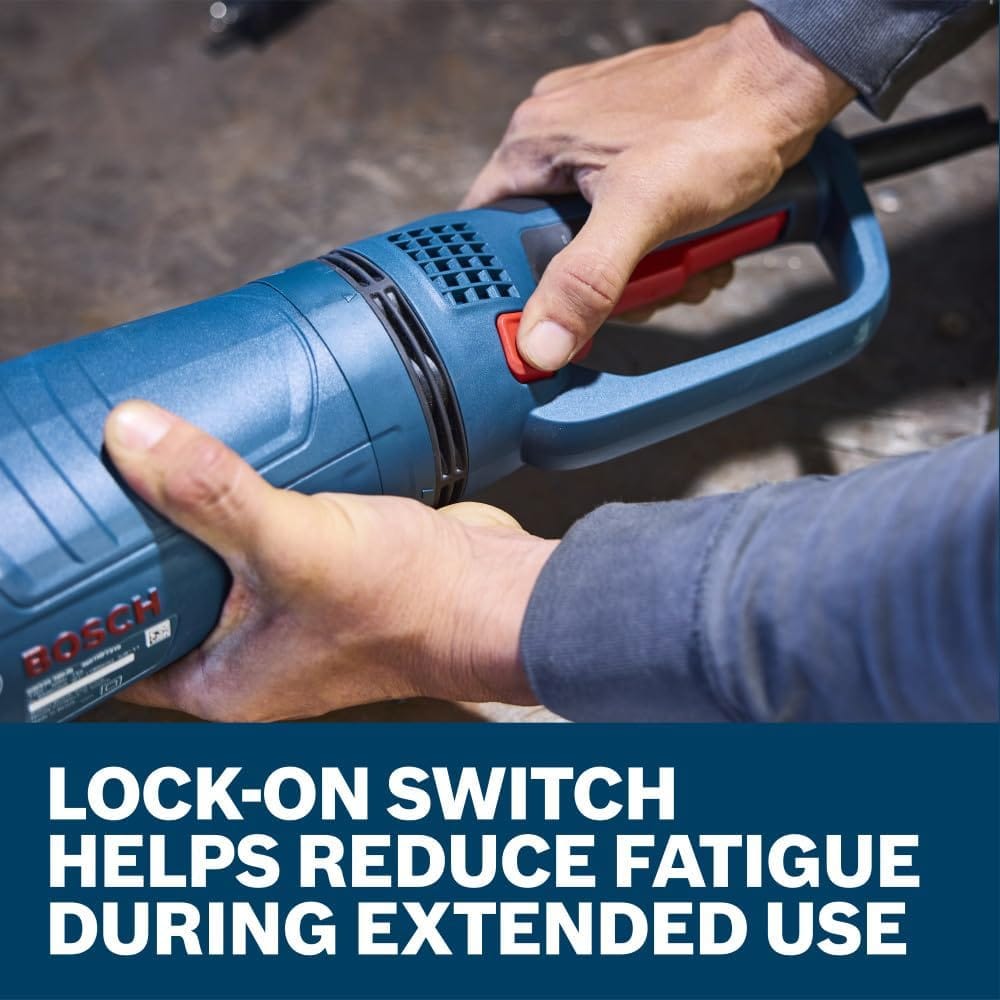

An action close-up focusing on an operator's hands engaging the red switch mechanism on the handle of the Bosch GWS25-230JR metal angle grinder. This high-conversion marketing view is positioned above a solid blue lower text block reading Lock-on switch helps reduce fatigue during extended use.

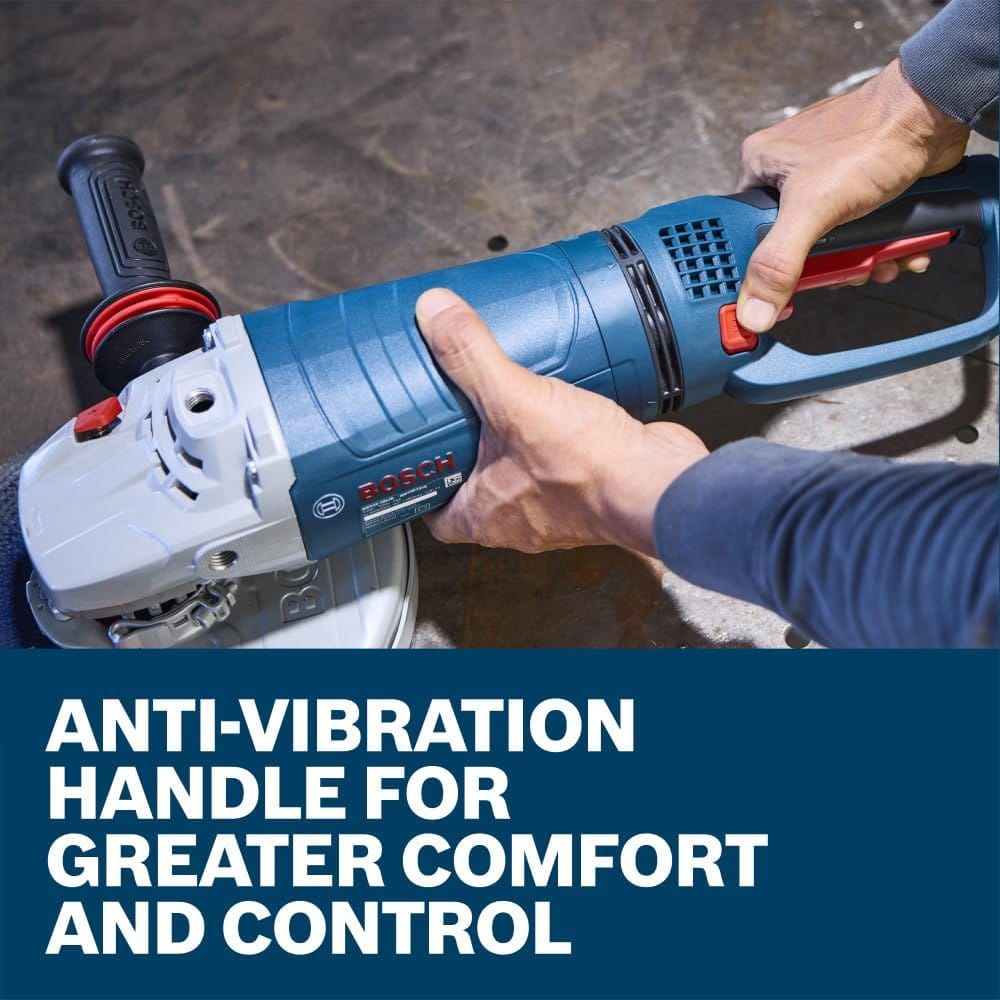

A detailed product view showing a close-up of a worker adjusting the orientation of the rotatable main handle on the Bosch heavy-duty corded angle grinder. Sized precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the shot underscores how the customizable grips optimize ergonomics during grueling shifts.

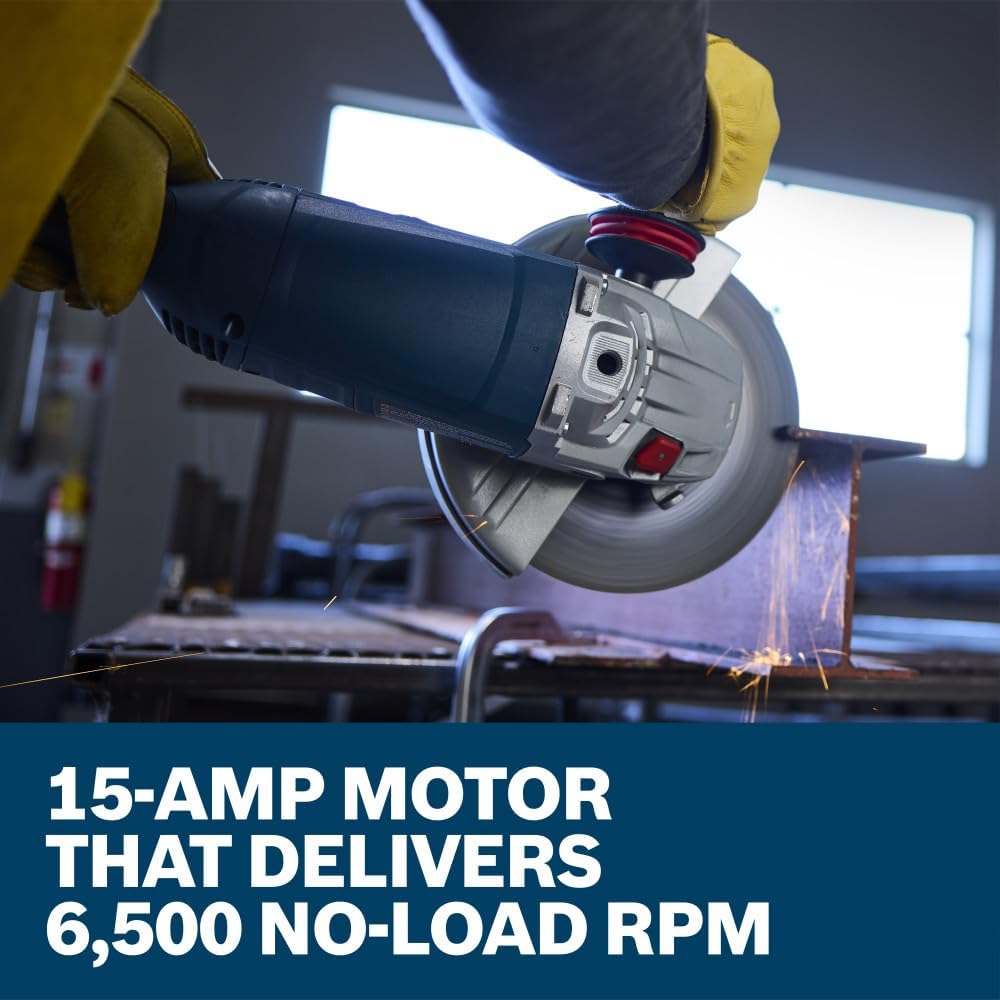

A close-up field shot capturing a shower of bright orange friction sparks spraying backwards from the cutting path as an operator uses the Bosch GWS25-230JR 9-inch grinder to notch a thick carbon steel structural beam. Pictured above a matching dark blue graphic text box that reads 15-Amp motor that delivers 6,500 no-load RPM, the view highlights the raw material removal power of this metal processing machine.
Official corded tool product limited warranty details graphic layout sheet for the Bosch GWS25-230JR 15-Amp large angle grinder platform. Set on a uniform dark blue backdrop, the clean design layout states a standard 1 year tool consumer replacement protection policy alongside specialized digital support links and toll-free service telephone lines.
A standalone studio product view identical to file GWS25-230JR.jpg displaying the isolated profile of the Bosch GWS25-230JR 9-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and indicators to focus exclusively on the aerodynamic motor body casing, rotatable handle structure, and robust backing flange nut array.
New Bosch 15-amp Large Angle Grinders | Bosch WOC 2026 promotional video
A comprehensive studio product catalog view of the Bosch GWS25-230JR 9-Inch Large Angle Grinder positioned diagonally against a clean white background. This industrial power tool highlights its blue and black structural composite housing, silver metal gear enclosure, red trigger mechanism, attached auxiliary side handle, and a thick 9-inch abrasive metal grinding wheel disc locked tightly under its protective safety steel guard.
Bosch GWS25-230JR 9-inch angle grinder technical product feature diagram optimized for search engine algorithms. Set against a dark blue background panel, white callout text and pointer indicators map out the primary advantages of this heavy-duty corded tool, detailing its powerful 15-Amp motor, anti-vibration side handle, lock-on trigger switch, optimized air flow ventilation grid, rotatable main handle, and 9-inch disc size capacity.
An action close-up focusing on an operator's hands engaging the red switch mechanism on the handle of the Bosch GWS25-230JR metal angle grinder. This high-conversion marketing view is positioned above a solid blue lower text block reading Lock-on switch helps reduce fatigue during extended use.
A detailed product view showing a close-up of a worker adjusting the orientation of the rotatable main handle on the Bosch heavy-duty corded angle grinder. Sized precisely above a bold blue lower text box that states Anti-vibration handle for greater comfort and control, the shot underscores how the customizable grips optimize ergonomics during grueling shifts.
A close-up field shot capturing a shower of bright orange friction sparks spraying backwards from the cutting path as an operator uses the Bosch GWS25-230JR 9-inch grinder to notch a thick carbon steel structural beam. Pictured above a matching dark blue graphic text box that reads 15-Amp motor that delivers 6,500 no-load RPM, the view highlights the raw material removal power of this metal processing machine.
Official corded tool product limited warranty details graphic layout sheet for the Bosch GWS25-230JR 15-Amp large angle grinder platform. Set on a uniform dark blue backdrop, the clean design layout states a standard 1 year tool consumer replacement protection policy alongside specialized digital support links and toll-free service telephone lines.
A standalone studio product view identical to file GWS25-230JR.jpg displaying the isolated profile of the Bosch GWS25-230JR 9-inch corded industrial angle grinder tool. This graphic-free variant cuts out all marketing text overlays and indicators to focus exclusively on the aerodynamic motor body casing, rotatable handle structure, and robust backing flange nut array.
New Bosch 15-amp Large Angle Grinders | Bosch WOC 2026 promotional video
BOSCH

Bosch Angle Grinder GWS25-230JR 9 Inch 15 Amp Corded Heavy Duty (6500 RPM 5/8-11 Spindle Lock On Switch Metal Cutting Grinding Sanding Tool)

Only 2 left
SKU: GWS25-230JR
$269.00 USD

Description

Bosch Promtional Logo Logout

Bosch GWS25-230JR 9 Inch 15 Amp Corded Large Angle Grinder

The Bosch GWS25-230JR 9-Inch 15-Amp Large Angle Grinder operates as an industrial-strength metal cutting and surface preparation power tool engineered to slice structural steel plates, grind multi-pass weldments, and clean industrial castings. Driven by a heavy-duty 15.0-amp motor producing 6,500 no-load RPM, this corded 9-inch angle grinder features a rotatable main handle, a 5/8-11 UNC spindle arbor, a continuous lock-on trigger switch, and a net tool weight of 10.9 pounds. Equipped with smooth soft-start torque control, restart protection, and a Vibration Control auxiliary side handle, this 120V grinder includes dedicated protective guards for both metal cutting and grinding applications across steel fabrication yards and shipyards.

Best Used For:

  • Heavy Structural Steel Plate Slicing: Cutting through thick carbon steel plates, iron beams, and structural channels using high-torque 9-inch cut-off wheels.
  • Large Weldment & Casting Grinding: Flushing down massive multi-pass weld seams, beveling thick pipe ends, and smoothing industrial casting flaws.
  • Expansive Surface Prep & Scale Removal: Stripping deep rust, mill scale, epoxy coatings, and slag across large metal surfaces using the continuous lock-on trigger.

Key Performance & Safety Features

  • High-Torque 15.0 Amp Motor: Industrial electric powertrain generates a continuous 6,500 RPM for rapid material removal rates under heavy structural loads.
  • Extended 9-Inch Wheel Capacity: Large-format 9-inch wheel footprint covers more surface area per pass to reduce job completion times on expansive metal assemblies.
  • Continuous Lock-On Trigger Switch: Ergonomic trigger lock keeps the motor engaged during long runs to eliminate hand strain and operator fatigue.
  • Multi-Angle Rotatable Main Handle: Rear main handle pivots and locks to grant optimal body mechanics and comfortable posture for horizontal cutting or vertical face grinding.
  • Anti-Vibration Side Auxiliary Handle: Dual-position Vibration Control side handle dampens harsh mechanical feedback to shield hands and arms during long grinding shifts.
  • Soft-Start & Restart Interlock Safety: Limits startup torque surges to prevent tool twisting and guards against accidental motor spin after power interruptions or breaker resets.

What's Included

  • (1) Bosch GWS25-230JR 9-Inch 15-Amp Large Angle Grinder
  • (1) Type A (41/1A) Closed Metal Cutting Wheel Safety Guard
  • (1) Type B (27) Open Face Metal Grinding Wheel Safety Guard
  • (1) Vibration Control Auxiliary Side Handle
  • (1) Premium Metal Inner Backing Flange
  • (1) Threaded Outer Disc Lock Nut
  • (1) Dual-Pin Spanner Lock Nut Wrench

Technical Specifications

Brand Manufacturer Bosch
Model Identification Number SKU GWS25-230JR
Motor Amperage Rating 15.0 A
System Electrical Voltage 120V AC Standard Power
No-Load Dynamic Rotation Speed 6,500 RPM
Wheel Disc Capacity Diameter 9.0 in. (228.6 mm)
Spindle Arbor Thread Size 5/8 in. - 11 UNC Threading
Switch Interface Configuration Continuous Lock-On Trigger Switch
Electronic Overload Protection Yes (Integrated Thermal Monitoring)
Tool Structural Dimensions 20.3 in. L x 5.3 in. W x 4.3 in. H
Net Tool Assembled Weight 10.9 lbs. (4.94 kg)
Dust Shroud System Compatibility Bosch 19DC-9 / 19DC-7 (Cutting) & Bosch 18SG-7 (Grinding)

Pro-Tip: When cutting thick 9-inch structural steel plate, avoid forcing or pushing down heavily on the tool body. Let the 15-amp motor and 6,500 RPM wheel speed carry the weight of the cut while holding a firm grip on the rotatable handle and Vibration Control side grip to prevent disc pinching.
