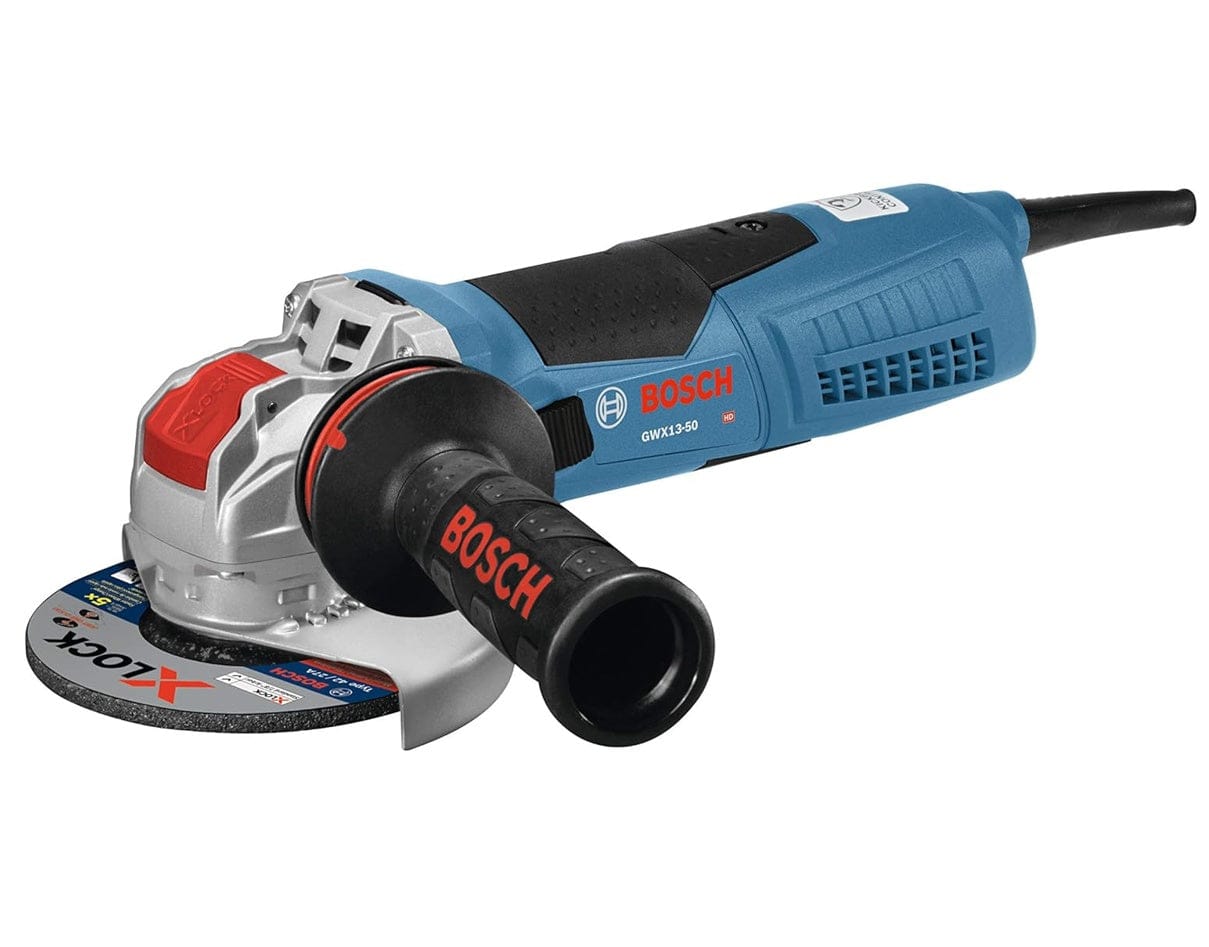

Bosch GWX13-50 angle grinder shown with X-LOCK disc and side handle. The tool’s blue and black body includes red Bosch branding, and the image highlights its quick-change system and control features for grinding and cutting tasks.

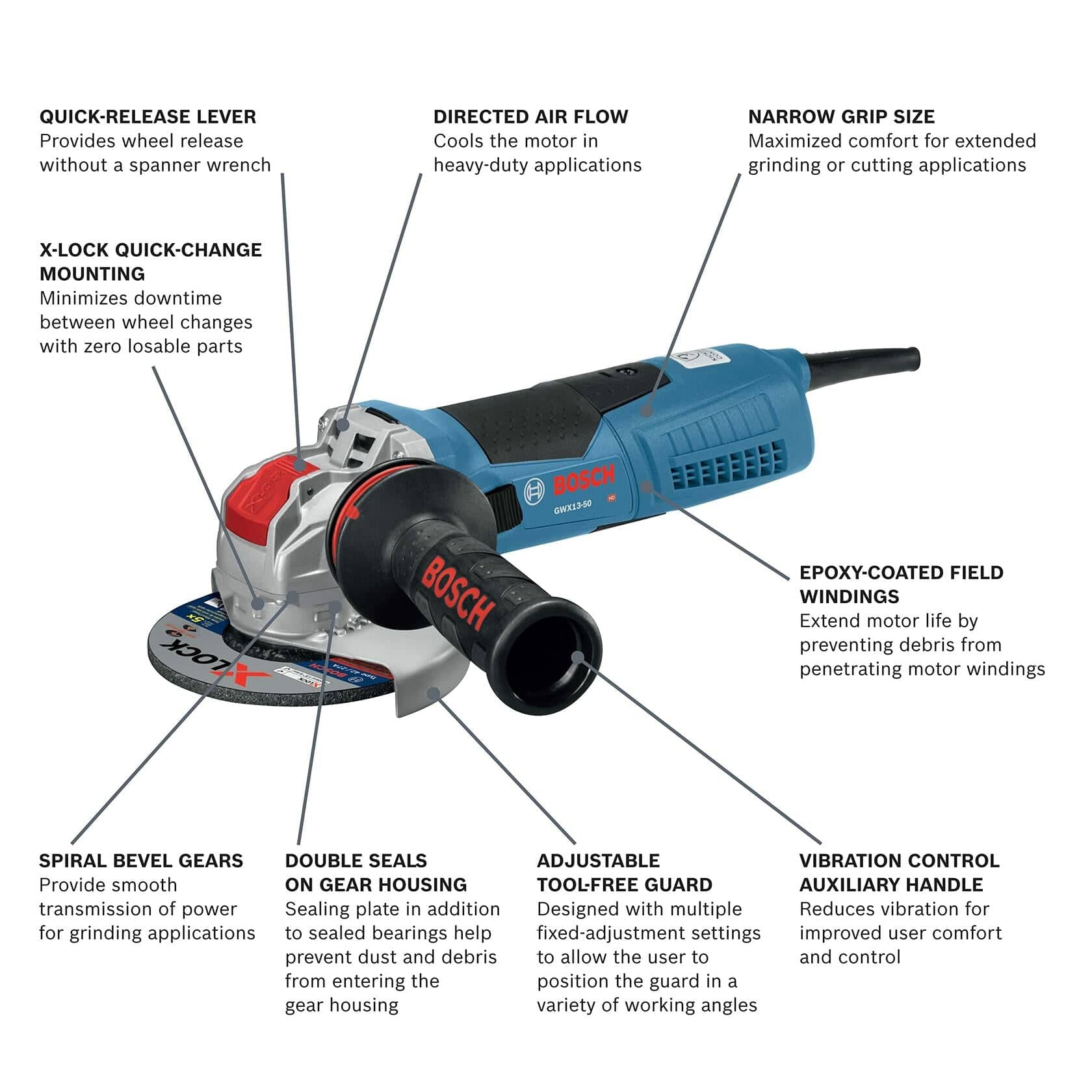

Labeled diagram of Bosch GWX13-50 angle grinder showcasing features like quick-release lever, directed airflow, narrow grip, X-LOCK mounting, epoxy-coated windings, spiral bevel gears, sealed gear housing, adjustable guard, and vibration control handle.

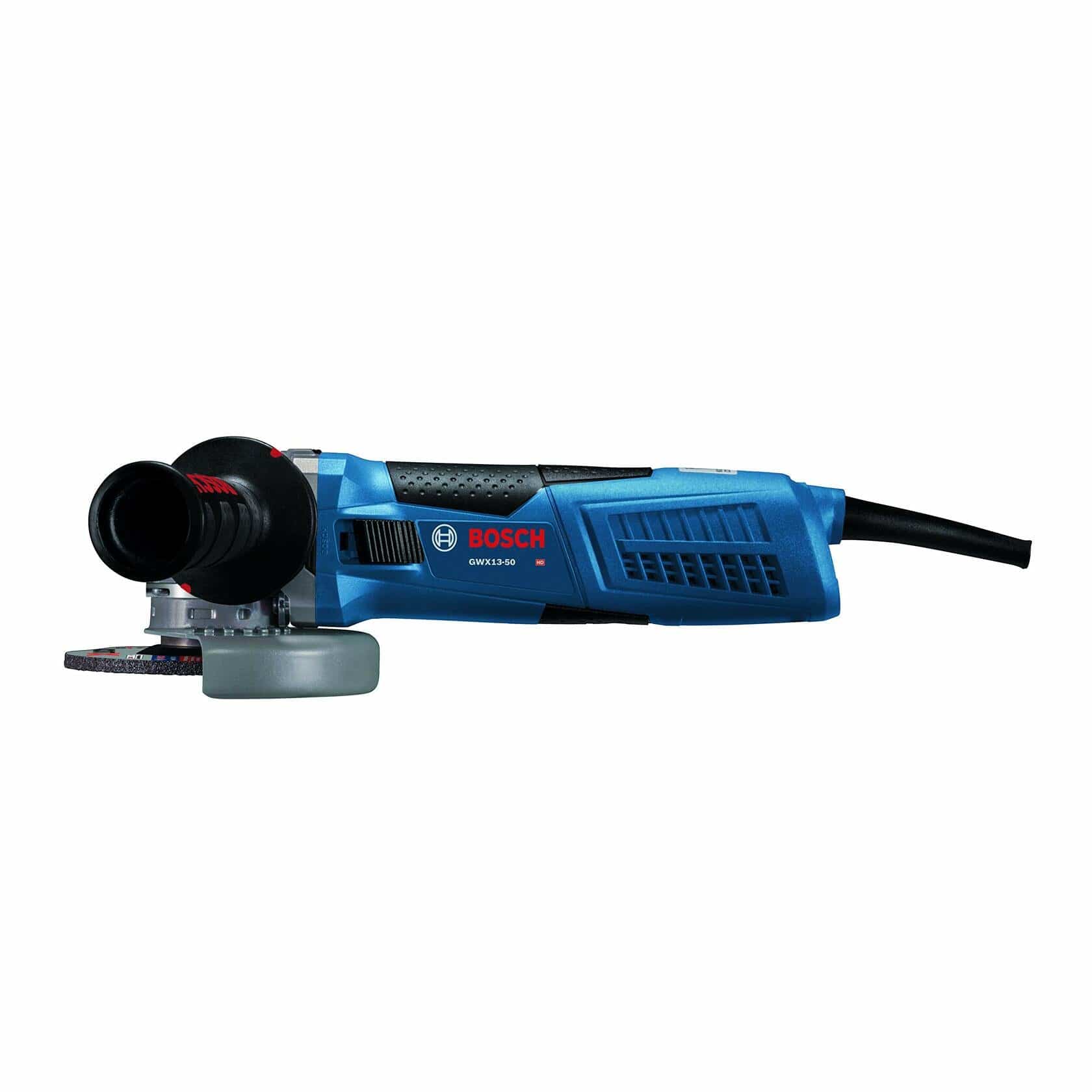

Side view of Bosch GWX13-50 angle grinder featuring a side handle, protective guard, and corded power source. The blue and black body includes red accents and Bosch branding, highlighting its ergonomic and durable design.
Bosch GWX13-50 angle grinder shown with X-LOCK disc and side handle. The tool’s blue and black body includes red Bosch branding, and the image highlights its quick-change system and control features for grinding and cutting tasks.

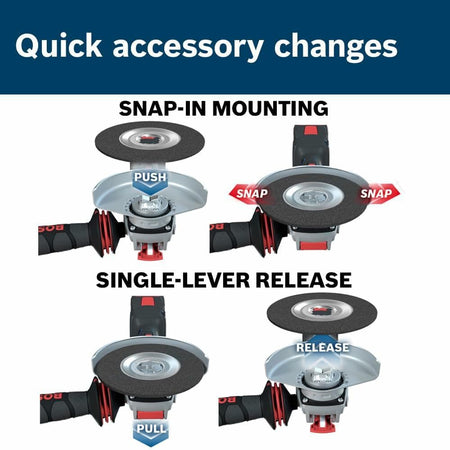

Instructional graphic showing Bosch’s X-LOCK accessory change process. Two sections illustrate “Snap-In Mounting” and “Single-Lever Release” with labeled steps for pushing, snapping, pulling, and releasing the disc.
Close-up of a gloved hand holding a Bosch angle grinder with a blue-ringed X-LOCK disc. Text overlay promotes the tool-free system with “Single lever wheel ejection without need of a spanner wrench,” emphasizing convenience and speed.
Informational graphic highlighting Bosch’s X-LOCK system features: tool-free operation, backwards compatibility, ergonomic design, and quick accessory changes. A close-up of the locking mechanism is shown on a circular blade.
Promotional graphic with bold text reading “UP TO 5X FASTER WHEEL CHANGE vs. standard 7/8 In. mount.” The large “5X” emphasizes the speed advantage of Bosch’s X-LOCK system for angle grinder accessory changes.

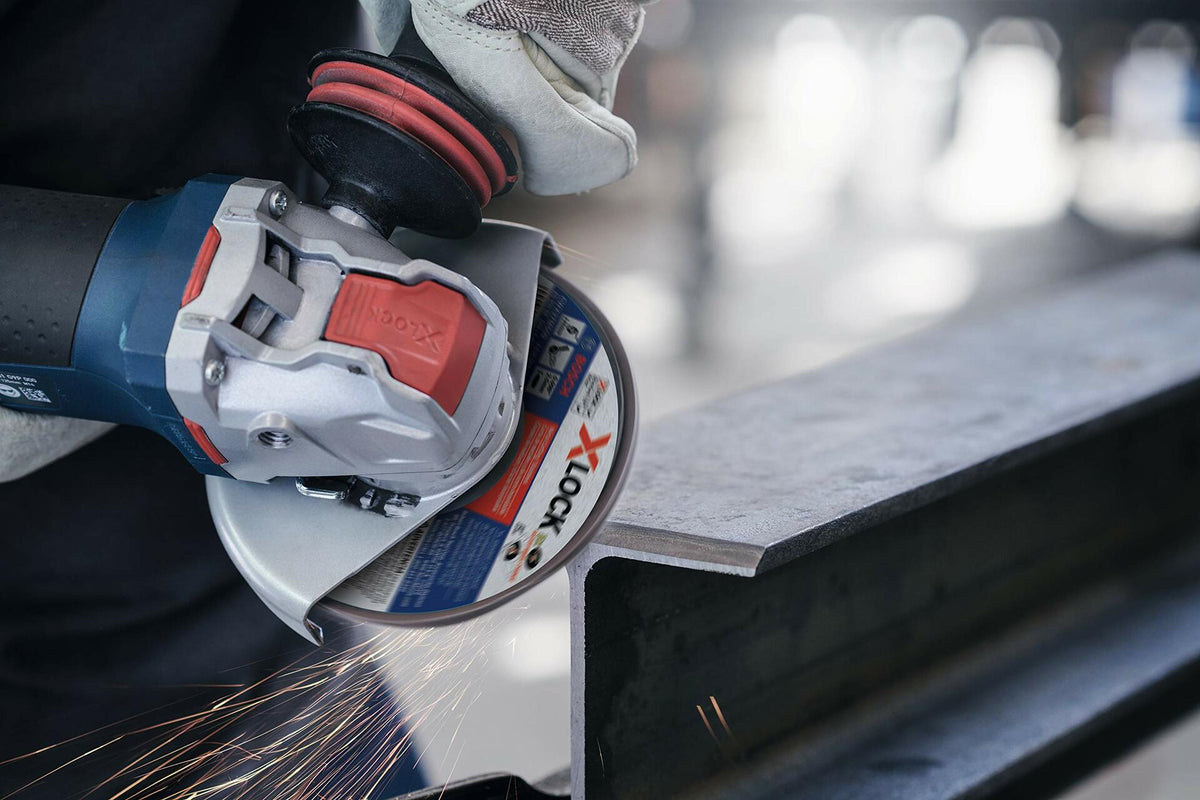

Person grinding an L-shaped steel beam using a Bosch angle grinder equipped with an X-LOCK disc. Sparks are emitted during operation, and the user wears gloves, showcasing the tool’s secure disc attachment and cutting performance.

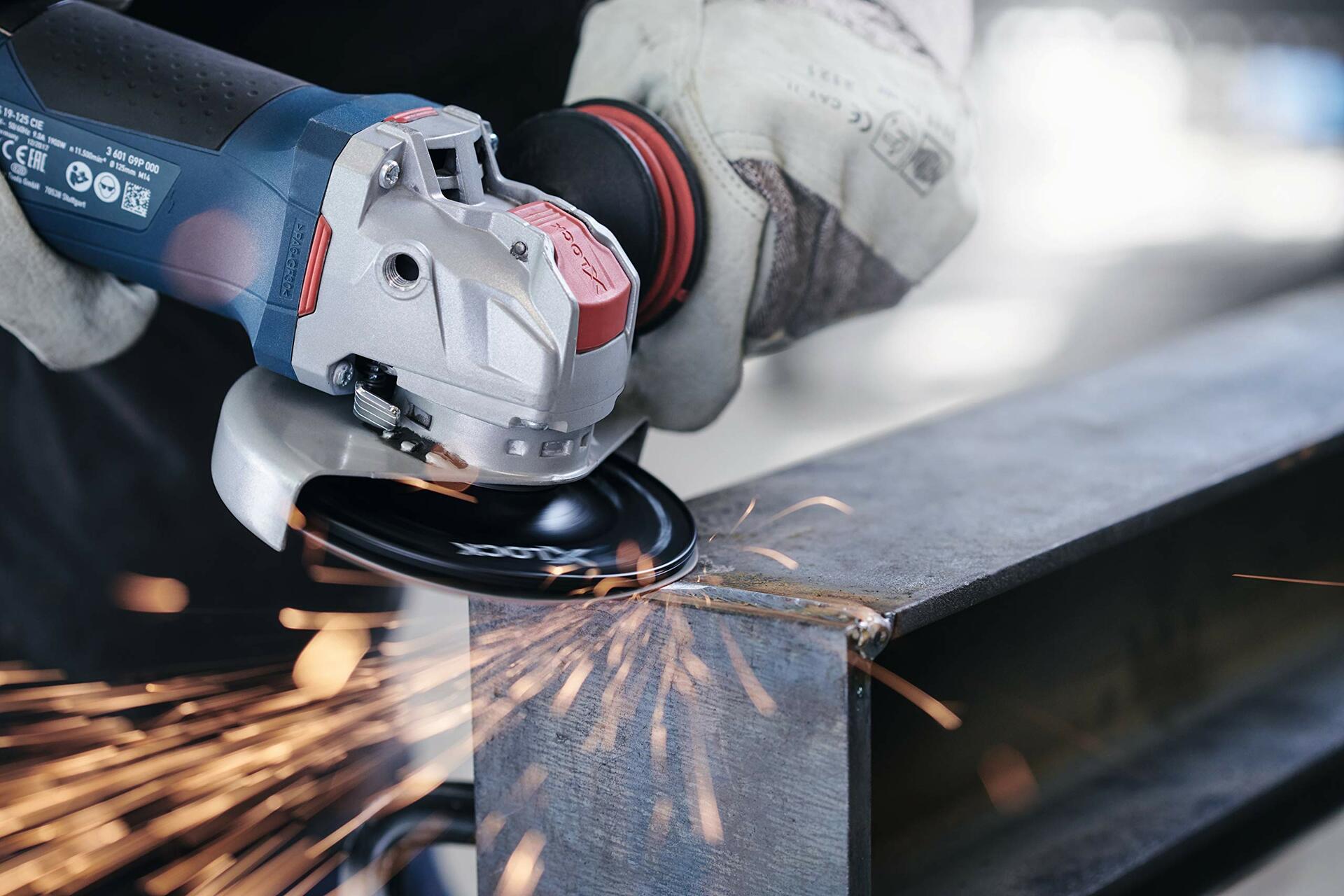

Close-up of a person using a Bosch angle grinder to cut a metal beam, with visible sparks flying from the contact point. The user wears protective gloves, and the grinder’s compact design and power output are demonstrated in an industrial setting.
X-LOCK® - Worlds First Quick-Change Grinder Interface promotional video
Bosch GWX13-50 angle grinder shown with X-LOCK disc and side handle. The tool’s blue and black body includes red Bosch branding, and the image highlights its quick-change system and control features for grinding and cutting tasks.
Labeled diagram of Bosch GWX13-50 angle grinder showcasing features like quick-release lever, directed airflow, narrow grip, X-LOCK mounting, epoxy-coated windings, spiral bevel gears, sealed gear housing, adjustable guard, and vibration control handle.
Side view of Bosch GWX13-50 angle grinder featuring a side handle, protective guard, and corded power source. The blue and black body includes red accents and Bosch branding, highlighting its ergonomic and durable design.
Bosch GWX13-50 angle grinder shown with X-LOCK disc and side handle. The tool’s blue and black body includes red Bosch branding, and the image highlights its quick-change system and control features for grinding and cutting tasks.

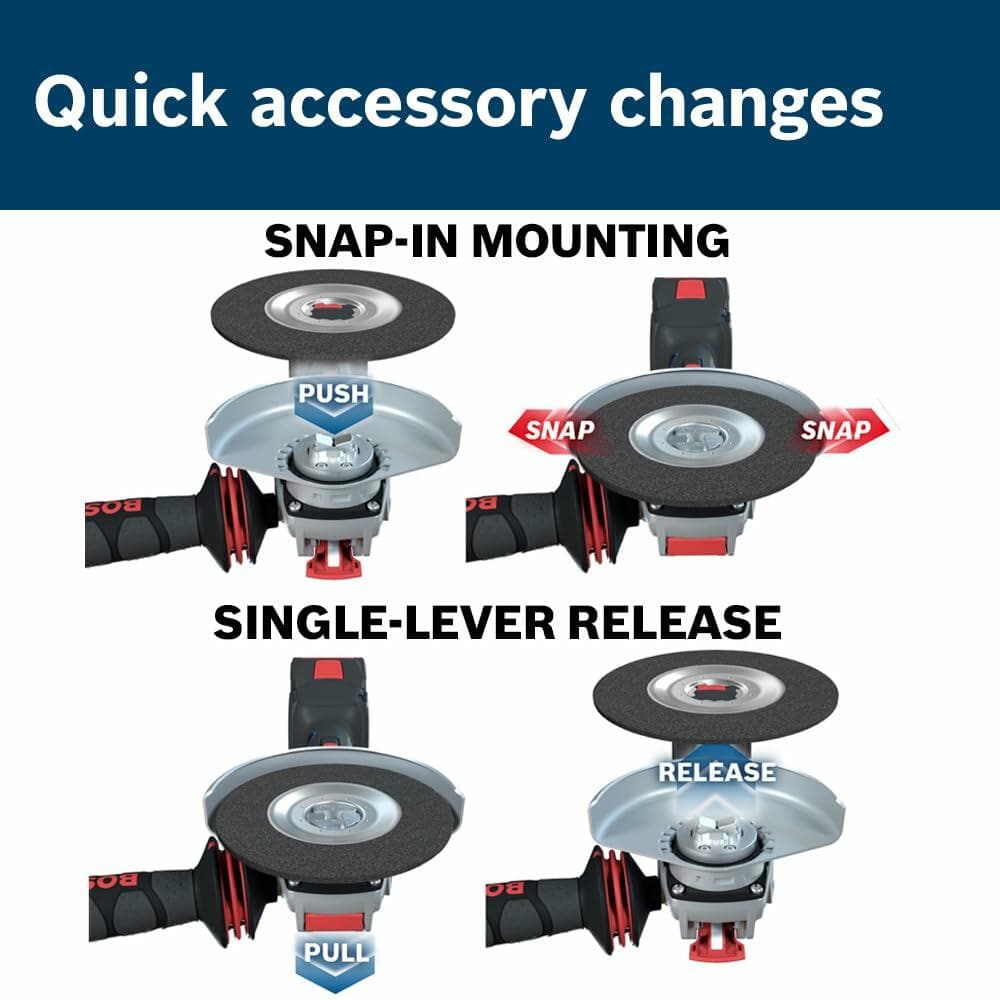

Instructional graphic showing Bosch’s X-LOCK accessory change process. Two sections illustrate “Snap-In Mounting” and “Single-Lever Release” with labeled steps for pushing, snapping, pulling, and releasing the disc.
Close-up of a gloved hand holding a Bosch angle grinder with a blue-ringed X-LOCK disc. Text overlay promotes the tool-free system with “Single lever wheel ejection without need of a spanner wrench,” emphasizing convenience and speed.
Informational graphic highlighting Bosch’s X-LOCK system features: tool-free operation, backwards compatibility, ergonomic design, and quick accessory changes. A close-up of the locking mechanism is shown on a circular blade.
Promotional graphic with bold text reading “UP TO 5X FASTER WHEEL CHANGE vs. standard 7/8 In. mount.” The large “5X” emphasizes the speed advantage of Bosch’s X-LOCK system for angle grinder accessory changes.
Person grinding an L-shaped steel beam using a Bosch angle grinder equipped with an X-LOCK disc. Sparks are emitted during operation, and the user wears gloves, showcasing the tool’s secure disc attachment and cutting performance.
Close-up of a person using a Bosch angle grinder to cut a metal beam, with visible sparks flying from the contact point. The user wears protective gloves, and the grinder’s compact design and power output are demonstrated in an industrial setting.
X-LOCK® - Worlds First Quick-Change Grinder Interface promotional video
BOSCH

Bosch Angle Grinder GWX13-50 5 Inch Slide Switch Cut Off Tool Corded (13A Motor 11500 RPM X-LOCK Quick Change Vibration Control Steel Masonry Wheels)

In stock
SKU: GWX13-50
$129.95 USD
$179.00 USD Sale $129.95 USD

Description

Bosch Promotional Logo Logout

Bosch GWX13-50 5" 13-Amp X-LOCK Slide Switch Corded Angle Grinder

The Bosch GWX13-50 5-inch 13-amp corded angle grinder executes heavy structural steel sectioning, weld bead leveling, pipeline beveling, and concrete masonry scoring. Driven by a high-output 120V industrial electric motor delivering 11,500 no-load RPM with epoxy-armored field coils and directed airflow cooling, this 5.5-lb grinder incorporates the tool-free X-LOCK snap-on mounting interface to change abrasive wheels up to five times faster without spanner wrenches or loose flange nuts. Equipped with a lock-on slide switch, a Vibration Control side handle, spiral bevel power transmission gearing, a tool-free burst-resistant guard, and Service Minder brush diagnostics, it delivers optimal leverage, operator comfort, and continuous cutting performance across demanding metal fabrication shops and industrial jobsites.

Best Used For:

  • Structural Steel Sectioning and Pipe Fabrication: Cutting thick structural steel beams, carbon steel angle iron, and schedule 40/80 pipe joints cleanly with 5-inch X-LOCK abrasive wheels.
  • Heavy Weld Seam Grinding and Bead Blending: Leveling multi-pass stick, MIG, and flux-cored weld beads flush across industrial steel plates and chassis fabrications.
  • Masonry Tuckpointing and Concrete Scoring: Chasing mortar joints, dressing precast foundation edges, and scoring paving stones when paired with compatible diamond cutting shrouds.

Key Performance & Safety Features

  • X-LOCK Tool-Free Mounting System: Snap-on wheel mount clicks into place securely and ejects instantly via a mechanical pull release lever, eliminating spanner wrenches.
  • 13.0-Amp Industrial Motor: Supplies continuous corded electrical torque generating 11,500 RPM to sustain wheel velocity under heavy stock removal loads.
  • Vibration Control Auxiliary Side Handle: Ergonomic side grip incorporates an internal elastomeric isolation damper that significantly absorbs hand-arm vibration.
  • Epoxy-Armored Motor Protection: Heavy epoxy coating on field windings shields copper components against conductive metallic swarf and abrasive concrete dust.
  • Precision Spiral Bevel Transmission: Hardened helical bevel gears ensure smooth torque transfer, reduced mechanical gear chatter, and long transmission life.
  • Service Minder Carbon Brush System: Automatically disengages power when carbon brushes reach maintenance limits, preventing internal commutator damage.

What's Included

  • (1) Bosch GWX13-50 5-Inch 13-Amp X-LOCK Corded Angle Grinder
  • (1) Vibration Control Auxiliary Side Handle
  • (1) Tool-Free Adjustable Safety Wheel Guard

Technical Specifications

Manufacturer Bosch Power Tools
Model / Part Number GWX13-50
Product Category Corded Small Angle Grinder
Motor Current Rating 13.0 Amps (120 Volts AC / 60 Hz)
No-Load Rotational Speed 11,500 RPM
Maximum Wheel Diameter 5.00 inches (127.0 mm)
Wheel Mounting Interface Bosch X-LOCK Quick Change (Spannerless Snap-On)
Switch Control Configuration Top-Mounted Lock-On Slide Switch
Gear Transmission Architecture Precision Spiral Bevel Gearing in Aluminum Casing
Tool Net Operating Weight 5.50 lbs (88.0 oz / 2.49 kg)
Physical Dimensions (L x W x H) 12.1 in x 5.6 in x 4.65 in (307.3 mm x 142.2 mm x 118.1 mm)
Auxiliary Handle Configuration 2-Position Vibration Control Handle (Left/Right)
Motor Brush Protection Service Minder Auto-Stop Carbon Brushes
Electrical Cord Length 8.0 feet (2.44 m) Grounded Rubber Cord
Compatible Dust Shrouds Bosch 18DC-5E and GA50DC Surface/Cutting Extraction Hoods

Pro-Tip: When swapping hot X-LOCK discs, hold the grinder face-down over a scrap bin and pull the top release lever; the spent disc drops directly into the container without requiring contact with hot wheel metal.
