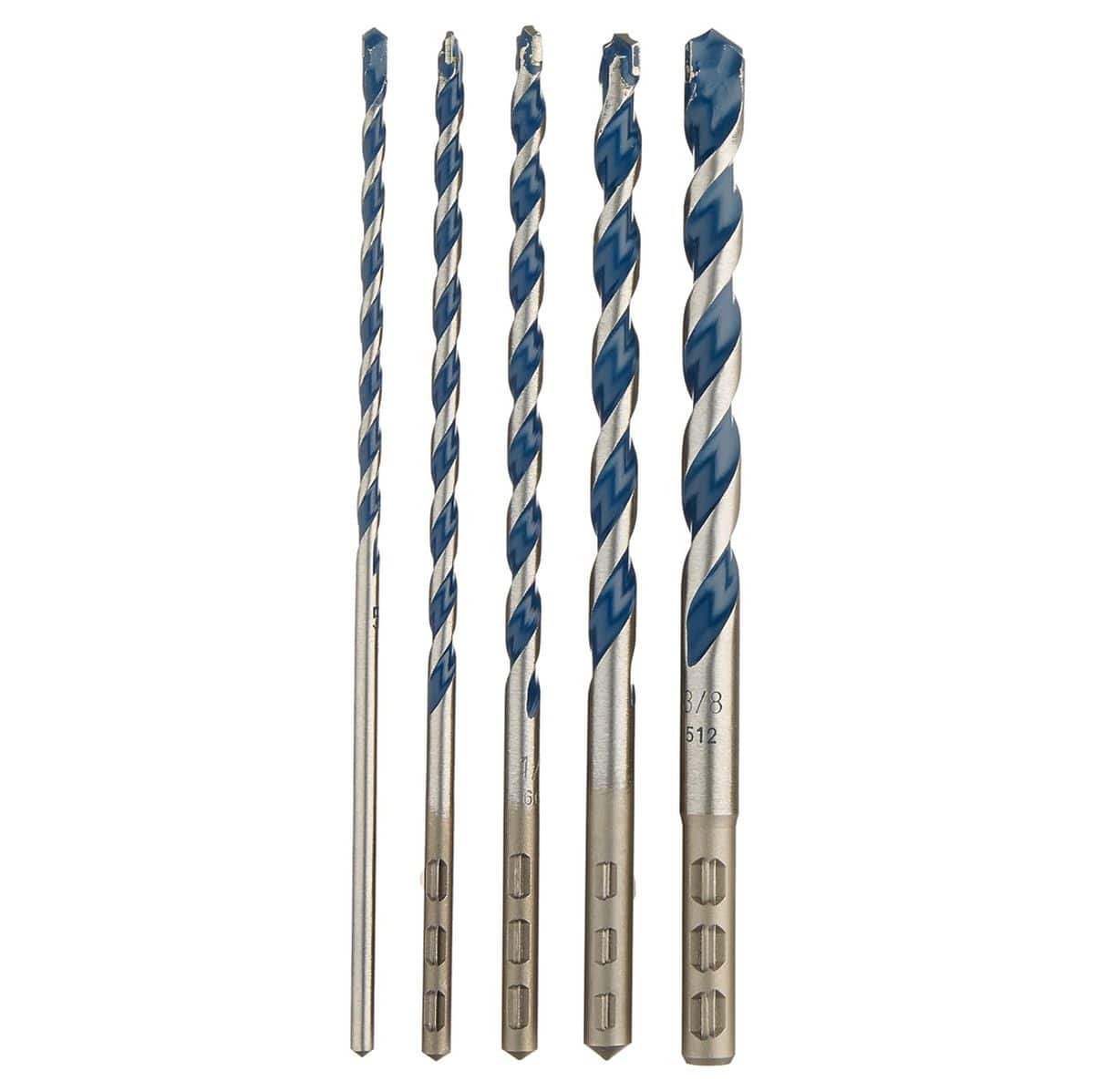

A clean studio product shot of the five diverse drill bits from the Bosch HCBG501T kit arranged vertically by size from shortest to tallest against a crisp white background, showcasing their individual 1/4-inch hex mounting shanks and varying lengths of blue-painted spiral flutes.

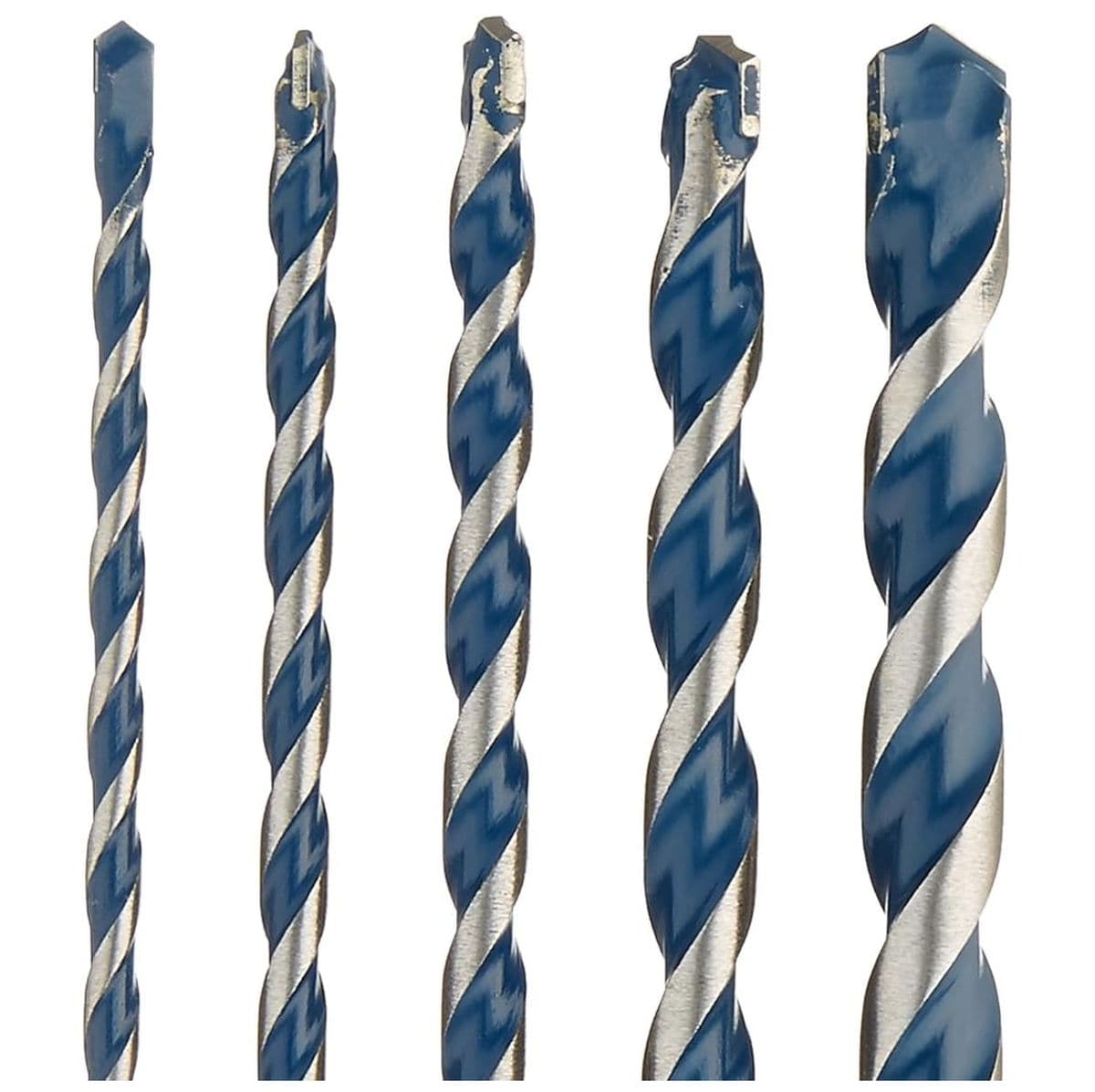

A macro close-up product shot focusing on the upper half of the five Bosch BlueGranite Turbo drill bits, detailing the varying widths of the blue-painted spiral flutes and the geometry of their multi-grind carbide centering tips.

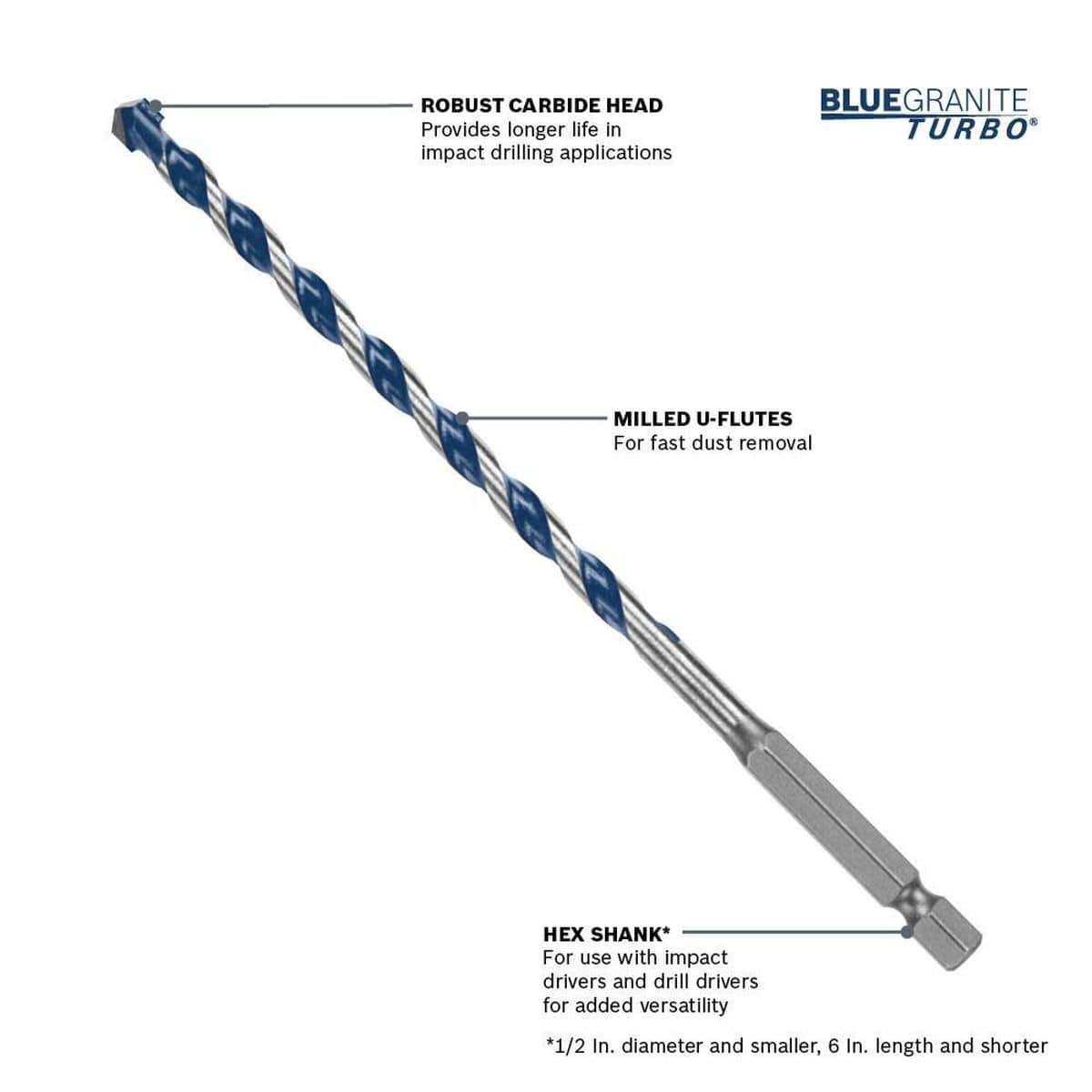

A labeled technical marketing diagram of a single BlueGranite Turbo masonry bit positioned diagonally, with indicator lines pointing out its robust carbide head, milled U-flutes for fast dust removal, and versatile impact-driver ready hex shank.

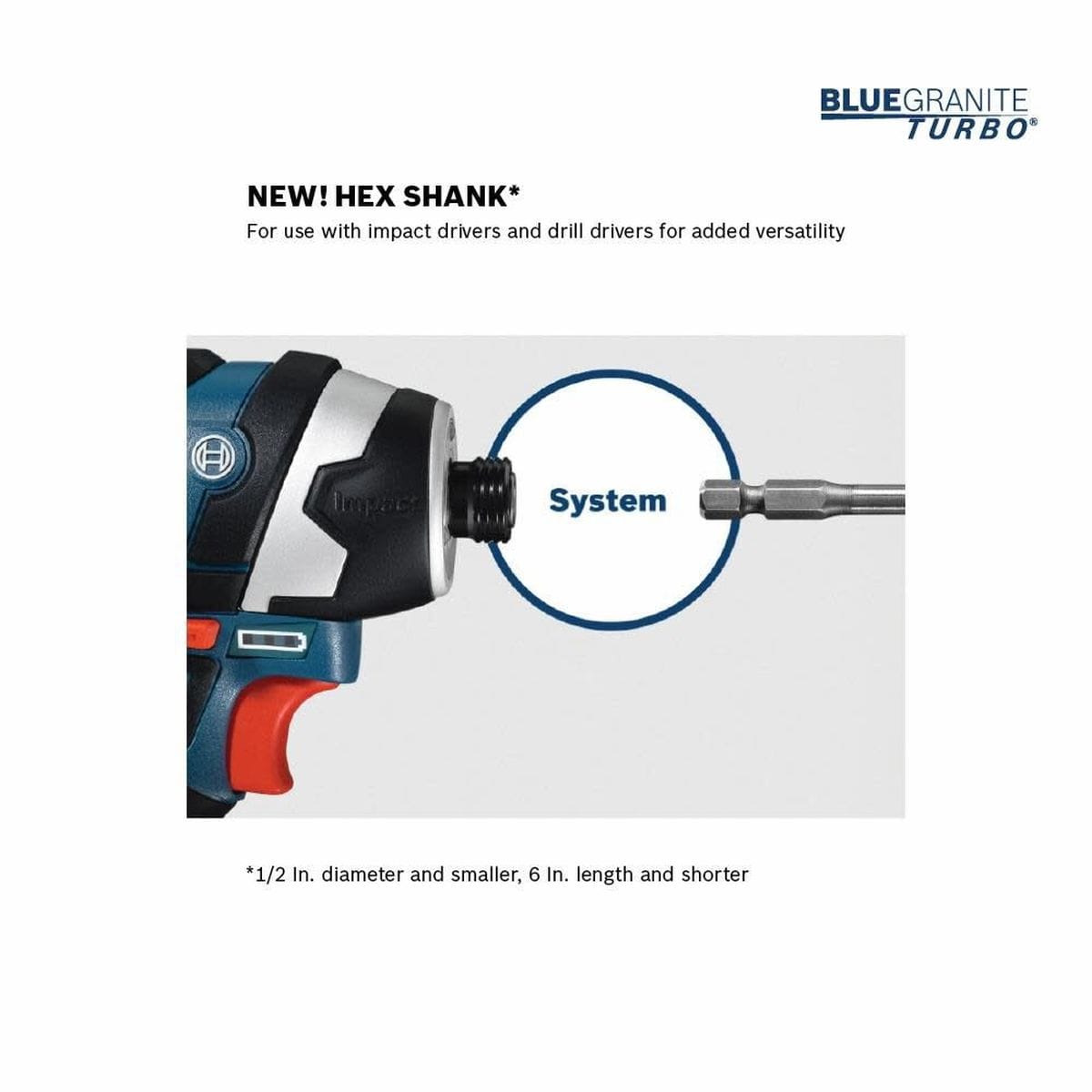

A technical system compatibility illustration showing a side view of a Bosch cordless impact driver chuck aligned directly with the hex shank end of a BlueGranite Turbo bit inside a blue circle graphic labeled System.
An application compatibility graphic with a bold dark blue header reading Best For, featuring four squared image quadrants with text labels identifying optimal masonry materials including Masonry stone, clay Brick, cinder Block, and structured Concrete.

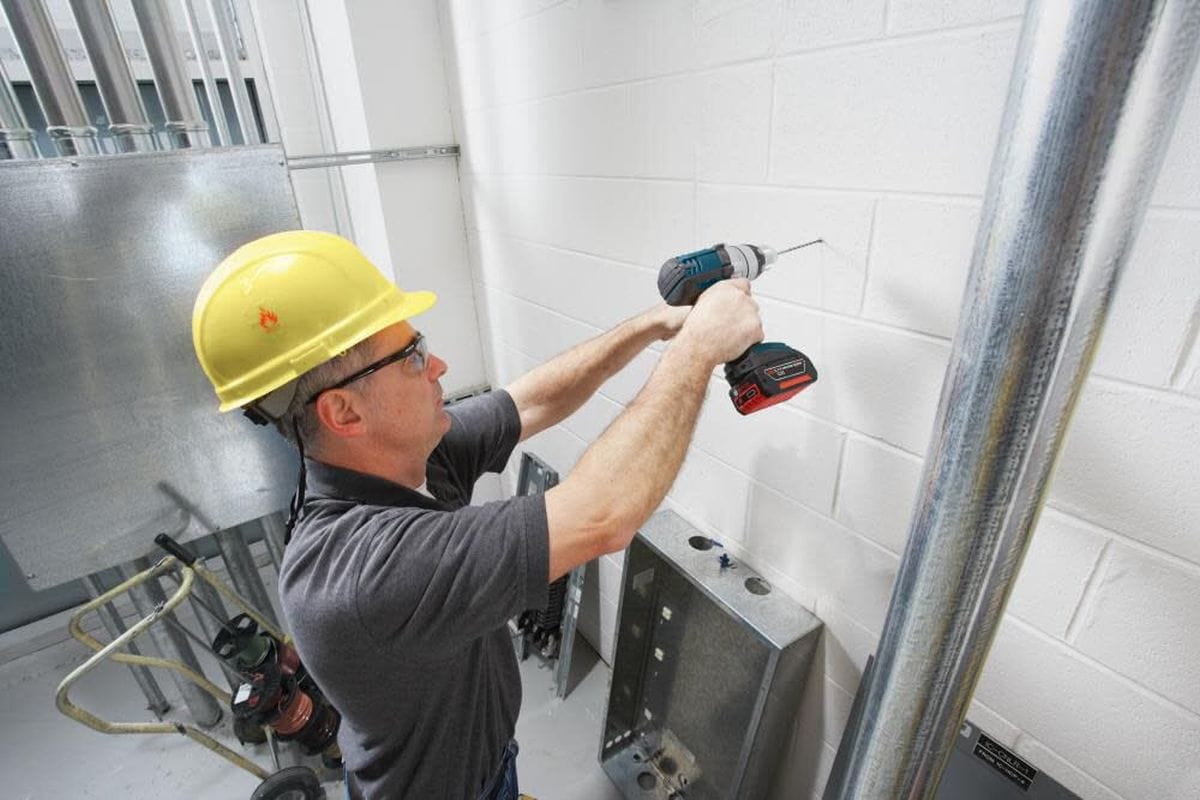

An action shot of an electrical contractor wearing a yellow hard hat and safety glasses using a cordless hammer drill driver to drill an anchor hole into a white concrete block wall above a electrical panel box container.
BOSCH

Bosch HCBG501T Carbide Hammer Drill Bit Set 5 Piece BlueGranite Turbo Hex Shank Impact Rated Masonry Bits for Concrete Brick Stone with Case

In stock
SKU: HCBG501T
$24.79 USD

Description

Bosch Promtional Logo Logout

Drill Concrete and Masonry 2x Faster with Impact-Rated BlueGranite Turbo Technology

Eliminate bit walking and supercharge your anchoring efficiency with the Bosch HCBG501T 5-Piece BlueGranite Turbo™ Carbide Hammer Drill Bit Set. Specially engineered to provide up to 5x the service life and 2x the cutting speed compared to traditional masonry consumables, this versatile kit is an absolute must-have for professional electricians, mechanical contractors, HVAC installers, and general contractors. Each bit features an upgraded, precision-formed 4-grind cutting head that introduces two extra contact angles to cleanly chew through unreinforced concrete, heavy aggregate block, hard brick, and decorative stone without glazing over.

Forged with a heavy-duty 1/4-inch hex shank, these premium bits are fully impact-rated, giving you the exceptional flexibility to drop them directly into modern high-torque impact drivers, cordless hammer drills, or standard driver chucks. Every bit incorporates a specialized multi-grind carbide centering tip that bites down aggressively on slick substrates to guarantee pinpoint hole starts without scratching clean surfaces. To mitigate dangerous frictional heat buildup and bit binding inside deep holes, the tool bodies are designed with precision-milled U-flutes and deep-cut spiral paths that instantly scoop away abrasive dust. Housed in a durable protective storage case, this set delivers unmatched on-the-job productivity for all your structural tapcon and sleeve anchor installations.

Key Features

  • 5x Lifespan & 2x Cutting Speed: Advanced architectural metallurgy easily outlasts standard masonry bits while slicing drilling times directly in half.
  • Universal Hex Shank Interface: Fully impact-rated 1/4-inch hex bases enable seamless, plug-and-play operation in high-torque impact drivers and conventional hammer drills.
  • Upgraded 4-Grind Head Layout: Delivers additional sharp contact angles to process dense natural stone and masonry aggregate with far less resistance.
  • No-Skip Centering Pilot Tip: High-density carbide centering profile ensures dead-accurate hole positioning on tile, brick, and brick fascia without sliding.
  • High-Volume Deep U-Flutes: Deep-cut spiral geometry clears packed concrete flour dust rapidly, protecting the structural integrity of the carbide core.

What's Included

  • (1) BlueGranite Turbo™ 5/32" x 2" x 3" Carbide Hammer Drill Bit
  • (1) BlueGranite Turbo™ 3/16" x 4" x 6" Carbide Hammer Drill Bit
  • (1) BlueGranite Turbo™ 1/4" x 4" x 6" Carbide Hammer Drill Bit
  • (1) BlueGranite Turbo™ 5/16" x 4" x 6" Carbide Hammer Drill Bit
  • (1) BlueGranite Turbo™ 3/8" x 4" x 6" Carbide Hammer Drill Bit
  • (1) Heavy-Duty Protective Storage Case

Specifications

Specification Value
Brand Name Bosch
Model Number / MFG Part # HCBG501T
Total Piece Count in Kit 5 Bits + Case
Bit Core Material Premium Forged Steel
Cutting Tip Edge Material Bosch Proprietary Carbide Formulation
Shank Connection Style 1/4 in. Power Hex Shank
Impact Rating Impact Rated (High-Torque Driver Compliant)
Drill Bit Style Classification Percussion / Masonry Drill Bits
Material Application Compatibility Concrete, Cinder Block, Brick, Mortar, Fieldstone
Total Net Shipping Weight 0.41 lbs.
California Proposition 65 Label Required Yes
Product Structural Condition Brand New
Warranty Framework Lifetime against Manufacturer's Defects
UPC Barcode 000346337174

PRO-TIP: When running high-speed hex shank masonry bits in a powerful 18V impact driver, never allow the tool to hammer continuously inside the hole if the bit stops cutting. If you hit an exceptionally hard aggregate stone river pebble, back the bit out slightly to allow accumulated powder flour to clear, and drop your drill down into a lower speed setting. Forcing a small bit tip to spin against heavy stone under massive impact torque generates thermal friction that can melt the brazing alloy holding the carbide tip!
