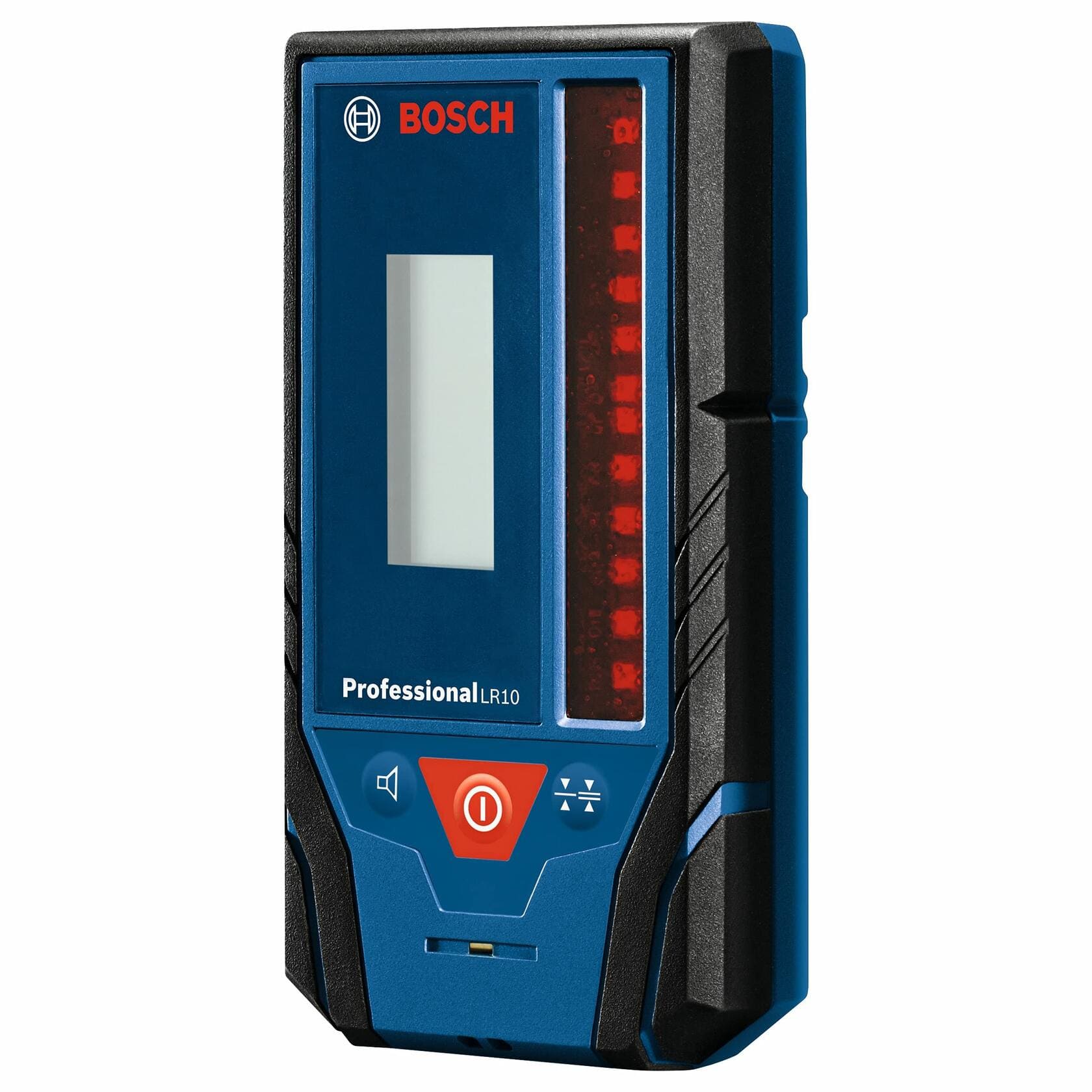

Angled studio view of the Bosch LR10 Red-Beam Rotary Laser Receiver showing the blue and black housing, the blank LCD screen, and the red laser detection sensor window

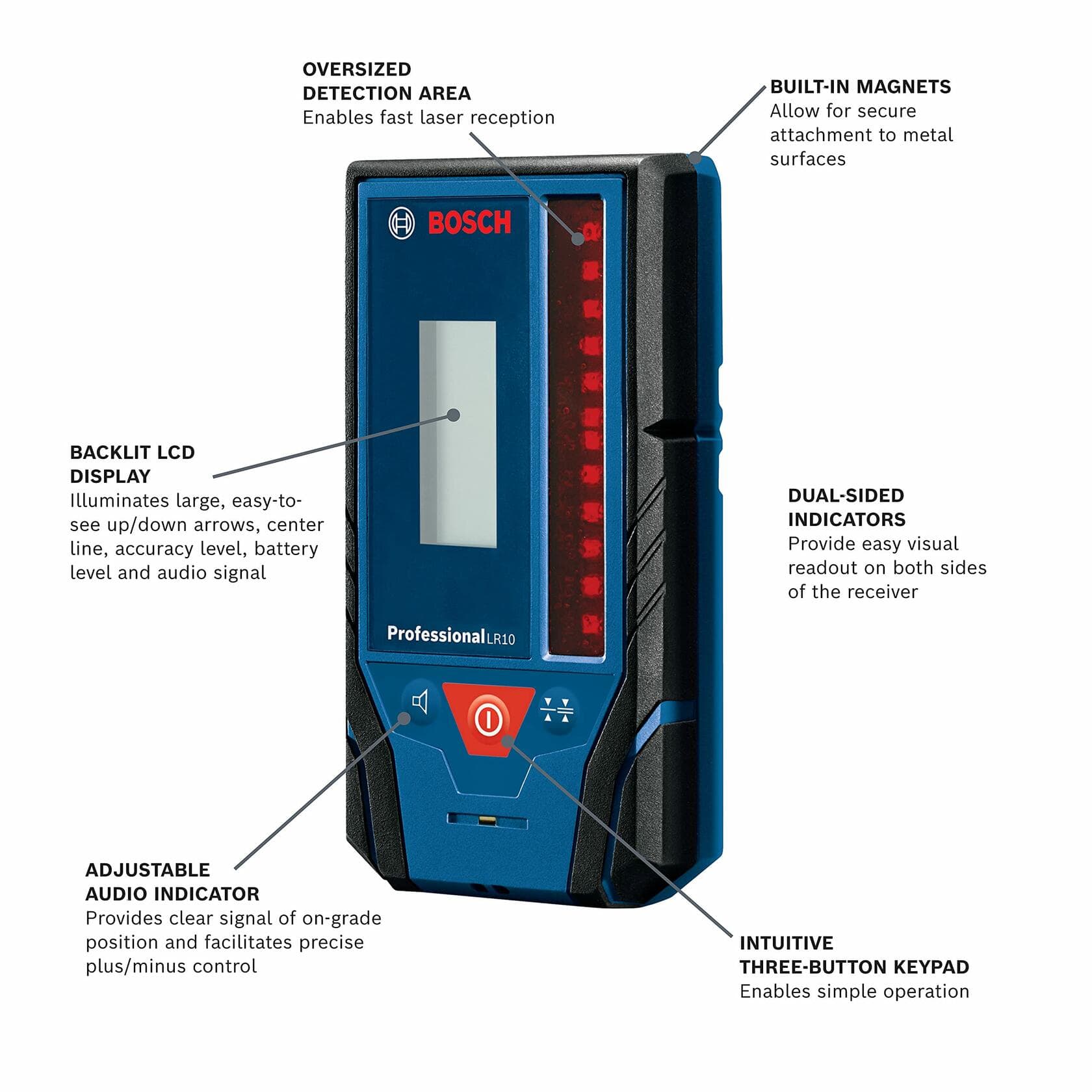

Infographic of the Bosch LR10 Rotary Laser Receiver with callouts labeling key features: oversized detection area, backlit LCD display, adjustable audio indicator, built-in magnets, dual-sided indicators, and intuitive three-button keypad

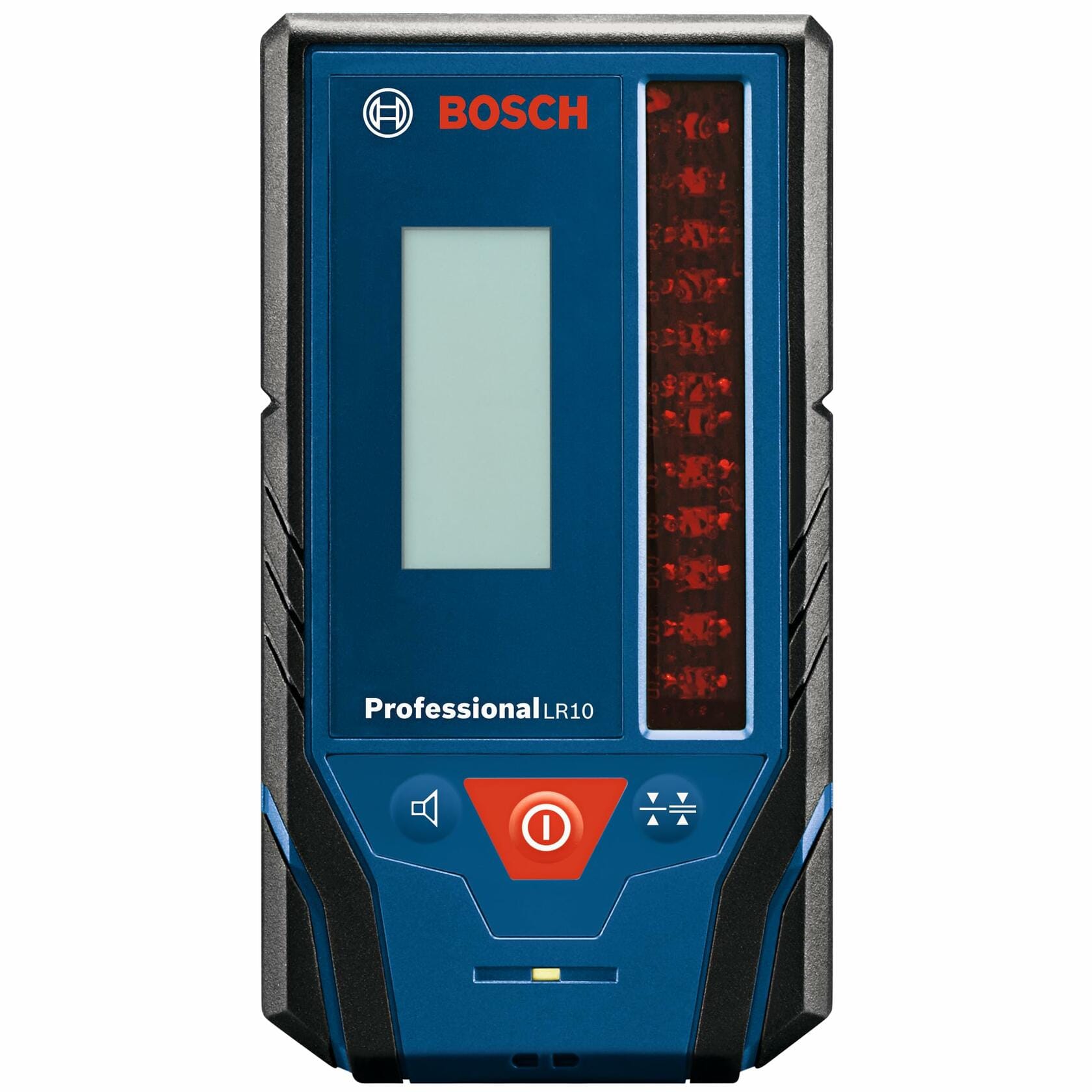

Front view of the Bosch LR10 Red-Beam Rotary Laser Receiver showing the blue body, controls, and the red laser detection window displaying indicators

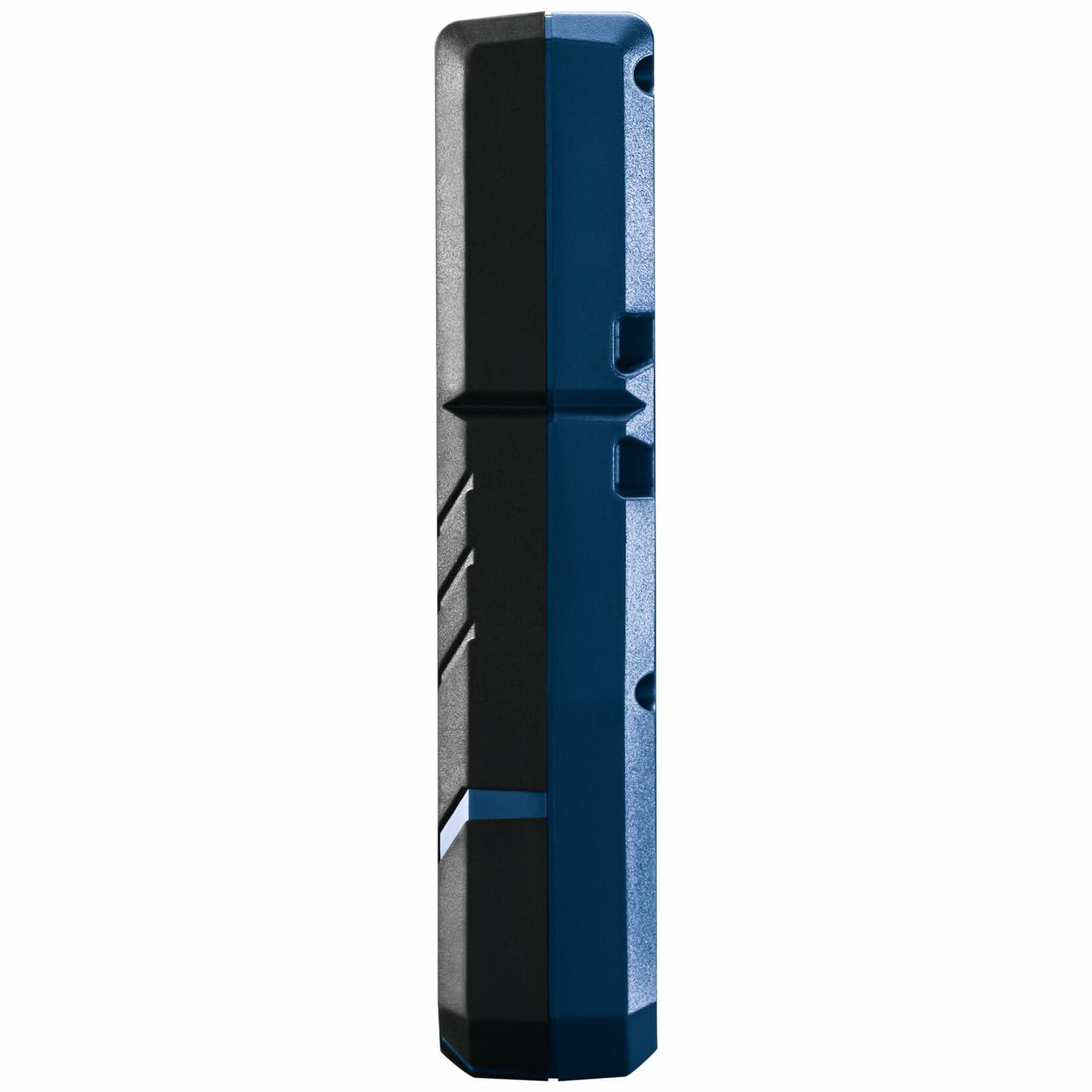

Side profile view of the Bosch LR10 laser receiver, showing the textured, rugged grip material on the housing

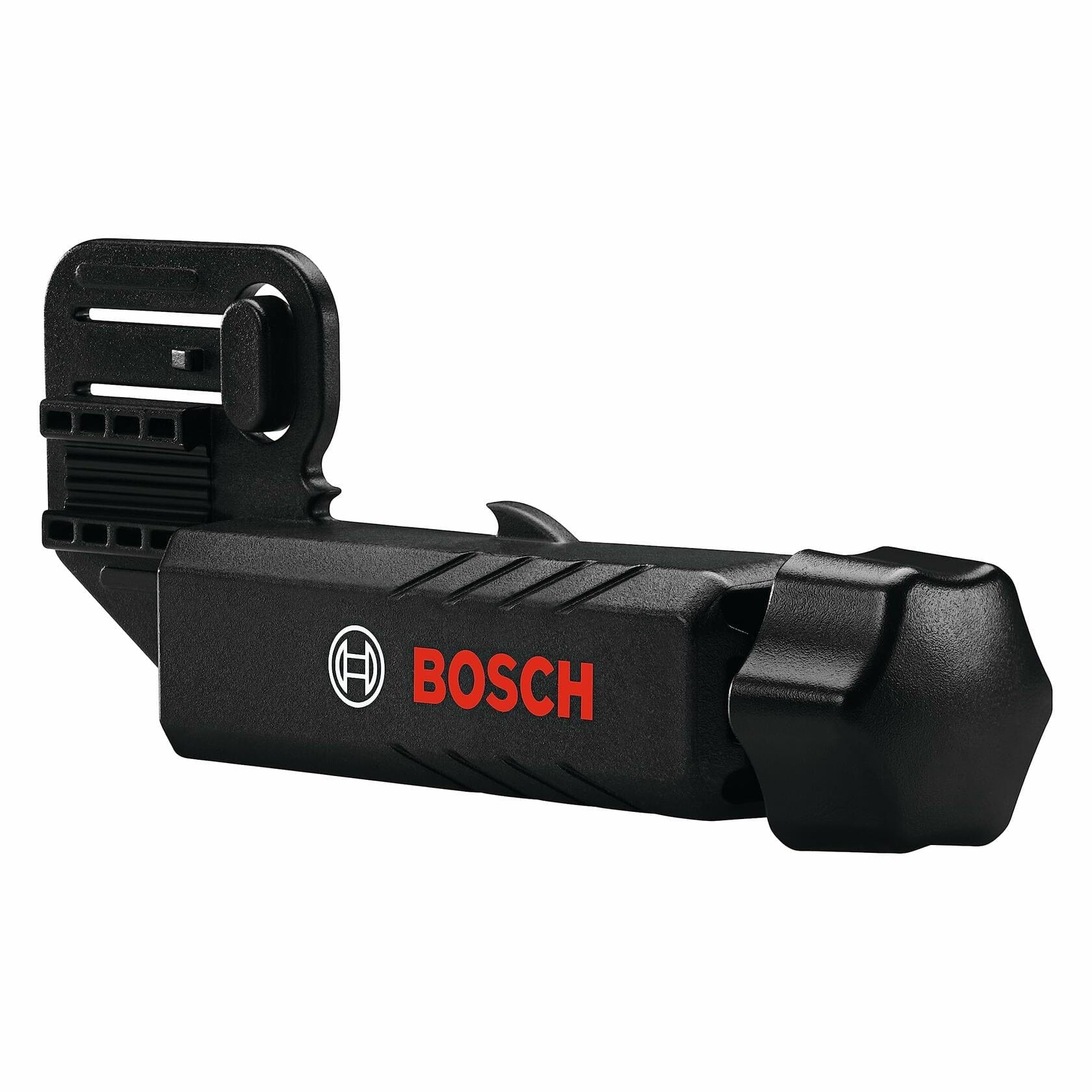

Angled view of the black plastic mounting bracket, designed to securely clamp the receiver onto various leveling accessories
Studio shot of the included black plastic mounting bracket, showing the Bosch logo and the tightening knob on the right side

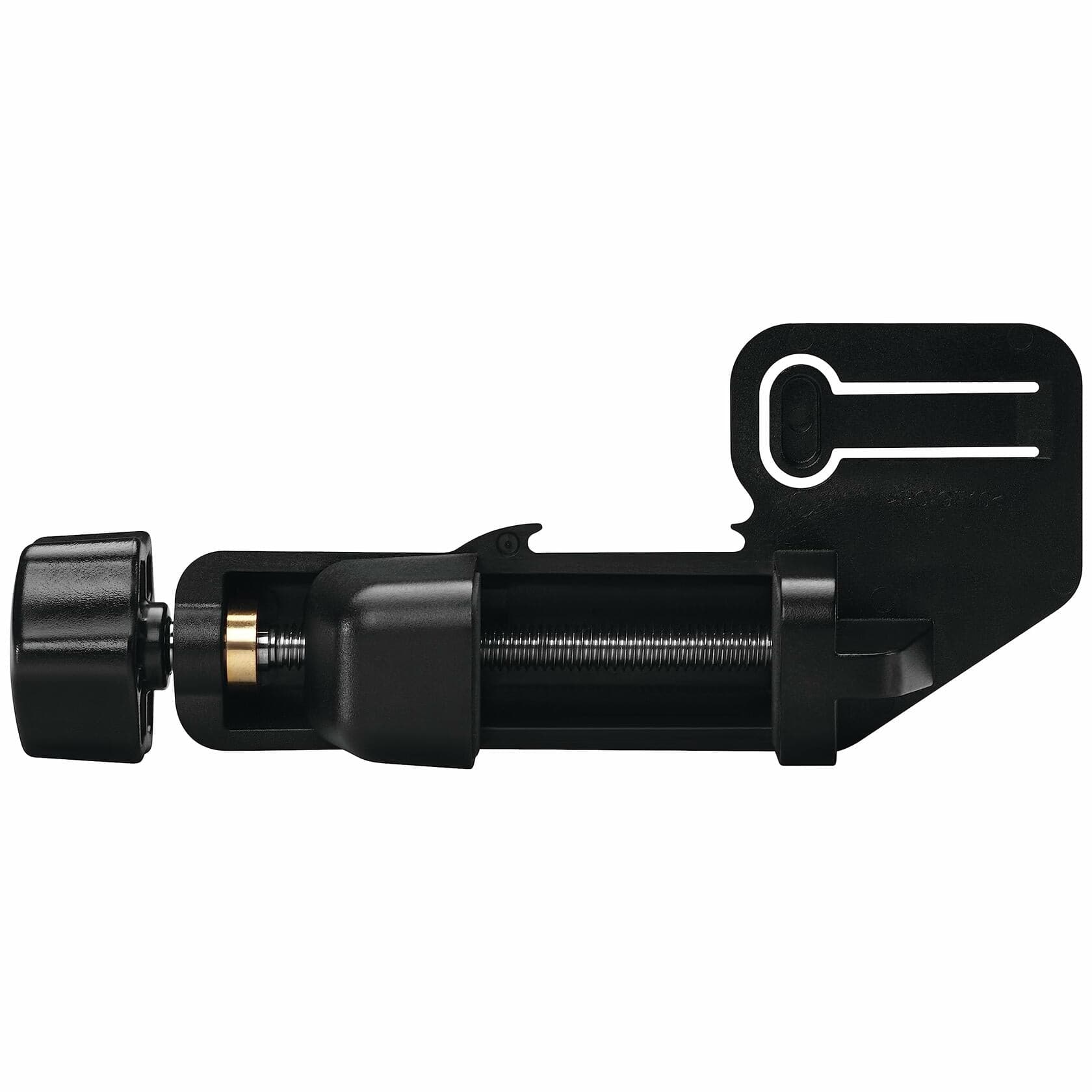

Close-up internal view of the black plastic mounting bracket showing the threaded rod and tightening knob used to secure the laser receiver to a grade rod or pole

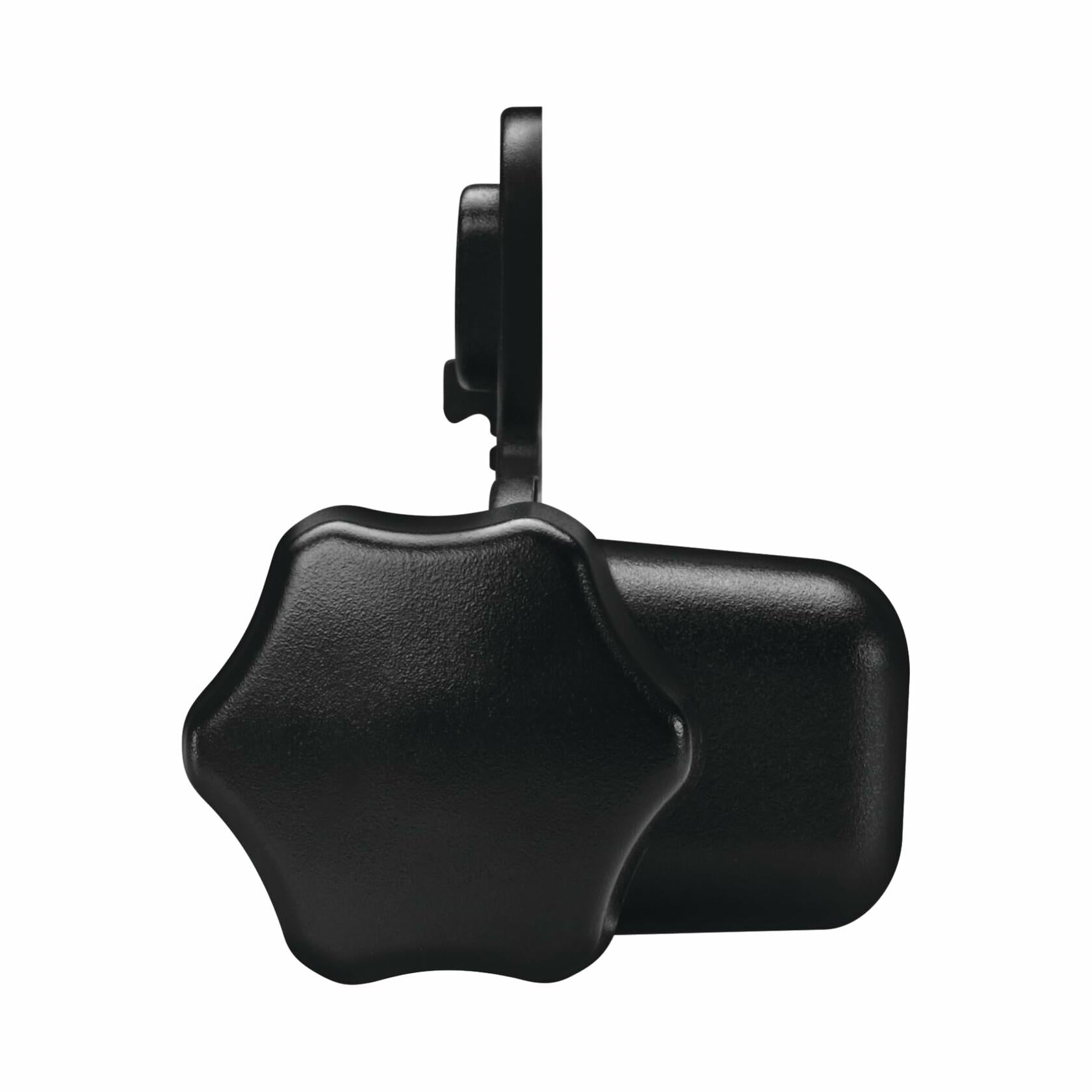

Close-up side view of the large, black star-shaped tightening knob used on the mounting bracket to secure the laser receiver to a grade rod or pole

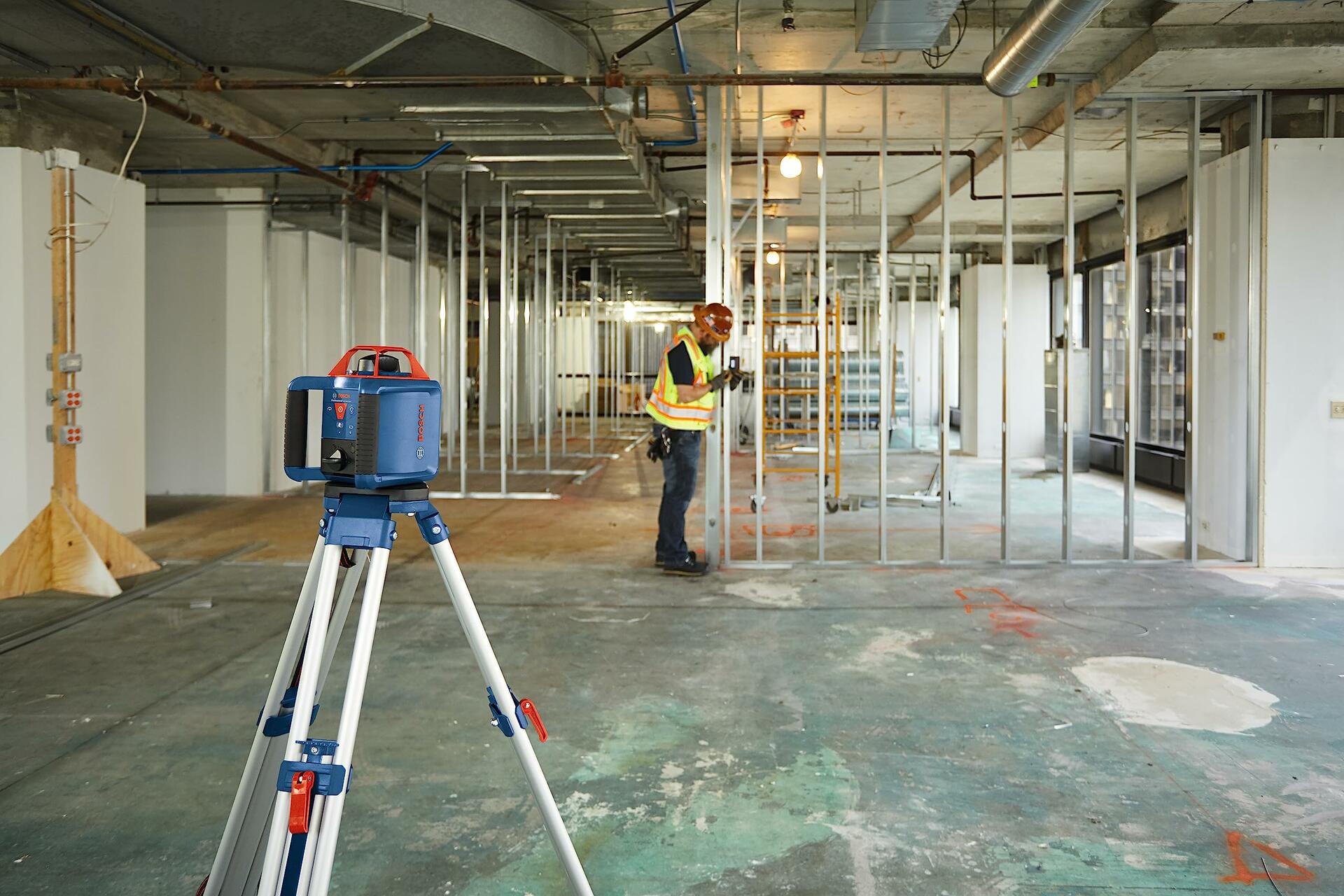

Jobsite action shot showing a Bosch rotary laser mounted on a tripod in the foreground, projecting a level plane, while a construction worker is seen in the background installing metal wall studs
Angled studio view of the Bosch LR10 Red-Beam Rotary Laser Receiver showing the blue and black housing, the blank LCD screen, and the red laser detection sensor window
Infographic of the Bosch LR10 Rotary Laser Receiver with callouts labeling key features: oversized detection area, backlit LCD display, adjustable audio indicator, built-in magnets, dual-sided indicators, and intuitive three-button keypad
Front view of the Bosch LR10 Red-Beam Rotary Laser Receiver showing the blue body, controls, and the red laser detection window displaying indicators
Side profile view of the Bosch LR10 laser receiver, showing the textured, rugged grip material on the housing
Angled view of the black plastic mounting bracket, designed to securely clamp the receiver onto various leveling accessories

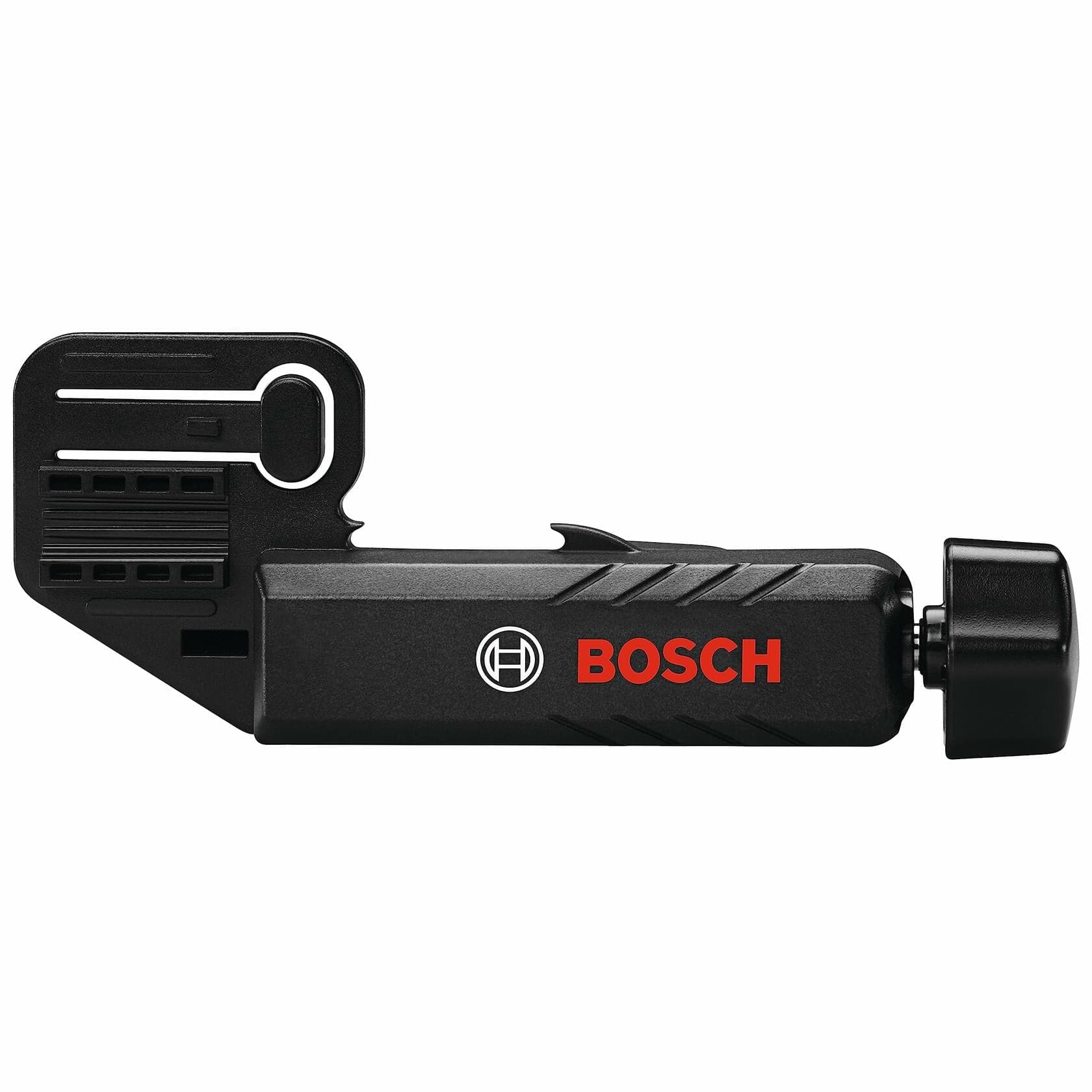

Studio shot of the included black plastic mounting bracket, showing the Bosch logo and the tightening knob on the right side
Close-up internal view of the black plastic mounting bracket showing the threaded rod and tightening knob used to secure the laser receiver to a grade rod or pole
Close-up side view of the large, black star-shaped tightening knob used on the mounting bracket to secure the laser receiver to a grade rod or pole
Jobsite action shot showing a Bosch rotary laser mounted on a tripod in the foreground, projecting a level plane, while a construction worker is seen in the background installing metal wall studs
BOSCH

Bosch Rotary Laser Receiver LR10 500 Ft Range (Red Beam Backlit Dual Sided LCD Built In Magnets IP54 Dust Splash Resistant Bracket Outdoor Grade)

In stock
SKU: LR10
$125.60 USD

Description

Bosch Promotional Logo Logout

Bosch LR10 500 Ft. Red Beam Rotary Laser Receiver

The Bosch LR10 Red Beam Rotary Laser Receiver is an optical detection sensor engineered for extending working ranges up to 500 feet during outdoor grading, concrete formwork alignment, and interior ceiling grid leveling. Operating on a 9V battery with an IP54 dust and splash resistance rating, this rotary laser receiver features dual-sided backlit LCD screens with directional readout arrows and adjustable audio on-grade signals. Outfitted with an oversized laser reception window, built-in neodymium mounting magnets, a quick-release rod bracket, and an ergonomic rubber overmold casing, this 1.31-pound detector executes layout verification.

Best Used For:

  • Outdoor Foundation & Footing Grading: Detecting red rotary laser lines across 500-foot distances to set foundation depths and concrete slab forms.
  • Steel Framing & Track Alignment: Mounting directly to steel studs and ceiling tracks via built-in magnets for vertical plumbing and horizontal leveling.
  • Grade Rod Topographic Surveying: Attaching to grade rods using the included bracket for rapid elevation measurements in direct sunlight.

Key Performance & Safety Features

  • 500-Foot Red Beam Detection Radius: Expands red rotary laser coverage up to a 500-foot working radius for wide-area jobsite coverage.
  • Dual-Sided Backlit LCD Screens: Displays elevation arrows and center-line readouts on front and back panels for visibility from any angle.
  • Oversized Beam Reception Window: Broad optical sensor glass catches sweeping rotary laser pulses quickly to accelerate grade locking.
  • Integrated Neodymium Mounting Magnets: Powerful top magnets clamp securely to steel studs, I-beams, and metal tracks without external brackets.
  • IP54 Environmental Protection Rating: Sealed soft-grip housing resists dust ingress and rain splashes on harsh outdoor jobsites.
  • Selectable Audio On-Grade Beeper: Emits distinct audible tones for high, low, and on-grade elevation positions without requiring visual screen contact.

What's Included

  • (1) Bosch LR10 500 Ft. Red-Beam Rotary Laser Receiver
  • (1) Quick-Release Grade Rod Mounting Bracket
  • (1) 9-Volt Alkaline Battery

Technical Specifications

Brand / Manufacturer Bosch Power Tools
Model / Part Number LR10
Compatible Laser Diode Color Red Beam Rotary Lasers Only
Maximum Working Range Radius Up to 500 ft. (152.4 Meters)
Display Screen Configuration Dual-Sided Backlit Graphic LCD
Environmental Protection Class IP54 Certified (Dust & Splash Resistant)
Internal Mounting Architecture Integrated Neodymium Top Magnets & Rod Clamp
Power Supply Requirement (1) 9V Battery (Included)
Power Management Feature Automatic Shut-Off System
Overall Tool Dimensions (L x W x H) 5.20 in. x 2.30 in. x 1.20 in. (132.08 x 58.42 x 30.48 mm)
Assembled Net Tool Weight 1.31 lbs (0.59 kg)
Pro-Tip: Enable the high-volume audio tone when working at full 500-foot distances; distinct audio pitch changes signal exact on-grade alignment instantly without requiring constant visual monitoring of the dual LCD screens in direct sun.
