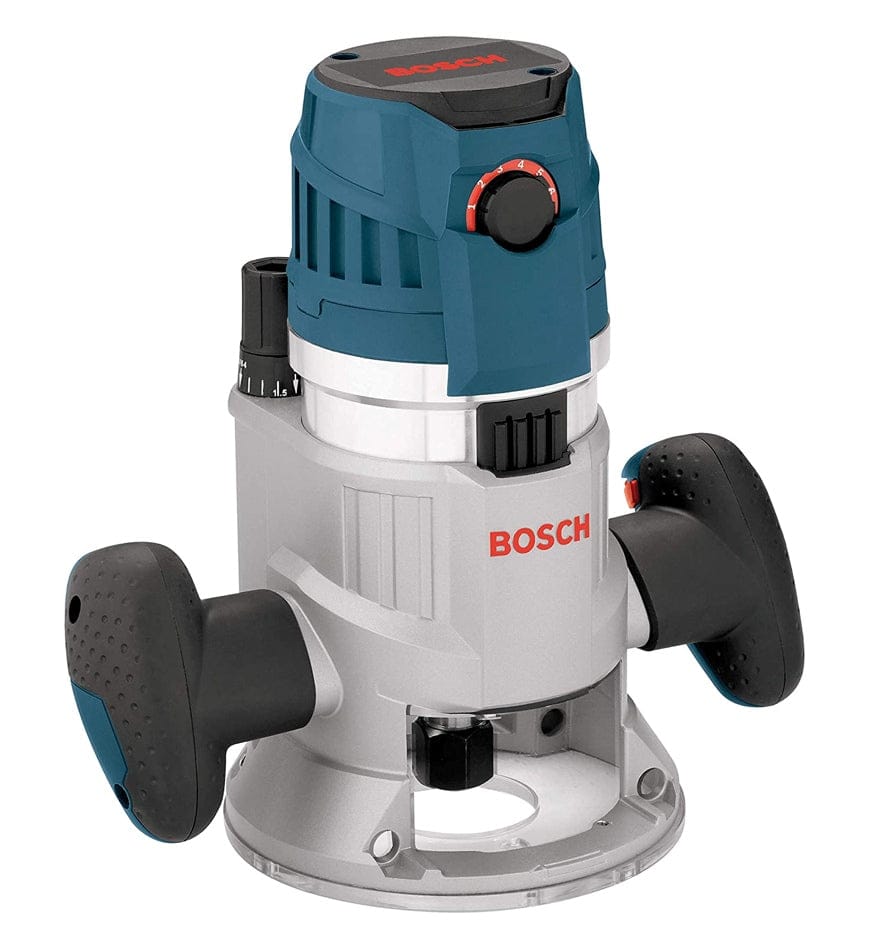

Bosch plunge router with red logo, base plate, and depth adjustment knob; used for edge profiling and groove cutting
Bosch plunge router with dual handles, depth adjustment knob, and clear base; designed for accurate wood shaping.

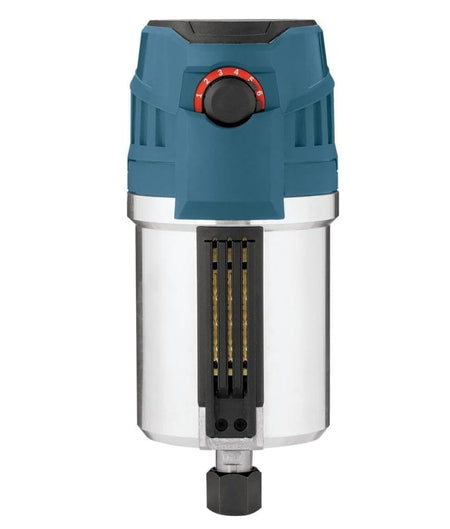

Close-up of Bosch router motor showing variable speed dial, cooling vents, and collet for bit installation.

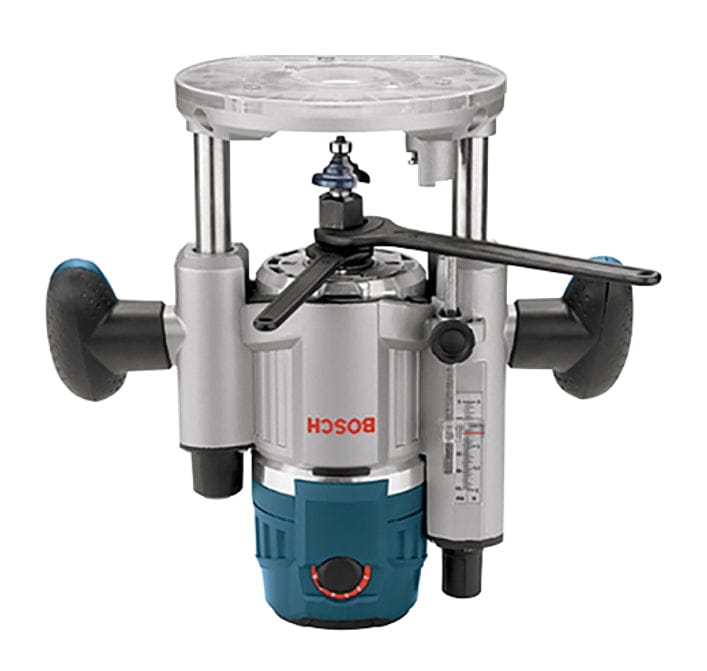

Bosch plunge router with clear base plate, visible router bit, and ergonomic handles for controlled wood cutting.
Bosch plunge router with dual handles, depth adjustment knobs, and flat base plate for precision wood routing.
Bosch router kit with motor unit, fixed base, plunge base, and hard carrying case displayed on workshop surface.
Person using Bosch router with dust extraction hose in woodworking environment; safety glasses worn during operation.

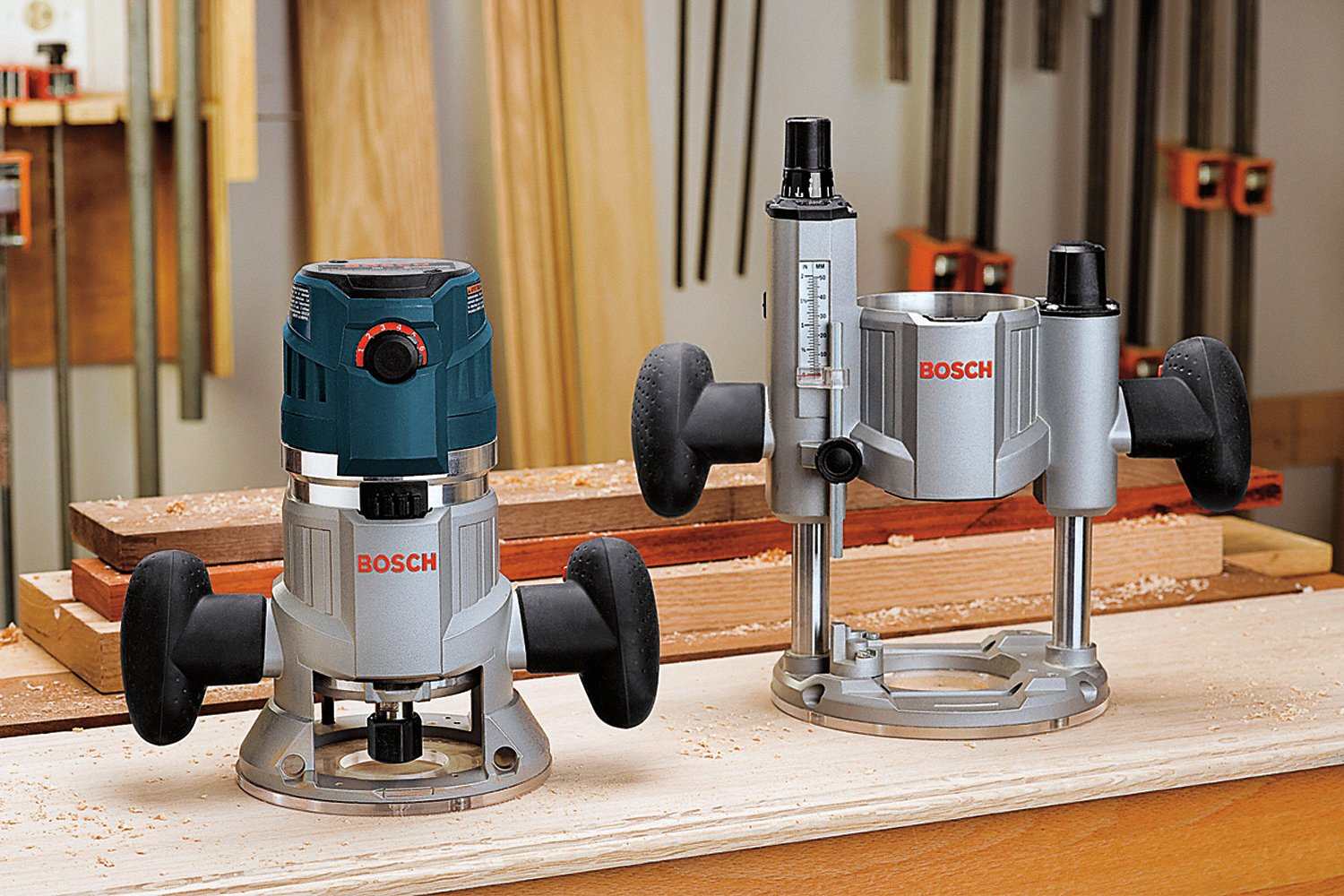

Two Bosch routers on workbench surrounded by wood shavings; fixed-base and plunge-base models in active woodworking shop.
BOSCH

Bosch Router MRC23EVSK 2.3 HP Corded Variable Speed Kit (15 Amp Motor Plunge Fixed Base Woodworking Edge Forming Joinery)

In stock
SKU: MRC23EVSK
$349.00 USD

Description

Bosch Promotional Logo Logout

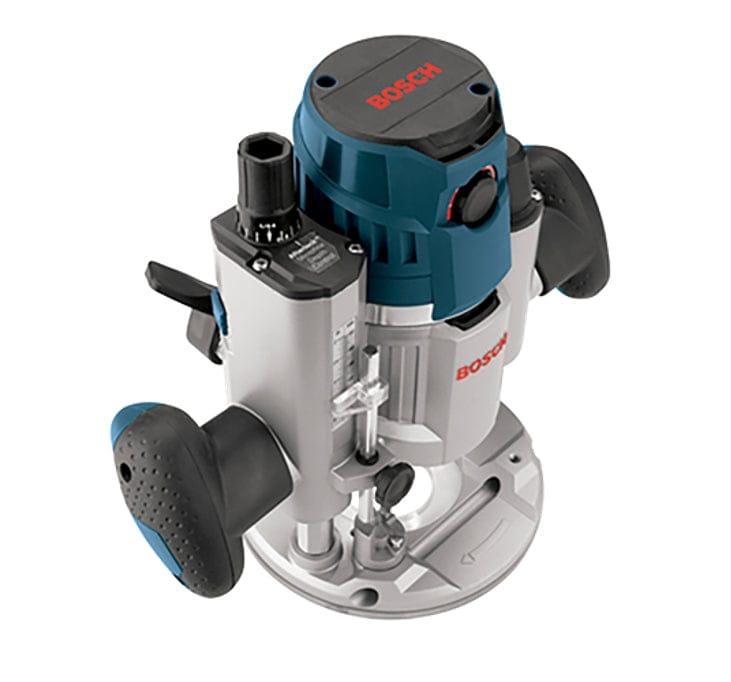

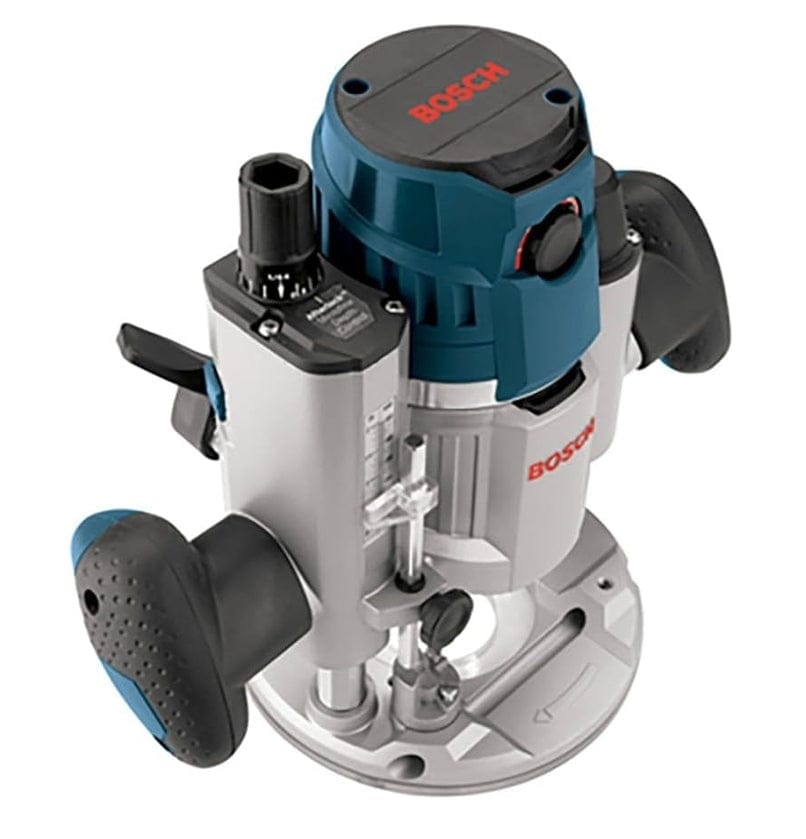

Bosch MRC23EVSK 15 Amp 2.3 HP Corded Variable Speed Plunge and Fixed Base Router Kit

The Bosch MRC23EVSK 15 Amp Electronic Modular Router Kit is a precision woodworking power tool engineered for professional edge forming, template profiling, and mortise joinery. Driven by a powerful 2.3 HP motor output operating across a variable speed range of 10,000 to 25,000 RPM, this modular routing system includes both plunge and fixed bases for maximum application versatility. Outfitted with an innovative handle-integrated trigger control system, Constant Response circuitry to maintain speed under load, and soft-start technology, this kit delivers exceptional depth control and accuracy across hard and soft wood materials.

Best Used For:

  • Precision Edge Forming & Profiling: Shaping decorative edges, rabbets, and dados on hardwood panels using fixed or plunge base configurations.
  • Template Routing & Joinery: Executing clean template guide cuts and dovetail joints using precision-centering sub-bases and microfine depth adjustments.
  • Router Table Integration: Mounting the motor and fixed base into dedicated router tables with above-table depth adjustment access and fixed threaded holes.

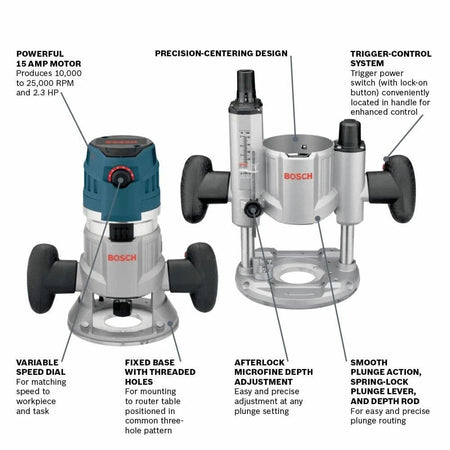

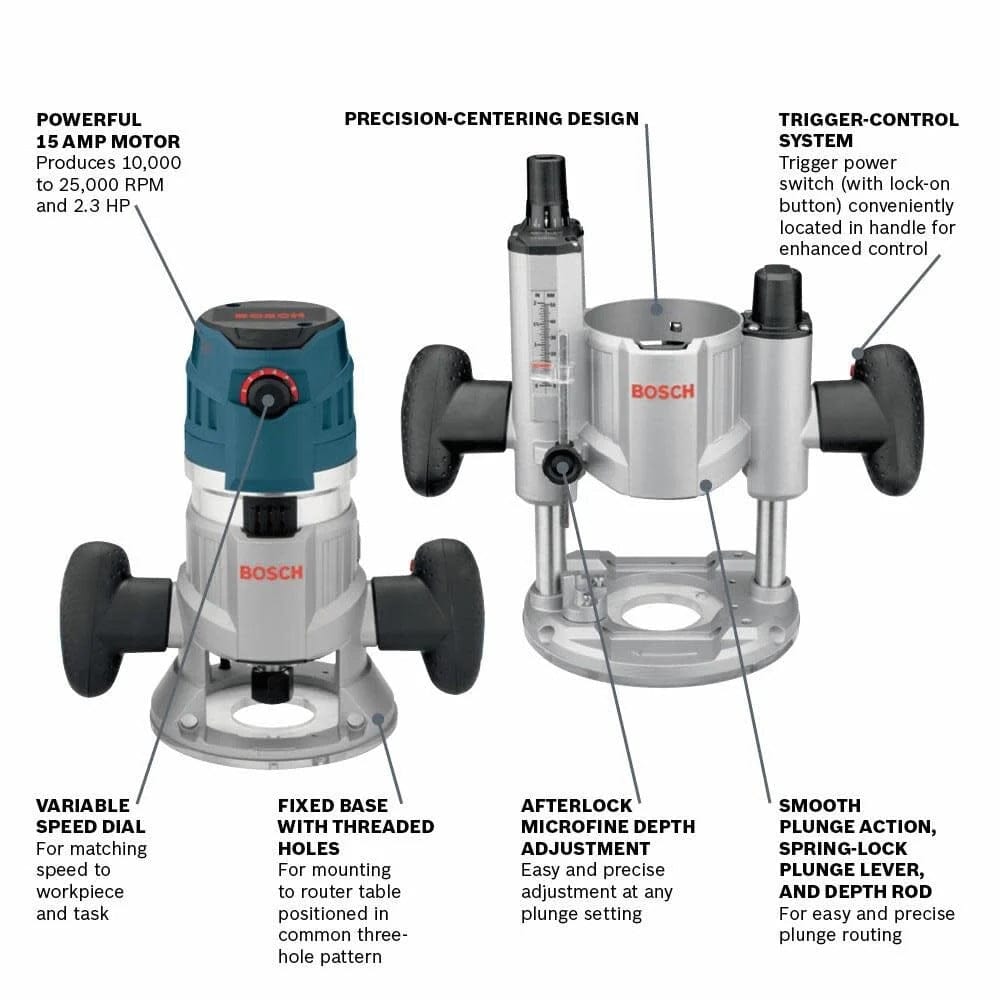

Key Performance & Safety Features

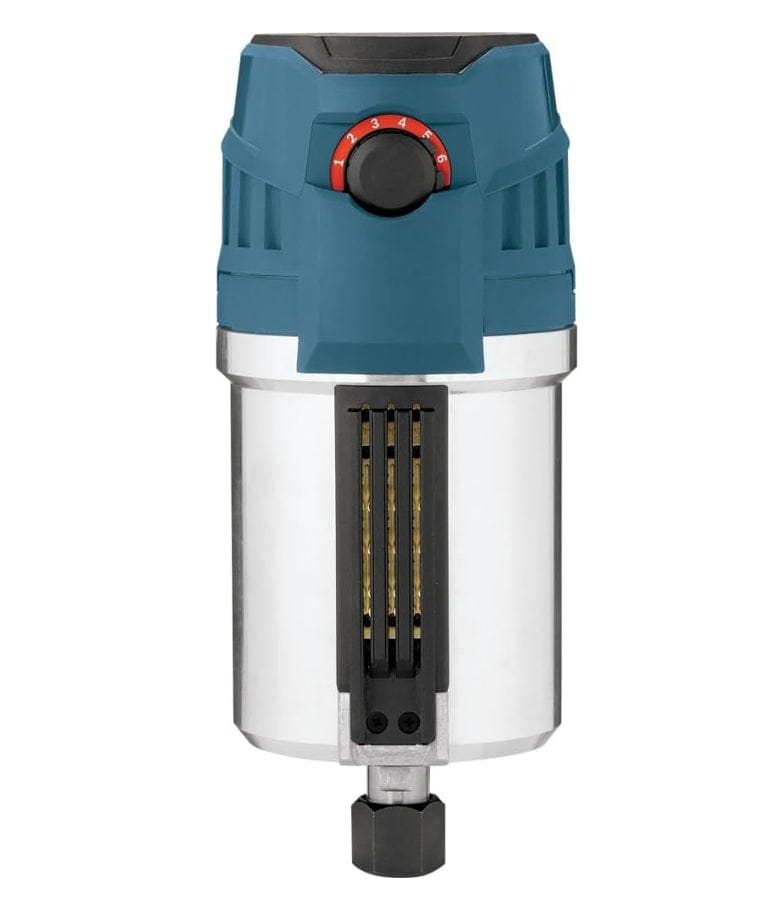

  • 15 Amp Motor Performance: Delivers 2.3 HP and variable speeds from 10,000 to 25,000 RPM to handle demanding wood routing tasks.
  • Trigger-Control System: Power switch integrated directly into the handle of both bases for enhanced operator control and safety during cuts.
  • Constant Response Circuitry: Monitors and maintains speed under load to prevent bogging down while feeding through dense hardwoods.
  • Soft-Start Technology: Suppresses initial startup torque reaction to ensure smooth, controlled bit engagement from zero to full speed.
  • Modular Two-Stage Clamp System: Enables quick, tool-free base changes between the fixed base and plunge base housings.
  • Integrated LED Work Area Lighting: Always-on illumination provides high visibility around the router bit and cutting line.

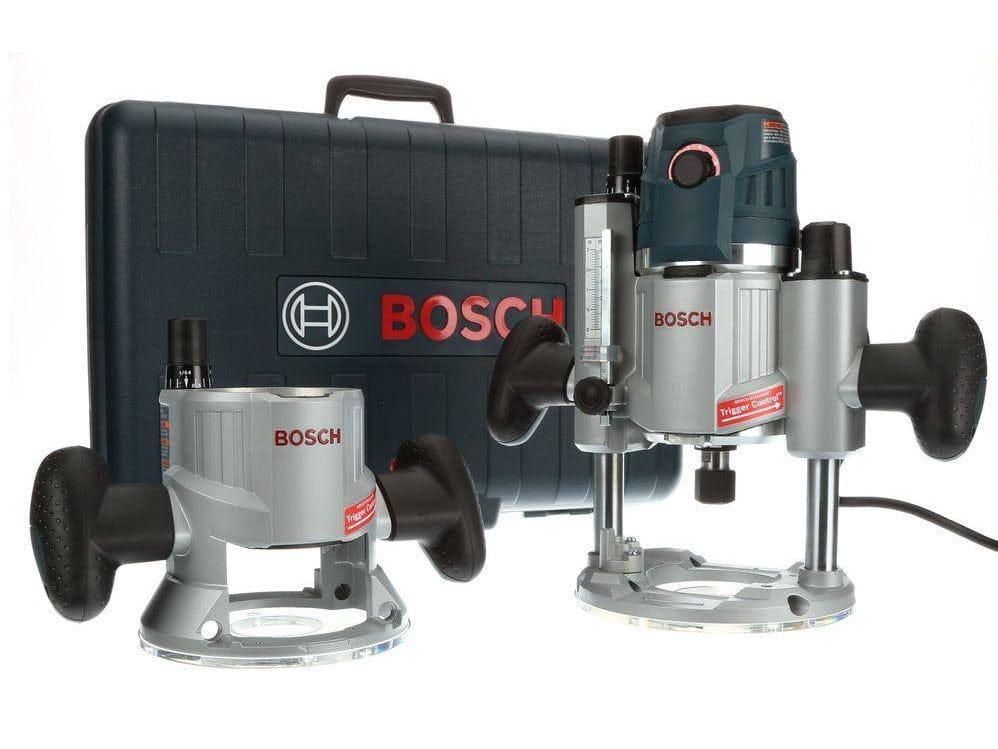

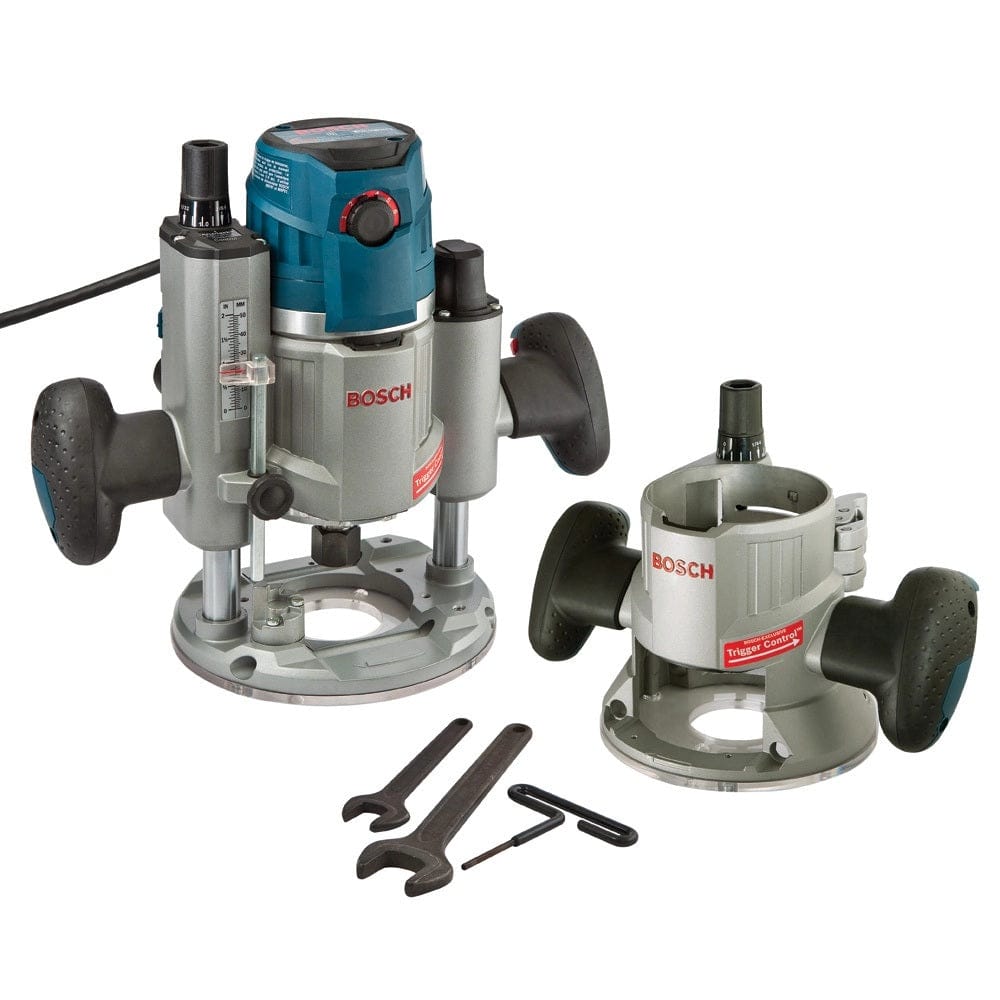

What's Included

  • (1) 2.3 HP Motor
  • (1) Fixed Base (MRF01)
  • (1) Plunge Base (MRP01)
  • (1) 1/4" Self-Releasing Collet Chuck
  • (1) 1/2" Self-Releasing Collet Chuck
  • (1) 16mm Shaft Wrench
  • (1) 24mm Collet Nut Wrench
  • (1) T-Handle Hex Height Adjustment Wrench
  • (1) Hard Carrying Case
  • (1) Pack of 3 M4 Screws for Table Mounting

Technical Specifications

Brand / Manufacturer Bosch
Model / Part Number MRC23EVSK
Motor Horsepower Rating 2.3 HP (Horsepower)
Electrical Amperage & Voltage 15.0 Amps @ 120V AC / 60 Hz
No-Load Speed Range 10,000 – 25,000 RPM (Variable Speed Dial)
Plunge Depth Capacity 3.00 in. (76.2 mm / 3 in.)
Fixed-Base Depth Adjustment Range 1.625 in. (41.27 mm / 1-5/8 in.)
Collet Diameter Capacity Options 1/4 in., 3/8 in., 1/2 in., and 8 mm Collets
Base Plate Diameters 6.0 in. (Fixed) / 7.0 in. (Plunge)
Tool Net Operating Weight 12.6 lbs (5.72 kg)
Tool Physical Dimensions 6.75 in. x 12.6 in. x 9.5 in.
Pro-Tip: Feed the router against the direction of bit rotation when routing external workpiece edges; this counter-forces prevents the router from wandering and ensures a clean, splinter-free cut.
