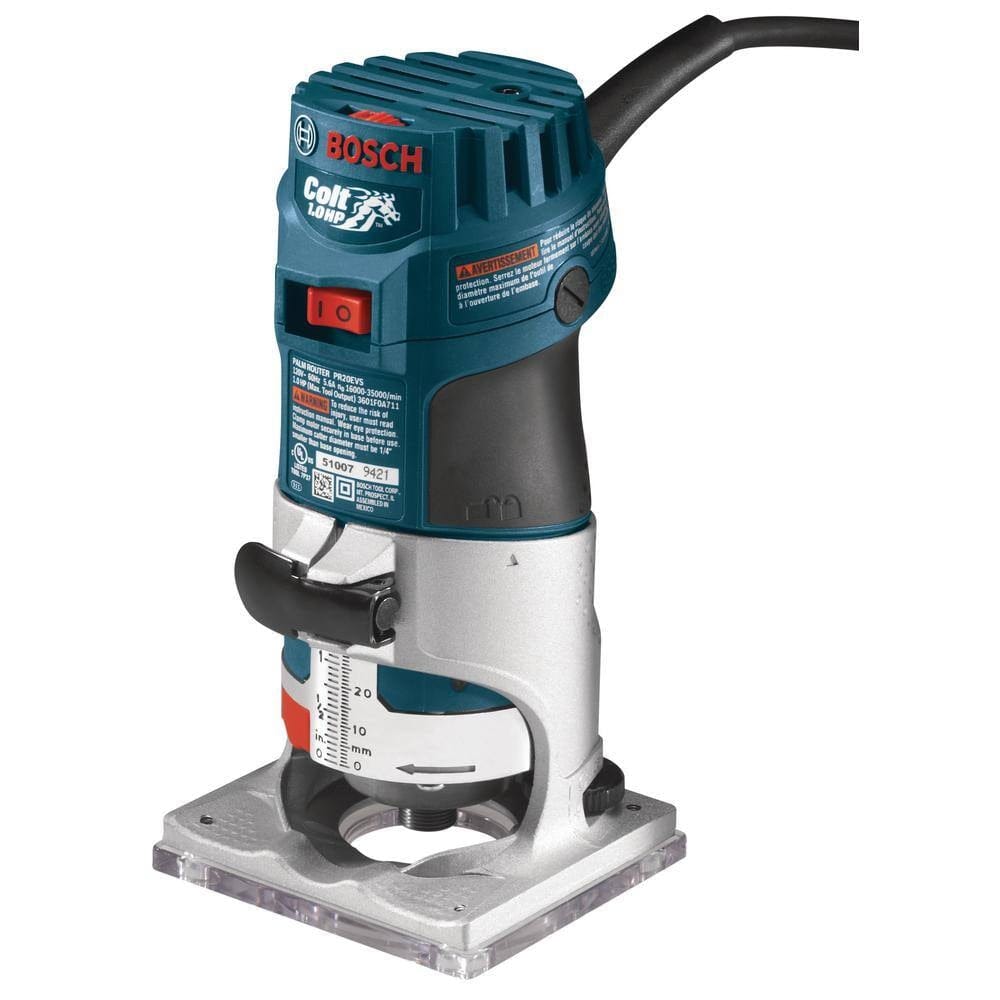

A studio shot of the Bosch PR20EVS Colt palm router featuring a blue motor housing, silver aluminum fixed base, and a black power cord.
An informational diagram of the palm router highlighting key features such as the 1.0-HP motor, depth adjustment system, rugged aluminum base, and finger support pockets.

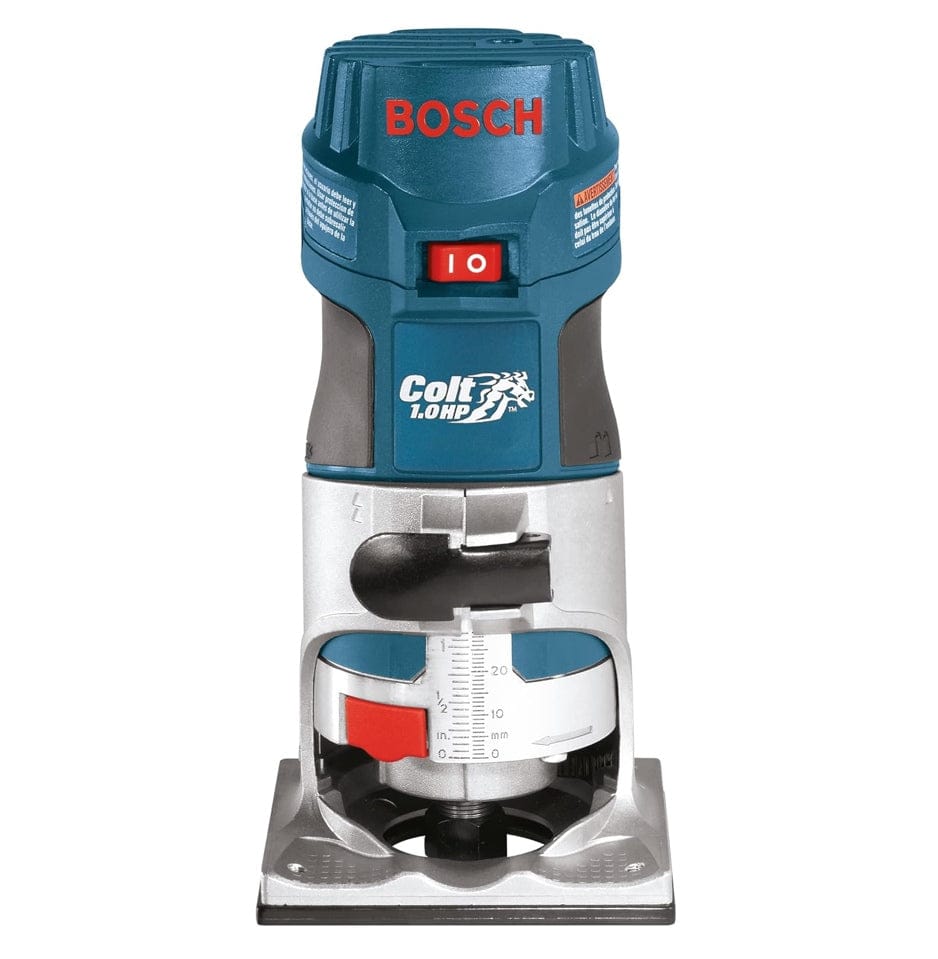

Front view of the router showing the red on/off switch, the depth adjustment scale marked in inches and millimeters, and the quick-clamp lever.

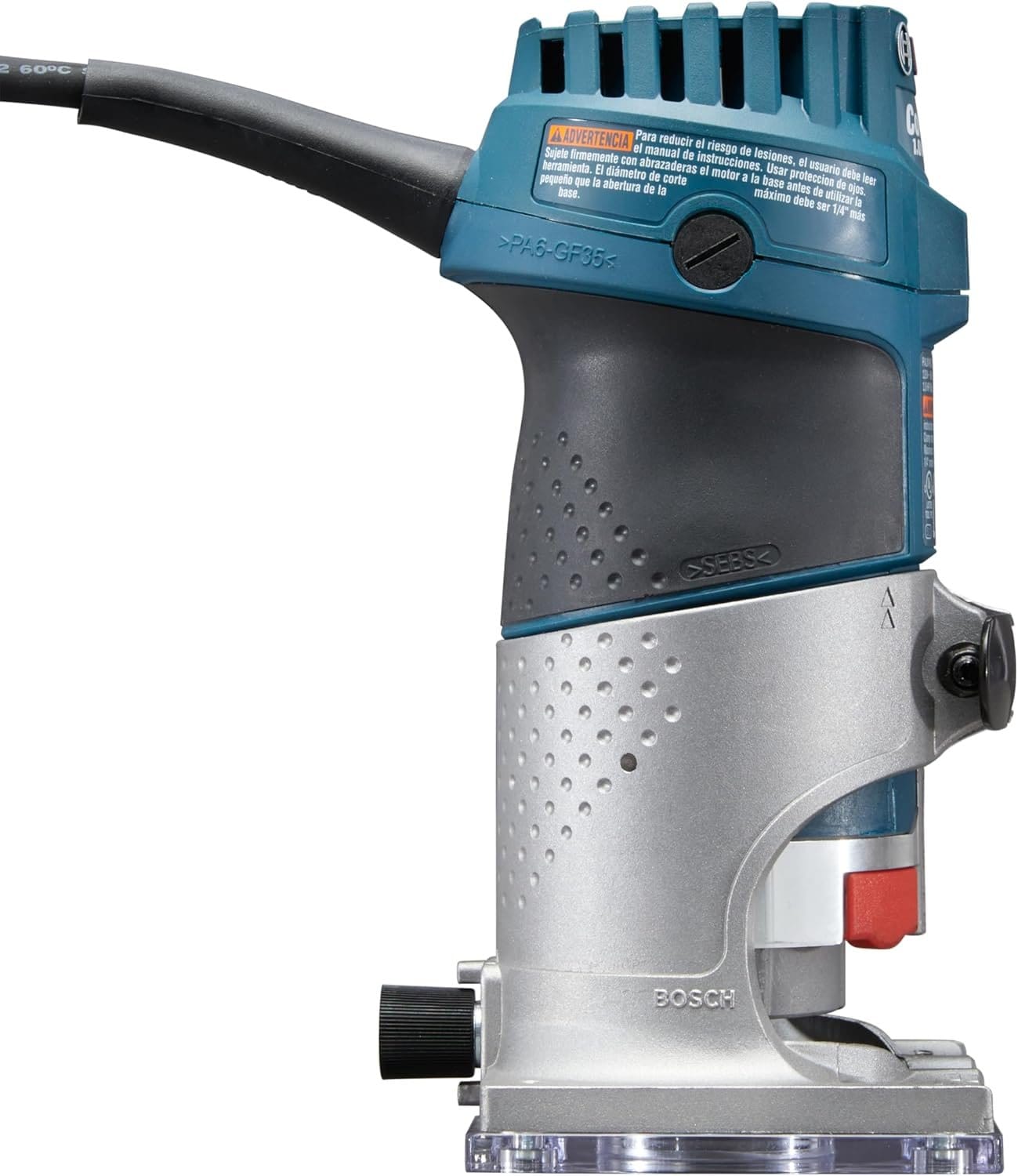

Side profile view of the router displaying the ergonomic rubberized grip area, the angled cord exit, and the spindle lock button.

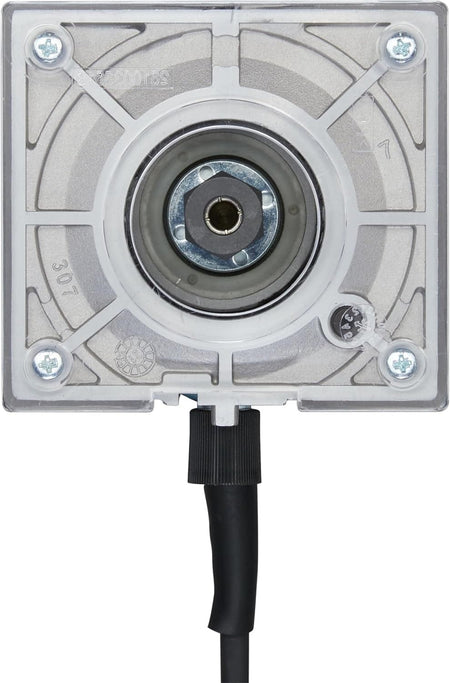

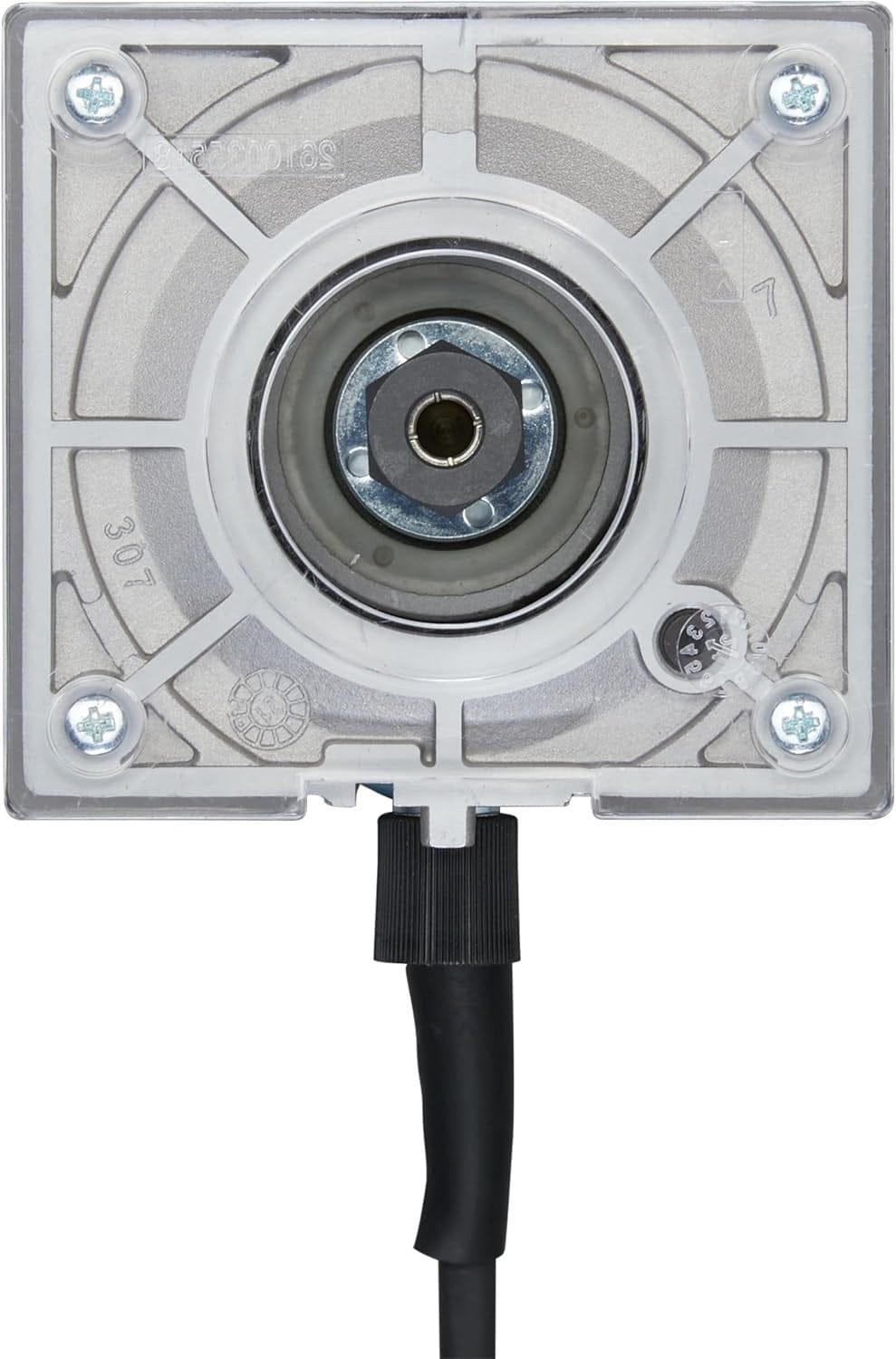

A bottom-up view of the router base showing the clear plastic sub-base, the central collet nut, and the four mounting screws.
A high-angle shot of a user guiding the palm router along the edge of a wooden deck board to create a rounded edge profile.

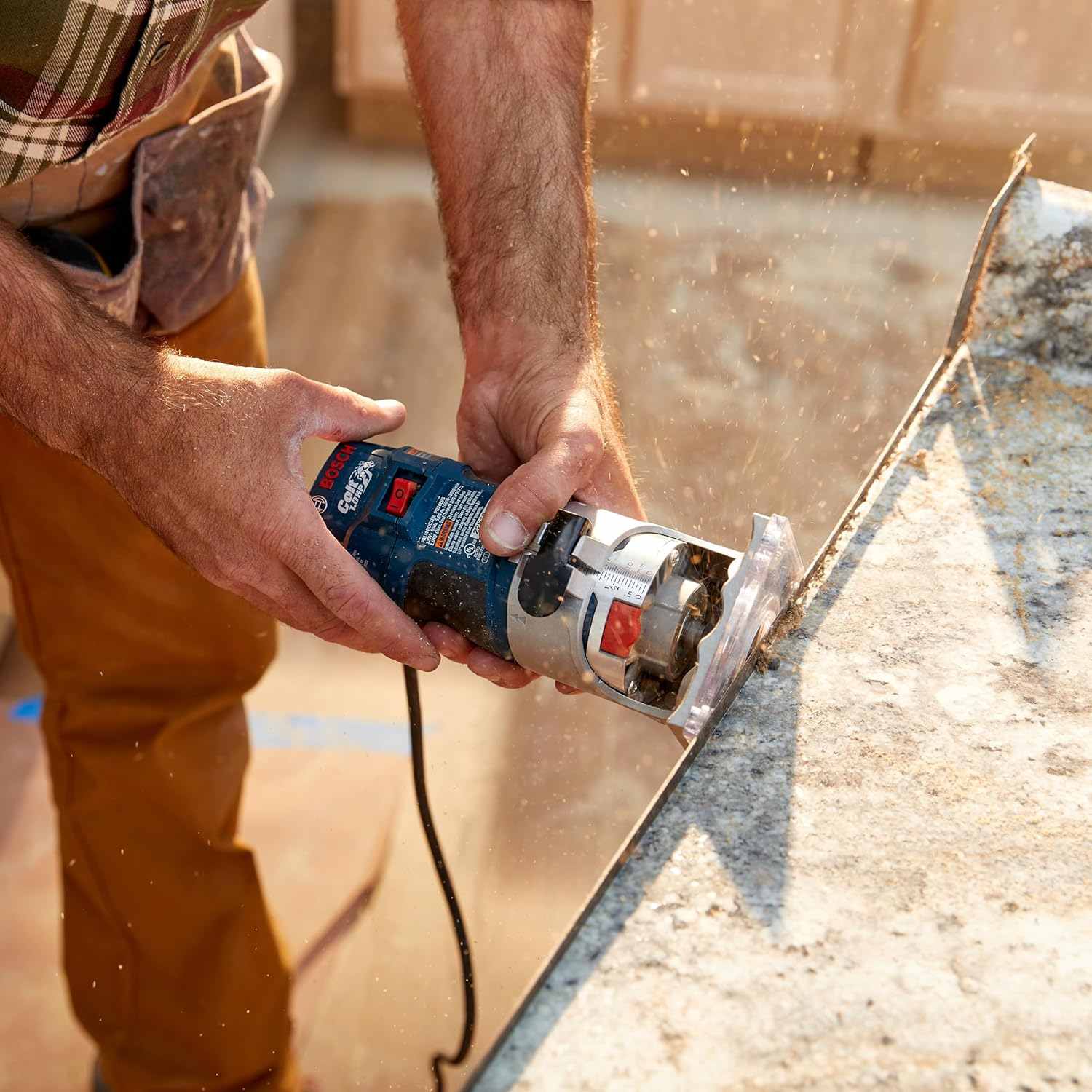

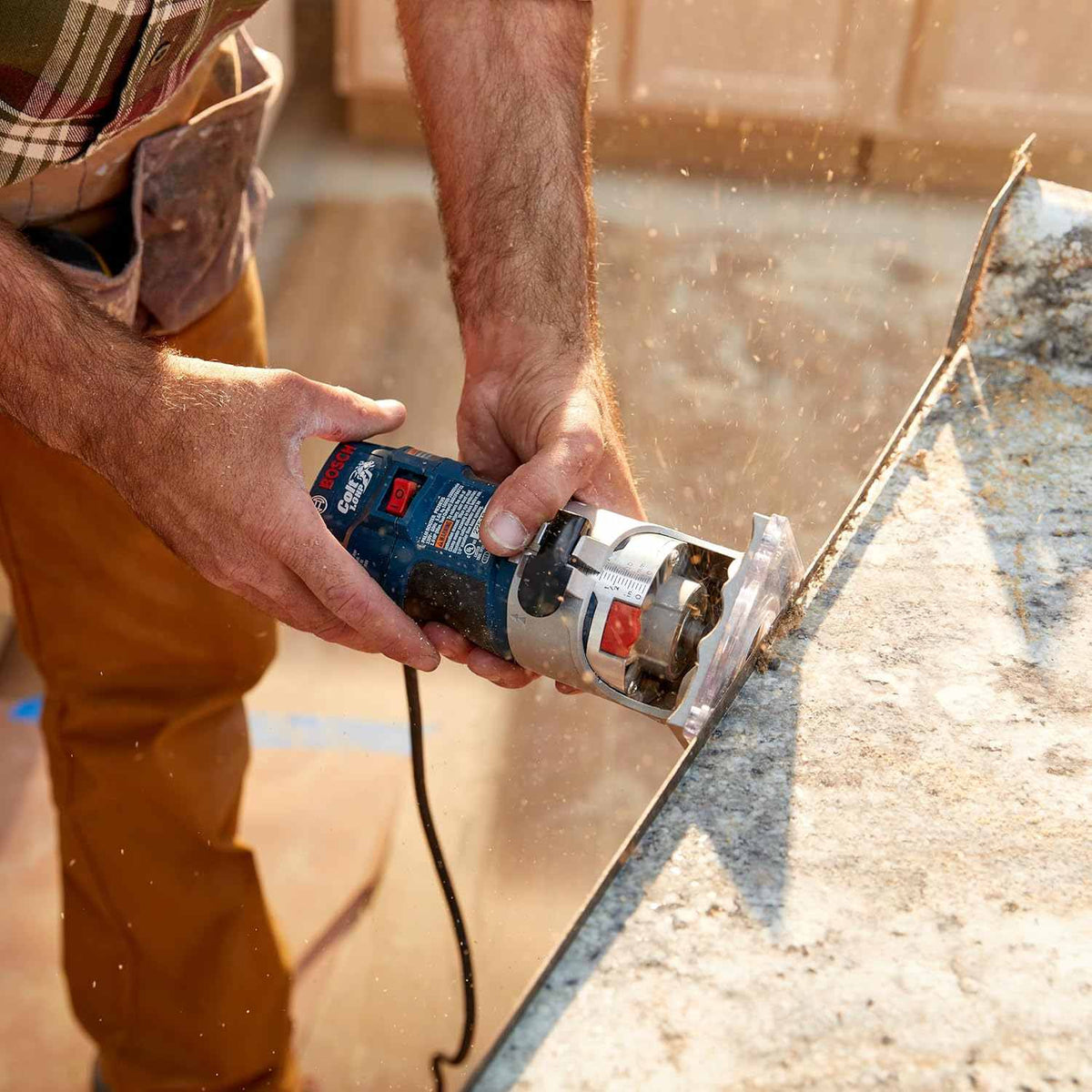

A professional using the router to trim the edge of a countertop material, showing the tool's control and stability during operation.
A woodworker wearing safety glasses using the router to shape the edge of a wooden frame in a workshop setting.
A warranty information graphic displaying the Bosch logo and text stating Corded Tool 1 Year Limited Warranty.
A studio shot of the Bosch PR20EVS Colt palm router featuring a blue motor housing, silver aluminum fixed base, and a black power cord.

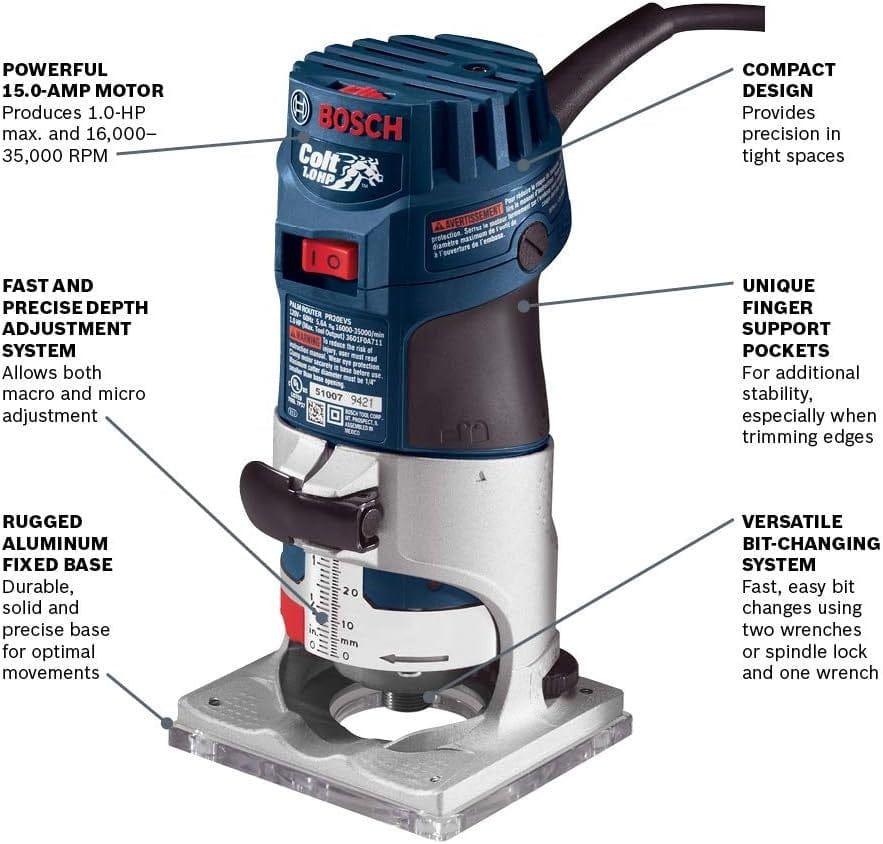

An informational diagram of the palm router highlighting key features such as the 1.0-HP motor, depth adjustment system, rugged aluminum base, and finger support pockets.
Front view of the router showing the red on/off switch, the depth adjustment scale marked in inches and millimeters, and the quick-clamp lever.
Side profile view of the router displaying the ergonomic rubberized grip area, the angled cord exit, and the spindle lock button.
A bottom-up view of the router base showing the clear plastic sub-base, the central collet nut, and the four mounting screws.

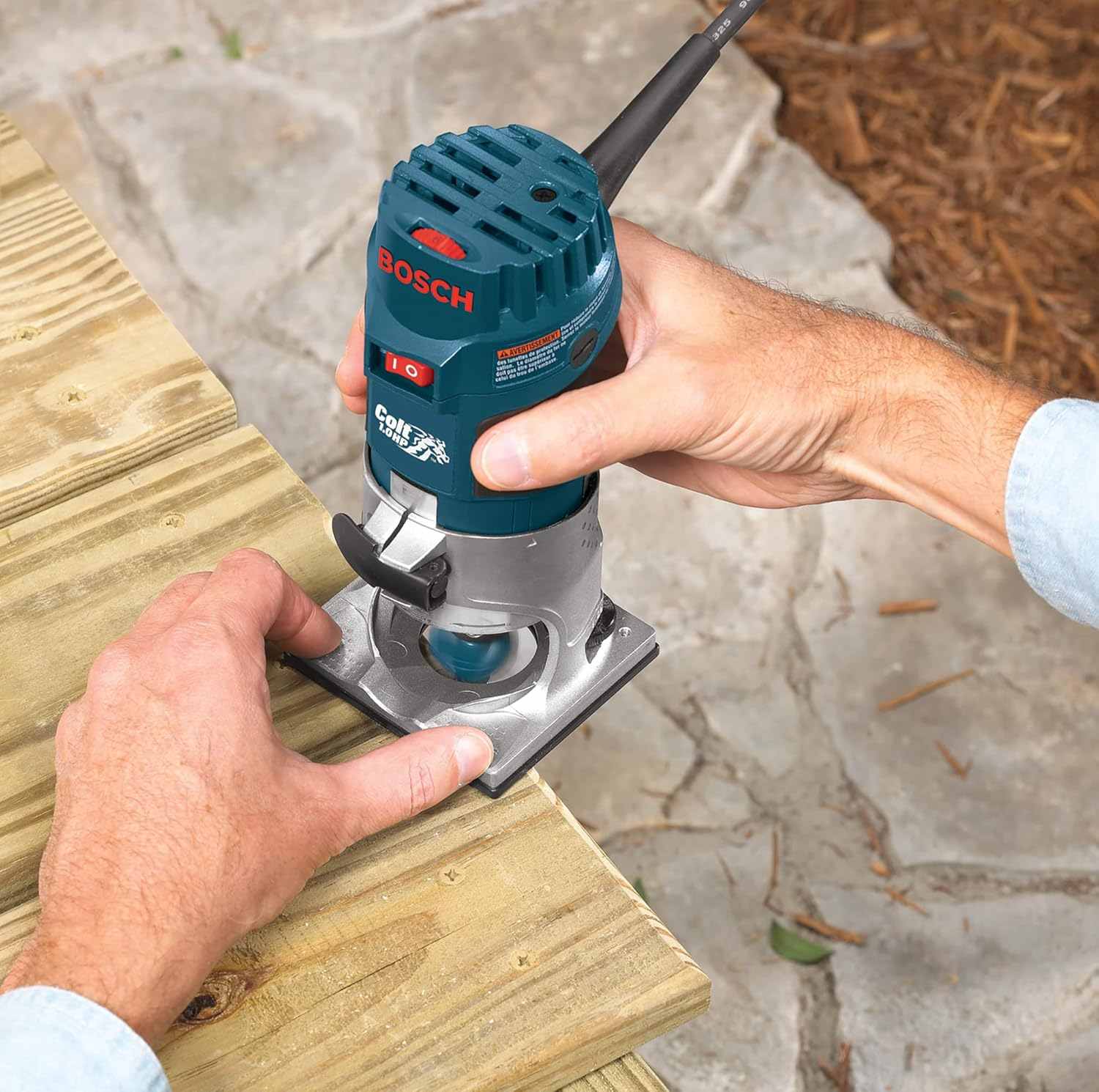

A high-angle shot of a user guiding the palm router along the edge of a wooden deck board to create a rounded edge profile.
A professional using the router to trim the edge of a countertop material, showing the tool's control and stability during operation.

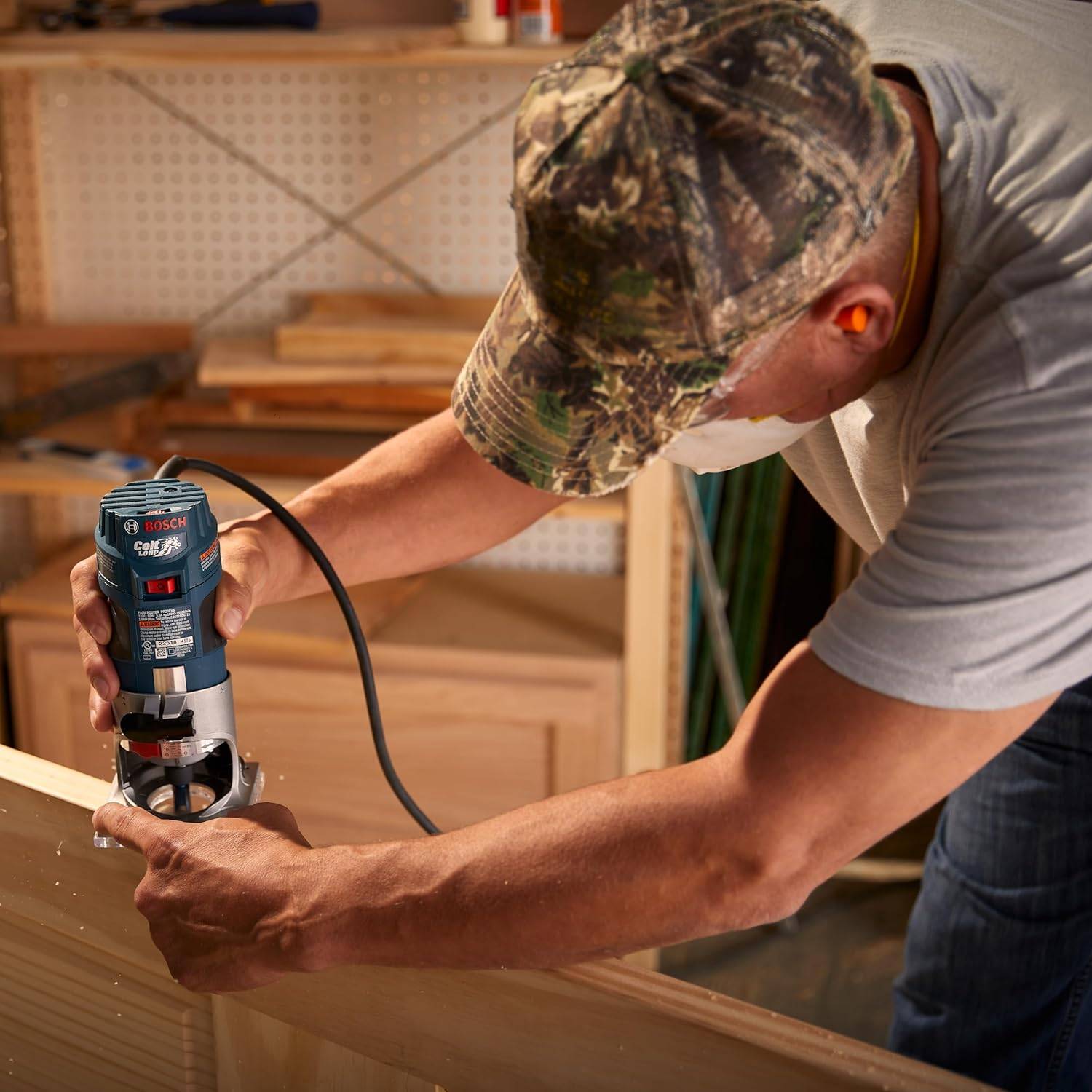

A woodworker wearing safety glasses using the router to shape the edge of a wooden frame in a workshop setting.
A warranty information graphic displaying the Bosch logo and text stating Corded Tool 1 Year Limited Warranty.
BOSCH

Bosch PR20EVS Colt 1.0 HP Variable Speed Palm Router 5.6 Amp Electronic Fixed Base Woodworking Tool Soft Start 1/4 Inch Collet for Edge Trimming

Only 1 left
SKU: PR20EVS
$139.00 USD

Description

Precision Power and Versatility for Professional Edge Trimming and Joinery

Put the power of a full-size router in the palm of your hand with the Bosch PR20EVS Colt 1.0 HP Variable-Speed Palm Router. This compact workhorse features a robust 5.6 Amp motor that generates up to 35,000 RPM, making it ideal for a wide range of applications including laminate trimming, hinge mortising, edge forming, and slot cutting. Equipped with Bosch’s Constant Response™ circuitry, the tool monitors the load and maintains consistent speed for clean, burn-free cuts, while the soft-start feature ensures a smooth ramp-up to eliminate startup torque and improve control.

Designed for the comfort and precision demanded by finish carpenters and cabinet makers, the PR20EVS boasts an ergonomic palm-grip design with soft-grip over-molding and unique finger support pockets for stability. The rugged aluminum fixed base ensures durability and accuracy, featuring a quick-clamp system for fast motor adjustments. Depth setting is effortless with a macro-adjustment for rough positioning and a wheel-controlled micro-fine adjustment for dialing in the perfect cut depth. Whether you are rounding over deck planks or creating decorative inlays, this router delivers the performance you need in a package that fits your hand.

Key Features

  • High-Performance Motor: 5.6 Amp, 1.0 HP motor delivers variable speeds from 16,000 to 35,000 RPM for versatile routing.
  • Constant Response Circuitry: Maintains selected speed under load for consistent, professional performance.
  • Precise Depth Adjustment: Features a macro- and micro-fine depth adjustment system for accurate bit setting.
  • Rugged Aluminum Base: Durable, solid, and precise fixed base accepts bits up to 1-5/16 inches in diameter.
  • Ergonomic Palm Grip: Soft-grip housing with unique finger support pockets provides superior stability and control.
  • Soft Start Technology: Reduces start-up torque for smoother operation and increased user control upon activation.
  • Quick-Clamp System: Allows the motor to be easily adjusted or moved between bases without tools.
  • Variable Speed Dial: conveniently mounted on top of the tool to match speed to the workpiece and task.
  • Versatile Bit Changing: Fast, easy bit changes using two wrenches or the convenient spindle lock and one wrench.
  • Angled Cord Exit: Designed to keep the power cord out of your way while working.

What's Included

  • (1) PR20EVS Palm Router
  • (1) PR001 Fixed Base
  • (1) 1/4 In. Self-Releasing Collet Chuck
  • (1) Shaft Wrench
  • (1) Collet Wrench

Specifications

Amperage 5.6 Amps
Max Horsepower 1.0 HP
No Load RPM 16,000 - 35,000
Collet Capacity 1/4 in.
Max Bit Diameter 1-5/16 in.
Voltage 120V
Fixed-Base Depth Range 1-3/16 in.
Subbase Dimensions 3-1/2 x 3-3/4 in.
Tool Height 7.5 in.
Tool Weight 3.3 lbs
Pro-Tip: When routing hardwoods like oak or maple, reduce the variable speed dial slightly to prevent burning the wood. Always move the router counter-clockwise when working on the outside edge of a piece to maintain control and prevent "climb cutting," which can cause the tool to jump.
