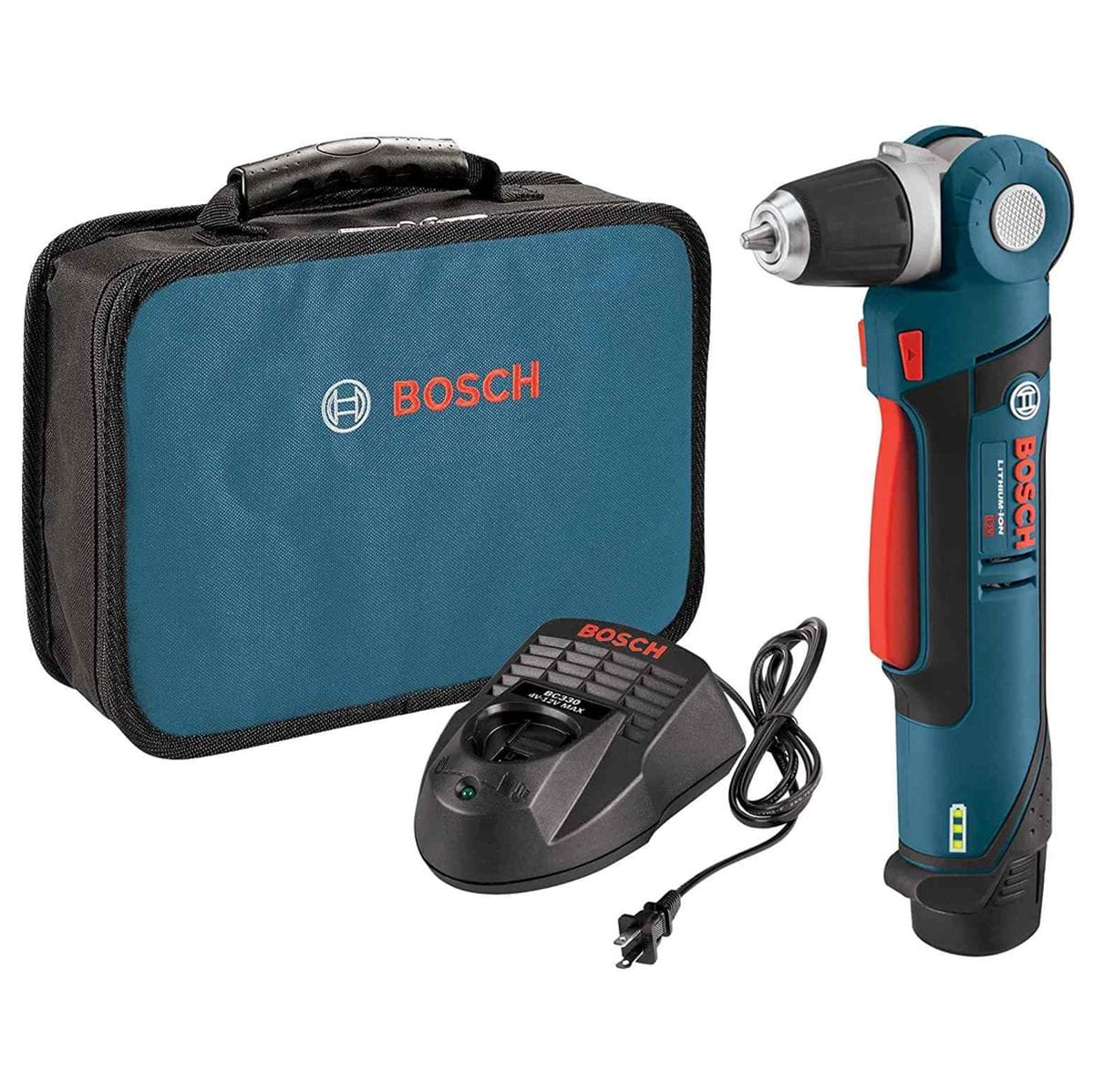

A studio product shot of the Bosch 12V Max right angle drill driver kit, including the handheld tool with its pivoting head at a 90-degree angle, a 2.0 Ah lithium-ion battery, a battery charger, and a blue and black zippered carrying bag with the Bosch logo.
A perspective studio shot of the Bosch 12V Max right angle drill driver against a white background, highlighting its ergonomic blue and black housing, long red trigger, and silver articulating head with a 3/8-inch keyless chuck.
Product infographic of the right angle drill with callouts highlighting key features: a five-position pivoting head that articulates from 90 to 180 degrees, an ergonomic design for hard-to-reach places, a 0-1,300 RPM motor with 101 inch-pounds of max torque, a variable speed trigger, a 3/8-inch auto-lock chuck, and integrated LED lights.
A composite image demonstrating the range of motion of the five-position pivoting head, showing the chuck transitioning through multiple locked angles from a 90-degree right angle to a 180-degree straight configuration.
A direct side-profile view of the Bosch PS11 right angle drill driver in its 90-degree configuration, showing the compact tool body and the battery fuel gauge located near the base.
A top-down view of the articulating head and 3/8-inch keyless chuck, showing the silver metallic finish of the pivot mechanism and the dark gray textured grip on the chuck.
Action shot showing a professional user in a work glove using the right angle drill to reach deep inside a wooden cabinet to fasten a hinge screw, demonstrating the tool's effectiveness in confined spaces.
Close-up action shot of the Bosch drill being used in a tight corner inside a cabinet. The tool is held vertically with the head at a 90-degree angle to drive a screw into a side panel.
An action shot showing a worker using the right angle drill in a straight 180-degree configuration to bore a hole into the undercarriage of a vehicle above a large tire, demonstrating its versatility in industrial maintenance.

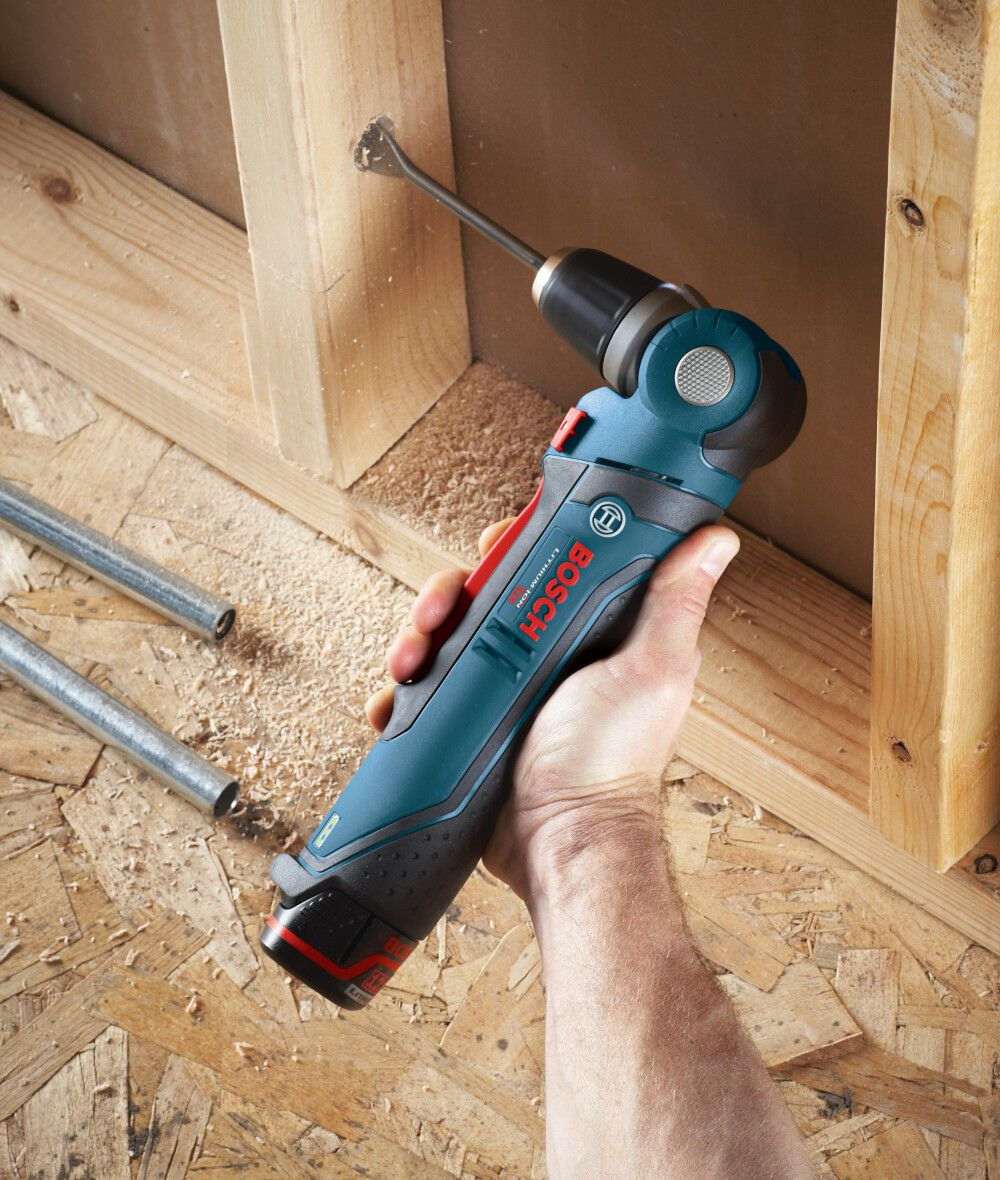

Action shot of a user holding the Bosch right angle drill to bore a hole through a wooden wall stud using a spade bit, highlighting the tool's compact size and ergonomic grip for residential construction tasks.

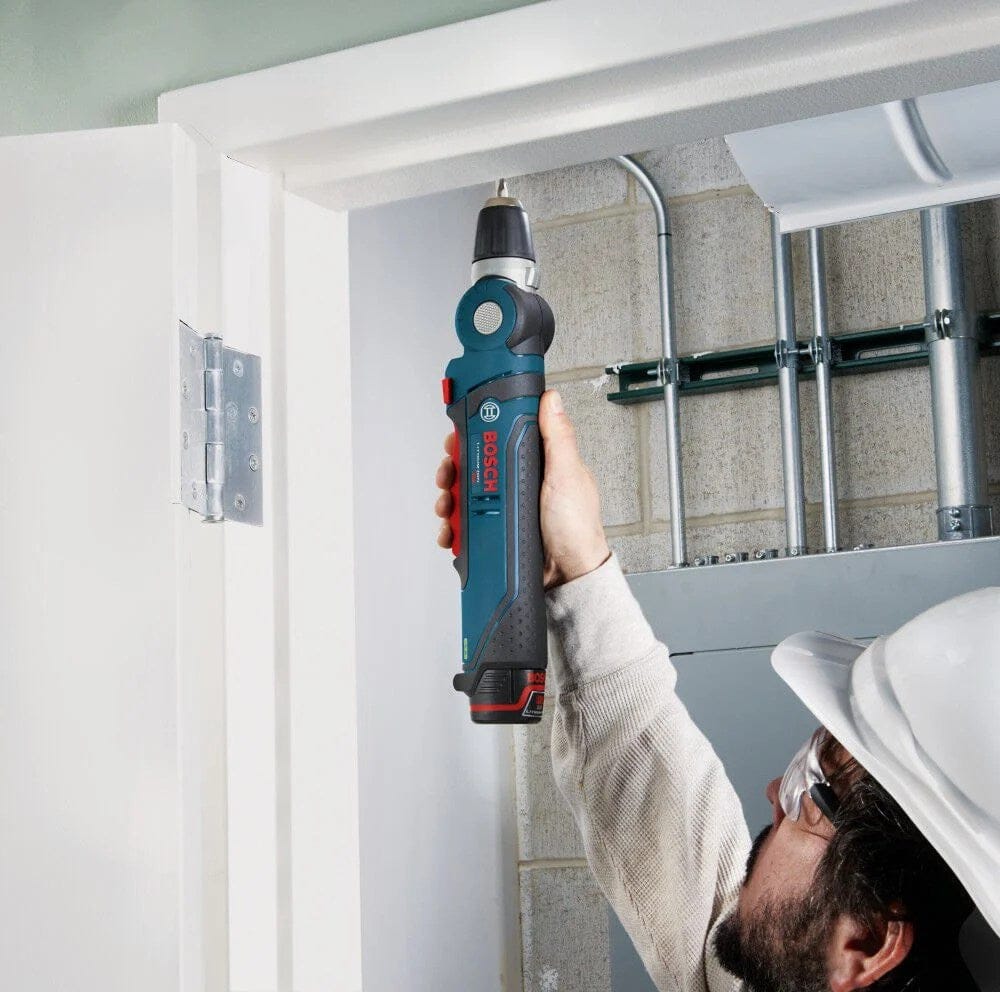

Action shot of a worker using the drill in a 180-degree straight configuration to drive a screw into the top of a white wooden door frame while working near an industrial electrical panel.

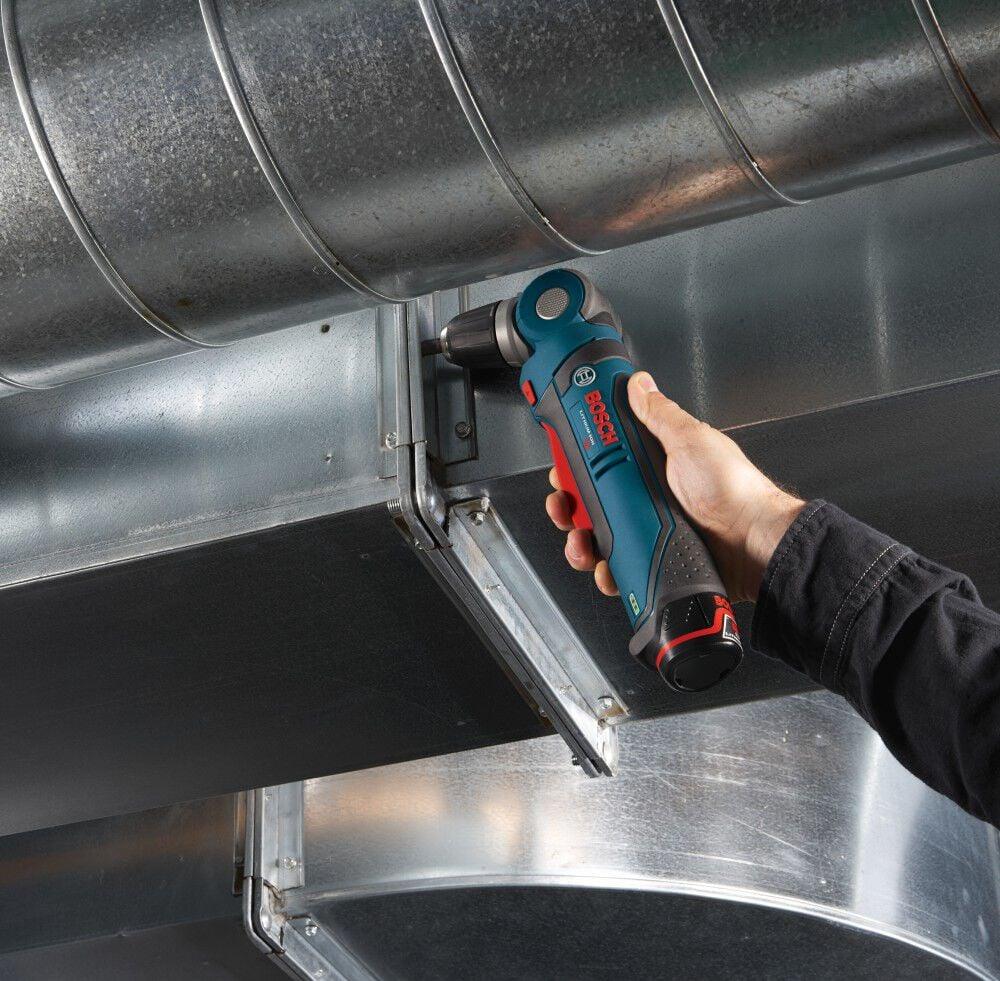

Action shot showing the right angle drill being used to reach into a tight space to drive a screw into a metal HVAC duct connection.
Action shot of a user reaching into the lower shelf of a wooden cabinet with the right angle drill to secure a metal bracket in a corner.
A graphic detailing the Bosch 12V Max Limited Warranty, featuring the Bosch logo and text stating a 3-year warranty for the tool, battery, and charger, effective February 1, 2025.
Bosch H11-13000-1: Retractable Utility Knife promotional video
A studio product shot of the Bosch 12V Max right angle drill driver kit, including the handheld tool with its pivoting head at a 90-degree angle, a 2.0 Ah lithium-ion battery, a battery charger, and a blue and black zippered carrying bag with the Bosch logo.
A perspective studio shot of the Bosch 12V Max right angle drill driver against a white background, highlighting its ergonomic blue and black housing, long red trigger, and silver articulating head with a 3/8-inch keyless chuck.
Product infographic of the right angle drill with callouts highlighting key features: a five-position pivoting head that articulates from 90 to 180 degrees, an ergonomic design for hard-to-reach places, a 0-1,300 RPM motor with 101 inch-pounds of max torque, a variable speed trigger, a 3/8-inch auto-lock chuck, and integrated LED lights.
A composite image demonstrating the range of motion of the five-position pivoting head, showing the chuck transitioning through multiple locked angles from a 90-degree right angle to a 180-degree straight configuration.
A direct side-profile view of the Bosch PS11 right angle drill driver in its 90-degree configuration, showing the compact tool body and the battery fuel gauge located near the base.
A top-down view of the articulating head and 3/8-inch keyless chuck, showing the silver metallic finish of the pivot mechanism and the dark gray textured grip on the chuck.
Action shot showing a professional user in a work glove using the right angle drill to reach deep inside a wooden cabinet to fasten a hinge screw, demonstrating the tool's effectiveness in confined spaces.
Close-up action shot of the Bosch drill being used in a tight corner inside a cabinet. The tool is held vertically with the head at a 90-degree angle to drive a screw into a side panel.
An action shot showing a worker using the right angle drill in a straight 180-degree configuration to bore a hole into the undercarriage of a vehicle above a large tire, demonstrating its versatility in industrial maintenance.
Action shot of a user holding the Bosch right angle drill to bore a hole through a wooden wall stud using a spade bit, highlighting the tool's compact size and ergonomic grip for residential construction tasks.
Action shot of a worker using the drill in a 180-degree straight configuration to drive a screw into the top of a white wooden door frame while working near an industrial electrical panel.
Action shot showing the right angle drill being used to reach into a tight space to drive a screw into a metal HVAC duct connection.
Action shot of a user reaching into the lower shelf of a wooden cabinet with the right angle drill to secure a metal bracket in a corner.
A graphic detailing the Bosch 12V Max Limited Warranty, featuring the Bosch logo and text stating a 3-year warranty for the tool, battery, and charger, effective February 1, 2025.
Bosch H11-13000-1: Retractable Utility Knife promotional video
BOSCH

Bosch PS11-102 12V Max 3/8 Inch Right Angle Drill Driver Kit with 5-Position Pivoting Head 2.0Ah Lithium Ion Battery Charger and Case

In stock
SKU: PS11-102
$159.00 USD

Description

Bosch Promtional Logo Logout

Master Tight Spaces with Precision: The Ultimate 5-Position Pivoting Angle Drill

The Bosch PS11-102 12V Max 3/8 In. Right Angle Drill/Driver Kit is the professional’s answer to impossible jobsite geometry. Engineered with a unique five-position pivoting head that articulates from 90 degrees to 180 degrees, this tool allows you to drill and drive in areas where a standard drill simply cannot fit. Whether you are an electrician running wire through narrow joists, a plumber installing hardware inside cramped cabinetry, or an HVAC technician working in tight ductwork, the PS11 provides the perfect balance of compact power and ergonomic control. Its soft-grip body is optimized for a secure hold, ensuring precision even when working at awkward angles.

Beyond its maneuverability, the Bosch PS11 is packed with intelligent features to enhance your workflow. The 3/8-inch Auto-Lock chuck provides simple bit replacements for a variety of applications, while the variable speed trigger allows for perfect speed regulation up to 1,300 RPM. Visibility is never an issue thanks to the dual LED lights that articulate with the chuck to illuminate your specific work area. To ensure long-term reliability, the tool is equipped with Electronic Cell Protection to prevent overheating and overloading, while the integrated motor brake allows for exact serial screw driving. This complete kit includes a 2.0Ah battery, charger, and carrying bag, providing everything you need for all-day productivity.

Key Features

  • Five-Position Pivoting Head: Articulates from 90° to 180° for superior balance and control in confined spaces.
  • Articulating LED Illumination: Two LED lights move with the chuck to effectively increase visibility in dark work areas.
  • 3/8 In. Auto-Lock Chuck: Enables fast, toolless bit changes for a wide variety of jobsite applications.
  • Variable Speed Trigger: Delivers precise speed regulation from 0-1,300 RPM to match the material and task.
  • Electronic Cell Protection (ECP): Advanced battery and tool electronics ensure longer life and maximum runtime.
  • Integrated Motor Brake: Stops the motor immediately for accurate, repetitive serial screw driving.
  • Battery Fuel Gauge: Convenient indicator allows for easy battery management and minimizes downtime.
  • Ergonomic Soft Grip: Optimized handle design provides a secure and comfortable grip during extended use.

What's Included

  • (1) PS11 12V Max 3/8 In. Angle Drill
  • (1) 12V Max Lithium-Ion 2.0 Ah Battery
  • (1) 12V Max Charger
  • (1) Carrying Bag

Specifications

Attribute Details
Voltage 12V Max
Chuck Size 3/8 Inch
Chuck Type Keyless Auto-Lock
No Load RPM 0-1,300
Max Torque 115 In.-Lbs.
Head Positions 5 Positions (90° to 180°)
Tool Length 11.5 Inches
Tool Width 3.5 Inches
Weight 2.4 lbs.
Battery Chemistry Lithium Ion
Case Type Heavy-Duty Bag

Pro-Tip: When working in the tightest corners, set the pivoting head to the 90-degree position and use your palm to apply pressure to the back of the motor housing. This aligns your force directly behind the bit, maximizing torque and preventing the bit from slipping out of the fastener head.
