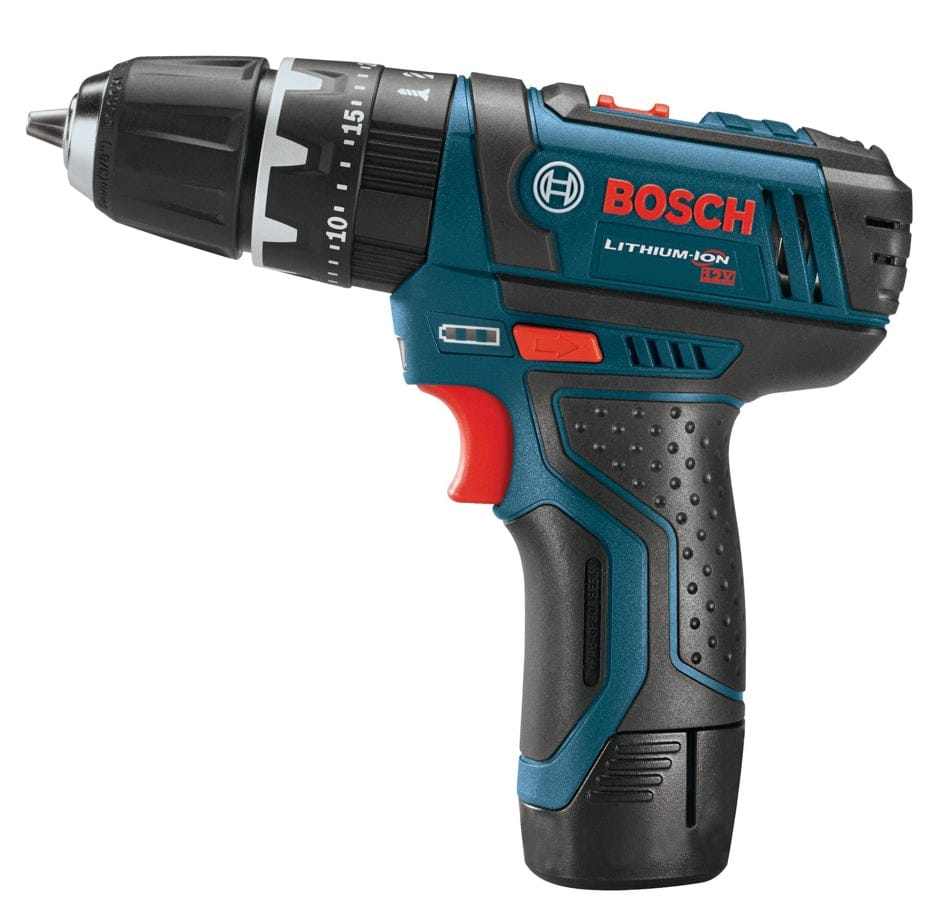

A side profile view of the blue and black Bosch PS130-2A hammer drill driver, showing the keyless chuck, torque adjustment ring, battery level indicator, and red trigger switch.
A person using the compact Bosch PS130-2A drill driver to install small brass hinges onto a stained wooden box on a workbench.
A close-up of a person's hand using the Bosch PS130-2A drill driver to drive a gold screw into a light-colored wooden frame.
A vertical shot of a person using the Bosch PS130-2A with a masonry bit to drill a hole into a red brick wall above a grey electrical outlet.

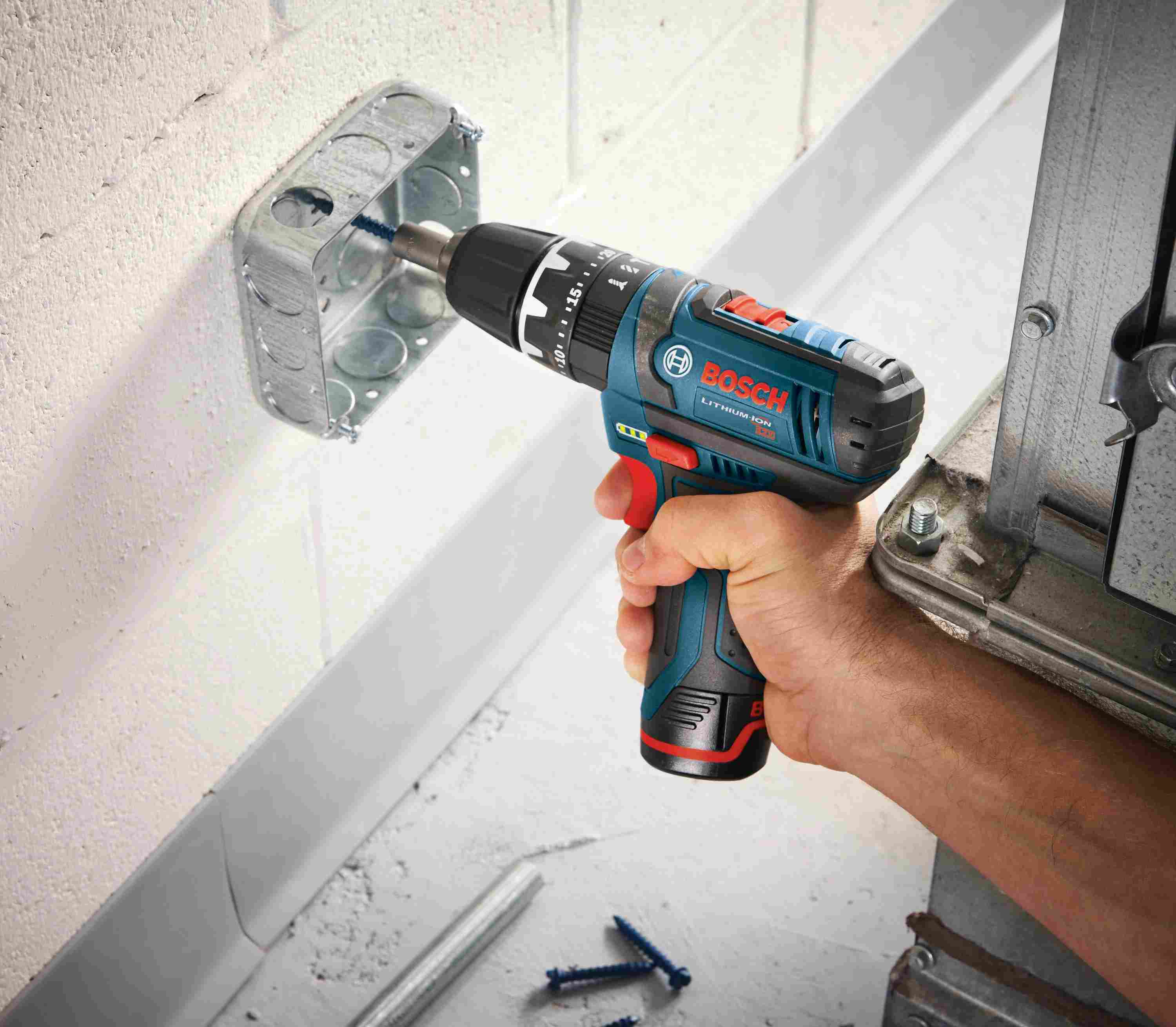

A person holding the Bosch PS130-2A drill driver to fasten a screw inside a metal electrical junction box mounted on a white block wall.
A person wearing gloves using the Bosch PS130-2A drill driver to drill into a wall through a blue dust extraction attachment connected to a vacuum hose.
A construction worker wearing safety glasses and earplugs using the Bosch PS130-2A to drill into a rough brick wall in a room with distressed walls.
A blue informational graphic displaying the Bosch logo and a "3 Year Tool Battery Charger" warranty icon. Text states that effective 2/1/25, all 12V Max products (excluding measuring tools) are covered by this updated limited warranty.
Tough Hammer Drilling & Driving: Bosch 1/2 In promotional video
The Bosch PS130-2A kit components displayed together, including the cordless hammer drill driver, a spare 12V Max battery, a plug-in battery charger, and a blue zippered carrying case with the Bosch logo.
A diagram of the Bosch PS130-2A drill driver pointing out key features: 20 clutch settings for torque adjustment, an LED light for dark areas, a two-speed transmission for optimized torque and speed, and a compact head length for better balance.
A side profile view of the blue and black Bosch PS130-2A hammer drill driver, showing the keyless chuck, torque adjustment ring, battery level indicator, and red trigger switch.
A person using the compact Bosch PS130-2A drill driver to install small brass hinges onto a stained wooden box on a workbench.
A close-up of a person's hand using the Bosch PS130-2A drill driver to drive a gold screw into a light-colored wooden frame.
A vertical shot of a person using the Bosch PS130-2A with a masonry bit to drill a hole into a red brick wall above a grey electrical outlet.
A person holding the Bosch PS130-2A drill driver to fasten a screw inside a metal electrical junction box mounted on a white block wall.
A person wearing gloves using the Bosch PS130-2A drill driver to drill into a wall through a blue dust extraction attachment connected to a vacuum hose.
A construction worker wearing safety glasses and earplugs using the Bosch PS130-2A to drill into a rough brick wall in a room with distressed walls.
A blue informational graphic displaying the Bosch logo and a "3 Year Tool Battery Charger" warranty icon. Text states that effective 2/1/25, all 12V Max products (excluding measuring tools) are covered by this updated limited warranty.
Tough Hammer Drilling & Driving: Bosch 1/2 In promotional video
BOSCH

Bosch Hammer Drill Driver PS130-2A 12V Max 3/8 Inch Keyless (265 In-Lbs Torque 19500 BPM Masonry Fastening Complete Kit Batteries Charger Bag)

In stock
SKU: PS130-2A
$189.00 USD

Description

Bosch Promtional Logo Logout

Industrial-Grade 12V Max Cordless 3/8-Inch Hammer Drill Driver Kit with Dual 2.0 Ah Lithium-Ion Battery Packs and 19,500 BPM Masonry Impact Velocity

The Bosch PS130-2A 12V Max Cordless Hammer Drill Driver Kit delivers specialized masonry penetration utility and exceptional small-fastener torque control across highly restricted assembly zones. Engineered with a dual-speed planetary transmission, this compact powertrain generates 265 in-lbs of rotational torque and a high-impact percussion rate reaching 19,500 blows per minute. This technical hardware solution resolves close-quarter joist access constraints, high-fatigue overhead anchor installations, and stripped screw threads by combining a streamlined 8.0-inch chassis length with a 20+1 position mechanical slip clutch dial. Outfitted with a 3/8-inch single-sleeve keyless auto chuck for swift bit retention adjustments, an on-board LED light path, and a real-time battery fuel gauge, this 2.3 lb balanced system optimizes subcontractor productivity during residential cabinetry placement, mechanical anchor layout drilling, and commercial electrical component installations.

Best Used For:

  • Light Masonry Anchoring: Boring precise pilot apertures into brick walls, mortar joints, and concrete block substrates using concrete carbide bits.
  • Intricate Cabinetry Adjustments: Running fine wood fasteners into dense sub-frames and hardware hinges safely using the progressive slip-clutch control bands.
  • Overhead Framing Installations: Securing electrical conduit brackets and plumbing strap hardware continuously into timber framing lines with minimal shoulder stress.

Key Performance & Safety Features

  • High-Impact Percussion Mode: Delivers an optimized 19,500 BPM compression rhythm to fracture stone materials smoothly during high-speed structural drilling loops.
  • Dual-Speed Gearbox Matrix: Selects cleanly between a high-power torque layout (0-380 RPM) and a high-velocity rotation format (0-1,300 RPM).
  • 20+1 Mechanical Clutch: Graduated adjustable collar cuts power transmission instantly to eliminate fastener spin-out and safeguard brittle surfaces.
  • Single-Sleeve Auto Chuck: Single-motion 3/8-inch keyless mechanism tightens down securely onto round or hex shanks with one-handed manual leverage.
  • On-Board Power Gauge: Integrated fuel layout indicators display stored cell levels continuously to prevent unexpected field deployment stoppages.

What's Included

  • (1) PS130 12V Max 3/8-Inch Cordless Hammer Drill/Driver
  • (2) 12V Max Lithium-Ion 2.0 Ah Rechargeable Battery Packs
  • (1) 12V Max Balanced Battery Charger
  • (2) Industrial-Grade Screwdriver Drive Bits
  • (1) Heavy-Duty Woven Canvas Storage Carrying Bag

Technical Specifications

Specification Value
Brand Name Bosch
Model Number PS130-2A
Operating Base Voltage 12V Max DC
Battery Cell Chemistry Lithium-Ion (Two 2.0 Ah Packs Included)
Peak Rotational Torque 265 in.-lbs.
No Load Velocity Scale 0 - 380 / 0 - 1,300 RPM
Percussive Impact Frequency 0 - 19,500 BPM (Blows Per Minute)
Chuck Capacity Dimension 3/8 in.
Chuck Structural Design Single-Sleeve Keyless Auto Chuck
Torque Clutch Settings 20 Slip Positions + 1 Drill Mode Lock
Variable Speed System Yes (Trigger Variable)
Overall Tool Length 8.0 in.
Overall Tool Width 3.5 in.
Overall Tool Height 6.75 in.
Bare Instrument Weight 1.9 lbs. (2.3 lbs. with battery pack)

Pro-Tip: When shifting the internal selectors from standard drilling to hammer percussion mode, ensure the dial turns completely into the alignment detent slot. Running the tool midway between settings under a high load can disrupt the inner hammer anvil tracking surfaces and lead to early drivetrain failure.
