Bosch Benchtop Router Table RA1181 Large Aluminum Top (Universal Pre Drilled Mounting Plate Adjustable Featherboards 2-1/2 Inch Dust Port Woodworking)

In stock
SKU: RA1181
$284.99 USD

Description

Bosch Promotional Logo Logout

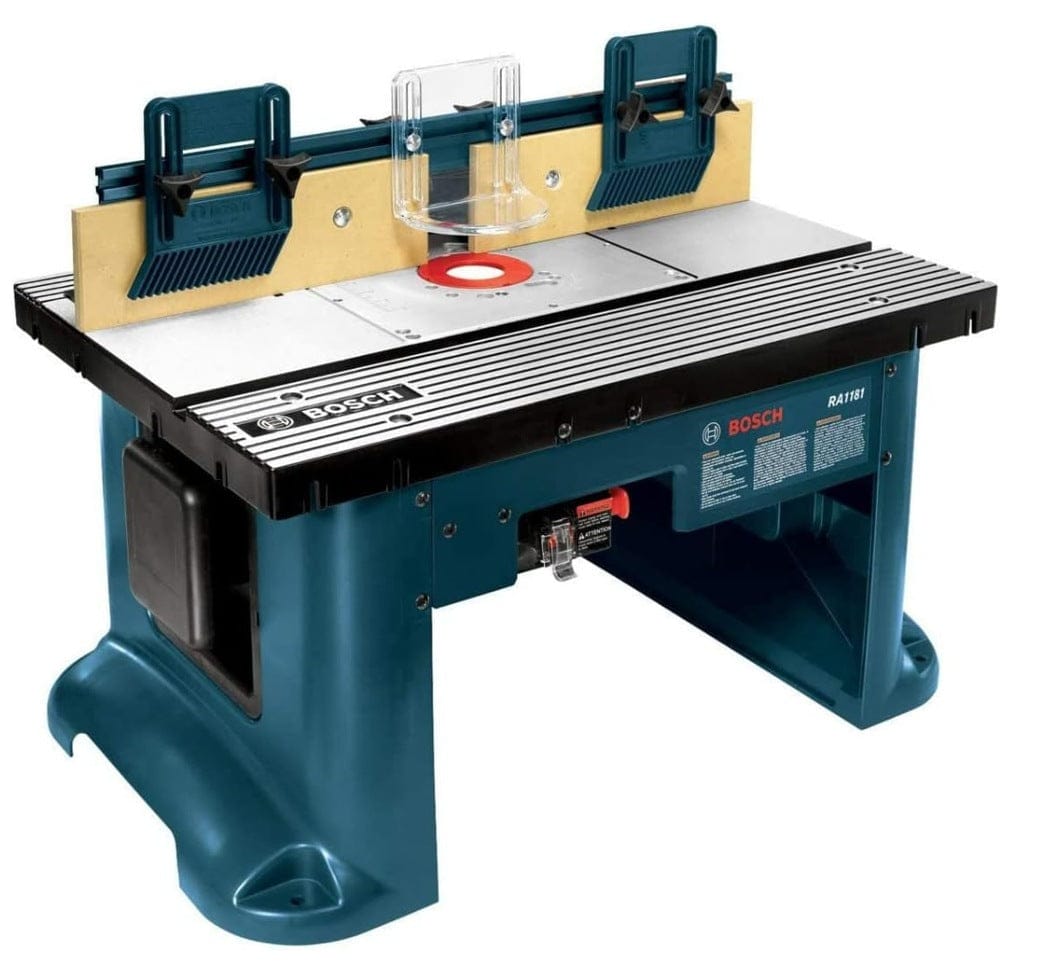

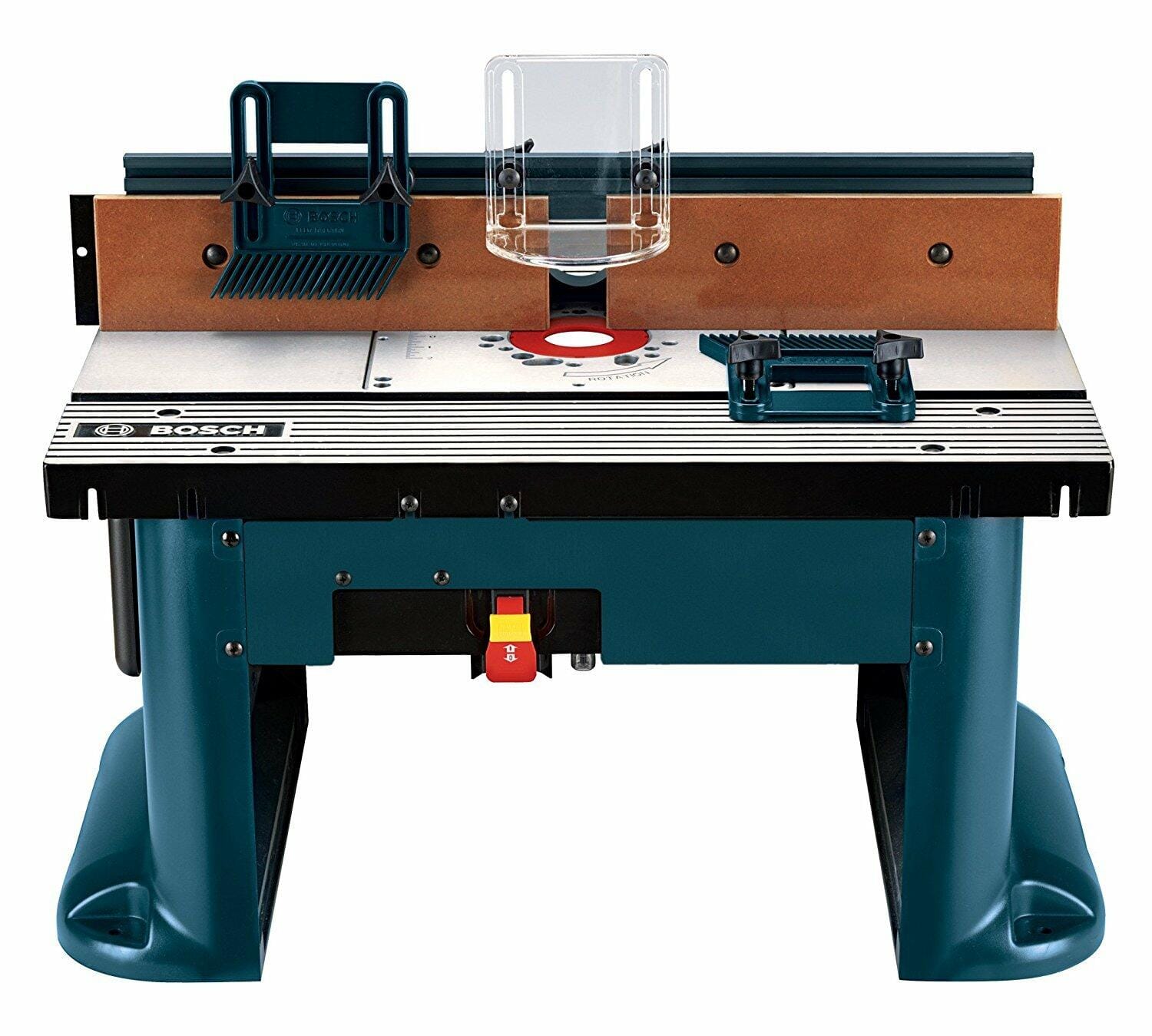

Bosch RA1181 Benchtop Router Table with Aluminum Work Surface

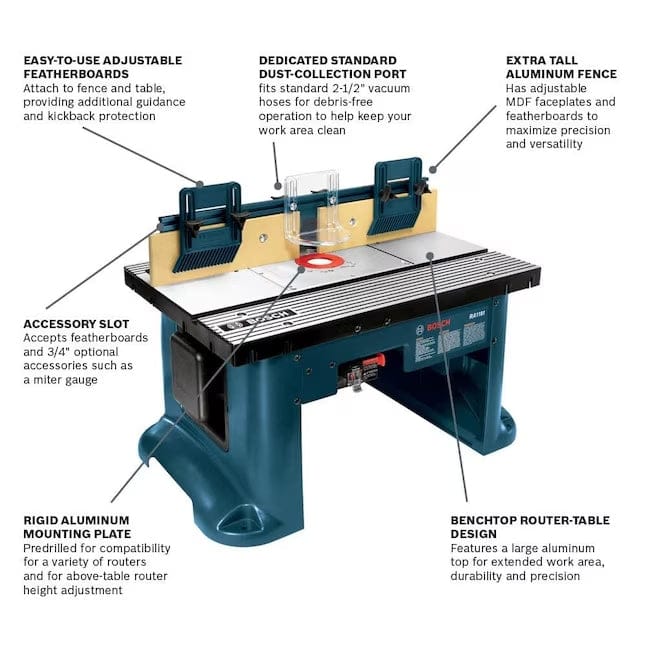

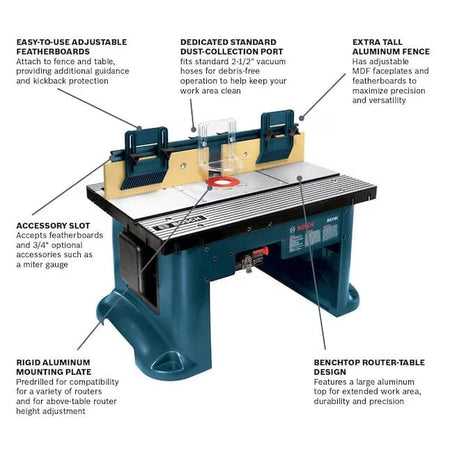

The Bosch RA1181 Benchtop Router Table is an industrial woodworking workstation engineered for edge profiling, jointing, dado slotting, and freehand curve routing on commercial job sites and in cabinet shops. Featuring a 27-inch wide by 18-inch deep rigid aluminum table top with a pre-drilled universal aluminum router mounting plate, this benchtop system accommodates major router brands and enables above-table bit height adjustment. Outfitted with an extra-tall aluminum fence with adjustable MDF faceplates, dual adjustable featherboards for stock guidance and kickback prevention, a 2-1/2 inch dust collection extraction port, and a 3/4-inch miter gauge slot, this 30-pound unit executes high-precision timber shaping.

Best Used For:

  • Cabinetry & Raised Panel Edge Profiling: Guiding hard timber stock through large-diameter cutter bits to create decorative edge moldings.
  • Precision Joinery & Dado Slotting: Cutting straight dados, rabbets, and tongue-and-groove joints using the miter slot and adjustable fence faceplates.

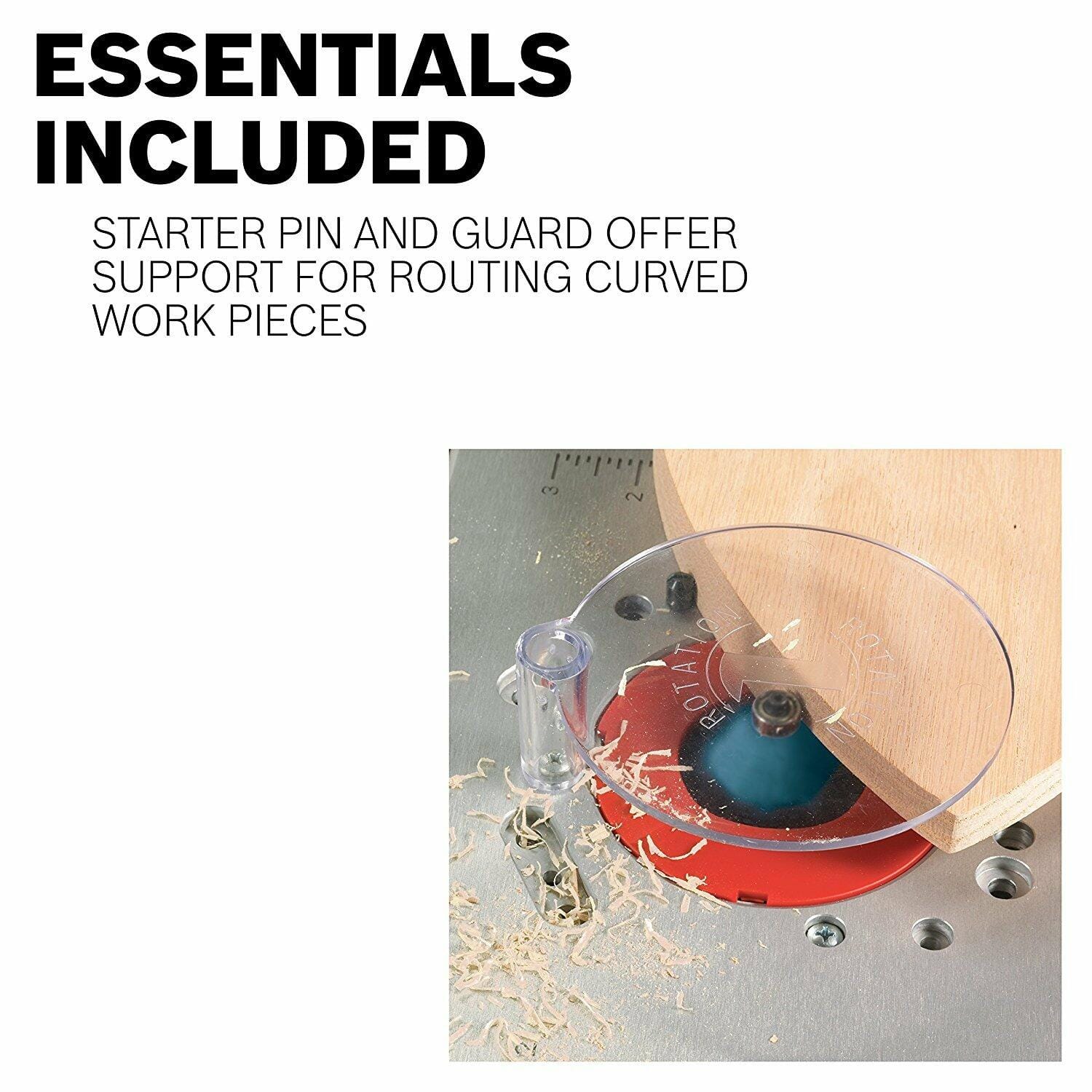

  • Freehand Curve & Template Shaping: Routing contoured wooden edges safely using the included starter pin and clear safety guard assembly.

Key Performance & Safety Features

  • Rigid Precision-Ground Aluminum Top: Maintains flat surface accuracy during heavy stock passes while resisting jobsite impact.

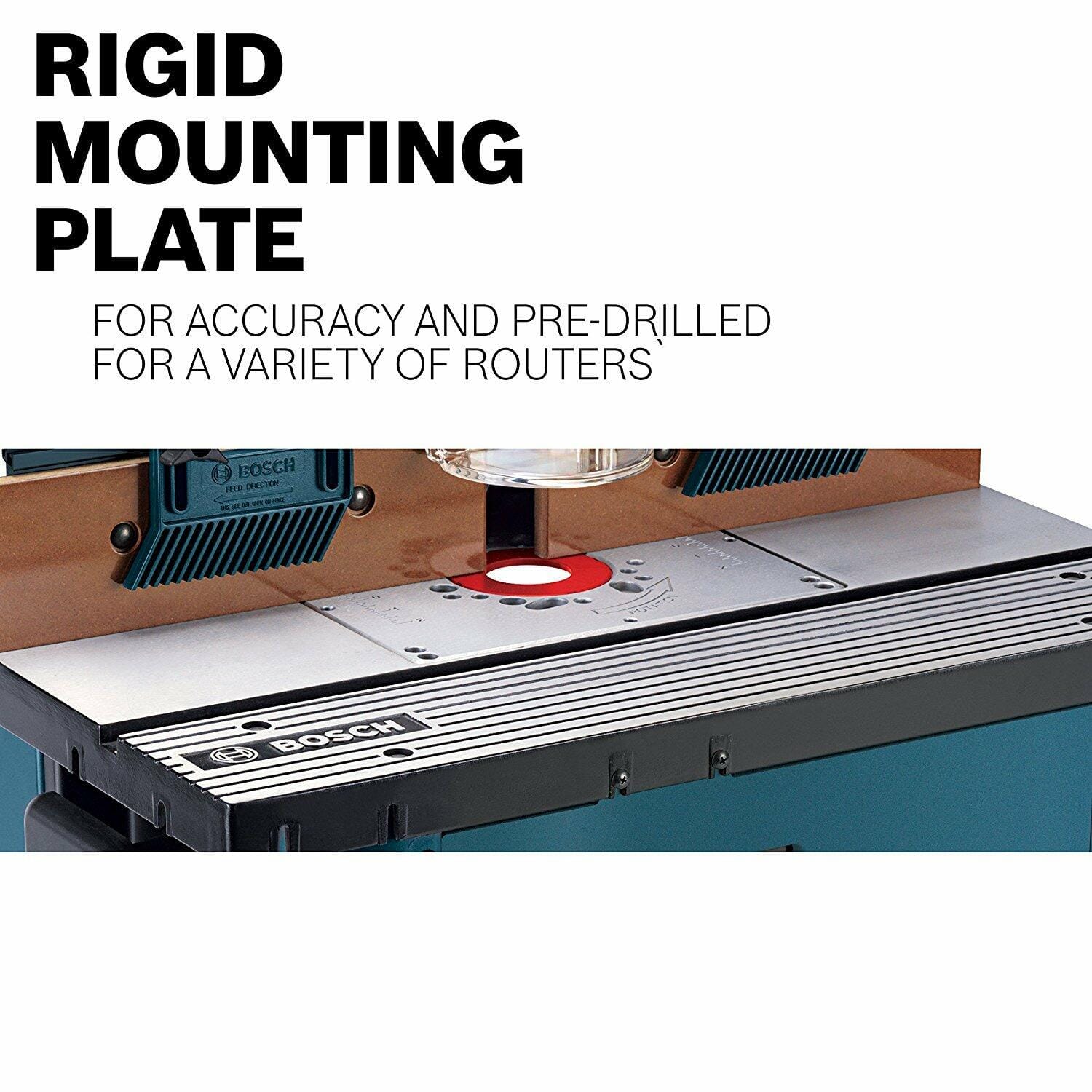

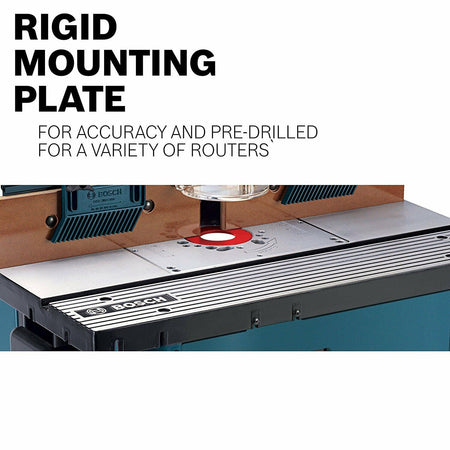

  • Universal Pre-Drilled Aluminum Mounting Plate: Rigid plate supports broad router compatibility and allows above-table height adjustment mechanisms.

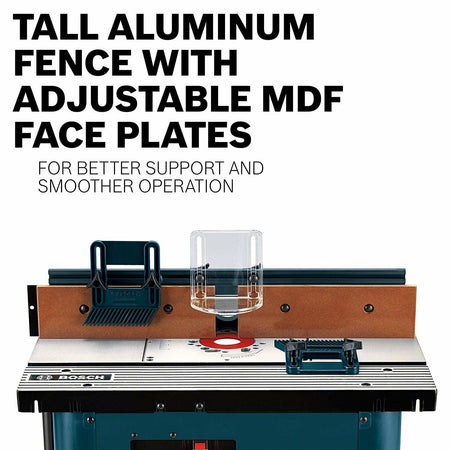

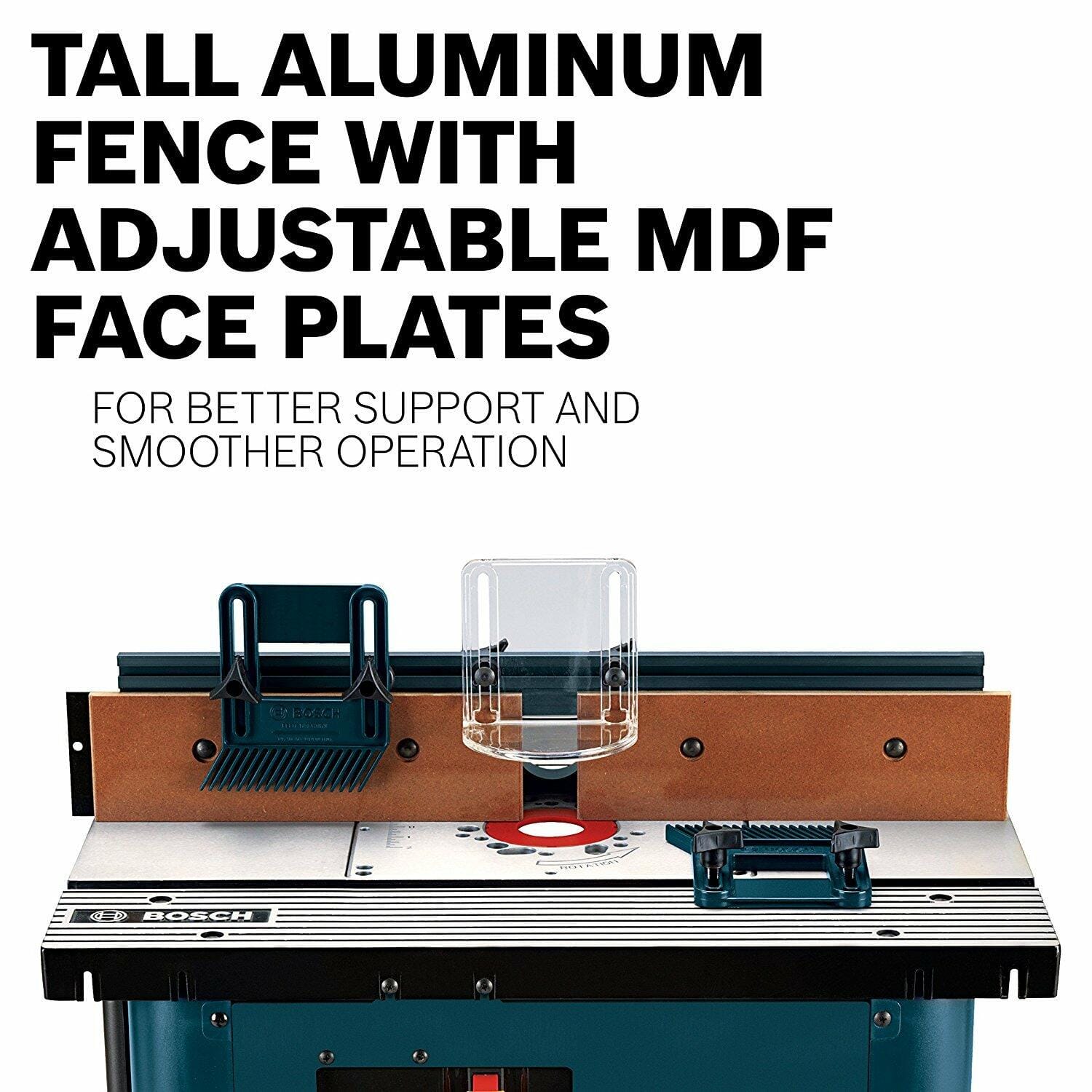

  • Tall Aluminum Fence with MDF Faceplates: Extra-tall fence structure includes adjustable faceplates to accommodate cutter bits up to 3-5/8 inches in diameter.

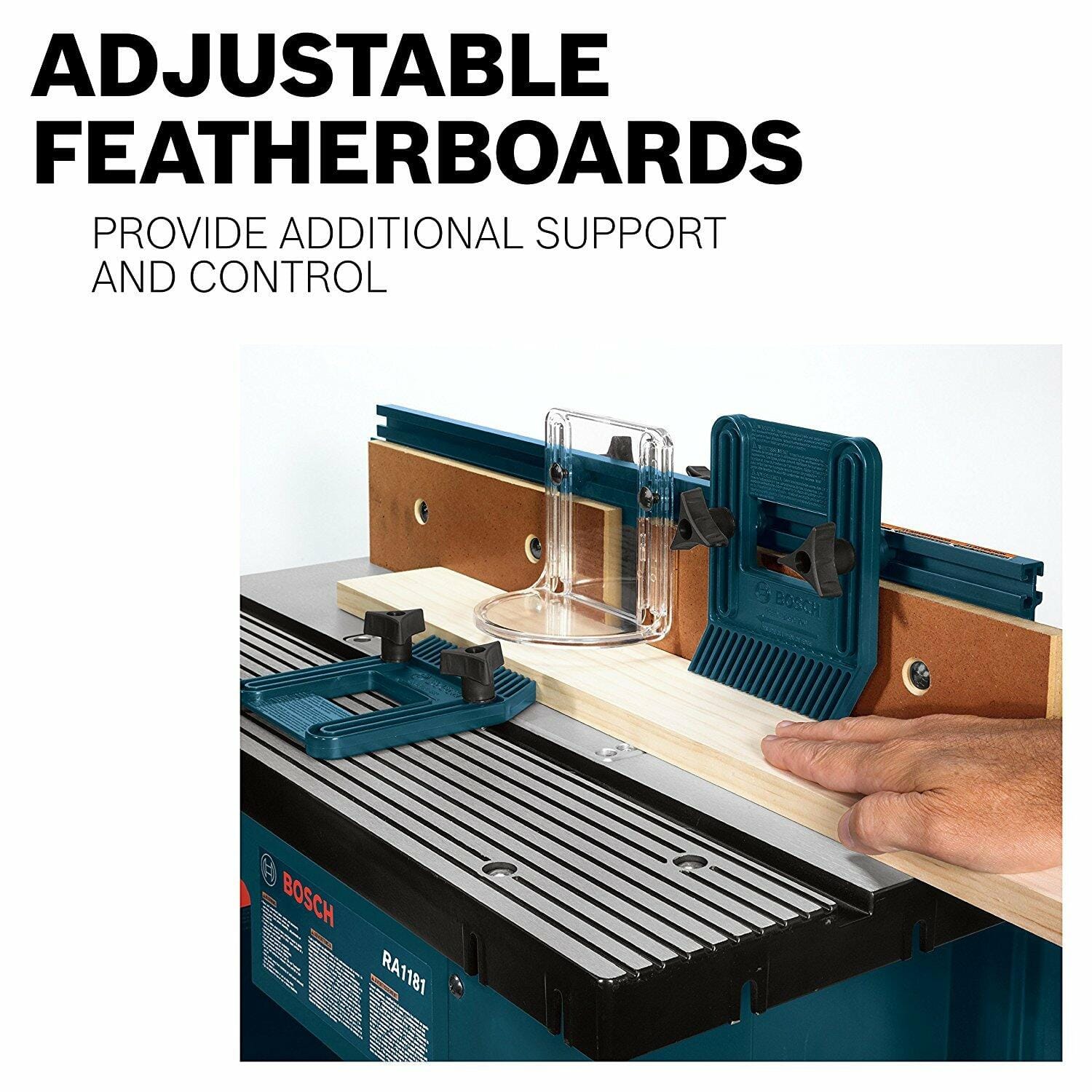

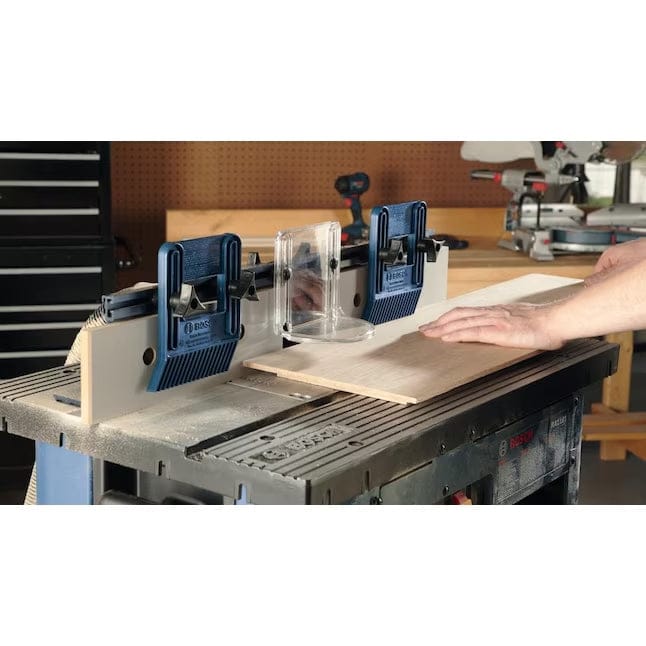

  • Dual Adjustable Featherboards: Attaches directly to the fence and table slot to provide constant workholding pressure and prevent stock kickback.
  • Integrated 2-1/2 Inch Vacuum Dust Port: Connects to standard workshop vacuum hoses to capture chips directly at the cutter bit throat.
  • Standard 3/4-Inch Accessory Miter Slot: Precision slot accepts standard 3/4-inch miter gauges, press-in featherboards, and auxiliary hold-downs.

What's Included

  • (1) Bosch RA1181 Benchtop Router Table
  • (2) Adjustable Workholding Featherboards
  • (3) Mounting Plate Throat Insert Rings

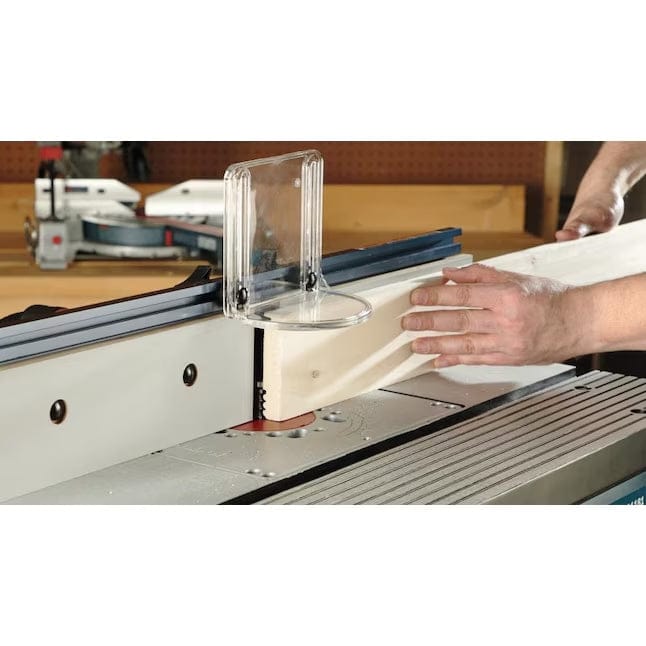

  • (1) Adjustable Clear Bit Safety Guard
  • (1) Freehand Routing Starter Pin and Guard
  • (2) Outfeed Fence Jointing Shims
  • (1) Universal Router Mounting Hardware Kit

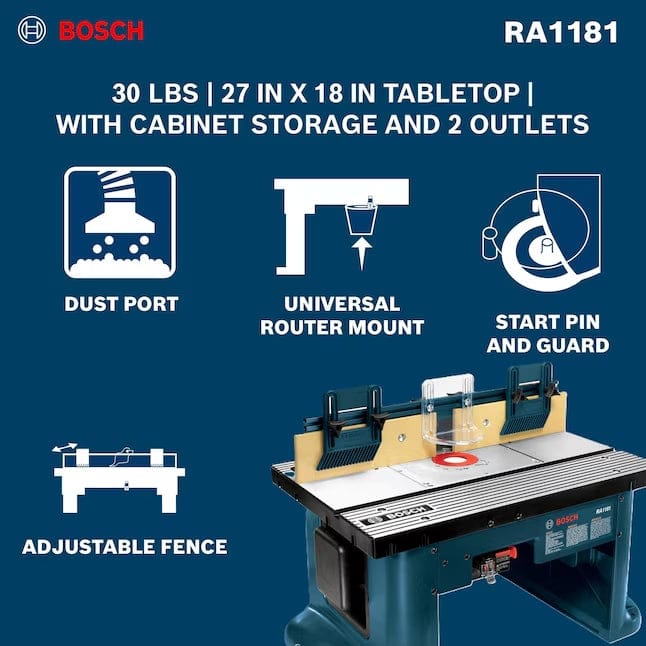

Technical Specifications

Brand / Manufacturer Bosch Power Tools
Model / Part Number RA1181
Table Surface Material Precision Cast Aluminum
Table Surface Dimensions (W x D) 27.0 in. x 18.0 in. (685.8 mm x 457.2 mm)
Overall System Height 14.5 in. (368.3 mm)
Maximum Fence / Throat Opening 3-5/8 in. (92.075 mm)
Vacuum Dust Extraction Port Diameter 2-1/2 in. Outer Diameter (Standard Shop Vac)
Accessory Miter Slot Width 3/4 in. x 3/8 in. Standard T-Slot
Compatible Router Manufacturers Bosch, DeWalt, Makita, Milwaukee, Craftsman, Porter-Cable, Ryobi, Skil
Assembled Net Tool Weight 30.0 lbs (13.61 kg)
Pro-Tip: Set the featherboards so they press timber firmly against the table and fence just before the cutter bit; maintaining downward and lateral pressure eliminates chatter marks and prevents workpiece kickback on long passes.
