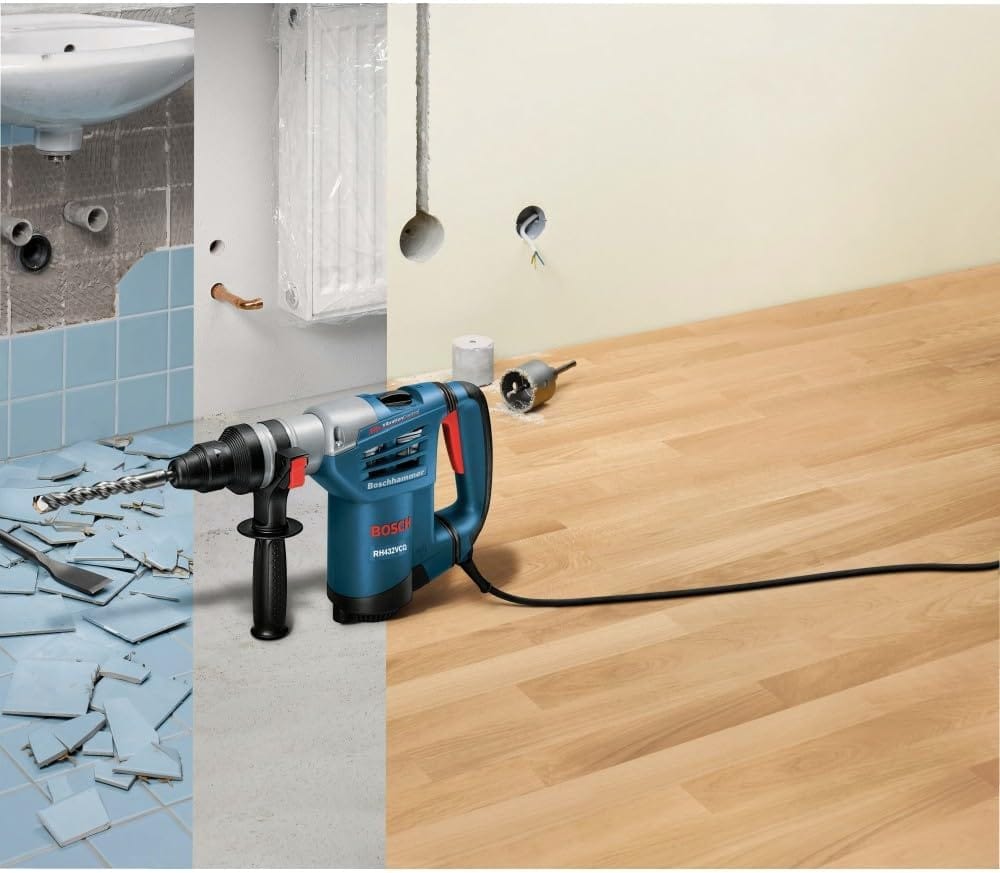

A composite multi-panel application graphic showcasing the Bosch 1-1/4 inch rotary hammer drill in the center, with background sections illustrating its distinct capabilities: lifting and chiseling ceramic tile floor grout on the left, drilling clean anchoring pathways into solid masonry walls in the middle, and core drilling structural passages through dry partition panels on the right.

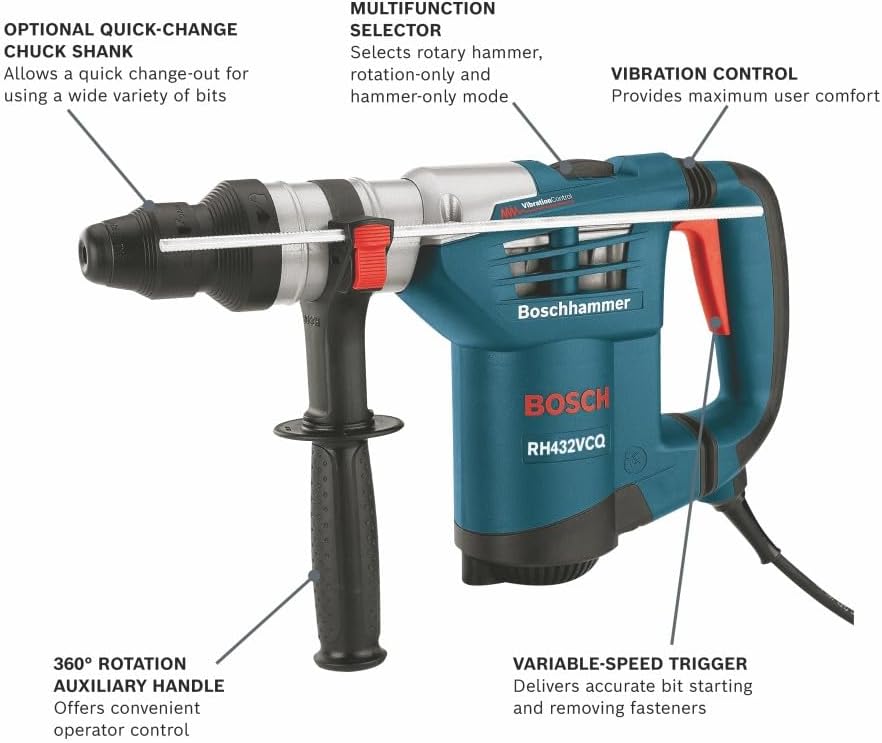

An informational product diagram of the Bosch RH432VCQ SDS-plus rotary hammer drill, containing clean pointer lines and text descriptions highlighting its optional quick-change chuck shank, multifunction mode selector, integrated vibration control points, 360-degree rotation auxiliary handle, and responsive variable-speed trigger.

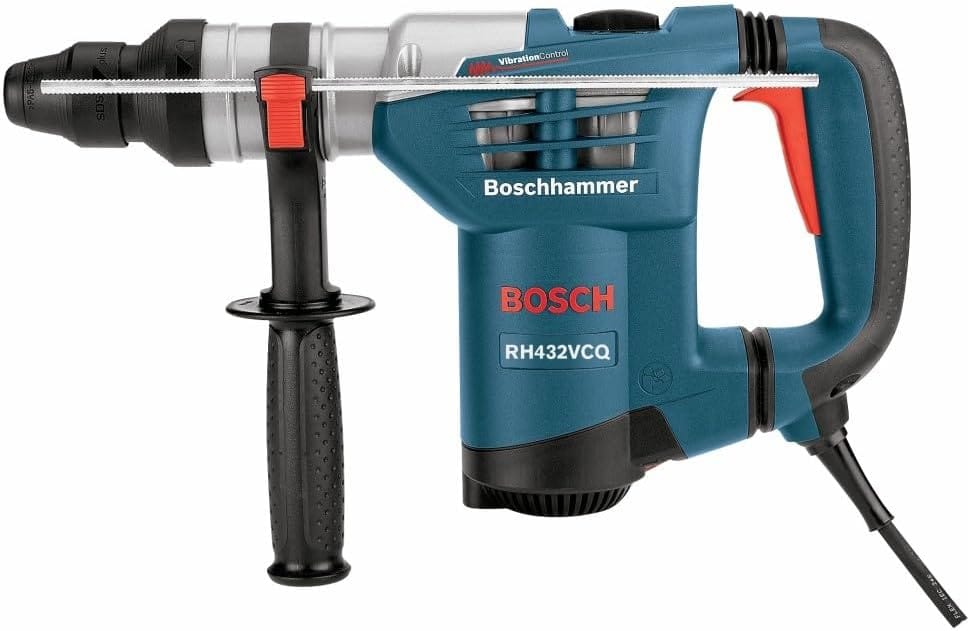

A clean flat-lay side profile view of the blue Bosch 1-1/4 inch corded pneumatic rotary hammer drill, illustrating the structural alignment of the quick-change chuck, the horizontal depth stop rod, and the bottom-mounted motor cylinder casing against a white background.

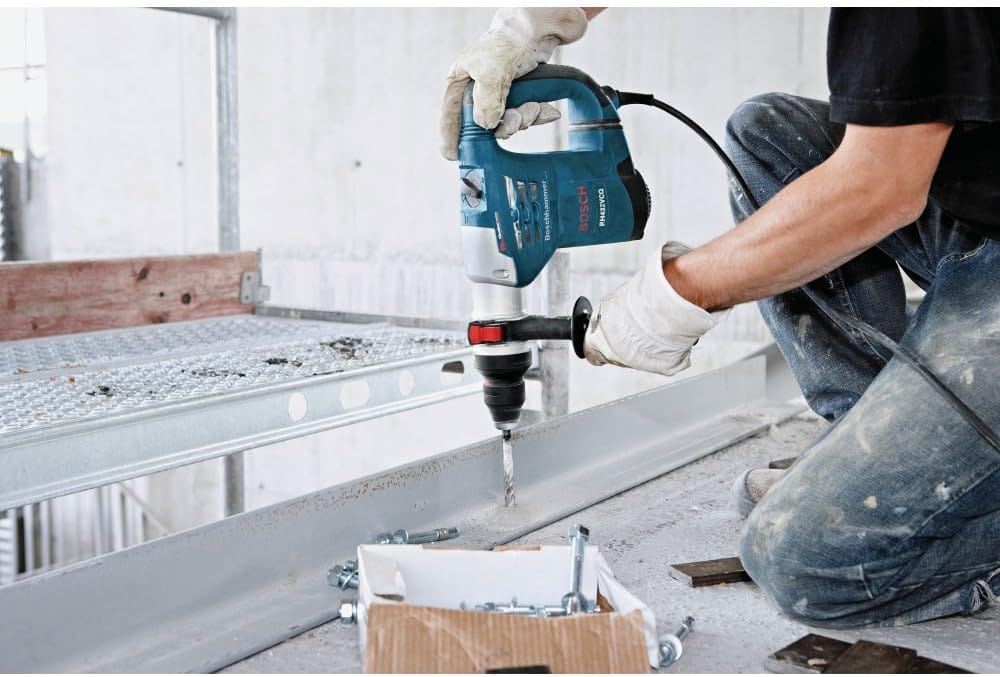

A real-world construction site application shot of an operator wearing safety gloves and using the Bosch SDS-plus rotary hammer to drill vertically downward into a steel structural channel beam anchored to a concrete floor deck.

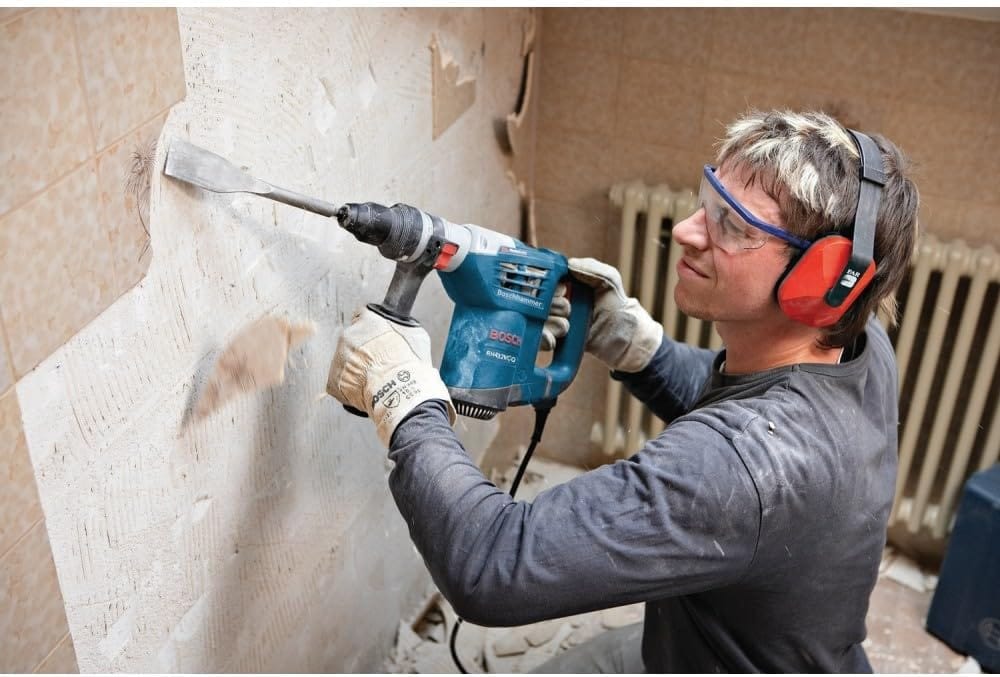

An application photograph of a renovation worker wearing clear safety glasses and red ear protectors while using the Bosch hammer drill fitted with a wide steel chisel bit to aggressively chip away old ceramic tiles from an interior bathroom wall.

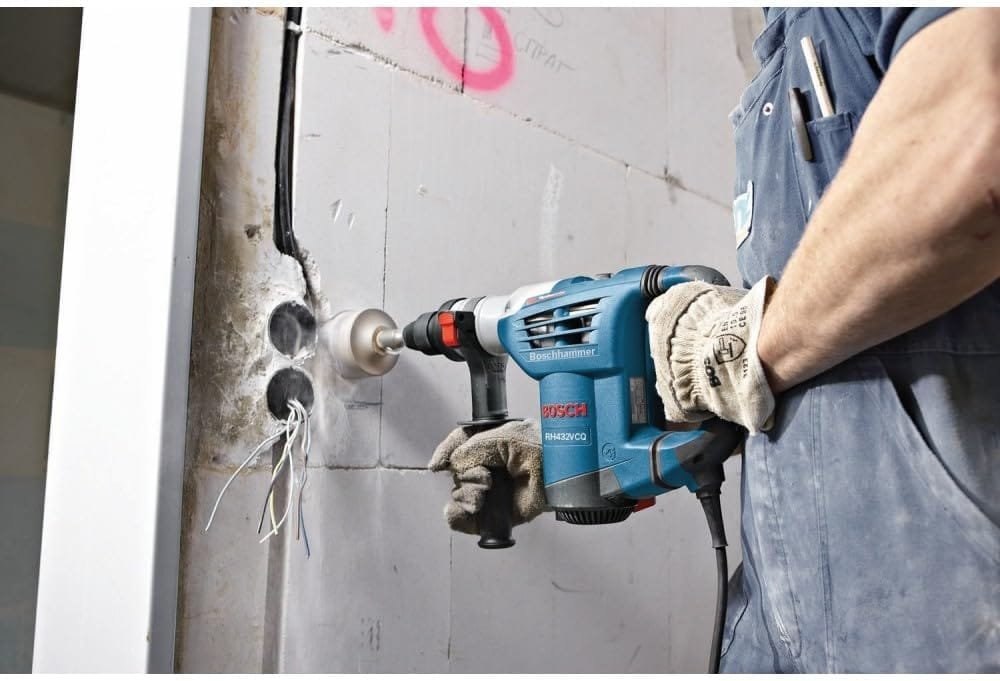

A close-up jobsite shot of a masonry technician using the Bosch 3-mode rotary hammer with a large carbide-tipped diamond hole saw core bit to bore a clean electrical outlet path through a reinforced white concrete wall.

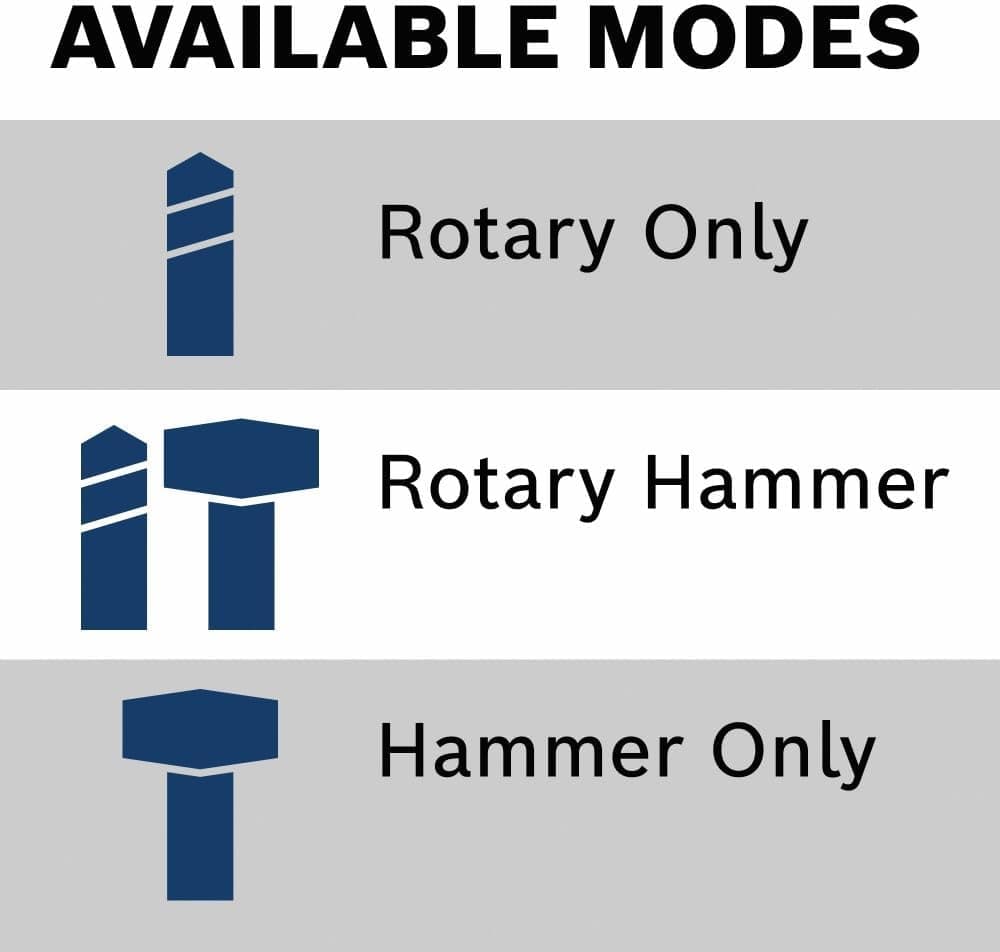

A technical informational marketing infographic titled Available Modes, displaying clear blue geometric icons paired with descriptions defining the tool's three selective operating configurations: Rotary Only, Rotary Hammer, and Hammer Only settings.
A formal e-commerce product warranty graphic layout featuring the official red and blue Bosch logo alongside text highlighting a 1-Year Tool Limited Warranty for corded equipment, supplemented by service contact details.
“Macho Man” | Bosch 18V 2-in-1 Impact Driver promotional video
A full side view studio photograph of the blue, silver, and black Bosch RH432VCQ 1-1/4 inch SDS-plus rotary hammer drill, displaying its primary D-handle grip with a red trigger, an adjustable black auxiliary side handle, a long ribbed metal depth gauge rod, and the prominent Boschhammer product branding against a solid white background.
A composite multi-panel application graphic showcasing the Bosch 1-1/4 inch rotary hammer drill in the center, with background sections illustrating its distinct capabilities: lifting and chiseling ceramic tile floor grout on the left, drilling clean anchoring pathways into solid masonry walls in the middle, and core drilling structural passages through dry partition panels on the right.
An informational product diagram of the Bosch RH432VCQ SDS-plus rotary hammer drill, containing clean pointer lines and text descriptions highlighting its optional quick-change chuck shank, multifunction mode selector, integrated vibration control points, 360-degree rotation auxiliary handle, and responsive variable-speed trigger.
A clean flat-lay side profile view of the blue Bosch 1-1/4 inch corded pneumatic rotary hammer drill, illustrating the structural alignment of the quick-change chuck, the horizontal depth stop rod, and the bottom-mounted motor cylinder casing against a white background.
A real-world construction site application shot of an operator wearing safety gloves and using the Bosch SDS-plus rotary hammer to drill vertically downward into a steel structural channel beam anchored to a concrete floor deck.
An application photograph of a renovation worker wearing clear safety glasses and red ear protectors while using the Bosch hammer drill fitted with a wide steel chisel bit to aggressively chip away old ceramic tiles from an interior bathroom wall.
A close-up jobsite shot of a masonry technician using the Bosch 3-mode rotary hammer with a large carbide-tipped diamond hole saw core bit to bore a clean electrical outlet path through a reinforced white concrete wall.
A technical informational marketing infographic titled Available Modes, displaying clear blue geometric icons paired with descriptions defining the tool's three selective operating configurations: Rotary Only, Rotary Hammer, and Hammer Only settings.
A formal e-commerce product warranty graphic layout featuring the official red and blue Bosch logo alongside text highlighting a 1-Year Tool Limited Warranty for corded equipment, supplemented by service contact details.
“Macho Man” | Bosch 18V 2-in-1 Impact Driver promotional video
BOSCH

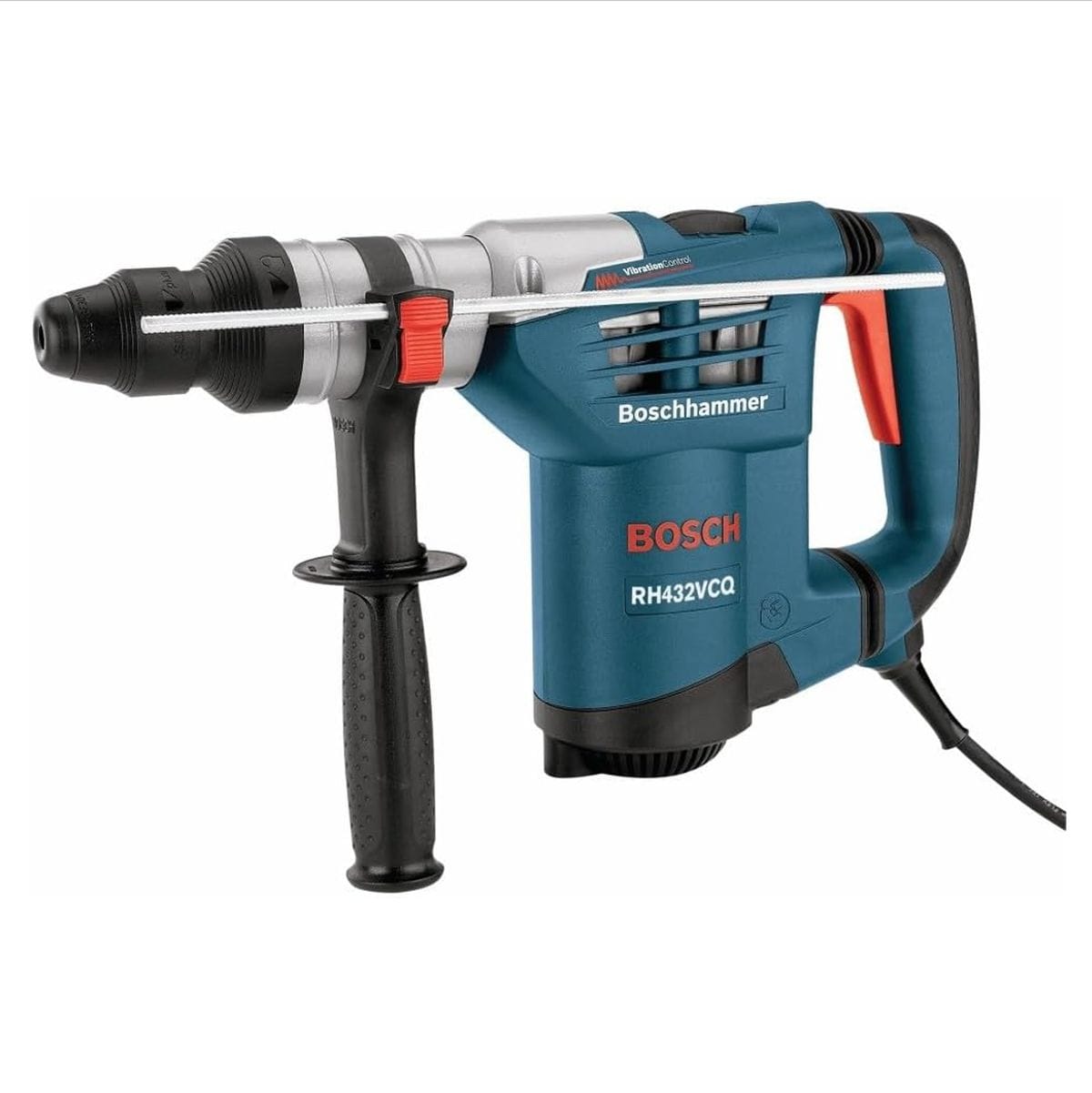

Bosch RH432VCQ 1-1/4 Inch SDS Plus Rotary Hammer Drill Variable Speed Pneumatic Concrete Chipping Gun 3 Mode Demolition Tool Kit with Quick Change Chuck

Only 1 left
SKU: RH432VCQ
$457.55

Description

Bosch Promtional Logo Logout

MAXIMUM PERFORMANCE-TO-WEIGHT RATIO – Industrial 3-Mode SDS-Plus Rotary Hammer with Quick-Change Chuck

Plow through dense concrete, hard stone, and structural masonry with the unyielding power of the Bosch RH432VCQ 1-1/4 Inch SDS-plus® Rotary Hammer Drill Kit. Custom-engineered for commercial concrete contractors, industrial demolition crews, MEP tradesmen, and structural installers, this heavy-duty tool balances absolute raw power with an incredibly lightweight design. Driven by a high-torque 8.5-amp motor that hammers out an impressive 3.1 Ft.-Lbs. of hard-hitting impact energy, this compact machine weighs a mere 10.3 lbs. Whether you are boring clean anchor holes for structural retrofits, drilling pass-throughs for utility conduits, or clearing material with aggressive chiseling runs, this versatile production gun ensures professional-grade execution without punishing your arms.

This industrial-grade demolition tool is outfitted with Bosch's advanced dual-stage Vibration Control™ architecture, incorporating specialized dampening elements inside both the internal air-cushion hammer mechanism and the rubberized rear handle grip to drastically lower user fatigue during long work shifts. Featuring a highly adaptive multifunction selector dial, operators can instantly shift between three distinct operating configurations: rotary hammer mode for masonry boring, rotation-only mode for timber or steel drilling, and hammer-only mode for masonry chipping. Designed with a tool-free quick-change chuck system, it allows you to swap from the standard SDS-plus toolholder to an optional three-jaw keyless chuck in seconds. Complete with an integrated mechanical clutch that instantly disengages the drivetrain during sudden bit lockups, a 360-degree rotating side handle, and an adjustable depth stop gauge, this comprehensive kit is built to dominate tough jobsite environments.

Key Features

  • High-Torque 8.5-Amp Motor: Drives a relentless 3.1 Ft.-Lbs. of pneumatic impact energy to penetrate structural concrete with professional speed.
  • Dual-Stage Vibration Control: Structural dampeners integrated within the internal driving chassis and handle grip minimize violent tool chatter.
  • Tool-Free Quick Change System: Snaps on and off effortlessly, allowing rapid swapping between the SDS-plus chuck and alternative three-jaw chuck accessories.
  • Versatile 3-Mode Multifunction Selector: Offers rotary hammer, rotation-only, and hammer-only settings to easily match specific jobsite applications.
  • Integrated Mechanical Safety Clutch: Instantly disengages the drive shaft torque transmission if a drill bit encounters structural rebar or binds up.
  • Variable Speed Trigger with Reverse: Provides precise micro-control for crisp bit starting, alongside easy backing out of bound concrete fasteners.
  • 360-Degree Auxiliary Side Handle: Heavy-duty adjustable side handle positions anywhere along the collar for secure, balanced two-handed steering.

What's Included

  • 1 × Bosch 1-1/4" SDS-plus® Rotary Hammer Power Head (RH432VCQ)
  • 1 × Heavy-Duty 360-Degree Auxiliary Side Handle
  • 1 × High-Precision Steel Depth Adjustment Gauge
  • 1 × Tool-Free SDS-plus® Quick Change Chuck Mechanism
  • 1 × Impact-Resistant Hard Plastic Jobsite Transport and Carrying Case

Specifications

Specification Field Product Details
Brand Manufacturer Bosch Power Tools
Model Part Number RH432VCQ
Tool Classification 3-Mode Corded Pneumatic Rotary Hammer Drill
Motor Amperage Capacity 8.5 Amps
Electrical Voltage Rating 120V AC Grounded Shop Power
Impact Energy Output 3.1 Ft.-Lbs. (EPTA Certified)
Drive Interface System SDS-plus® Quick-Change Detent Chuck
Maximum Bit Diameter Capacity 1-1/4 Inches (1-1/4 in.)
Maximum Hole Capacity in Concrete 1-1/4 Inches (1-1/4 in.)
No-Load Blows Per Minute (BPM) 0 – 3,600 BPM
No-Load Revolutions Per Minute (RPM) 0 – 760 RPM
Chassis Structural Composition High-Strength Structural Aluminum and Impact Polymer
Net Tool Operating Weight 10.3 lbs (Bare Machine Body)
Overall Tool Dimensions 15.75" Length × 4.0" Width × 10.5" Height
Dust Collection Compatibility Works with Bosch HDC200 Extraction Hood Assemblies
Product Condition Brand New Original Equipment Machine Kit


💡 PRO-TIP: When boring deep anchor lines in cured concrete slabs, never exert heavy down-pressure or force the tool body. Because pneumatic rotary hammers rely on a localized internal air cushion to strike the firing pin, leaning your body weight into the tool compresses this pocket and chokes out the strike force. Instead, hold the D-handle firmly to guide its path, pull the trigger to full speed, and let the 8.5-amp internal piston displace the aggregate smoothly at maximum execution volume!
