Bosch

Bosch Rotary Hammer RH745 1-3/4 Inch SDS-max (8.2 Ft-Lbs Impact Energy 13.5 Amp 2750 BPM Concrete Demolition Core Drilling Construction Tool Unit)

Only 1 left
SKU: RH745
$749.00 USD

Description

Bosch Promotional Logo Logout

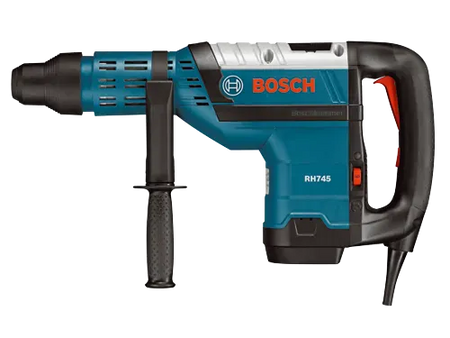

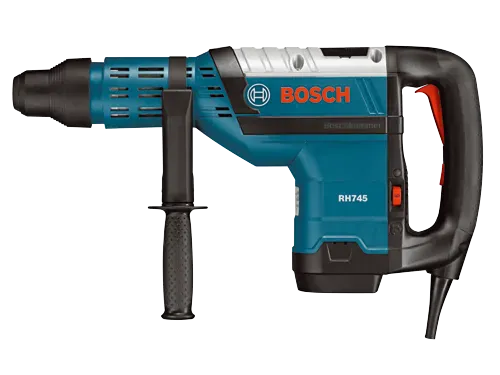

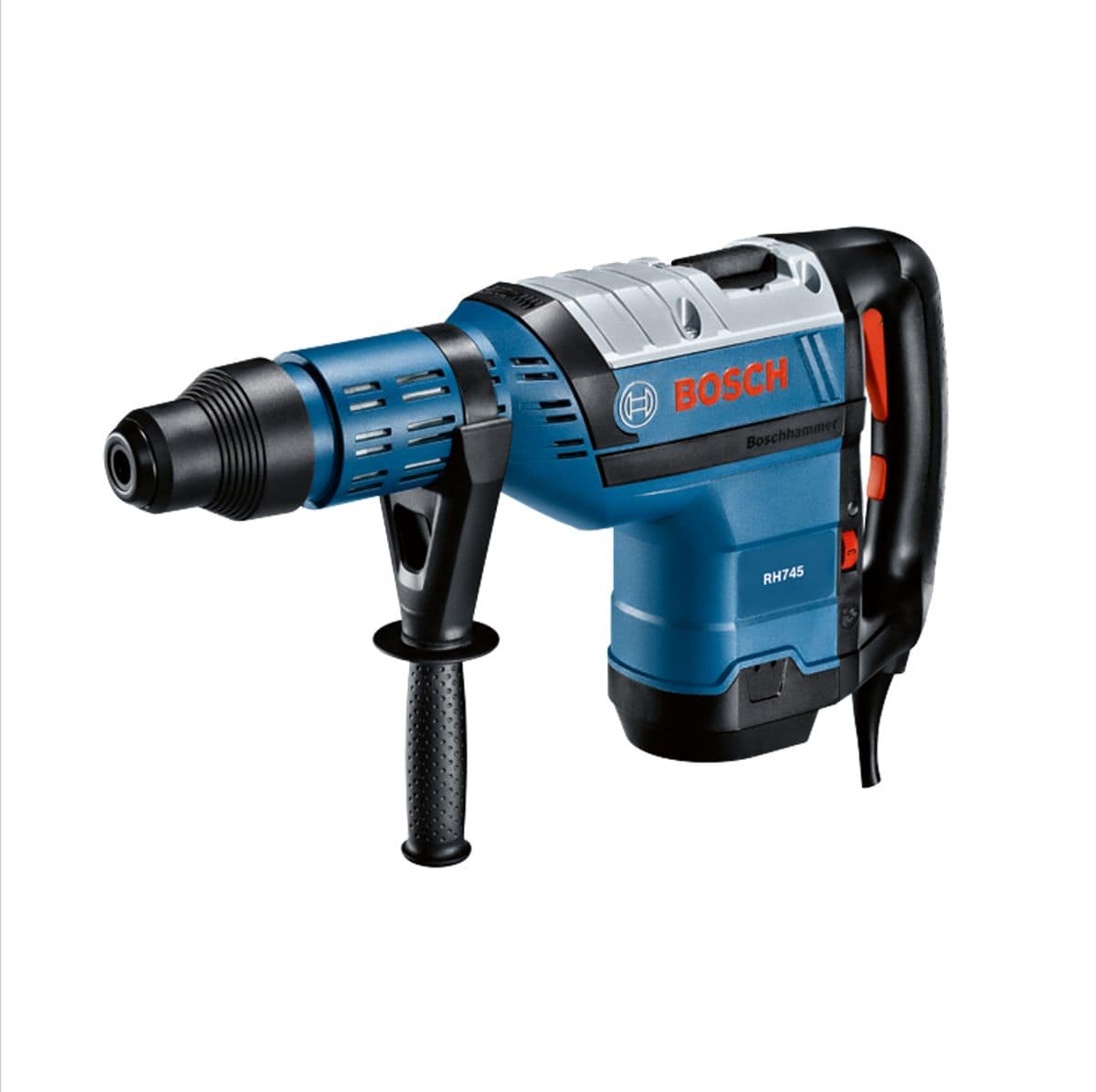

Bosch RH745 1-3/4" SDS-max Combination Rotary Hammer Drill

The Bosch RH745 1-3/4-inch SDS-max combination rotary hammer bores large-diameter anchor holes and chisels through heavy concrete slabs, foundations, and masonry walls during heavy demolition. Driven by a powerful 13.5-amp motor delivering 8.2 ft-lbs of EPTA impact energy and variable speeds up to 2,750 BPM, this rotary hammer provides professional-grade impact force with minimized vibration. Outfitted with a tool-free SDS-max bit system, Vario-Lock positioning supporting 12 chisel angles, a 360-degree auxiliary handle, and a Service Minder light indicator, it equips commercial contractors and demolition crews with reliable, high-performance percussion power.

Best Used For:

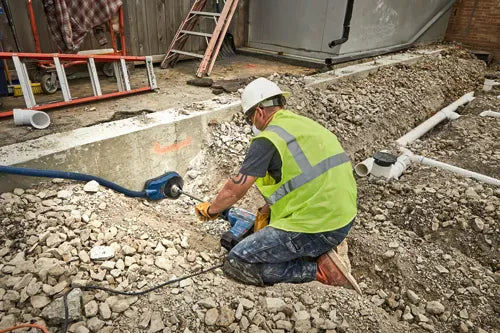

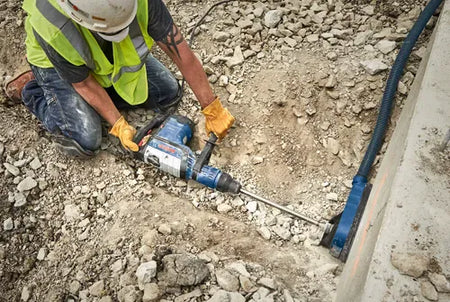

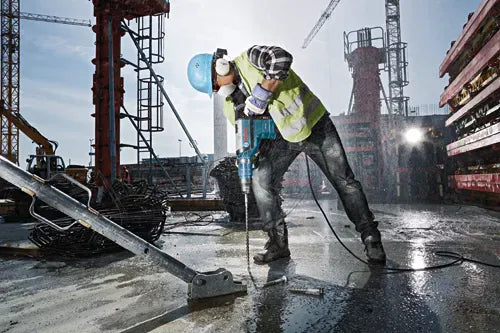

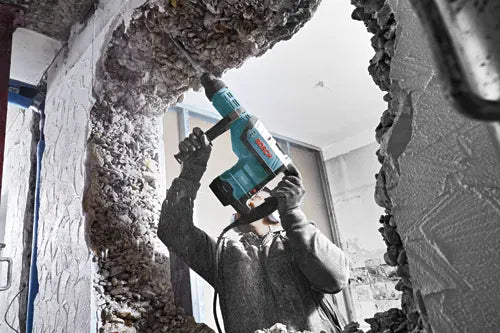

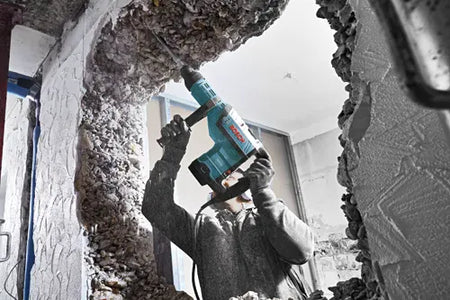

  • Heavy Concrete Demolition and Chipping: Breaking up reinforced concrete foundations, floor slabs, and masonry walls using the hammer-only mode.

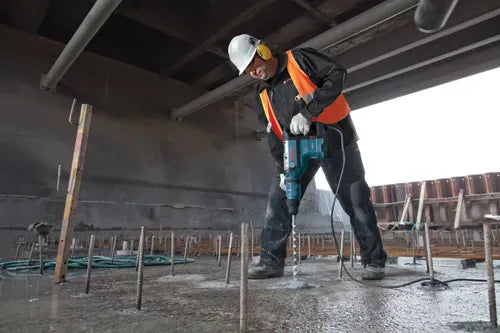

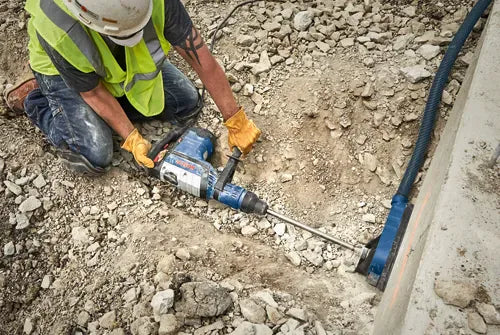

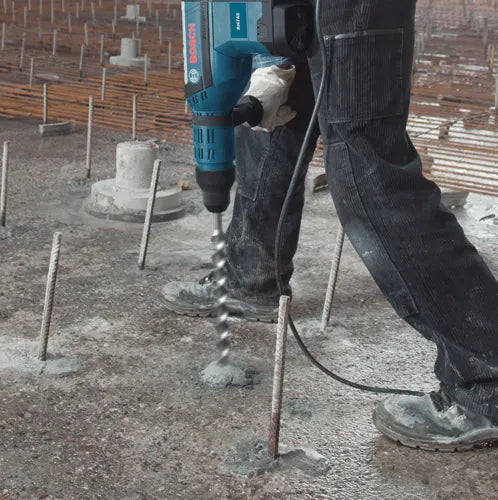

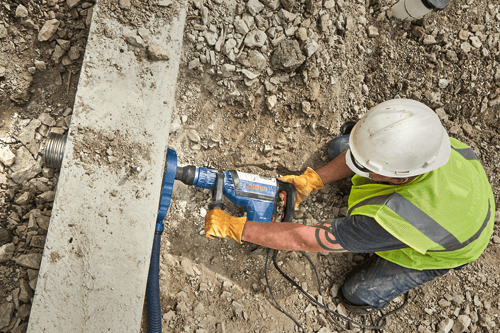

  • Large-Diameter Core Drilling and Anchoring: Boring deep holes up to 5 inches in diameter for structural rebar and heavy mechanical anchors.

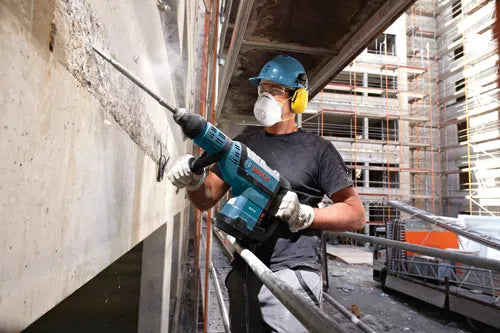

  • Overhead and Wall Channelling: Cutting trenches and clearing masonry channels for utility lines using multi-position Vario-Lock chisel adjustments.

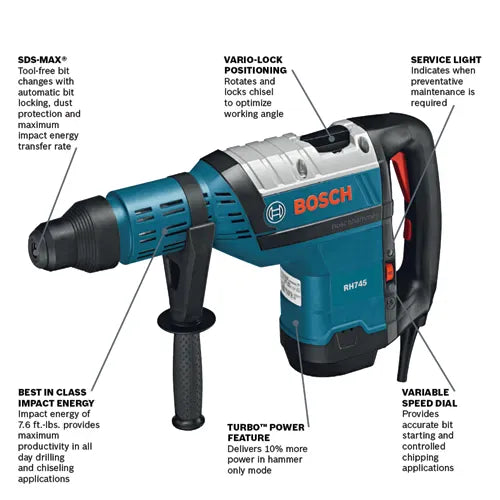

Key Performance & Safety Features

  • Bosch High-Impact Hammer System: Engineered to maximize impact force and energy transfer rate while suppressing internal vibration shockwaves.
  • SDS-max Bit System: Tool-free automatic bit-locking interface ensures secure retention and maximum energy transmission during heavy percussion tasks.
  • Vario-Lock™ Positioning Function: Allows chisels to rotate and lock into 12 distinct working angles to optimize operator posture in tight spaces.
  • Service Minder™ Maintenance Light: Integrated LED indicator alerts operators automatically when carbon brush replacement and service are required.
  • 360-Degree Auxiliary Handle: Fully adjustable side handle rotates completely around the tool body to provide a comfortable grip across any working angle.

What's Included

  • (1) Bosch RH745 1-3/4" SDS-max® Combination Rotary Hammer
  • (1) 360° Auxiliary Side Handle
  • (1) Tube of Hammer Bit Grease

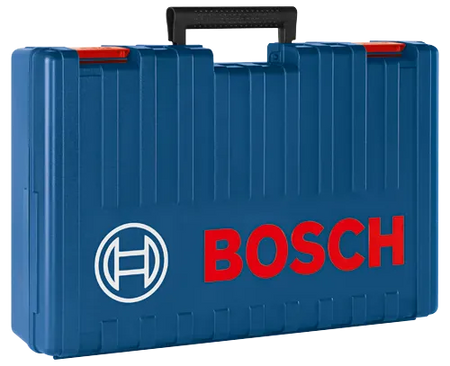

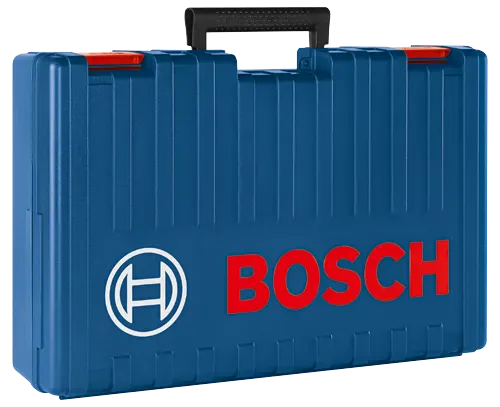

  • (1) Heavy-Duty Jobsite Storage Carrying Case

Technical Specifications

Manufacturer Robert Bosch Tool Corporation
Model Part Number RH745
Product Classification 1-3/4" SDS-max Combination Rotary Hammer
Motor Amperage Rating 13.5 Amps Heavy-Duty Motor
Electrical Input Voltage 120V AC Standard Household Power
Impact Energy Rating 8.2 Ft-Lbs (EPTA Impact Energy Force)
No-Load BPM Range 1,380 to 2,750 Beats Per Minute
No-Load RPM Range 150 to 305 Rotational Speed
Drive Chuck System SDS-max® Tool-Free Bit System
Max Concrete Bit Capacity 1.75 inches (1-3/4 in Solid Bit Limit)
Max Concrete Core Capacity 5.00 inches (5 in Core Bit Diameter Limit)
Tool Physical Weight 18.50 lbs (8.39 kg Net Weight)
Tool Dimensions (L x H x W) 21.0 in x 10.5 in x 4.0 in (53.3 x 26.7 x 10.2 cm)
Target Substrates Reinforced Concrete, Foundations, Brick, & Masonry Blocks

Pro-Tip: When operating heavy rotary hammers in abrasive concrete, apply a small dab of hammer grease to the SDS-max shank before inserting it into the chuck; this prevents premature wear on the drive splines and ensures maximum impact energy transfer.
