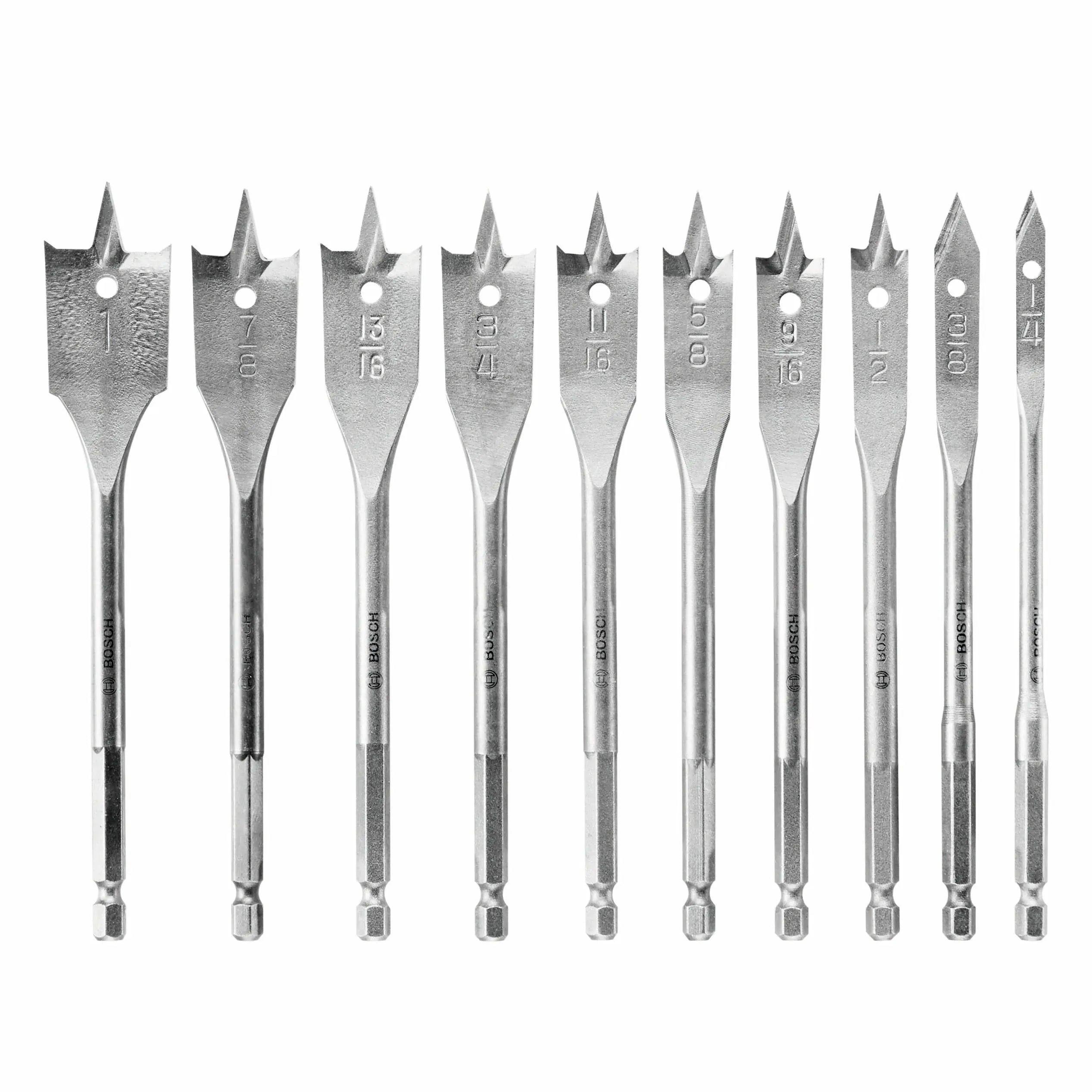

A studio product photograph showing the full selection of the Bosch SB0010 10-piece woodboring spade bit set arranged in a clean horizontal line, displaying the progressive paddle sizes from 1/4 inch to 1 inch with their matching 1/4-inch hex shanks against a pure white background.

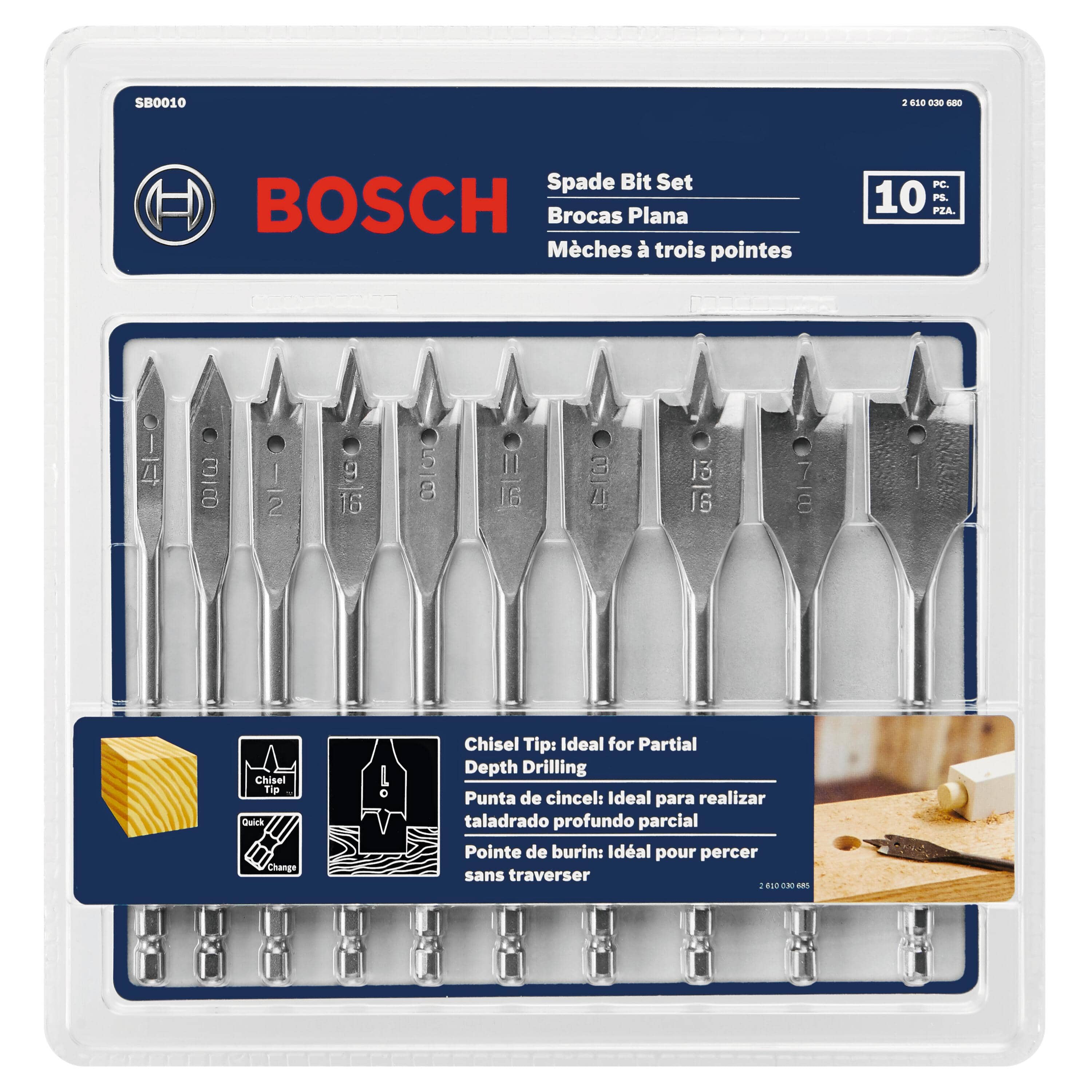

A formal retail packaging shot of the Bosch 10-piece spade bit set enclosed in a transparent hard plastic clamshell case, highlighted by a dark blue header card with the red and white Bosch brand logo and lower marketing text describing its chisel tip partial depth drilling features.
An e-commerce informational infographic titled Best For Wood/Wood Byproduct, displaying various lumber block samples including hardwood, softwood, wood furniture board, and layered plywood over a solid blue background.

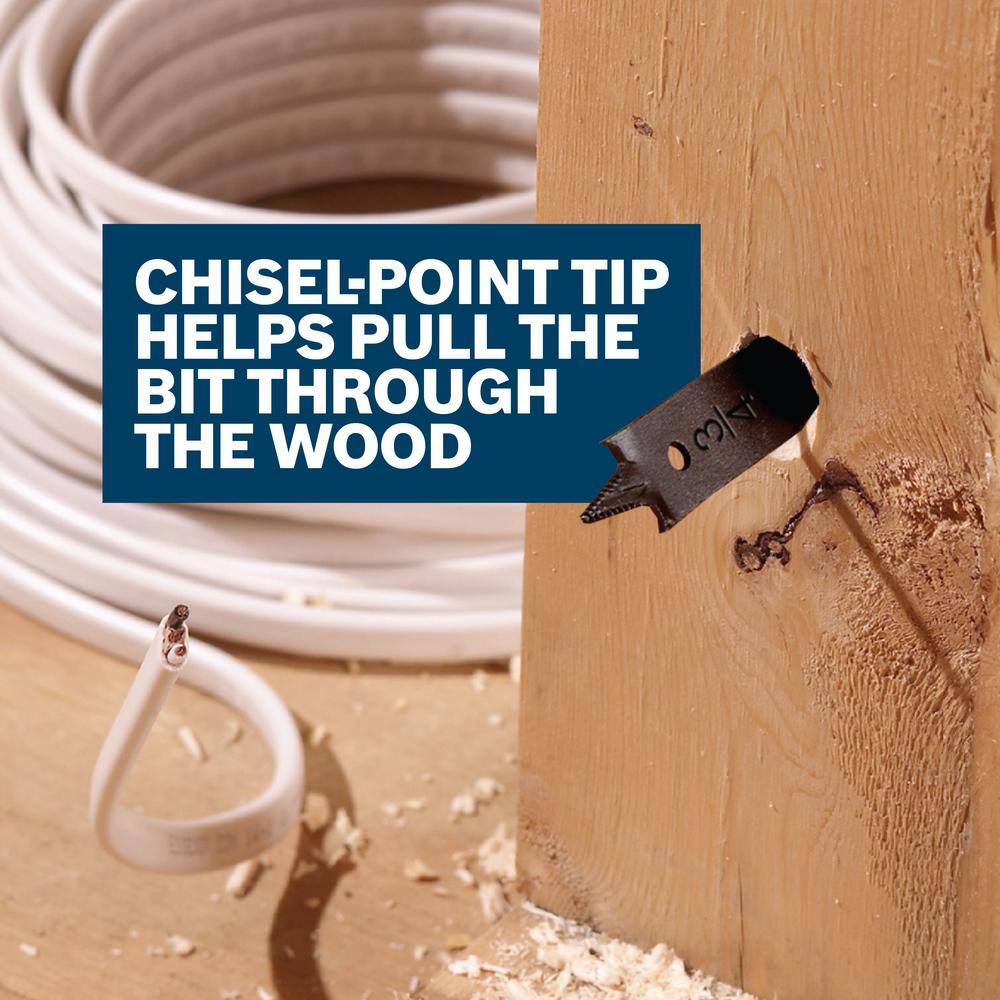

A close-up marketing banner featuring a black Bosch chisel-point spade bit cutting into a wood beam, with a large blue overlay box reading Chisel-Point Tip Helps Pull the Bit Through the Wood over a background displaying coiled wire.

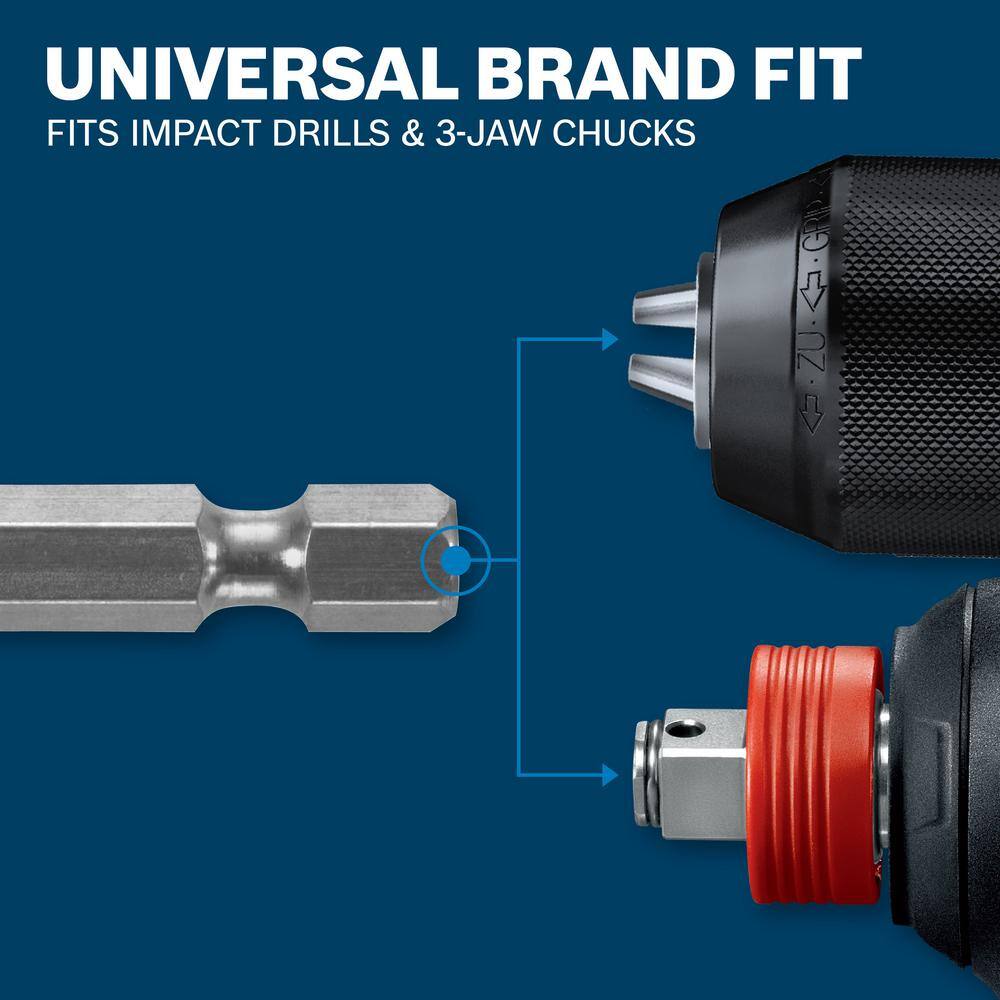

A technical compatibility infographic titled Universal Brand Fit Fits Impact Drills & 3-Jaw Chucks, showing diagram lines linking the 1/4-inch quick-change hex shank base of a spade bit to a standard three-jaw drill chuck and a quick-release impact driver collet.

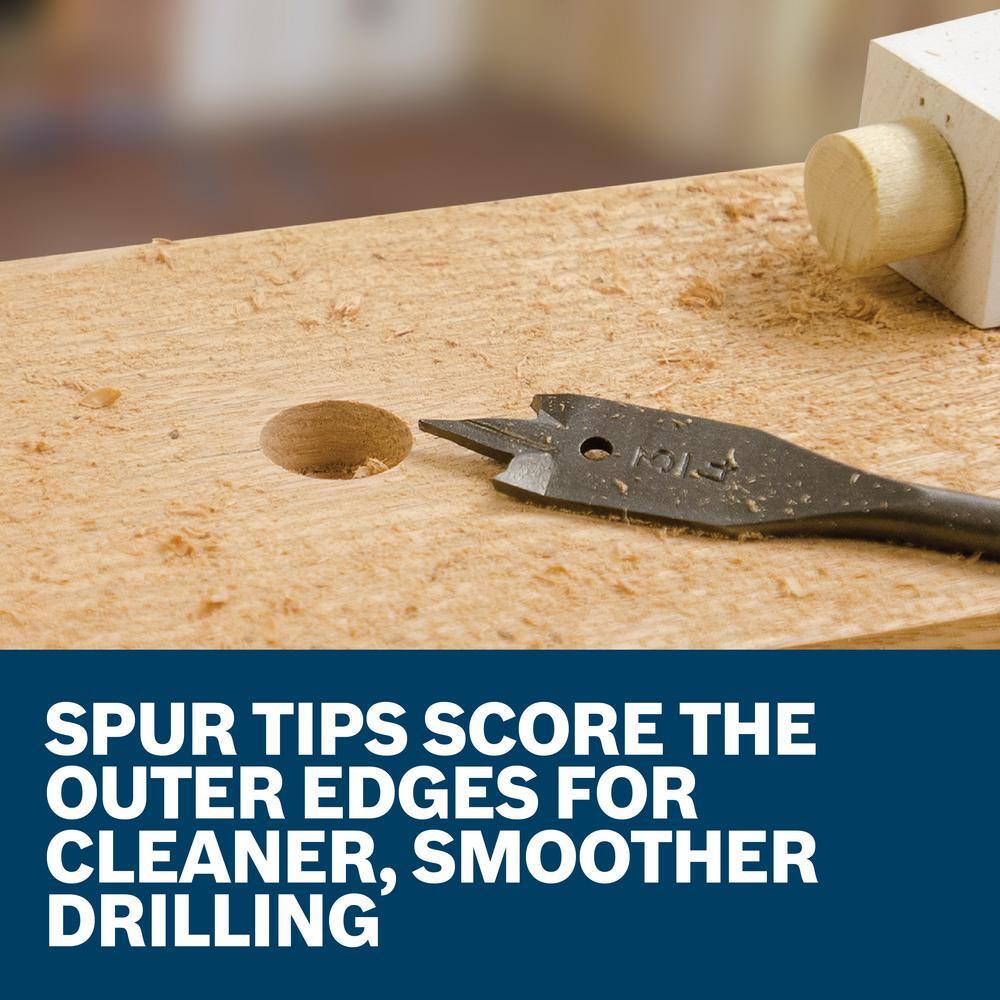

A close-up promotional graphic displaying a black paddle bit next to a freshly drilled hole in a timber block, paired with a lower blue banner text card reading Spur Tips Score the Outer Edges for Cleaner, Smoother Drilling.

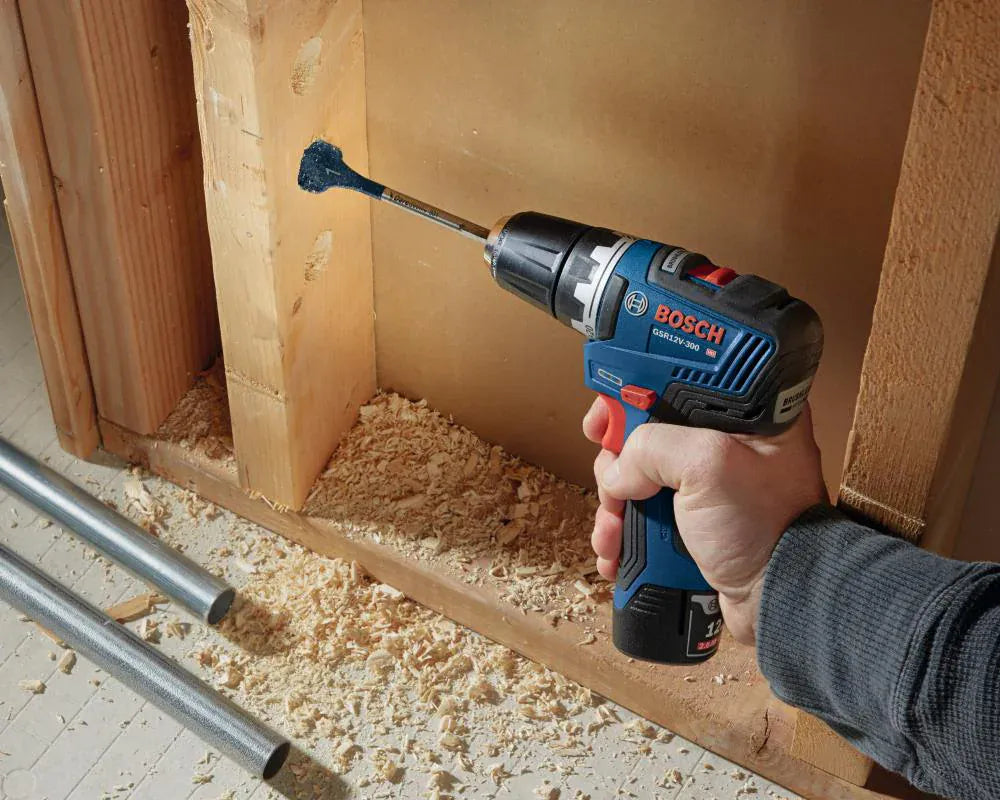

A real-world jobsite application photograph of a technician using a compact Bosch 12V cordless drill driver equipped with a blue spade paddle bit to bore a clean horizontal wire placement hole straight through a structural wood wall stud.

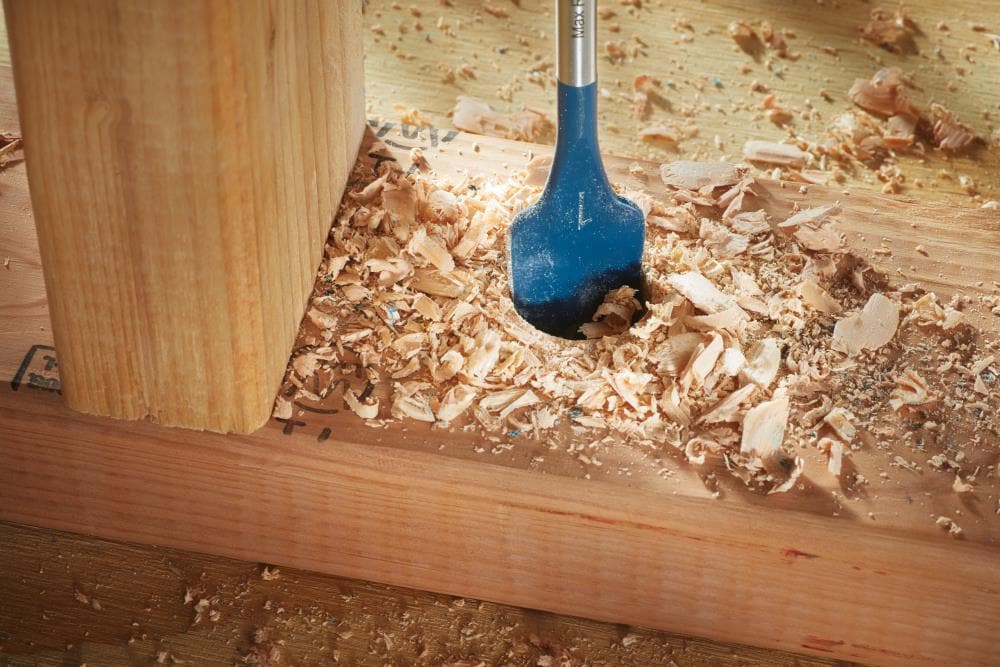

A macro close-up view of a blue Bosch woodboring spade bit finishing a large diameter hole in a piece of construction lumber, surrounded by heavy piles of freshly cleared wood shavings and chips.
“Macho Man” | Bosch 18V 2-in-1 Impact Driver promotional video
A studio product photograph showing the full selection of the Bosch SB0010 10-piece woodboring spade bit set arranged in a clean horizontal line, displaying the progressive paddle sizes from 1/4 inch to 1 inch with their matching 1/4-inch hex shanks against a pure white background.
A formal retail packaging shot of the Bosch 10-piece spade bit set enclosed in a transparent hard plastic clamshell case, highlighted by a dark blue header card with the red and white Bosch brand logo and lower marketing text describing its chisel tip partial depth drilling features.
An e-commerce informational infographic titled Best For Wood/Wood Byproduct, displaying various lumber block samples including hardwood, softwood, wood furniture board, and layered plywood over a solid blue background.
A close-up marketing banner featuring a black Bosch chisel-point spade bit cutting into a wood beam, with a large blue overlay box reading Chisel-Point Tip Helps Pull the Bit Through the Wood over a background displaying coiled wire.
A technical compatibility infographic titled Universal Brand Fit Fits Impact Drills & 3-Jaw Chucks, showing diagram lines linking the 1/4-inch quick-change hex shank base of a spade bit to a standard three-jaw drill chuck and a quick-release impact driver collet.
A close-up promotional graphic displaying a black paddle bit next to a freshly drilled hole in a timber block, paired with a lower blue banner text card reading Spur Tips Score the Outer Edges for Cleaner, Smoother Drilling.
A real-world jobsite application photograph of a technician using a compact Bosch 12V cordless drill driver equipped with a blue spade paddle bit to bore a clean horizontal wire placement hole straight through a structural wood wall stud.
A macro close-up view of a blue Bosch woodboring spade bit finishing a large diameter hole in a piece of construction lumber, surrounded by heavy piles of freshly cleared wood shavings and chips.
“Macho Man” | Bosch 18V 2-in-1 Impact Driver promotional video
BOSCH

Bosch Spade Bit Set SB0010 10 Piece Woodboring Hex Shank (Chisel Point Dual Spurs 1/4 In Power Groove Fast Timber Cutting Paddle Bits Kit)

In stock
SKU: SB0010
$12.59 USD

Description

Bosch Promtional Logo Logout

Bosch SB0010 10 Piece Chisel Point Woodboring Spade Bit Set

The Bosch SB0010 10-Piece Woodboring Spade Bit Set operates as a high-speed wood drilling accessory kit engineered to bore clean wire, pipe, and conduit pass-through holes in framing lumber, OSB sheathing, and plywood. Featuring a hardened high-speed steel matrix, a 1/4-inch quick-change hex shank with power groove, self-centering chisel-point tips, and dual precision-ground spurs, these paddle bits range from 1/4 inch to 1 inch in diameter. Designed for electric drills and impact drivers, this set scores wood fibers prior to chip removal to prevent exit blowout across residential framing, electrical, and plumbing rough-in applications.

Best Used For:

  • Electrical Wiring & Cable Rough-Ins: Boring smooth wiring channels through wall studs, ceiling joists, and floor plates without snagging conductor insulation.
  • Plumbing Pipe & Conduit Pass-Throughs: Slicing clean holes in plywood subfloors and framing timber for copper lines, PEX tubing, and PVC drainage pipes.
  • General Framing & Woodworking Joinery: Executing accurate blind pocket holes and full-depth penetrations in softwoods, hardwoods, and composite OSB panels.

Key Performance & Safety Features

  • Self-Centering Chisel Point Tip: Precision tip initiates instant contact on wood surfaces to eliminate bit skating and maintain hole location accuracy.
  • Dual Precision-Ground Outside Spurs: Outer spurs score the hole circumference before the paddle body engages to prevent wood splintering and exit blowout.
  • Positively Angled Cutting Edge: Aggressive rake angle on the cutting face removes wood chips continuously to maximize drilling speed.
  • Hardened High-Speed Steel (HSS): Thermally tempered alloy construction preserves cutting edge sharpness under severe frictional heat.
  • 1/4-Inch Power Groove Hex Shank: Anti-slip shank prevents bit rotation in three-jaw chucks and locks securely into quick-release impact driver collets.
  • Impact-Resistant Molded Hard Case: Protective hardshell organizer case keeps bits organized and guards cutting spurs during jobsite transport.

What's Included

  • (1) 1/4" Chisel-Point Woodboring Spade Bit
  • (1) 3/8" Chisel-Point Woodboring Spade Bit
  • (1) 1/2" Chisel-Point Woodboring Spade Bit
  • (1) 9/16" Chisel-Point Woodboring Spade Bit
  • (1) 5/8" Chisel-Point Woodboring Spade Bit
  • (1) 11/16" Chisel-Point Woodboring Spade Bit
  • (1) 3/4" Chisel-Point Woodboring Spade Bit
  • (1) 13/16" Chisel-Point Woodboring Spade Bit
  • (1) 7/8" Chisel-Point Woodboring Spade Bit
  • (1) 1" Chisel-Point Woodboring Spade Bit
  • (1) Heavy-Duty Jobsite Hard Storage Case

Technical Specifications

Brand Manufacturer Bosch Power Tools
Model Kit SKU Number SB0010
Product Classification Chisel-Point Spade Paddle Drill Bit Set
Total Piece Count 10 Bits Plus Storage Case (11 Pieces Total)
Bit Tip Interface Design Self-Centering Chisel Point with Dual Outer Spurs
Shank Interface Type 1/4 in. Hex Shank with Integrated Power Groove
Accessory Material Matrix Hardened and Tempered High-Speed Steel (HSS)
Size Range Included 1/4 in. to 1 in. (Graduated Imperial Diameters)
Quick Change Support Compatible with 1/4 in. Quick-Release Driver Sleeves
Primary Target Materials Softwood, Hardwood, Framing Lumber, Plywood, OSB
Material Usage Restrictions Not for Use on Structural Steel, Sheet Metal, or Masonry
Product Storage Case Heavy-Duty Molded Hardshell Case
Product Structural Condition Brand New Original Equipment Accessory Set

Pro-Tip: When boring large-diameter holes through thick framing timber with the SB0010 spade bits, stop forward pressure just as the chisel point breaks through the backside of the wood. Finish drilling the hole from the reverse side to ensure a clean edge on both sides of the stud.
