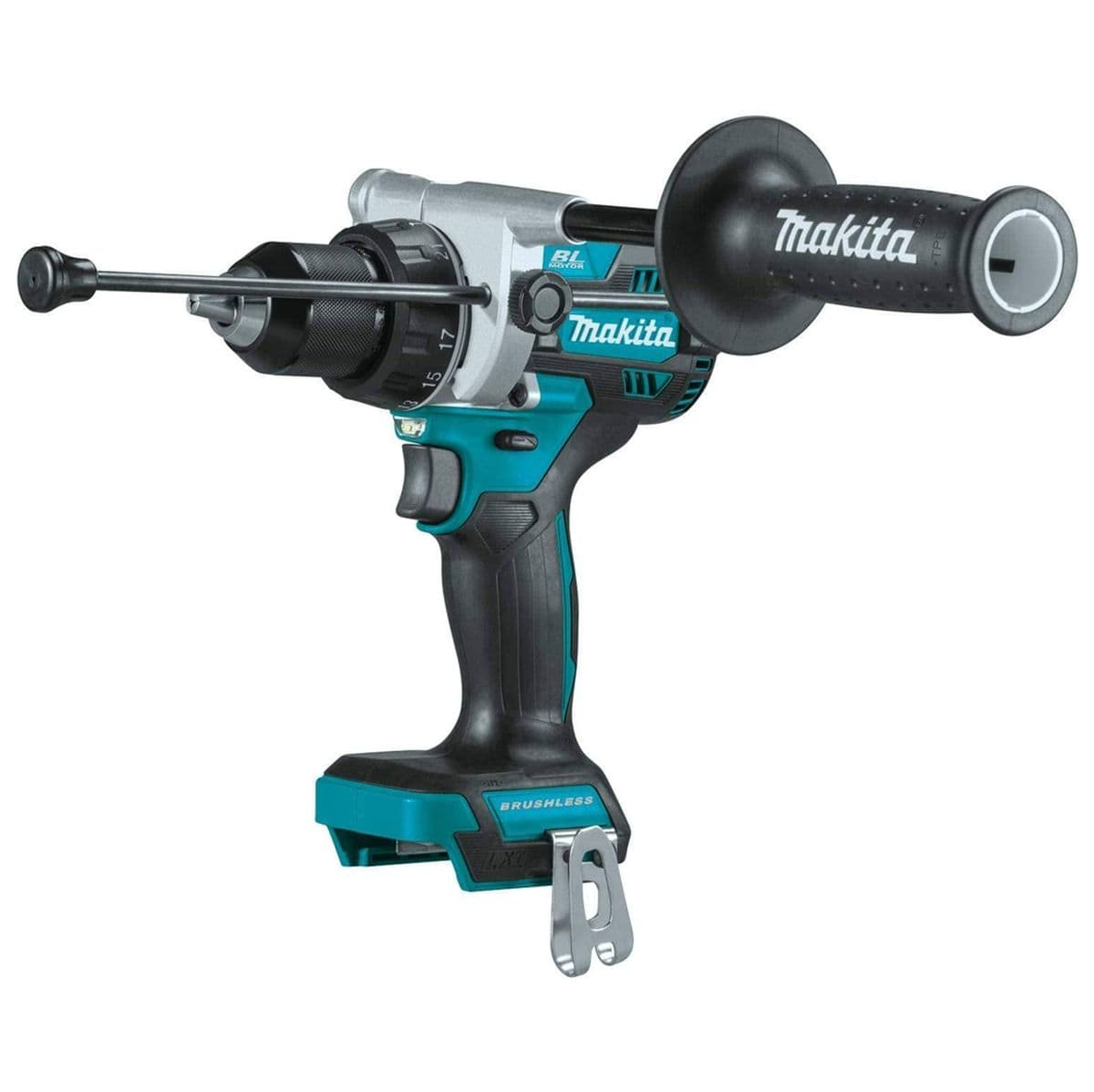

This is a pistol-shaped power tool with a rotating chuck at the front and an additional long handle attached to its side. It is mostly teal and black and has the word "Makita" printed on both its body and the side handle.

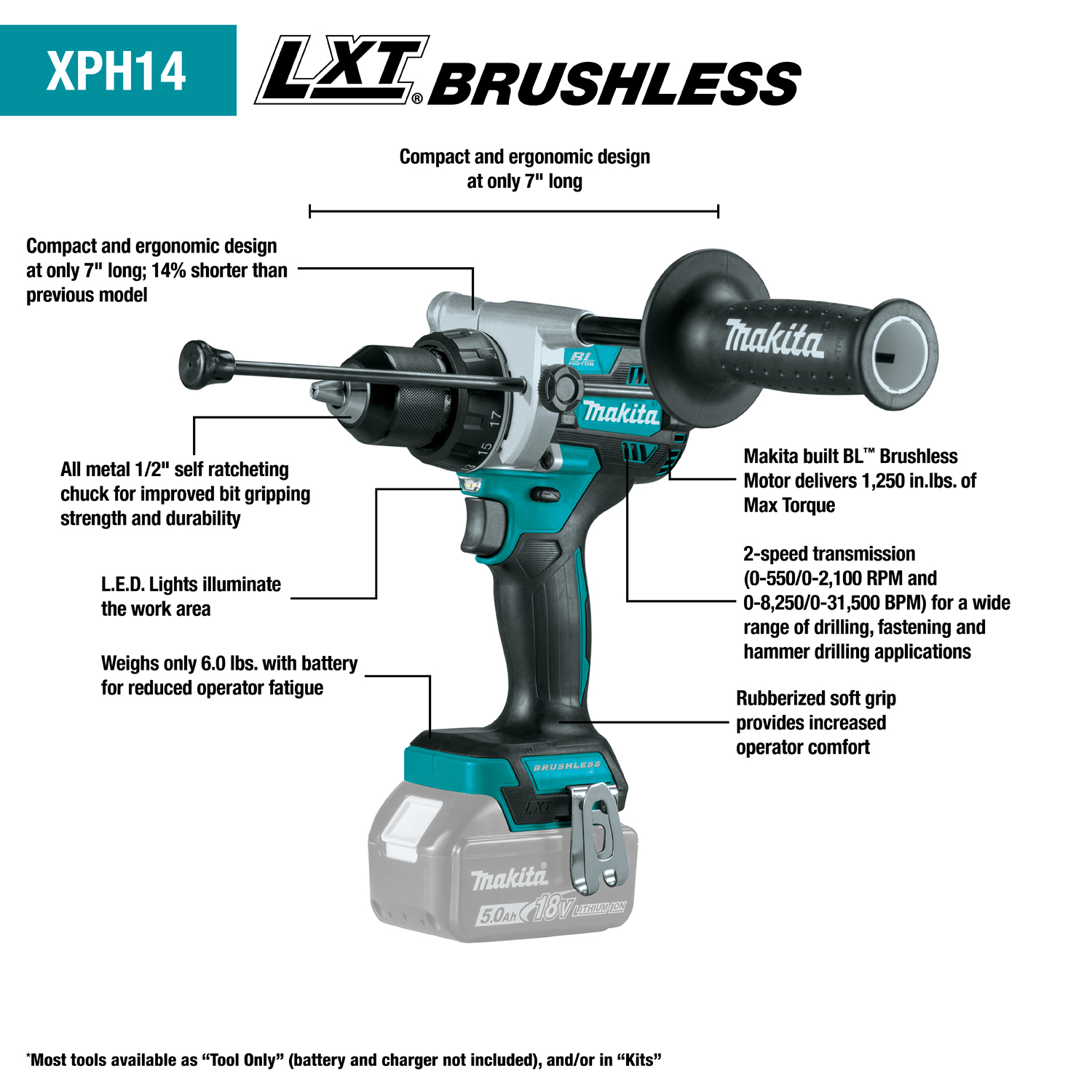

A technical product graphic of the Makita XPH14Z 18V LXT brushless hammer driver-drill detailing its 1,250 in-lbs of max torque, compact 7-inch length, 2-speed transmission, and all-metal ratcheting chuck.

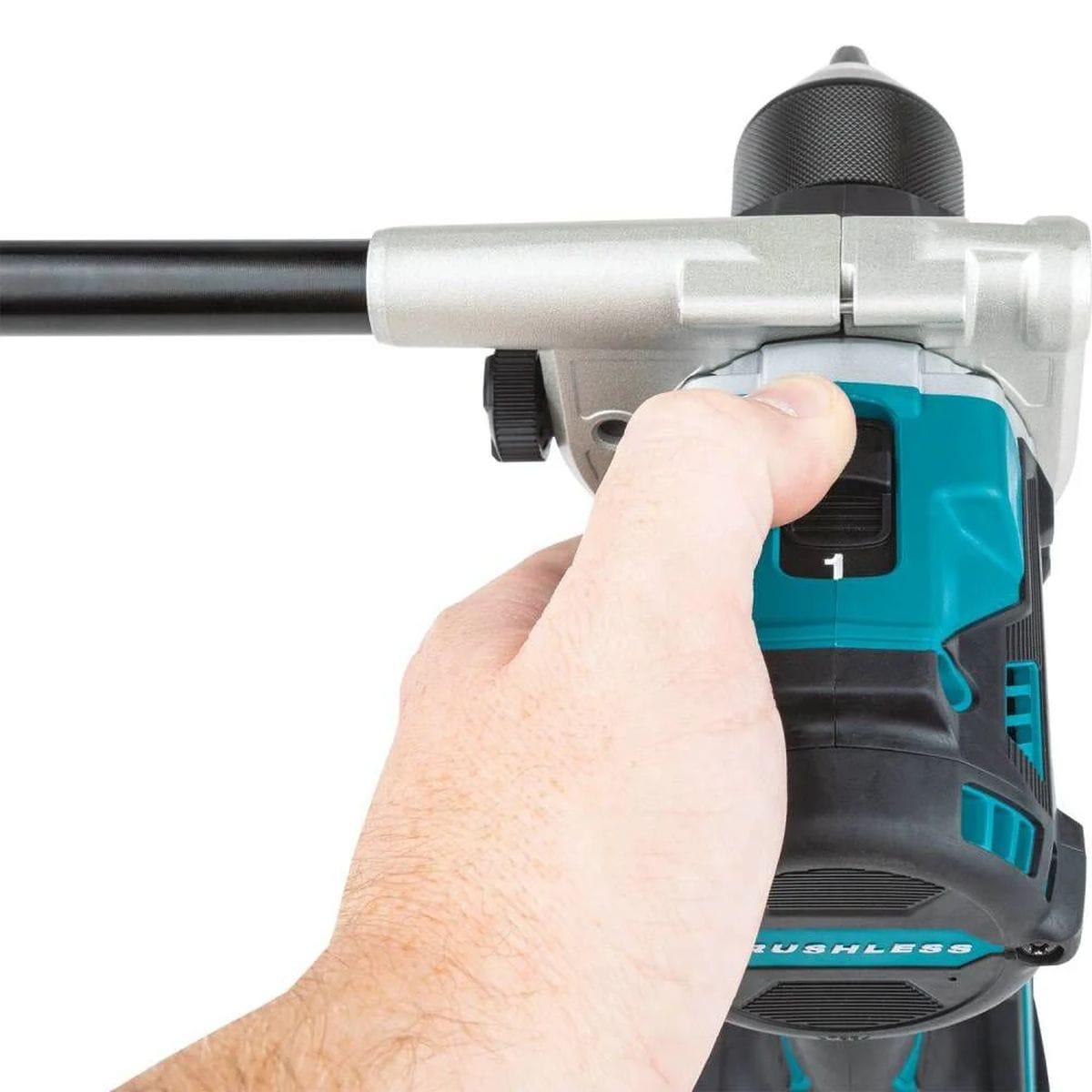

A close-up view of a hand operating the top-mounted 2-speed slide switch on the Makita 18V brushless hammer drill, illustrating the tactile control for shifting between high-speed and high-torque modes.
A professional contractor using the Makita XPH14Z hammer driver-drill with an attached side handle to drill through structural floor joists, showcasing the high-torque performance and effective chip clearance.

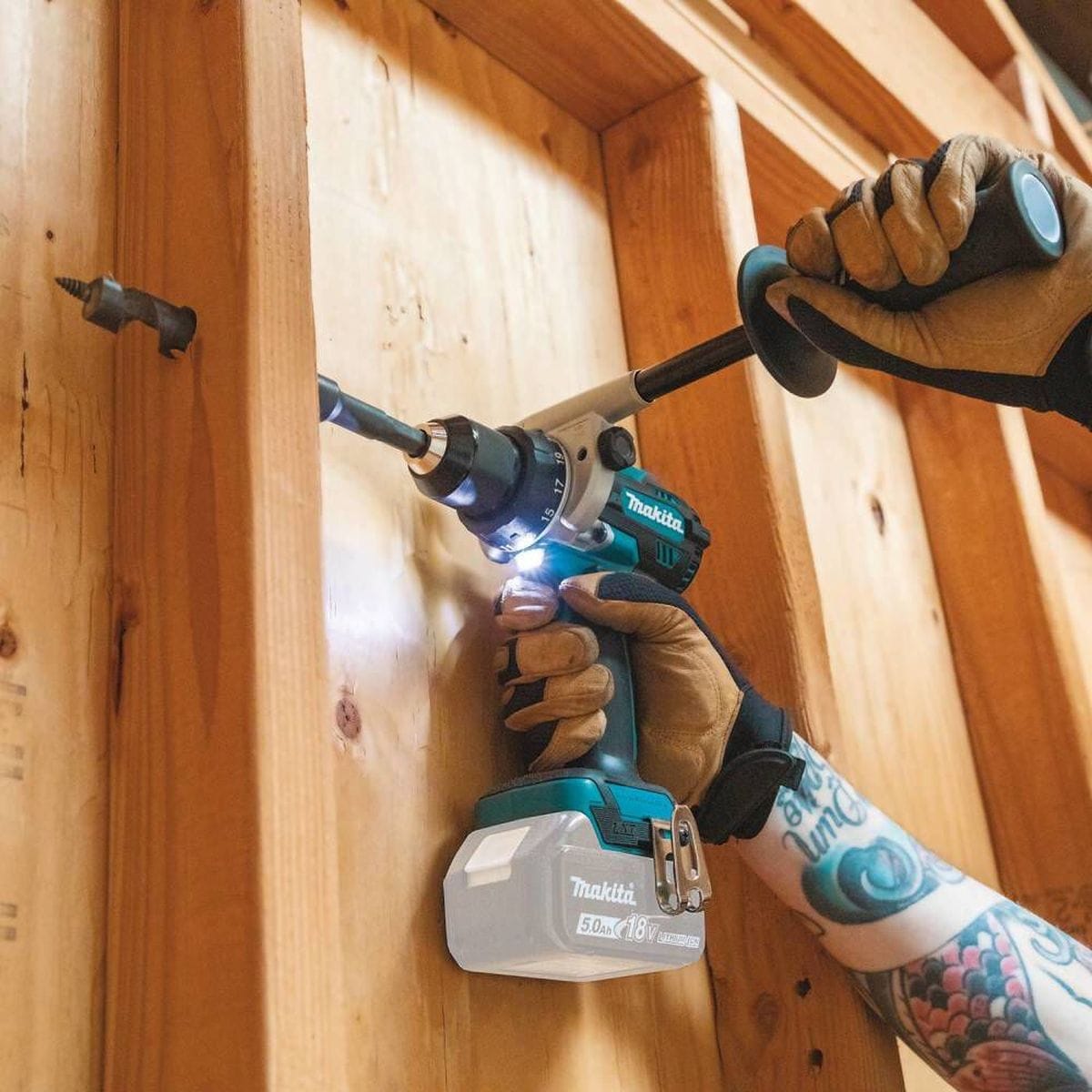

A jobsite application shot showing the Makita 18V LXT brushless hammer drill boring through a vertical wall stud, highlighting the integrated L.E.D. work light and the ergonomic use of the auxiliary side handle for stability.
Tough Hammer Drilling & Driving: Bosch 1/2 In promotional video
This is a pistol-shaped power tool with a rotating chuck at the front and an additional long handle attached to its side. It is mostly teal and black and has the word "Makita" printed on both its body and the side handle.
A technical product graphic of the Makita XPH14Z 18V LXT brushless hammer driver-drill detailing its 1,250 in-lbs of max torque, compact 7-inch length, 2-speed transmission, and all-metal ratcheting chuck.
A close-up view of a hand operating the top-mounted 2-speed slide switch on the Makita 18V brushless hammer drill, illustrating the tactile control for shifting between high-speed and high-torque modes.
A professional contractor using the Makita XPH14Z hammer driver-drill with an attached side handle to drill through structural floor joists, showcasing the high-torque performance and effective chip clearance.
A jobsite application shot showing the Makita 18V LXT brushless hammer drill boring through a vertical wall stud, highlighting the integrated L.E.D. work light and the ergonomic use of the auxiliary side handle for stability.
Tough Hammer Drilling & Driving: Bosch 1/2 In promotional video
Makita

Makita XPH14Z 18V LXT Brushless Cordless 1/2 Inch Hammer Driver Drill Bare Tool 1250 in-lbs Torque High Power Masonry Masonry Drilling XPT Protection

In stock
SKU: XPH14Z
$199.00 USD

Description

Bosch Promtional Logo Logout

Dominate the Jobsite with the Industry-Leading Power of the Makita 18V LXT Brushless Hammer Driver-Drill

The Makita XPH14Z is a high-performance 18V LXT® Brushless Cordless ½” Hammer Driver-Drill engineered to break new ground in the most demanding drilling and driving applications. Delivering a massive 1,250 in-lbs. of Max Torque, this powerhouse is designed for structural contractors and masonry professionals who refuse to compromise on power. Whether you are boring large-diameter holes into heavy timber or hammer-drilling into dense concrete and masonry at 31,500 BPM, the XPH14Z provides the speed and force required to outpace the competition. Its efficient BL™ Brushless Motor is electronically controlled to optimize battery energy use, providing up to 50% longer run time per charge while matching torque and RPM to the specific demands of your task.

Despite its industrial-strength output, the XPH14Z features a remarkably compact and ergonomic design. Measuring only 7 inches long—14% shorter than previous models—it offers superior maneuverability in tight spaces and reduces operator fatigue during extended use. This hammer drill is built for longevity, featuring an all-metal ½” self-ratcheting chuck for maximum bit-gripping strength and Extreme Protection Technology (XPT™) for increased dust and water resistance in harsh environments. As part of the expanding 18V LXT System, this tool integrates Star Protection Computer Controls™ to monitor data in real-time, protecting your investment against overloading, over-discharging, and overheating on the most rigorous jobsites.

**Battery and charger sold separately.

Key Features

  • Unmatched Torque: Delivers a full 1,250 in-lbs. of Max Torque for the most demanding industrial applications.
  • Compact Innovation: Only 7 inches in length; 14% shorter than previous generations for better balance and access.
  • High-Speed Masonry Drilling: Features 0-31,500 BPM for rapid hammer drilling into concrete, brick, and stone.
  • BL™ Brushless Motor: Eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer tool life.
  • XPT™ Technology: Engineered for increased dust and water resistance in the most challenging outdoor jobsite conditions.
  • 2-Speed Transmission: Dual speed ranges (0-550 & 0-2,100 RPM) provide versatile control for drilling, fastening, and hammer tasks.
  • All-Metal Chuck: Heavy-duty 1/2-inch self-ratcheting chuck ensures superior bit retention and long-term durability.

What's Included

  • (1) 18V LXT® Brushless 1/2" Hammer Driver-Drill (XPH14Z)
  • (1) Side Handle Assembly
  • (1) Belt Clip

Specifications

Brand Name Makita
Model Number XPH14Z
Voltage 18V LXT®
Maximum Torque 1,250 in-lbs.
Chuck Size 1/2 in.
No Load Speed (2-Speed) 0 - 550 / 0 - 2,100 RPM
Blows Per Minute 0 - 31,500 BPM
Capacity (Wood) 3 in.
Capacity (Masonry) 5/8 in.
Capacity (Steel) 1/2 in.
Overall Length 7 in.
Net Weight (with Battery) 6 lbs.
Motor Type Brushless

Pro-Tip: To maximize the 1,250 in-lbs. of torque when drilling through structural lumber with large self-feeding bits, always use the included side handle. This provides the necessary leverage to maintain control and safety, ensuring the tool's power is directed into the material rather than twisting the operator's wrist.
