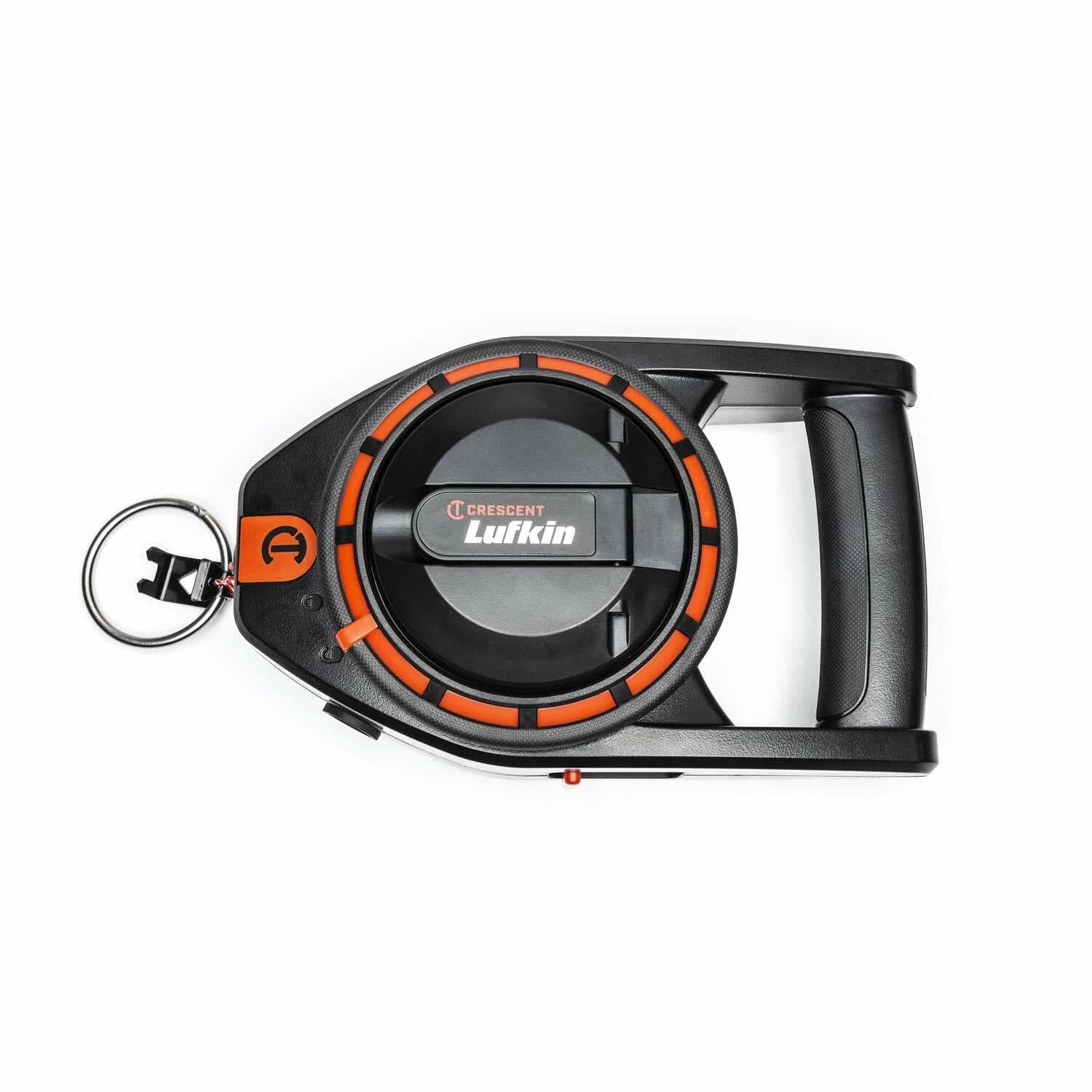

A top-down studio shot of the Crescent Lufkin 150-foot construction chalk reel, model CL150, showing its black and orange body, D-handle, and nested end hook.

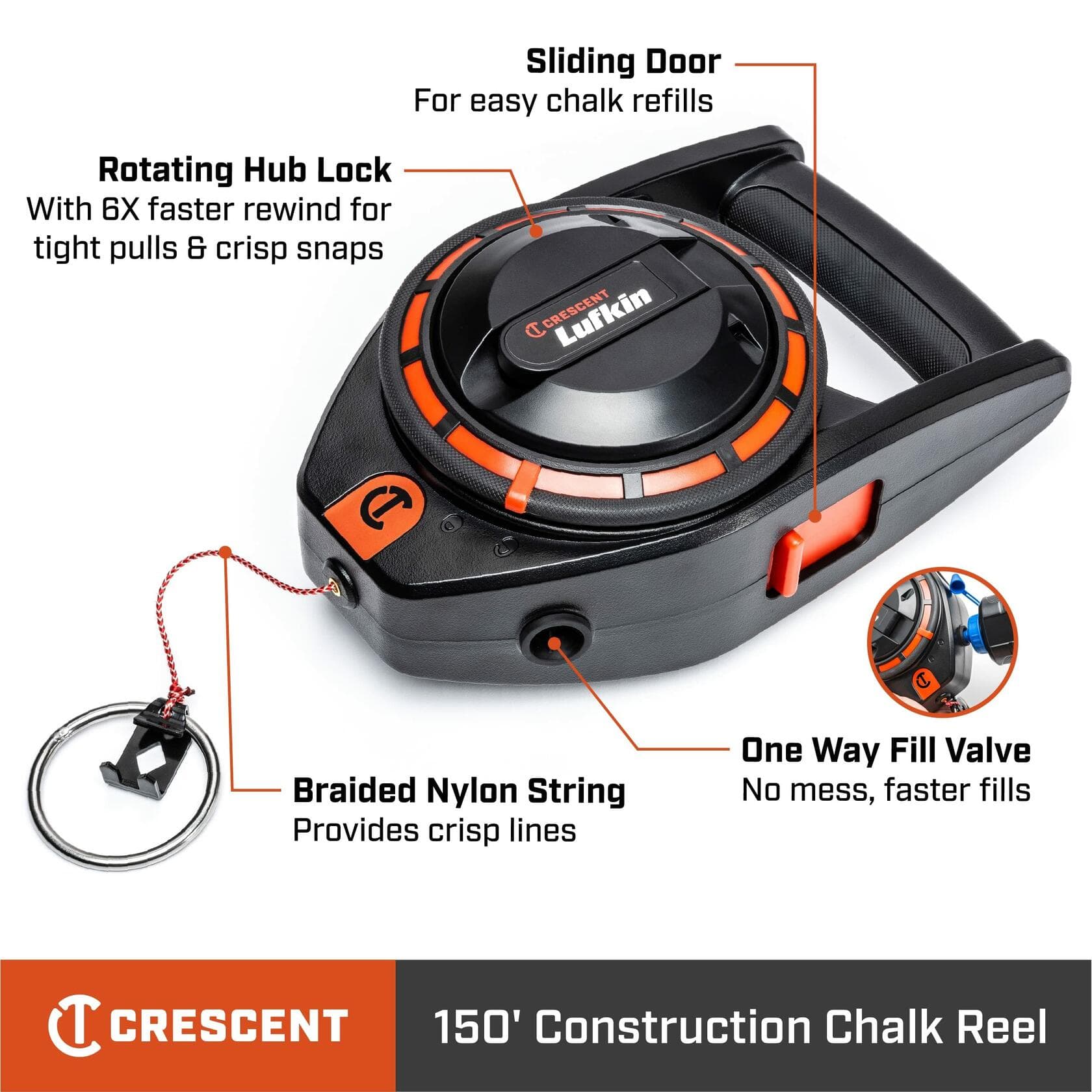

An informational graphic of the Crescent Lufkin 150-foot chalk reel with callouts pointing to key features: "Rotating Hub Lock," "Sliding Door," "One Way Fill Valve," and "Braided Nylon String."

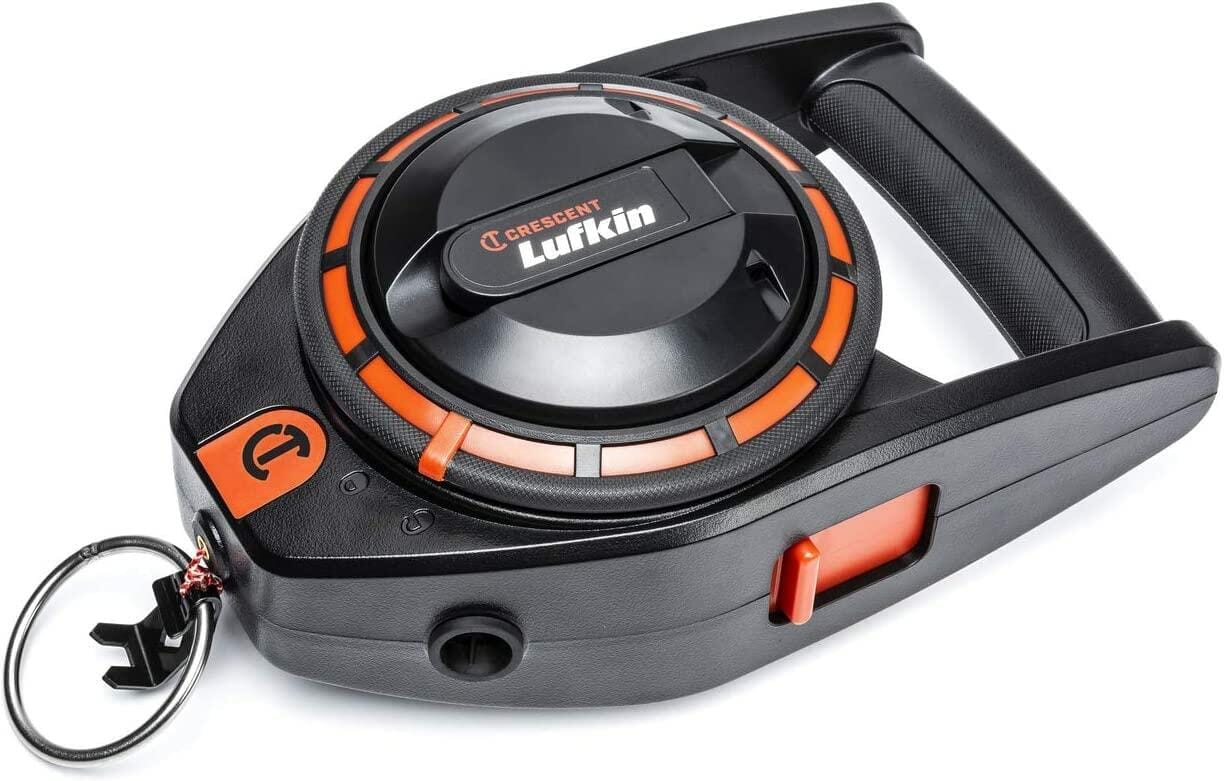

A three-quarter studio shot of the Crescent Lufkin 150-foot construction chalk reel with its combo hook/ring nested in the docking port.

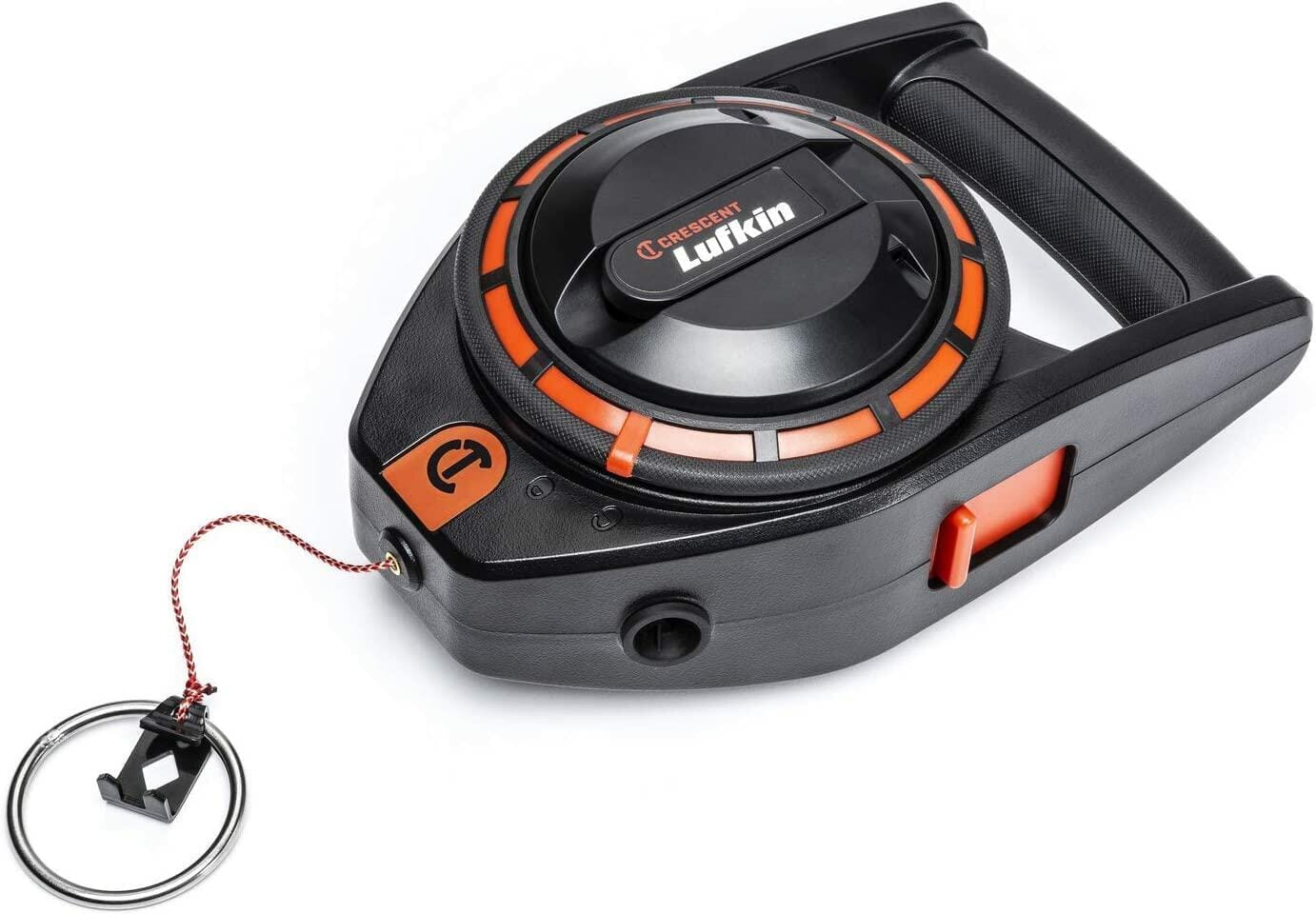

A three-quarter studio shot of the Crescent Lufkin 150-foot construction chalk reel, showing its black and orange body, D-handle, and the braided line with the combo hook/ring extended.

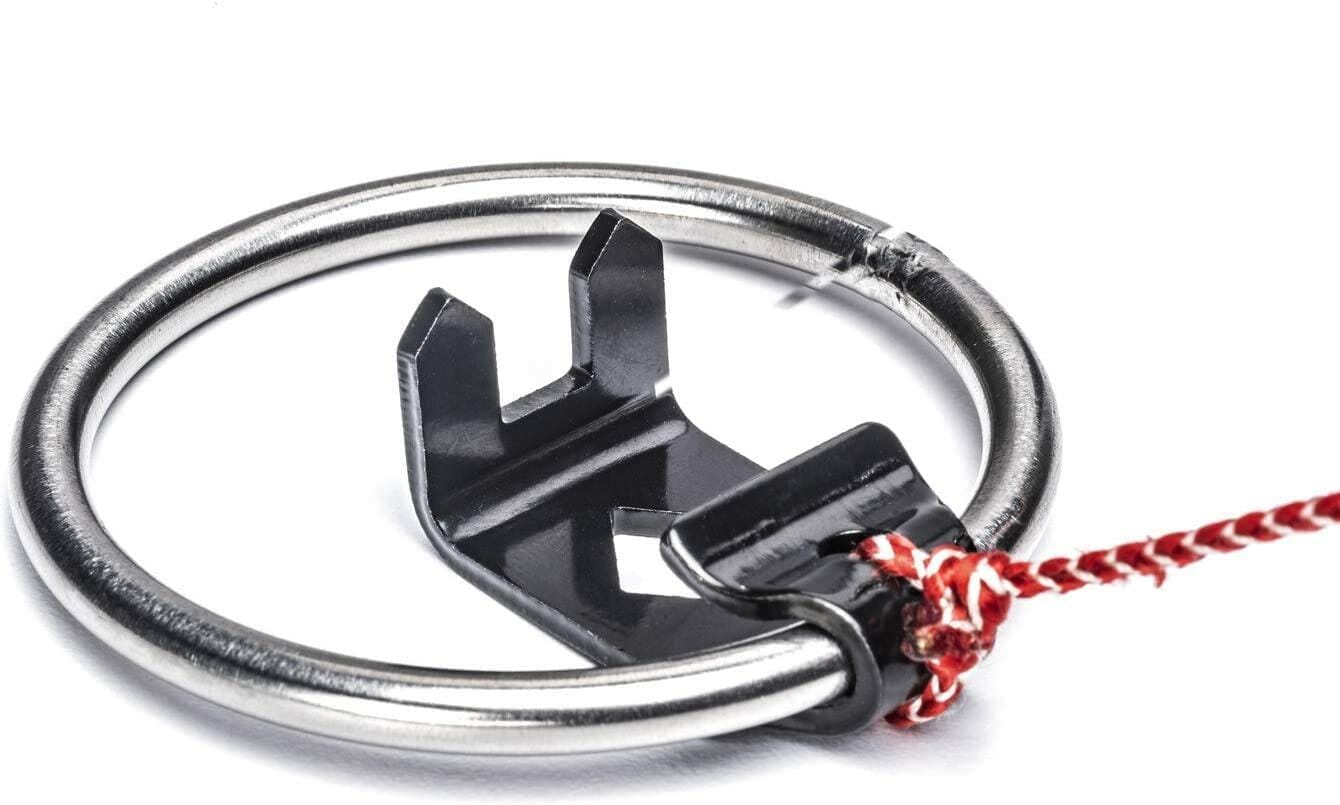

A close-up studio shot of the versatile combo hook and ring end hook attached to the red and white braided line of the Crescent Lufkin chalk reel.

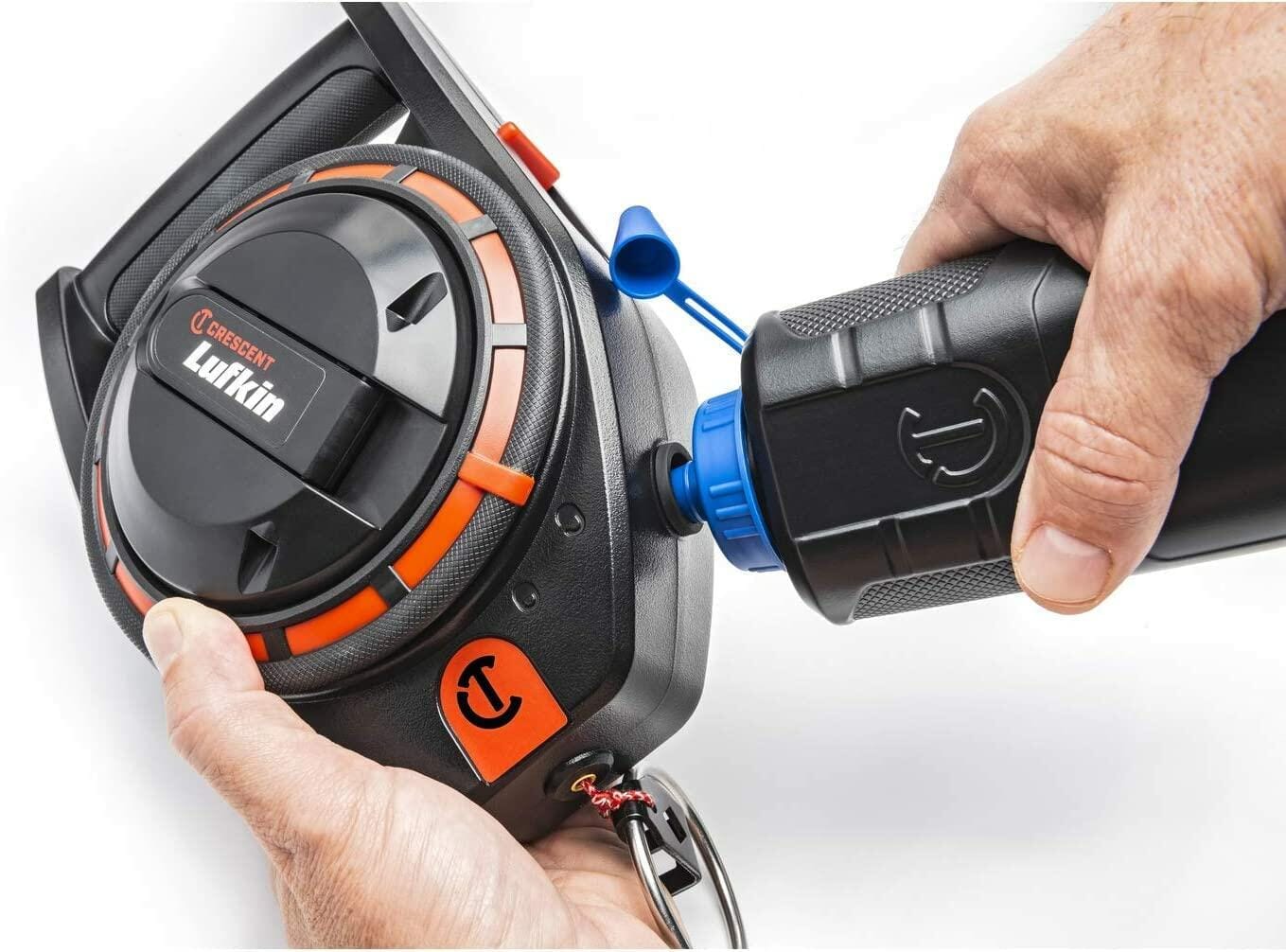

A person demonstrates refilling the Crescent Lufkin 150-foot chalk reel using the one-way valve on a Lufkin chalk bottle.

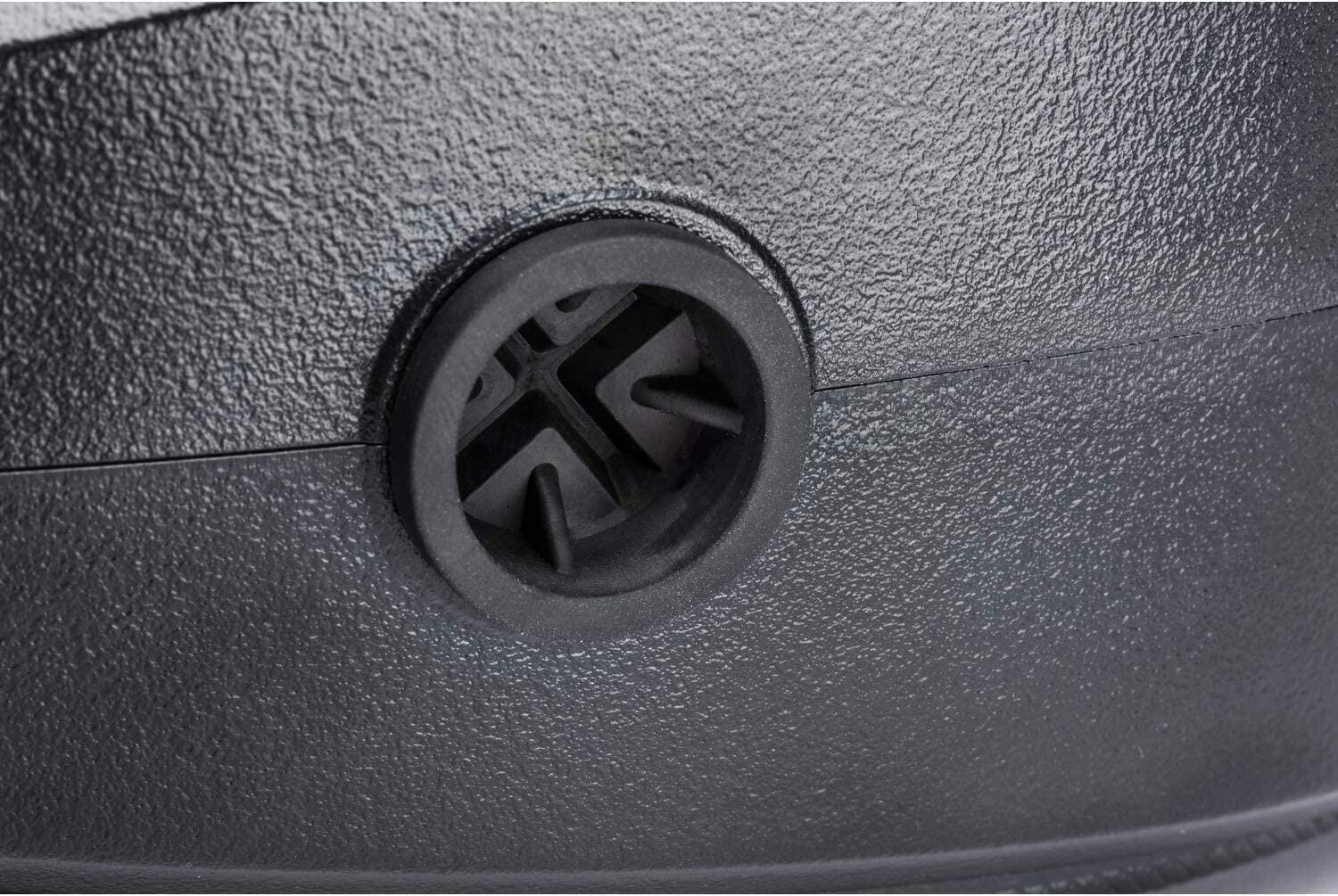

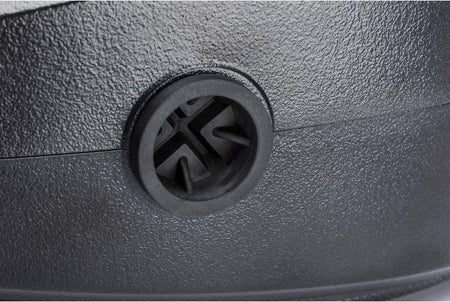

A detailed close-up of the black rubber one-way fill valve on the Crescent Lufkin chalk reel, designed for mess-free refills.

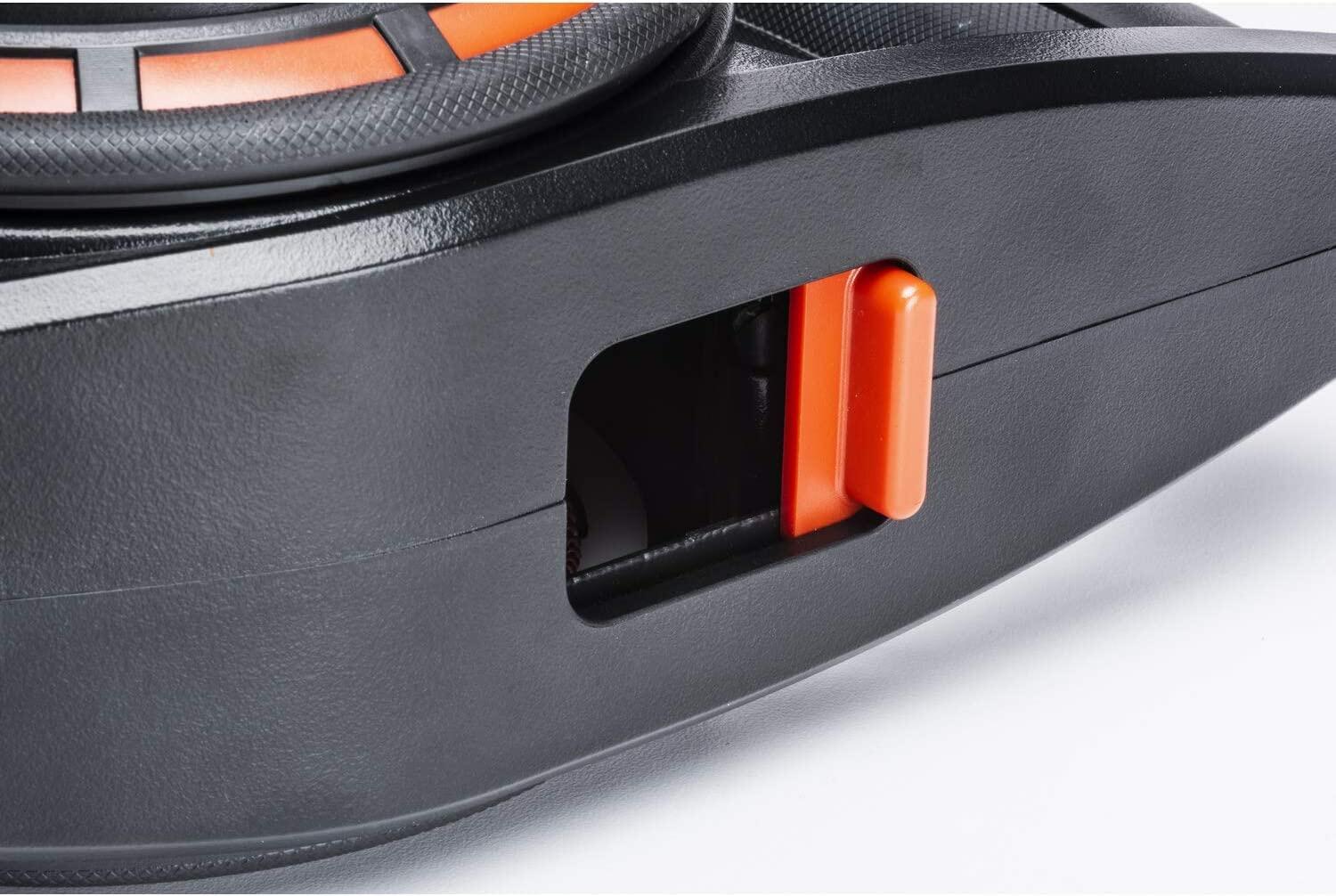

A detailed close-up of the orange slide-door opening on the side of the Crescent Lufkin chalk reel, used for refilling chalk.
A top-down view of the Crescent Lufkin 150-foot chalk reel in its retail packaging, highlighting the "6X FASTER REWIND" and "ROTATING HUB LOCK" features.
The back of the retail packaging for the Crescent Lufkin 150-foot chalk reel, detailing its features in English, French, and Spanish.
A top-down studio shot of the Crescent Lufkin 150-foot construction chalk reel, model CL150, showing its black and orange body, D-handle, and nested end hook.
An informational graphic of the Crescent Lufkin 150-foot chalk reel with callouts pointing to key features: "Rotating Hub Lock," "Sliding Door," "One Way Fill Valve," and "Braided Nylon String."
A three-quarter studio shot of the Crescent Lufkin 150-foot construction chalk reel with its combo hook/ring nested in the docking port.
A three-quarter studio shot of the Crescent Lufkin 150-foot construction chalk reel, showing its black and orange body, D-handle, and the braided line with the combo hook/ring extended.
A close-up studio shot of the versatile combo hook and ring end hook attached to the red and white braided line of the Crescent Lufkin chalk reel.
A person demonstrates refilling the Crescent Lufkin 150-foot chalk reel using the one-way valve on a Lufkin chalk bottle.
A detailed close-up of the black rubber one-way fill valve on the Crescent Lufkin chalk reel, designed for mess-free refills.
A detailed close-up of the orange slide-door opening on the side of the Crescent Lufkin chalk reel, used for refilling chalk.
A top-down view of the Crescent Lufkin 150-foot chalk reel in its retail packaging, highlighting the "6X FASTER REWIND" and "ROTATING HUB LOCK" features.
The back of the retail packaging for the Crescent Lufkin 150-foot chalk reel, detailing its features in English, French, and Spanish.
Lufkin

Crescent Lufkin Chalk Reel CL150 150 Foot Construction (6 to 1 Gear Ratio Fast Rewind Combo Hook Ring One Hand Hub Lock Braided Line)

In stock
SKU: CL150
$26.99 USD

Description

Crescent Lufkin Logo logout

Crescent Lufkin CL150 150-Foot Construction Chalk Reel

The Crescent Lufkin CL150 150-Foot Construction Chalk Reel is an extended-length layout marking tool engineered for snapping long reference gridlines across concrete foundation slabs, commercial framing runs, subfloors, and roofing decks. Featuring a high-speed 6:1 planetary gear ratio, this professional marking reel rewinds 150 feet of thick compound braided string six times faster than standard 1:1 manual reels. Outfitted with a one-hand hub lock mechanism to anchor cord tension, a dual-access filling system with a one-way refill valve and quarter-turn slide door, a combo hook/ring end hook that docks into a snag-free side channel, and a sit-flat high-impact plastic housing with a 3-ounce chalk capacity, this tool executes solo long-span alignment layout tasks.

Best Used For:

  • Commercial Concrete Slab & Foundation Layout: Snapping continuous 150-foot gridlines across large concrete footings and industrial floor slabs.
  • Solo Extended Framing & Subfloor Marking: Tensioning long layout cords single-handed across wood floor joists and wall bottom plates using the hub lock brake.
  • Roofing & Sheathing Line Snapping: Marking straight reference lines across long-span plywood roof decking prior to underlayment and shingle installation.

Key Performance & Safety Features

  • 6:1 Planetary Fast Rewind Gearing: Retracts 150 feet of line 6X faster than standard 1:1 drive reels to accelerate site layout setup.
  • One-Hand Hub Lock Brake System: Allows a single operator to lock line tension instantly at any distance and snap lines without an assistant.
  • Thick Compound Braided Layout Cord: Reinforced braided line structure maximizes chalk powder retention while minimizing line overspray.
  • Docking Combo Hook/Ring End Anchor: Versatile end hook attaches to studs, nails, or pipe rings and docks into a dedicated side slot to prevent snags.
  • Mess-Free Dual Filling Architecture: Features a rubberized one-way filler valve for rapid squeeze-bottle fills and a slide door for wide access.
  • Sit-Flat High-Impact Composite Housing: Flat-bottomed plastic casing stays stable on sloped roofs and flat concrete surfaces during refilling.

What's Included

  • (1) Crescent Lufkin CL150 150-Foot Construction Chalk Reel

Technical Specifications

Brand / Manufacturer Crescent Lufkin
Model / Part Number CL150
Chalk Line Extended Length 150 ft. (45.72 Meters)
Rewind Gear Drive Ratio 6:1 Planetary Fast Rewind
Case Housing Material High-Impact Sit-Flat Polymer Composite
Line Material Architecture Reinforced High-Retention Braided Line
Chalk Reservoir Capacity 3 oz. (85 g)
Line Lock Mechanism Type One-Hand Manual Hub Lock Spool Brake
Chalk Filling Valve Type One-Way Valve & Quarter-Turn Slide Door
End Hook Style & Storage Combo Hook/Ring with Built-In Docking Slot
Primary Surface Applications Concrete Slabs, Framing Lumber, OSB, Plywood, Drywall
Pro-Tip: Press down on the hub lock before pulling full 150-foot runs taut; locking the internal spool spool gears prevents back-spinning and allows one operator to snap sharp, high-visibility layout lines across open concrete slabs.
