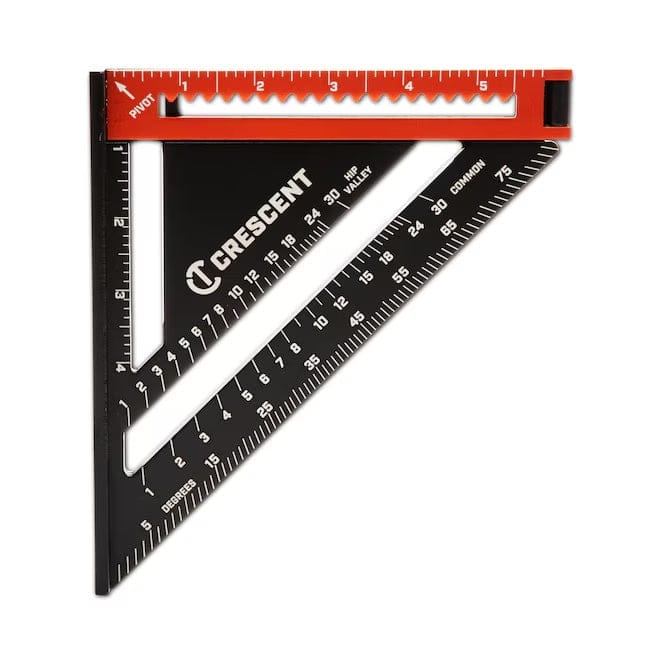

A studio photograph of the Crescent Lufkin EX6 in its compact 6-inch configuration, with the orange extension arm folded into the top edge of the black aluminum square.

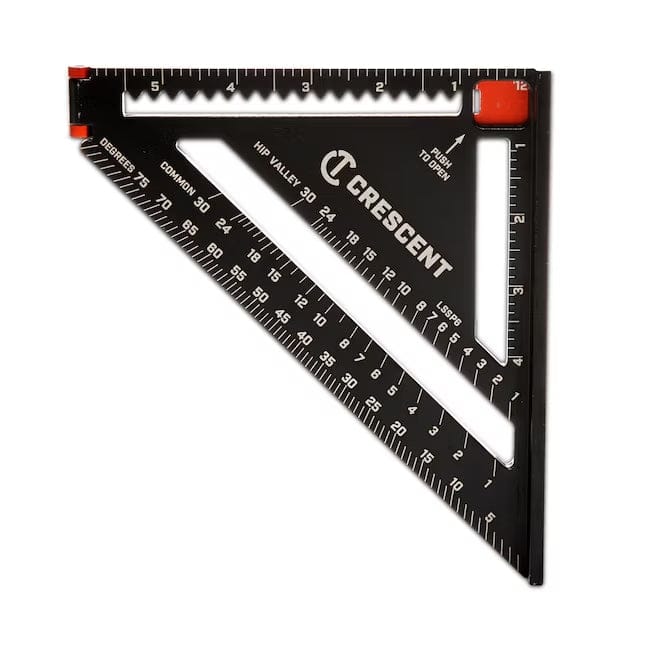

A studio photograph showing the back of the Crescent Lufkin EX6 layout tool in its closed 6-inch position, highlighting the push-to-open thumb lock and the laser-etched LSSP6 model number.

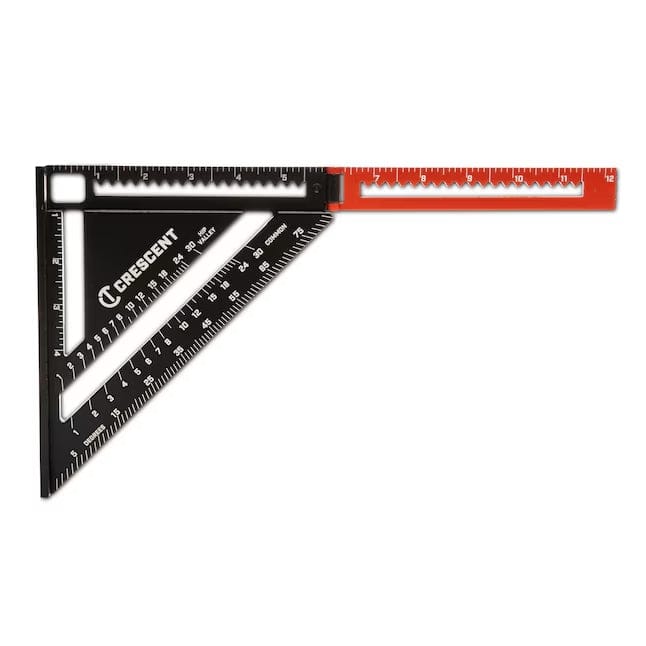

A studio photograph of the Crescent Lufkin EX6 extendable layout tool shown from the front with the orange extension arm fully deployed to its 12-inch length, displaying white laser-etched markings on the black aluminum rafter square.

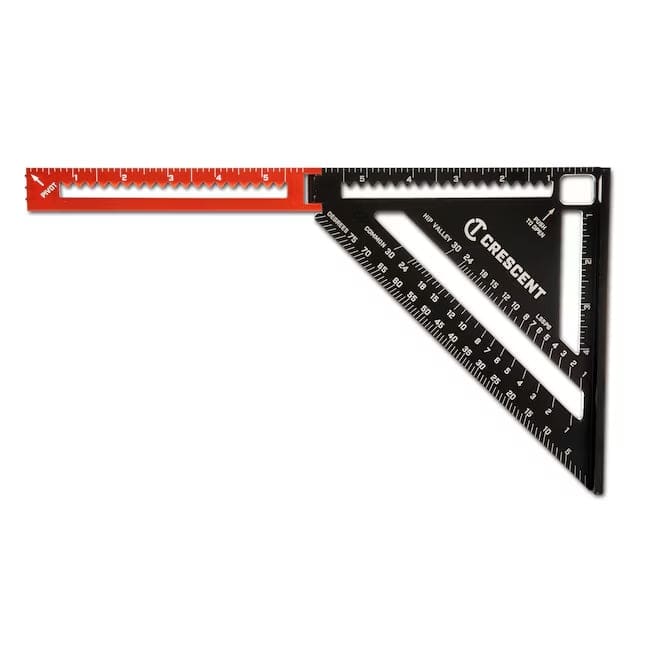

A studio photograph of the back of the Crescent Lufkin EX6 extendable layout tool with the orange extension arm fully opened, showing the pivot mechanism and laser-etched scales for common, hip, and valley rafters.
A studio photograph of the Crescent Lufkin EX6 in its compact 6-inch configuration, with the orange extension arm folded into the top edge of the black aluminum square.
A studio photograph showing the back of the Crescent Lufkin EX6 layout tool in its closed 6-inch position, highlighting the push-to-open thumb lock and the laser-etched LSSP6 model number.
A studio photograph of the Crescent Lufkin EX6 extendable layout tool shown from the front with the orange extension arm fully deployed to its 12-inch length, displaying white laser-etched markings on the black aluminum rafter square.
A studio photograph of the back of the Crescent Lufkin EX6 extendable layout tool with the orange extension arm fully opened, showing the pivot mechanism and laser-etched scales for common, hip, and valley rafters.
Crescent

Crescent Lufkin Extendable Layout Tool EX6 6 to 12 Inch (2-in-1 Aluminum Folding Rafter Square SAE Laser Etched Roof Framing Carpentry Gauge)

In stock
SKU: LSSP6-07
$17.97 USD

Description

Crescent Lufkin Logo logout

Precision-Engineered 6 Inch to 12.5 Inch Extendable Aluminum Rafter Square Layout Tool

The Crescent Lufkin EX6 2-in-1 Extendable Layout Tool operates as a versatile framing and angle measurement gauge engineered to perform the layout functions of both 7-inch and 12-inch rafter squares within a single compact body. Constructed from solid aluminum with a corrosion-resistant rawhide and black finish, this 0.73-pound layout gauge utilizes a 6-inch fold-out extension arm deployed via a quick-release thumb lock to expand measuring reach from 0 to 12.5 inches. Featuring laser-etched permanent SAE scale graduations, the unit fits directly into standard tool pouches, providing precise angle markings, crosscut guidance, and roof pitch layouts on job sites without requiring multiple dedicated framing squares.

Best Used For:

  • Roof Framing & Rafter Layout: Marking rafter hips, valleys, plumbs, and seat cuts across 2x4 through 2x12 dimensional lumber using the 12.5-inch extended arm.
  • Stair Stringer & Angle Layout: Scribing step rise-and-run dimensions, angle transitions, and square crosscuts directly onto framing stock.
  • Compact Jobsite Tool Pouch Carry: Contracting down to a 6.5-inch length footprint to fit inside standard carpenter pouch pockets and tool belts.

Key Performance & Safety Features

  • 2-in-1 Extendable Design: Hinged 6-inch fold-out arm expands the square's capacity to 12.5 inches, eliminating the need for separate 7-inch and 12-inch squares.
  • Quick-Access Thumb Lock Mechanism: Solid-state thumb release deploys and locks the extension arm firmly at 90 degrees for wobble-free layout lines.
  • Solid Aluminum Alloy Construction: Rigid metal body withstands jobsite drops while providing corrosion resistance against weather elements.
  • Laser-Etched High-Contrast Markings: Permanent scale markings are etched into the aluminum face to resist fading from grit, mud, and friction.
  • Compact Pouch Profile (6.5 in. Contracted): Folds down neatly to fit standard belt pouches, eliminating pocket snagging and cumbersome tool belt weight.

What's Included

  • (1) Crescent Lufkin EX6 2-in-1 Extendable Layout Tool (0 in. to 12.5 in. Measuring Range)

Technical Specifications

Brand Name Crescent Lufkin
Model Number SKU EX6
Tool Classification 2-in-1 Extendable Rafter Square & Layout Tool
Measurement System Standard SAE Fractional Imperial
Total Measuring Range 0.00 in. to 12.50 in.
Extended Arm Length 12.52 in.
Contracted Stowed Length 6.50 in.
Overall Unit Width 7.25 in.
Overall Unit Height 1.20 in.
Catalog Weight 0.730 lbs. (0.331 kg)
Structural Material Metallurgy Solid Extruded Aluminum Alloy
Color Palette Scheme Rawhide / Anodized Black
Surface Protective Treatment Corrosion-Resistant Anodized Protective Coating
Scale Marking Process Laser-Etched High-Visibility Scale Markings
Locking Mechanism Type Quick-Access Steel Thumb Lock Mechanism
Manufacturer Warranty Coverage Full Lifetime Warranty

Pro-Tip: When deploying the 6-inch extension arm for scribing long cut lines across 2x10 or 2x12 rafter lumber, ensure the thumb lock clicks firmly into its detent. Fully engaging the locking pin guarantees the fold-out arm remains locked rigidly at a true 90-degree angle, maintaining razor-sharp accuracy across wide boards.
