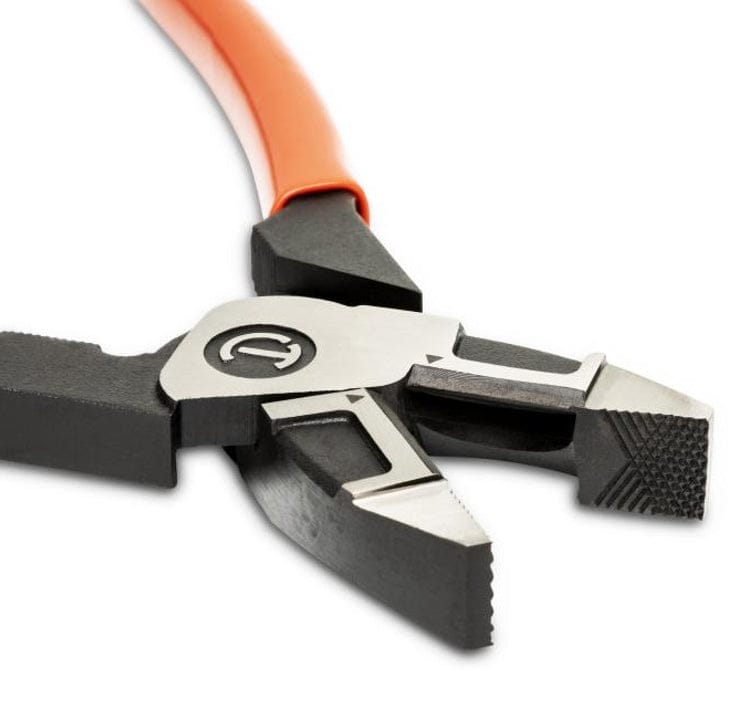

Close-up of multi-functional pliers with orange handles and black-silver jaws. The tool features textured gripping surfaces, a cutting edge, and a crimping section, suitable for electrical and mechanical applications.

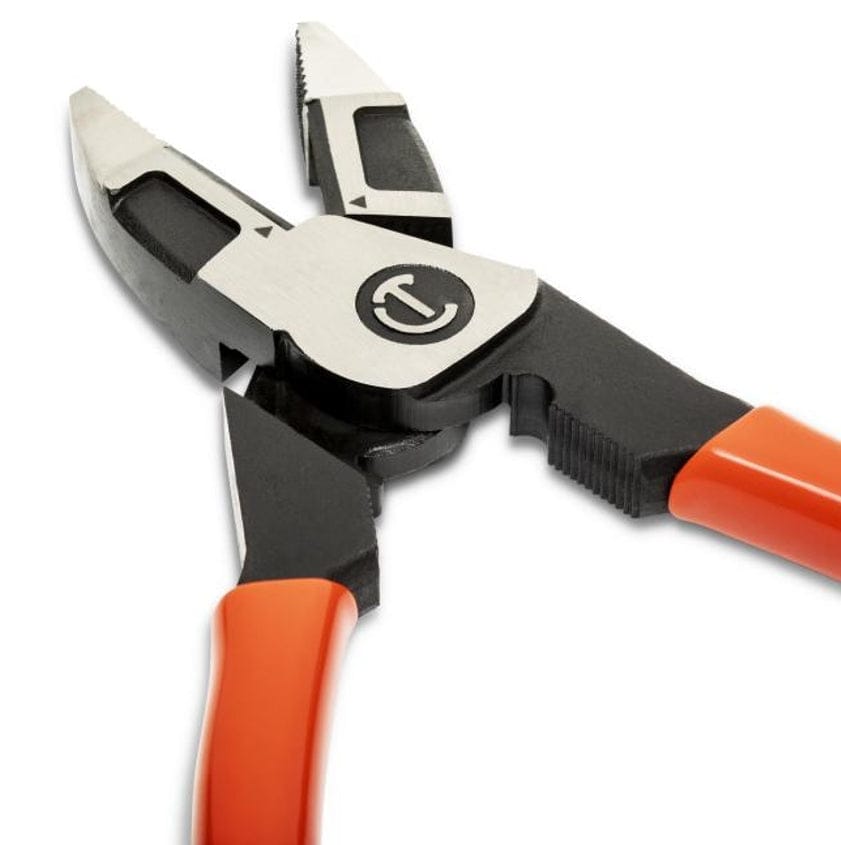

Pair of combination pliers with orange handles and a metallic head featuring textured jaws and a cutting edge. The tool includes a stylized "C" logo, indicating the Crescent brand, and is designed for gripping and cutting tasks.
Packaged Crescent Z2 8.5-inch lineman pliers with red handles displayed in orange retail packaging. Labels highlight features like high leverage head, larger cutting zone, and ability to cut harder materials with less force.

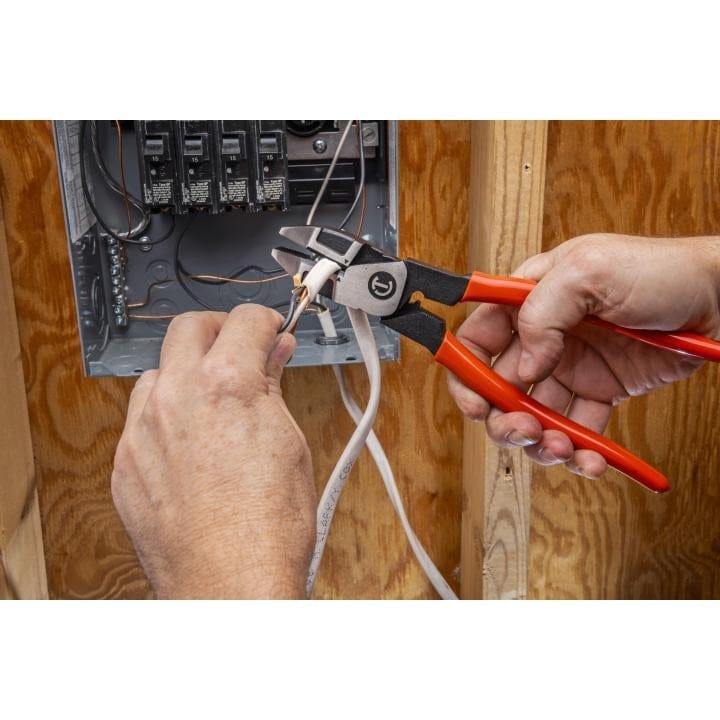

Close-up of a person using red-handled diagonal cutting pliers to cut copper wire inside an electrical panel. Circuit breakers and connected wires are visible, with wooden framing in the background, showing a typical electrical installation task

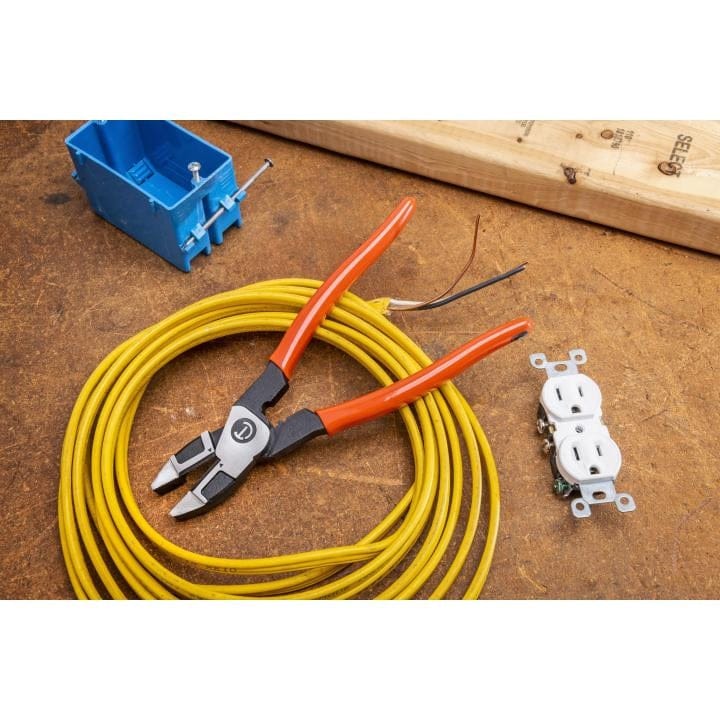

Electrical tools arranged on a workbench, featuring red-handled wire cutters placed on coiled yellow wire, a white duplex outlet, stripped black and white wires, and a blue electrical box. The setup illustrates components used in residential wiring projects.
Packaged Crescent Z2 8.5-inch lineman pliers with red handles displayed in orange retail packaging. Labels highlight features like high leverage head, larger cutting zone, and ability to cut harder materials with less force.
Diagonal cutting pliers with red insulated handles and angled cutting edges for flush cuts. The metal head has a polished finish and engraved logo, designed for precision wire cutting in electrical and craft work.
Close-up of multi-functional pliers with orange handles and black-silver jaws. The tool features textured gripping surfaces, a cutting edge, and a crimping section, suitable for electrical and mechanical applications.
Pair of combination pliers with orange handles and a metallic head featuring textured jaws and a cutting edge. The tool includes a stylized "C" logo, indicating the Crescent brand, and is designed for gripping and cutting tasks.
Packaged Crescent Z2 8.5-inch lineman pliers with red handles displayed in orange retail packaging. Labels highlight features like high leverage head, larger cutting zone, and ability to cut harder materials with less force.
Close-up of a person using red-handled diagonal cutting pliers to cut copper wire inside an electrical panel. Circuit breakers and connected wires are visible, with wooden framing in the background, showing a typical electrical installation task
Electrical tools arranged on a workbench, featuring red-handled wire cutters placed on coiled yellow wire, a white duplex outlet, stripped black and white wires, and a blue electrical box. The setup illustrates components used in residential wiring projects.
Crescent

Crescent Linesman Pliers Z20509-06 9 1/2 Inch High Leverage (Dipped Handles K9 Jaws Wire Crimper Fish Tape Puller Forged Steel AWG 5 Cut Capacity)

In stock
SKU: Z20509-06
$24.29 USD

Description

crescent trusted by the trades logo Logout

Crescent Z20509-06 9.5-Inch High-Leverage Linesman Pliers

The Crescent Z20509-06 9.5-Inch High-Leverage Linesman Pliers are heavy-duty electrical hand tools engineered for cutting AWG 5 wire, crimping non-insulated terminals, and pulling flat steel fish tapes during commercial wiring installations. Forged from high-grade alloy steel with laser-hardened cutting knives that stay sharp up to 50% longer, these side-cutting pliers feature a high-leverage joint position that delivers up to 35% more cutting force than standard designs. Outfitted with patented K9 cross-hatched serrated jaws that maintain a non-slip grip at 35-degree angles, an integrated terminal crimper, a dedicated fish tape channel, and rawhide-colored dipped handle grips, this 1-1/10 pound tool complies with ASME performance specifications.

Best Used For:

  • Commercial Electrical Wire Cutting: Shearing tough AWG 5 solid copper conductors, screws, and fasteners with reduced hand force.
  • Conduit Fish Tape Pulling: Locking onto flat steel fish tapes inside narrow conduit runs to pull heavy wire harnesses smoothly.
  • Solderless Terminal Crimping: Securing non-insulated electrical connectors, lugs, and splices directly using the built-in handle crimping nest.

Key Performance & Safety Features

  • 35% High-Leverage Joint Design: Optimized pivot placement shifts mechanical leverage closer to the cutting blades to maximize cutting force.
  • Laser-Hardened Knife-to-Knife Blades: Precision heat-treated cutting edges maintain sharpness 50% longer when cutting heavy gauge wire.
  • Patented K9 Cross-Hatched Jaws: Aggressive multi-directional tooth pattern holds hardware and conductors securely, even at 35-degree entry angles.
  • Built-In Wire Crimping Channel: Integrated crimping nest behind the joint crimps non-insulated electrical terminals without extra tools.
  • Integrated Fish Tape Pulling Slot: Specialized channel holds flat steel fish tapes firmly to provide straight-line extraction leverage.
  • Chemical-Resistant Dipped Grips: Rawhide-colored handle coating cleans easily, resists shop solvents, and features stamped tip IDs for quick tool identification.

What's Included

  • (1) Crescent Z20509-06 9.5-Inch High-Leverage Linesman Pliers with Wire Crimper

Technical Specifications

Brand / Manufacturer Crescent
Model / Part Number Z20509-06
Product Series / Family Z2 Professional Series
Plier Tool Type High-Leverage Linesman / Side-Cutters
Nominal Tool Overall Length 9.5 in. (9.0 in. / 228.6 mm actual)
Maximum Wire Cutting Capacity AWG 5 Solid Wire (0.1819 in. / 4.62 mm)
Cutting Edge Style & Length Knife-to-Knife Laser Hardened (0.90 in. / 22.86 mm)
Jaw Texture & Style Cross-Hatched Serrated (K9 Straight Style)
Jaw Dimensions (L x W x T) 1.6 in. x 0.31 in. x 0.62 in. (40.64 mm x 7.87 mm x 15.75 mm)
Integrated Wire Crimper Nest Yes (Non-Insulated Connectors and Lugs)
Integrated Fish Tape Channel Yes (Flat Steel Fish Tape Slot)
Main Body Forging Material Drop-Forged Alloy Steel with Polished Finish
Handle Style & Finish Straight Handle / Rawhide Dipped Grips (5.0 in. Length)
Total Net Tool Weight 1-10/100 lbs (1.100 lbs / 0.499 kg)
Quality Standard Compliance Meets or Exceeds ASME Specifications
Pro-Tip: Align flat steel fish tapes directly inside the specialized jaw channel behind the joint before pulling; resting the tape in the dedicated slot prevents tape twisting and maximizes pulling leverage through rigid conduit bends.
