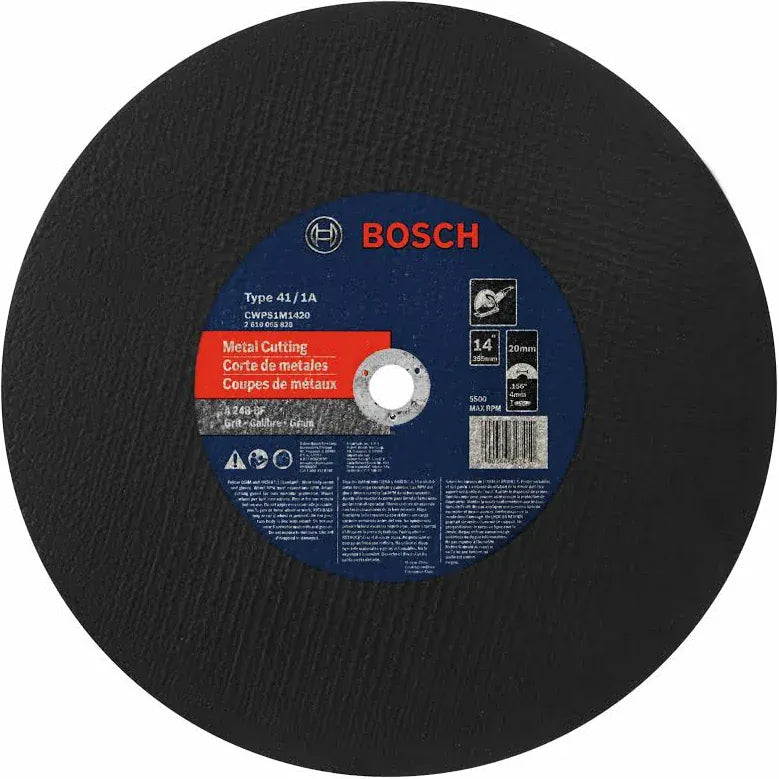

A circular Bosch Type 4J/1A metal cutting wheel with a textured black abrasive outer ring and a blue center label featuring the red Bosch logo.
Bosch

Bosch 14 Inch x 5/32 Inch 20 mm Arbor 24 Grit Metal Cut-Off Wheel Single Wheel (CWPS1M1420)

In stock
SKU: CWPS1M1420
$8.20 USD

Description

Bosch logo in red with black lettering on a white background, modern and clearly designed.

Bosch 14 Inch 24 Grit Metal Cutting Abrasive Wheel with 20 mm Arbor (CWPS1M1420)

The Bosch CWPS1M1420 is a 14-inch Type 1A (ISO 41) bonded abrasive metal cut-off wheel featuring a 5/32-inch thickness, 20 mm arbor, and 24-grit aluminum oxide abrasive. Designed for professional metal fabricators, steelworkers, mechanical contractors, and industrial maintenance crews, this wheel provides straight metal cutting performance on compatible high-speed portable cut-off saws rated for operation within its 5,500 RPM maximum.

Best Used For

  • Structural Steel and Metal Fabrication: Cutting compatible ferrous metal stock, steel sections, and construction materials during commercial fabrication and installation work.

  • Industrial Maintenance and Mechanical Contracting: Cutting metal piping, brackets, and equipment components during professional repair, modification, and maintenance operations.

  • Commercial Construction and Field Cutting: Performing straight metal cut-off operations with compatible 14-inch high-speed portable saws equipped with a 20 mm arbor.

Key Performance & Safety Features

  • 14-Inch Cutting Diameter: Full-size 14-inch abrasive wheel designed for compatible professional high-speed portable cut-off saws.

  • 24-Grit Aluminum Oxide Abrasive: Abrasive grain formulation designed for metal cutting, including high-tensile-strength materials.

  • 20 mm Arbor Configuration: Fits compatible saws with a 20 mm mounting arbor; not interchangeable with 1-inch arbor wheels without manufacturer-approved mounting provisions.

  • 5,500 RPM Maximum Speed: Manufacturer-specified operating speed limit for safe use with appropriately rated saw equipment.

  • Type 1A (ISO 41) Straight Wheel: Flat abrasive wheel construction designed for straight cut-off operations at a 90-degree cutting orientation.

  • Reinforced Bonded Construction: Resinoid-bonded abrasive with fiberglass reinforcement for the intended high-speed cutting application.

What's Included

- (1) Bosch 14-Inch x 5/32-Inch 20 mm Arbor 24-Grit Metal Cut-Off Wheel — CWPS1M1420

Bosch CWPS1M1420 Abrasive Wheel Specifications

Parameter Specification
Model Number & Item Bosch CWPS1M1420 | 14" Metal Cutting Bonded Abrasive Wheel
Wheel Type & Application Type 1A Straight Wheel | 90° Metal Cutting Only (No Grinding)
Dimensions & Arbor 14" Diameter x 5/32" Thickness | 20 mm Arbor (Stihl Compatible)
Abrasive Grain & Grit Aluminum Oxide A24R-BF | 24 Grit
Maximum Speed Rating 5,500 Max RPM
Abrasive Wheel Specification Note:

The Bosch CWPS1M1420 abrasive wheel combines high-strength aluminum oxide grain with a 20mm arbor to deliver efficient, clean cuts in high-tensile metal stock.
