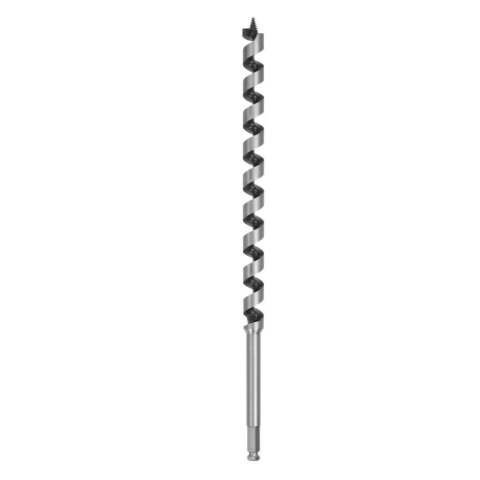

A studio product view of the DEWALT DW1688 power ship auger bit shown at an angle. The image displays the 17-inch long hardened alloy steel body, the sharp self-feed spur at the tip, and the 7/16-inch quick-change ball groove shank at the base.
A direct vertical profile view of the DEWALT 1-1/16 inch diameter ship auger bit. The shot highlights the deep hollow center flutes designed for aggressive chip extraction and the dual-cutting edges engineered to bore through wood and nail-embedded lumber.
An action shot of a professional using a corded DEWALT drill to bore through thick structural timber with the DW1688 auger bit. Wood shavings are shown being aggressively extracted from the hole, demonstrating the bit's high-speed penetration.
A close-up action view of a worker using a 20V MAX cordless DEWALT drill to drive the 17-inch ship auger bit into a pressure-treated outdoor beam. The image highlights the 7/16-inch ball groove shank's secure fit in a high-torque drilling application.
A lifestyle image of a tradesman using a heavy-duty DEWALT D-handle drill to drive the DW1688 power ship auger bit into a residential wall stud. The image demonstrates the tool's effectiveness for running large electrical or plumbing lines through structural framing.
A studio product view of the DEWALT DW1688 power ship auger bit shown at an angle. The image displays the 17-inch long hardened alloy steel body, the sharp self-feed spur at the tip, and the 7/16-inch quick-change ball groove shank at the base.
A direct vertical profile view of the DEWALT 1-1/16 inch diameter ship auger bit. The shot highlights the deep hollow center flutes designed for aggressive chip extraction and the dual-cutting edges engineered to bore through wood and nail-embedded lumber.
An action shot of a professional using a corded DEWALT drill to bore through thick structural timber with the DW1688 auger bit. Wood shavings are shown being aggressively extracted from the hole, demonstrating the bit's high-speed penetration.
A close-up action view of a worker using a 20V MAX cordless DEWALT drill to drive the 17-inch ship auger bit into a pressure-treated outdoor beam. The image highlights the 7/16-inch ball groove shank's secure fit in a high-torque drilling application.
A lifestyle image of a tradesman using a heavy-duty DEWALT D-handle drill to drive the DW1688 power ship auger bit into a residential wall stud. The image demonstrates the tool's effectiveness for running large electrical or plumbing lines through structural framing.
DEWALT

DeWalt Power Ship Auger Bit DW1688 1-1/16 By 17 Inch Drill (Dual Cutting Edge Self Feed Spur 7/16 Quick Change Shank Nail Embedded Timber Boring)

In stock
SKU: DW1688
$26.99 USD

Description

Authorized Dealer Badge DEWALT logout

DeWalt DW1688 1-1/16" x 17" Power Ship Auger Wood Boring Bit

The DeWalt DW1688 1-1/16-inch by 17-inch power ship auger bit bores deep, straight holes through heavy structural framing timbers, utility poles, laminated veneer lumber (LVL), and nail-embedded reclaimed wood. Manufactured from heat-treated and tempered alloy tool steel, this industrial wood-boring bit features dual cutting edges that slice through hidden framing nails and structural fasteners without catastrophic tooth fracture. Outfitted with an aggressive self-feeding lead screw spur, a high-clearance hollow center flute for fast chip evacuation, and a standardized 7/16-inch ball groove quick-change shank, it equips commercial electricians, plumbers, utility linemen, and timber framers with rapid penetration rates and jam-free deep-hole drilling performance.

Best Used For:

  • Commercial Electrical and Utility Rough-Ins: Drilling 1-1/16-inch pathway holes through stacked structural wall plates, floor joists, and utility poles to pull heavy electrical feeder cables and conduit.
  • Plumbing and Mechanical Line Penetrations: Boring clean, continuous chases across multiple dense framing studs and timber beams for water supply lines and copper piping.
  • Timber Framing and Heavy Wood Fabrication: Boring deep bolt-through holes in structural glulam beams, railroad ties, landscape timber retaining walls, and recycled nail-embedded lumber.

Key Performance & Safety Features

  • Nail-Ready Dual Cutting Edges: Hardened cutting wings withstand high-energy impacts against embedded framing nails, wire staples, and hidden screws without chipping.
  • Aggressive Self-Feeding Screw Point: Threaded lead spur draws the bit steadily into tough lumber with minimal forward push pressure required from the operator.
  • Hollow Center Deep Flute Design: Wide spiral chamber expels heavy wood chips and damp shavings rapidly upward to eliminate binding and friction heat in deep runs.
  • Tempered Hardened Alloy Steel: High-strength metallurgy resists torsional twisting and shaft bending under extreme high-torque drill and impact workloads.
  • 7/16-Inch Quick-Change Ball Groove Shank: Precision-machined shank locks securely into 7/16-inch quick-release chucks and high-torque right-angle drill adapters without slipping.
  • Extended 17-Inch Reach Architecture: Full 17-inch overall length provides the necessary depth clearance to bore through thick structural wood posts and multi-stud assemblies in a single pass.

What's Included

  • (1) DeWalt DW1688 1-1/16" x 17" Power Ship Auger Wood Boring Bit

Technical Specifications

Manufacturer DeWalt Industrial Tool Co.
Model Part Number DW1688
Bit Cutting Diameter 1.0625 Inches (1-1/16 in. / 26.98 mm)
Overall Bit Length 17.00 Inches (431.80 mm)
Shank Interface Size 0.4375 Inches (7/16 in. Hex Shank)
Shank Retention Style Quick-Change Ball Groove Hex Shank
Cutting Edge Geometry Dual Cutting Edge (Nail-Embedded Wood Ready)
Flute Configuration Hollow Center Fast Chip Extraction Flute
Material Composition Heat-Treated & Tempered Hardened Alloy Steel
Point Style Self-Feeding Threaded Screw Tip Spur
Tool Net Weight 1.65 lbs (26.40 oz / 0.748 kg)
Tool Compatibility High-Torque Right-Angle Drills & 7/16" Impact Wrenches
Country of Origin Brazil
Universal Product Code (UPC) 028874116887
Suitable for material type Hardwoods, Softwoods, Pressure-Treated Lumber, & Nail-Embedded Wood

Pro-Tip: When boring deep structural holes through dense green or pressure-treated timbers, maintain high motor RPM and feather the feed slightly; clearing wood chips every 4 to 6 inches prevents flute packing and keeps the dual cutting edges running at peak speed.
