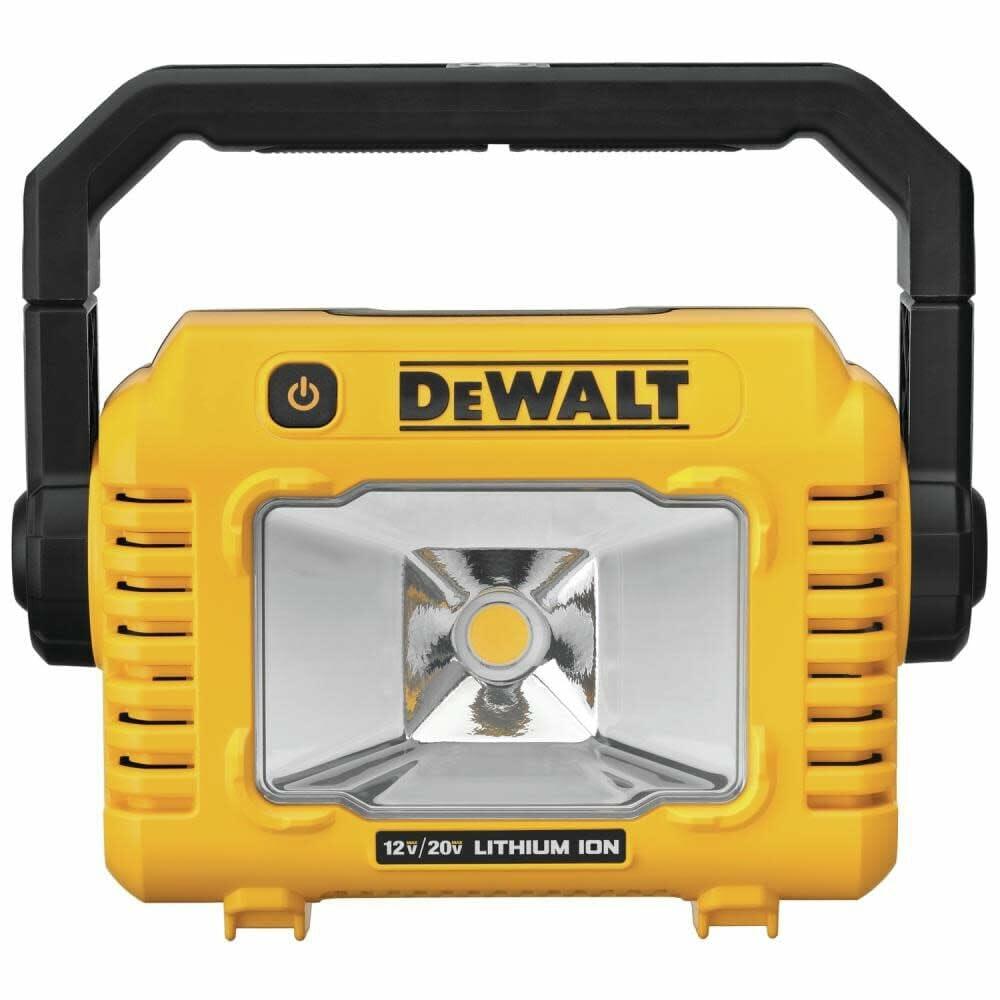

A direct front view of the yellow and black DEWALT compact LED work light, showing the main light panel and the 360-degree rotating handle in the upright position.

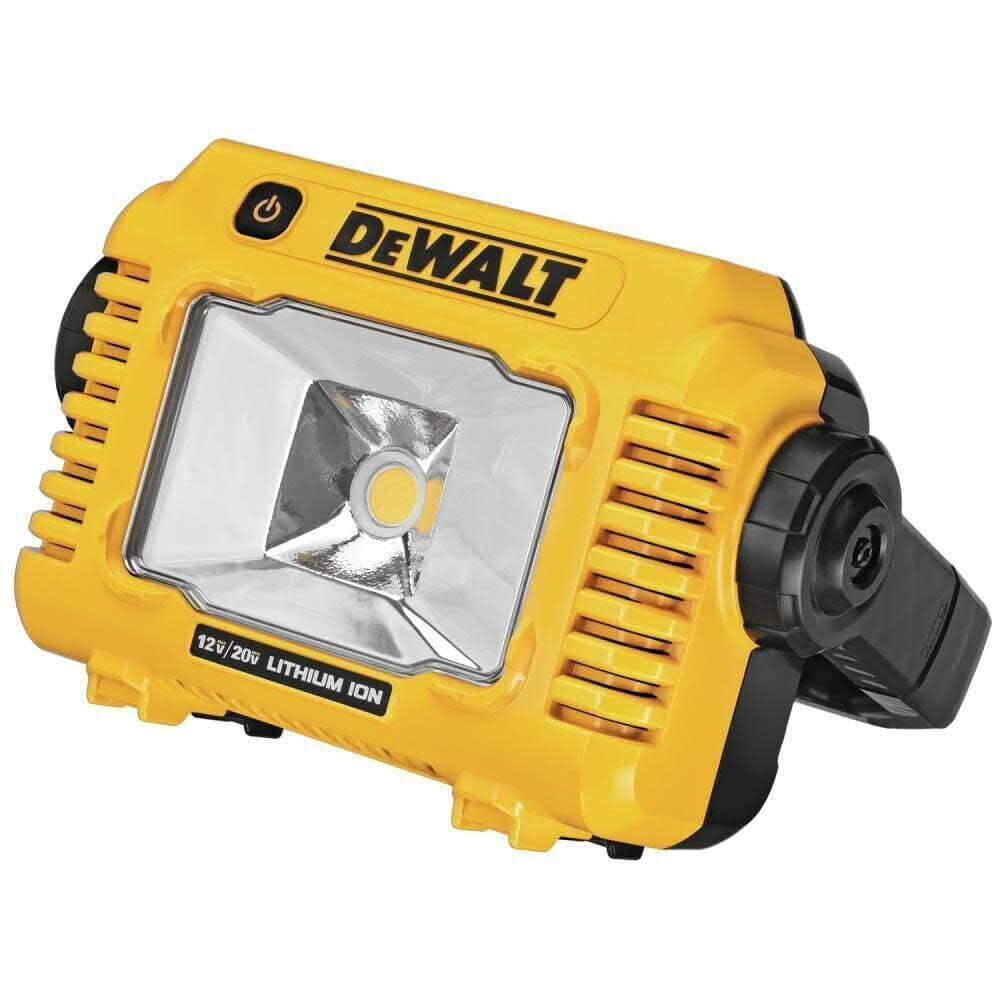

A three-quarter angle view of the DEWALT compact LED work light.

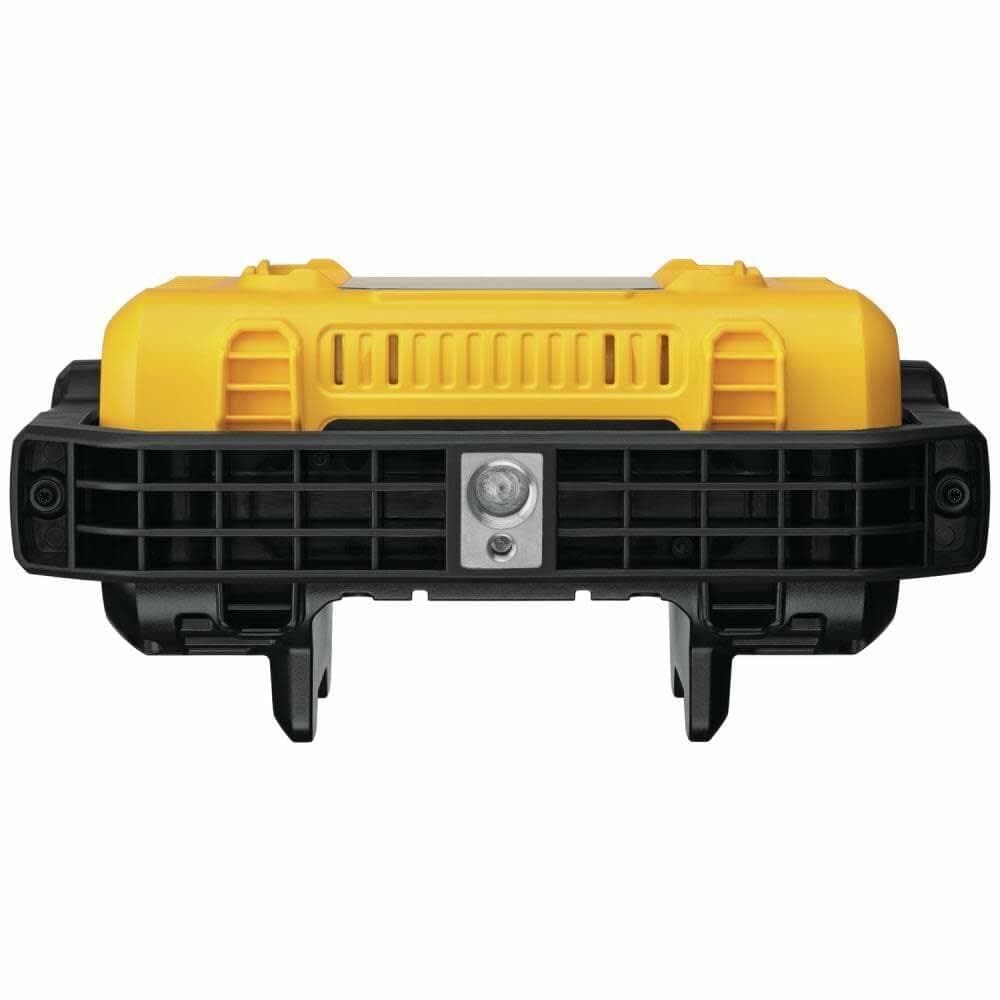

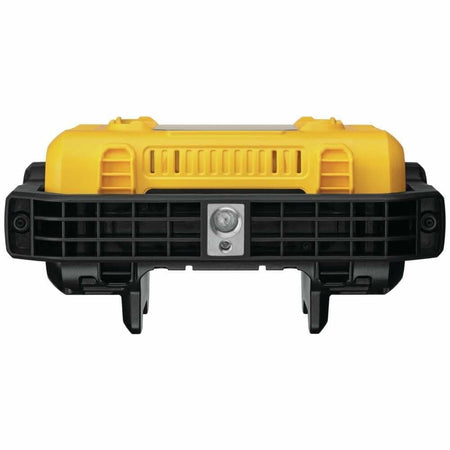

The bottom of the DEWALT compact LED work light, showing the dual 1/4-20 and 5/8-11 tripod mounting threads.

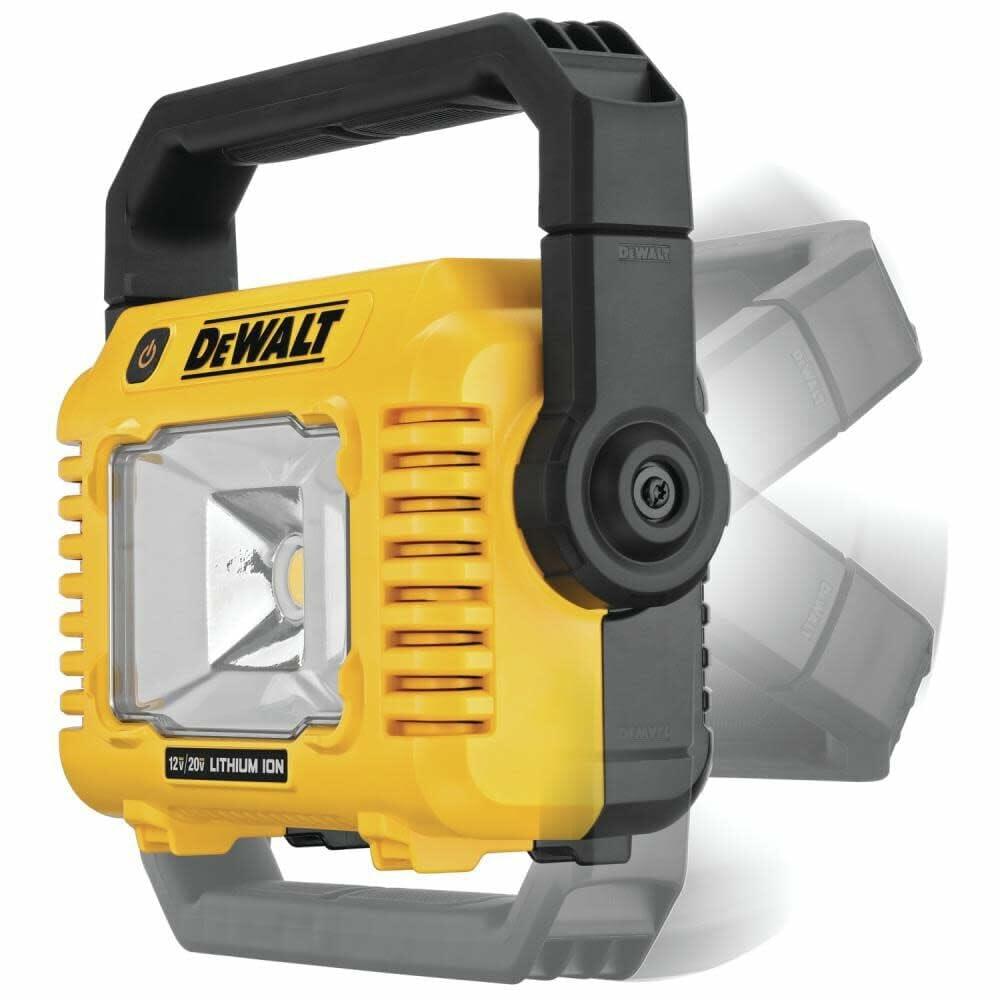

The DEWALT compact LED work light with a transparent overlay illustrating the 360-degree rotation of its handle for multiple positioning options.

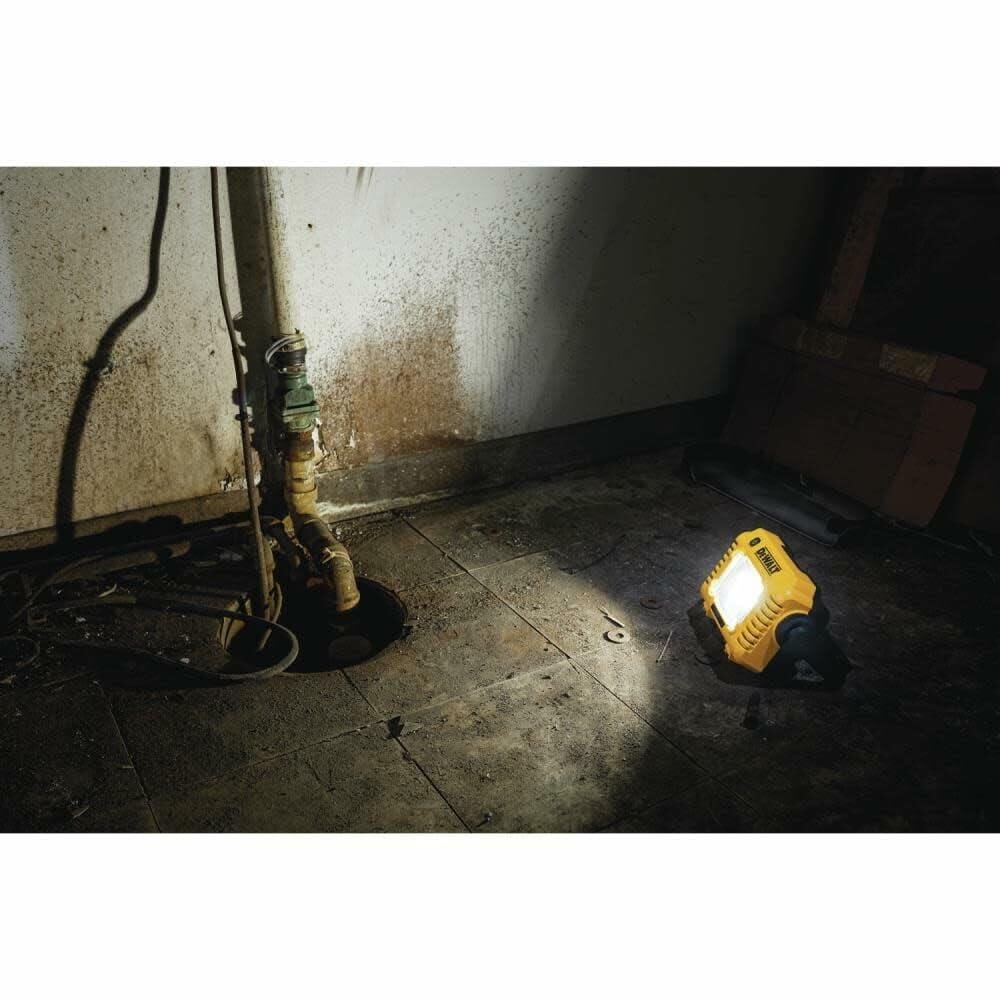

The DEWALT compact LED work light sits on the floor of a dark basement, casting a bright beam of light across the room.
When we say "rain or shine", we mean it. Thanks to @the_ladyplumber for this illuminating post promotional video
A direct front view of the yellow and black DEWALT compact LED work light, showing the main light panel and the 360-degree rotating handle in the upright position.
A three-quarter angle view of the DEWALT compact LED work light.
The bottom of the DEWALT compact LED work light, showing the dual 1/4-20 and 5/8-11 tripod mounting threads.
The DEWALT compact LED work light with a transparent overlay illustrating the 360-degree rotation of its handle for multiple positioning options.
The DEWALT compact LED work light sits on the floor of a dark basement, casting a bright beam of light across the room.
When we say "rain or shine", we mean it. Thanks to @the_ladyplumber for this illuminating post promotional video
DEWALT

DEWALT DCL077B 2000 Lumen LED Work Light Cordless 12V 20V MAX Compact Task Lamp IP54 Water Resistant 360 Degree Rotating Handle Tripod Mount Bare Tool

In stock
SKU: DCL077B
$149.00 USD
$159.00 USD Sale $149.00 USD

Description

Authorized Dealer Badge DEWALT logout

Ultimate Jobsite Visibility with Dual-Voltage Versatility and Rugged Weather Protection

The DEWALT DCL077B 12V/20V MAX* Compact Task Light is engineered to eliminate shadows and provide high-intensity illumination in the most demanding work environments. Delivering up to 2,000 lumens of natural white light, this cordless LED task light features advanced technology that mimics daylight, reducing eye strain and improving color accuracy during intricate electrical or finishing work. Its highly portable and lightweight frame—weighing only 2.8 lbs—makes it easy to transport across the jobsite, while the rugged construction ensures it stands up to the daily rigors of professional use. This versatile lighting solution is uniquely compatible with DEWALT 12V MAX, 20V MAX, and FLEXVOLT battery platforms, offering unmatched flexibility for users already on the DEWALT cordless system.

Designed for maximum adaptability, the DCL077B features a 360-degree rotating handle that allows for precise light positioning at any angle. Whether you are hanging the light from a joist, standing it on a flat surface, or mounting it to a tripod using the integrated 5/8-in.-11 or 1/4-in.-20 threads, this light provides the perfect beam placement for every application. Rated at IP54 for dust and water resistance, it is built to perform in harsh weather conditions and debris-heavy environments. With three brightness settings to manage both light intensity and battery runtime, the DEWALT Compact Task Light is the essential tool for plumbers, electricians, and general contractors who require reliable, high-output lighting in a compact form factor.

**Battery and charger sold separately.

Key Features

  • High-Intensity Output: Powerful LED technology produces up to 2,000 lumens of brilliant natural white light.
  • 360-Degree Rotating Handle: Offers unlimited orientation options for targeted lighting in tight spaces or overhead.
  • IP54 Weather Rated: Superior protection against water splashes and dust ingress for outdoor and jobsite durability.
  • Multi-Voltage Compatibility: Works seamlessly with all DEWALT 12V MAX, 20V MAX, and FLEXVOLT batteries.
  • Three Brightness Settings: Allows users to optimize light output or extend battery runtime based on the task.
  • Dual Tripod Mounts: Features both 5/8-in.-11 and 1/4-in.-20 threaded mounts for standard tripod integration.

What's Included

  • (1) DCL077B 12V/20V MAX* Compact Task Light

Specifications

Specification Details
Brand DEWALT
Model Number DCL077B
Brightness (Lumens) 2,000 / 1,000 / 500
Voltage 12V / 20V MAX*
IP Rating IP54
Tool Weight 2.8 lbs
Assembled Length 10.1 Inches
Assembled Height 8.0 Inches
Assembled Width 5.19 Inches
Tripod Mount 1 1/4-in.-20
Tripod Mount 2 5/8-in.-11
Country of Origin China

Pro-Tip: To maximize your runtime on the jobsite, use the medium (1,000 lumens) setting for general area lighting and switch to the 2,000-lumen high setting only for detailed task work. This balance provides excellent visibility while significantly extending the life of your 20V MAX* 5.0Ah battery during a full shift.
