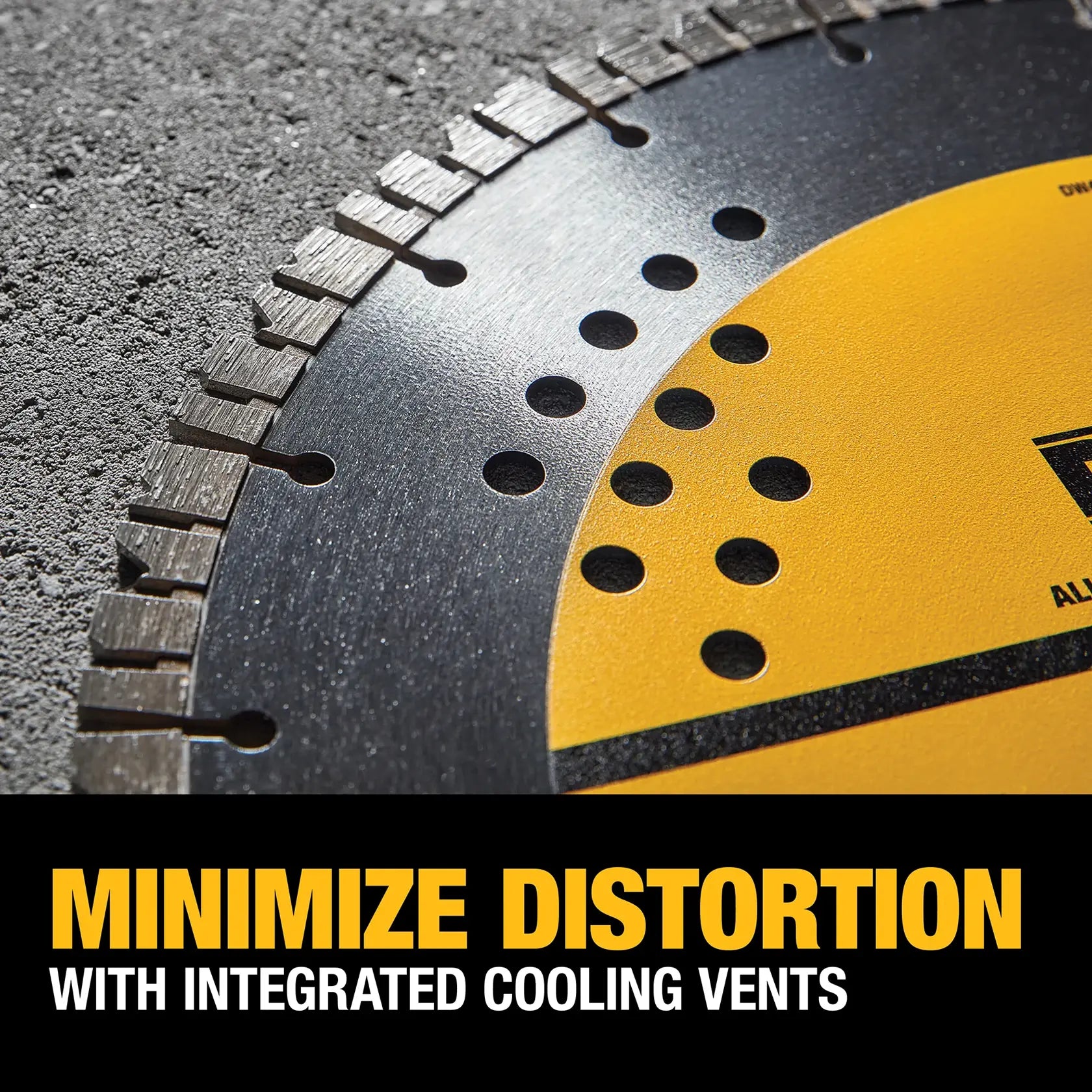

A detailed close-up shot of the DEWALT 14-inch diamond blade resting on a textured concrete surface. The focus is on the integrated cooling vents and the aggressive turbo segmented rim, illustrating the design used to minimize distortion and heat buildup during heavy-duty cutting.

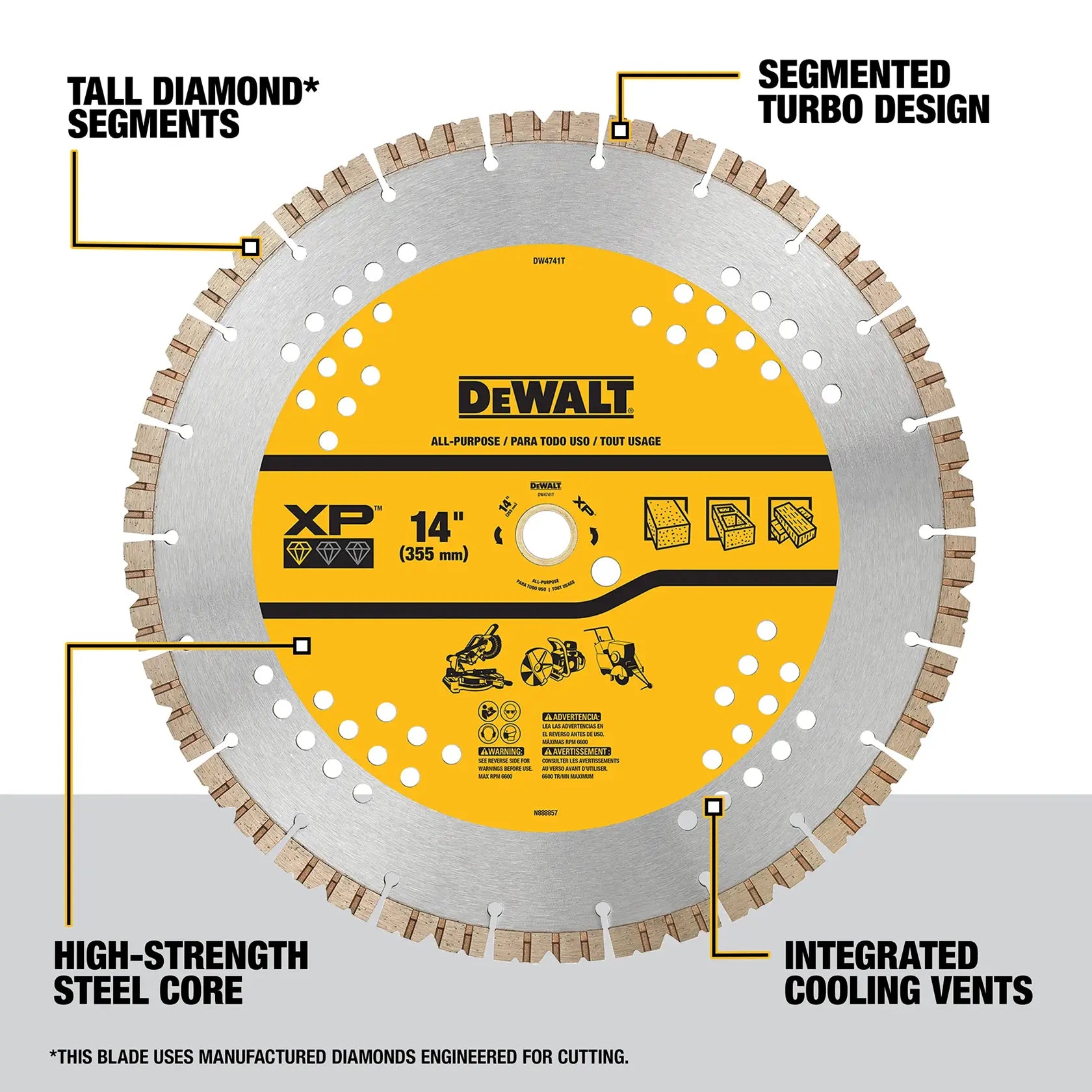

An annotated marketing diagram of the DEWALT DW4741T blade. Callouts identify the tall diamond segments for extended life, the segmented turbo design for aggressive cutting, the high-strength steel core for stability, and the integrated cooling vents for thermal management.

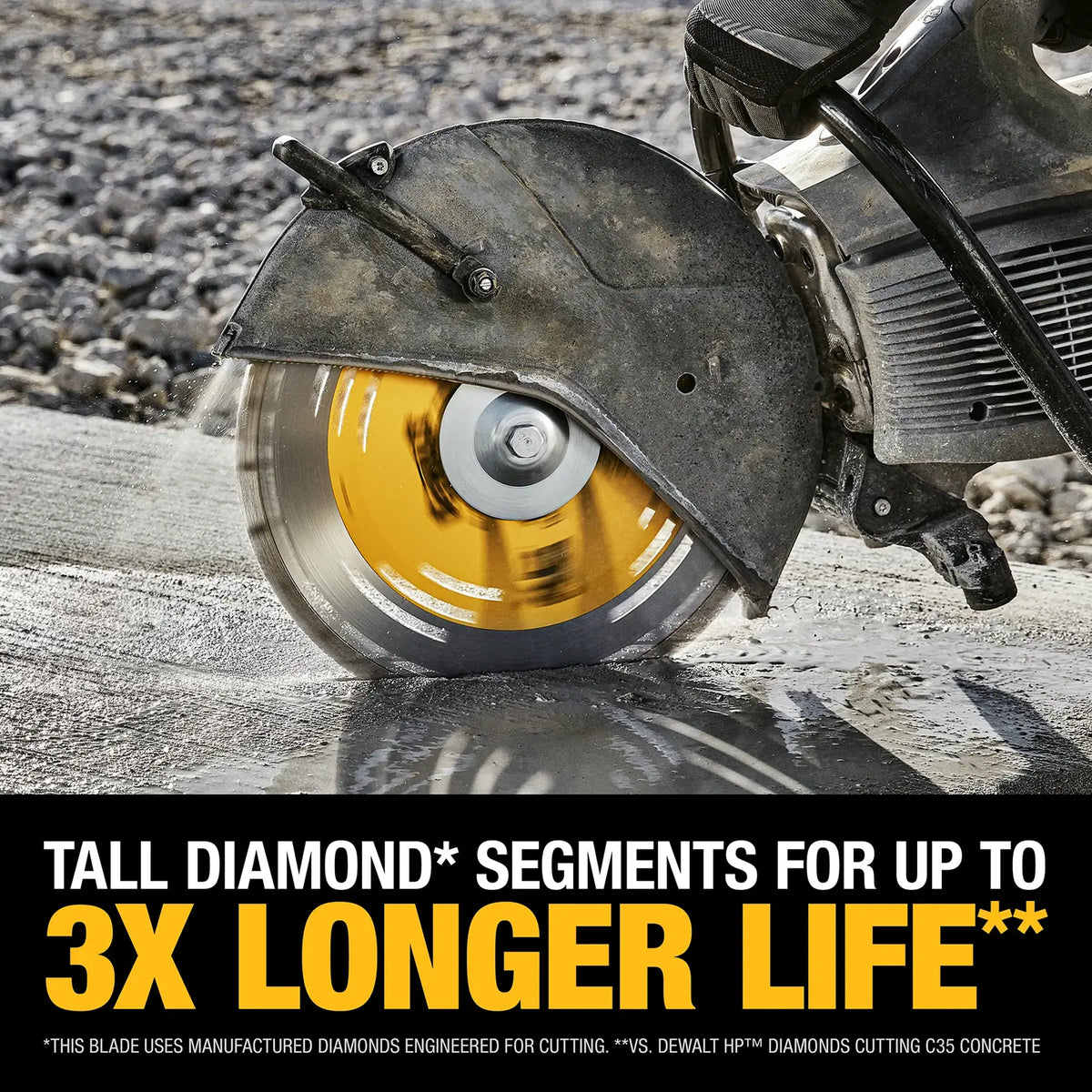

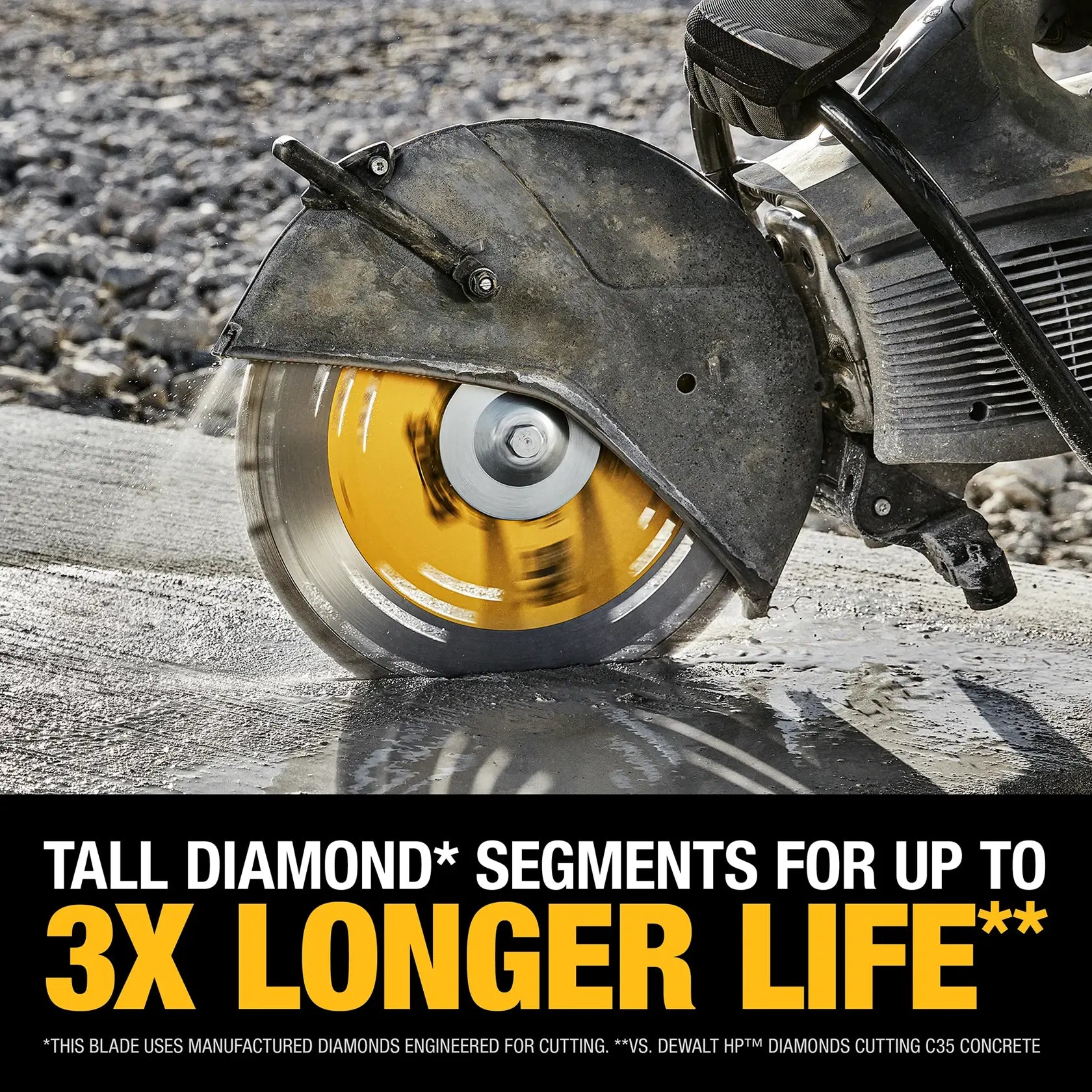

An action lifestyle shot of a gas-powered cut-off saw equipped with the DEWALT XP diamond blade. The image demonstrates the blade slicing through a concrete slab with water suppression, highlighting the tall diamond segments that provide up to 3X longer life in professional masonry work.

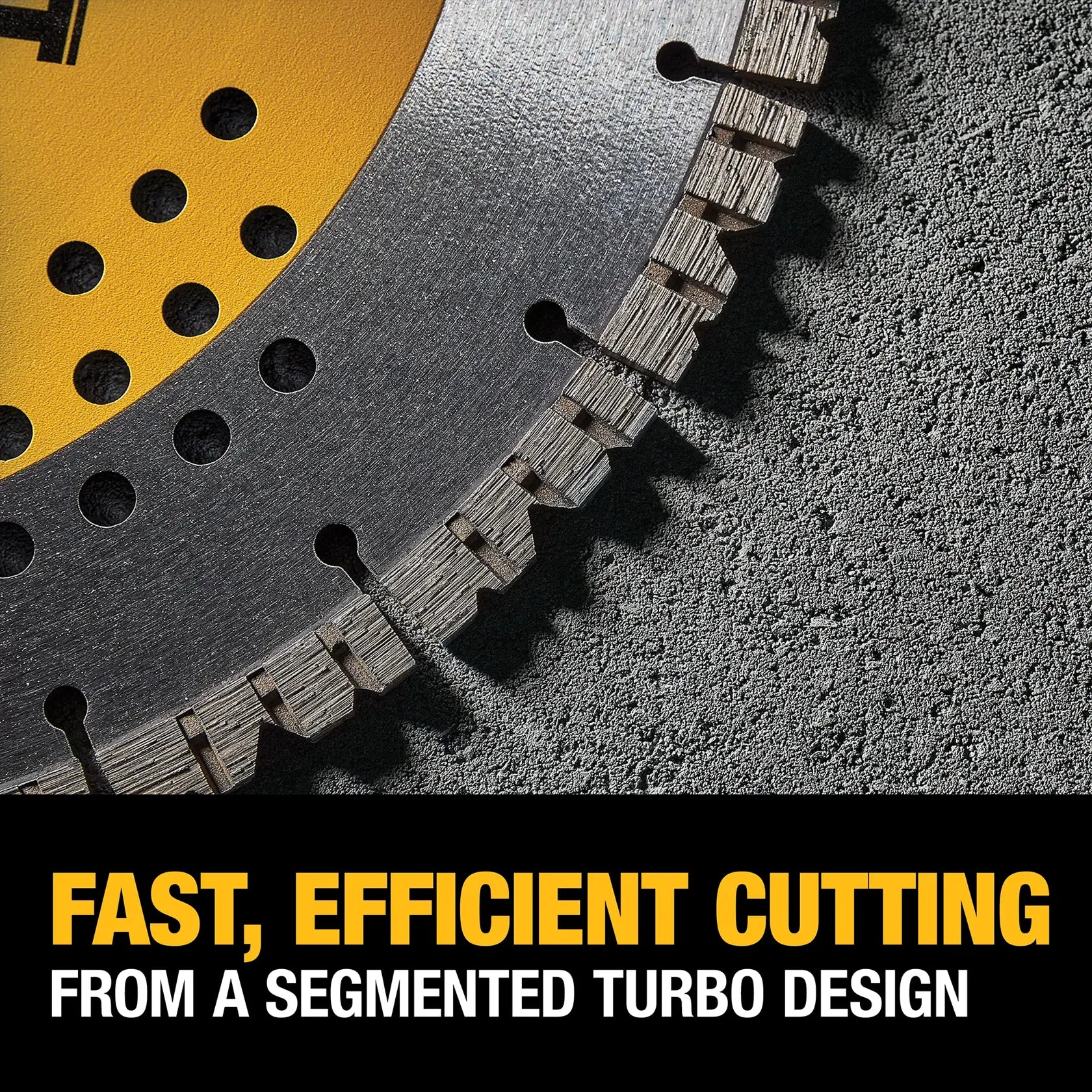

A high-angle detail shot of the DEWALT segmented turbo diamond blade on a stone surface. The image emphasizes the precision-engineered segments and cooling holes, specifically designed for fast and efficient cutting through reinforced concrete and brick.

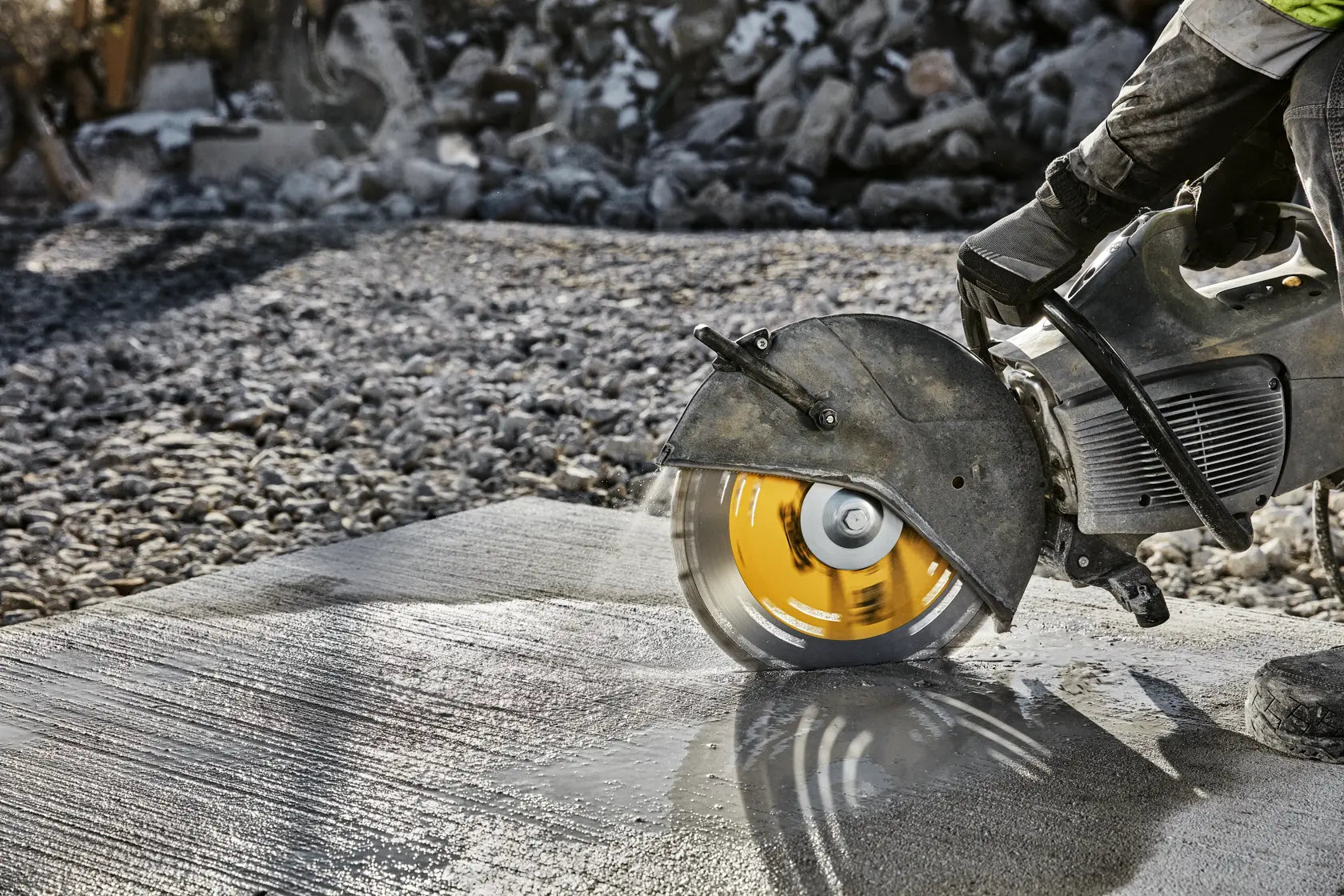

A wide action shot of a professional contractor using a DEWALT gas saw to cut a large concrete pad on a construction site. The image showcases the high performance and rapid material removal rate of the 14-inch XP diamond blade in a demanding industrial environment.

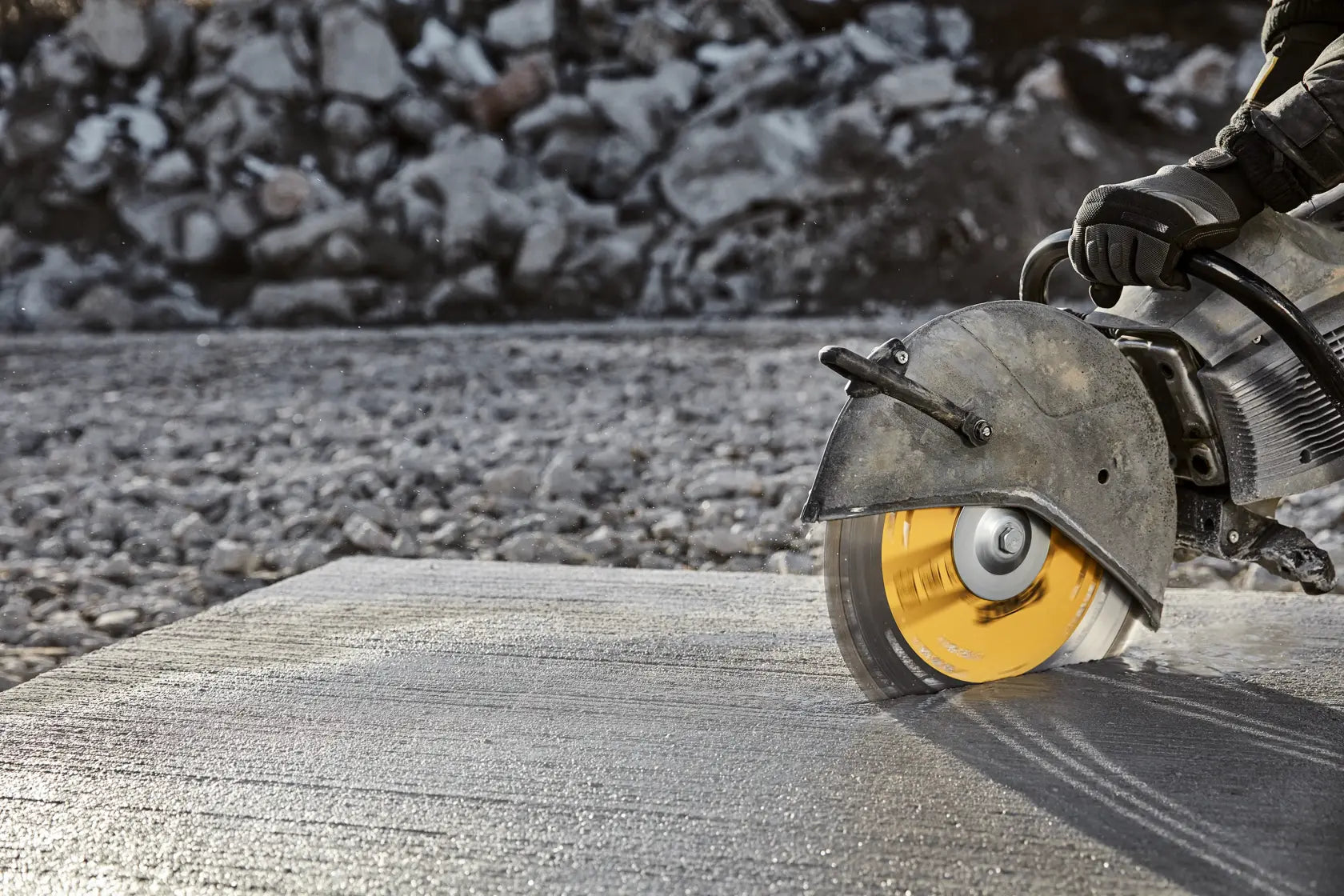

A perspective action shot of the DEWALT DW4741T blade mid-cut in a thick concrete block. The shot highlights the stability of the high-strength steel core and the efficiency of the turbo segmented rim as it maintains a straight, professional-grade path through abrasive masonry materials.
DEWALT® FLEXVOLT® The Power of Freedom: Skyscraper promotional how to video
A front-facing studio view of the DEWALT 14-inch XP turbo segmented diamond blade. The image showcases the high-visibility yellow core with technical specifications, the segmented cutting rim, and the central 1-inch arbor hole with cooling vents designed for masonry and concrete applications.
A detailed close-up shot of the DEWALT 14-inch diamond blade resting on a textured concrete surface. The focus is on the integrated cooling vents and the aggressive turbo segmented rim, illustrating the design used to minimize distortion and heat buildup during heavy-duty cutting.
An annotated marketing diagram of the DEWALT DW4741T blade. Callouts identify the tall diamond segments for extended life, the segmented turbo design for aggressive cutting, the high-strength steel core for stability, and the integrated cooling vents for thermal management.
An action lifestyle shot of a gas-powered cut-off saw equipped with the DEWALT XP diamond blade. The image demonstrates the blade slicing through a concrete slab with water suppression, highlighting the tall diamond segments that provide up to 3X longer life in professional masonry work.
A high-angle detail shot of the DEWALT segmented turbo diamond blade on a stone surface. The image emphasizes the precision-engineered segments and cooling holes, specifically designed for fast and efficient cutting through reinforced concrete and brick.
A wide action shot of a professional contractor using a DEWALT gas saw to cut a large concrete pad on a construction site. The image showcases the high performance and rapid material removal rate of the 14-inch XP diamond blade in a demanding industrial environment.
A perspective action shot of the DEWALT DW4741T blade mid-cut in a thick concrete block. The shot highlights the stability of the high-strength steel core and the efficiency of the turbo segmented rim as it maintains a straight, professional-grade path through abrasive masonry materials.
DEWALT® FLEXVOLT® The Power of Freedom: Skyscraper promotional how to video
DEWALT

DEWALT Diamond Blade DW4741 14 Inch XP Turbo Segmented Saw Accessory (1 Inch Arbor 5460 RPM Concrete Brick Block Masonry Roadwork Cutting)

Only 3 left
SKU: DW4741
$65.89 USD

Description

Authorized Dealer Badge DEWALT logout

High Velocity Extended Performance Cutting for Heavy Concrete and Structural Masonry

The DEWALT DW4741 is a 14-inch XP Extended Performance turbo segmented diamond saw blade engineered to execute high-speed cuts through concrete, hard brick, and masonry block. Operating at speeds up to 5,460 RPM, this premium accessory delivers up to three times the service life of standard abrasive wheels to reduce blade replacement intervals. The high-strength steel core features integrated cooling vents that dissipate heat dynamically, preventing core distortion or warping during dry or wet applications on industrial gas cut-off saws and walk-behind saws.

Best Used For:

  • Commercial Roadwork Processing: Slicing cleanly through dense highway pavements, cured industrial slabs, and reinforced concrete sections.
  • Structural Masonry Installation: Trimming heavy cinder blocks and structural bricks precisely for residential or commercial building walls.
  • Hardscape Landscaping Projects: Fastening, contouring, and sizing hard stones, heavy retaining wall tiles, and paver units quickly.

Key Performance & Safety Features

  • XP Extended Life Construction: Premium diamond segment matrix maximizes cutting endurance to provide 3X the longevity of standard variants.
  • Turbo Segmented Rim Configuration: Blends the fast clearing velocity of a continuous turbo path with the aggressive bite of segmented dividers.
  • Integrated Thermal Vents: Factory-cut cooling slots route heat away from the cutting edge to eliminate mechanical core warping.
  • High-Strength Steel Core: Structural steel backing disc maintains directional stability under heavy torque loads to guarantee straight tracks.
  • Dual Cutting Mode Versatility: Engineered to withstand both continuous high-speed dry masonry cutting and wet-lubricated slab scoring.

What's Included

  • (1) DEWALT DW4741 14-Inch XP Turbo Segmented Diamond Blade

Technical Specifications

Manufacturer DEWALT
Model Number DW4741
Blade Diameter 14 Inches
Blade Rim Type XP Turbo Segmented
Arbor Size 1 Inch / 0.79 Inches (20mm with adapter bushing)
Kerf Thickness 0.130 Inches
Material Application Concrete, Block, Brick, Masonry
Maximum Speed 5,460 RPM
Tool Compatibility Gas Cut-Off Saws, Walk-Behind Saws
Assembled Weight 4.18 lbs.
UPC / Barcode 885911741699
Pro-Tip: When cutting concrete dry, never push the saw hard or force the cut; let the weight of the saw do the work and pull the blade out of the slot for 10 seconds every 30 seconds to let the internal vents pull ambient air across the diamond matrix and cool the steel core.
