DeWalt Jig Saw Kit DCS331M1 20V MAX (4.0Ah Battery 0 3000 SPM 1 Inch Stroke 4 Position Orbital Keyless Bevel Wood Metal Curve Cutting)
Couldn't load pickup availability
DeWalt DCS331M1 20V MAX Cordless Orbital Jig Saw Kit
The DeWalt DCS331M1 20V MAX Cordless Orbital Jig Saw Kit is a high-speed linear cutting power tool system engineered for precise bevel, scroll, and straight cutting across hardwoods, plywood, sheet metal, and synthetic materials. Powered by an included 20V MAX 4.0Ah battery, this 6.8-pound jig saw features a variable speed trigger operating from 0 to 3,000 strokes per minute with a 1-inch stroke length. Equipped with a 4-position orbital action lever and an all-metal keyless shoe beveling foot, this cordless cutting kit solves blade-change delays, cut-line dust accumulation, and material scratching challenges during custom cabinetry and jobsite fabrication builds.
Best Used For:
- Hardwood & Cabinetry Radius Cutting: Scribing intricate curves and sink cutouts in dense hardwood countertops and cabinet carcasses using orbital action settings.

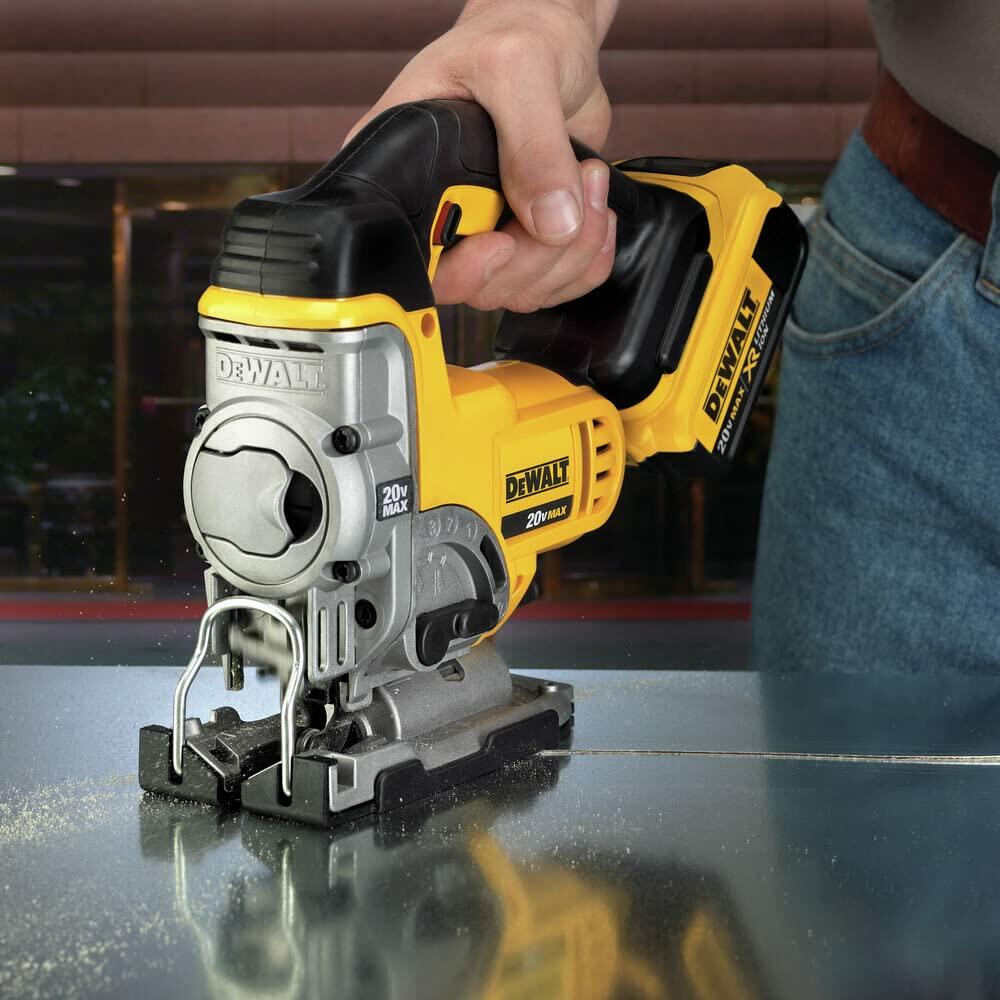

- Jobsite Sheet Metal & Pipe Slicing: Trimming ductwork, aluminum panels, and thin-wall tubing smoothly using low SPM speeds and straight non-orbital strokes.
- Beveled Frame & Trim Fitting: Executing accurate 0°, 15°, 30°, and 45° angled bevel cuts on baseboards, crown moldings, and timber framing members.
Key Performance & Safety Features
- 0-3,000 SPM Variable Speed Trigger: Provides granular stroke control to match cutting speeds precisely to the density of the workpiece material.

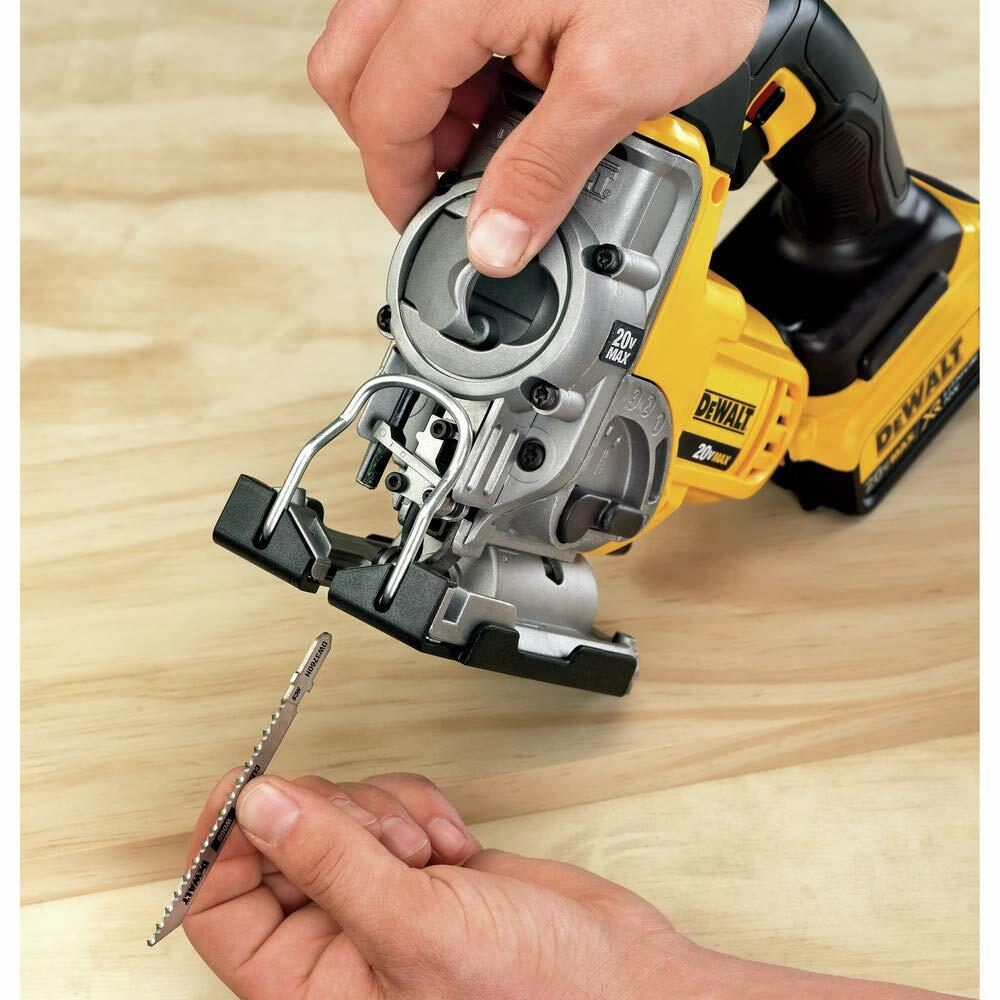

- Lever-Action Keyless Blade Clamp: All-metal lever system enables rapid, tool-free T-shank blade changes to minimize downtime on busy jobsites.
- 4-Position Orbital Cut Settings: Adjusts blade aggressiveness from smooth straight cuts in metal to aggressive fast cuts in framing lumber.
- Keyless All-Metal Shoe Bevel: Integrated detents at 0°, 15°, 30°, and 45° enable quick and repeatable bevel angle adjustments without hex keys.
- Integrated Adjustable Dust Blower: Directs a continuous stream of air across the cut line to clear sawdust and keep layout marks visible.
- Non-Marring Removable Shoe Cover: Protective polymer base overlay prevents the metal shoe from scratching pre-finished or delicate materials.

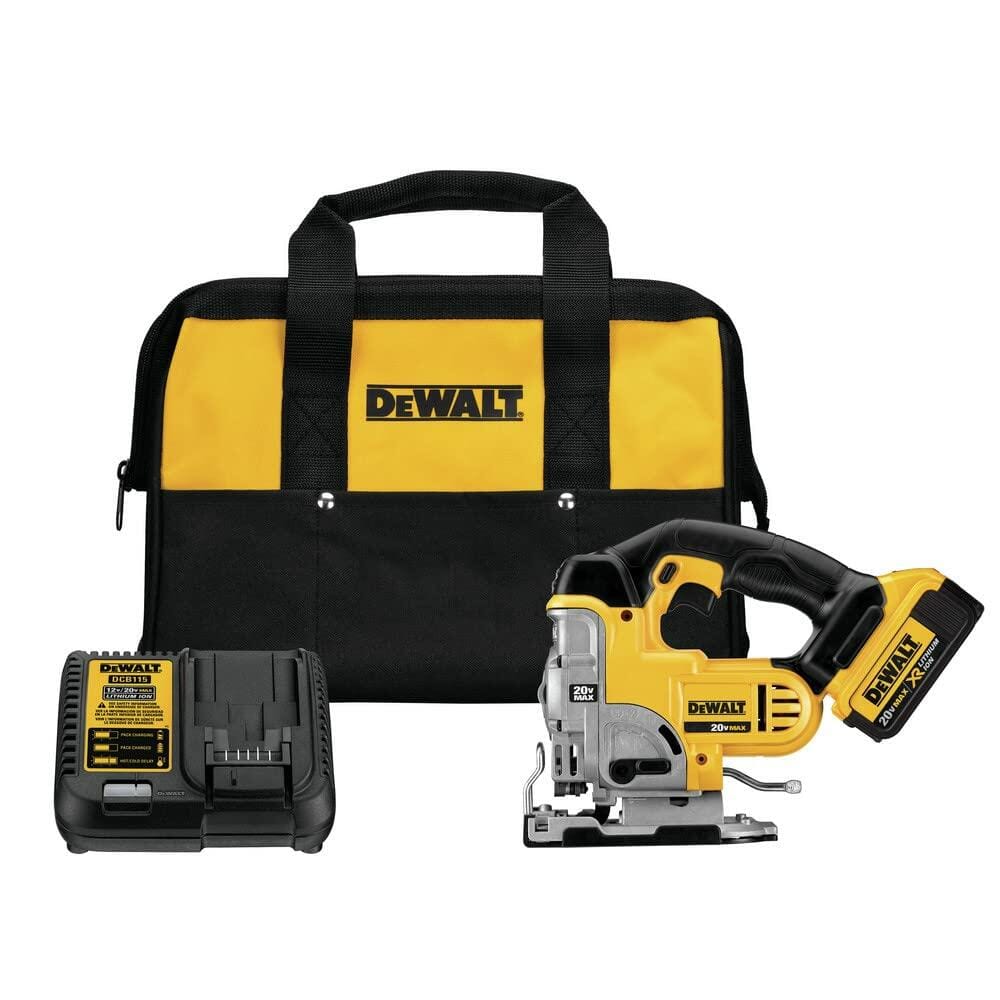

What's Included
- (1) DeWalt DCS331 20V MAX Cordless Orbital Jig Saw
- (1) DeWalt DCB204 20V MAX Premium XR 4.0Ah Lithium-Ion Battery
- (1) DeWalt 20V MAX Lithium-Ion Battery Charger
- (1) T-Shank Jig Saw Blade
- (1) Removable Non-Marring Shoe Cover
- (1) Heavy-Duty Fabric Tool Contractor Bag
Technical Specifications
| Manufacturer Brand | DeWalt |
| Model Number / Part ID | DCS331M1 |
| Voltage System Rating | 20V MAX* DC |
| Battery Pack Capacity | 4.0 Ah (DCB204 Included) |
| No-Load Stroke Rate | 0 - 3,000 SPM |
| Reciprocating Stroke Length | 1.0 in. (25.4 mm) |
| Maximum Bevel Capacity | 45° (Positive Detents at 0°, 15°, 30°, 45°) |
| Orbital Action Levels | 4 Position Settings |
| Blade Shank Compatibility | T-Shank System |
| Dust Mitigation Feature | Integrated Adjustable Air Blower |
| Bare Tool Chassis Weight | 6.8 lbs (3.08 kg) |
| Total Kit Piece Count | 5 Pieces |
Pro-Tip: Set the orbital lever to 0 (straight vertical stroke) when cutting sheet metal or plastics to prevent tooth chatter, and switch to orbital level 3 when ripping through rough lumber for maximum cutting speed.
