DeWalt Cordless Impact Wrench Kit DCF897P2 3/4 Inch Hog Ring (1200 ft-lb Breakaway 20V MAX XR Brushless Heavy Equipment Fastening Two 5.0Ah Sets)
Couldn't load pickup availability

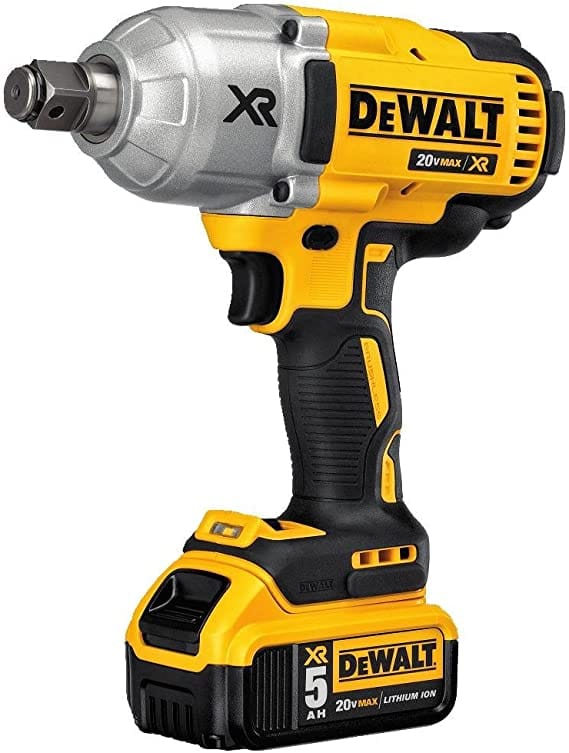

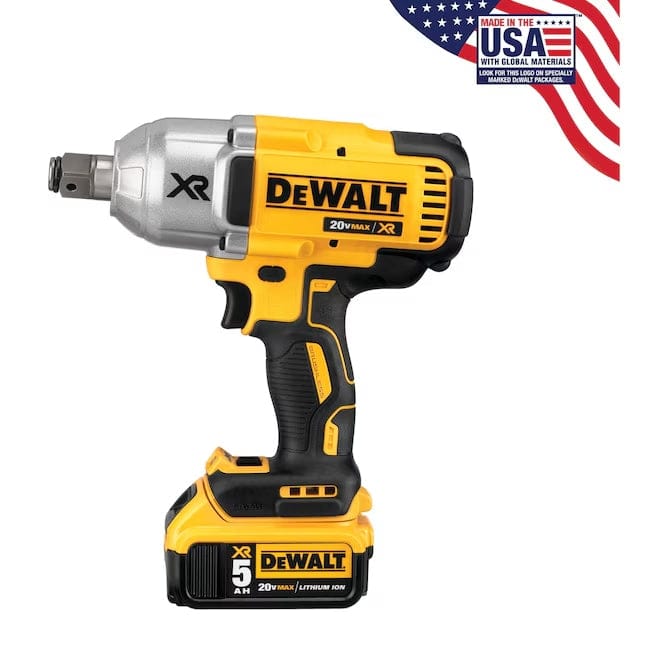

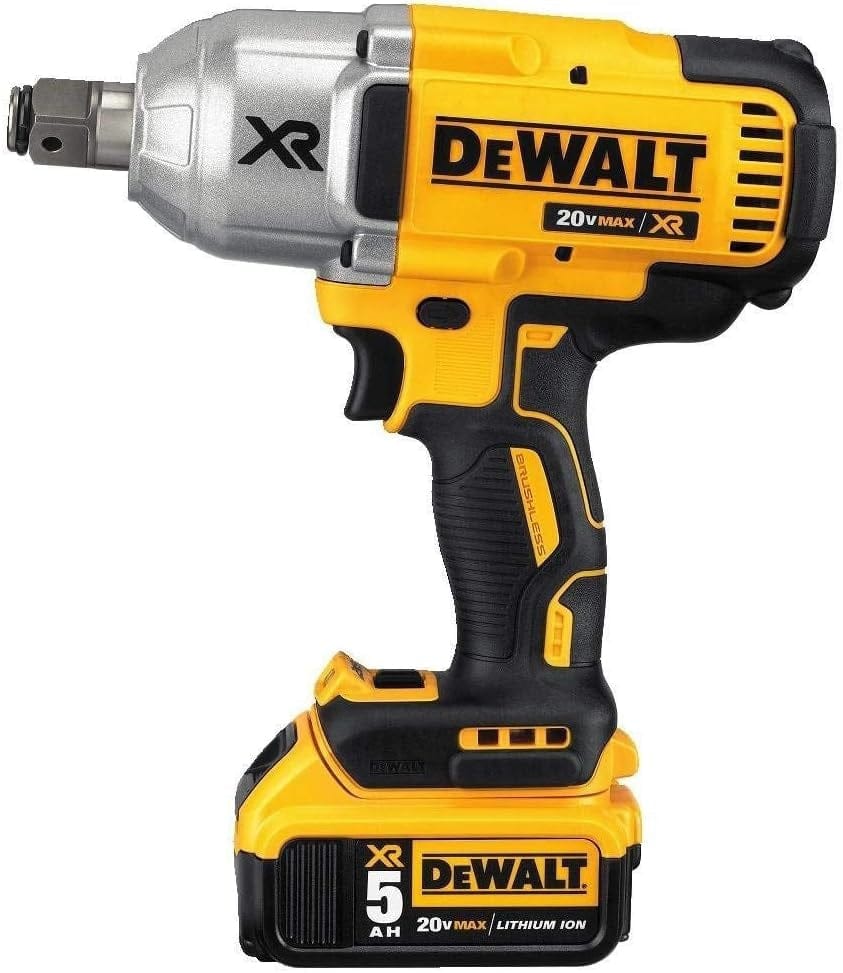

DeWalt DCF897P2 20V MAX XR Brushless Cordless 3/4-Inch High-Torque Impact Wrench Kit with Hog Ring Anvil
The DeWalt DCF897P2 20V MAX XR Brushless 3/4-Inch High-Torque Impact Wrench Kit provides 700 ft-lbs of maximum fastening torque and 1,200 ft-lbs of breakaway torque to free frozen structural bolts and heavy equipment fasteners. Built with a 3-speed selector switch delivering variable speeds up to 1,900 RPM and 2,400 IPM, this cordless assembly pairs an efficient brushless motor with a 3/4-inch hog ring anvil for rapid, secure socket retention. Packaged with two 5.0Ah lithium-ion battery packs, a multi-voltage charger, and a 20-second delay LED work light within an 8-13/16-inch chassis, it equips industrial mechanics, heavy fleet technicians, and steel erectors with portable, high-output bolting performance.
Best Used For:
- Heavy Equipment & Fleet Undercarriage Service: Busting loose seized track bolts, suspension pins, and commercial truck wheel lug nuts utilizing 1,200 ft-lbs breakaway torque.
- Structural Steel & Bridge Framing: Driving heavy-diameter structural A325 and A490 anchor bolts and flange hardware across jobsite framework installations.
- Industrial Plant Machinery Maintenance: Assembling heavy press equipment, aggregate conveyors, and large piping flanges with multi-speed torque control.

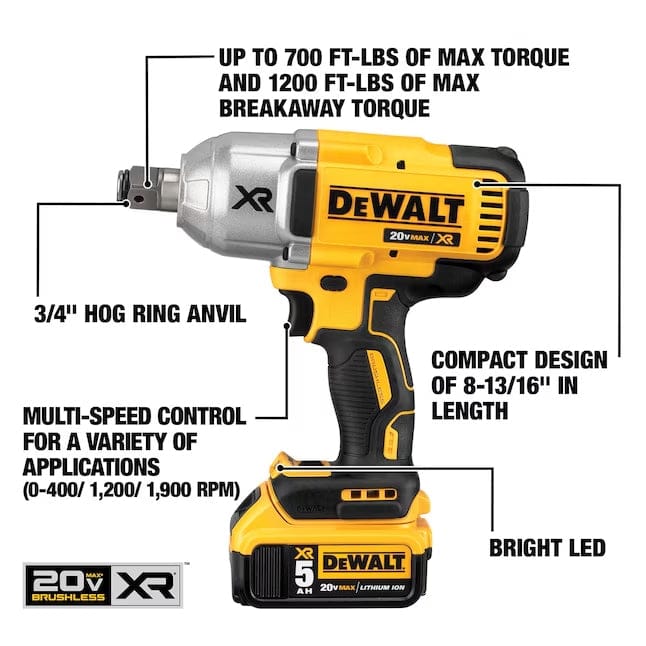

Key Performance & Safety Features
- High-Output Brushless Motor: Generates up to 700 ft-lbs fastening torque and 1,200 ft-lbs breakaway torque while running cooler and maximizing runtime.
- 3-Speed Electronic Drive Control: Features user-selectable speed tiers (0-400 / 0-1,200 / 0-1,900 RPM) to prevent fastener over-torquing and thread stripping.
- 3/4-Inch Hog Ring Anvil: Secures heavy-duty 3/4-inch drive impact sockets with dependable retention while allowing rapid manual socket swaps.
- Compact Structural Profile: Measures 8-13/16 inches in overall length to provide maneuverability inside confined wheel wells and machinery compartments.
- Integrated LED Work Light: Features a 20-second shutoff delay to illuminate dark fasteners in shadowed industrial bays.
- Ergonomic Overmold Grip: Contoured rubber handle dampens vibration and enhances grip security during extended, high-torque operation.

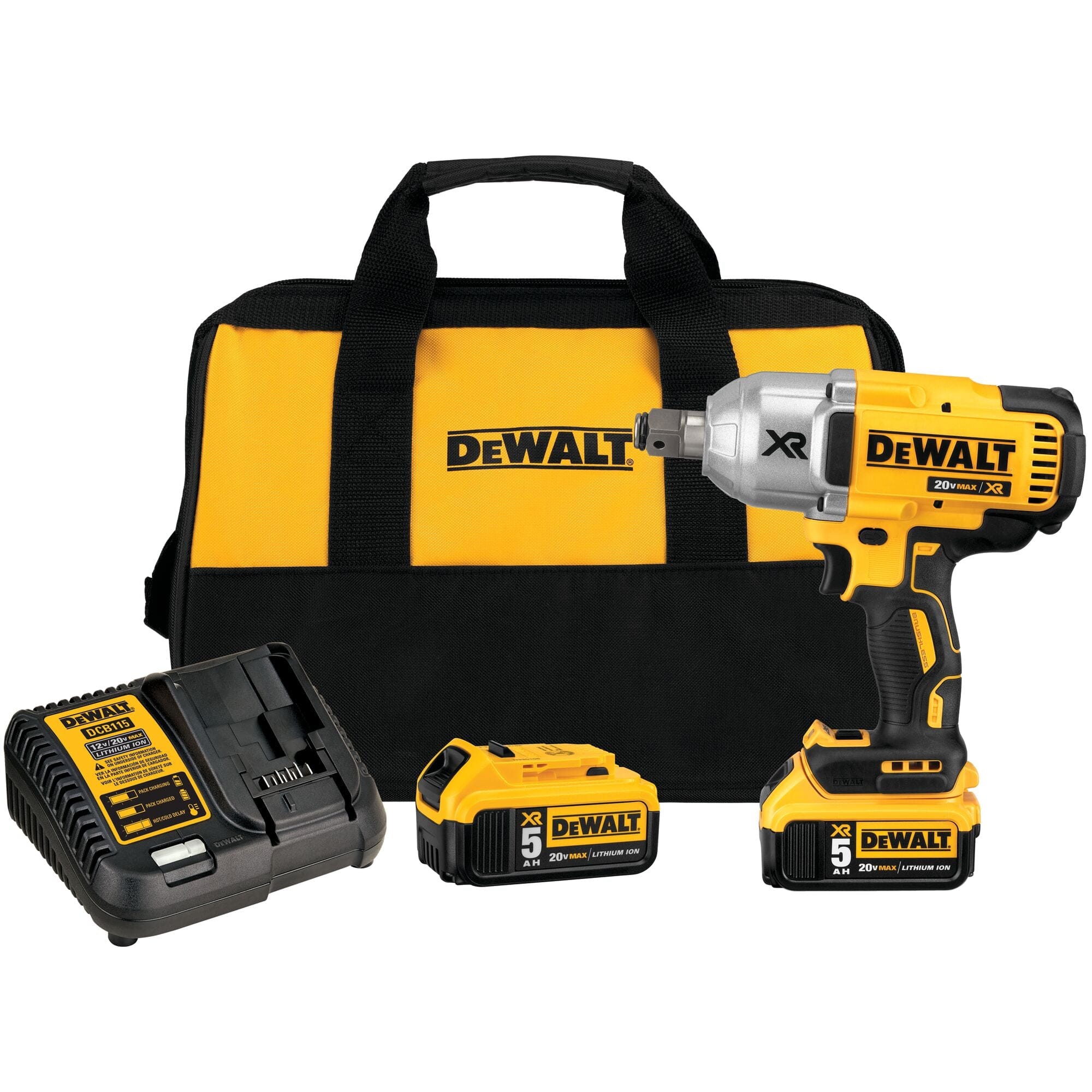

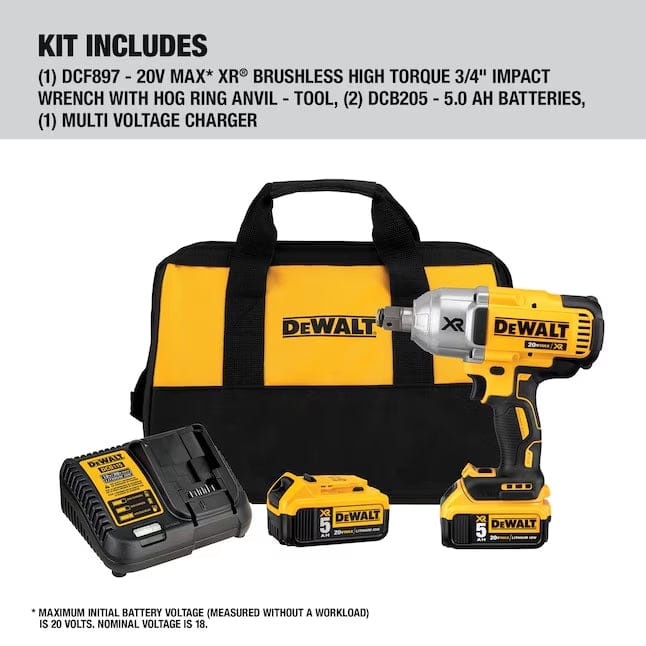

What's Included
- (1) DeWalt 20V MAX XR Brushless 3/4" High-Torque Impact Wrench (DCF897)
- (2) DeWalt 20V MAX XR 5.0Ah Premium Lithium-Ion Batteries (DCB205)
- (1) DeWalt 12V MAX / 20V MAX Multi-Voltage Battery Charger
- (1) Heavy-Duty Jobsite Contractor Bag / Storage Case
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer Brand | DeWalt |
| Model Number / MPN | DCF897P2 (Complete 2-Battery Kit) |
| System Voltage Platform | 20V MAX XR Lithium-Ion |
| Anvil Drive Size & Retention Type | 3/4 in Square Drive with Hog Ring (Friction Ring) |
| Motor Architecture | DeWalt XR High-Efficiency Brushless |
| Maximum Breakaway Torque | 1,200 ft-lbs (1,627 Nm) |
| Maximum Fastening Torque | 700 ft-lbs (949 Nm) |
| No Load Speeds (3-Speed Settings) | Speed 1: 0-400 / Speed 2: 0-1,200 / Speed 3: 0-1,900 RPM |
| Impact Frequency Rate | 0 to 2,400 IPM |
| Battery Capacity & Quantity | (2) 20V MAX XR 5.0Ah Lithium-Ion Packs (DCB205) |
| Overall Tool Length | 8.81 in (8-13/16 in / 223.8 mm) |
| Tool Weight (Bare Tool) | 7.20 lbs (3.27 kg) |
| Illumination System | Base-Mounted LED with 20-Second Delay |
| Manufacturer Warranty | 3-Year Limited Warranty / 1-Year Free Service |
Pro-Tip: Always use heavy-duty forged 3/4-inch drive impact-rated sockets with the hog ring anvil; non-impact chrome sockets can shatter under 1,200 ft-lbs breakaway shock loads and wear down the friction ring prematurely.
