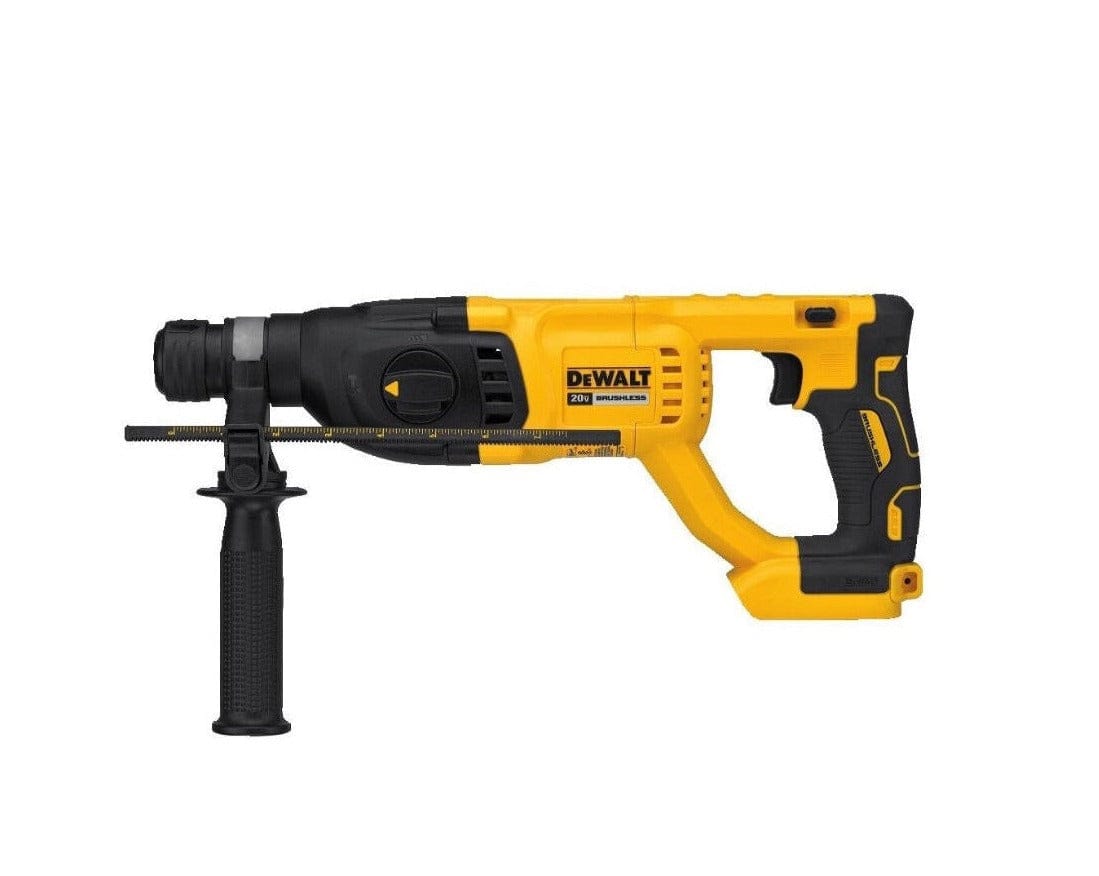

Side profile view of the DEWALT DCH133B 20V MAX brushless 1-inch SDS Plus rotary hammer featuring its professional yellow and black D-handle design with an adjustable 360-degree side handle and depth rod installed.
A features diagram of the DEWALT DCH133 rotary hammer drill highlighting the SDS Plus tool holder, the German-engineered mechanism delivering 2.6 Joules and 1,500 RPM, the adjustable depth rod, and the 3-mode selection dial for drill, hammer drill, and chip modes.
Infographic showing what is included with the DEWALT DCH133B bare tool, specifically the D-handle rotary hammer, the 360-degree side handle, and the depth rod.

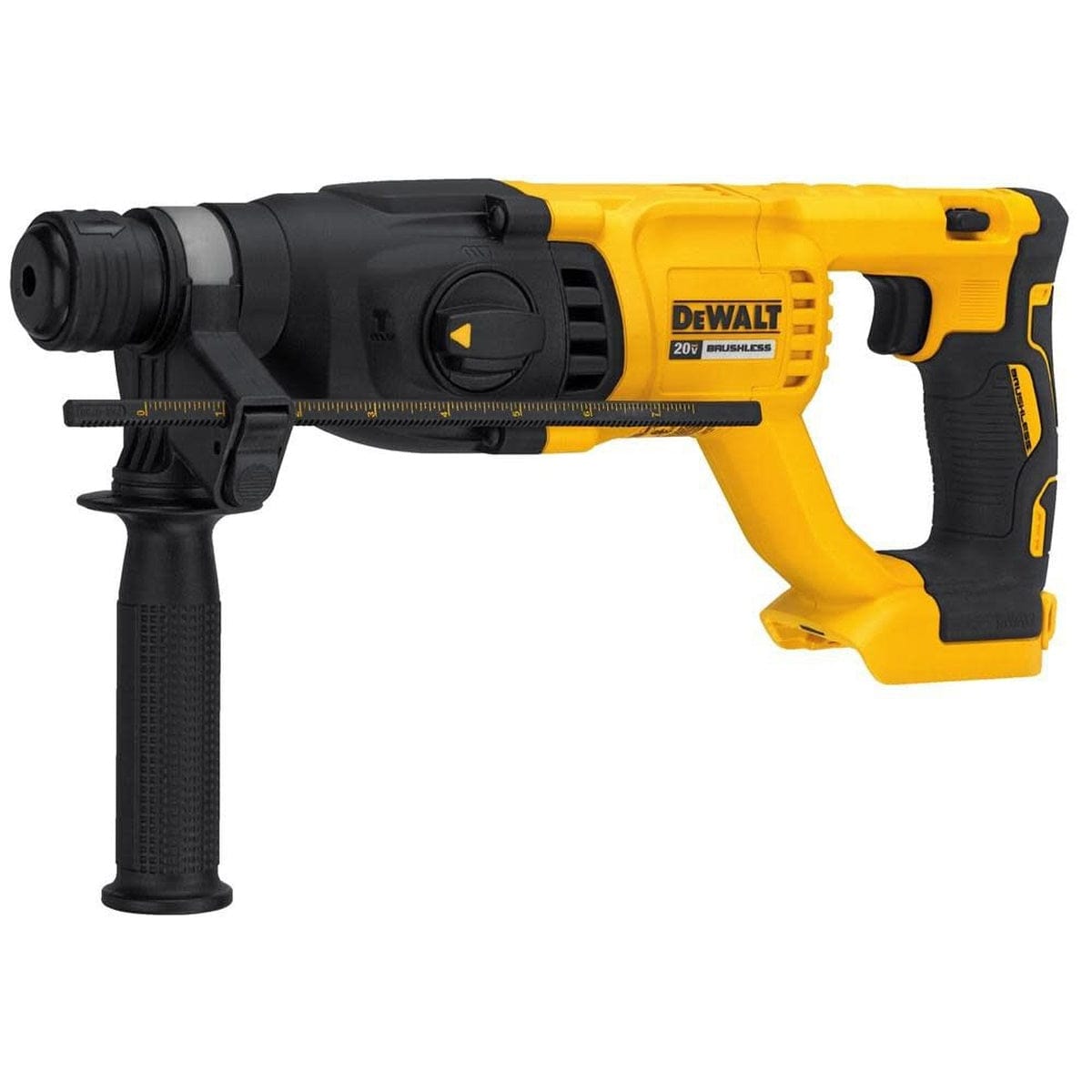

Perspective view of the cordless DEWALT 1-inch SDS Plus rotary hammer emphasizing its compact D-handle configuration for balanced operation during heavy-duty masonry drilling.

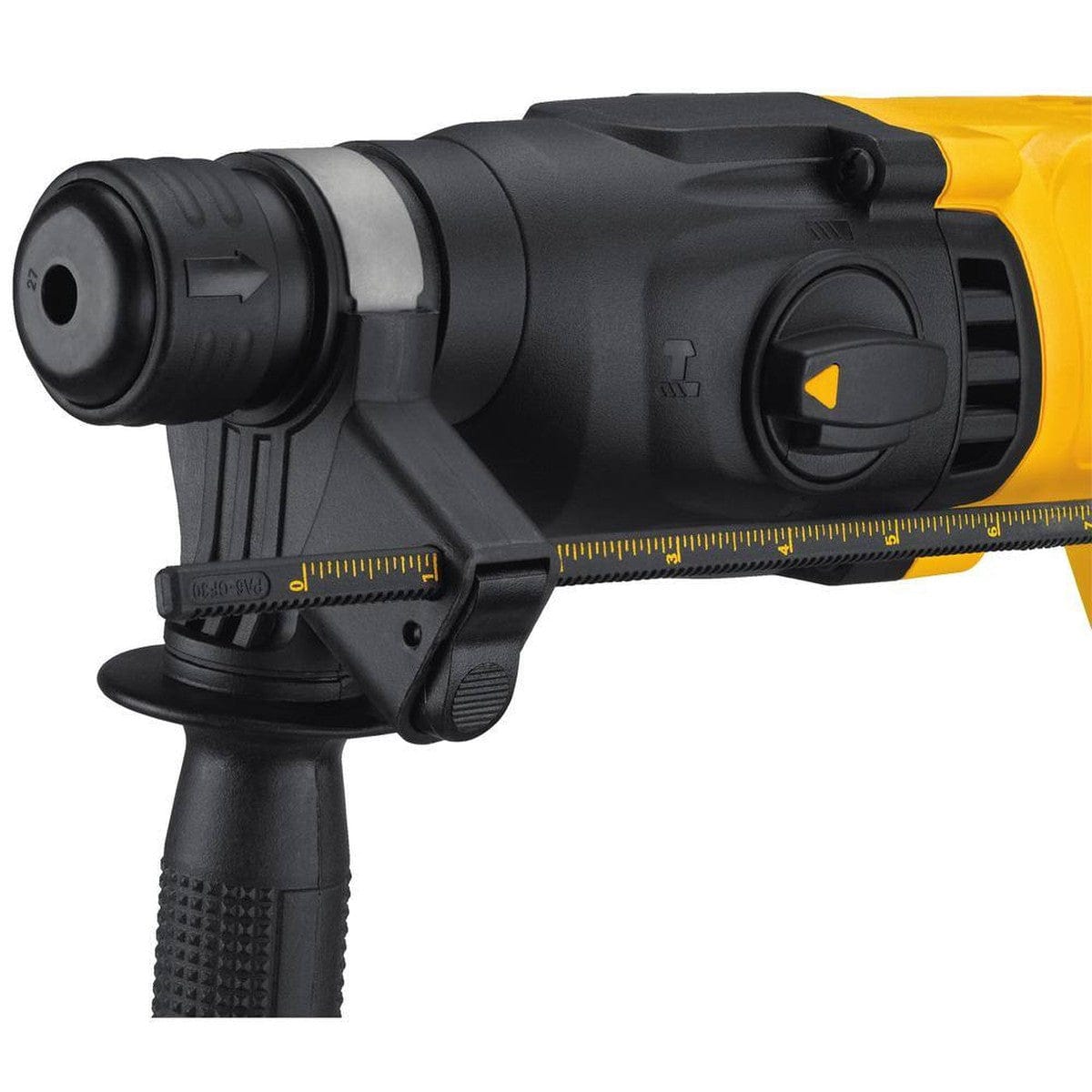

Close-up detail of the DEWALT rotary hammer's front end, showing the SDS Plus chuck, the adjustable depth rod clamp, and the mode selection dial set to hammer drill mode.

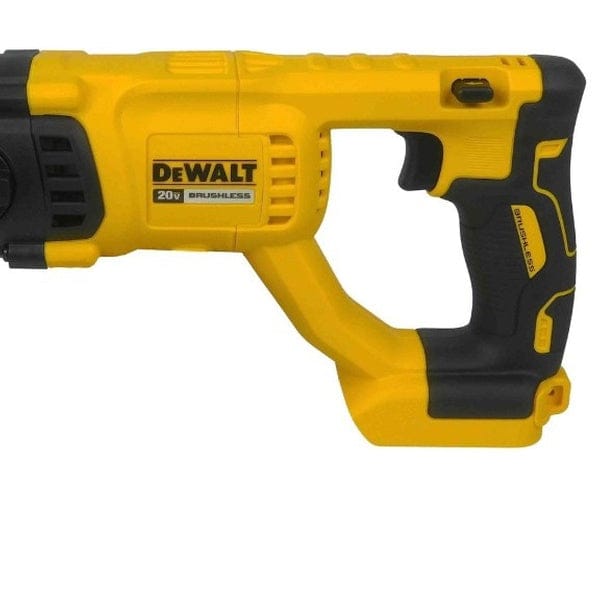

Detailed view of the DEWALT D-handle and trigger assembly, highlighting the brushless motor branding, ergonomic rubber overmold grip, and the forward/reverse selector switch.

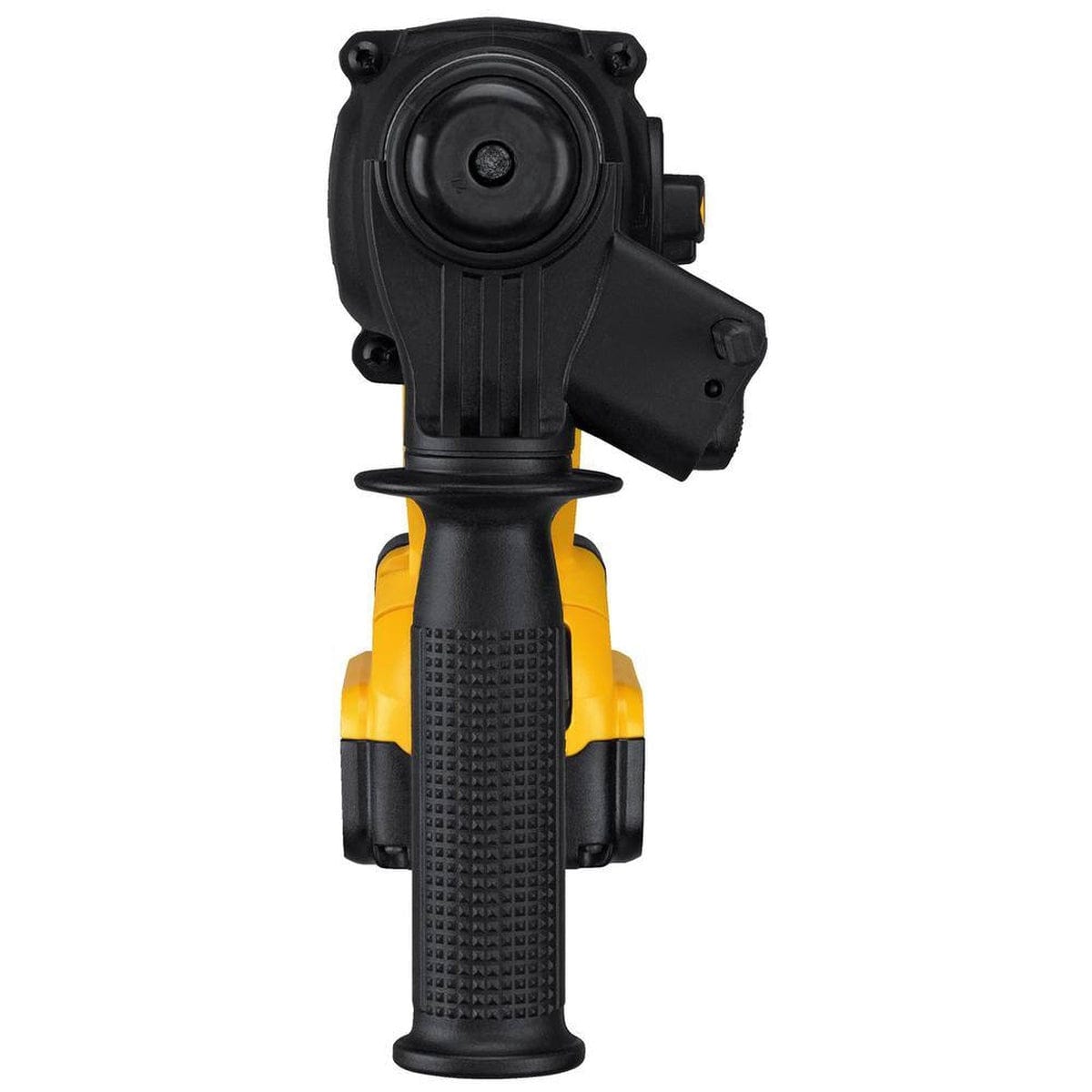

Rear-facing view of the DEWALT DCH133 rotary hammer illustrating the slim profile and vertical orientation of the D-handle for superior control in tight spaces.
Application graphic listing the ideal uses for the DEWALT SDS Plus rotary hammer, including forming, rod hanging, structural connections, beam and column anchorage, steel stanchion mounting, and clip and bracket mounting.

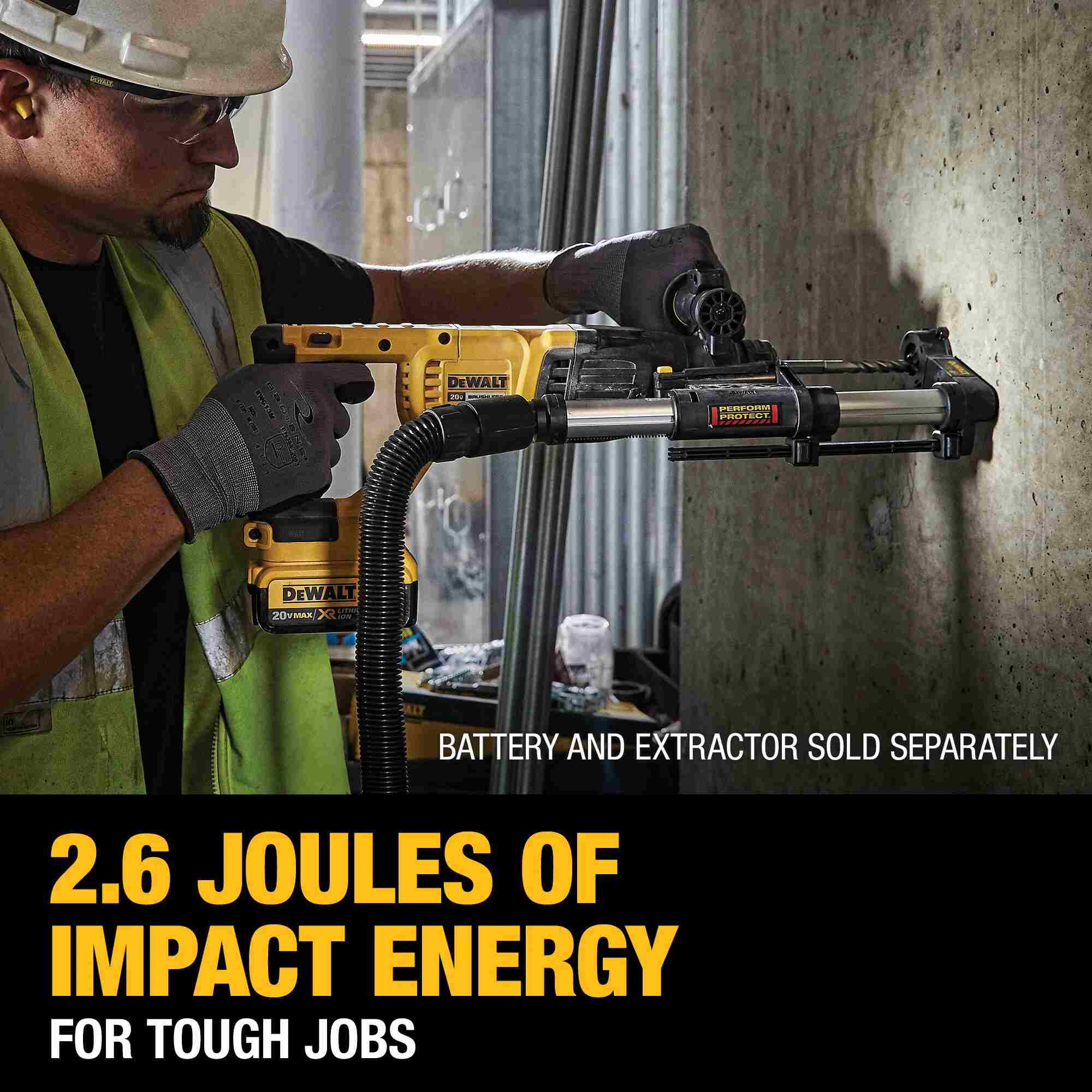

Action shot of a professional contractor using the DEWALT 20V MAX rotary hammer with a dust extraction attachment to drill high-accuracy holes into a vertical concrete wall.
Jobsite application photo showing a professional worker using the lightweight DEWALT D-handle rotary hammer for overhead drilling in a commercial construction setting, emphasizing the tool's 4.6-pound weight.

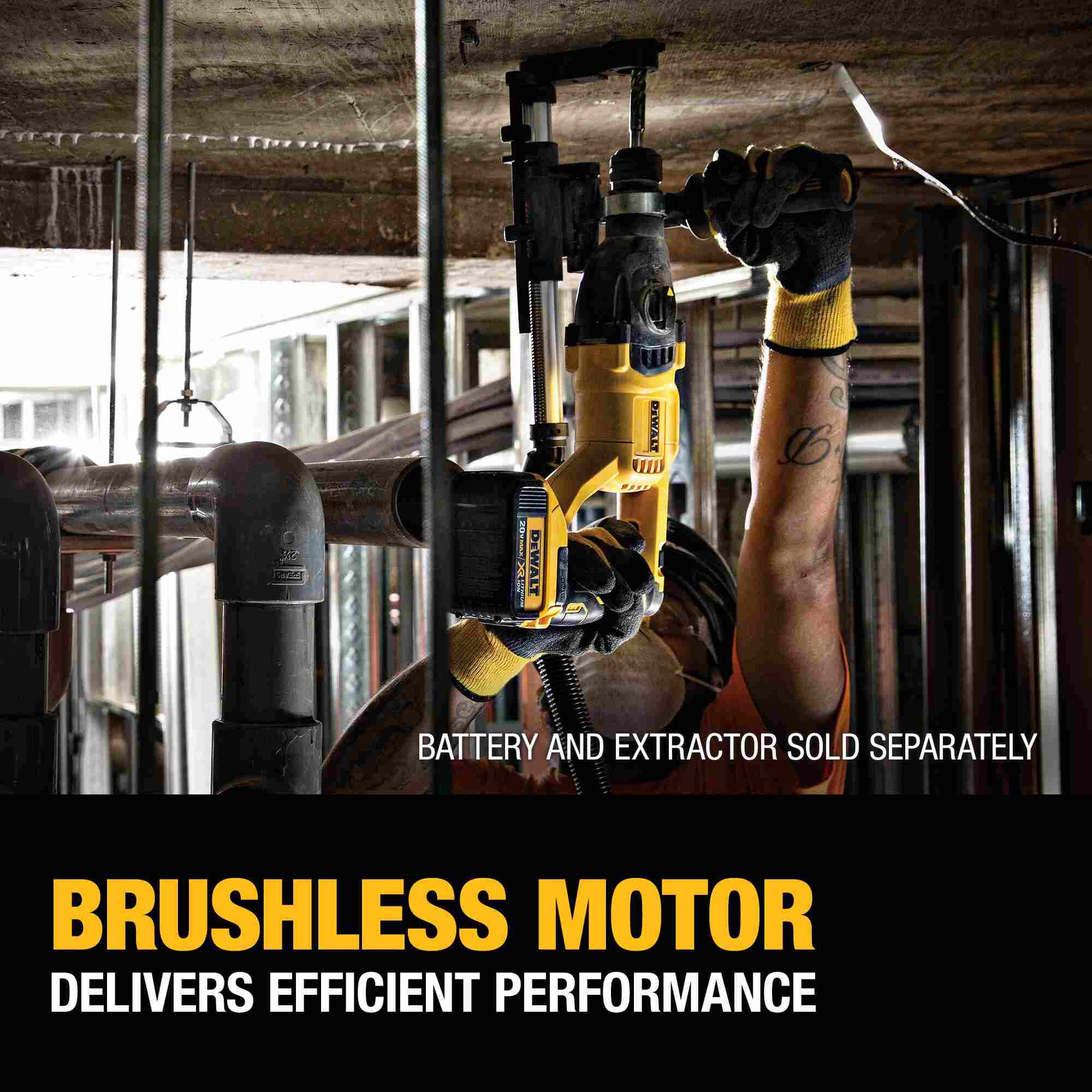

A professional contractor using the DEWALT 20V MAX XR brushless rotary hammer with a dust extraction system to drill an overhead hole into a concrete ceiling, highlighting the efficiency of the brushless motor.
Jobsite application showing a professional worker using the DEWALT D-handle SDS Plus rotary hammer to drill precise holes into a concrete floor for heavy-duty fastener installation near industrial equipment.
A marketing graphic showcasing the DEWALT SDS Plus Hammer Family, featuring four different cordless rotary hammer models with various battery configurations and handle styles on a yellow background.

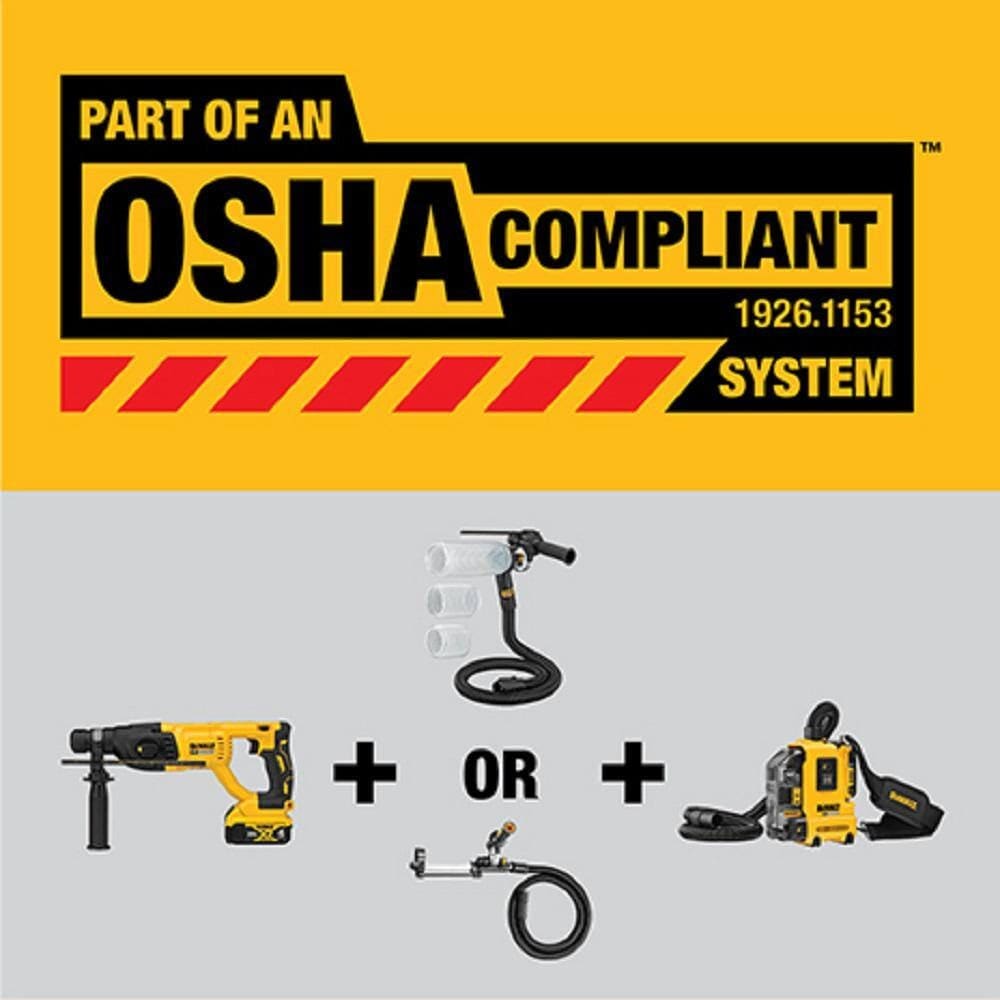

Safety compliance graphic illustrating how the DEWALT DCH133 rotary hammer integrates with dust extractors and vacuums to form an OSHA-compliant table 1 silica dust collection system.
DEWALT® FLEXVOLT® The Power of Freedom: Skyscraper promotional how to video
Side profile view of the DEWALT DCH133B 20V MAX brushless 1-inch SDS Plus rotary hammer featuring its professional yellow and black D-handle design with an adjustable 360-degree side handle and depth rod installed.
A features diagram of the DEWALT DCH133 rotary hammer drill highlighting the SDS Plus tool holder, the German-engineered mechanism delivering 2.6 Joules and 1,500 RPM, the adjustable depth rod, and the 3-mode selection dial for drill, hammer drill, and chip modes.
Infographic showing what is included with the DEWALT DCH133B bare tool, specifically the D-handle rotary hammer, the 360-degree side handle, and the depth rod.
Perspective view of the cordless DEWALT 1-inch SDS Plus rotary hammer emphasizing its compact D-handle configuration for balanced operation during heavy-duty masonry drilling.
Close-up detail of the DEWALT rotary hammer's front end, showing the SDS Plus chuck, the adjustable depth rod clamp, and the mode selection dial set to hammer drill mode.
Detailed view of the DEWALT D-handle and trigger assembly, highlighting the brushless motor branding, ergonomic rubber overmold grip, and the forward/reverse selector switch.
Rear-facing view of the DEWALT DCH133 rotary hammer illustrating the slim profile and vertical orientation of the D-handle for superior control in tight spaces.
Application graphic listing the ideal uses for the DEWALT SDS Plus rotary hammer, including forming, rod hanging, structural connections, beam and column anchorage, steel stanchion mounting, and clip and bracket mounting.
Action shot of a professional contractor using the DEWALT 20V MAX rotary hammer with a dust extraction attachment to drill high-accuracy holes into a vertical concrete wall.
Jobsite application photo showing a professional worker using the lightweight DEWALT D-handle rotary hammer for overhead drilling in a commercial construction setting, emphasizing the tool's 4.6-pound weight.
A professional contractor using the DEWALT 20V MAX XR brushless rotary hammer with a dust extraction system to drill an overhead hole into a concrete ceiling, highlighting the efficiency of the brushless motor.
Jobsite application showing a professional worker using the DEWALT D-handle SDS Plus rotary hammer to drill precise holes into a concrete floor for heavy-duty fastener installation near industrial equipment.
A marketing graphic showcasing the DEWALT SDS Plus Hammer Family, featuring four different cordless rotary hammer models with various battery configurations and handle styles on a yellow background.
Safety compliance graphic illustrating how the DEWALT DCH133 rotary hammer integrates with dust extractors and vacuums to form an OSHA-compliant table 1 silica dust collection system.
DEWALT® FLEXVOLT® The Power of Freedom: Skyscraper promotional how to video
DEWALT

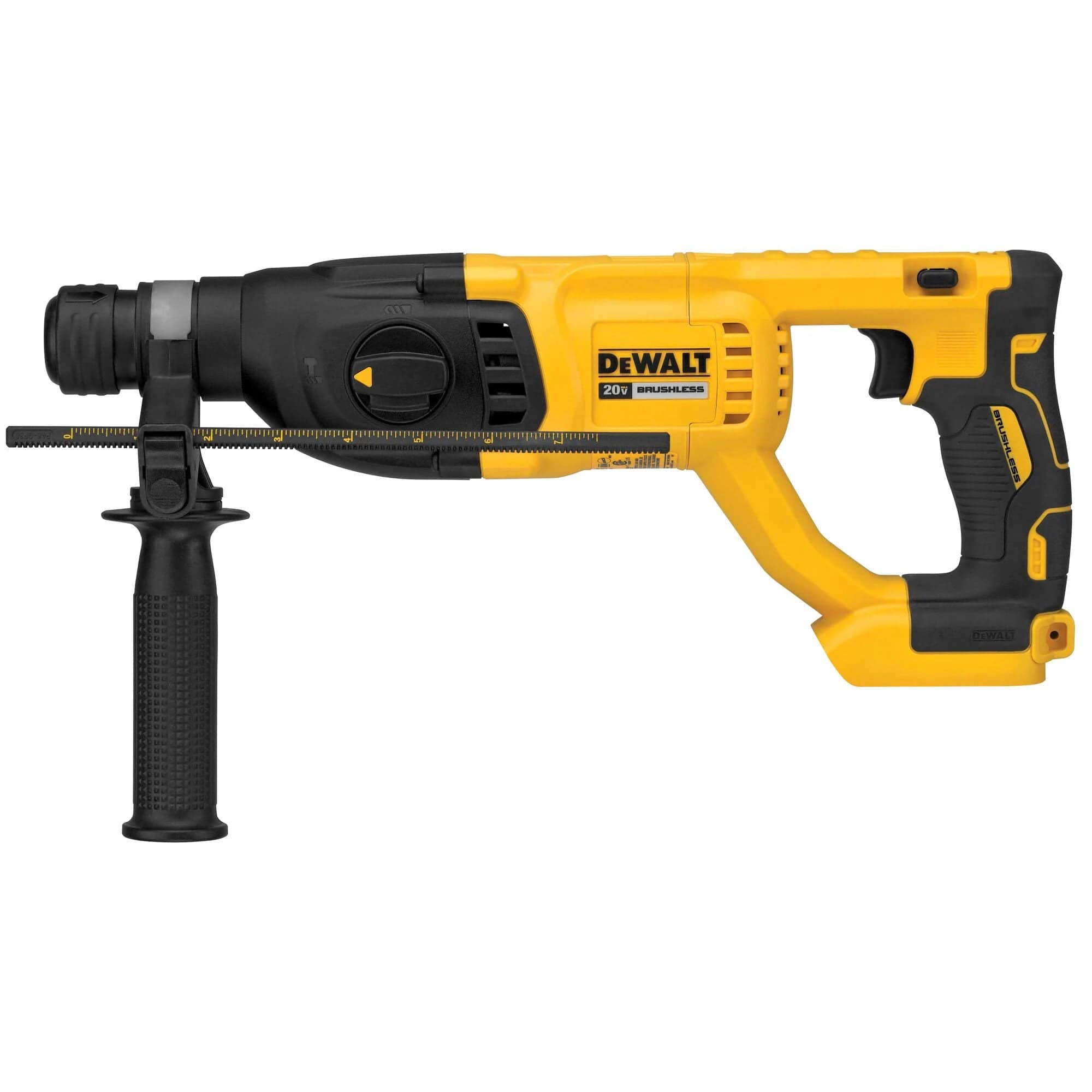

DEWALT DCH133B 20V MAX XR Brushless 1 Inch SDS Plus D-Handle Rotary Hammer Drill Bare Tool 2.6 Joules Concrete Masonry 3 Mode Hammer Drill Chip

In stock
SKU: DCH133B
$249.00 USD
$259.00 USD Sale $249.00 USD

Description

Authorized Dealer Badge DEWALT logout

Experience Industrial Strength and Precision with the DEWALT 20V MAX Brushless 1-Inch Rotary Hammer

The DEWALT DCH133B 20V MAX* XR Brushless 1 in. Rotary Hammer is a high-performance, professional-grade solution designed to handle the most demanding concrete and masonry applications. Engineered with a durable, German-designed mechanism, this D-Handle rotary hammer delivers a powerful 2.6 Joules of impact energy, ensuring fast and efficient drilling even in hard-set concrete. The brushless motor technology provides maximum runtime and durability, making it the perfect choice for structural connections, beam and column anchorage, and steel stanchion mounting. Its lightweight and ergonomic design allows for comfortable use during extended periods, especially when performing overhead tasks like rod hanging or bracket mounting.

Versatility is at the core of the DCH133B, featuring a rotating dial that allows users to seamlessly switch between three distinct application modes: Drill, Hammer Drill, and Chip. Whether you are using a standard drill bit for wood and steel, an SDS Plus bit for masonry, or a chisel for light demolition and tile removal, this tool optimizes performance for every trade. The D-handle configuration provides a stable grip and superior control, ensuring accuracy while reducing user fatigue on the jobsite. For professionals who require the reliability of a corded tool with the freedom of the 20V MAX* battery platform, this rotary hammer is the ultimate dewatering and construction companion.

**Battery and charger sold separately.

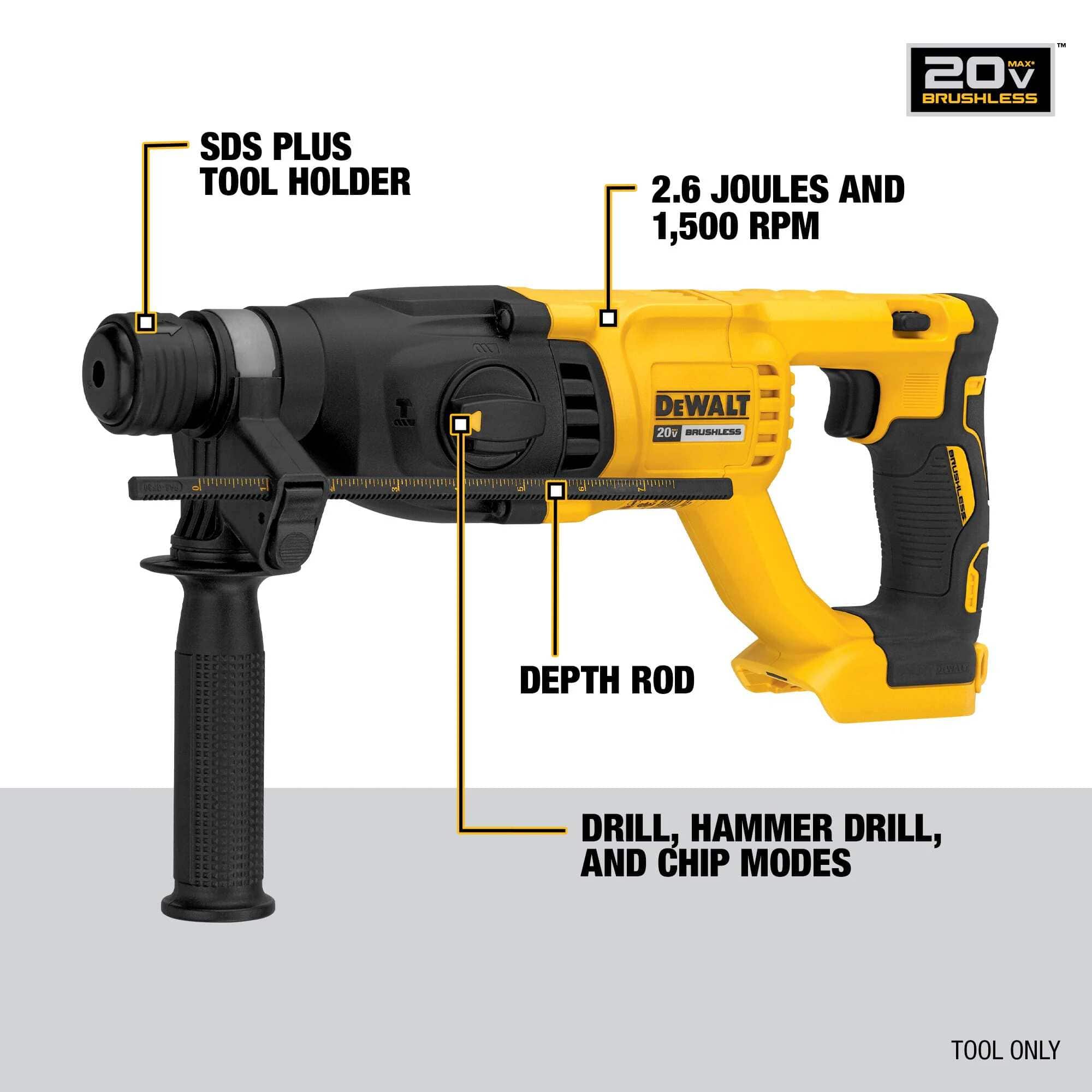

Key Features

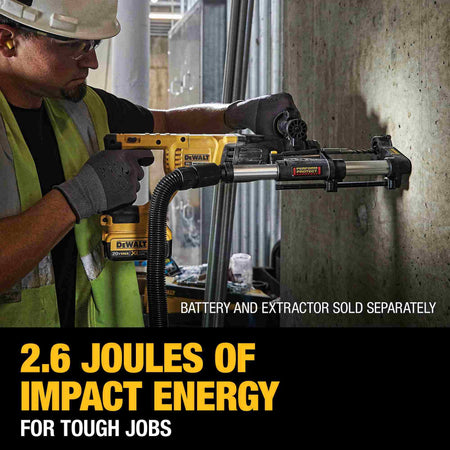

  • 2.6 Joules of Impact Energy: Provides high-speed drilling and powerful chipping performance in tough concrete and masonry.
  • Brushless Motor Technology: Delivers exceptional efficiency and extended tool life compared to traditional brushed motors.
  • German-Engineered Mechanism: Built for long-term durability and consistent performance in rigorous construction environments.
  • 3-Mode Versatility: Rotating dial allows for quick transitions between Drill, Hammer Drill, and Chisel (Chip) modes.

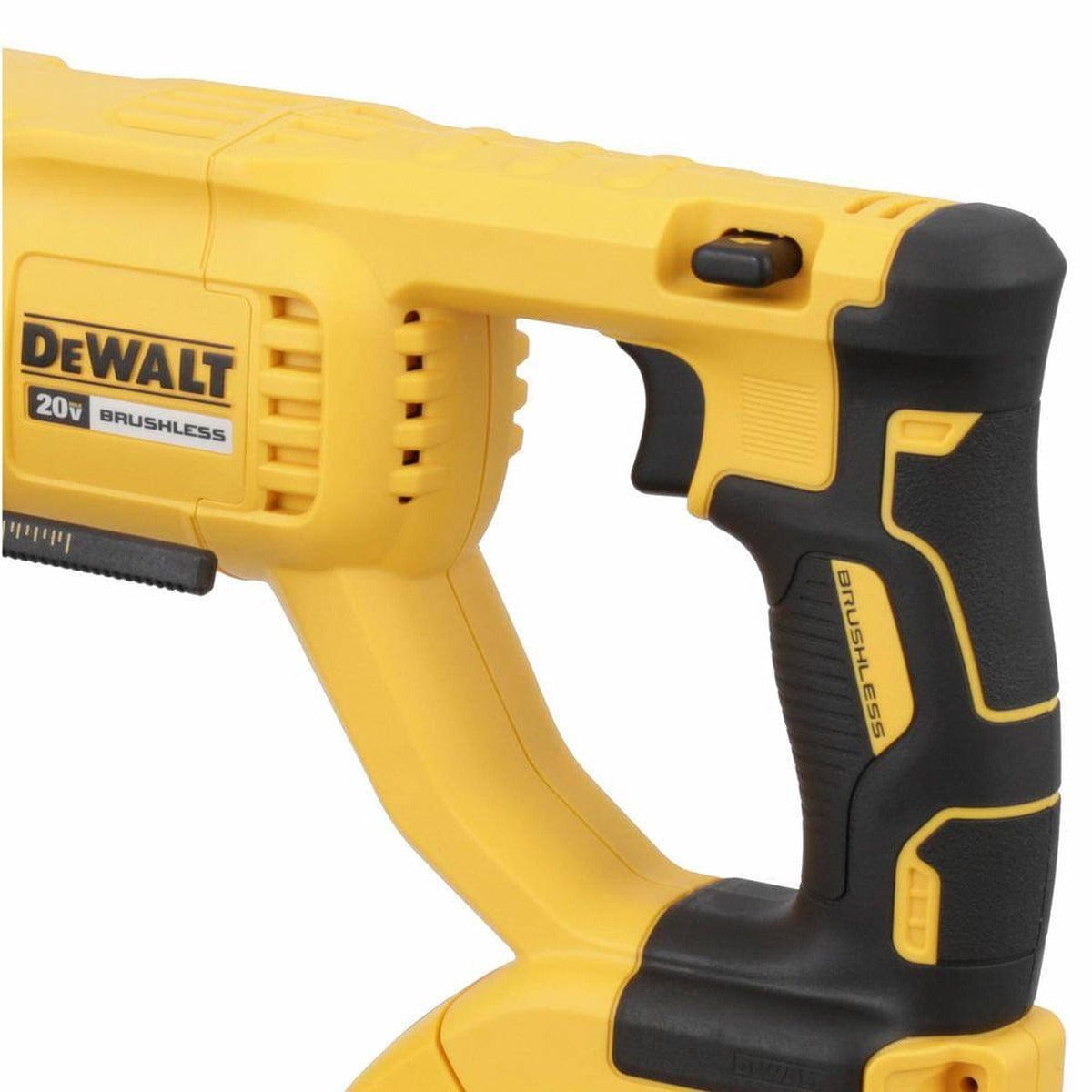

  • Ergonomic D-Handle Design: Provides a secure, balanced grip for both downward and horizontal drilling applications.

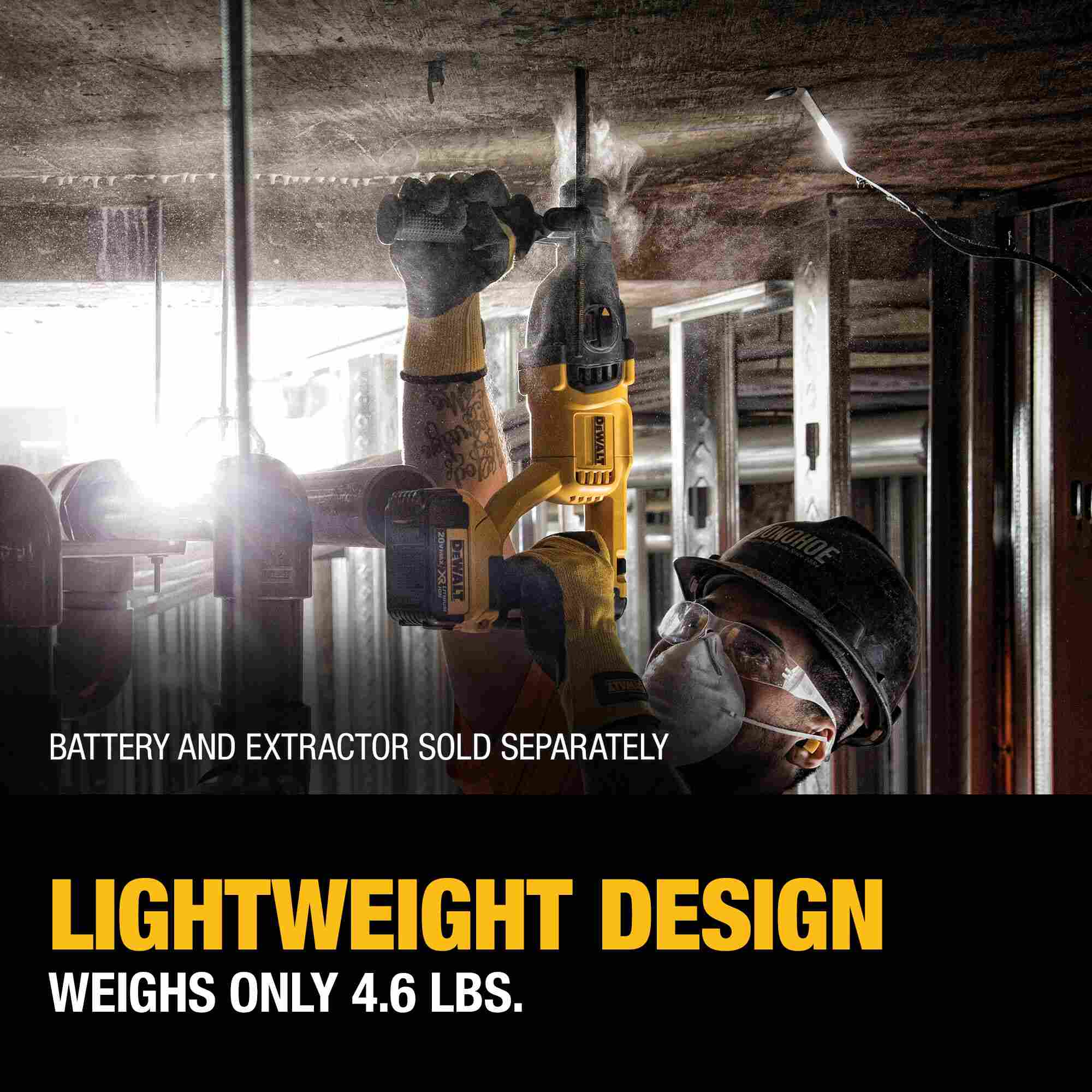

  • Lightweight Construction: Optimized for ease of use in rod hanging, anchor setting, and clip mounting tasks.

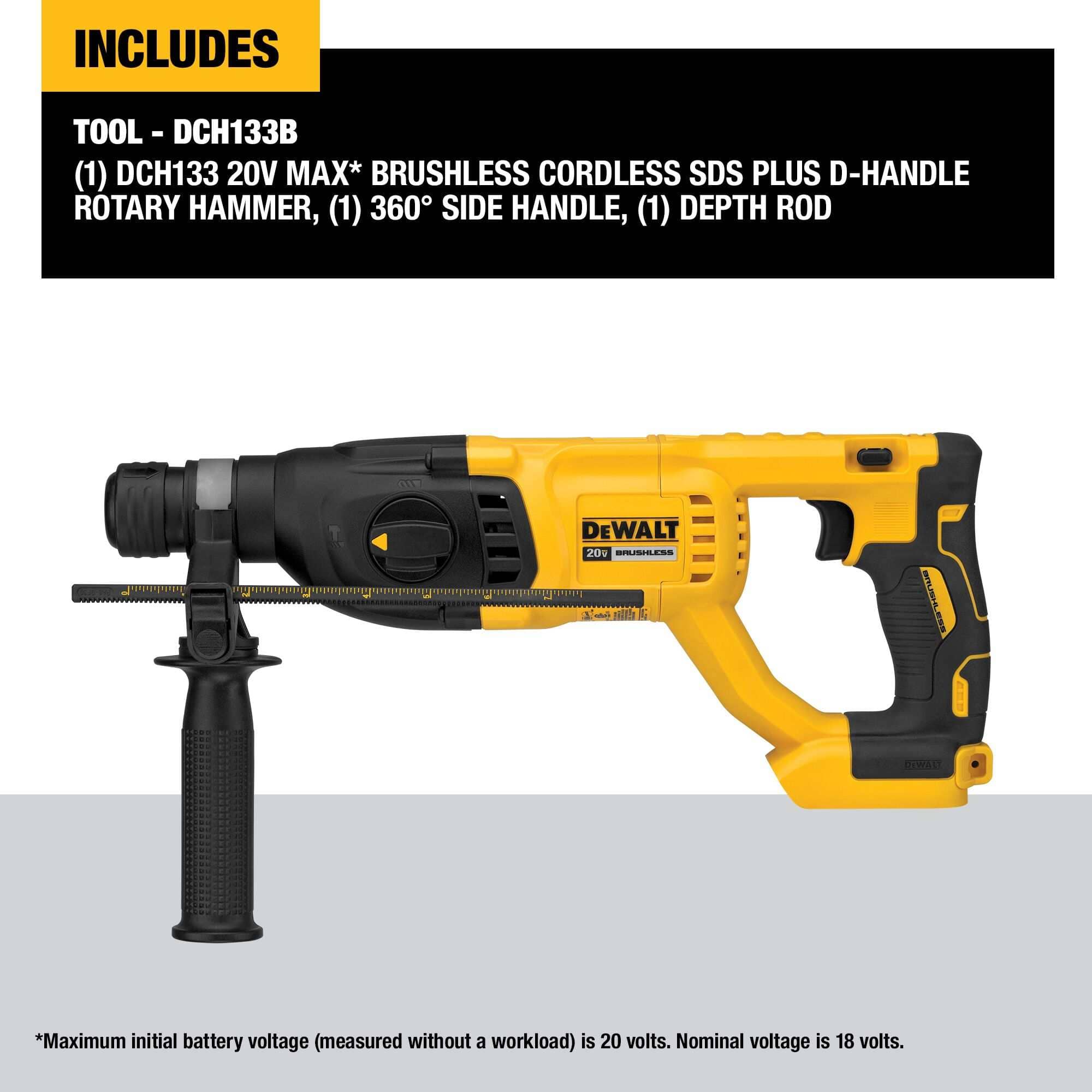

What's Included

  • (1) DCH133 20V MAX* Brushless 1" SDS Plus Rotary Hammer
  • (1) 360° Adjustable Side Handle
  • (1) Depth Rod

Specifications

Product Type Rotary Hammer Drill
Voltage 20V MAX*
Chuck Type SDS Plus
Impact Energy 2.6 Joules
Motor Type Brushless
Maximum Speed 1,500 RPM
Blows Per Minute 5,550 BPM
Concrete Capacity 1 Inch
Tool Weight 6.05 lbs.
Assembled Length 16.2 Inches
Assembled Height 4 Inches
Assembled Width 9 Inches

Pro-Tip: To prevent premature wear on your SDS Plus bits and the internal hammer mechanism, always apply a small amount of high-quality grease to the shank of the bit before inserting it into the chuck. This reduces friction and heat buildup during high-impact drilling, ensuring smoother operation and a longer lifespan for both your bits and your rotary hammer.
