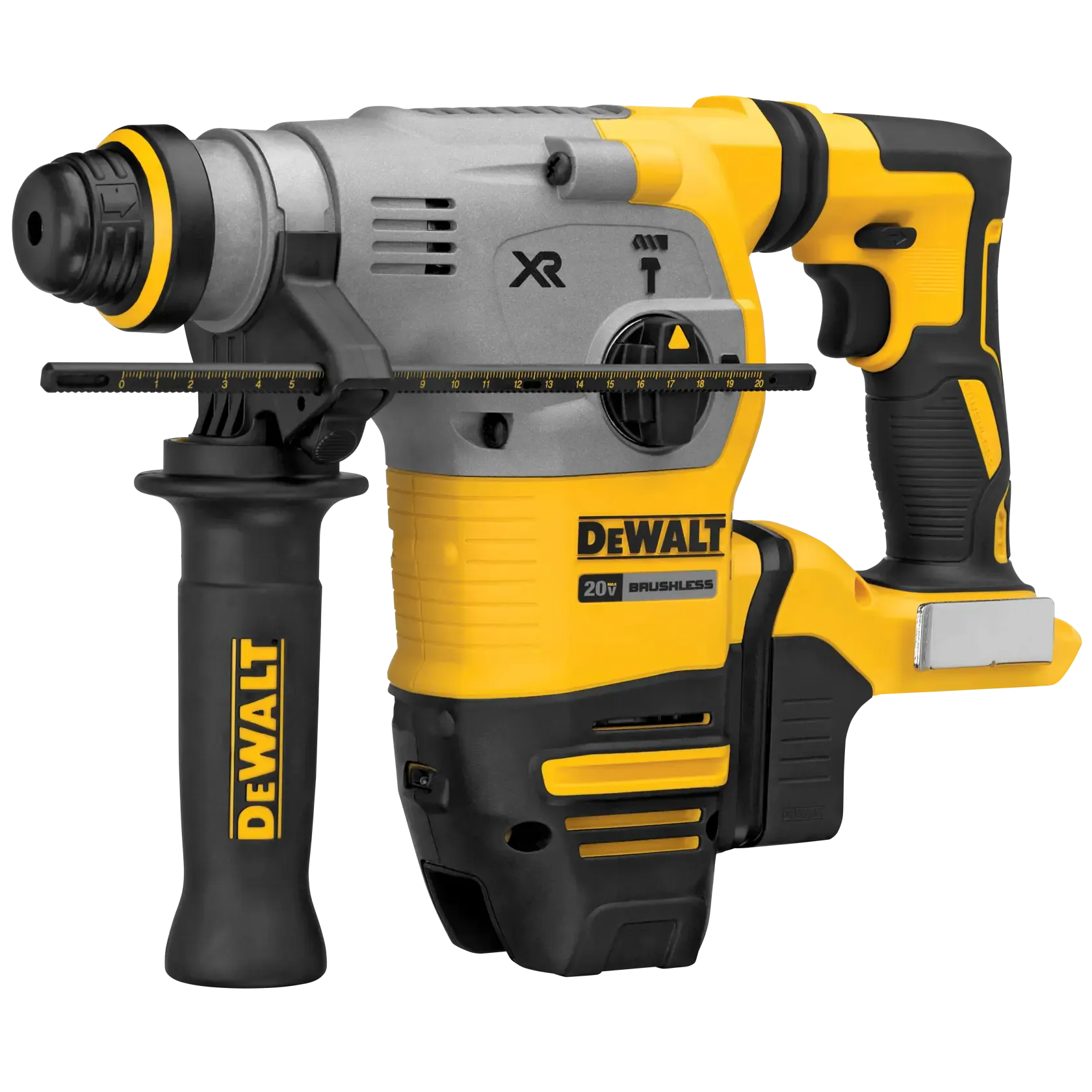

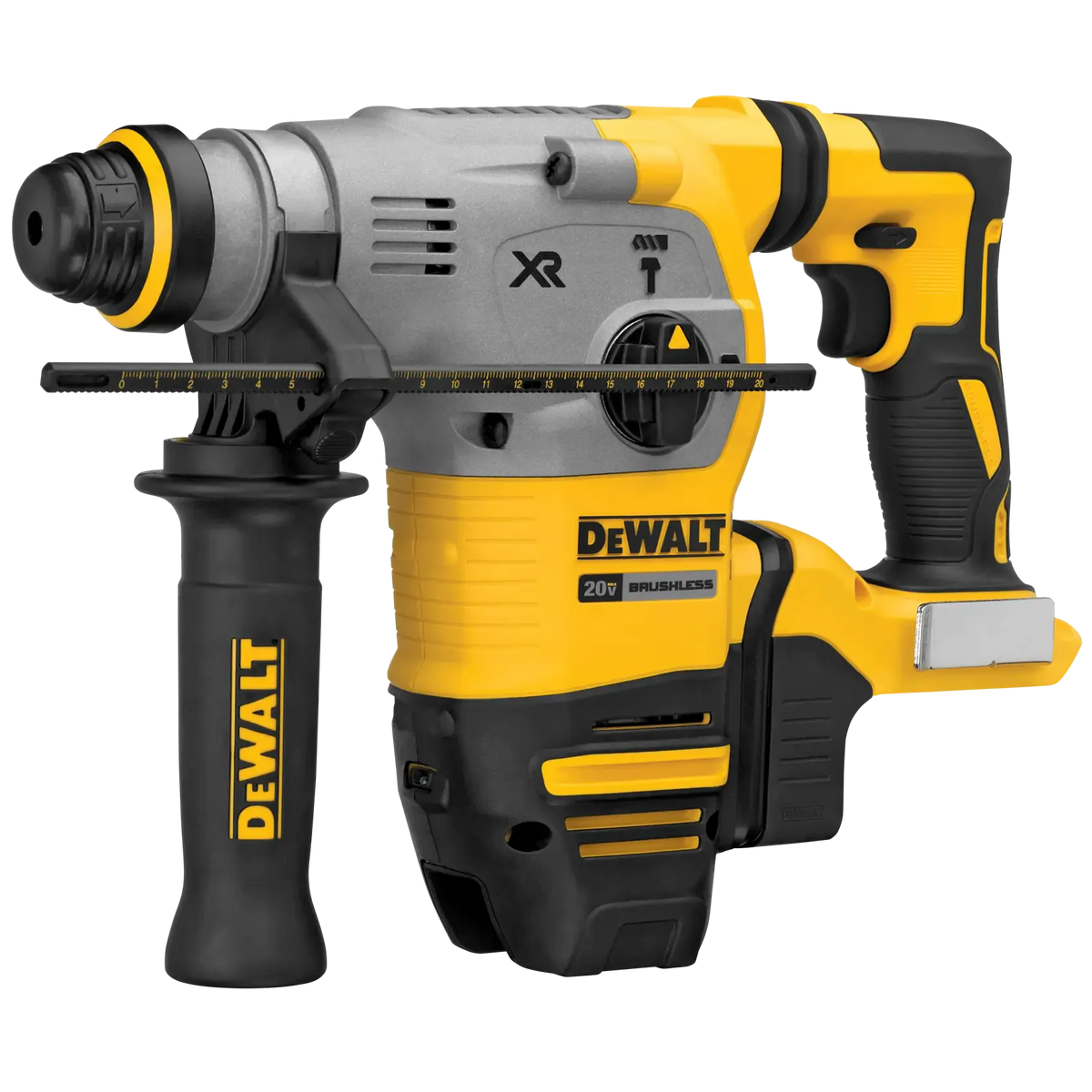

A perspective view of the DEWALT DCH293B rotary hammer showcasing the SDS Plus tool holder and the rotating mode selection dial. The image emphasizes the rugged construction of the tool, including the 360-degree adjustable side handle for enhanced drilling control.

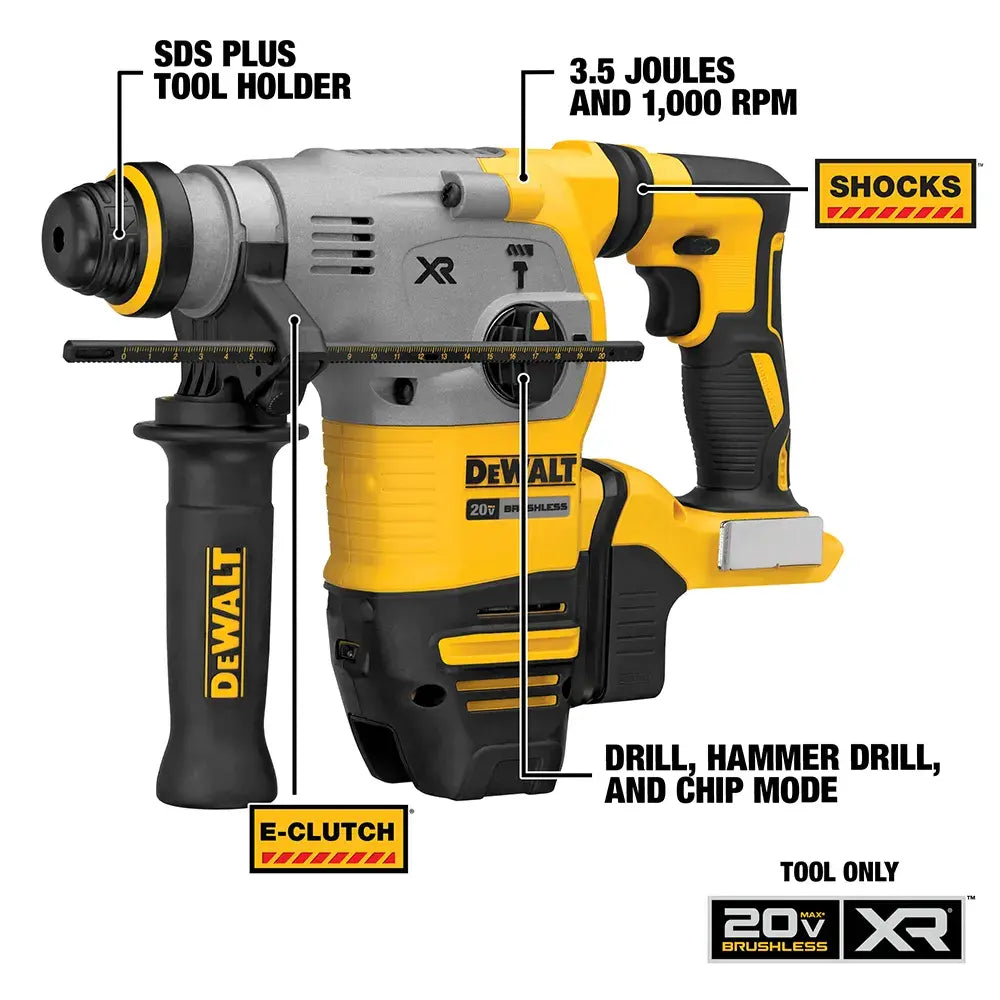

A technical infographic of the DEWALT DCH293B labeling key professional features. Callouts highlight the SDS Plus tool holder, the high-performance 3.5 Joules and 1,000 RPM rating, the SHOCKS Active Vibration Control, the Anti-Rotation E-Clutch system, and the three application modes: drill, hammer drill, and chip.
A graphic listing the ideal applications for the DEWALT DCH293B rotary hammer. Professional uses listed include structural connections, beam and column anchorage, rod hanging, seismic and safety attachments, cable tray and strut mounting, and steel stanchion mounting.
A safety feature graphic for the DEWALT Anti-Rotation E-Clutch System. The yellow and black icon indicates that the system is designed to protect the user by automatically shutting down the tool in bind-up situations.
A technical feature graphic for the SHOCKS Active-Vibration Control System. The icon emphasizes that this integrated technology reduces the level of vibration felt by the user at the handles during high-impact drilling and chipping tasks.

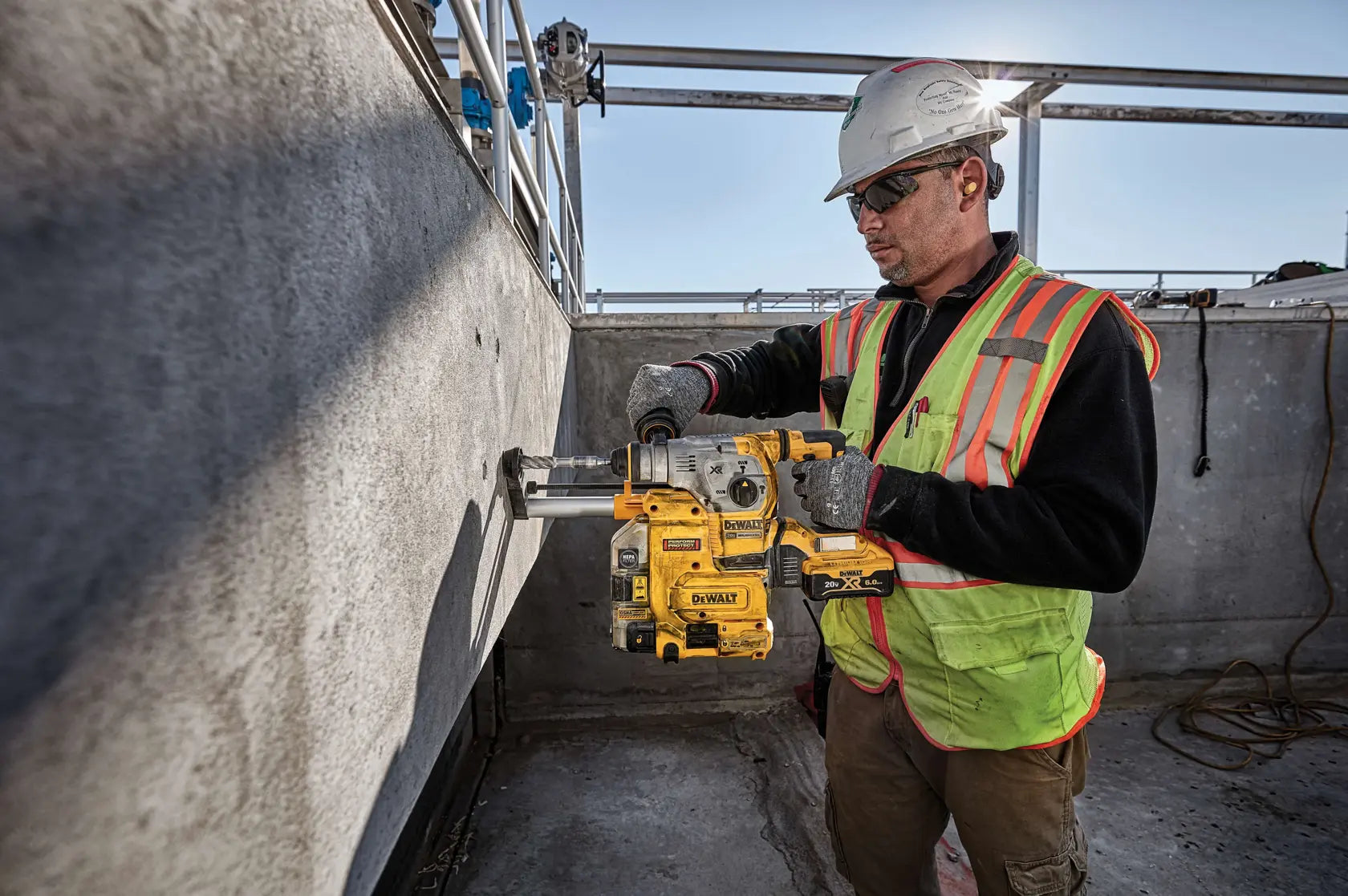

An action shot of a professional contractor using the DEWALT DCH293B rotary hammer to drill into a vertical concrete wall. The tool is shown equipped with an on-board dust extractor for OSHA Table 1 compliance, demonstrating its efficiency in industrial construction environments.
A lifestyle shot of a worker using the DEWALT 20V MAX XR SDS Plus rotary hammer to drill overhead into a concrete ceiling. The image highlights the tool's L-shape balance and the integrated dust extraction system, providing a clear view of precision rod hanging applications.

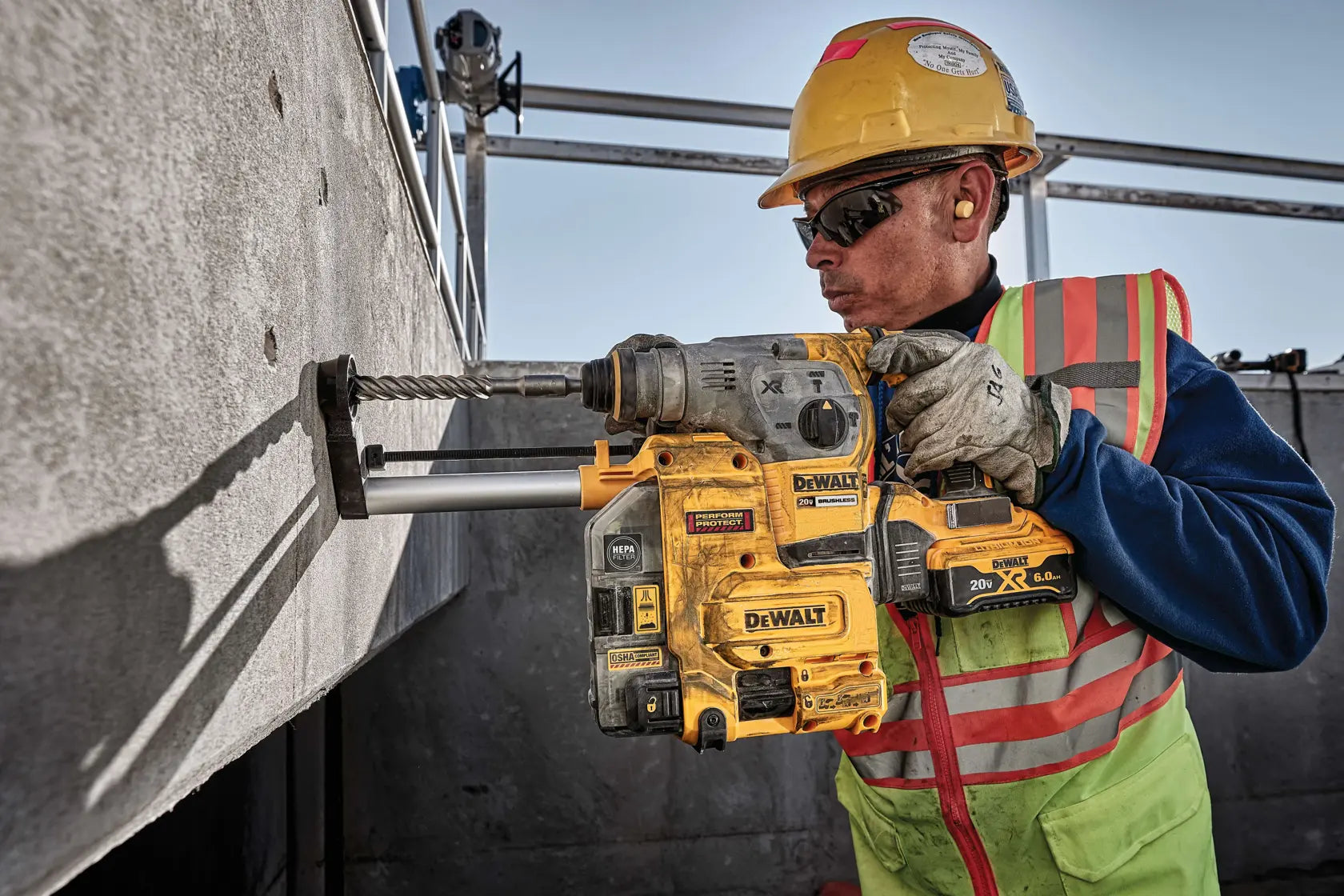

A close-up action photograph of a craftsman drilling into a concrete structure with the DEWALT DCH293B. The high-torque performance is displayed as the tool makes a large-diameter hole, utilizing the 3.5 Joules of impact energy and 1-1/8 inch capacity.
A marketing graphic for the DEWALT DCH293B bare tool featuring a yellow strike-through circle over a battery and charger. Large text at the bottom states BATTERY AND CHARGER SOLD SEPARATELY, clearly communicating the product configuration to consumers and search engines.
DEWALT® Product Guide - PERFORM & PROTECT™ - Vibration promotional how to video

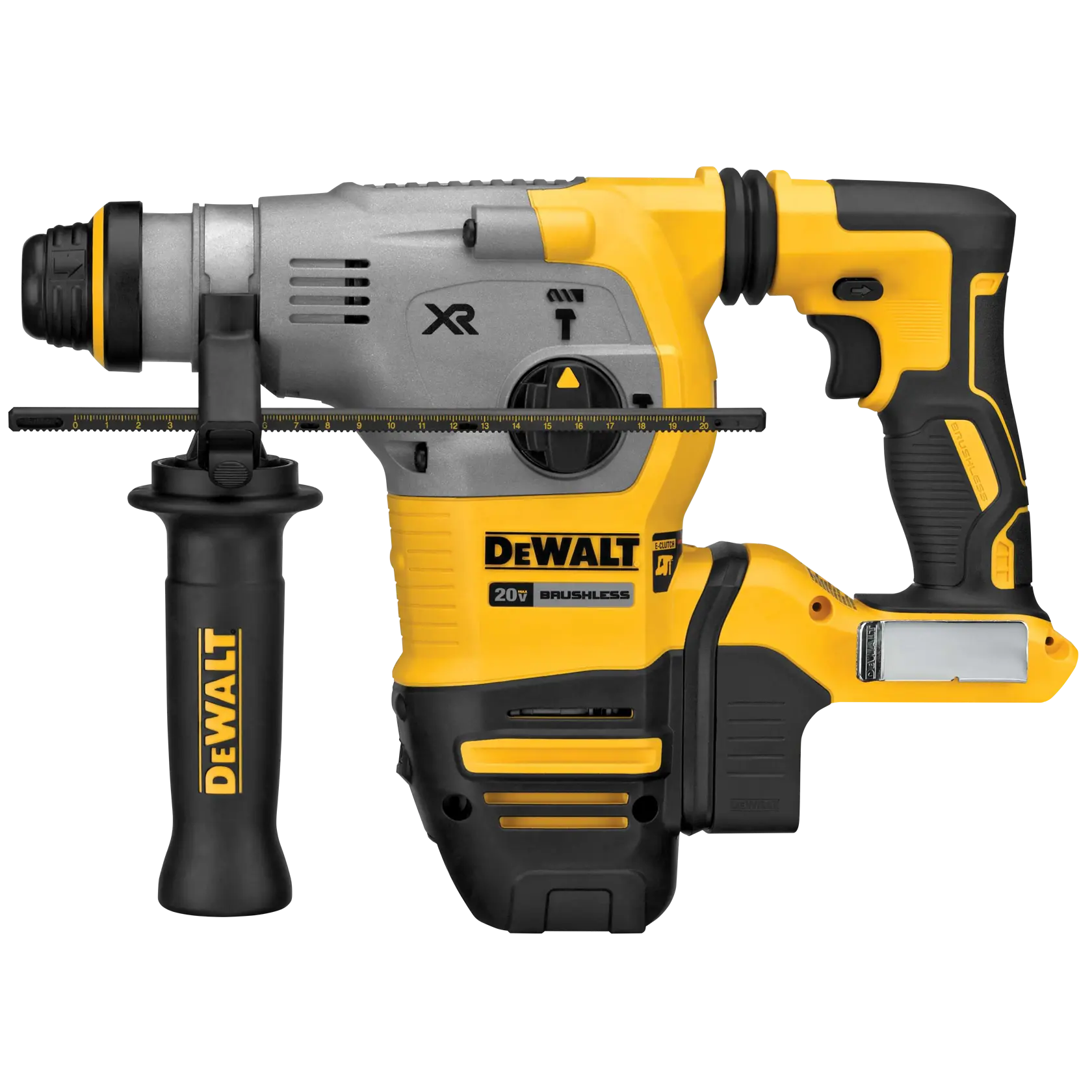

A studio profile view of the DEWALT DCH293B 20V MAX XR brushless 1-1/8 inch SDS Plus L-shape rotary hammer. The image shows the professional yellow and black tool with the side handle and depth rod attached, highlighting its ergonomic L-shape design and XR Brushless branding.

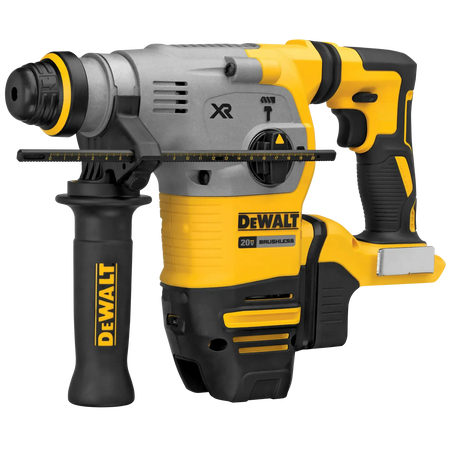

A perspective view of the DEWALT DCH293B rotary hammer showcasing the SDS Plus tool holder and the rotating mode selection dial. The image emphasizes the rugged construction of the tool, including the 360-degree adjustable side handle for enhanced drilling control.
A technical infographic of the DEWALT DCH293B labeling key professional features. Callouts highlight the SDS Plus tool holder, the high-performance 3.5 Joules and 1,000 RPM rating, the SHOCKS Active Vibration Control, the Anti-Rotation E-Clutch system, and the three application modes: drill, hammer drill, and chip.
A graphic listing the ideal applications for the DEWALT DCH293B rotary hammer. Professional uses listed include structural connections, beam and column anchorage, rod hanging, seismic and safety attachments, cable tray and strut mounting, and steel stanchion mounting.
A safety feature graphic for the DEWALT Anti-Rotation E-Clutch System. The yellow and black icon indicates that the system is designed to protect the user by automatically shutting down the tool in bind-up situations.
A technical feature graphic for the SHOCKS Active-Vibration Control System. The icon emphasizes that this integrated technology reduces the level of vibration felt by the user at the handles during high-impact drilling and chipping tasks.
An action shot of a professional contractor using the DEWALT DCH293B rotary hammer to drill into a vertical concrete wall. The tool is shown equipped with an on-board dust extractor for OSHA Table 1 compliance, demonstrating its efficiency in industrial construction environments.

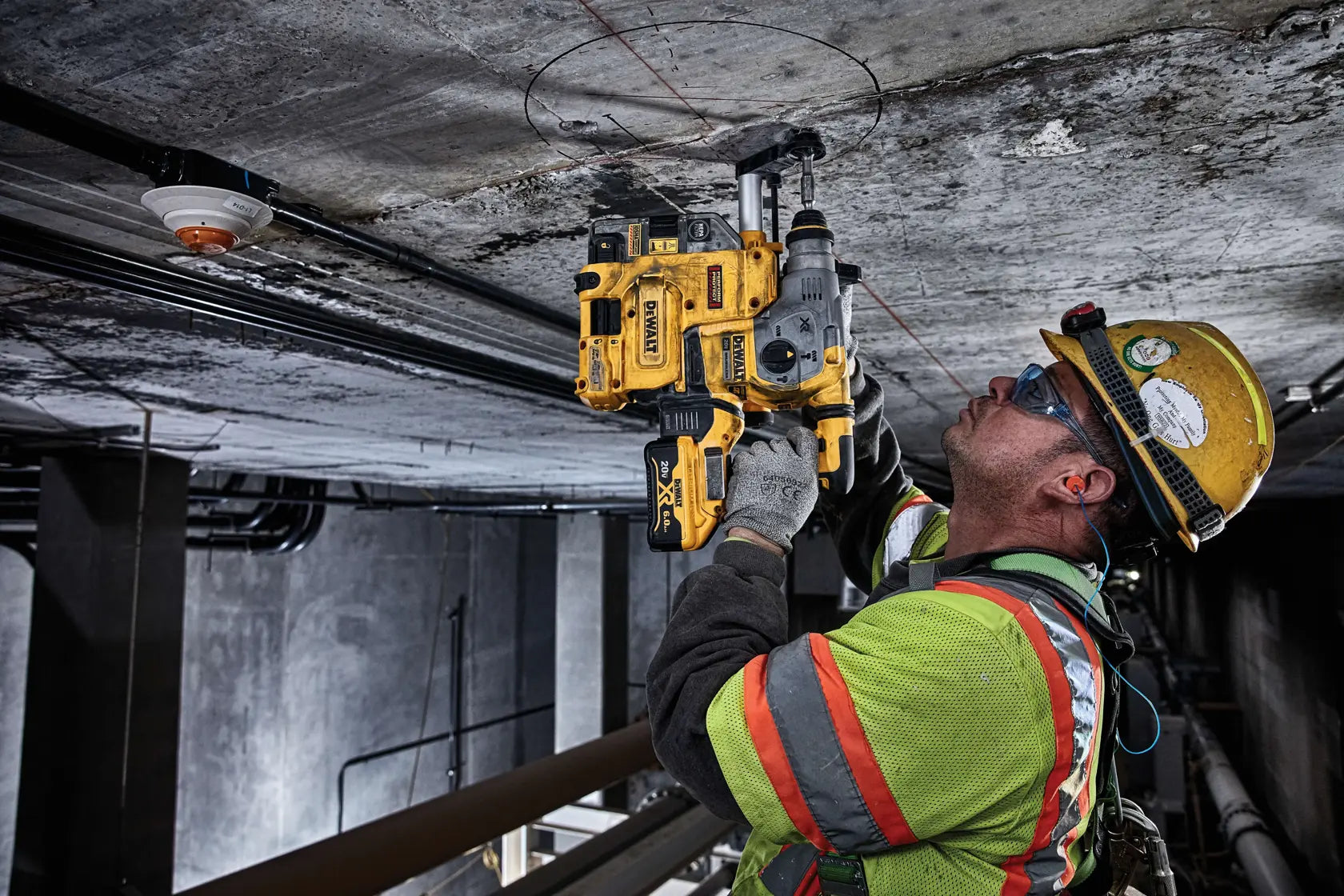

A lifestyle shot of a worker using the DEWALT 20V MAX XR SDS Plus rotary hammer to drill overhead into a concrete ceiling. The image highlights the tool's L-shape balance and the integrated dust extraction system, providing a clear view of precision rod hanging applications.

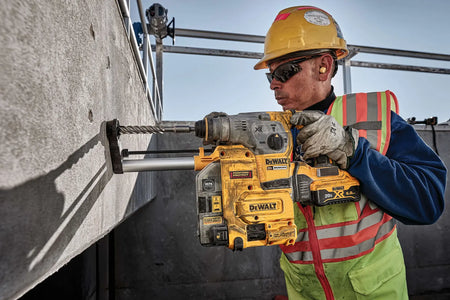

A close-up action photograph of a craftsman drilling into a concrete structure with the DEWALT DCH293B. The high-torque performance is displayed as the tool makes a large-diameter hole, utilizing the 3.5 Joules of impact energy and 1-1/8 inch capacity.
A marketing graphic for the DEWALT DCH293B bare tool featuring a yellow strike-through circle over a battery and charger. Large text at the bottom states BATTERY AND CHARGER SOLD SEPARATELY, clearly communicating the product configuration to consumers and search engines.
DEWALT® Product Guide - PERFORM & PROTECT™ - Vibration promotional how to video
DEWALT

DEWALT DCH293B 20V MAX XR Brushless 1-1/8 Inch SDS Plus L-Shape Rotary Hammer 3.5 Joules Impact Energy E-Clutch Vibration Control Bare Tool No Battery

In stock
SKU: DCH293B
$499.00

Description

Authorized Dealer Badge DEWALT logout

High-Impact Concrete Drilling: Professional 20V MAX XR Brushless 1-1/8" SDS Plus Rotary Hammer with Advanced Safety Systems

The DEWALT DCH293B 20V MAX XR Brushless 1-1/8 in. L-Shape Rotary Hammer is a high-performance cordless solution engineered for heavy-duty drilling in reinforced concrete. Driven by a powerful brushless motor and a durable German-engineered mechanism, this tool delivers a formidable 3.5 Joules of impact energy. Its specialized L-shape design provides a balanced feel, making it the go-to choice for structural connections, seismic attachments, and beam anchorage. Whether you are mounting steel stanchions or hanging rods, this rotary hammer provides the raw power of a corded tool with the freedom of the 20V MAX* platform.

Safety and user comfort are at the forefront of the DCH293B’s design. It features the SHOCKS Active Vibration Control system, which significantly reduces vibration felt at the handles to minimize user fatigue during extended use. Additionally, the integrated Anti-Rotation E-CLUTCH System protects the operator by instantly stopping the bit rotation in bind-up situations. For those requiring a clean workspace, this tool is OSHA Table 1 compliant when paired with the DWH304DH on-board extractor, ensuring you meet strict safety standards while maintaining peak productivity on the jobsite.

**Battery and charger sold separately.

Key Features

  • 3.5 Joules of Impact Energy: Engineered for fast, aggressive drilling in even the hardest concrete.
  • Anti-Rotation E-CLUTCH® System: Advanced sensors detect bind-ups and shut down the motor in milliseconds to protect the user.
  • SHOCKS™ Active Vibration Control: Internal dampened mechanism reduces vibration at the handles for improved comfort.
  • Brushless Motor Technology: Maximizes runtime and tool life while delivering consistent power under load.
  • Three-Mode Operation: Versatile rotating dial allows for easy switching between Drill, Hammer Drill, and Chipping modes.
  • L-Shape Design: Offers superior balance and control, ideal for vertical and overhead applications.
  • OSHA Table 1 Compliant: Achieve dust-free drilling when used with the compatible DWH304DH extraction system.

What's Included

  • (1) DCH293 20V MAX* XR 1-1/8" SDS Plus Rotary Hammer
  • (1) 360° Side Handle
  • (1) Depth Rod

Specifications

Voltage 20V MAX*
Impact Energy 3.5 Joules
Chuck Type SDS Plus
Optimal Drilling Range 5/8" to 7/8"
No Load Speed 0 - 1,000 RPM
Blows Per Minute 0 - 4,480 BPM
Motor Type Brushless
Assembled Weight 9.15 lbs
Assembled Length 15.5 Inches
Assembled Height 10.63 Inches
Assembled Width 4.0 Inches
UPC / Barcode 885911477499

Pro-Tip: To extend the life of your SDS Plus bits and the hammer's internal anvil, always apply a small amount of grease to the bit shank before inserting it into the chuck. This reduces friction and prevents the chuck from seizing during high-heat, high-impact drilling sessions.
