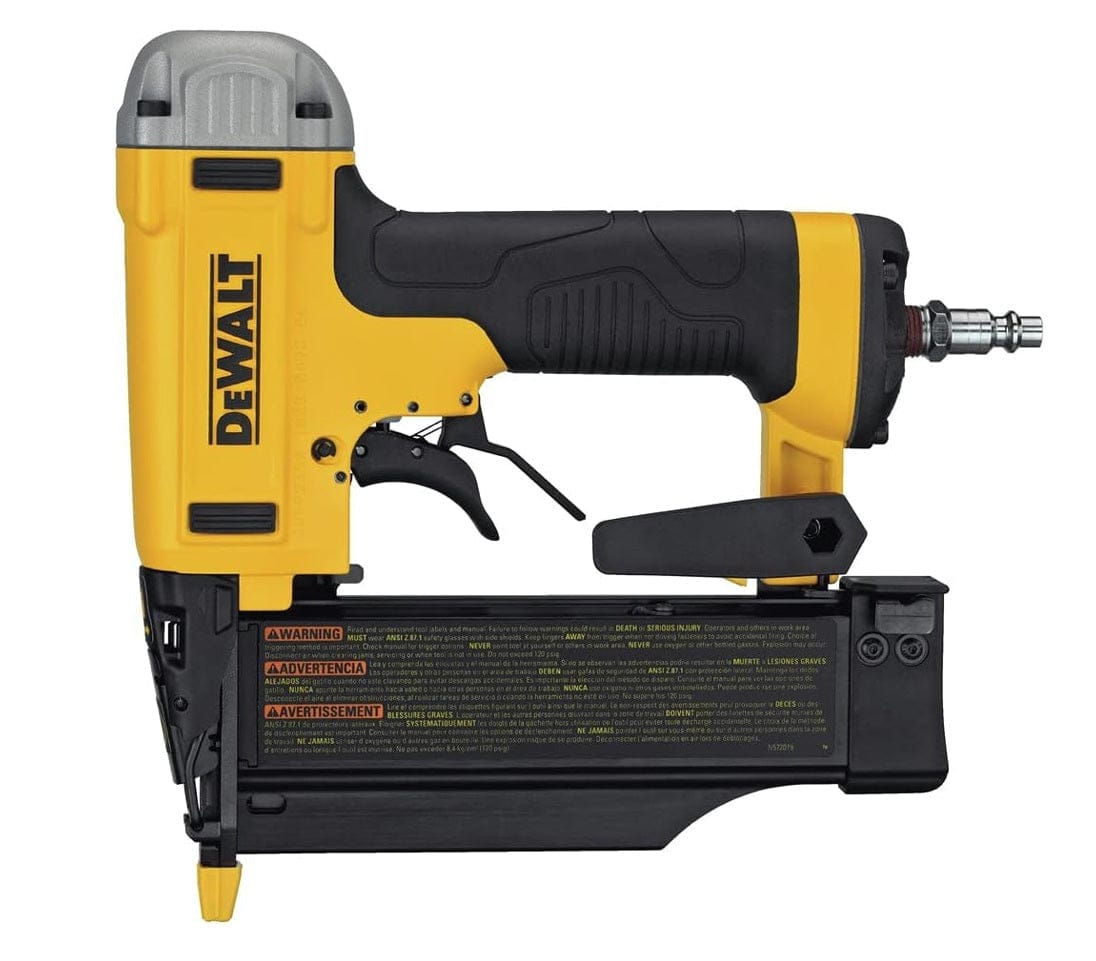

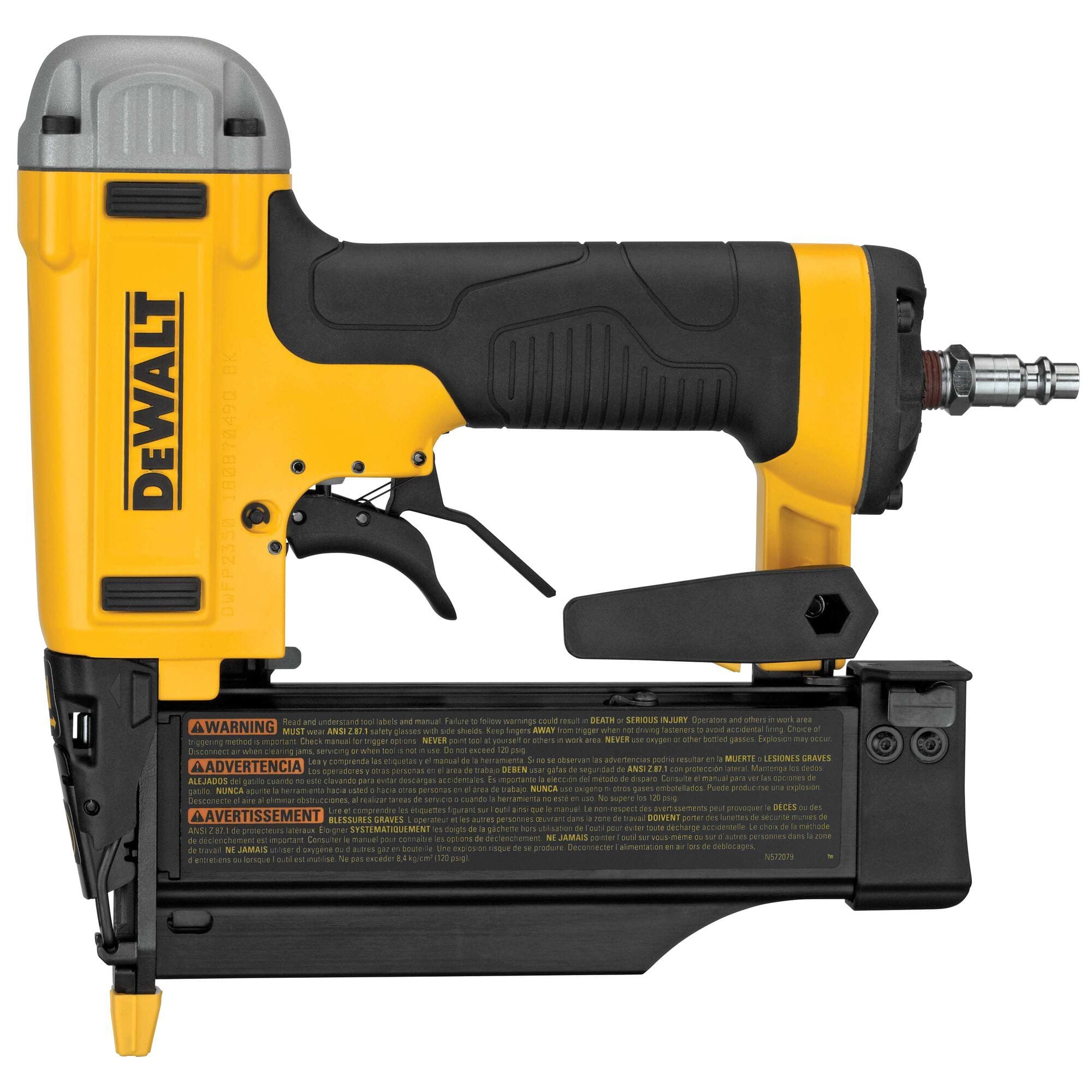

A side profile studio shot of the DeWalt DWFP2350K 23-gauge pin nailer, showing the trigger, magazine, and belt hook.

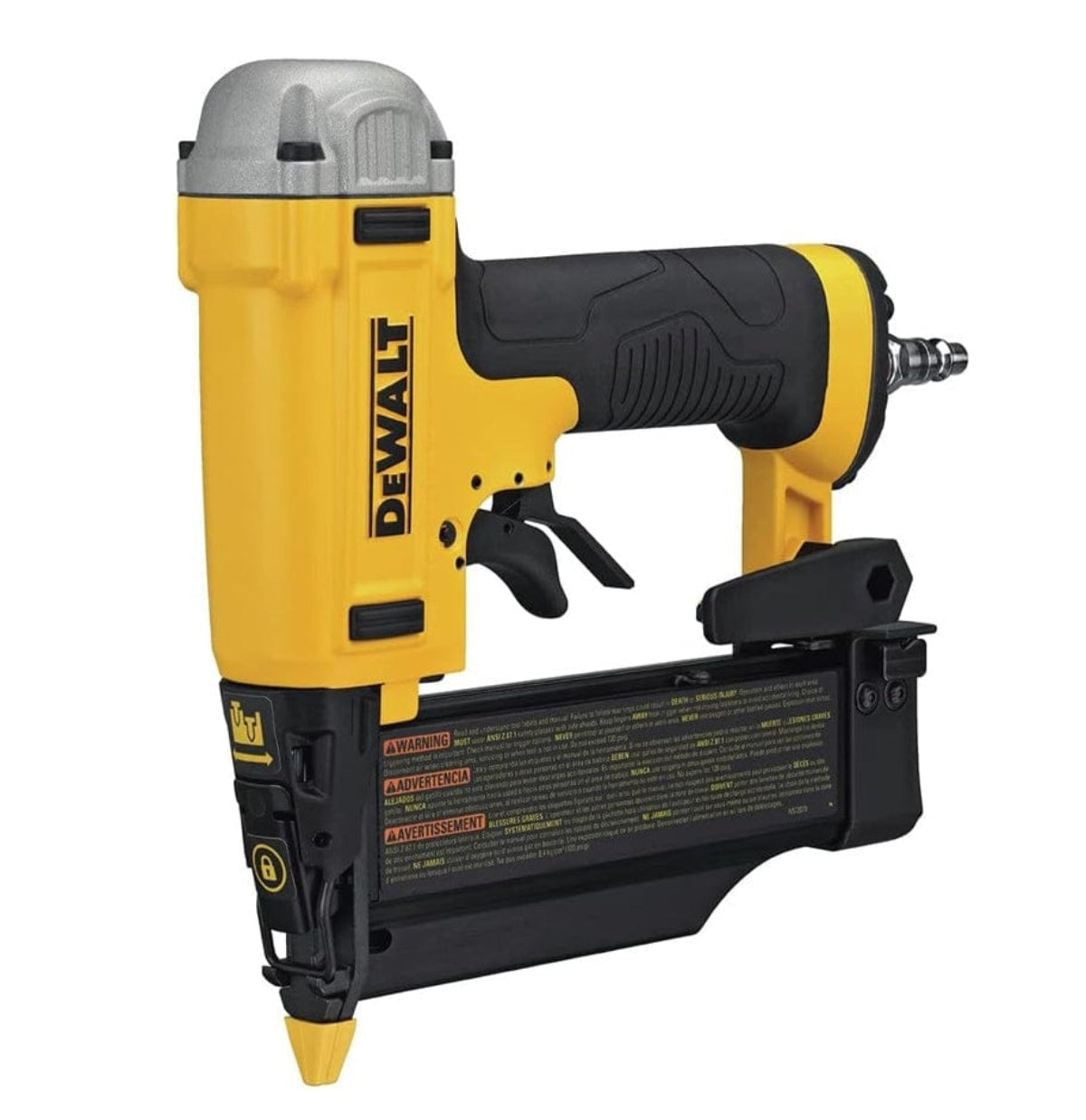

A three-quarter angle studio shot of the DeWalt DWFP2350K 23-gauge pin nailer.

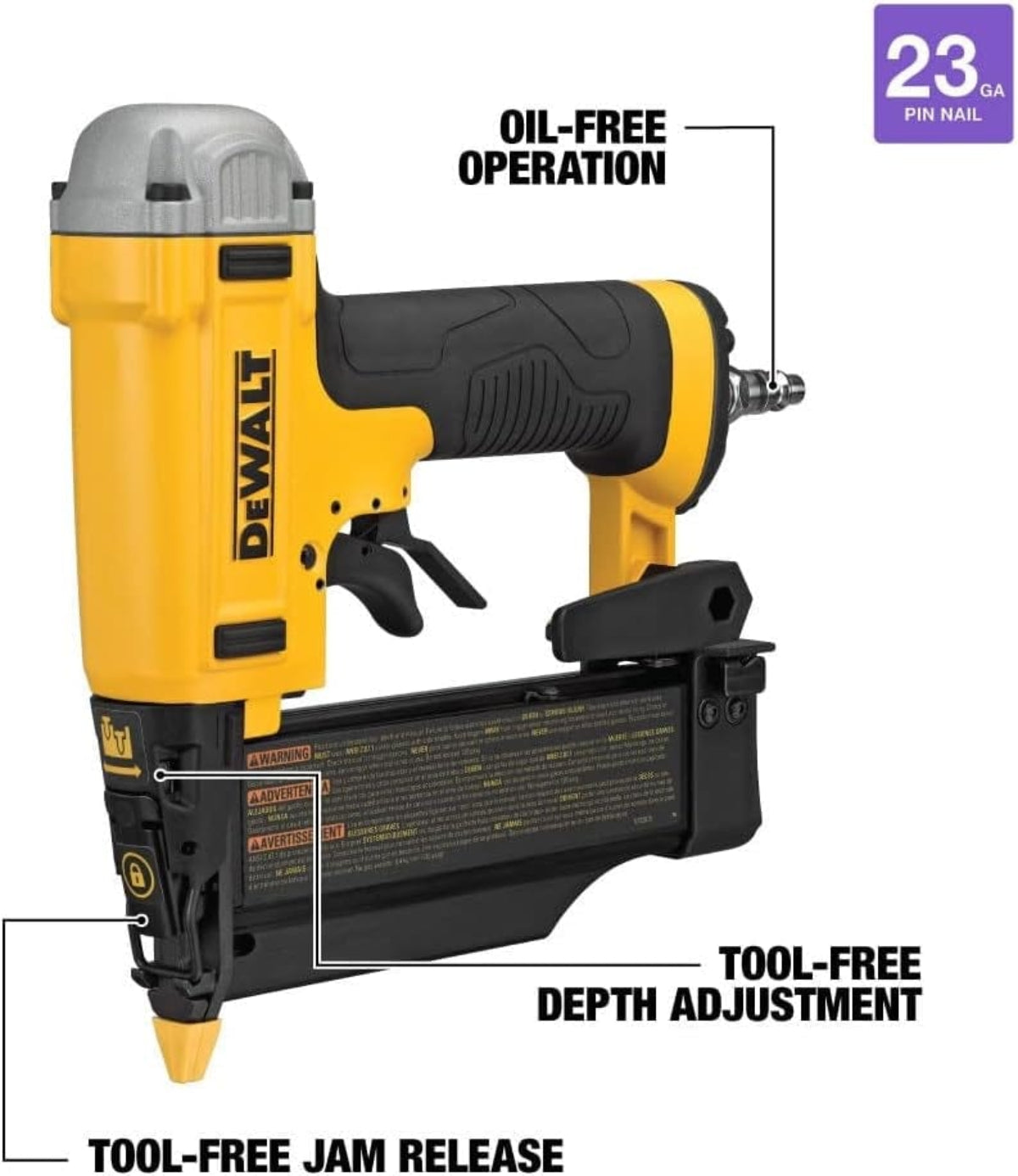

A feature callout diagram of the DeWalt DWFP2350K pin nailer, highlighting its oil-free operation, tool-free depth adjustment, and tool-free jam release.

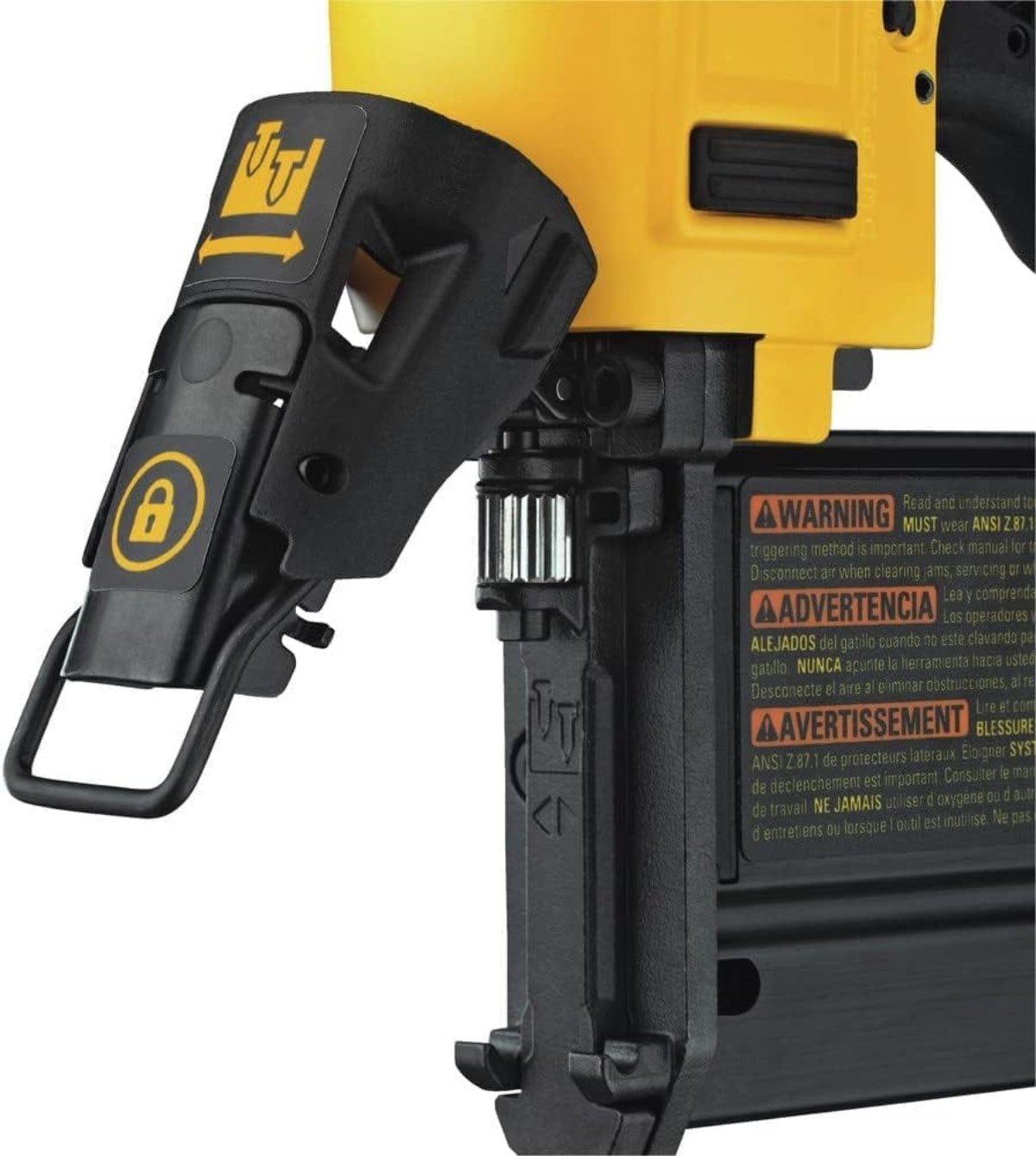

A close-up studio shot of the tool-free jam release mechanism on the nose of the DeWalt DWFP2350K pin nailer.
A close-up studio shot of the tool-free jam release mechanism on the nose of the DeWalt DWFP2350K pin nailer.
A side profile studio shot of the DeWalt DWFP2350K 23-gauge pin nailer, showing the trigger, magazine, and belt hook.
A close-up studio shot of the tool-free jam release mechanism on the nose of the DeWalt DWFP2350K pin nailer.

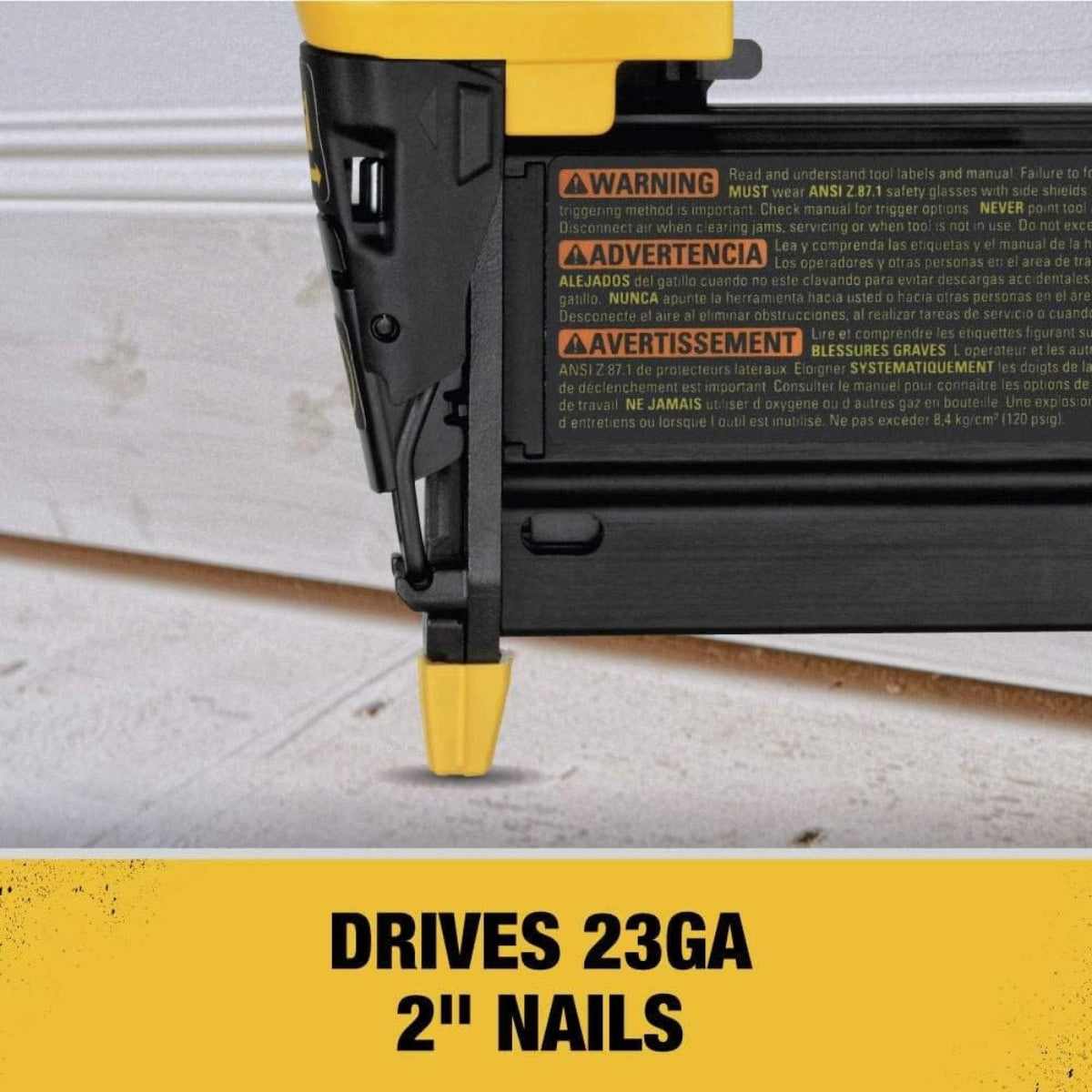

A close-up marketing graphic of the nose of the DeWalt pin nailer, with text that reads "DRIVES 23GA 2" NAILS".

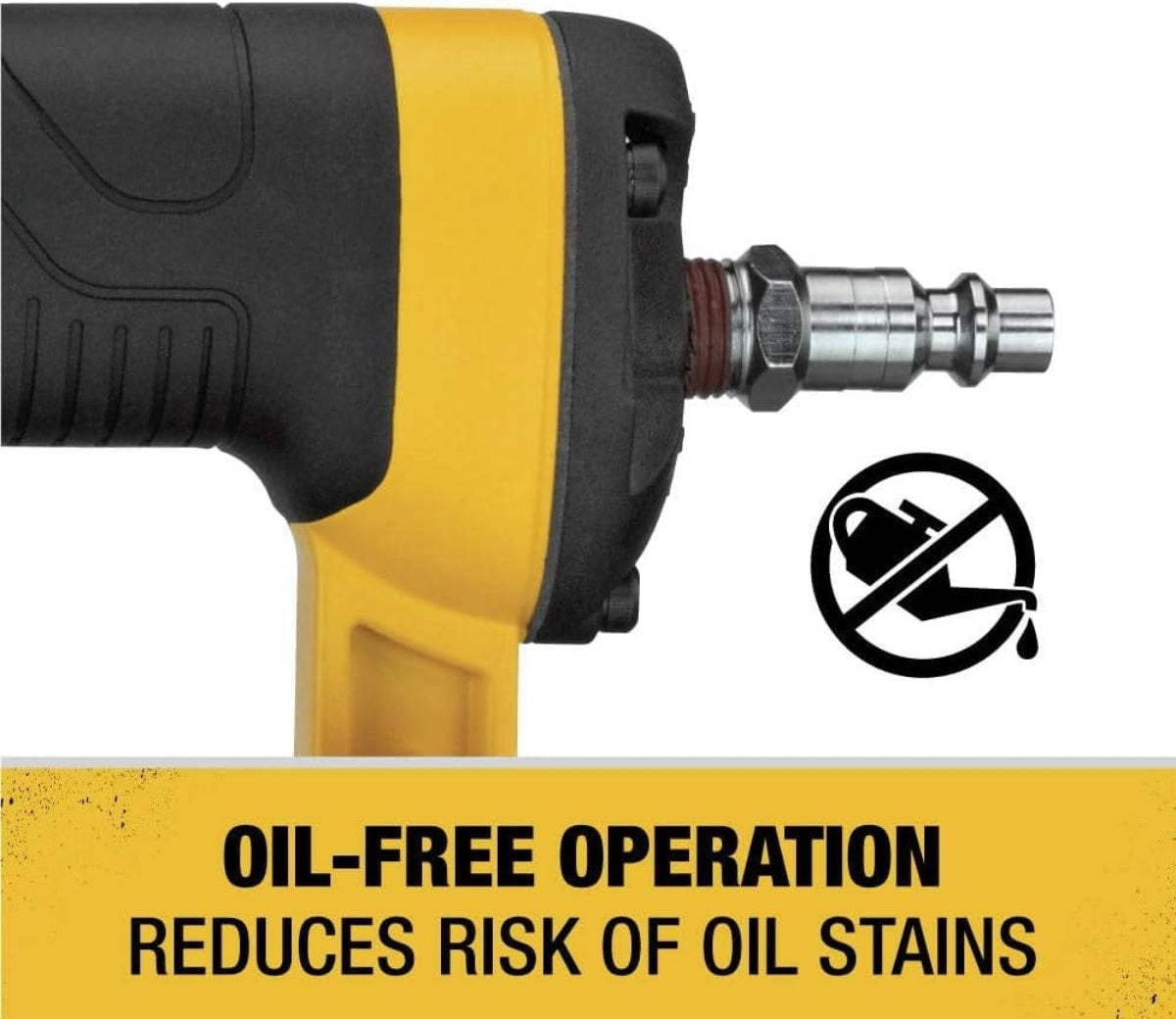

A close-up marketing graphic showing the air inlet on the DeWalt pin nailer, with an icon and text that reads "OIL-FREE OPERATION REDUCES RISK OF OIL STAINS".
DEWALT® FLEXVOLT® The Power of Freedom: Highway promotional video
A side profile studio shot of the DeWalt DWFP2350K 23-gauge pin nailer, showing the trigger, magazine, and belt hook.
A three-quarter angle studio shot of the DeWalt DWFP2350K 23-gauge pin nailer.
A feature callout diagram of the DeWalt DWFP2350K pin nailer, highlighting its oil-free operation, tool-free depth adjustment, and tool-free jam release.
A close-up studio shot of the tool-free jam release mechanism on the nose of the DeWalt DWFP2350K pin nailer.
A close-up studio shot of the tool-free jam release mechanism on the nose of the DeWalt DWFP2350K pin nailer.
A side profile studio shot of the DeWalt DWFP2350K 23-gauge pin nailer, showing the trigger, magazine, and belt hook.
A close-up studio shot of the tool-free jam release mechanism on the nose of the DeWalt DWFP2350K pin nailer.
A close-up marketing graphic of the nose of the DeWalt pin nailer, with text that reads "DRIVES 23GA 2" NAILS".
A close-up marketing graphic showing the air inlet on the DeWalt pin nailer, with an icon and text that reads "OIL-FREE OPERATION REDUCES RISK OF OIL STAINS".
DEWALT® FLEXVOLT® The Power of Freedom: Highway promotional video
DEWALT

DeWalt Pin Nailer DWFP2350K 23 Gauge (5/8 to 2 Inch Headless Pins Oil Free Motor Tool Free Depth Adjustment Finishing Cabinetry Trim)

Only 3 left
SKU: DWFP2350K
$169.00 USD

Description

Authorized Dealer Badge DEWALT logout

DeWalt DWFP2350K 23-Gauge 2-Inch Pneumatic Pin Nailer Kit

The DeWalt DWFP2350K 23-Gauge 2-Inch Pneumatic Pin Nailer Kit is an ultra-fine finishing tool engineered to set 5/8-inch to 2-inch headless pins completely flush into dense hardwoods like oak and maple. Featuring a maintenance-free oil-free motor, a tool-free jam release, and a tool-free depth-of-drive adjustment, this 5.1-pound pneumatic pinner solves invisible fastening challenges across pre-finished cabinetry, delicate trim, and custom furniture assembly. Designed with an integrated low-nail lockout and no-mar tips, this tool prevents driver blade indentations while securing intricate millwork without requiring wood putty.

Best Used For:

  • Custom Cabinetry & Face Frame Assembly: Fastening delicate crown molding, scribe moldings, and decorative trim to pre-finished cabinets without leaving visible nail holes.
  • Hardwood Millwork & Trim Installation: Sinking 2-inch headless pins flush into solid oak, maple, or cherry stock without splitting thin wood profiles.
  • Intricate Picture Frame & Furniture Crafting: Holding small dowels, raised panels, and detailed wood moldings securely while adhesives cure.

Key Performance & Safety Features

  • Invisible Fastening Performance: Drives 23-gauge headless pins smoothly to eliminate nail head filling and surface sanding.
  • Oil-Free Motor Architecture: Prevents oil misting and surface staining on expensive pre-finished wood materials.
  • Tool-Free Jam Release: Allows instant clearing of jammed pins to minimize jobsite downtime without auxiliary hex keys.

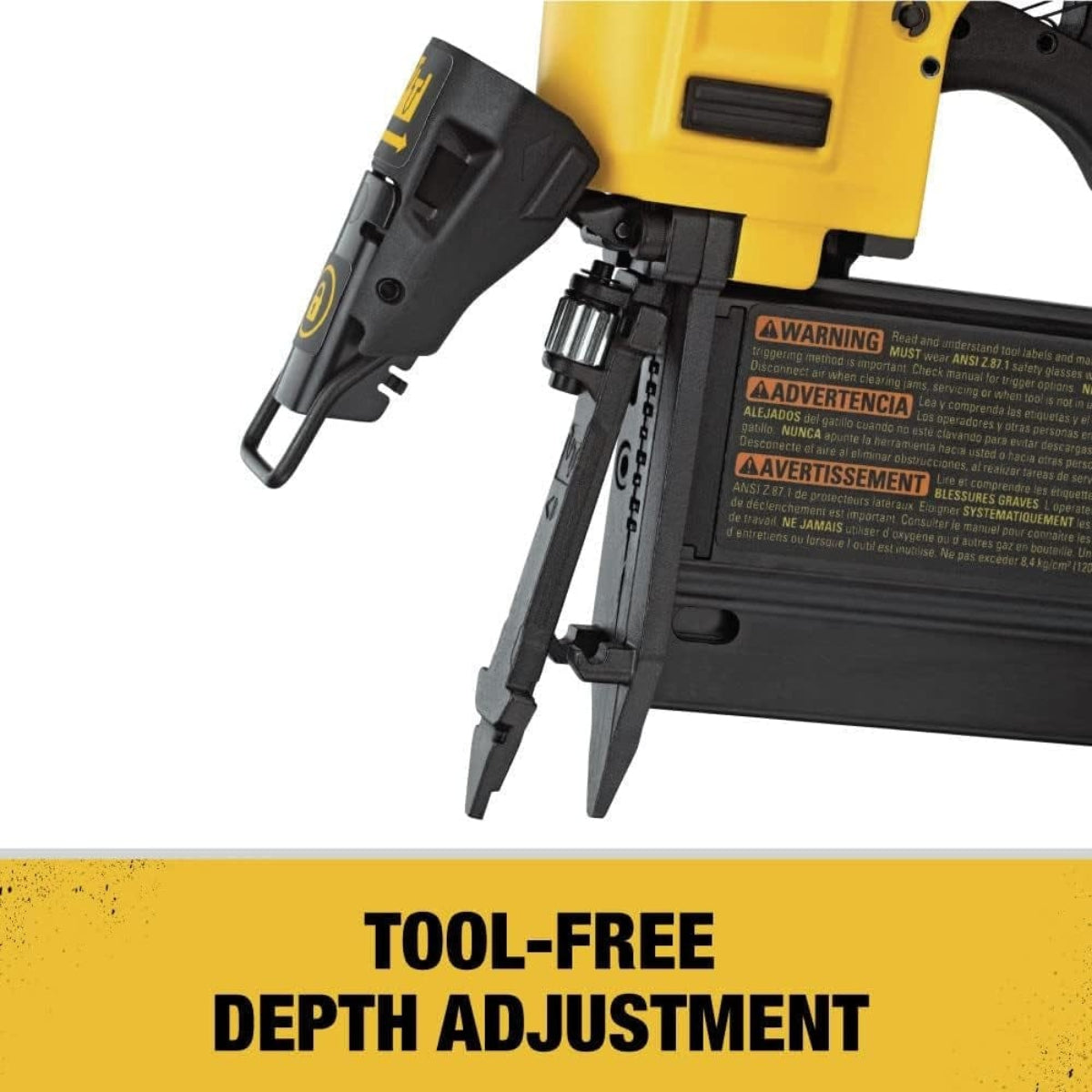

  • Tool-Free Depth Adjustment: Enables accurate countersinking control across varying wood species and material densities.
  • Low Nail Lockout System: Inhibits dry firing when pin supply is depleted to protect the workpiece surface from driver blade damage.
  • Protective No-Mar Tips: Included rubber tips preserve delicate trim surfaces from accidental contact marks.

What's Included

  • (1) DEWALT 23 GA 2-Inch Pin Nailer (DWFP2350K)
  • (1) 1/4 in. Air Fitting
  • (2) No-Mar Tips
  • (1) Heavy-Duty Carrying Case
  • (1) Owner's Manual

Technical Specifications

Manufacturer Brand DEWALT
Model Number / Part ID DWFP2350K
Tool Classification Type Headless Pneumatic Pin Nailer
Power Source Platform Pneumatic Air Compressor Driven
Fastener Wire Gauge 23-Gauge (23 GA)
Fastener Length Range 5/8 in. to 2.0 in. (15.88 mm to 50.8 mm)
Motor Drive System Oil-Free Maintenance-Free Engine
Depth Regulation Control Tool-Free Depth-of-Drive Adjustment
Total Assembled Net Weight 5.1 lbs (2.31 kg)
Overall Length Dimension 13.1 in. (33.27 cm)
Overall Height Dimension 12.82 in. (32.56 cm)
Overall Width Dimension 3.78 in. (9.6 cm)
Universal Product Code (UPC) 885911555005
Country of Origin Taiwan
Pro-Tip: Always press the no-mar nose tip flat and firm against the workpiece before pulling the trigger to ensure 23-gauge pins enter perfectly perpendicular without blowing out the side of thin decorative moldings.
