DeWalt Diamond Blade DW4735 4 Inch Continuous Rim XP2 XP4 (15200 Max RPM 5/8 Inch 7/8 Inch Arbor Wet Dry Porcelain Ceramic Tile Stone Cutting)

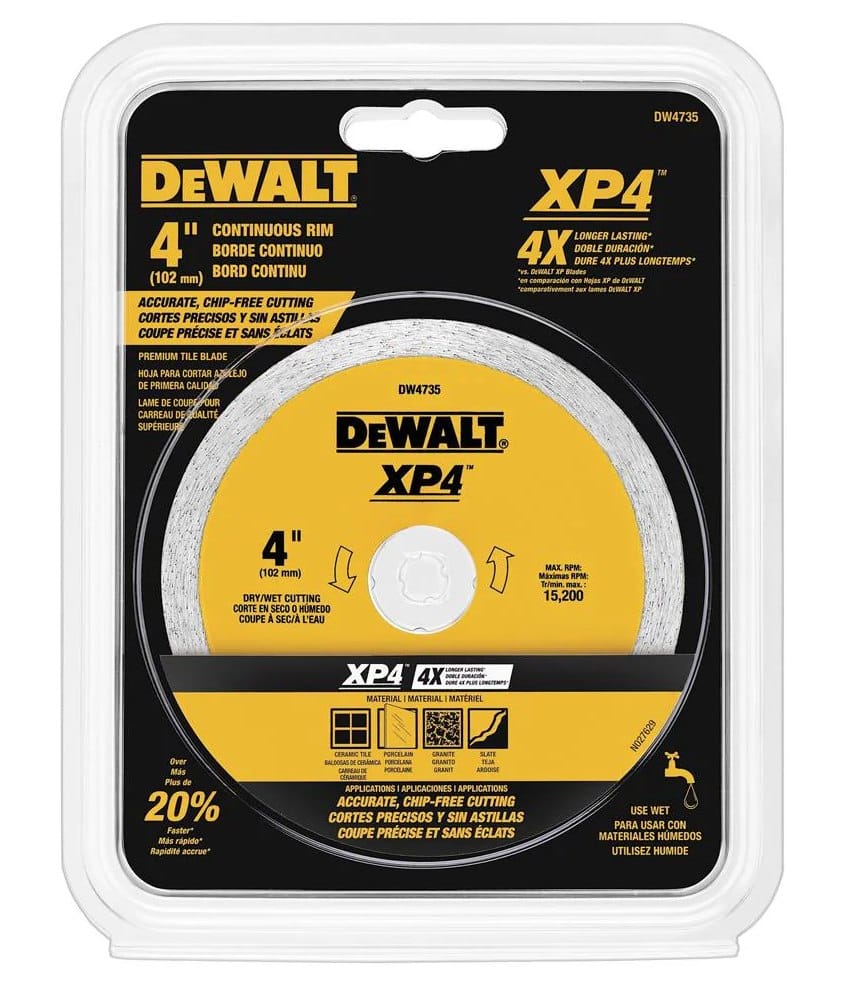

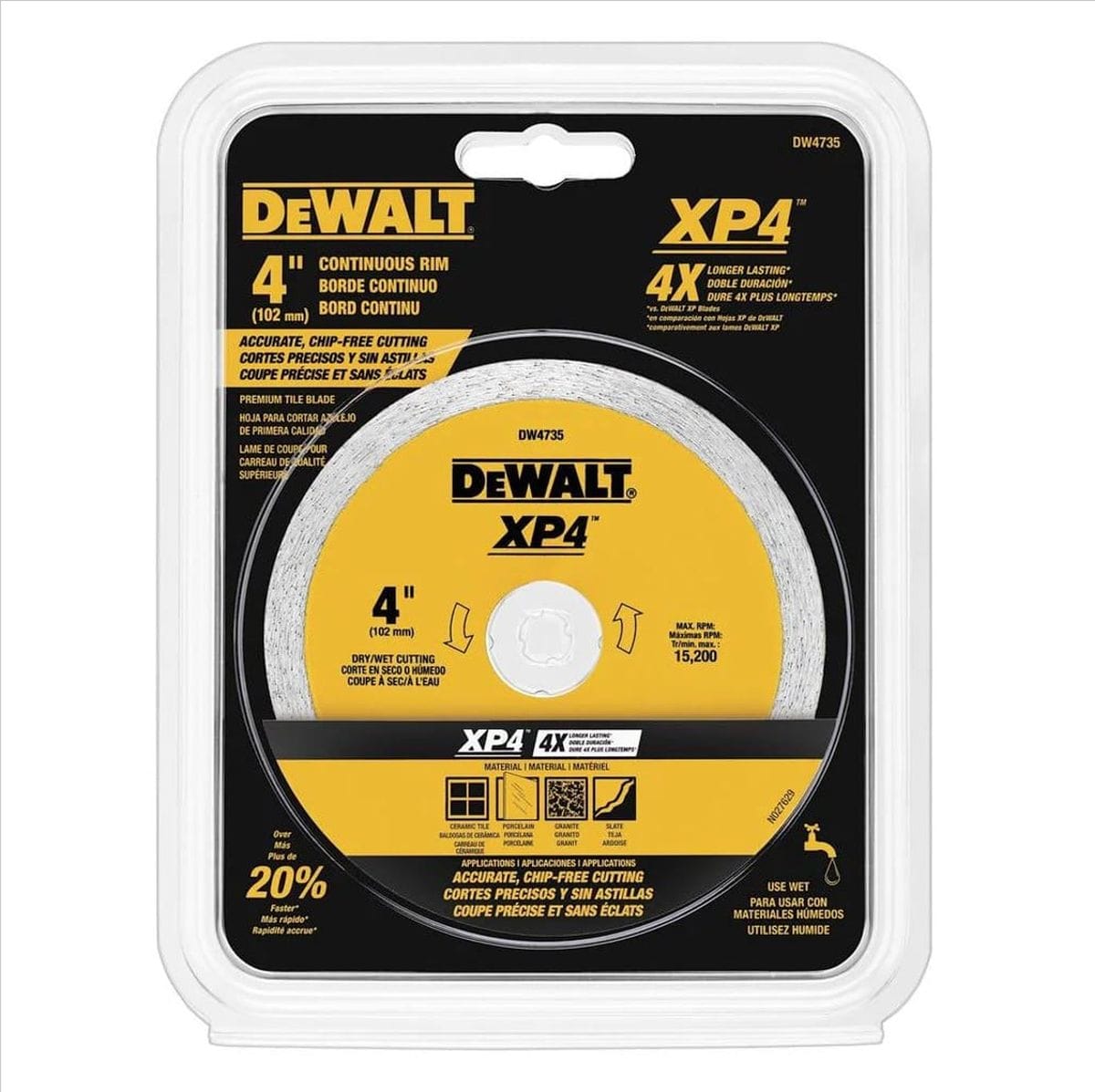

DeWalt DW4735 XP 4-Inch Continuous Rim Diamond Tile Saw Blade

The DeWalt DW4735 XP 4-Inch Continuous Rim Diamond Blade is an industrial masonry cutting accessory engineered for chip-free crosscutting in porcelain tile, ceramic wall tile, natural stone slabs, and slate. Formulated with an advanced XP2 and XP4 diamond matrix bonded to a 0.060-inch tensioned steel core operating at speeds up to 15,200 RPM, this dual-arbor (5/8-inch and 7/8-inch) blade provides up to four times the operating life of standard diamond wheels. Designed with laser-cut expansion slots that dissipate thermal body stress, this continuous rim wheel maintains straight cut tracking across wet tile saws and handheld small angle grinders.

Best Used For:

• Porcelain & Glazed Ceramic Tile Fitting: Slicing smooth, chip-free straight edges and joinery notches in hard porcelain floor tiles and bathroom wall panels.
• Natural Stone & Marble Slab Sizing: Executing clean perpendicular cuts through dense marble slabs, granite borders, and natural slate tiles without edge fracture.

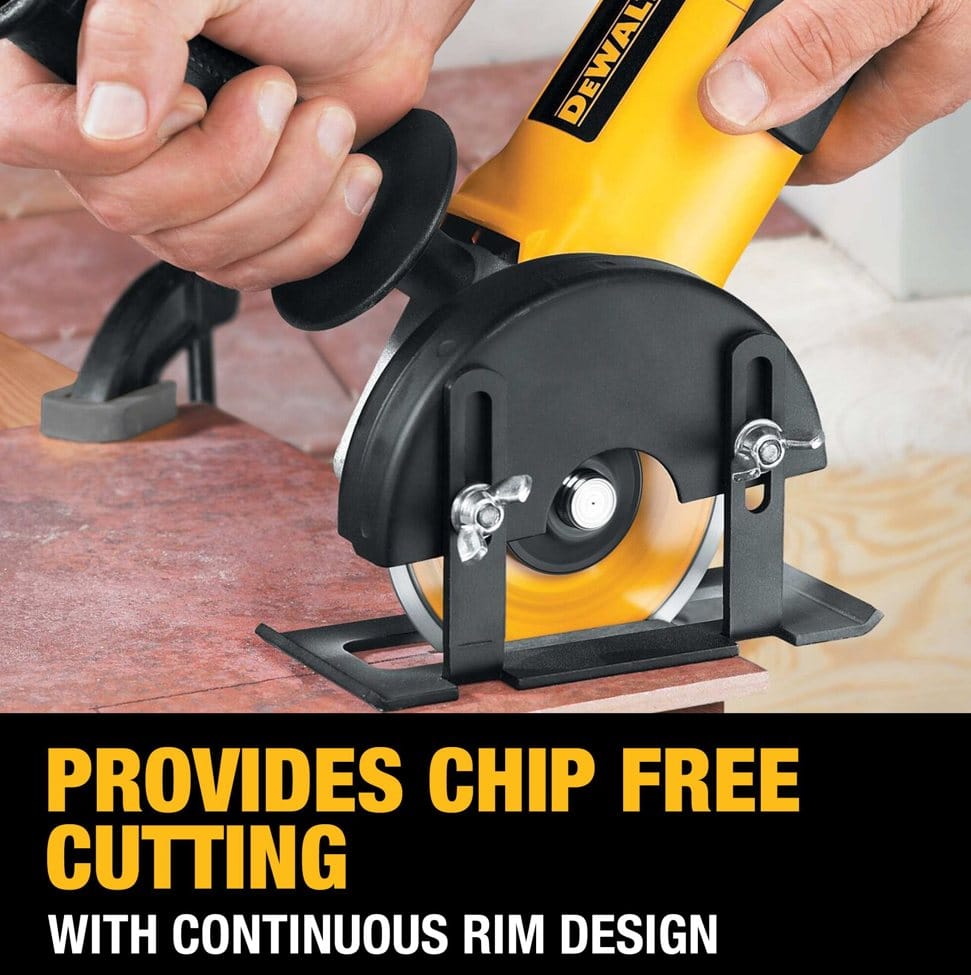

• Tile Outlet & Valve Window Cutouts: Slotting internal cutout windows and pipe passage holes in floor tiles using small handheld angle grinders.

Key Performance & Safety Features

• XP2 / XP4 High-Density Diamond Matrix: Advanced synthetic diamond concentration extends blade life up to 4X longer than conventional tile blades.
• Smooth Continuous Rim Geometry: Eliminates gullets to maintain constant edge contact for chip-free cutting through dense porcelain and glass tile.
• Laser-Cut Thermal Expansion Slots: Precision slots trap body expansion and reduce thermal warping during continuous dry cutting operations.
• 0.060-Inch Thin Core Profile: Minimizes material engagement resistance to maximize cutting speed and reduce strain on grinder armatures.
• Dual 5/8-Inch and 7/8-Inch Arbor Fitment: Versatile arbor interface mounts directly to standard 4-inch handheld grinders and benchtop tile saws.
• Wet and Dry Application Capability: Operates efficiently dry for rapid field scoring or wet with water spray to suppress airborne silica dust and prolong rim life.

What's Included

• (1) DeWalt DW4735 4 In. XP Continuous Rim Diamond Blade

Technical Specifications

Pro-Tip: Dress the diamond rim periodically by making a shallow pass through a soft abrasive dressing stone; this strips away loaded glazed porcelain residue and exposes fresh XP diamond matrix edges for faster cutting.
