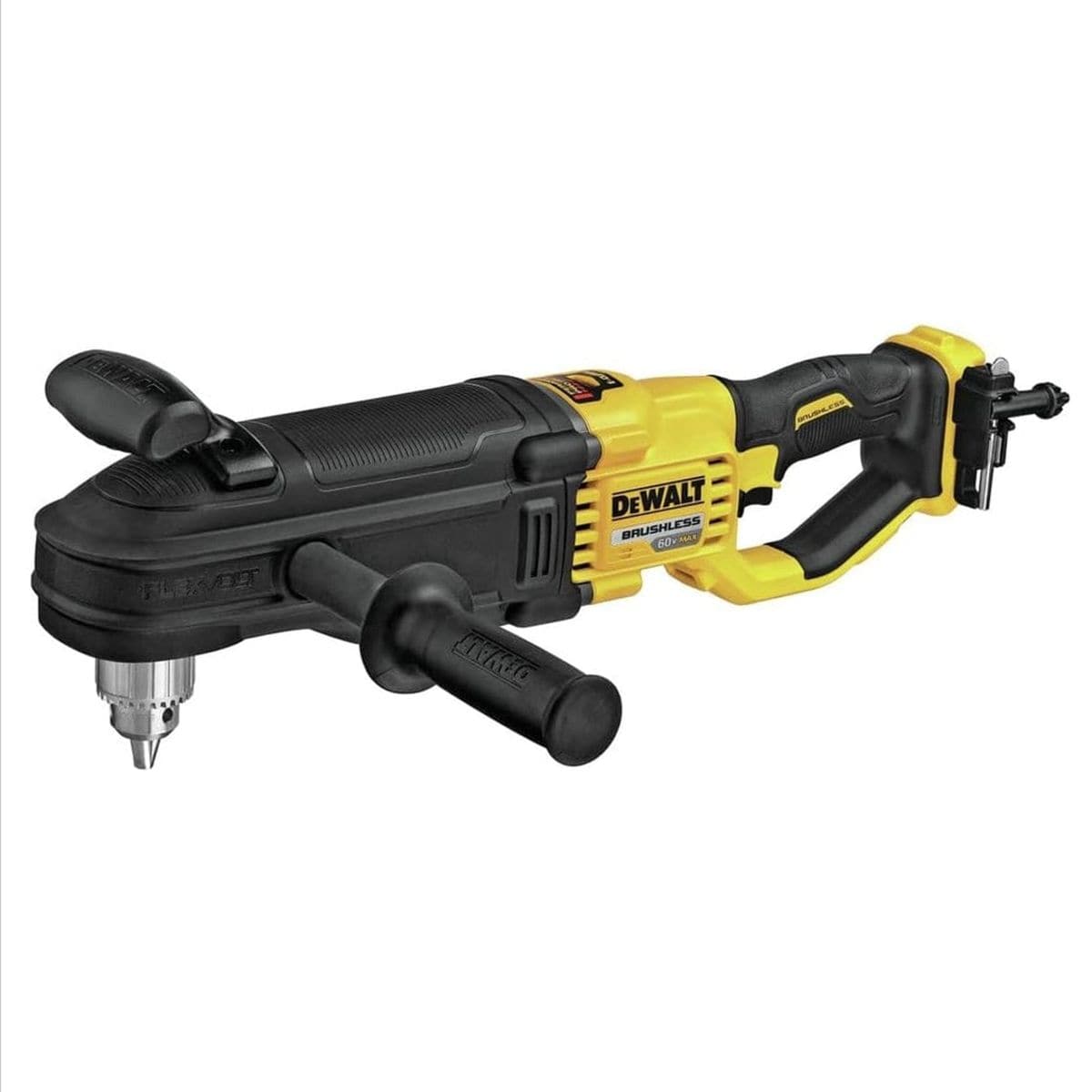

Angled profile of a DEWALT 60V MAX Brushless Cordless In-Line Stud and Joist Drill DCD470B Bare Tool featuring a 1/2 inch keyed chuck and adjustable side handle.
Side view of the DEWALT 60V MAX In-Line Stud and Joist Drill showing the ergonomic D-handle design and the integrated chuck key holder on the rear.
Close-up of the DEWALT DCD470B E-Clutch System indicator light and Perform Protect branding on the high-torque power tool housing.
Detailed view of the integrated LED work light located on the handle of the DEWALT 60V MAX cordless drill to illuminate dark workspaces.
Detailed view of the Tool Connect tag ready mounting point on the handle of the DEWALT brushless stud and joist drill.
Close-up of the 2-speed quick-shift speed selector dial on the top of the DEWALT DCD470B in-line drill for matching torque to application.
Angled profile of a DEWALT 60V MAX Brushless Cordless In-Line Stud and Joist Drill DCD470B Bare Tool featuring a 1/2 inch keyed chuck and adjustable side handle.
Product graphic highlighting the E-Clutch System, 2 variable speed ranges, and FLEXVOLT battery technology compatibility for the DEWALT joist drill.
Callout diagram for the DEWALT DCD470B Bare Tool identifying the E-Clutch indicator, chuck key holder, 2-speed settings, and removable side handle.
DEWALT 60V MAX In-Line Stud and Joist Drill being used to drill a large diameter hole in floor framing with high-torque brushless power.
A professional contractor using the DEWALT DCD470B Brushless Cordless Drill with an auger bit to drill through wall studs on a construction site.
Contractor kneeling on a jobsite using the high-torque DEWALT 60V MAX Brushless In-Line Drill and a hole saw to create a plumbing penetration in a floor plate.
Angled profile of a DEWALT 60V MAX Brushless Cordless In-Line Stud and Joist Drill DCD470B Bare Tool featuring a 1/2 inch keyed chuck and adjustable side handle.
Side view of the DEWALT 60V MAX In-Line Stud and Joist Drill showing the ergonomic D-handle design and the integrated chuck key holder on the rear.
Close-up of the DEWALT DCD470B E-Clutch System indicator light and Perform Protect branding on the high-torque power tool housing.
Detailed view of the integrated LED work light located on the handle of the DEWALT 60V MAX cordless drill to illuminate dark workspaces.
Detailed view of the Tool Connect tag ready mounting point on the handle of the DEWALT brushless stud and joist drill.
Close-up of the 2-speed quick-shift speed selector dial on the top of the DEWALT DCD470B in-line drill for matching torque to application.
Angled profile of a DEWALT 60V MAX Brushless Cordless In-Line Stud and Joist Drill DCD470B Bare Tool featuring a 1/2 inch keyed chuck and adjustable side handle.
Product graphic highlighting the E-Clutch System, 2 variable speed ranges, and FLEXVOLT battery technology compatibility for the DEWALT joist drill.
Callout diagram for the DEWALT DCD470B Bare Tool identifying the E-Clutch indicator, chuck key holder, 2-speed settings, and removable side handle.
DEWALT 60V MAX In-Line Stud and Joist Drill being used to drill a large diameter hole in floor framing with high-torque brushless power.
A professional contractor using the DEWALT DCD470B Brushless Cordless Drill with an auger bit to drill through wall studs on a construction site.
Contractor kneeling on a jobsite using the high-torque DEWALT 60V MAX Brushless In-Line Drill and a hole saw to create a plumbing penetration in a floor plate.
DEWALT

DEWALT 60V MAX In-Line Stud Joist Drill DCD470B 1/2 in. Brushless Tool (60V, 0-1320 RPM, Professional Plumbing and Framing)

Only 1 left
SKU: DCD470B
$469.00 USD

Description

Authorized Dealer Badge DEWALT logout

Professional In-Line Stud and Joist Drill with E-CLUTCH Technology

The DEWALT DCD470B is a high-torque 60V MAX* cordless in-line drill engineered for demanding stud and joist boring applications in professional plumbing and framing. Featuring a high-efficiency brushless motor, this tool delivers corded-equivalent power for boring large-diameter holes through structural lumber, while the integrated E-CLUTCH® system provides essential anti-rotation protection by automatically shutting down the tool during bind-up events. **Battery and charger sold separately.**

Best Used For:

  • Plumbing Rough-ins: Boring clean, high-torque holes through multiple wood joists for water supply and drain line installation.
  • Electrical Framing: Rapidly drilling through 16-inch or 24-inch stud bays for conduit and wire path routing.
  • Structural Carpentry: Driving large-diameter hole saws and self-feed bits into pressure-treated beams and laminated veneer lumber.

Key Performance & Safety Features

  • E-CLUTCH® System: Advanced anti-rotation technology detects sudden tool motion to mitigate torque-related injury risks.
  • Brushless Motor: High-performance 60V powertrain designed for maximum torque output and extended motor longevity.
  • 2-Speed Variable Range: Toggle between 0-400 and 0-1320 RPM settings to optimize speed for specific drilling diameters.
  • Magnesium Gear Case: Lightweight yet durable housing reduces operator fatigue without compromising jobsite structural integrity.
  • Tool Connect™ Ready: Dedicated internal pocket allows for seamless installation of DEWALT Tool Tags for asset inventory management.

What's Included

  • (1) DCD470 60V MAX* In-Line Stud and Joist Drill, (1) Side Handle, (1) Chuck Key.

Technical Specifications

Voltage: 60V MAX*
Motor Type: Brushless
Chuck Size: 1/2 in.
Chuck Type: Keyed
No Load Speed: 0-400 / 0-1320 RPM
Speed Settings: 2 Settings
Max Power: 300 Units Watts Out
Tool Length: 24 in.
Tool Height: 9 in.
Tool Width: 6 in.
Tool Weight: 18 lbs.

Pro-Tip: When boring large diameter holes through thick beams, always utilize the included side handle to maintain a firm, perpendicular stance. This prevents the drill from torquing out of alignment during the break-through phase, significantly reducing the stress on the chuck and ensuring a cleaner hole geometry.
