DEWALT 7450SD1 Power Stud SD1 7/8 x 6 In Carbon Steel Wedge Expansion Anchor Heavy Duty Structural Concrete Masonry Fasteners Pack of 10

Anchor Structural Steel Columns and Heavy Industrial Equipment to Cracked Concrete with Code-Compliant Tension Security

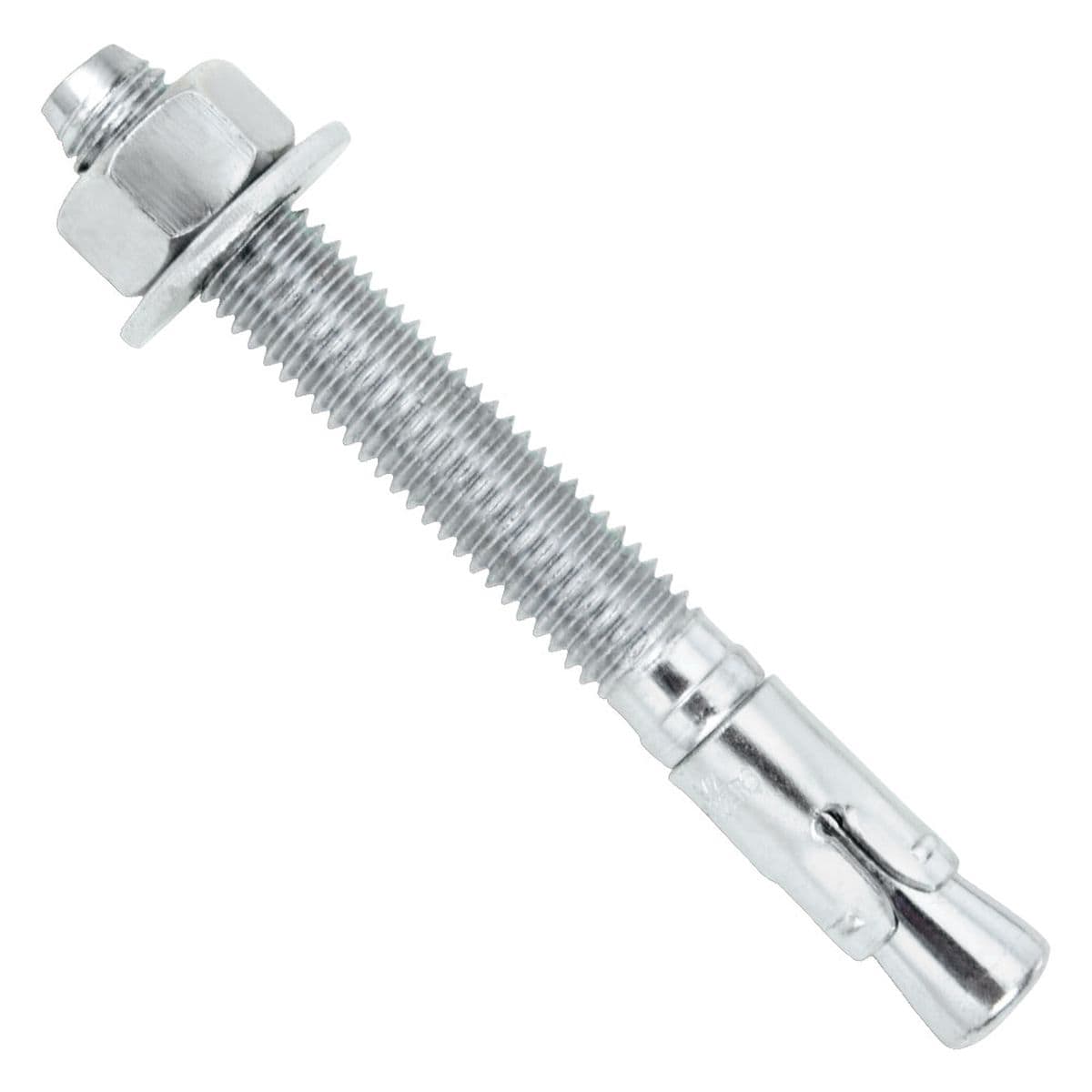

Secure monumental structural steel frameworks, industrial ledger angles, warehouse racking columns, highway barriers, and heavy factory machinery with the absolute holding force of the DEWALT 7450SD1 Power-Stud+ SD1 7/8" x 6" Carbon Steel Wedge Expansion Anchors. Engineered specifically to comply with modern building codes for both cracked and uncracked concrete matrices, these fully threaded, torque-controlled fasteners offer uncompromising shear and pull-out resistance values. Standard commercial anchors can suffer severe holding loss or total catastrophic failure when subjected to stress vibrations or load-induced micro-cracks in the base substrate. This advanced DEWALT wedge expansion mechanism entirely resolves that critical site risk by utilizing an adaptive, high-performance expansion clip that expands and bites deeper into the inner walls, keeping heavy-duty equipment locked in place across high and low-strength concrete configurations.

Uncompromising structural stability and massive shear capacity form the foundation of this zinc-plated carbon steel contractor pack. Designed for rapid through-fixture installation, these 7/8-inch anchors allow your crew to drill directly through pre-fabricated bracket holes, avoiding the painful, time-wasting process of setting, removing, and realigning dense steel plates. To guarantee compliance during strict engineering inspections, each anchor is stamped with a permanent length identification code on its head, verifying exact down-hole embedment depth even after the fastener has been fully torqued down. The robust zinc-plating coat wraps the thick carbon steel body, heavy-duty nut, and flat washer to resist corrosion and structural fatigue across all approved base materials—including structural normal-weight concrete, sand-lightweight concrete slabs, concrete-over-steel deck profiles, and fully grouted cell block masonry.

Key Features

• Seismic & Cracked Concrete Certified: Rigorously engineered and code-compliant for continuous structural reliability in cracked and uncracked concrete profiles.
• Through-Fixture Structural Mounting: Spearheaded design allows the anchor to be set directly through pre-drilled fixture fixtures to maximize jobsite alignment accuracy.
• Continuous Follow-Up Expansion: Advanced mechanical geometry forces the expansion clip to drive deeper into stone when subjected to tensile loading spikes.

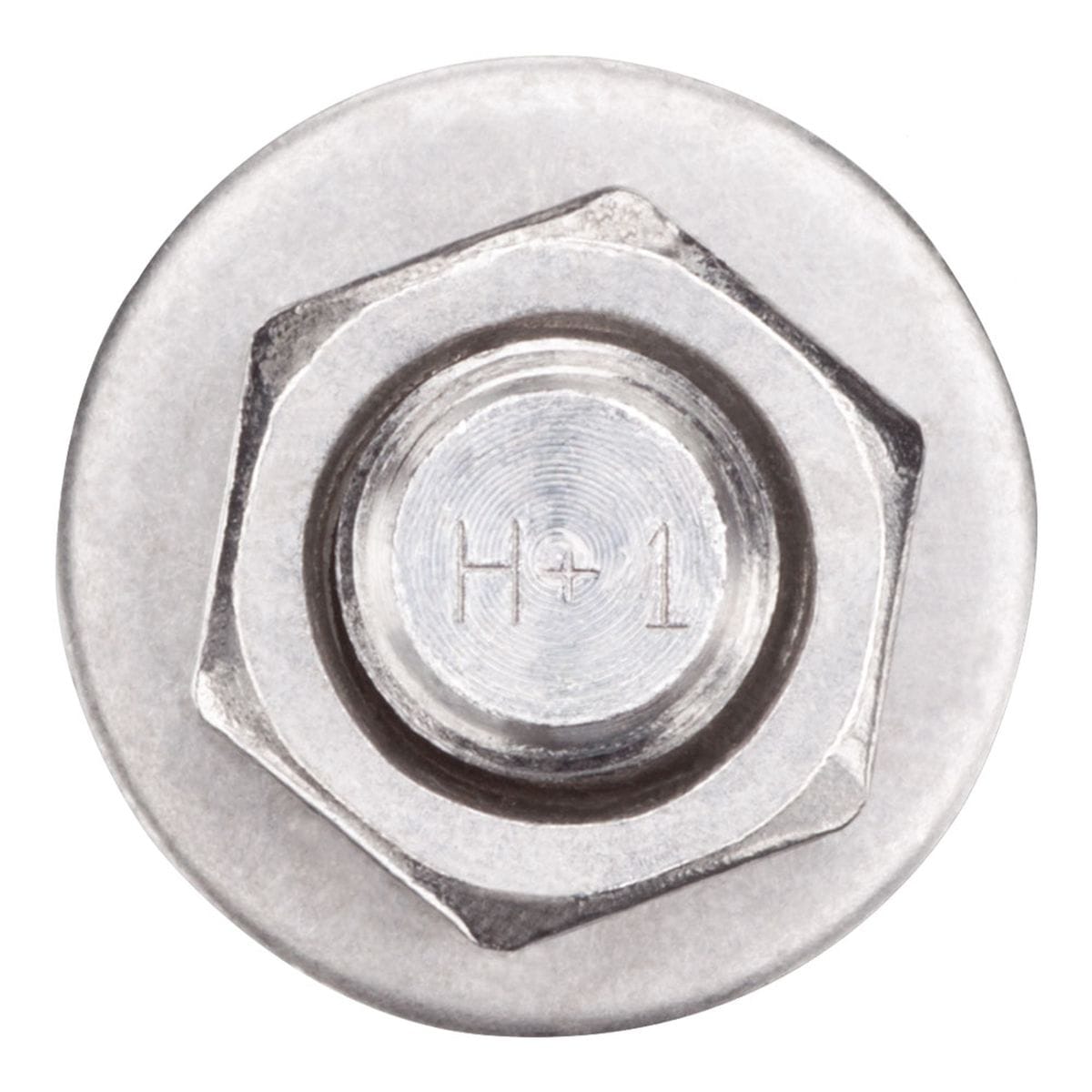

• Permanent Length Identification Stamping: Head structure features clear, stamped identifier codes for rapid verification of subsurface embedment depths by building inspectors.
• Premium Zinc Plated Protection: Industrial-grade zinc electro-plating blankets the carbon steel body, clip, nut, and washer for maximum material longevity.
• Versatile Base Compatibility: Optimized for normal-weight concrete, lightweight concrete assemblies, concrete-filled steel decks, and grouted masonry cells.

What's Included

• (10) DEWALT Power-Stud+ SD1 7/8" x 6" Carbon Steel Wedge Expansion Anchors
• (10) Heavy-Duty Carbon Steel Hex Nuts
• (10) Carbon Steel Flat Washers

Specifications

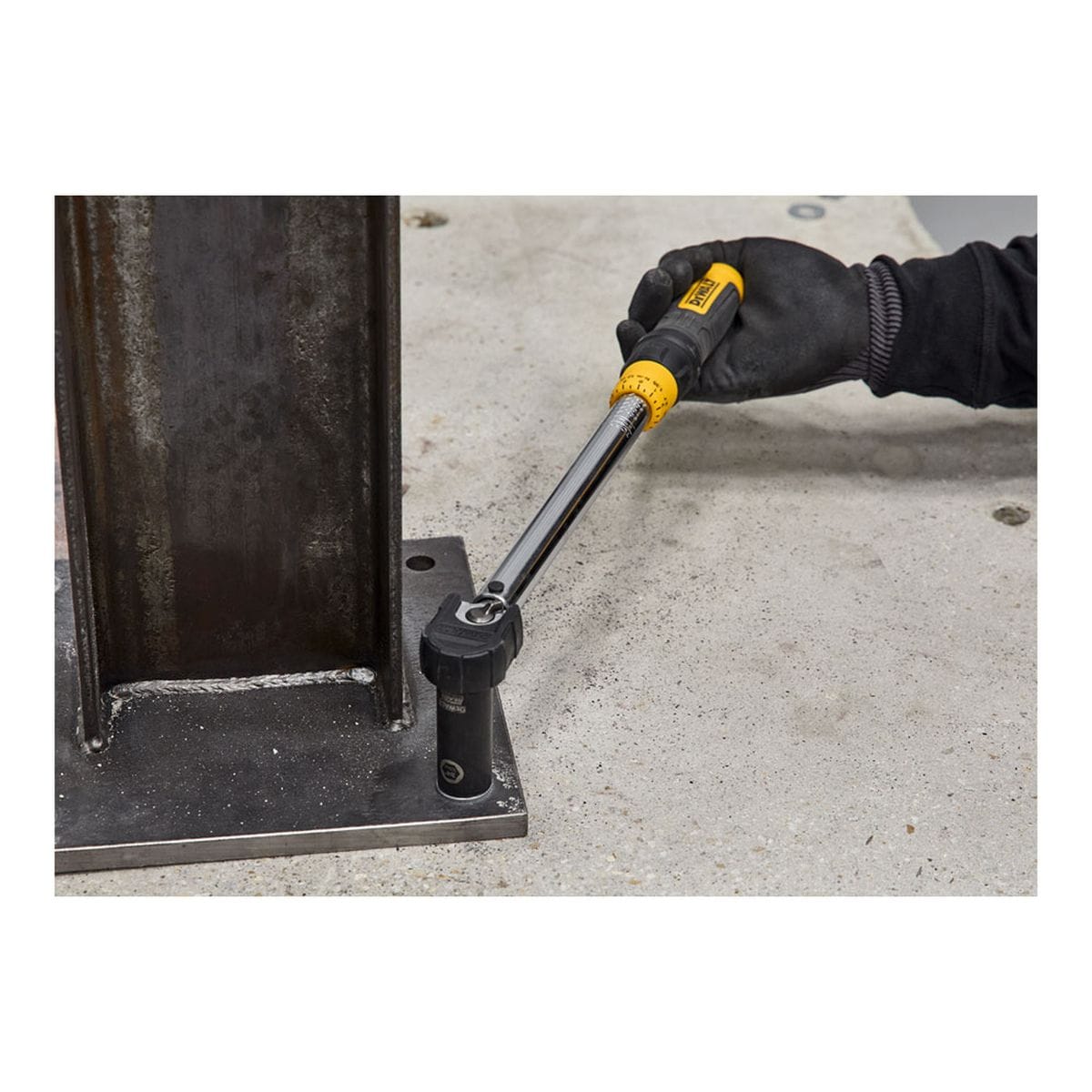

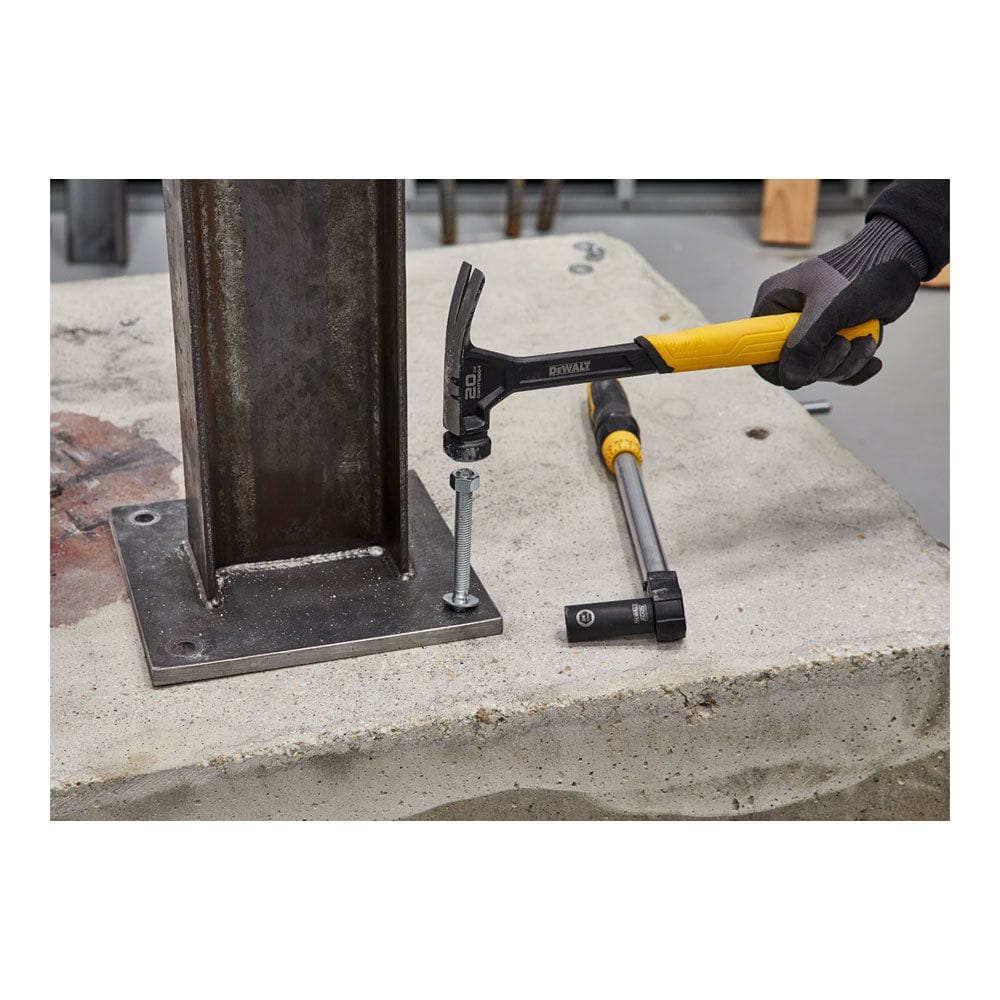

Pro-Tip: When installing massive 7/8-inch diameter wedge anchors, drill the concrete hole at least 1/2-inch deeper than the anticipated anchor embedment depth. This extra space leaves a safety buffer to collect micro-dust grains that cannot be completely extracted during cleaning, preventing the anchor tip from bottoming out early on debris. After using an industrial blow-out bulb and brush to clear the pocket, seat the washer and nut to the top threads before hammering to shield the carbon steel entry threads from structural flattening or warping. Always utilize a calibrated torque wrench to apply the exact mechanical foot-pounds specified by structural engineers; under-tightened nuts will permit structural slip, while over-torquing can micro-fracture or stress-crack the surrounding concrete core matrix.
