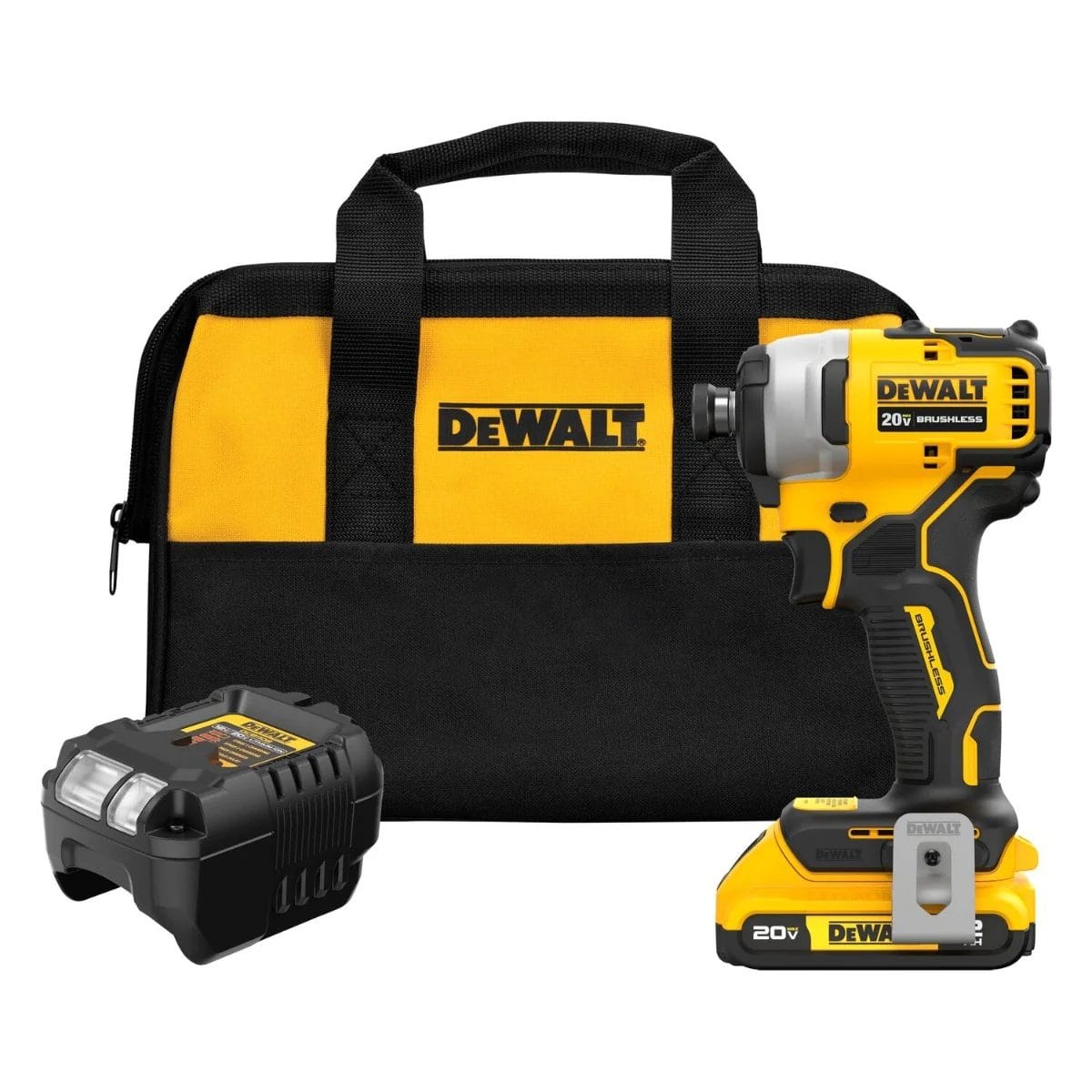

A product group shot featuring the Dewalt Atomic 20V MAX impact driver, a compact battery, a charger, and a black and yellow Dewalt contractor bag.

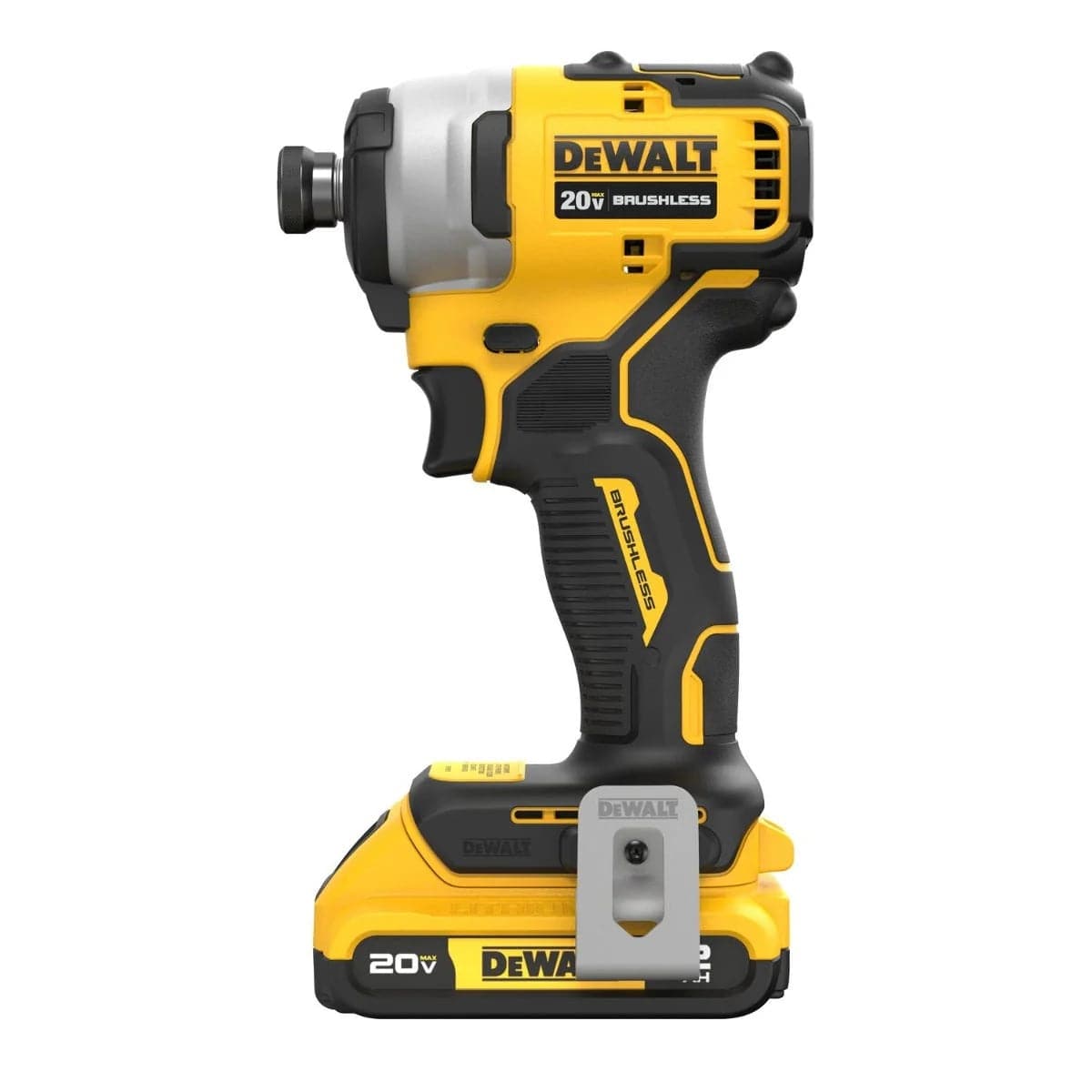

A side profile view of the compact Dewalt Atomic 20V MAX 1/4-inch brushless impact driver with a battery attached, showcasing its short 5.1-inch head length.

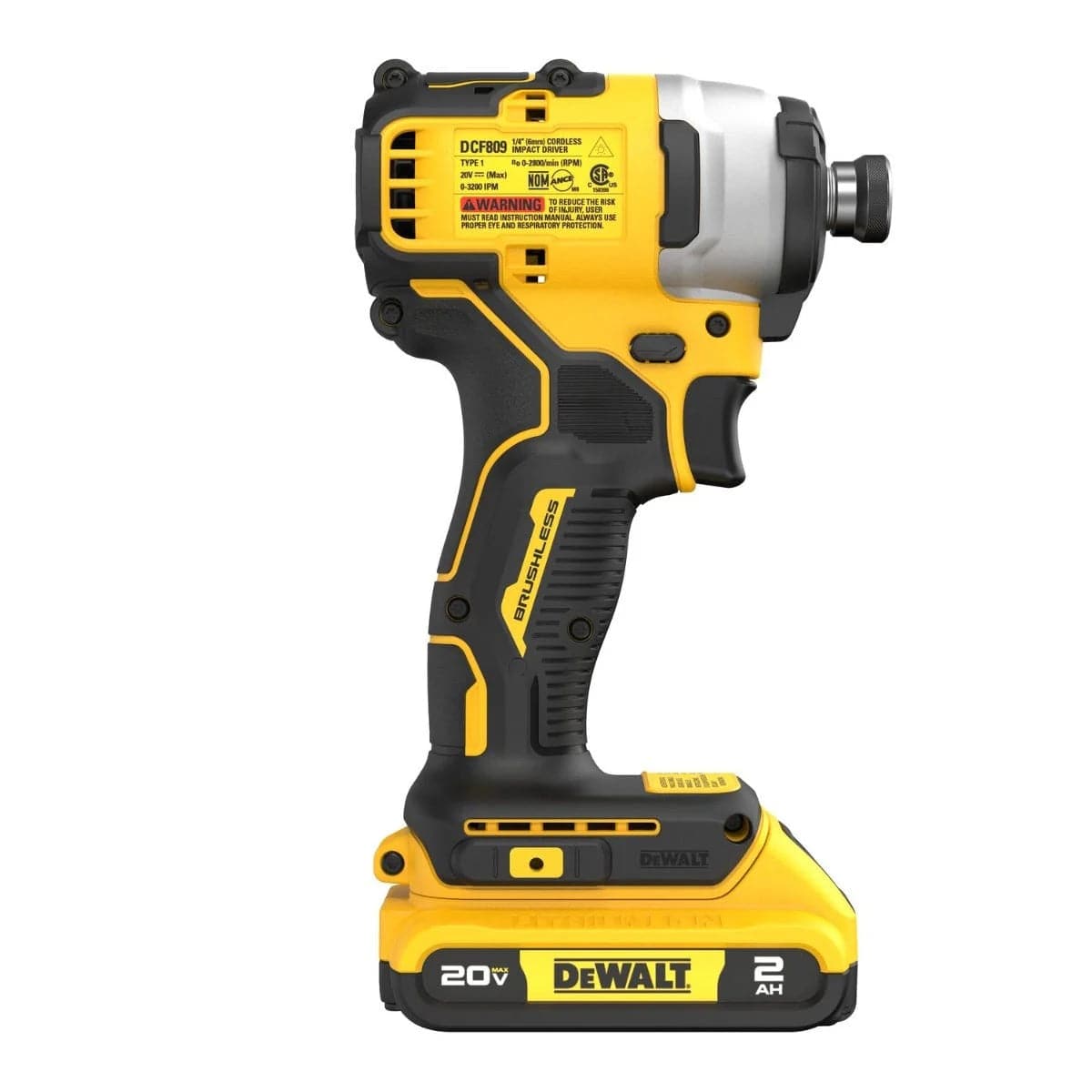

A rear profile view of the Dewalt DCF809 compact impact driver, showing the motor housing ventilation and the product specification label.

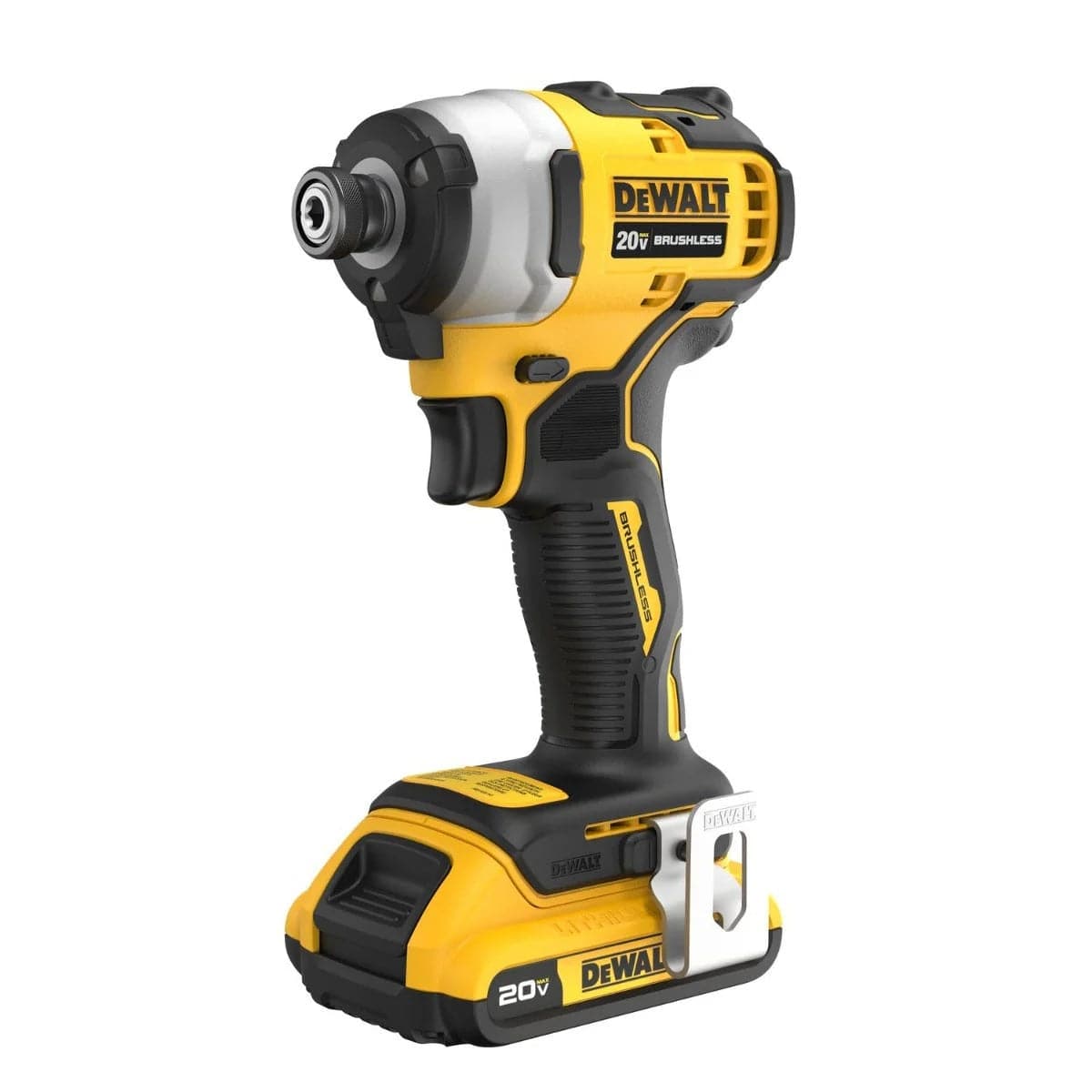

An isometric studio shot of the Dewalt Atomic 20V MAX compact 1/4-inch impact driver with a 2.0Ah battery pack and a metal belt clip.

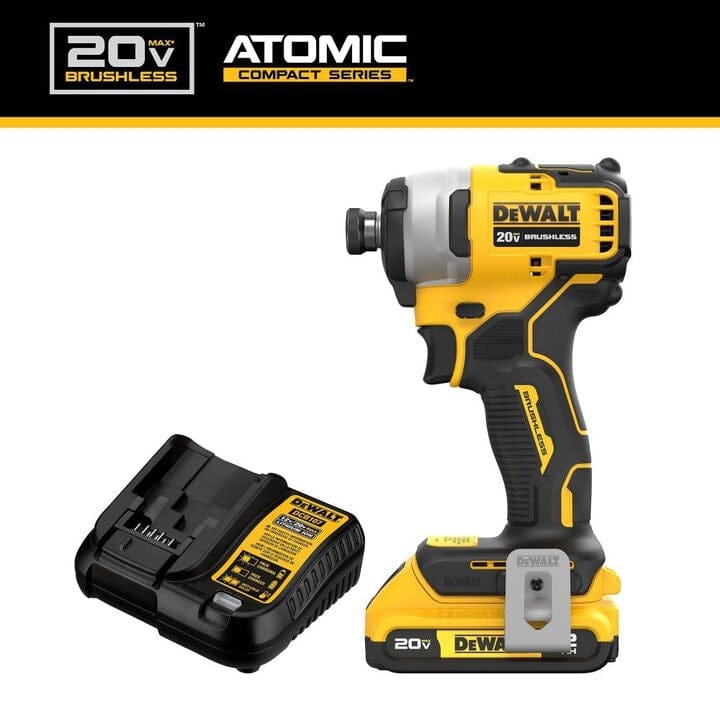

A promotional image showing the Dewalt Atomic 20V MAX compact impact driver standing next to a DCB107 charger.

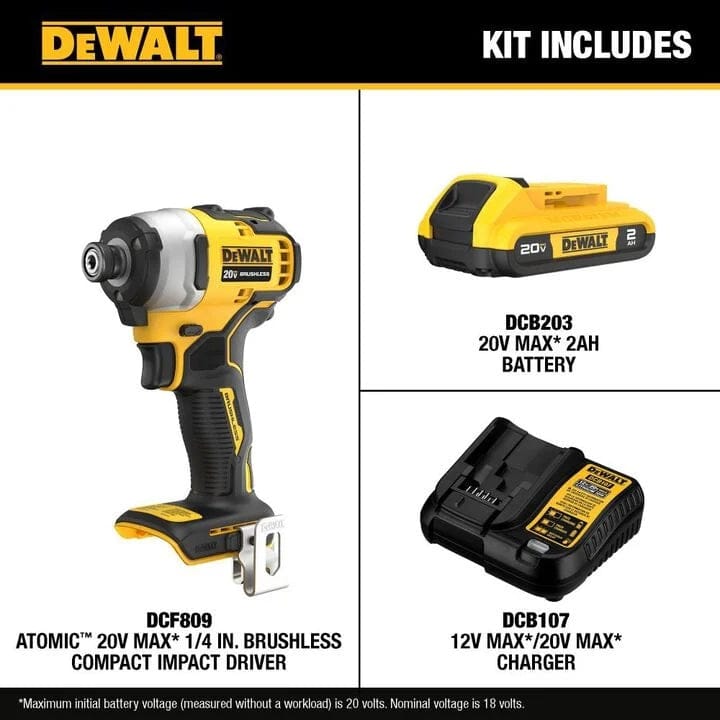

A graphic labeled Kit Includes showing the DCF809 1/4-inch brushless impact driver, a DCB203 2.0Ah battery, and a DCB107 12V/20V MAX charger.
DEWALT® FLEXVOLT® The Power of Freedom: Highway promotional video
A product group shot featuring the Dewalt Atomic 20V MAX impact driver, a compact battery, a charger, and a black and yellow Dewalt contractor bag.
A side profile view of the compact Dewalt Atomic 20V MAX 1/4-inch brushless impact driver with a battery attached, showcasing its short 5.1-inch head length.
A rear profile view of the Dewalt DCF809 compact impact driver, showing the motor housing ventilation and the product specification label.
An isometric studio shot of the Dewalt Atomic 20V MAX compact 1/4-inch impact driver with a 2.0Ah battery pack and a metal belt clip.
A promotional image showing the Dewalt Atomic 20V MAX compact impact driver standing next to a DCB107 charger.
A graphic labeled Kit Includes showing the DCF809 1/4-inch brushless impact driver, a DCB203 2.0Ah battery, and a DCB107 12V/20V MAX charger.
DEWALT® FLEXVOLT® The Power of Freedom: Highway promotional video
DEWALT

Dewalt Impact Driver Kit DCF809C1 20V MAX Brushless 1/4 Inch Hex Compact Power Fastener (1700 in-lbs Torque 2.0Ah Battery Charger Bag)

In stock
SKU: DCF809D1
$179.00 USD

Description

Authorized Dealer Badge DEWALT logout

Dewalt 20V MAX Brushless 1/4-Inch Hex Compact Impact Driver Kit

The Dewalt DCF809C1 Impact Driver Kit is a 20V MAX cordless fastening system featuring an ultra-compact 5.1-inch head length engineered to execute high-torque screw driving in confined structural spaces. Powered by a high-efficiency brushless motor delivering 1,700 in-lbs of torque, 2,800 RPM no-load speed, and 3,200 impacts per minute, this 2.1 lb tool drives heavy-duty wood screws and lag bolts without stalling. The system includes a 3-LED halo light ring, variable speed trigger, quick-release 1/4-inch hex chuck, 2.0Ah lithium-ion battery pack, charger, and contractor storage bag.

Best Used For:

  • Confined Cabinetry Installation: Fastening structural screws inside narrow cabinet frames and between standard 16-inch stud bays where long drivers cannot fit.
  • Electrical Enclosure Mounting: Securing electrical conduit straps and junction boxes inside dark overhead drop ceilings using shadowless 3-LED illumination.
  • Under-Dash Automotive Repair: Driving hex head fasteners in tight engine compartments and interior vehicle cabs without causing user arm fatigue.

Key Performance & Safety Features

  • 1,700 in-lbs Torque Output: Generates heavy rotational power to seat long lag screws and structural fasteners into dense dimensional lumber.
  • 5.1-Inch Ultra-Compact Design: Short head length allows full tool access in tight corners and cramped structural cavities.
  • Brushless Motor Efficiency: Optimizes battery run-time and extends total tool life by eliminating thermal wear from internal carbon brushes.
  • 3-LED Halo Ring Light: Positions bright LEDs around the quick-release chuck to illuminate dark work areas without casting chuck shadows.
  • Variable Speed Control: Responsive trigger matches rotational speed up to 2,800 RPM to protect sensitive work surfaces from over-driving.
  • Lightweight Ergonomic Frame: Weighs only 2.1 lbs to reduce wrist strain during continuous overhead fastening operations.

What's Included

  • (1) DEWALT DCF809 20V MAX Brushless 1/4 in. Compact Impact Driver
  • (1) DEWALT 20V MAX 2.0Ah Lithium-Ion Battery
  • (1) DEWALT 20V MAX Fast Charger
  • (1) Belt Clip
  • (1) Contractor Tool Bag

Technical Specifications

Brand Manufacturer DEWALT
Model Number DCF809C1
Voltage System 20V MAX
Maximum Fastening Torque 1,700 in-lbs.
No Load Speed 0-2,800 RPM
Impact Rate 3,200 IPM
Tool Head Length 5.1 in.
Tool Bare Weight 2.1 lbs.
Drive Chuck Size 1/4 in. Quick-Release Hex
Motor Technology Brushless
Battery Capacity 2.0Ah (1 Included)
Work Light Integration Yes (3-LED Ring)

Pro-Tip: Use impact-rated 1/4-inch hex driver bits specifically rated for 1,700 in-lbs of rotational torque to prevent shank shearing when driving long fasteners into hardwoods.
