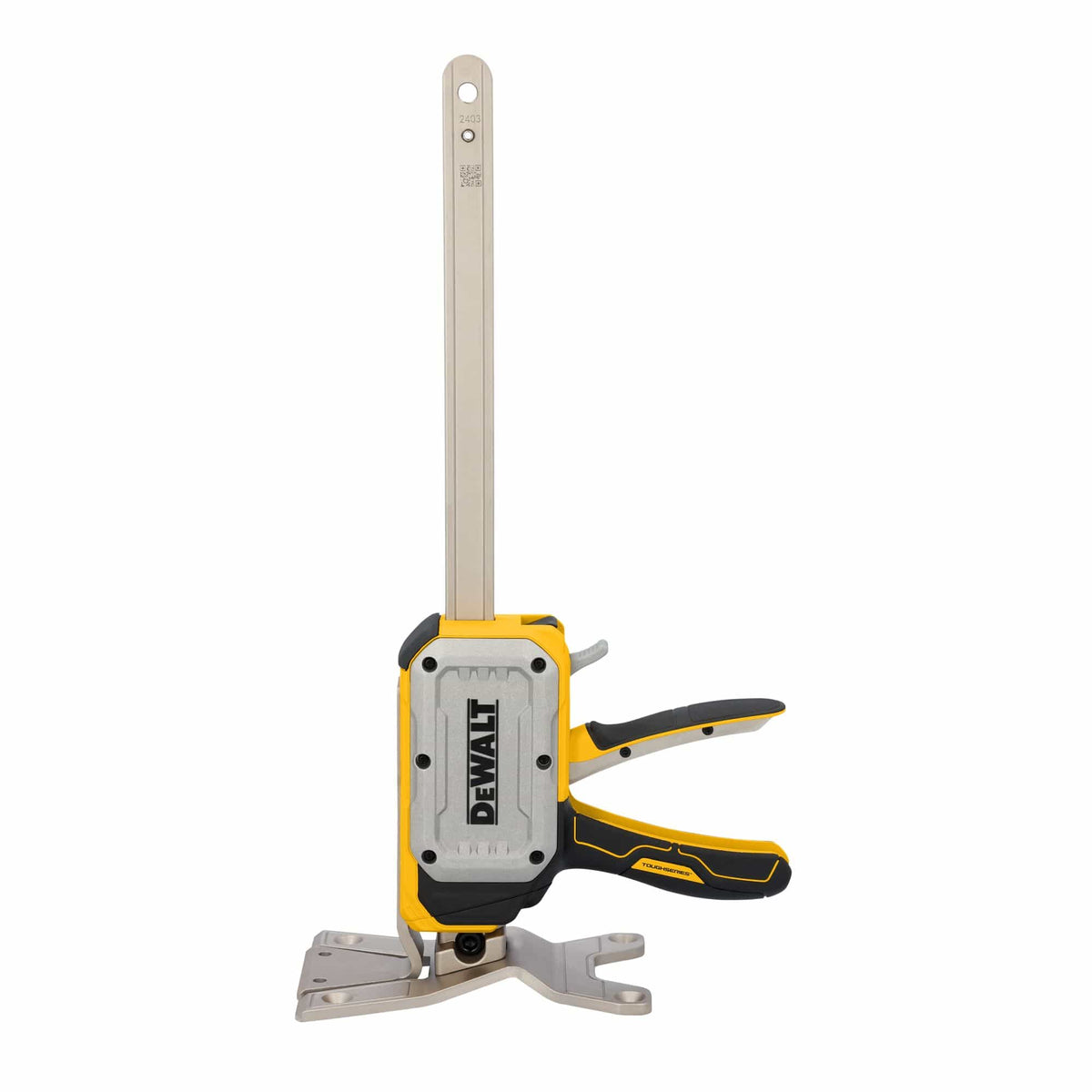

DeWalt DWHT83550 ToughSeries hand jack featuring a steel vertical rail, trigger actuation handle, and metal base plate for precision lifting.
DeWalt DWHT83550 construction jack with elevated lift foot positioned on vertical steel drive shaft for cabinet and door leveling.

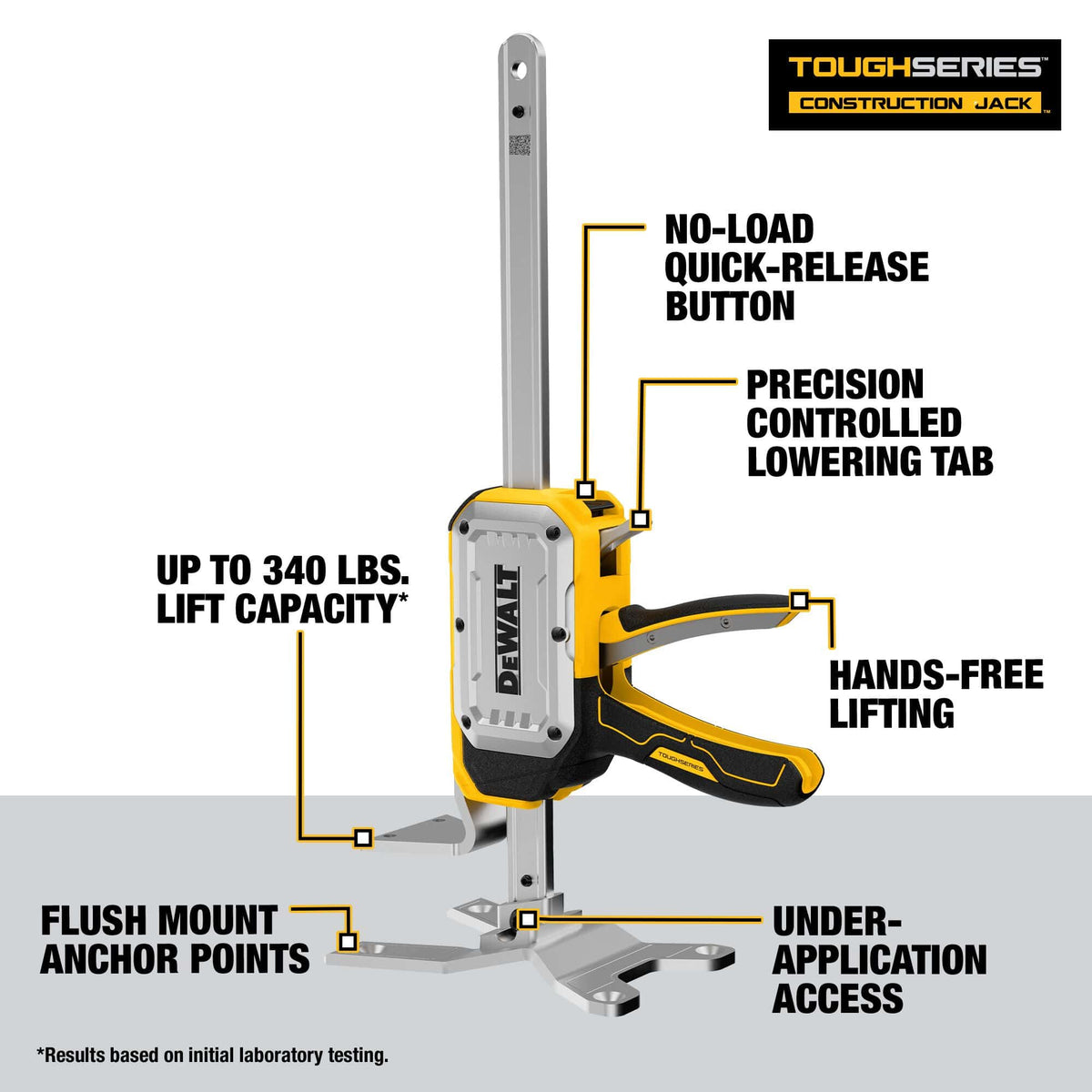

Feature breakdown of DeWalt DWHT83550 jack highlighting 340 lb capacity, hands-free lifting, quick-release button, and low-profile base.

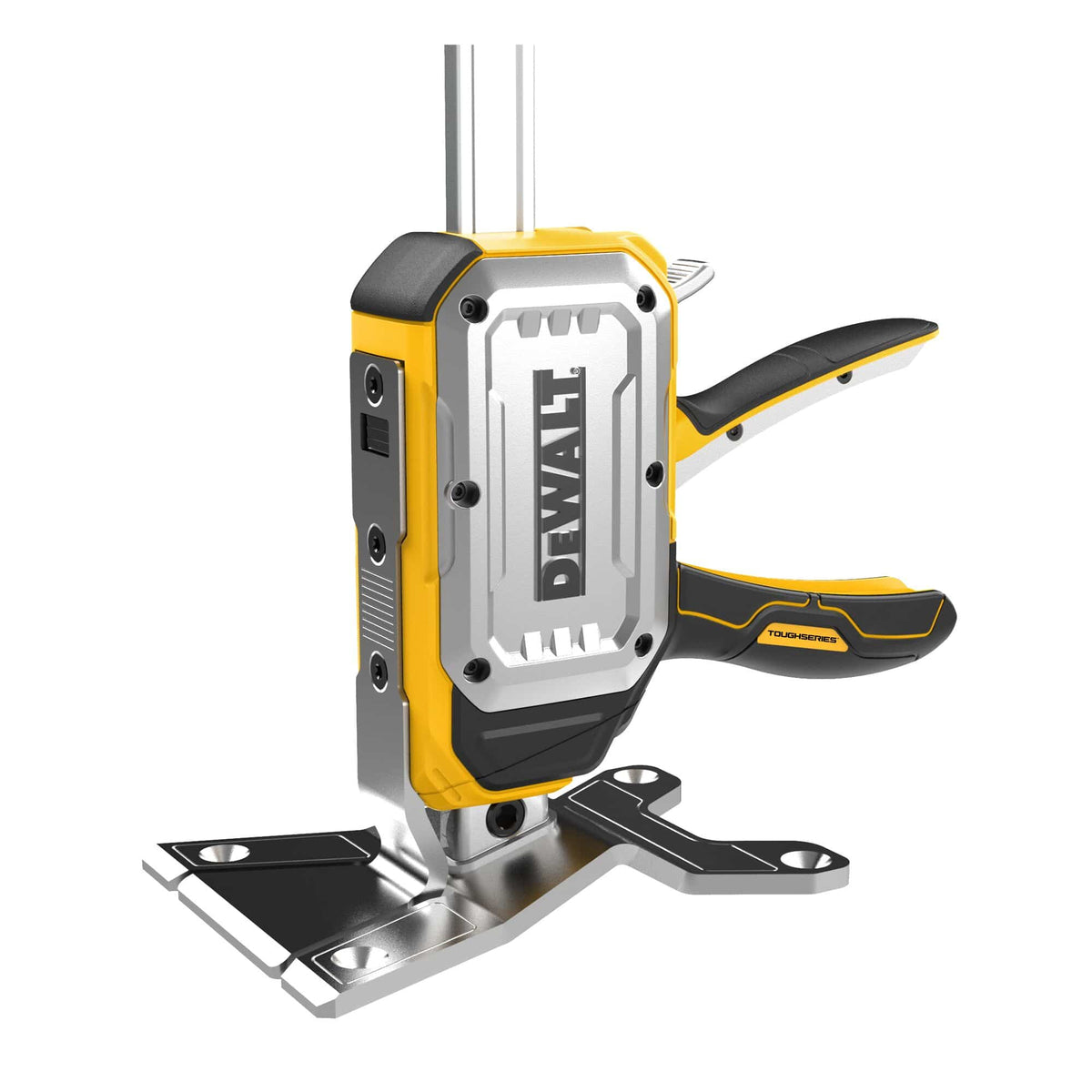

Close-up of DeWalt DWHT83550 jack showing countersunk mounting holes on base plate for secure floor fastening during heavy installation jobs.

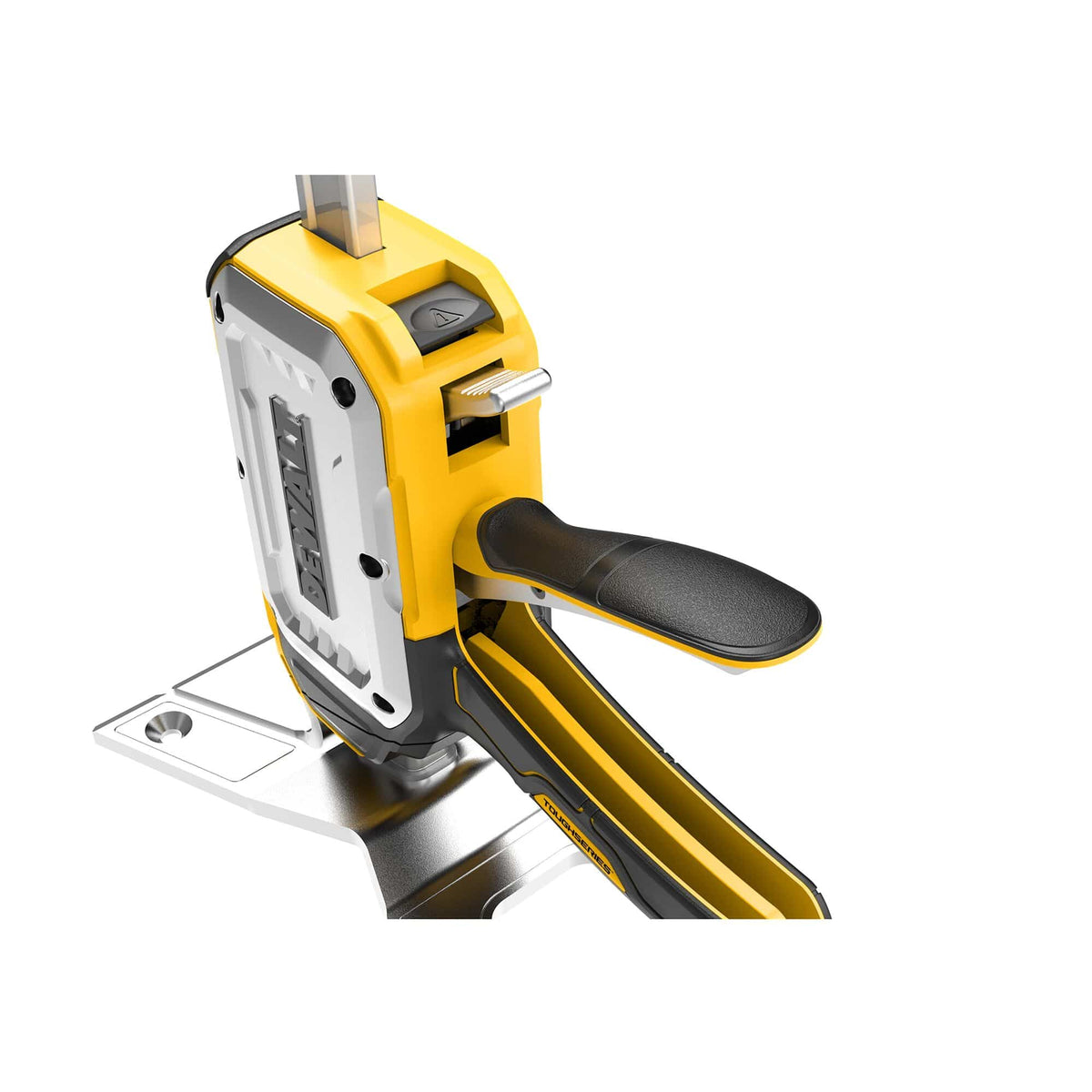

Top-down view of DeWalt DWHT83550 trigger housing showcasing the no-load quick-release button and micro-adjustment lowering tab.

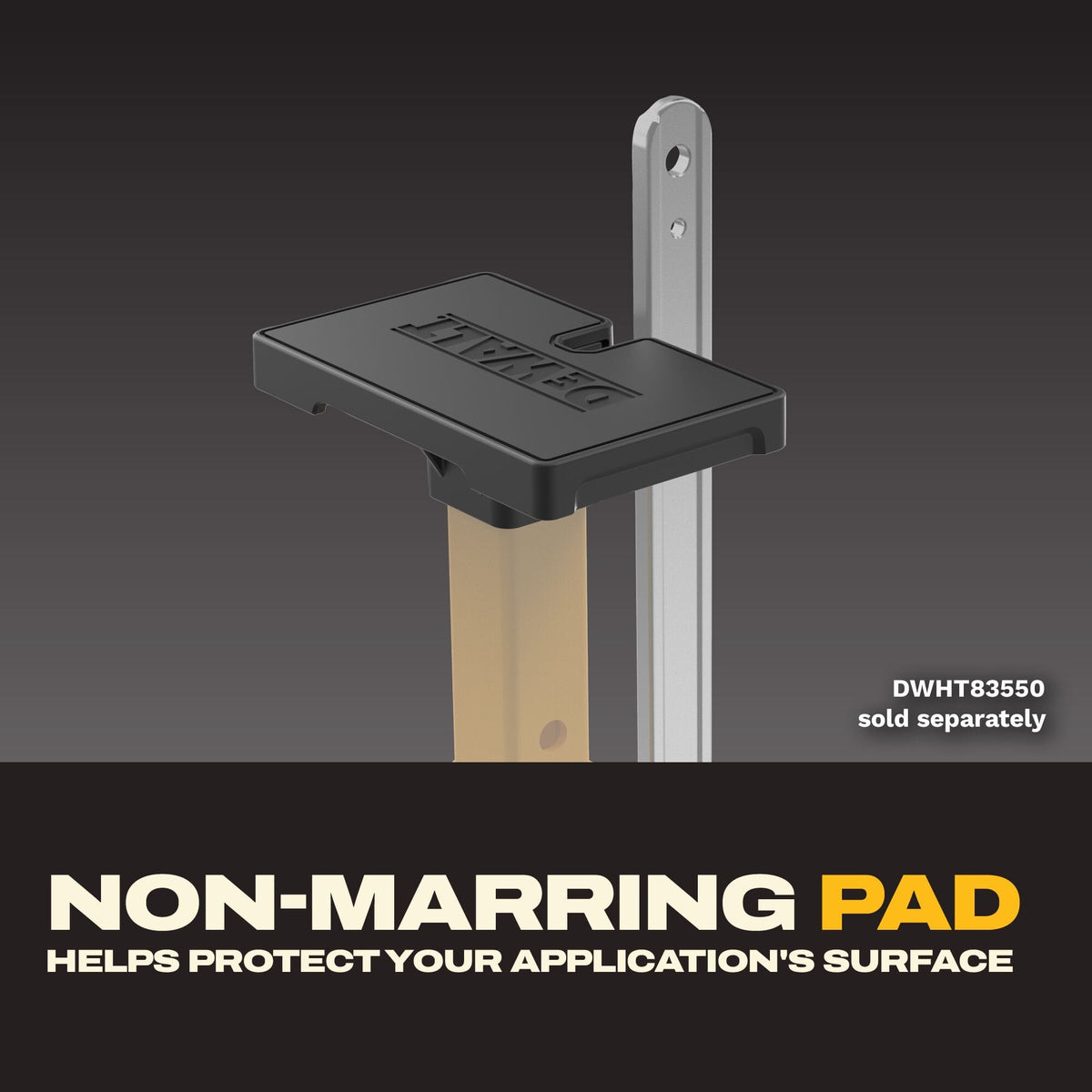

DeWalt non-marring protective pad accessory mounted onto construction jack vertical drive bar to prevent surface damage on cabinetry.

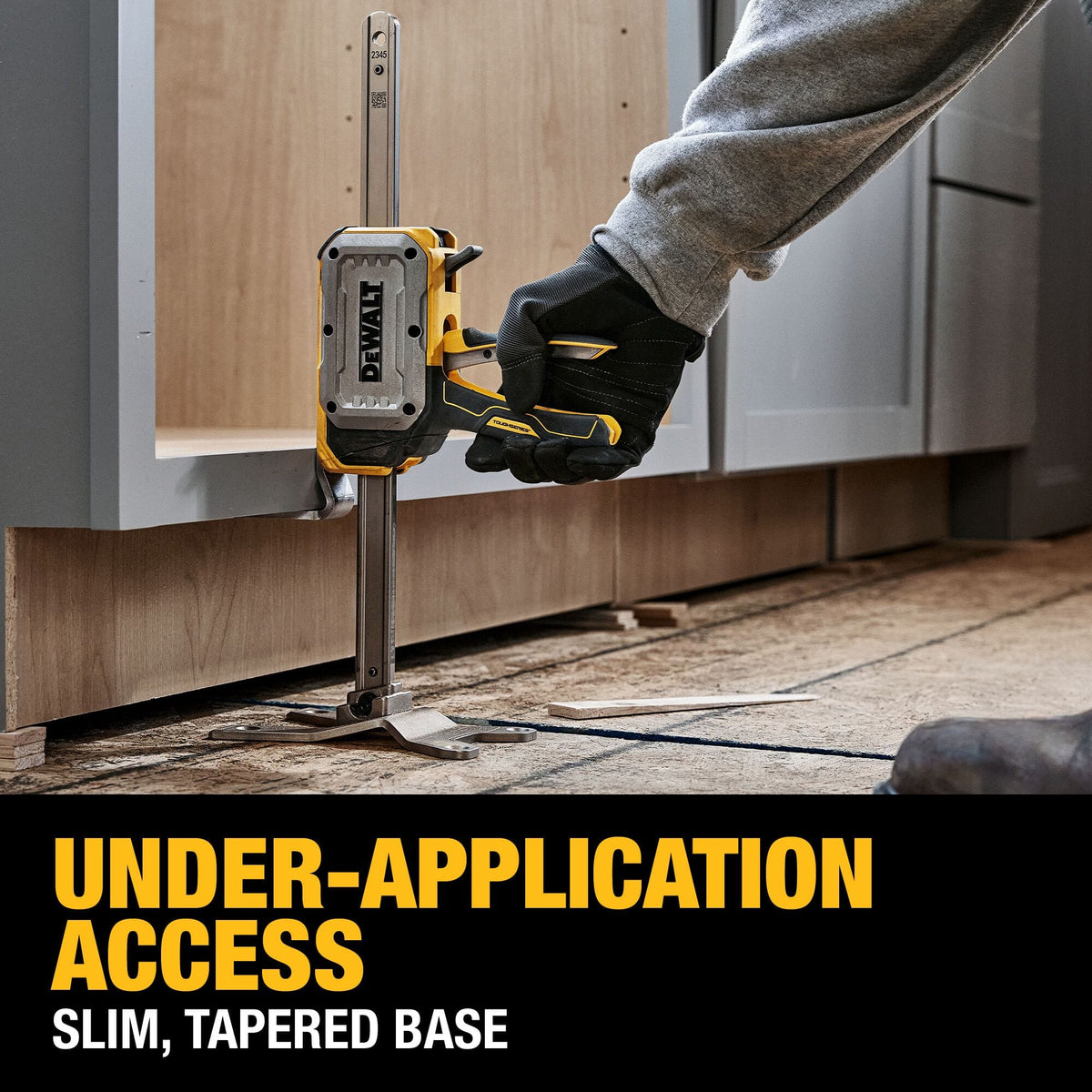

DeWalt DWHT83550 jack slim tapered toe sliding under lower cabinet frame to enable precision vertical alignment during installation.

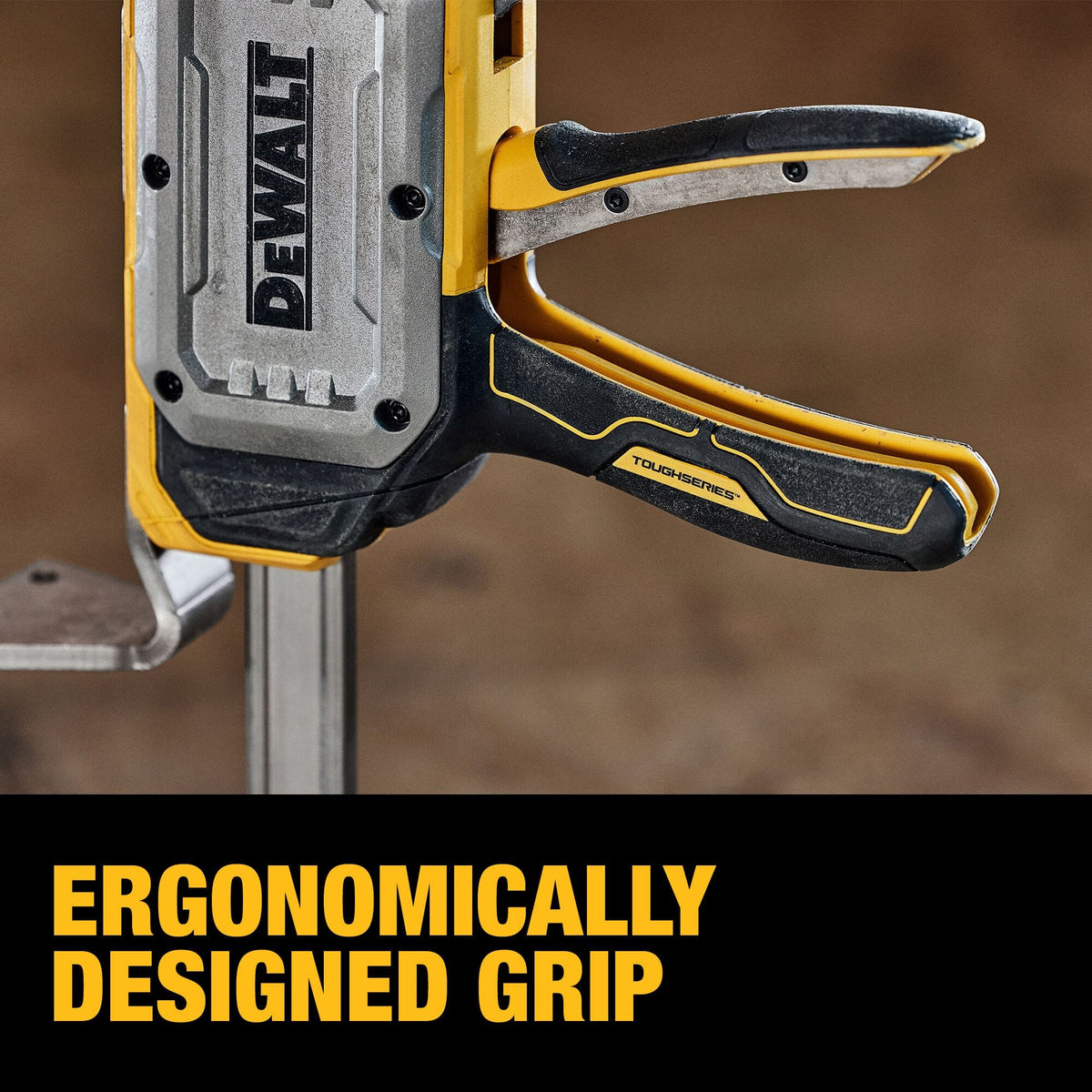

Close-up view of DeWalt ToughSeries ergonomic trigger handle with metal reinforcing ribs for comfortable high-load pumping.
DeWalt DWHT83550 construction jack lifting heavy drywall sheet off floor using squeeze handle to provide up to 340 lbs of vertical lift.
Operator using boot to press DeWalt DWHT83550 step-to-lift foot pedal handle, enabling hands-free vertical door alignment.

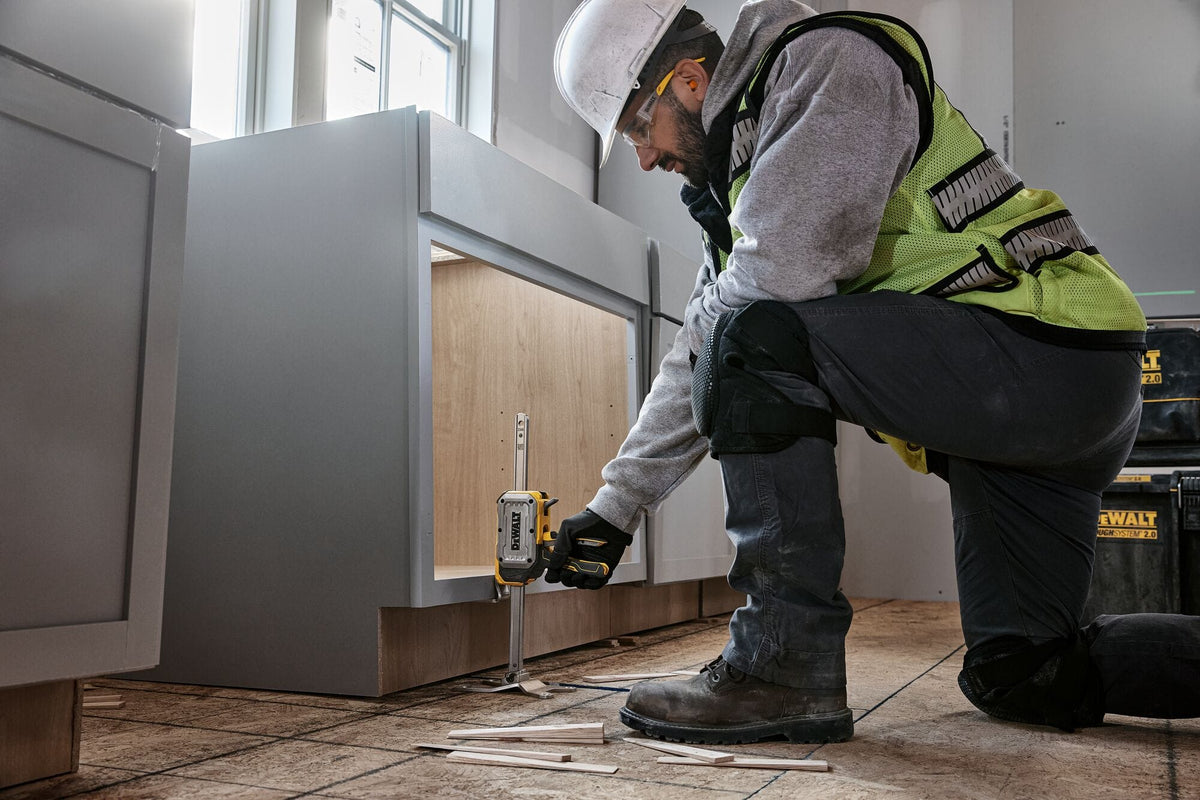

Contractor using DeWalt DWHT83550 construction jack slim base to lift base cabinet for accurate shimming and leveling.

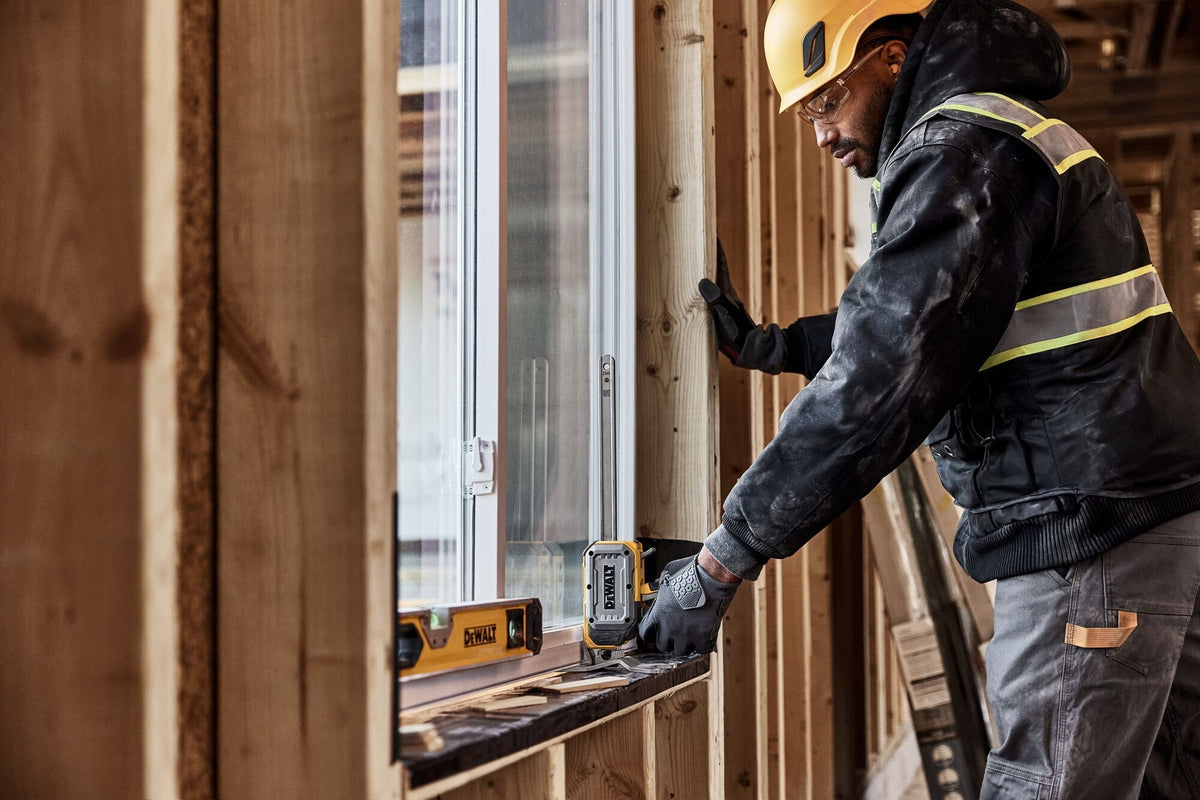

Worker adjusting window frame alignment with a DeWalt DWHT83550 construction jack resting on rough framing sill.
Hands-free step-to-lift pedal on DeWalt DWHT83550 jack elevated by work boot to align a heavy solid door.

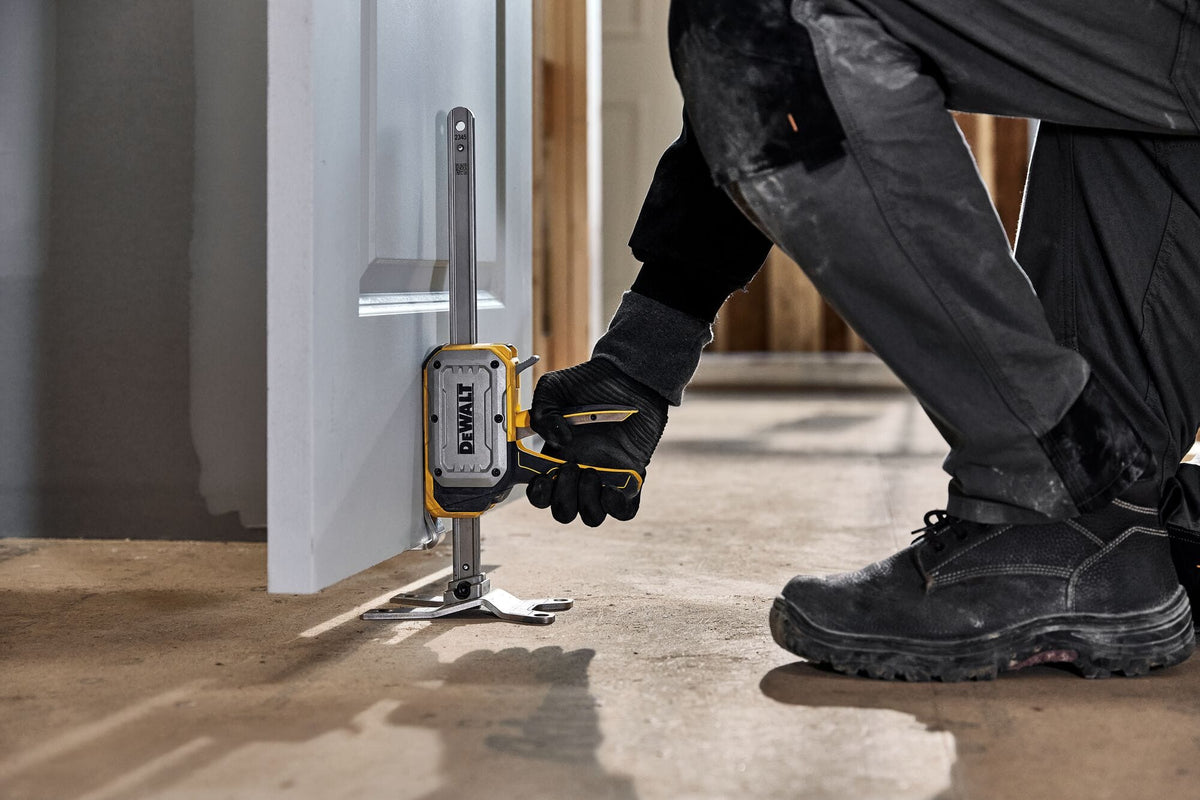

Operator squeezing trigger grip of DeWalt DWHT83550 construction jack to lift heavy door off subfloor for hinge installation.
DeWalt DWHT83550 construction jack low-profile toe sliding beneath kitchen cabinet frame to make height adjustments.
Close-up of DeWalt DWHT83550 precision controlled lowering tab used for incremental micro-adjustments under load.
DeWalt DWHT83550 ToughSeries construction jack set up next to installed drywall sheet for vertical positioning.
Because why would you ever skip foot day when lifting tough loads promotional video
DeWalt DWHT83550 ToughSeries hand jack featuring a steel vertical rail, trigger actuation handle, and metal base plate for precision lifting.
DeWalt DWHT83550 construction jack with elevated lift foot positioned on vertical steel drive shaft for cabinet and door leveling.
Feature breakdown of DeWalt DWHT83550 jack highlighting 340 lb capacity, hands-free lifting, quick-release button, and low-profile base.
Close-up of DeWalt DWHT83550 jack showing countersunk mounting holes on base plate for secure floor fastening during heavy installation jobs.
Top-down view of DeWalt DWHT83550 trigger housing showcasing the no-load quick-release button and micro-adjustment lowering tab.
DeWalt non-marring protective pad accessory mounted onto construction jack vertical drive bar to prevent surface damage on cabinetry.
DeWalt DWHT83550 jack slim tapered toe sliding under lower cabinet frame to enable precision vertical alignment during installation.
Close-up view of DeWalt ToughSeries ergonomic trigger handle with metal reinforcing ribs for comfortable high-load pumping.
DeWalt DWHT83550 construction jack lifting heavy drywall sheet off floor using squeeze handle to provide up to 340 lbs of vertical lift.
Operator using boot to press DeWalt DWHT83550 step-to-lift foot pedal handle, enabling hands-free vertical door alignment.
Contractor using DeWalt DWHT83550 construction jack slim base to lift base cabinet for accurate shimming and leveling.
Worker adjusting window frame alignment with a DeWalt DWHT83550 construction jack resting on rough framing sill.
Hands-free step-to-lift pedal on DeWalt DWHT83550 jack elevated by work boot to align a heavy solid door.
Operator squeezing trigger grip of DeWalt DWHT83550 construction jack to lift heavy door off subfloor for hinge installation.
DeWalt DWHT83550 construction jack low-profile toe sliding beneath kitchen cabinet frame to make height adjustments.
Close-up of DeWalt DWHT83550 precision controlled lowering tab used for incremental micro-adjustments under load.
DeWalt DWHT83550 ToughSeries construction jack set up next to installed drywall sheet for vertical positioning.
Because why would you ever skip foot day when lifting tough loads promotional video
DEWALT

DeWalt Construction Jack DWHT83550 340 lb Capacity (ToughSeries Step Squeeze Lift 8-3/4 Inch Height Range Flush Mount Under Door Cabinet Installation)

In stock
SKU: DWHT83550
$129.00 USD

Description

Authorized Dealer Badge DEWALT logout

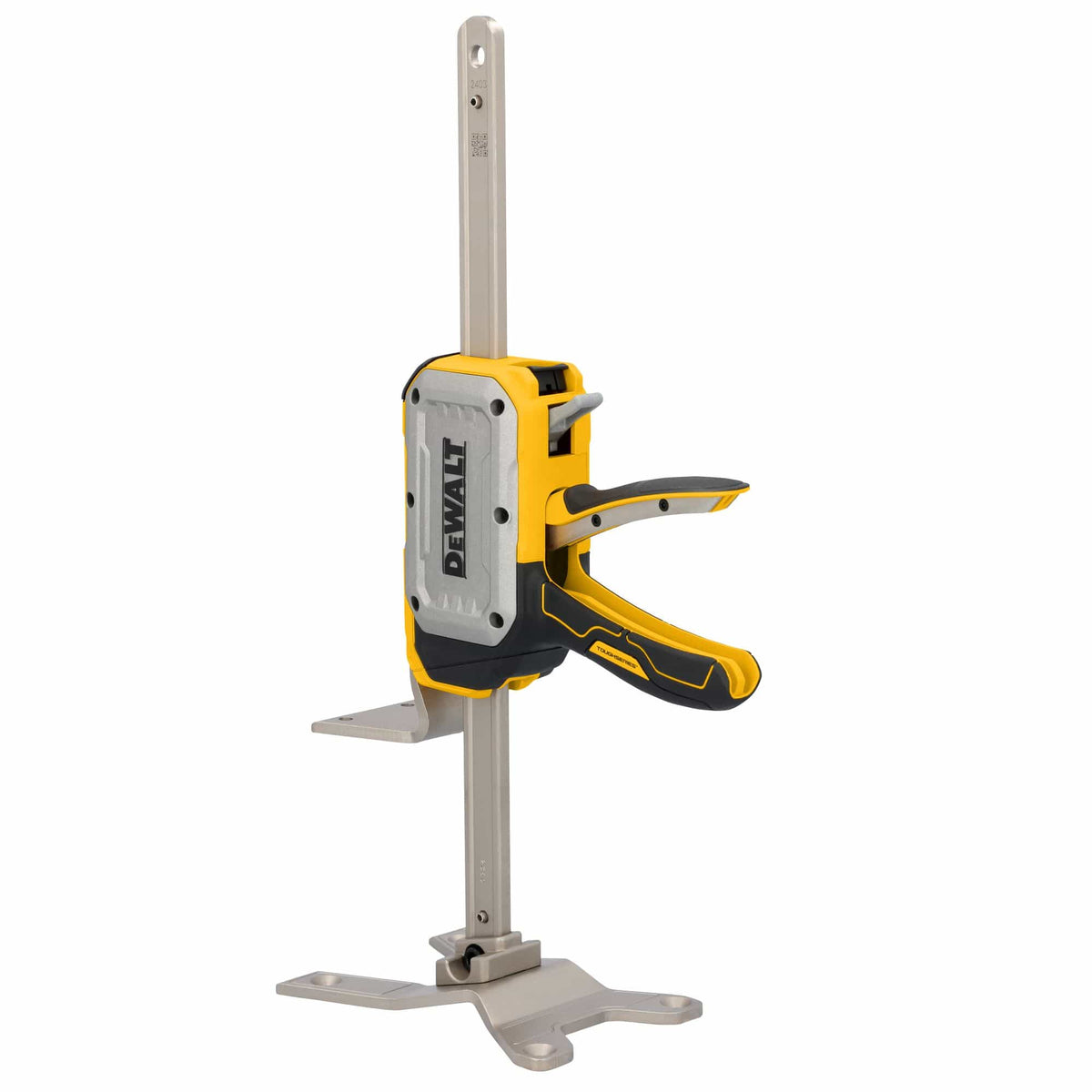

DeWalt DWHT83550 ToughSeries 340 lb Capacity Construction Jack

The DeWalt DWHT83550 ToughSeries Construction Jack is a mechanical hand-held precision lifting device engineered for hoisting, leveling, and positioning heavy building materials up to 340 lbs across an 8-3/4-inch stroke range. Featuring a dual-action trigger handle, this tool allows operators to choose between step-to-lift foot pedal operation for hands-free hoisting or standard squeeze-to-lift hand actuation. Outfitted with a slim tapered base for inserting into tight gaps under doors, cabinets, and appliances, the 7.03-pound unit integrates a precision-controlled lowering tab to perform micro-adjustments during leveling tasks.

Best Used For:

  • Cabinet & Countertop Installation: Hoisting heavy base and wall cabinet modules precisely flush against layout lines before securing fasteners.
  • Door & Window Frame Leveling: Elevating solid-core doors and window assemblies hands-free to align hinges and plumb structural jambs.

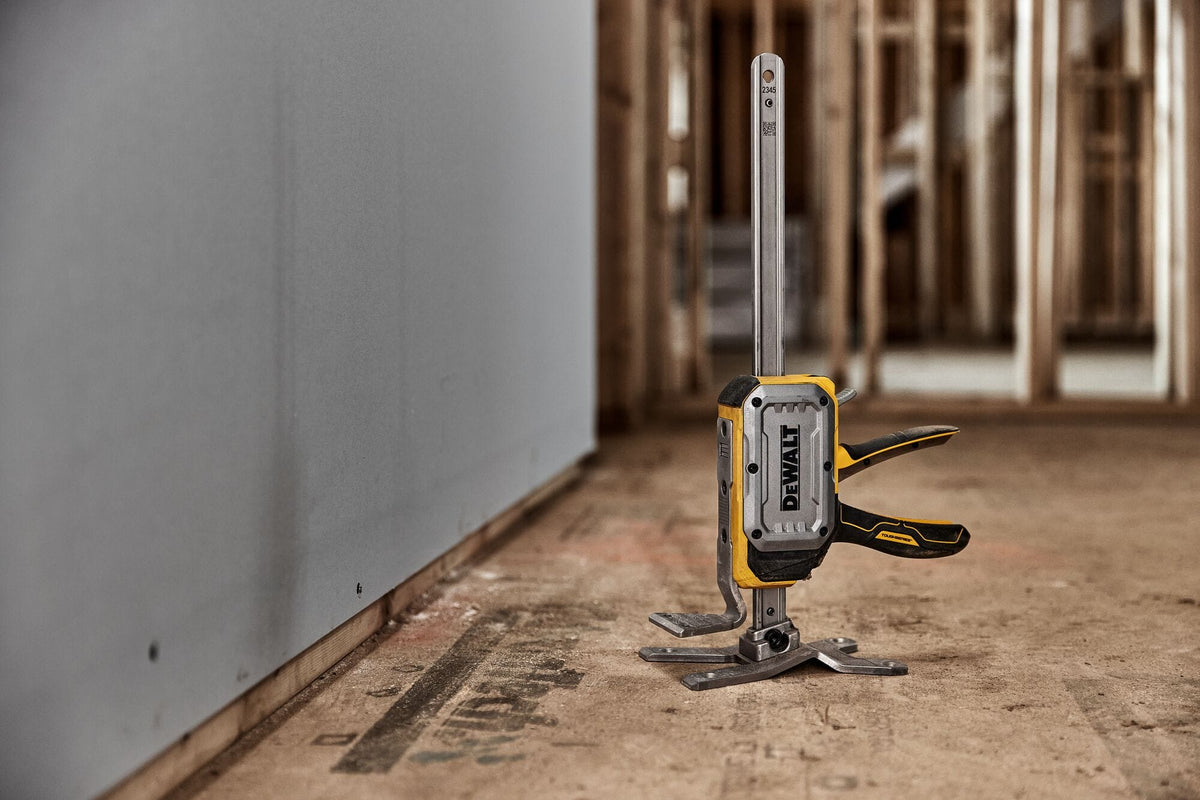

  • Appliance & Drywall Panel Positioning: Lifting heavy drywall sheets, wall ovens, and appliances off flooring to achieve accurate clearance gaps.

Key Performance & Safety Features

  • 340 lb Mechanical Lifting Capacity: High-tensile metal drive mechanism delivers heavy-duty lifting force up to 340 lbs with an 8-3/4-inch total lift height.
  • Dual Step-to-Lift & Squeeze-to-Lift Operation: Reinforced handle design permits hands-free foot stepping or manual squeeze pumping for flexible jobsite hoisting.

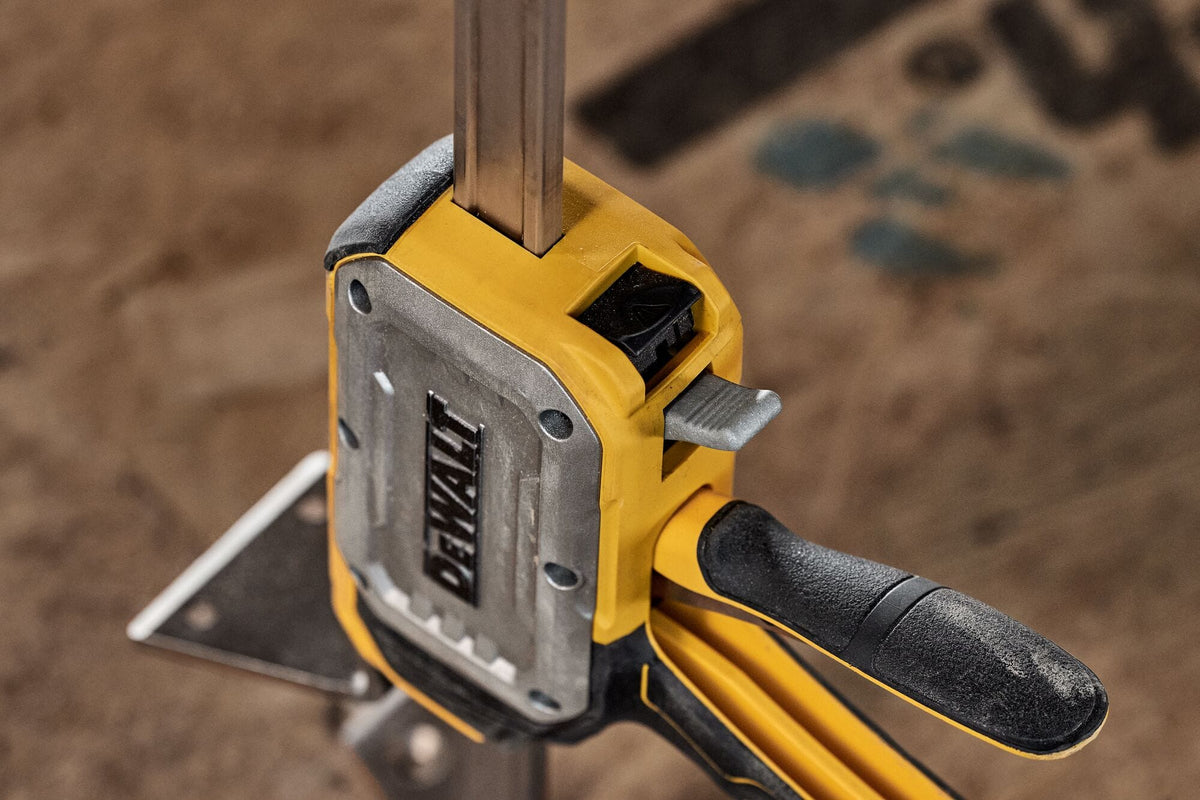

  • Precision Controlled Lowering Tab: Micro-adjustment release lever lowers heavy suspended loads incrementally for exact levelling alignment.

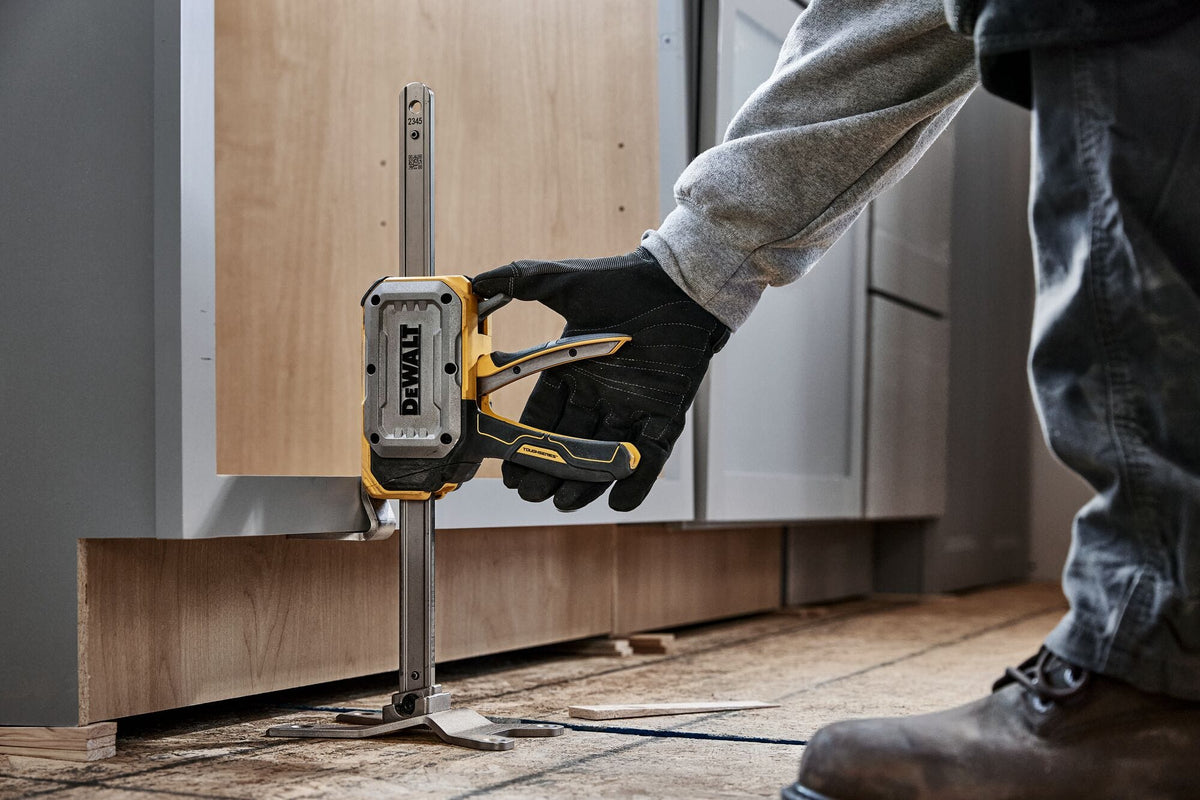

  • Slim Tapered Access Base Plate: Low-profile toe slides easily beneath low-clearance gaps under appliances, cabinetry, and door edges.
  • No-Load Quick-Release Button: Rapidly resets the lifting plate height during setup before applying structural weight.
  • Flush-Mount Countersunk Mounting Holes: Base plate features pre-drilled countersunk holes to fasten the jack temporarily for auxiliary structural support.

What's Included

  • (1) DeWalt ToughSeries Construction Jack (DWHT83550)

Technical Specifications

Brand / Manufacturer DeWalt
Model / Part Number DWHT83550
Product Line Series ToughSeries
Maximum Lifting Capacity 340 lbs (154.22 kg)
Maximum Lifting Height Stroke 8-3/4 in. (8.75 in. / 222.25 mm)
Actuation Handle Mechanism Dual-Action Trigger (Step-to-Lift / Squeeze-to-Lift)
Base Plate Architecture Slim Tapered Base with Flush-Mount Countersunk Holes
Handle Grip Material Overmolded Rubber with Metal Rib Reinforcement
Assembled Product Height 5.1 in. (129.54 mm)
Assembled Product Length 18.5 in. (469.9 mm)
Assembled Product Width 9.9 in. (251.46 mm)
Assembled Product Net Weight 7.03 lbs (3.188 kg)
Universal Product Code (UPC) 076174835502
Country of Origin Taiwan

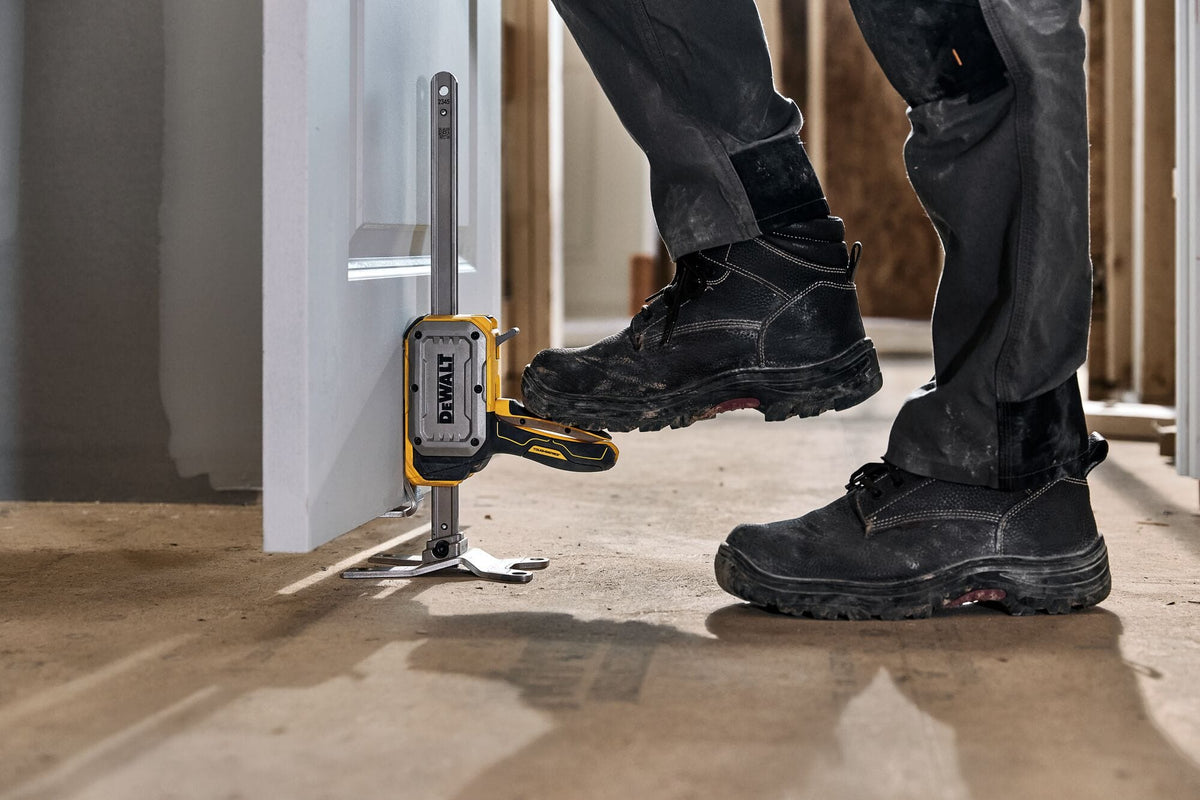

Pro-Tip: Use the step-to-lift foot pedal feature when positioning heavy solid-core doors; stepping on the handle keeps both hands completely free to align hinge leaves and insert hinge pins.
