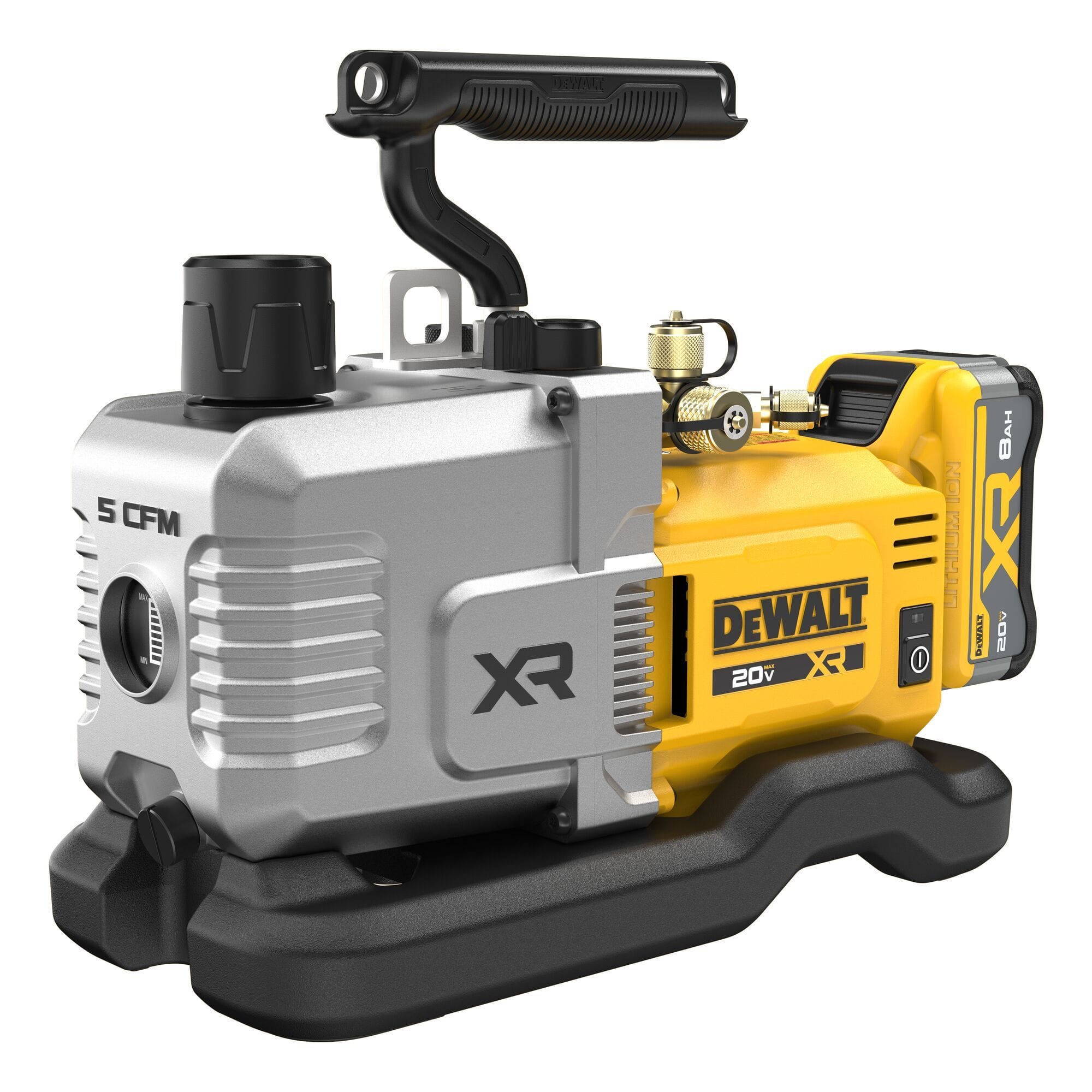

DEWALT DCE510 20V MAX XR 5 CFM cordless vacuum pump shown from an isometric view featuring a grey aluminum front housing, yellow motor body, top carry handle, and an attached 20V MAX XR 8Ah lithium-ion battery on a solid black base plate.

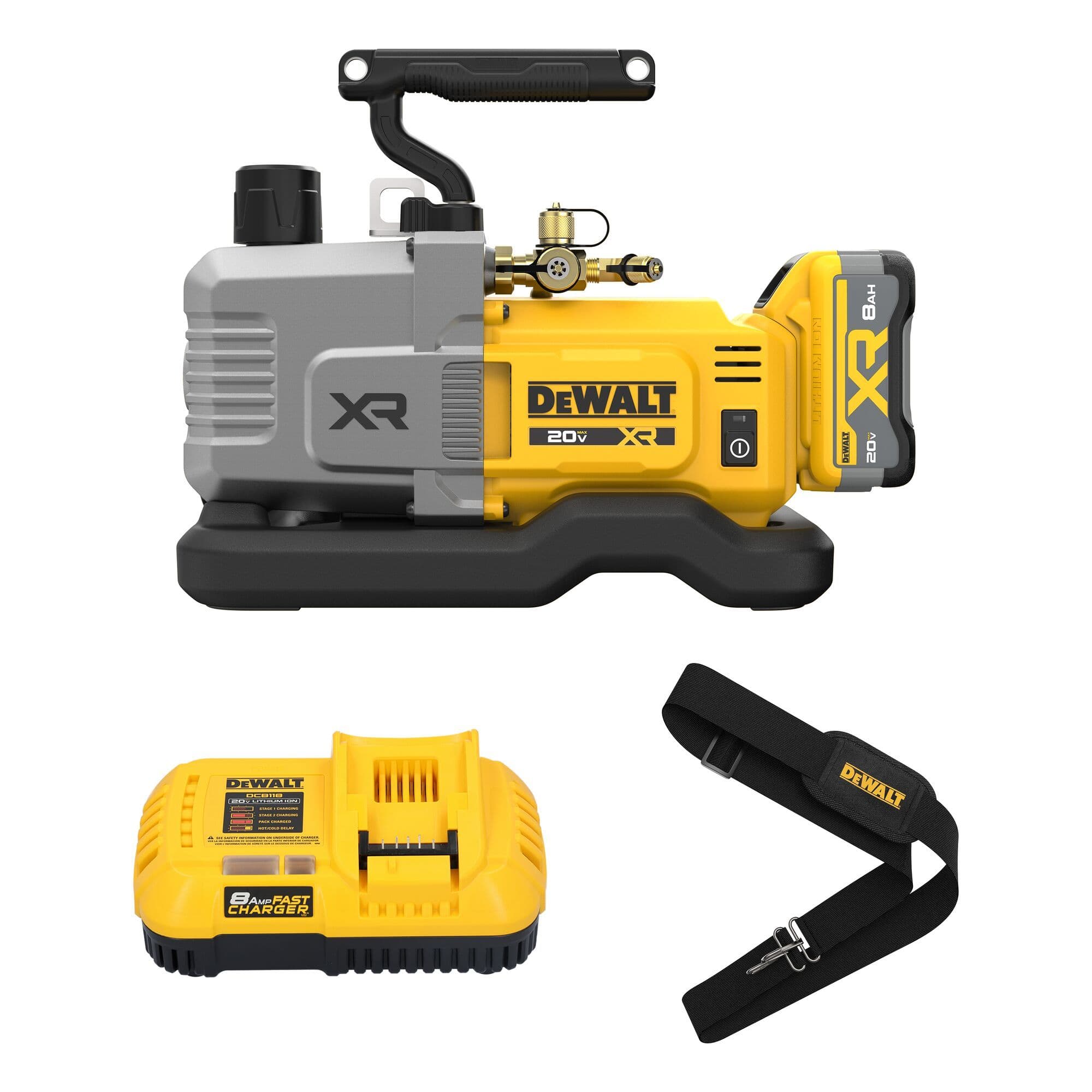

DEWALT DCE510WW1 cordless vacuum pump kit components laid out on a white background, including the 5 CFM pump with an attached 8Ah powerpack battery, a yellow DCB118 fast charger, and an adjustable black shoulder strap with gold branding.

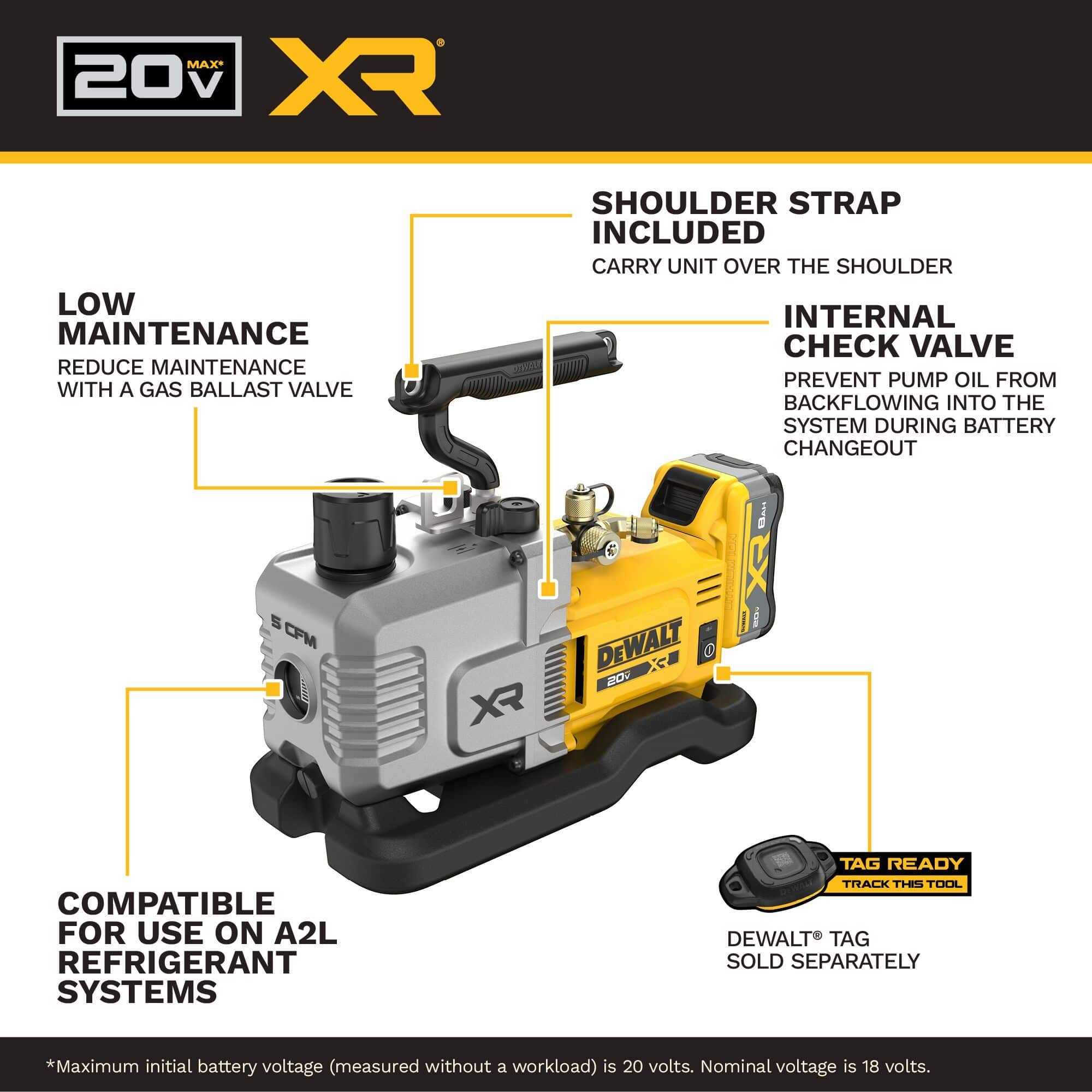

Product feature diagram of the DEWALT 20V MAX XR vacuum pump with technical callouts pointing to the included shoulder strap, gas ballast valve for low maintenance, internal check valve to prevent oil backflow, and certified compatibility with A2L refrigerant systems.

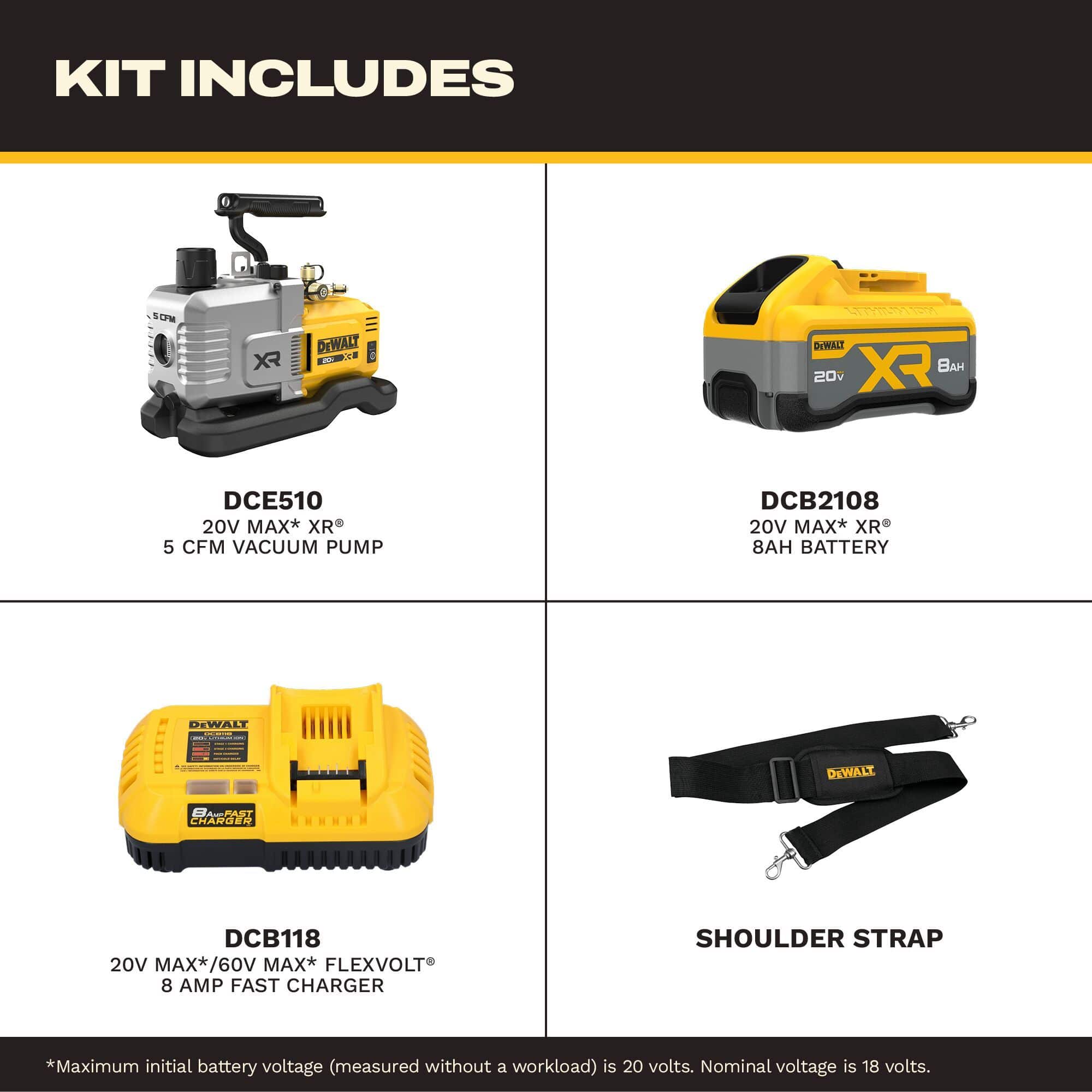

DEWALT DCE510WW1 kit contents graphic layout specifying the components included: the DCE510 5 CFM vacuum pump, a DCB2108 20V MAX XR 8Ah battery, a DCB118 8-amp fast charger, and a clip-on shoulder strap.

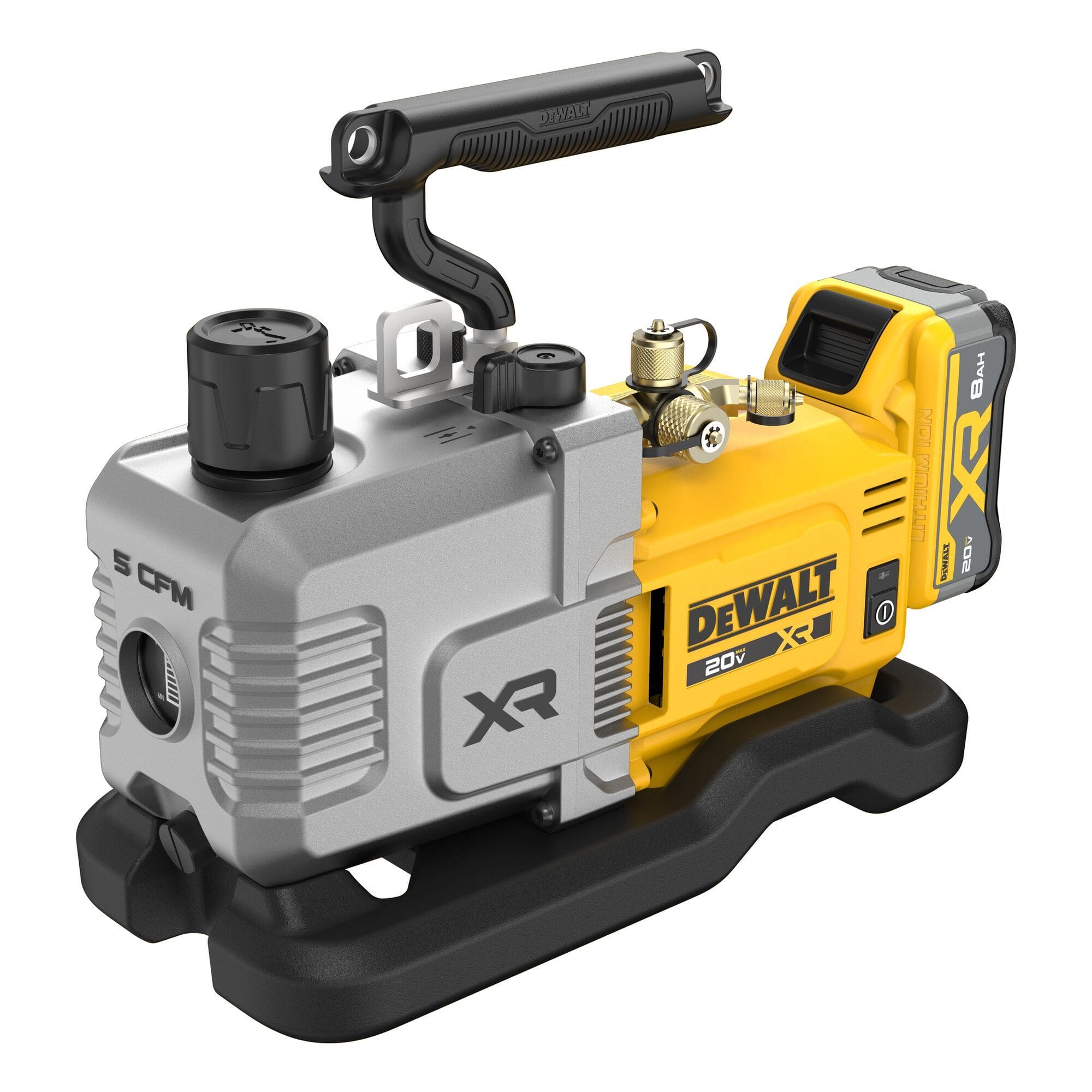

Close-up isometric view of the DEWALT 20V MAX XR cordless vacuum pump highlighting the textured top carry handle, brass mechanical connection ports, gas ballast, and integrated power switch.

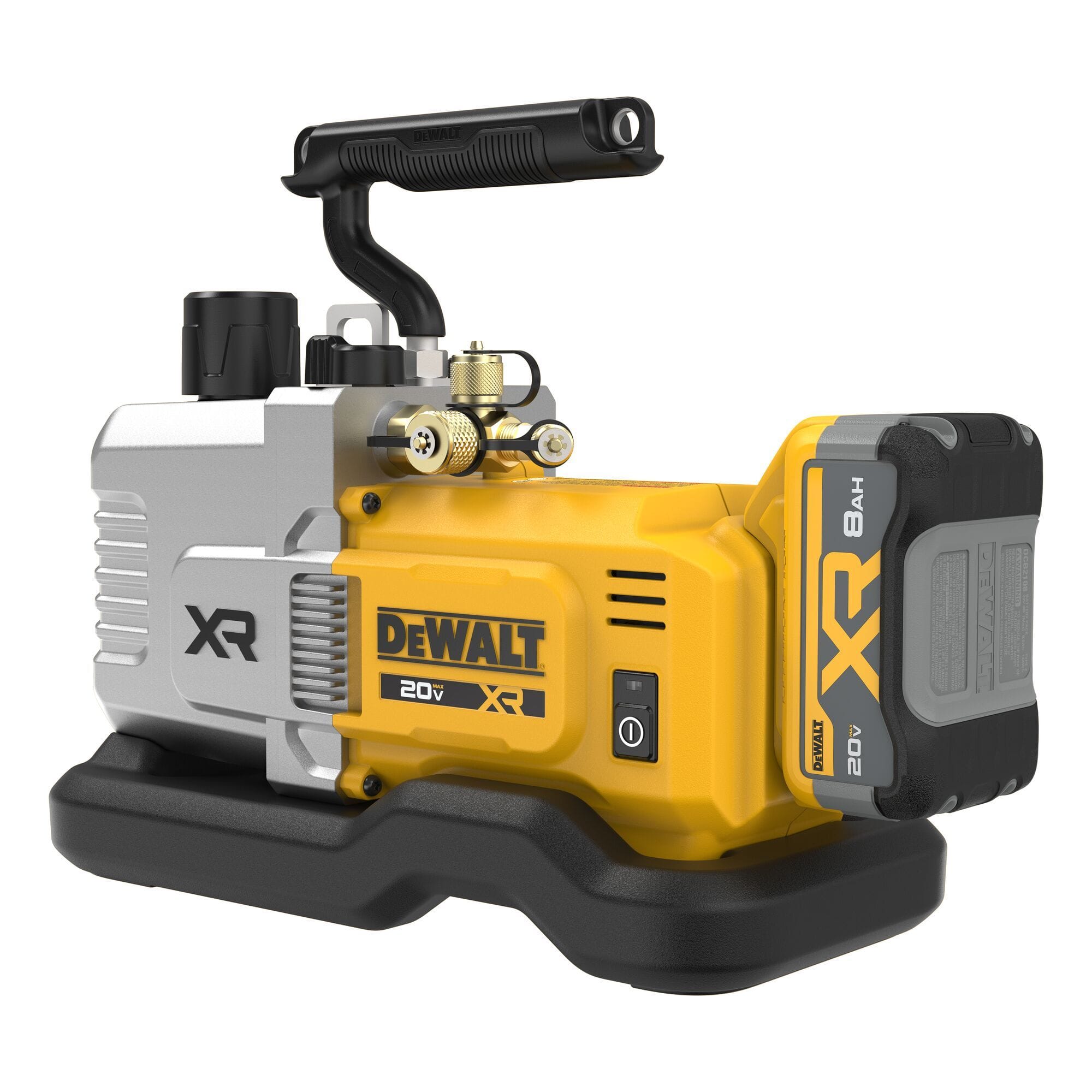

Rear three-quarter perspective of the yellow DEWALT DCE510 HVAC vacuum pump showcasing the slot-mounted 20V MAX XR 8Ah lithium-ion battery pack and heavy-duty motor housing details.

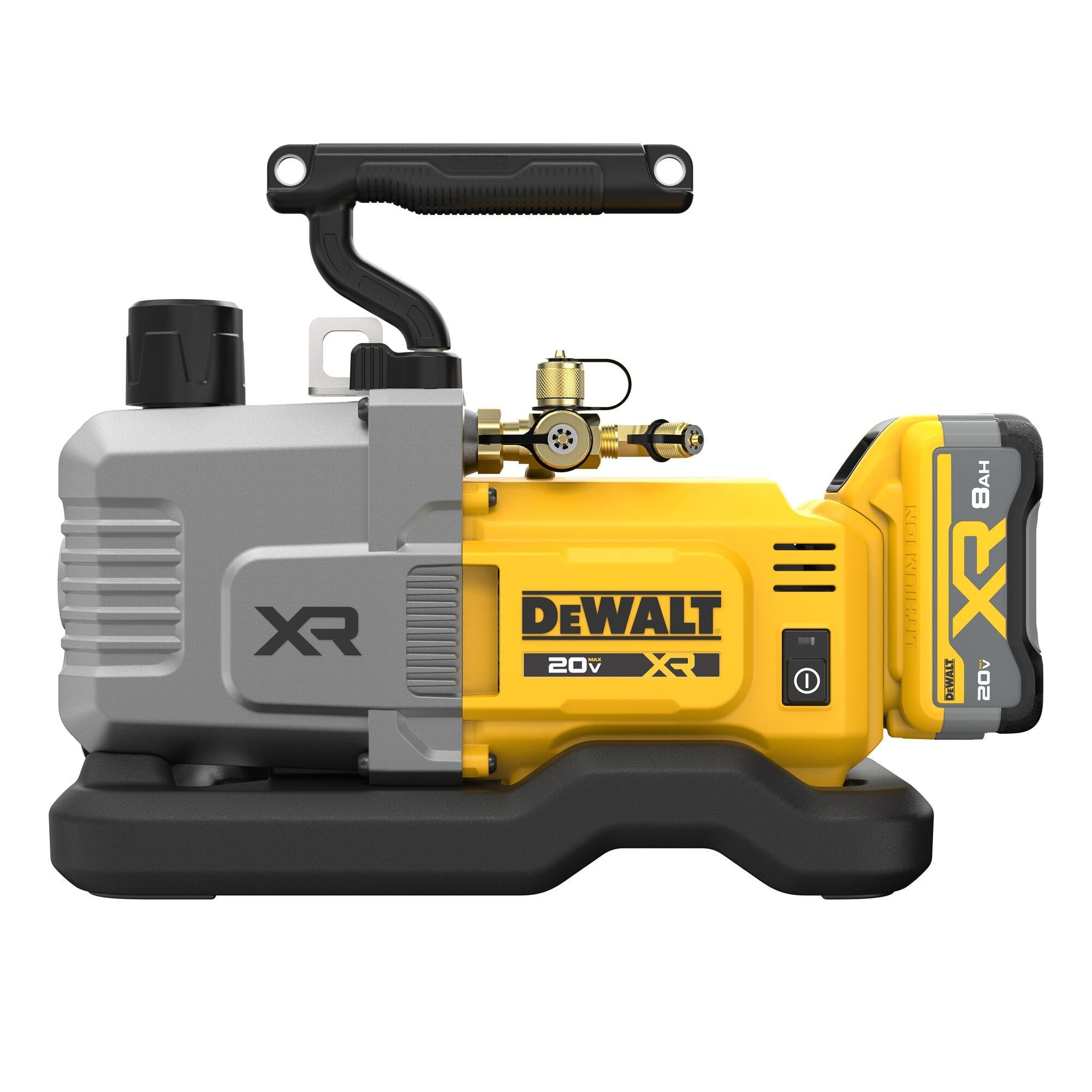

Left side profile view of the DEWALT DCE510 cordless vacuum pump highlighting the grey metal front housing with embossed XR branding, an oil level indicator window, and the molded black composite base.

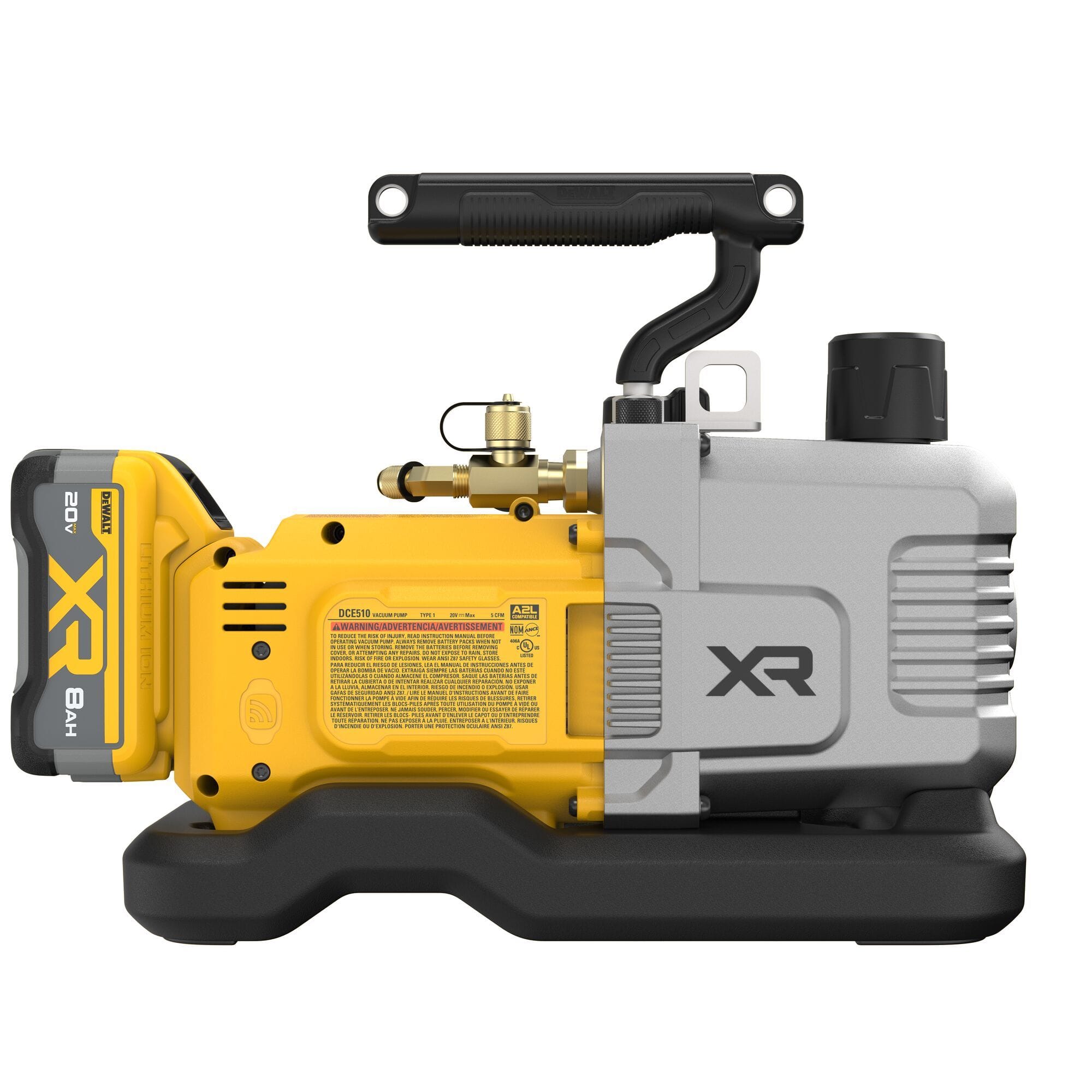

Right side profile view of the yellow DEWALT DCE510 vacuum pump showing product identification decals, technical specifications, the technical warning label, the power switch, and brass plumbing fittings.
HVAC technician in a high-visibility green shirt and hard hat carrying the DEWALT cordless vacuum pump using the included shoulder strap while ascending an outdoor industrial metal staircase to a rooftop jobsite.
Commercial rooftop HVAC contractor kneeling down to service an air conditioning system with the DEWALT 20V MAX XR cordless vacuum pump, featuring overlay text highlighting up to 60 minutes of runtime per charge.
HVAC safety contractor looking down from a concrete block commercial roof edge while lowering or raising the DEWALT 20V MAX XR cordless vacuum pump via a heavy-duty work rope attached to the handle.

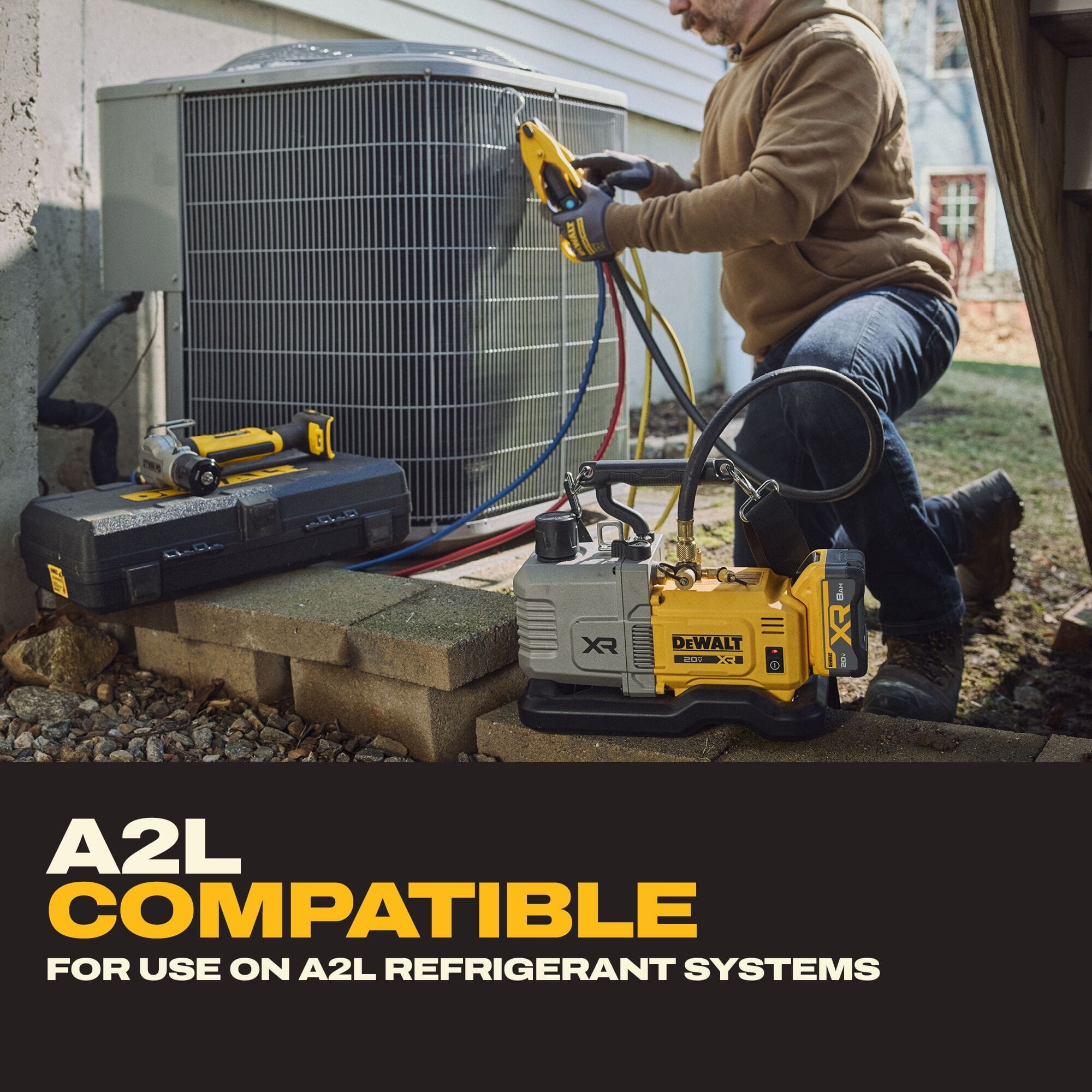

Residential AC technician kneeling outdoors near a concrete foundation wall next to an outdoor condenser unit, utilizing manifold gauges with blue and red lines connected to a DEWALT DCE510 cordless vacuum pump for A2L system evacuation.
DEWALT 20V MAX system compatibility graphic showing a collection of four different yellow and black rechargeable slide batteries including 2Ah, 5Ah, and 8Ah XR lithium-ion packs underneath large text.

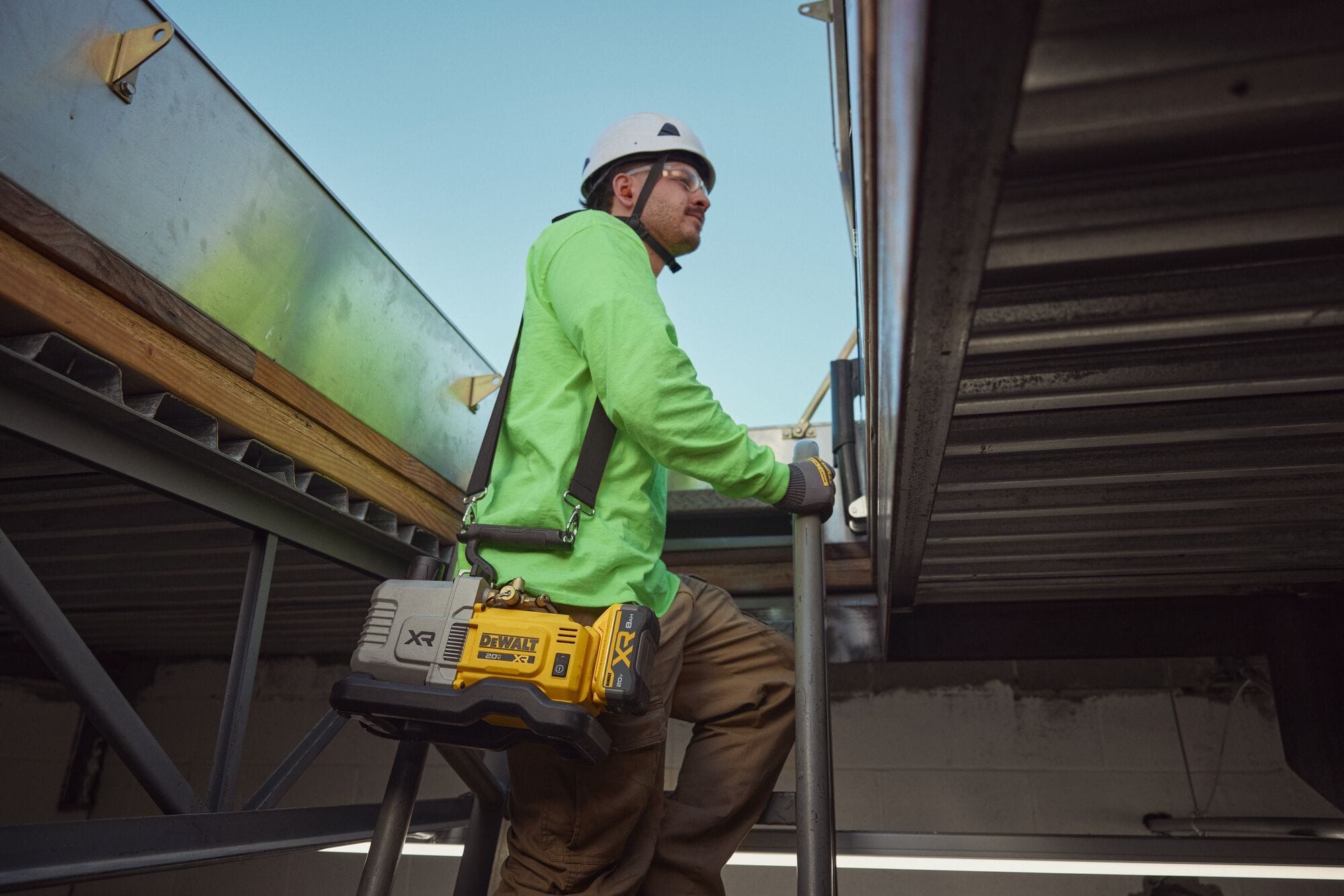

Commercial pipe trade technician with protective eyewear and a white hard hat walking up an outdoor metal building staircase with the DEWALT 20V MAX XR 5 CFM cordless vacuum pump hanging from his shoulder by the included black strap.

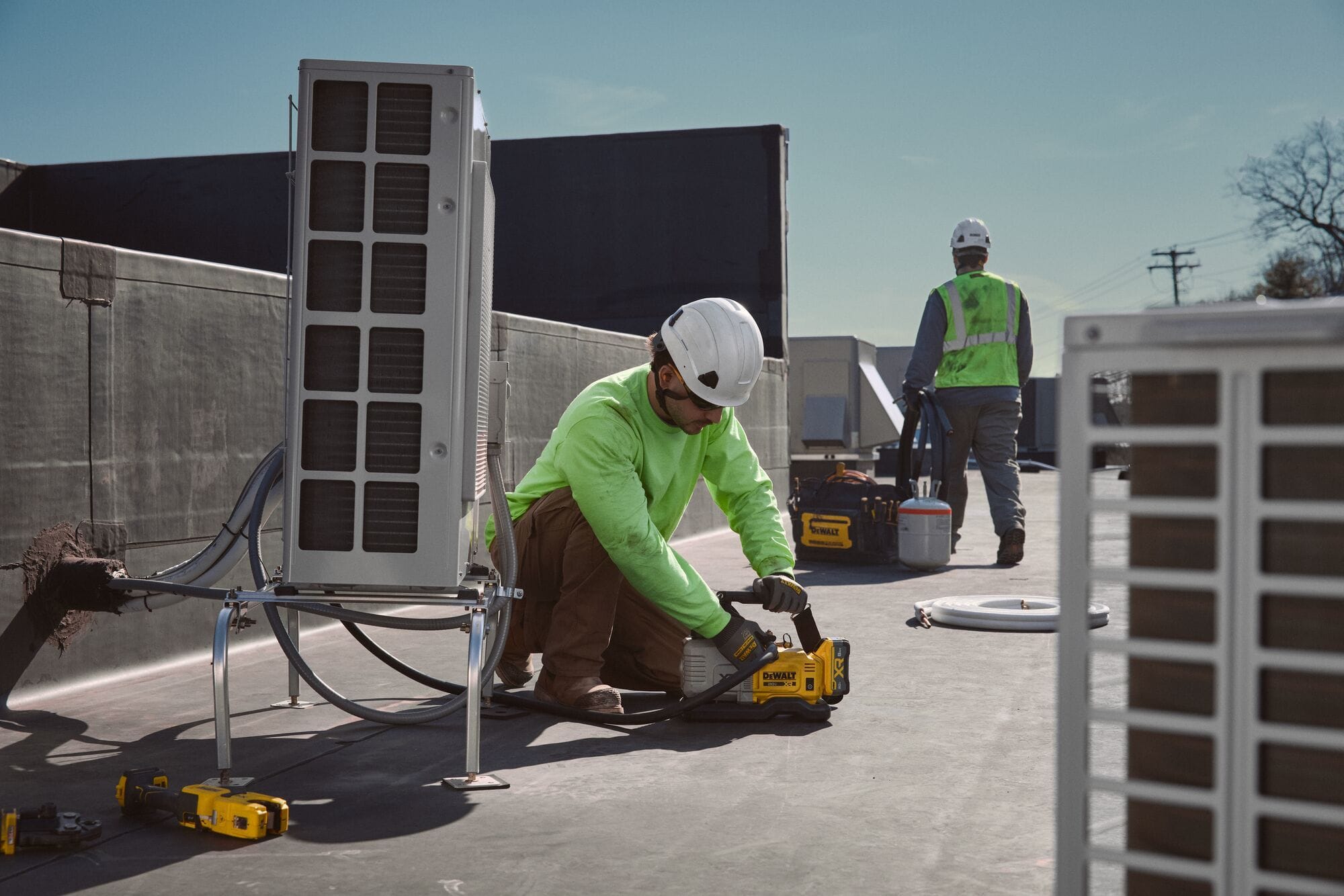

Industrial rooftop shot of an HVAC service mechanic in a green shirt kneeling next to a large commercial central air unit, checking connections with the DEWALT cordless vacuum pump resting on a flat membrane roof while another contractor walks in the background.
Rooftop service professional wearing safety gear walking across a flat commercial building roof while carrying the compact DEWALT 20V MAX XR 5 CFM cordless vacuum pump by its top composite handle next to HVAC condenser units.

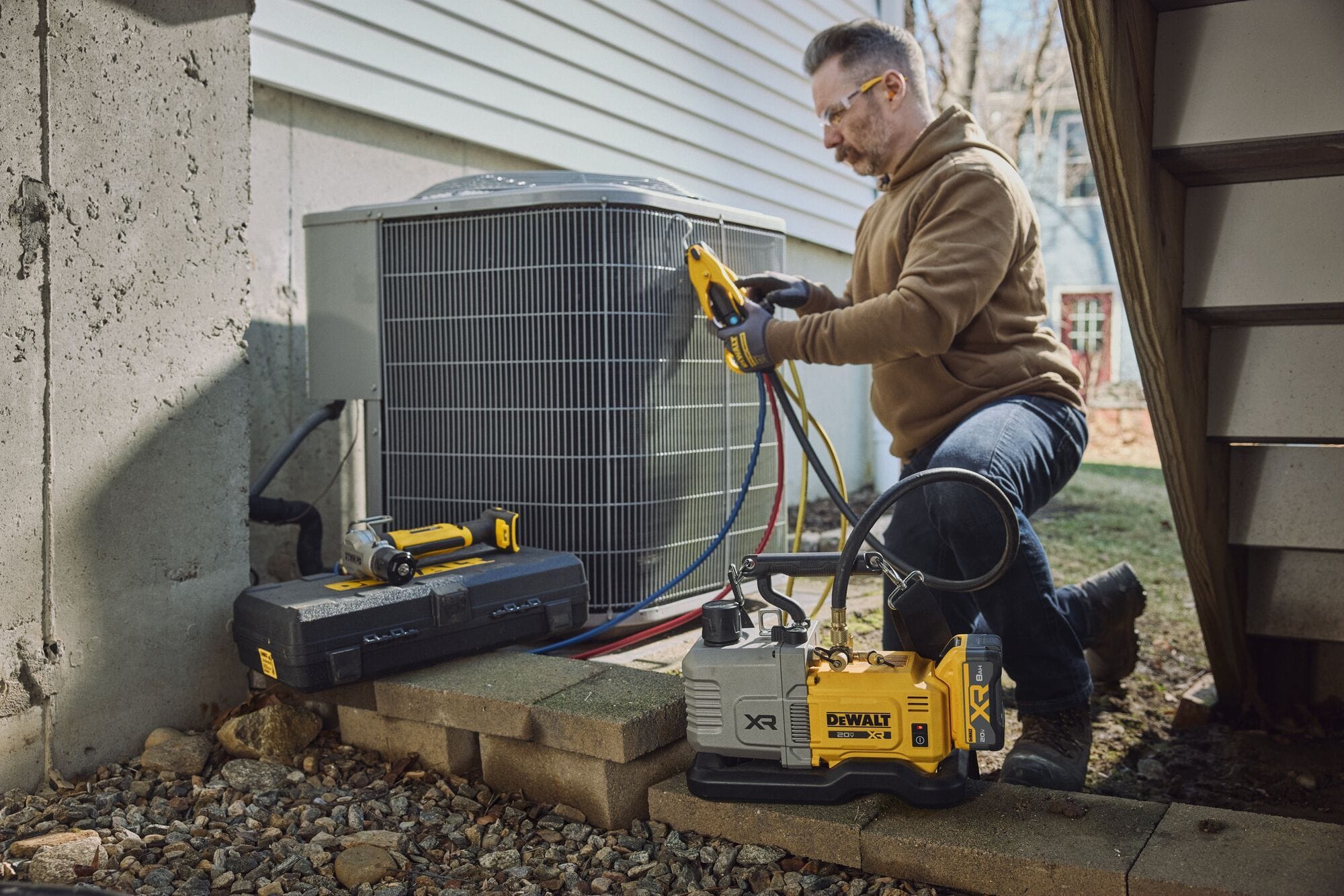

Side angle view of a service technician setting up a DEWALT DCE510 cordless vacuum pump below a flight of outdoor wooden stairs to perform a certified A2L refrigerant evacuation on a residential air conditioning condenser.
DEWALT DCE510, DCE510WW1 20V vacuum pump in use, portable with strap; highlights runtime, features, A2L compatibility.
DEWALT DCE510 20V MAX XR 5 CFM cordless vacuum pump shown from an isometric view featuring a grey aluminum front housing, yellow motor body, top carry handle, and an attached 20V MAX XR 8Ah lithium-ion battery on a solid black base plate.
DEWALT DCE510WW1 cordless vacuum pump kit components laid out on a white background, including the 5 CFM pump with an attached 8Ah powerpack battery, a yellow DCB118 fast charger, and an adjustable black shoulder strap with gold branding.
Product feature diagram of the DEWALT 20V MAX XR vacuum pump with technical callouts pointing to the included shoulder strap, gas ballast valve for low maintenance, internal check valve to prevent oil backflow, and certified compatibility with A2L refrigerant systems.
DEWALT DCE510WW1 kit contents graphic layout specifying the components included: the DCE510 5 CFM vacuum pump, a DCB2108 20V MAX XR 8Ah battery, a DCB118 8-amp fast charger, and a clip-on shoulder strap.
Close-up isometric view of the DEWALT 20V MAX XR cordless vacuum pump highlighting the textured top carry handle, brass mechanical connection ports, gas ballast, and integrated power switch.
Rear three-quarter perspective of the yellow DEWALT DCE510 HVAC vacuum pump showcasing the slot-mounted 20V MAX XR 8Ah lithium-ion battery pack and heavy-duty motor housing details.
Left side profile view of the DEWALT DCE510 cordless vacuum pump highlighting the grey metal front housing with embossed XR branding, an oil level indicator window, and the molded black composite base.
Right side profile view of the yellow DEWALT DCE510 vacuum pump showing product identification decals, technical specifications, the technical warning label, the power switch, and brass plumbing fittings.
HVAC technician in a high-visibility green shirt and hard hat carrying the DEWALT cordless vacuum pump using the included shoulder strap while ascending an outdoor industrial metal staircase to a rooftop jobsite.
Commercial rooftop HVAC contractor kneeling down to service an air conditioning system with the DEWALT 20V MAX XR cordless vacuum pump, featuring overlay text highlighting up to 60 minutes of runtime per charge.
HVAC safety contractor looking down from a concrete block commercial roof edge while lowering or raising the DEWALT 20V MAX XR cordless vacuum pump via a heavy-duty work rope attached to the handle.
Residential AC technician kneeling outdoors near a concrete foundation wall next to an outdoor condenser unit, utilizing manifold gauges with blue and red lines connected to a DEWALT DCE510 cordless vacuum pump for A2L system evacuation.
DEWALT 20V MAX system compatibility graphic showing a collection of four different yellow and black rechargeable slide batteries including 2Ah, 5Ah, and 8Ah XR lithium-ion packs underneath large text.
Commercial pipe trade technician with protective eyewear and a white hard hat walking up an outdoor metal building staircase with the DEWALT 20V MAX XR 5 CFM cordless vacuum pump hanging from his shoulder by the included black strap.
Industrial rooftop shot of an HVAC service mechanic in a green shirt kneeling next to a large commercial central air unit, checking connections with the DEWALT cordless vacuum pump resting on a flat membrane roof while another contractor walks in the background.
Rooftop service professional wearing safety gear walking across a flat commercial building roof while carrying the compact DEWALT 20V MAX XR 5 CFM cordless vacuum pump by its top composite handle next to HVAC condenser units.
Side angle view of a service technician setting up a DEWALT DCE510 cordless vacuum pump below a flight of outdoor wooden stairs to perform a certified A2L refrigerant evacuation on a residential air conditioning condenser.
DEWALT DCE510, DCE510WW1 20V vacuum pump in use, portable with strap; highlights runtime, features, A2L compatibility.
DEWALT

DEWALT Cordless Vacuum Pump DCE510WW1 20V MAX XR 5 CFM Kit (8Ah Powerpack Battery 500 Microns Pull Down A2L Refrigerant HVAC Commercial System)

Only 3 left
SKU: DCE510WW1
$849.99 USD

Description

Authorized Dealer Badge DEWALT logout

Industrial Cordless 20V XR 5 CFM Vacuum Pump Kit for Fast 500 Micron A2L Refrigerant Pull Downs

The DEWALT DCE510WW1 20V MAX XR 5 CFM Cordless Vacuum Pump Kit delivers commercial-grade mechanical evacuation speeds for residential and light-commercial HVAC refrigerant systems without the restriction of power cords. Engineered for compatibility with modern A2L refrigerant systems, this high-efficiency twin-stage pump matches the speed performance of competitive 5 CFM corded units, pulling down a 40-liter HVAC split system to 500 microns in under 20 minutes. The system integrates a vital isolation ball valve and an internal check valve to securely trap vacuum pressure and prevent oil backflow into the copper lines during battery swap-outs. Complete with audible alerts, a structural LED low-battery indicator, and a gas ballast moisture purge valve, this industrial pipe trade tool is powered by an included 20V MAX XR 8Ah POWERPACK battery to maximize field uptime and ensure rapid evacuation cycles.

Best Used For:

  • A2L Refrigerant System Evacuation: Safely pulling down modern low-GWP residential split systems and light-commercial AC networks using certified spark-free architecture.
  • Cordless Deep Vacuum Maintenance: Commissioning line sets on rooftops, remote jobsites, and unpowered construction locations down to a crisp 500-micron standard.
  • Rapid Multi-System Servicing: Performing high-speed moisture purging and aggregate extraction on volume installations up to 40 liters capacity per loop.

Key Performance & Safety Features

  • 5 CFM Corded Matching Speed: Heavy-duty internal engineering provides identical volumetric displacement speed to AC-powered alternatives to eliminate workflow delays.
  • Isolation & Check Valve Protection: Dual-valve containment isolates the internal oil reservoir, ensuring zero system contamination and holding vacuum pressure perfectly during battery changes.
  • Gas Ballast Purge Valve: Dedicated exhaust bypass mechanism evacuates high levels of moisture vapor during early staging, protecting oil purity and extending operational intervals.
  • Low-Battery Dual Warning Matrix: Emits an explicit audible beeping notification accompanied by an active LED warning light to prevent unmanaged, mid-pass power exhaustion.
  • XR Powerpack Endurance: Combined with an 8.0 Ah high-capacity lithium-ion battery cell matrix to output up to 60 minutes of continuous line drawing performance.

What's Included

  • (1) DCE510 20V MAX XR 5 CFM Cordless Vacuum Pump
  • (1) 20V MAX XR POWERPACK 8Ah Battery (DCB2108)
  • (1) Lithium-Ion Battery Charger
  • (1) Heavy-Duty Shoulder Strap

Technical Specifications

Specification Value
Brand DEWALT
Model Number DCE510WW1
Product Type Cordless Vacuum Pump Kit
Voltage Rating 20V MAX
Free Air Displacement 5 CFM
Ultimate Vacuum Depth 500 Microns
Refrigerant Compatibility Standard and A2L Systems
Battery Included 20V MAX XR POWERPACK 8.0 Ah (DCB2108)
Maximum Run Time Up to 60 Minutes
Assembled Product Length 15.75 in
Assembled Product Width 9.65 in
Assembled Product Height 13.07 in
Assembled Product Weight 28.55 lbs

Pro-Tip: To keep oil clean when starting a evacuation on a line set that contains excessive ambient humidity, leave the gas ballast valve open for the first 5 to 10 minutes of the pull down. This bypass vents water vapor safely to the exhaust port instead of allowing it to condense inside your clean pump oil, maximizing your micron performance.
