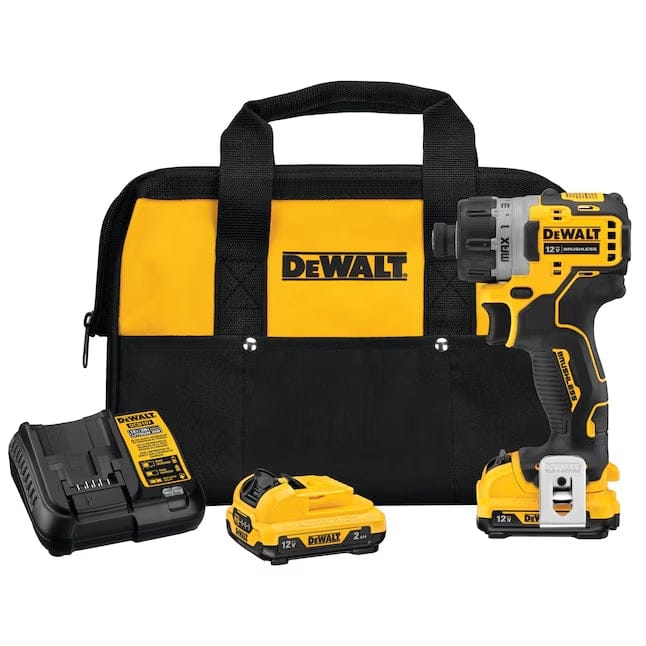

DeWALT 12V MAX cordless screwdriver kit with soft carrying bag, charger, and two 2Ah lithium-ion batteries. One battery is attached to the drill.

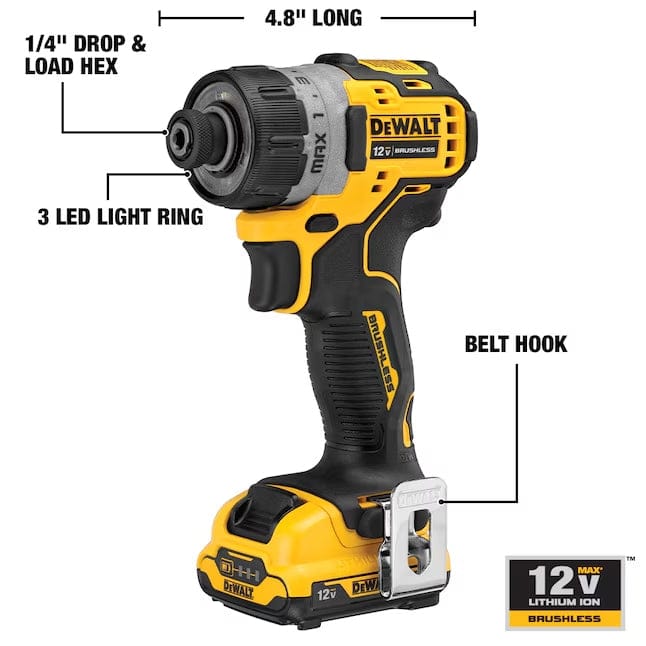

DeWALT 12V MAX brushless impact driver with 1/4 inch drop-and-load hex chuck, 3 LED light ring, and belt hook.

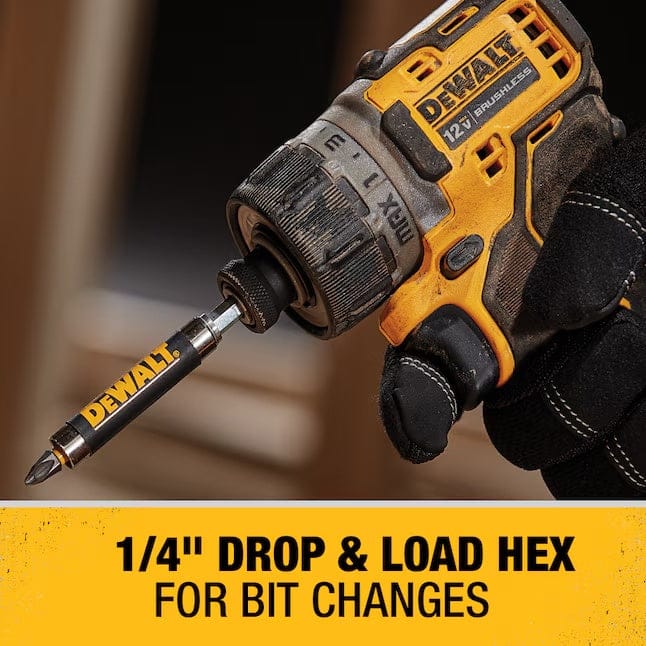

Close-up of DeWALT 12V brushless screwdriver held by gloved hand, showing drop-and-load hex chuck and torque settings.

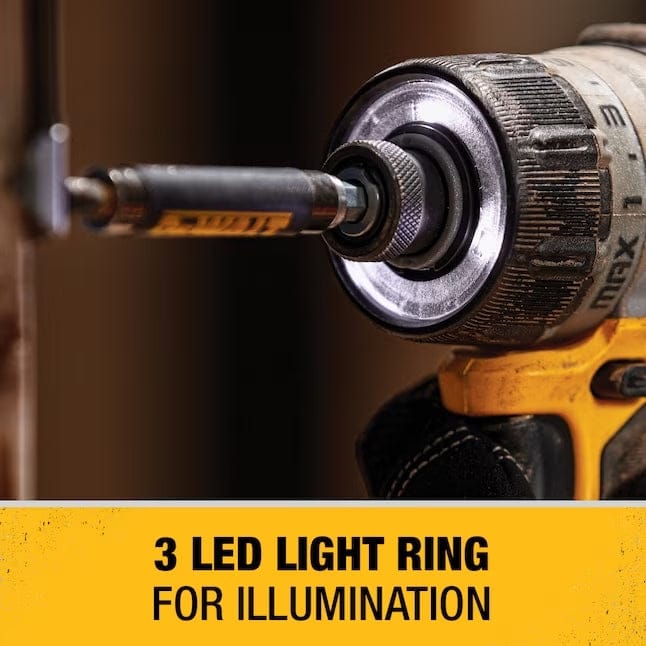

Close-up of DeWALT screwdriver chuck with three illuminated LED lights surrounding the bit. Caption highlights LED light ring feature.

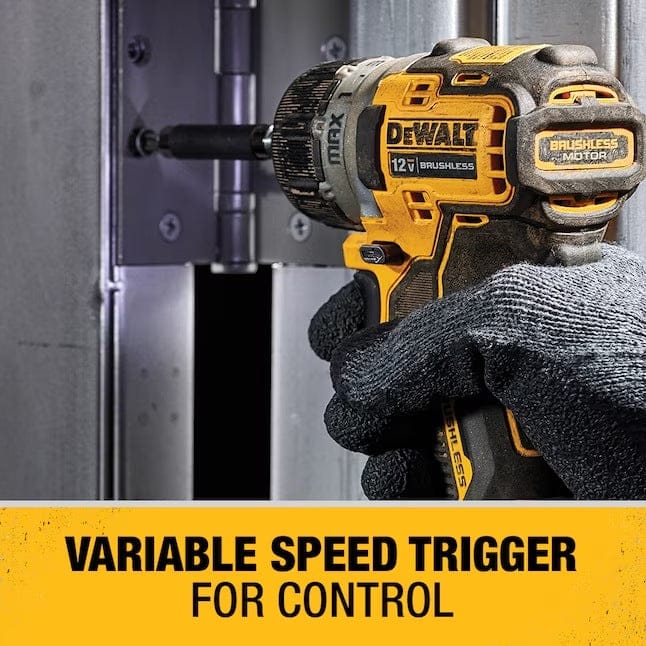

Gloved hand using DeWALT 12V brushless screwdriver to drive a screw into metal. Caption highlights variable speed trigger for control.

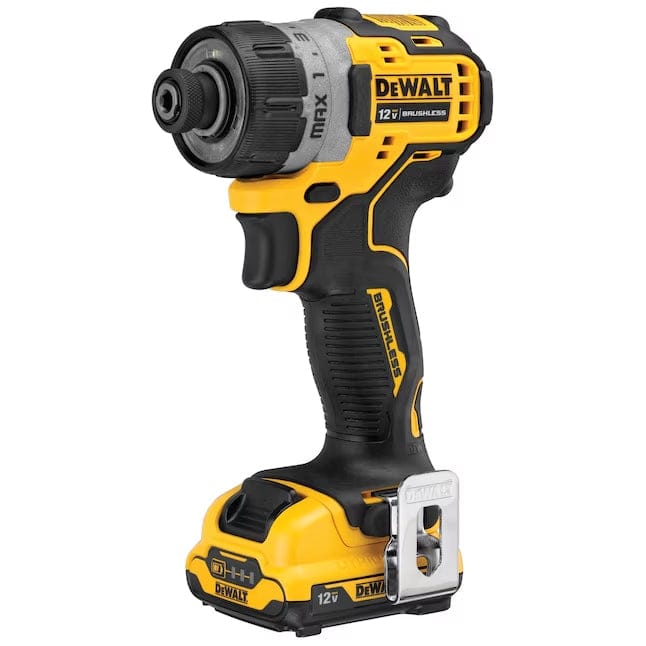

DeWALT 12V brushless impact driver with torque settings labeled MAX, 1, and 3. Includes belt clip and compact battery pack.

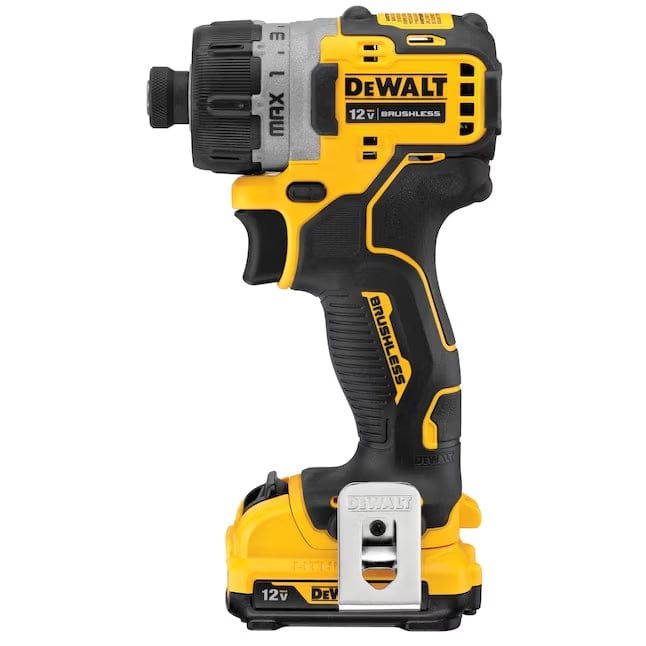

Close-up of DeWALT 12V MAX brushless screwdriver in use, driving a screw into wood. Gloved hand and tool branding visible.

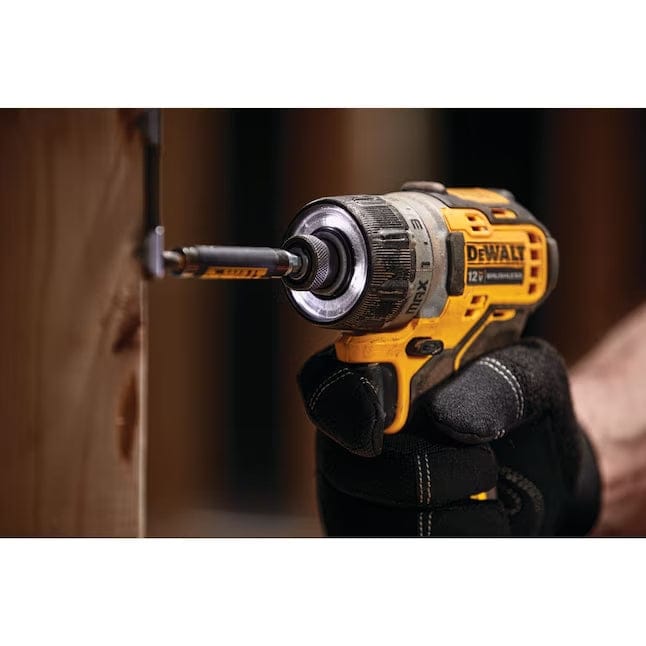

DeWalt drill held by a gloved hand with a blurred wooden background
DeWALT 12V MAX cordless screwdriver kit with soft carrying bag, charger, and two 2Ah lithium-ion batteries. One battery is attached to the drill.
DeWALT 12V MAX brushless impact driver with 1/4 inch drop-and-load hex chuck, 3 LED light ring, and belt hook.
Close-up of DeWALT 12V brushless screwdriver held by gloved hand, showing drop-and-load hex chuck and torque settings.
Close-up of DeWALT screwdriver chuck with three illuminated LED lights surrounding the bit. Caption highlights LED light ring feature.
Gloved hand using DeWALT 12V brushless screwdriver to drive a screw into metal. Caption highlights variable speed trigger for control.
DeWALT 12V brushless impact driver with torque settings labeled MAX, 1, and 3. Includes belt clip and compact battery pack.
Close-up of DeWALT 12V MAX brushless screwdriver in use, driving a screw into wood. Gloved hand and tool branding visible.
DeWalt drill held by a gloved hand with a blurred wooden background
DEWALT

DeWalt 12V MAX XTREME Cordless Screwdriver Kit DCF601F2 1/4 Inch Hex Brushless (200 UWO 1100 RPM 15 Clutch Settings 2 Batteries Charger)

In stock
SKU: DCF601F2
$149.00 USD

Description

Authorized Dealer Badge DEWALT logout

DeWalt DCF601F2 12V MAX XTREME 1/4-Inch Brushless Cordless Screwdriver Kit with (2) 2.0Ah Batteries

The DeWalt DCF601F2 12V MAX XTREME 1/4-Inch Cordless Screwdriver Kit is a compact precision fastening tool engineered for electrical box assembly, cabinet hardware installation, and HVAC ductwork assembly in confined jobsite bays. Powered by an efficient brushless motor that produces 200 UWO of power output and no-load speeds up to 1,100 RPM, this 4.3-pound kit incorporates a 15-position adjustable clutch collar and a 1/4-inch quick-release hex chuck. Measuring 4.8 inches in head length with 3 halo LED lights, this sub-compact driver prevents fastener stripping across delicate electrical panels, furniture frames, and sheet metal duct seams.

Best Used For:

  • Electrical Outlet & Control Panel Fastening: Driving terminal screws and faceplate fasteners precisely without stripping delicate threaded holes or damaging plastic trim.
  • Cabinetry Hardware & Hinge Installation: Securing mounting plates, drawer slides, and architectural hardware inside dark 12-inch cabinet boxes.
  • HVAC & Sheet Metal Ductwork Assembly: Running self-tapping screws and hex-head fasteners into light-gauge sheet metal in tight ceiling joist bays.

Key Performance & Safety Features

  • Efficient Brushless Motor Drive: Generates 200 UWO of output power to maintain consistent torque output while extending battery runtime per charge.
  • 15-Position Adjustable Clutch Collar: Calibrated torque settings prevent over-tightening, thread stripping, and fastener head shear in soft materials.
  • 3 LED Halo Light Ring: Shadow-free nosecone lighting illuminates dark cabinet corners and recessed electrical enclosures.
  • 1/4-Inch Drop-and-Load Hex Chuck: Quick-release hex mechanism enables one-handed insertion of standard 1/4-inch hex shank driver bits.
  • Ultra-Compact 4.8-Inch Head Length: Sub-compact front-to-back length provides access between narrow stud spaces and tight machinery frames.
  • Dual 12V MAX 2.0Ah Battery System: Includes two compact lithium-ion packs and a fast charger to maintain uninterrupted operational readiness.

What's Included

  • (1) DeWalt DCF601 12V MAX XTREME 1/4" Brushless Screwdriver
  • (2) DeWalt 12V MAX 2.0Ah Lithium-Ion Battery Packs (DCB122)
  • (1) 12V MAX / 20V MAX Lithium-Ion Battery Charger (DCB112)
  • (1) Belt Clip
  • (1) Heavy-Duty Soft Contractor Storage Bag

Technical Specifications

Brand / Manufacturer DeWalt
Model / Part Number DCF601F2
Voltage System 12V MAX DC
Max Power Output 200 UWO (Unit Watts Out)
No-Load Operating Speed 0 - 1,100 RPM
Chuck Size & Drive Type 0.25 in. (6.35 mm / 1/4 in.) Quick-Release Hex
Clutch Settings 15 Position Adjustable Clutch
Head Length 4.8 in. (121.9 mm)
Kit Total Weight 4.3 lbs (1.95 kg) / Tool Only Weight 2.0 lbs
Battery Capacity & Chemistry 2.0 Ah Lithium-Ion (2 Batteries Included)
Worklight Configuration 3 LED Nosecone Halo Ring
Product Line / Series XTREME 12V MAX Series
Pro-Tip: Set the clutch collar to setting 1 when installing plastic electrical faceplates, then gradually dial up the torque setting only as needed for cabinet hinges to eliminate cracked trim plates and stripped wood screw holes.
