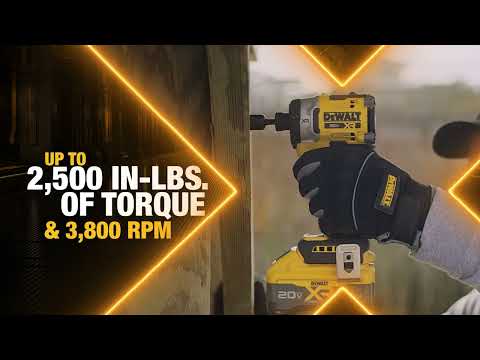

Introducing the Highest Torque 20V MAX* Impact Driver from DEWALT** [DCF860] promotional video
A perspective studio shot of the DEWALT DCF860B 20V MAX XR brushless 1/4-inch high-torque impact driver bare tool against a white background, displaying its compact yellow and black housing, silver cast metal gear case, texturized rubber handle grip, variable-speed trigger, and attached steel belt hook.
A direct side profile studio view of the cordless 1/4-inch impact driver against a white background, highlighting its ultra-compact head length profile and the integrated bit holder assembly extending from the front metal nose cone.
A three-quarter profile studio view of the DEWALT 20V brushless impact driver shown from an elevated angle, emphasizing the digital electronic control panel located on the foot of the tool directly above the battery dock.
An infographic diagram mapping out the primary structural components of the DEWALT high-torque impact driver, with indicator lines pointing to the 9 built-in LEDs, 1/4-inch quick-connect hex chuck, variable-speed trigger, 3-speed mode select with 20-minute LED mode, brushless motor producing 2,500 in-lbs of torque, and the steel belt hook.
A close-up action view of a worker wearing heavy protective gloves operating the cordless impact driver to run a hex-head screw down into a structural sheet metal channel beam. A bold yellow graphic banner across the bottom emphasizes the tool's maximum speed of 3,800 RPM.
A detailed close-up shot focused on the front nose cone assembly of the DEWALT impact driver, highlighting the ring of 9 built-in LEDs fully illuminated around the quick-connect hex chuck. A bottom yellow and black banner reads Integrated 9-LED Work Light.
An action image of a builder operating the high-torque impact driver to sink a long structural screw into a dimensional lumber wall assembly stud. A lower yellow text block calls attention to its classification as DEWALT's highest torque impact driver based on rated max torque metrics.
A close-up shot of the cordless tool in use, showing a professional driving a long wood fastener down flush into an exterior timber deck board. A bold yellow banner highlights its industrial capacity of 2,500 in-lbs of maximum torque.
An industrial framing view of a construction contractor using the 20V MAX XR impact driver overhead to run structural lag fasteners into a residential wood ceiling joist. The lower graphic panel details performance efficiency showing up to 63% faster driving versus the baseline DCF787 model.
A duplicate action shot of a professional carpenter using the DEWALT brushless impact driver overhead to secure joist framing timbers, with a lower technical banner highlighting the up to 63% faster driving speed capacity under heavy structural loads.
Introducing the Highest Torque 20V MAX* Impact Driver from DEWALT** [DCF860] promotional video
DEWALT

DEWALT DCF860B 1/4 Inch High Torque Impact Driver (20V MAX Brushless Motor 2500 In-Lbs Torque 3 Speed Cordless Fastening Wood Metal Bare Tool)

In stock
SKU: DCF860B
$199.00 USD

Description

Authorized Dealer Badge DEWALT logout

Power Through Demanding Fastening Applications with Premium High-Torque Cordless Driving

The DEWALT DCG860B 20V MAX XR Brushless Cordless 1/4-Inch High-Torque Impact Driver features an industrial motor design that produces up to 2,500 in-lbs of maximum torque. This cordless fastening tool incorporates a high-speed transmission delivering up to 3,800 no-load RPM and 4,500 impacts per minute (BPM) for up to 63% faster driving under continuous resistance loads. It provides an authoritative jobsite option for heavy timber construction, structural sheet metal assembly, and deep lag screw fastening paths while remaining completely free from the constraints of power cords.

Best Used For:

  • Heavy Timber Framing: Driving structural ledger screws, large lag bolts, and structural timber fasteners rapidly into dense lumber.
  • Commercial Metal Assembly: Running self-drilling tapping screws or running high-volume metal-to-metal industrial fasteners.
  • On-Site Decking Installation: Fastening high-density composite decking boards and structural carriage anchors over long working shifts.

Key Performance & Safety Features

  • Maximum Power Brushless Motor: Premium XR brushless electronics platform uncoils up to 66% more torque capacity compared to previous generation units.
  • Three-Speed Mode Selection: Mechanical speed selector optimizes rotational forces (0-3,800 RPM) to closely align with standard tapping screw installation guidelines.
  • Integrated Nine-LED Ring: Multi-diode workspace console illuminates structural targets up to 70 lumens with an automated 20-minute continuous work-light setting.
  • Quick-Connect Hex Chuck: Single-handed 1/4-inch hex drop-in jaw configuration facilitates instant, non-slip driver bit changes on active lines.
  • Asset Management Ready: Tool housing accepts a standard Tool Connect tracking chip (sold separately) for quick pairing with the DEWALT Site Manager software network.

What's Included

  • (1) DCF860 20V MAX XR Brushless 1/4 In. High-Torque Impact Driver (Bare Tool)
  • (1) Heavy-Duty Reversible Structural Steel Belt Hook

Technical Specifications

Technical Parameter Structured Factual Specifications
Brand Manufacturer DEWALT
Model Identification Number DCF860B
Product Classification Type Impact Driver
System Voltage 20V MAX
Motor Power Configuration Brushless
Chuck Type Interface 1/4 in Quick-Connect Hex Chuck
Maximum Tightening Torque 2,500 in-lbs
Maximum Rotational Speed 3,800 RPM
Maximum Impact Rate 4,500 BPM
Speed Adjustment Selection 3 Selective Digital Power Modes
Bare Tool Assembled Weight 2.8 lbs
Assembled Product Length 5.63 in
Assembled Product Width 3.38 in
Assembled Product Height 8.38 in
Universal Product Code (UPC) 885911817639

**Battery and charger sold separately.


Pro-Tip: When working with thin gauge metal sheeting or self-drilling tapping screws, drop the electronic interface speed selector down to mode 1 or 2 instead of running at the full 2,500 in-lbs capacity. This controlled setting limits the driver speed to perfectly accommodate the thread engagement threshold, preventing over-rotation or stripped heads while leveraging the full efficiency of the brushless tool design.
