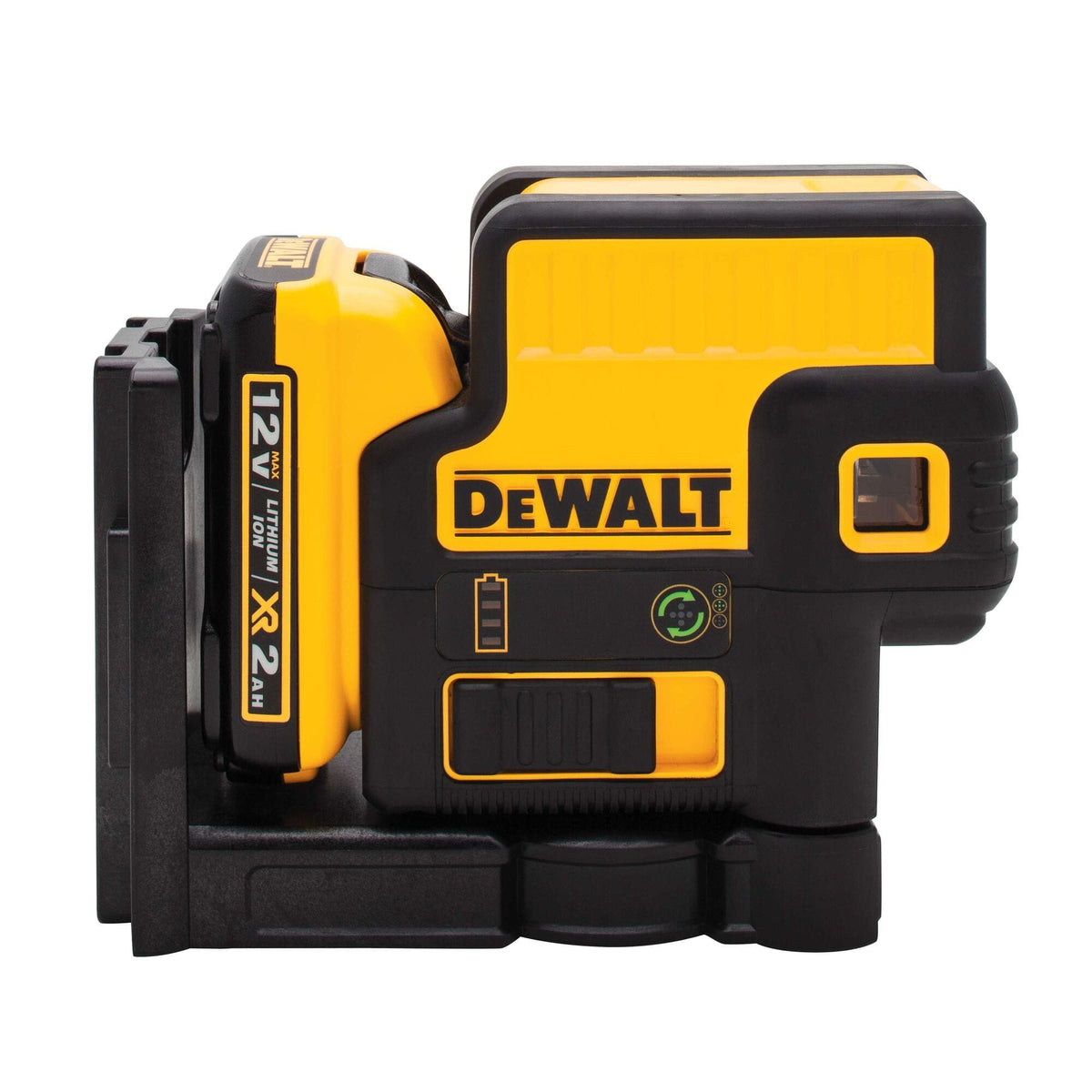

Side profile of the DEWALT DW085LG 12V MAX 5 Spot Green Laser Level, showcasing the high-visibility yellow housing, integrated magnetic bracket, and 12V MAX battery connection.

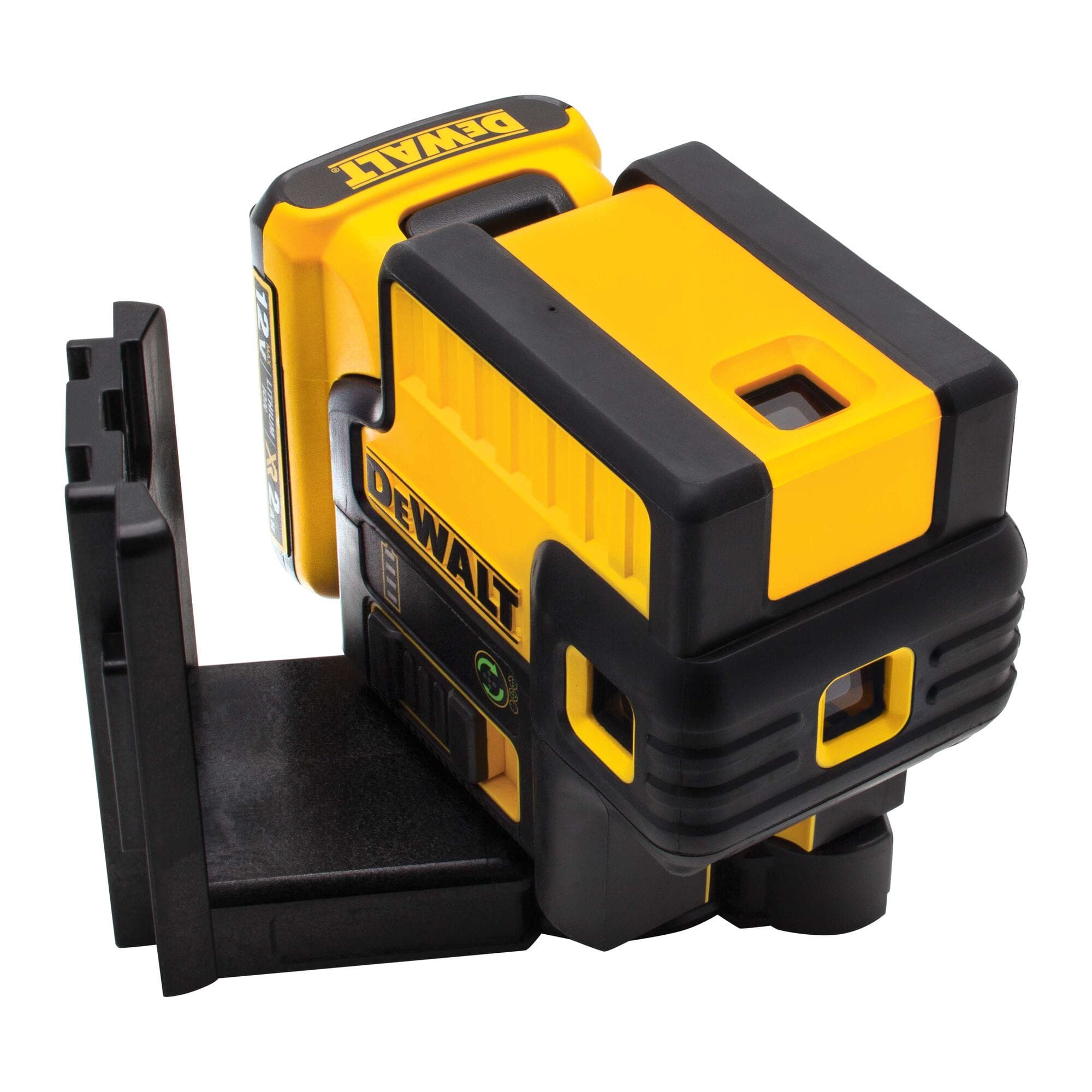

Isometric perspective view of the DEWALT 5 Spot Green Laser level, emphasizing the overmolded housing and the various laser apertures for projecting Up, Down, Front, Left, and Right points.

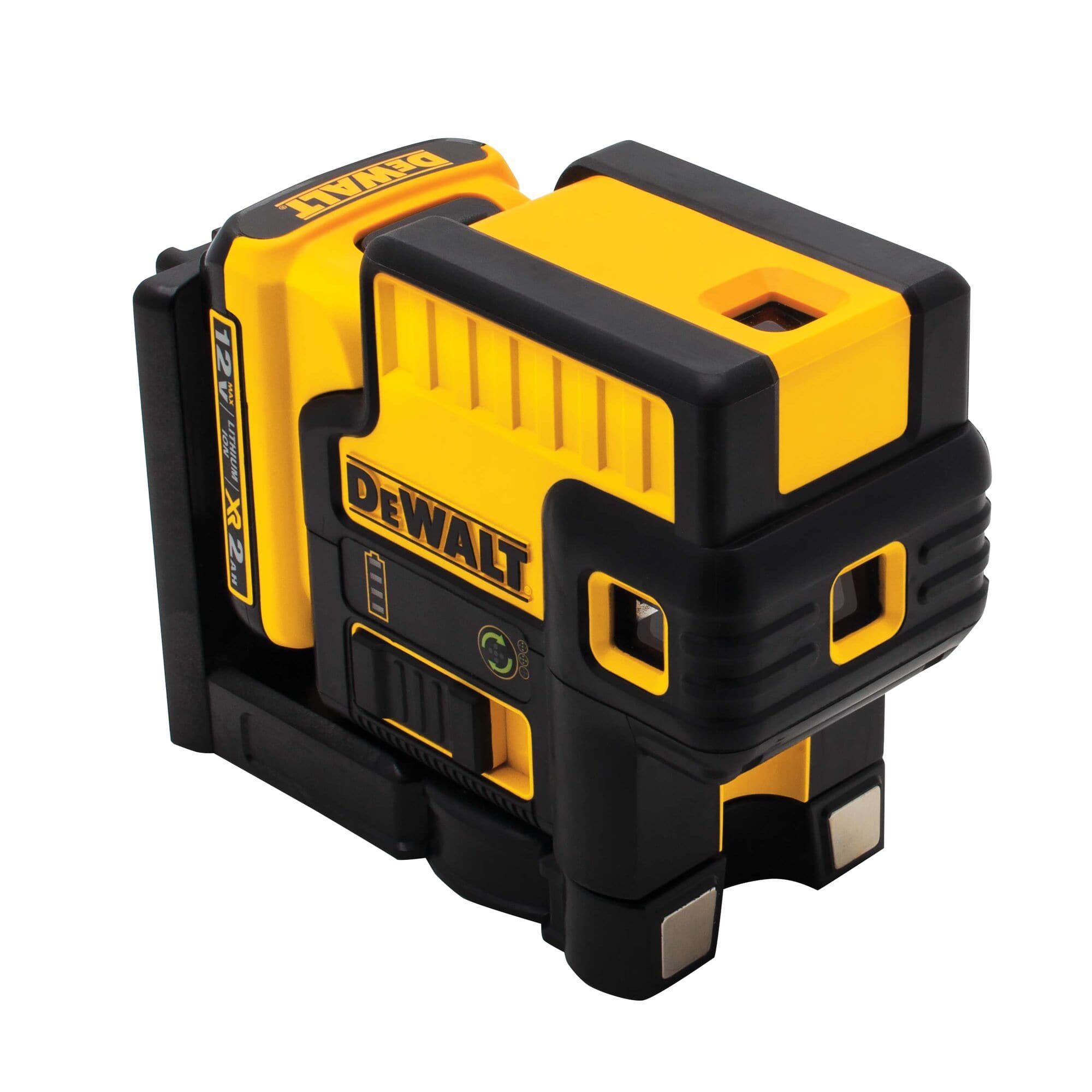

Angled view of the DEWALT green laser layout tool highlighting the powerful magnets on the integrated bracket for secure attachment to steel tracks and metal framing.

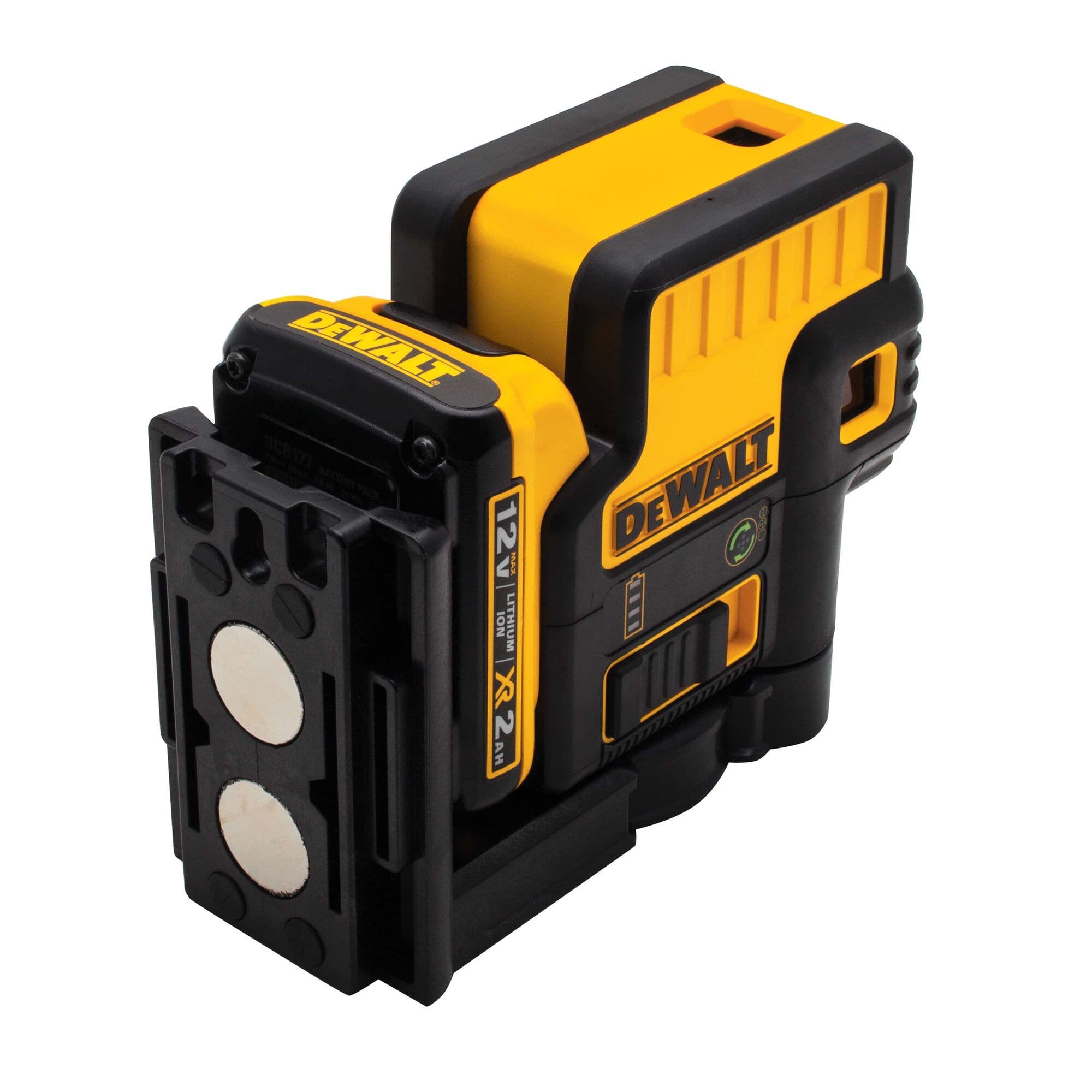

Rear perspective of the DEWALT DW085LG laser level focusing on the 12V MAX lithium-ion battery interface and the rugged industrial design optimized for jobsite durability.
DEWALT COMBINATION LASER LEVELS promotional how to video
Side profile of the DEWALT DW085LG 12V MAX 5 Spot Green Laser Level, showcasing the high-visibility yellow housing, integrated magnetic bracket, and 12V MAX battery connection.
Isometric perspective view of the DEWALT 5 Spot Green Laser level, emphasizing the overmolded housing and the various laser apertures for projecting Up, Down, Front, Left, and Right points.
Angled view of the DEWALT green laser layout tool highlighting the powerful magnets on the integrated bracket for secure attachment to steel tracks and metal framing.
Rear perspective of the DEWALT DW085LG laser level focusing on the 12V MAX lithium-ion battery interface and the rugged industrial design optimized for jobsite durability.
DEWALT COMBINATION LASER LEVELS promotional how to video
DEWALT

DEWALT Laser Level DW085LG 12V 5 Spot Green Beam Kit (One Hundred Foot Range IP65 Overmolded Housing Magnetic Bracket Plumb Point Alignment TSTAK Case)

Only 1 left
SKU: DW085LG
$619.00 USD

Description

Marketing banner for the DEWALT DW085LG green 5 spot laser with text asking Want long range visibility? Look no further, highlighting the 100 ft range and high-visibility green beam technology.

Map Perpendicular Plumb Benchmarks Natively Across High Ambient Commercial Infrastructure with Four Times Red Diode Intensity

The DEWALT DW085LG 12V MAX* 5-Spot Self-Leveling Green Beam Laser Level Kit is an industrial-grade geometric alignment instrument engineered to transfer coordinates across a 100-foot visible interior baseline. This rechargeable lithium-ion system projects five independent high-visibility plumb and level reference points across multi-tier layouts while maintaining elite calibration tolerances. Outfitted with an integrated magnetic tracking bracket, a rugged IP65-rated debris-resistant casing certified for 6.5-foot drop defense, and a manual transit locking pendulum, this portable kit optimizes unassisted steel track and mechanical installation workflows.

Best Used For:

  • Steel Track Layouts: Projecting floor-to-ceiling plumbing reference coordinates unassisted to line up heavy structural metal framework channels.
  • Overhead Utility Staging: Mapping absolute vertical layout points over long spans to mount commercial electrical conduit lines and HVAC duct hangers.
  • Interior Partition Framing: Establishing interlocking horizontal and perpendicular datum marks to set multi-room drywall footprints square.

Key Performance & Safety Features

  • 4X Intensity Green Diodes: Advanced wave spectrum emission delivers five crisp, micro-focused targeting dots that resist washout in bright commercial bays.
  • Comprehensive Five-Spot Grid: Simultaneously maps Up, Down, Front, Left, and Right benchmarks to manage square alignment and point-transfer cycles.
  • IP65 Environmental Armor Shielding: Weatherproof overmolded rubber housing blocks pressurized water jet splatters and fine concrete dust contamination.
  • Six-and-a-Half Foot Drop Defense: Robust construction buffers physical shock vectors to survive severe 2-meter impacts onto solid jobsite substrates.
  • Transit Pendulum Internal Lock: Integrated mechanical slider secures internal self-leveling gimbals to prevent damage and preserve alignment metrics.

What's Included

  • (1) DW085LG 12V MAX* 5-Spot Self-Leveling Green Beam Laser Level Base Unit
  • (1) 12V MAX* Lithium-Ion Rechargeable Power Battery Pack
  • (1) 12V MAX* / 20V MAX* Multi-Voltage Rapid System Charger
  • (1) Tinted Green Beam Visual Enhancement Safety Glasses
  • (1) High-Contrast Green Laser Precision Target Grid Card
  • (1) Structural Magnetic Enhancement Face Plate Bracket
  • (1) Suspended Acoustic Drop Ceiling Mounting Bracket
  • (1) TSTAK® Heavy-Duty Structural Interlocking Carrying Case Storage Box

Technical Specifications

Brand Manufacturer: DEWALT
Model Number (SKU): DW085LG
Product Type Category: Rechargeable 5-Spot Laser Level Kit
Laser Wave Color Spectrum: High-Visibility Green Diode
Maximum Visible Range: 100.0 ft
System Operating Voltage: 12V MAX*
Beam Configuration Array: 5 Points (Up, Down, Front, Left, Right)
Power Supply Chemistry: Rechargeable Lithium-Ion (Li-Ion)
Environmental Protection Ingress: IP65 Rated (Dustproof & Water-Jet Resistant)
Impact Resistance Drop Threshold: 6.5 ft (2 Meters)
Mounting Interface Threads: 1/4 in - 20 & 5/8 in - 11 Threaded Brass Bushings
Leveling Internal Mechanism: Self-Leveling Pendulum with Integrated Transit Lock
Assembled Package Length: 17.1 in
Assembled Package Width: 13.0 in
Assembled Package Height: 6.8 in
Total Combined Package Weight: 7.7 lbs
Country of Origin Manufacturing: China

PRO-TIP: When dropping vertical plumbing benchmarks inside steel track pathways, utilize the specialized raised magnetic front housing interface panel to bypass metal lip borders. Keep the transit pendulum lock slide set firmly engaged during storage inside your TSTAK interlocking case box; isolating internal gimbals stops unexpected site micro-shocks from misaligning your target calibration array.
