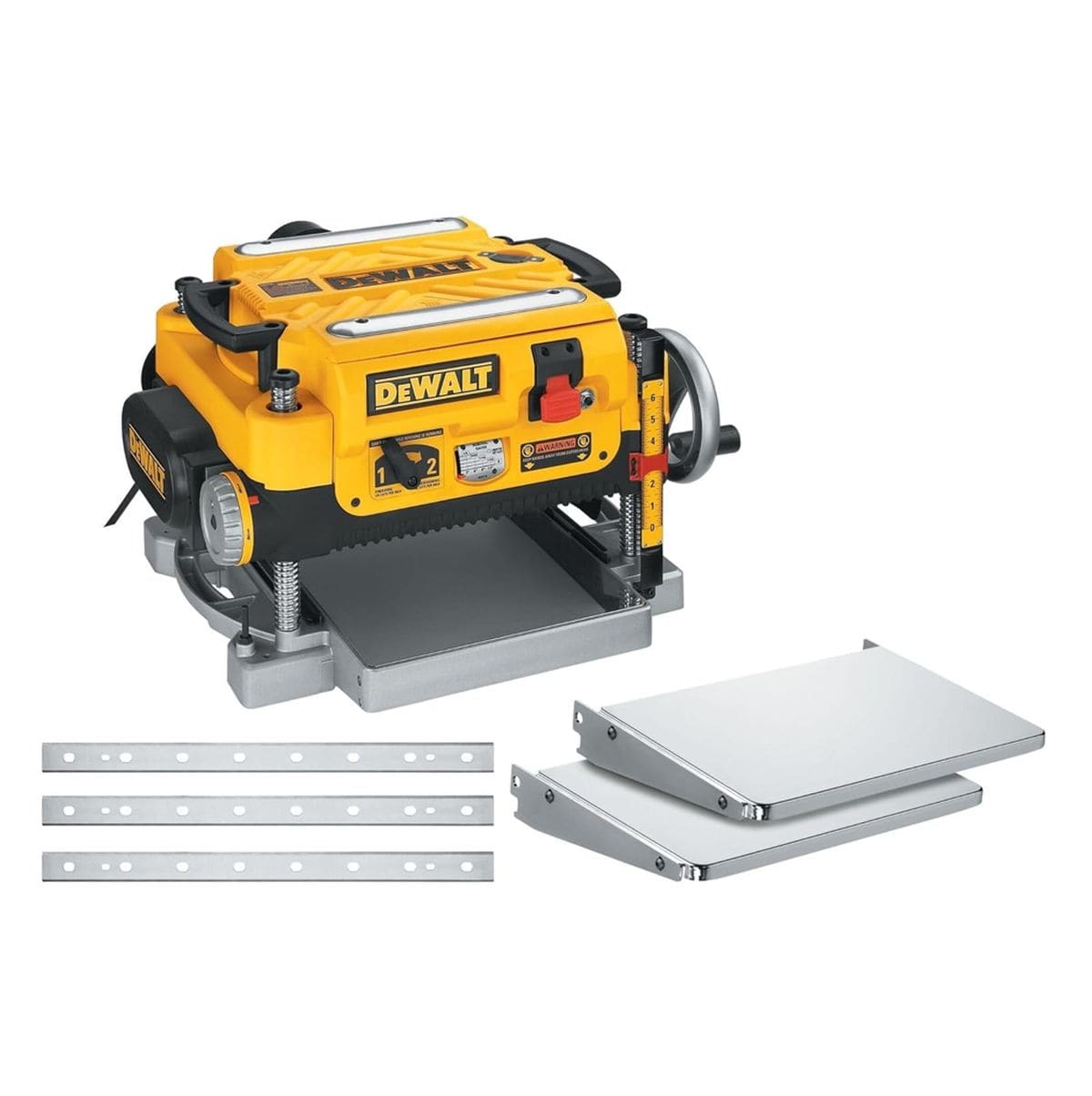

Studio shot of the yellow and black DEWALT 13-inch thickness planer bundle, showing the main unit, two metal infeed/outfeed tables, and a set of replacement knives.

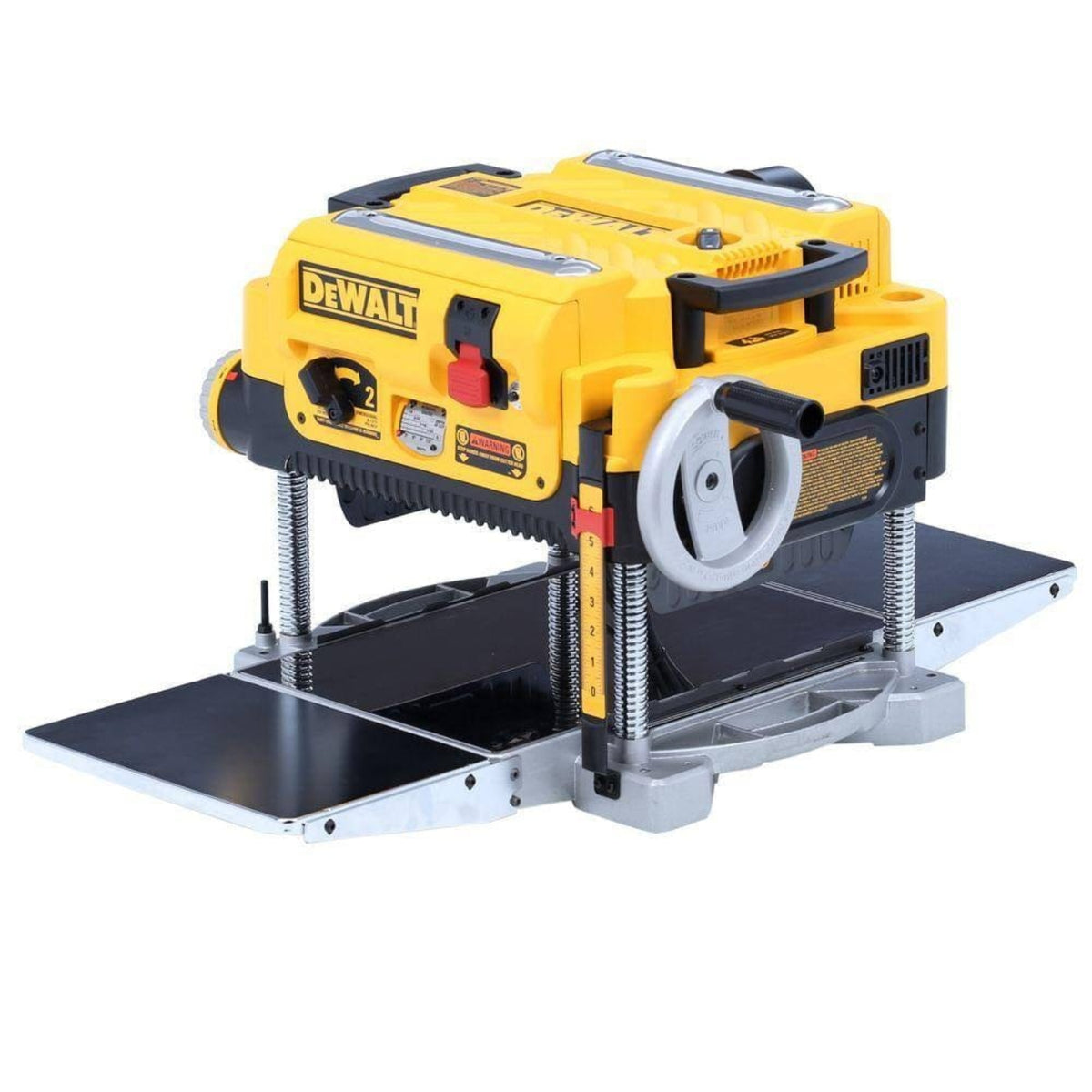

Angled studio view of the thickness planer with the infeed and outfeed tables attached and folded down in the operating position.

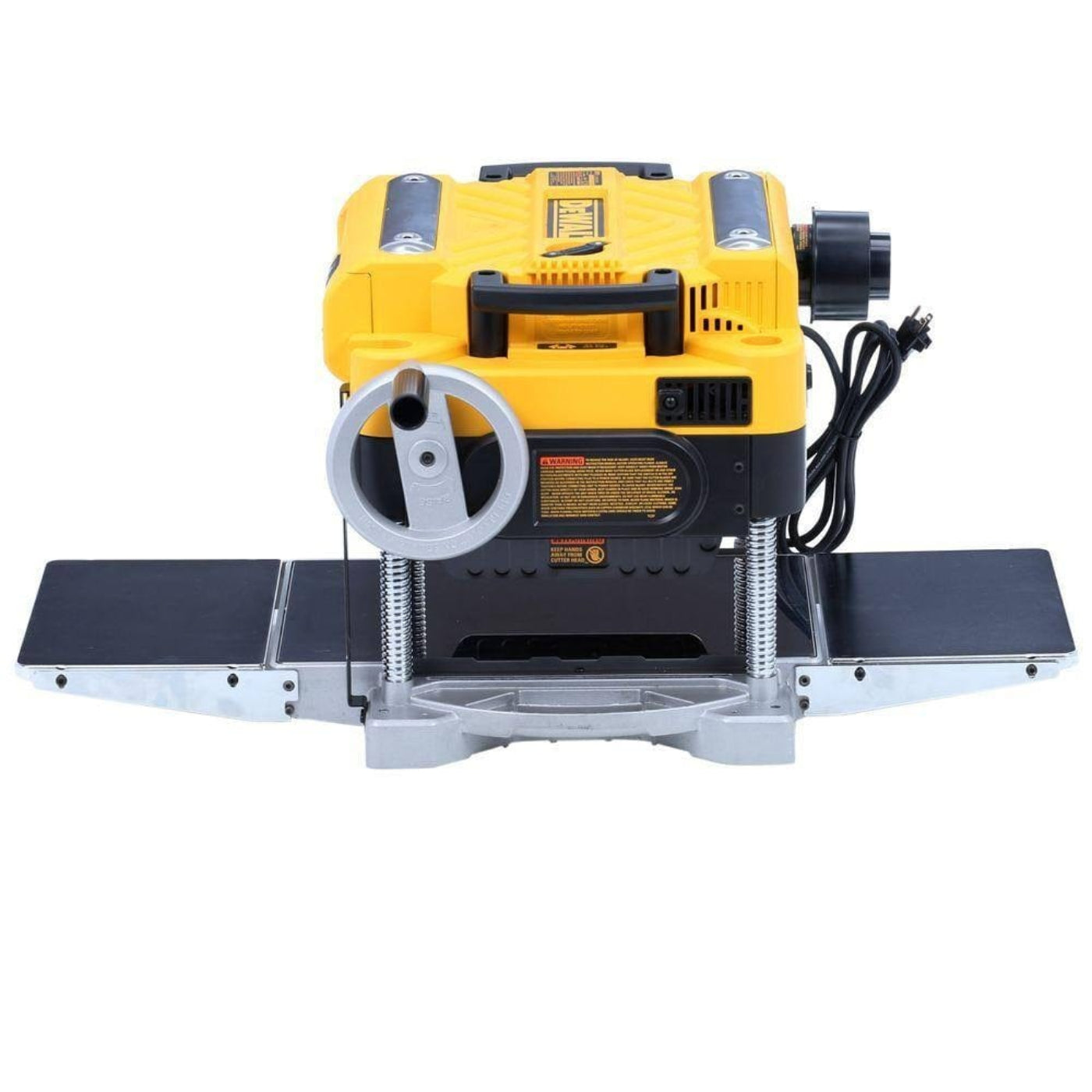

Front eye-level view of the planer showing the material removal gauge, depth adjustment crank handle, and the open throat for feeding lumber.

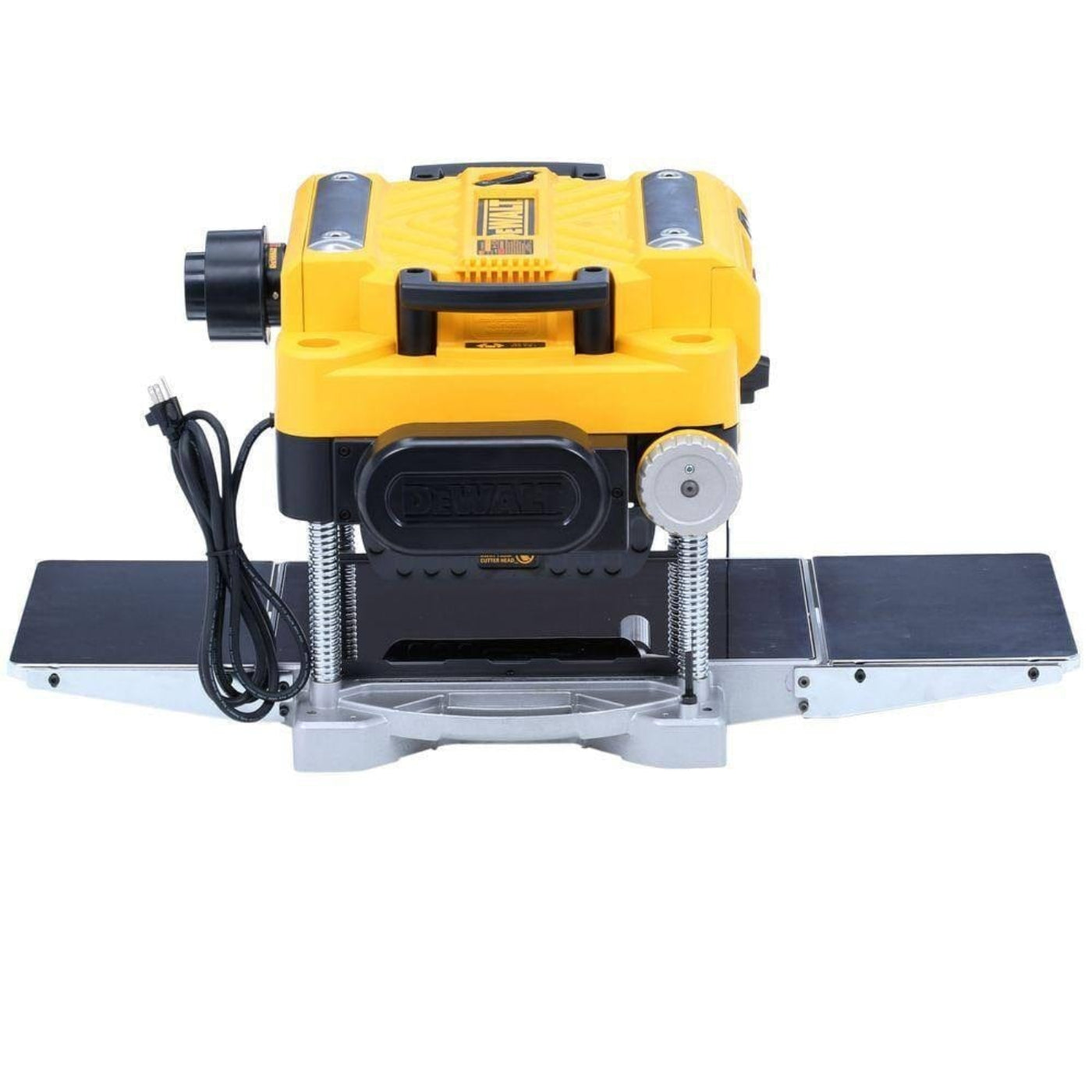

Rear eye-level view of the planer showing the dust ejection port, power cord management, and the rear outfeed table.

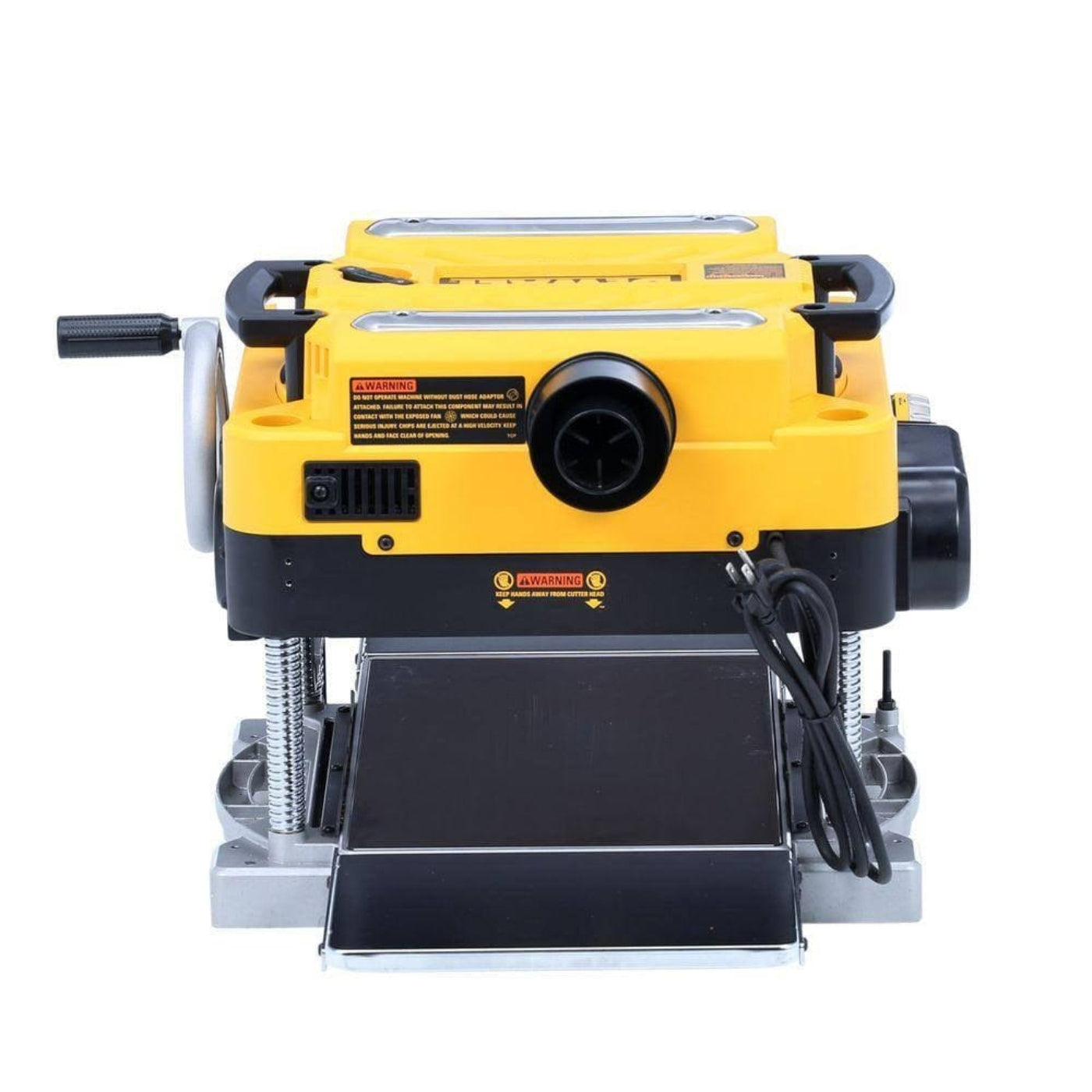

Rear angled view of the planer highlighting the dust exhaust port centered above the outfeed area.
Front angled view of the planer featuring the depth scale ruler on the right pillar and the 2-speed gear box selector knob on the front panel.

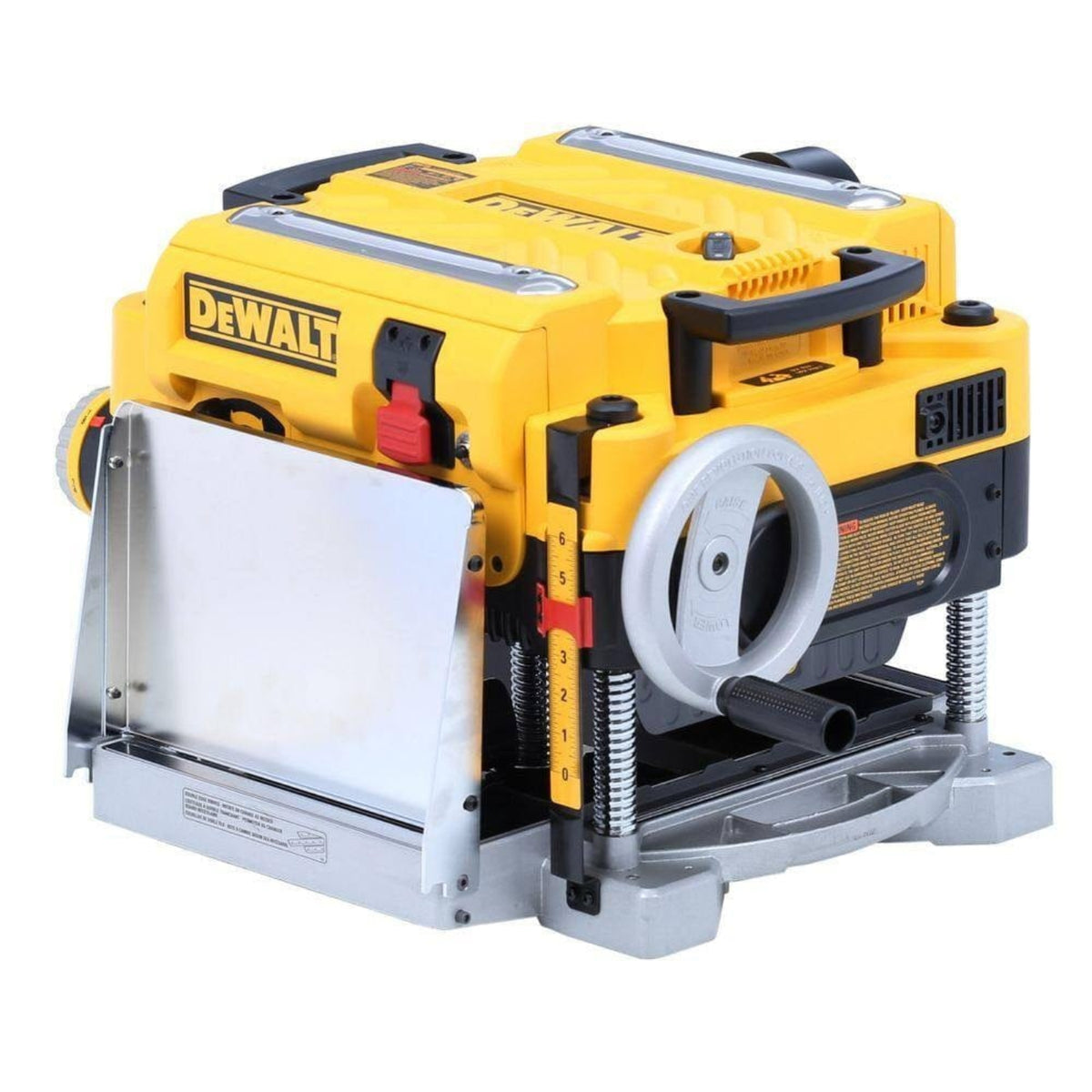

Angled view of the planer with the infeed and outfeed tables folded up for compact storage or transport.
Infographic showing the planer bundle with callouts for "Powerful 15 Amp 20,000 RPM Motor," "Extra Set of Knives," "2-Speed Gearbox," "3-Knife Cutter Head," and "Infeed and Outfeed Tables".
Feature graphic highlighting the "3 knife cutter head, up to 30% longer knife life" and the "Two speed gear box" selector switch on the front of the unit.

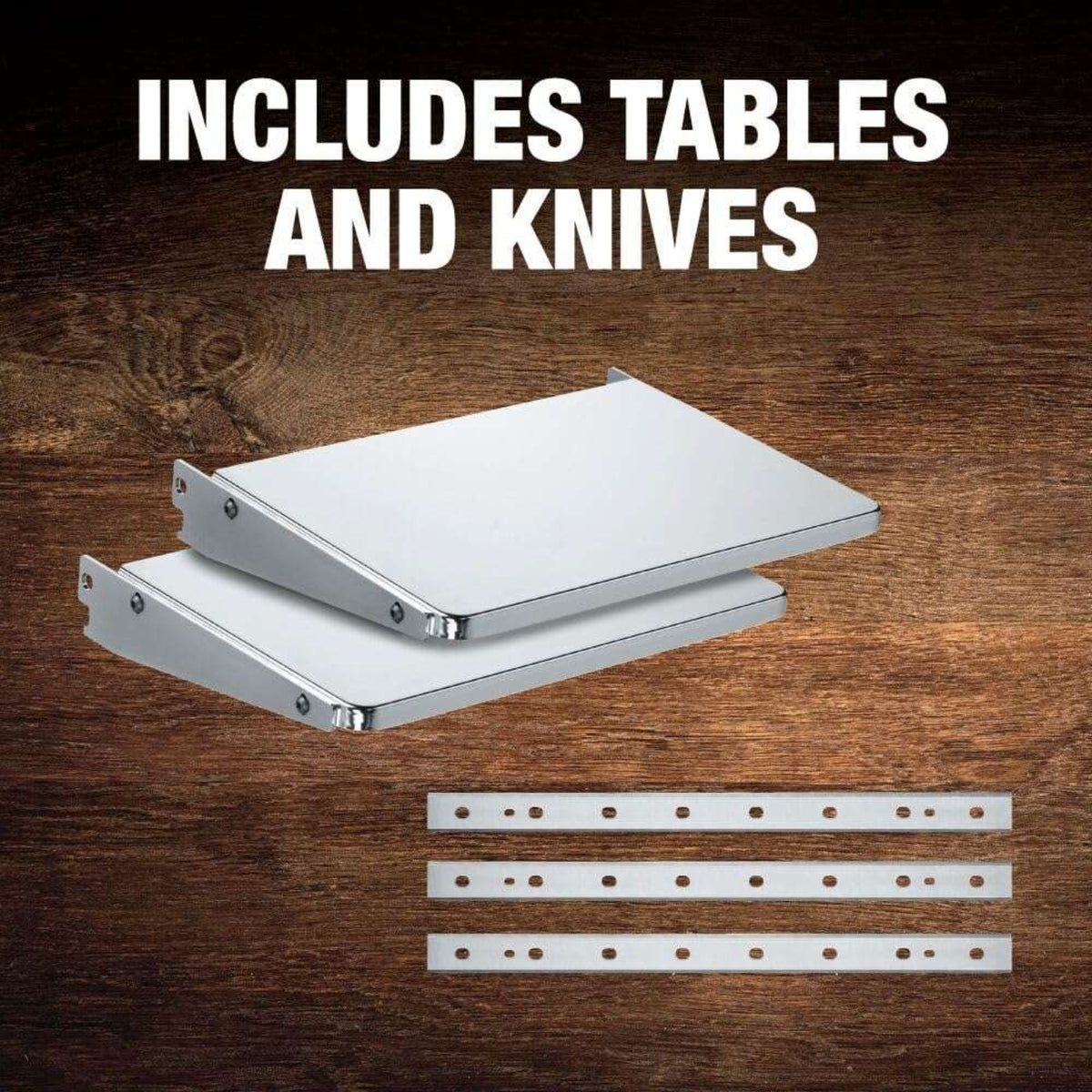

Product graphic titled "INCLUDES TABLES AND KNIVES" displaying the two silver metal extension tables and three replacement planer blades.
DEWALT® Power Of Freedom: Statue of Liberty promotional video
Studio shot of the yellow and black DEWALT 13-inch thickness planer bundle, showing the main unit, two metal infeed/outfeed tables, and a set of replacement knives.
Angled studio view of the thickness planer with the infeed and outfeed tables attached and folded down in the operating position.
Front eye-level view of the planer showing the material removal gauge, depth adjustment crank handle, and the open throat for feeding lumber.
Rear eye-level view of the planer showing the dust ejection port, power cord management, and the rear outfeed table.
Rear angled view of the planer highlighting the dust exhaust port centered above the outfeed area.
Front angled view of the planer featuring the depth scale ruler on the right pillar and the 2-speed gear box selector knob on the front panel.
Angled view of the planer with the infeed and outfeed tables folded up for compact storage or transport.
Infographic showing the planer bundle with callouts for "Powerful 15 Amp 20,000 RPM Motor," "Extra Set of Knives," "2-Speed Gearbox," "3-Knife Cutter Head," and "Infeed and Outfeed Tables".
Feature graphic highlighting the "3 knife cutter head, up to 30% longer knife life" and the "Two speed gear box" selector switch on the front of the unit.
Product graphic titled "INCLUDES TABLES AND KNIVES" displaying the two silver metal extension tables and three replacement planer blades.
DEWALT® Power Of Freedom: Statue of Liberty promotional video
DEWALT

DEWALT DW735X 13 Inch Thickness Planer with Knives and Tables 2 Speed 15 Amp Three Knife Cutterhead Heavy Duty Woodworking Tool

Only 2 left
SKU: DW735X
$859.00 USD

Description

Authorized Dealer Badge DEWALT logout

The Ultimate Surface Finish for Serious Woodworkers

Transform rough lumber into precision-finished boards with the DEWALT DW735X 13 in. Heavy-Duty 2-Speed Thickness Planer. Engineered for professional carpenters and serious hobbyists, this powerhouse features a robust 15 Amp motor capable of generating 20,000 RPM (10,000 RPM cutter-head speed). This immense power allows the unit to handle deep cuts in wide hardwoods like oak and walnut with ease. Unlike standard planers, the DW735X utilizes a three-knife cutter-head system that delivers 30% longer knife life and a superior surface finish, significantly reducing the need for post-planing sanding. The integrated fan-assisted chip ejection system vacuums chips off the cutter head and blasts them out of the machine, preventing debris from marring your work.

Precision and versatility are at the heart of this machine's design. The exclusive 2-speed gearbox allows you to optimize your workflow: select the "Dimensioning" speed (96 cuts per inch) for rapid material removal, or switch to the "Finishing" speed (179 cuts per inch) for an incredibly smooth surface. To combat the common issue of snipe, the planer features an Automatic Carriage Lock that stabilizes the cutter head without manual engagement. Built on a massive 19-3/4 inch cast aluminum base—twice as rigid as standard 10-inch bases—and equipped with a material removal gauge and extra-large thickness scale, this tool ensures every pass is accurate, stable, and flawless.

Key Features

  • High-Power Motor: 15 Amp motor spins at 20,000 RPM to drive the cutter head at 10,000 RPM for smooth, consistent cuts.
  • 3-Knife Cutter Head: Provides a finer finish and 30% longer knife life compared to standard 2-knife systems.
  • 2-Speed Gearbox: Choose between 96 CPI for fast sizing or 179 CPI for a furniture-grade finish.
  • Fan-Assisted Chip Ejection: actively vacuums chips from the cutter head to prevent clogging and surface imperfections.
  • Automatic Carriage Lock: Reduces movement that causes snipe, eliminating the need for manual lock engagement.
  • Rigid Stability: Features a 19-3/4" cast aluminum base that is 2X more rigid than standard folding tables.
  • Precision Depth Stops: Turret depth stop allows users to return to frequently used thicknesses (1/4", 1/2", 3/4") quickly.
  • Material Removal Gauge: Calibrated gauge indicates the precise amount of material being removed with each pass.

What's Included

(1) 13 in. 2-Speed Thickness Planer (DW735)
(1) Infeed Table
(1) Outfeed Table
(1) Extra Set of Knives (3 Knives Total)
(1) Dust Hose Adapter

Specifications

Brand DEWALT
Model Number DW735X
Amperage 15 Amps
Voltage 120V
No Load Speed (Motor) 20,000 RPM
Cutterhead Speed 10,000 RPM
Max Cut Depth 1/8 in.
Max Cut Width 13 in.
Cuts Per Inch (CPI) 96 or 179
Feed Rate 14 ft./min or 26 ft./min
Tool Weight 92 lbs.
Shipping Weight 102.4 lbs.
Pro-Tip: To maximize the lifespan of your planer blades and motor, take advantage of the 2-speed gearbox strategically. Use speed setting 1 (96 CPI) for dimensioning thickness—this feeds faster and saves your blades. Switch to speed setting 2 (179 CPI) only for your very last pass to achieve that glass-smooth finish that requires little to no sanding.
