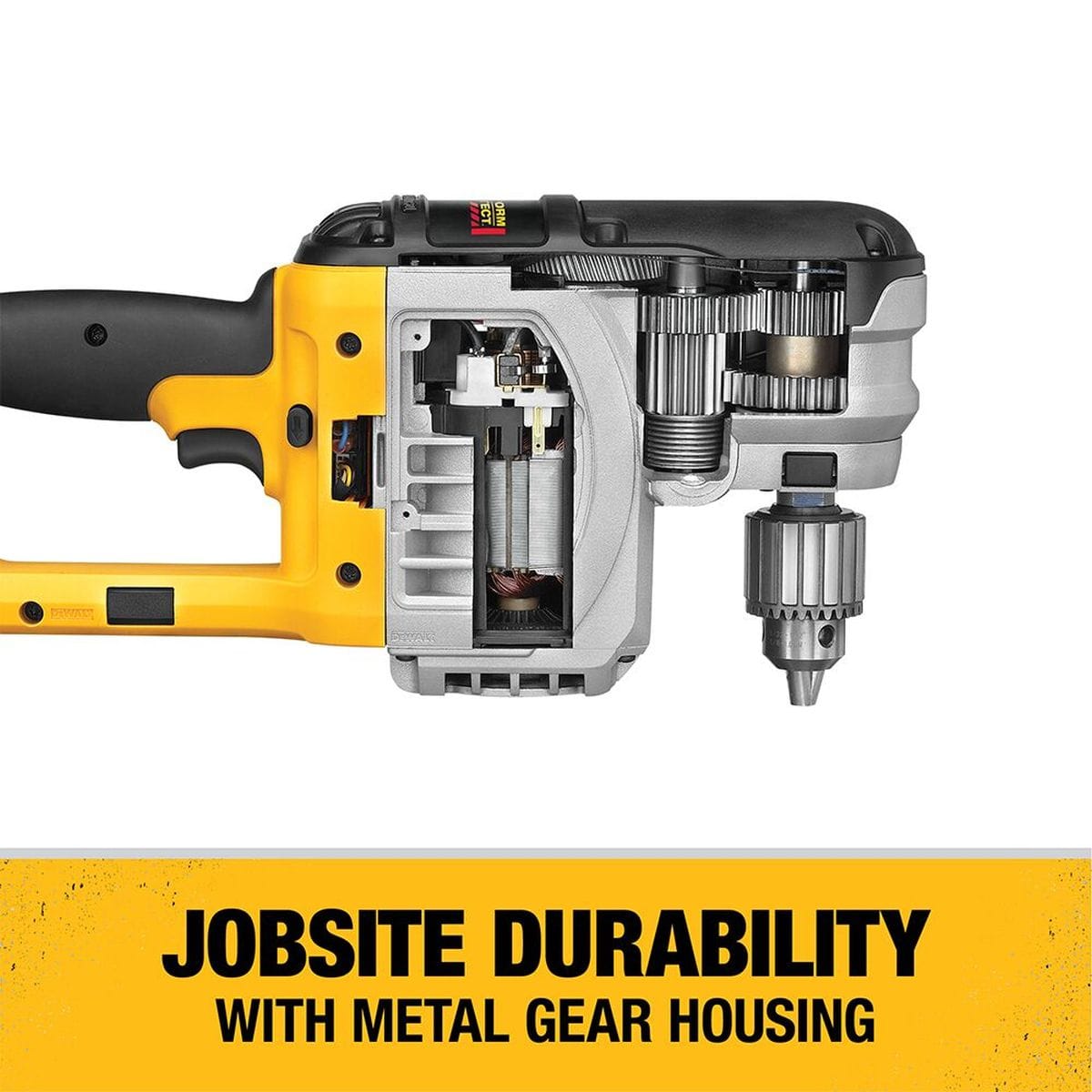

Cutaway view of the DEWALT right-angle drill highlighting the high-performance 11 Amp motor and industrial metal gear housing designed for heavy-duty jobsite durability and efficient torque transfer.

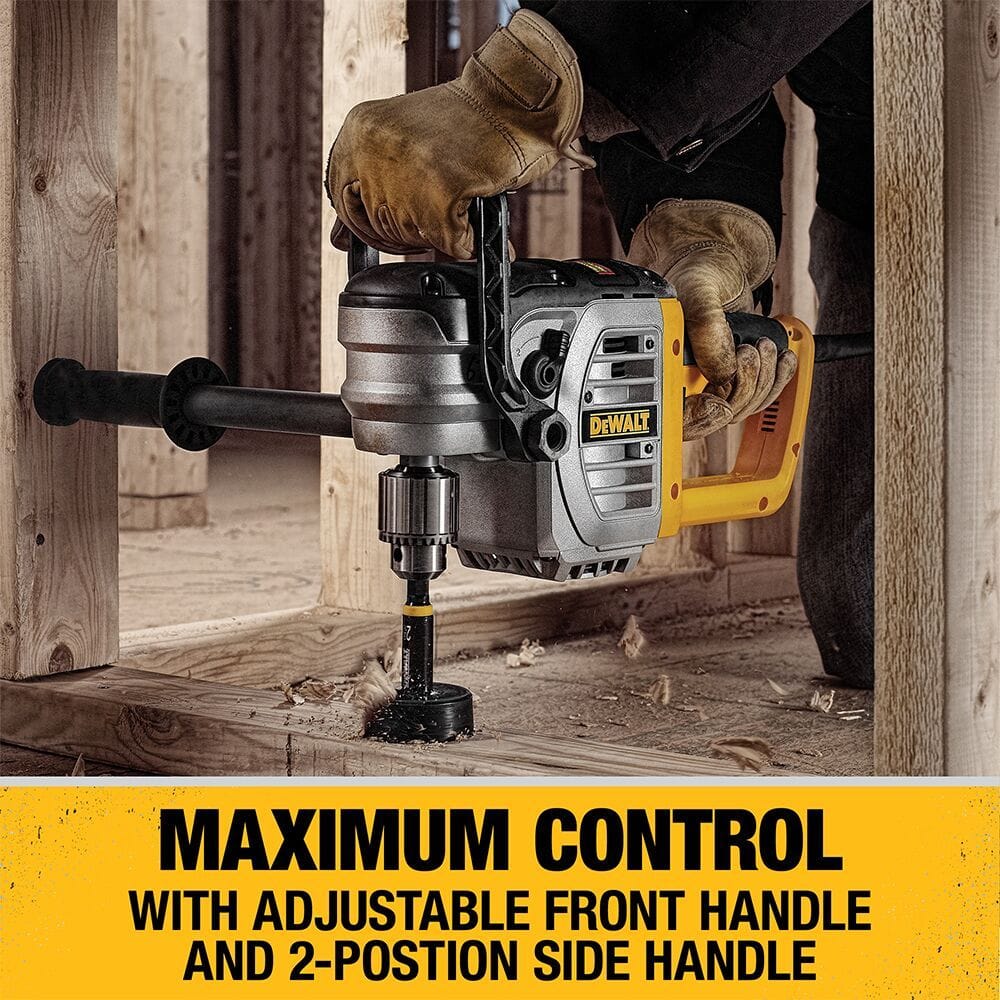

Action shot of a contractor using the DEWALT DWD460 to bore a large diameter hole in floor joists, demonstrating the maximum control provided by the adjustable front handle and ergonomic side grip.

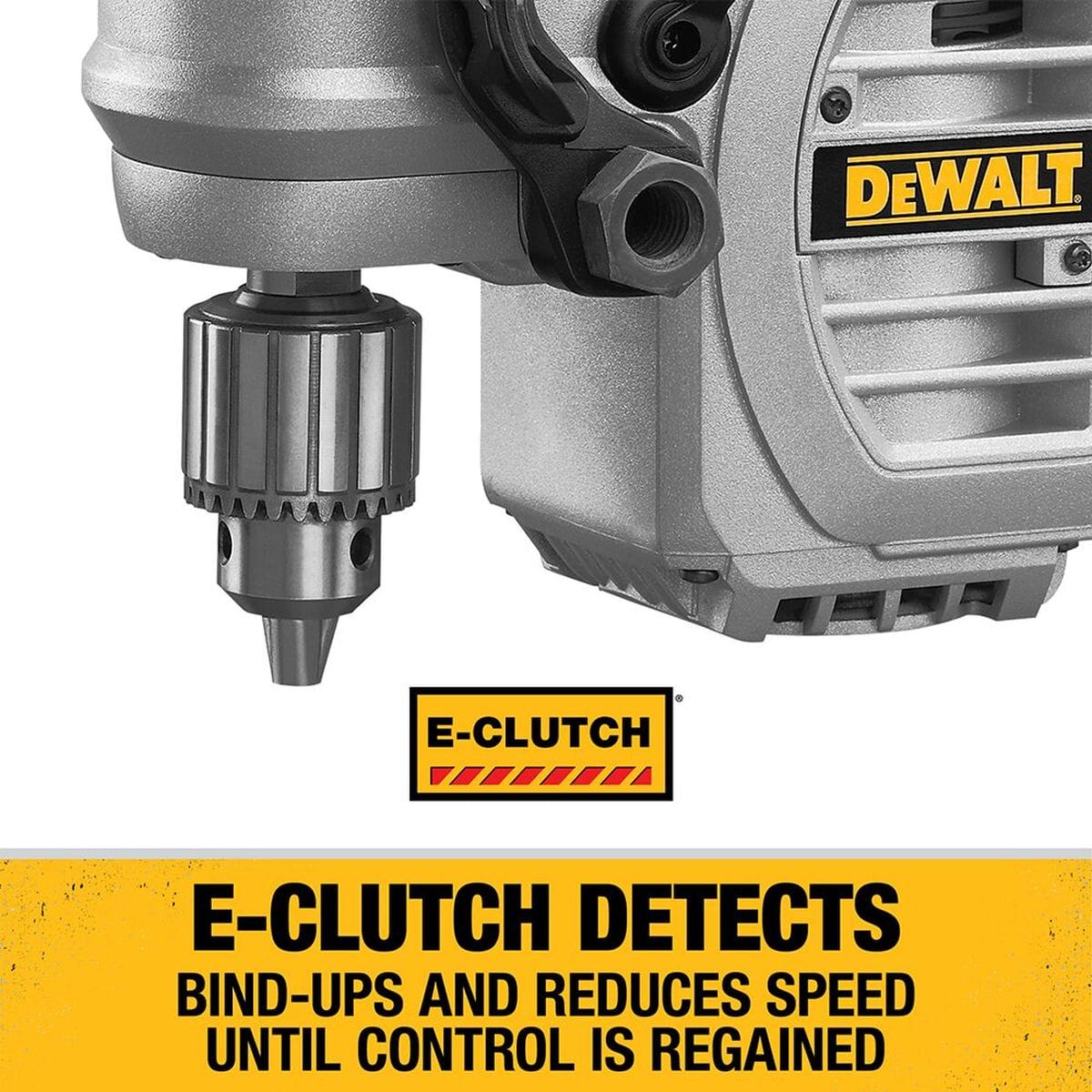

Close-up of the DEWALT E-Clutch system on the DWD460 stud and joist drill which detects bind-ups and automatically reduces speed to protect the user and maintain control during high-torque boring.

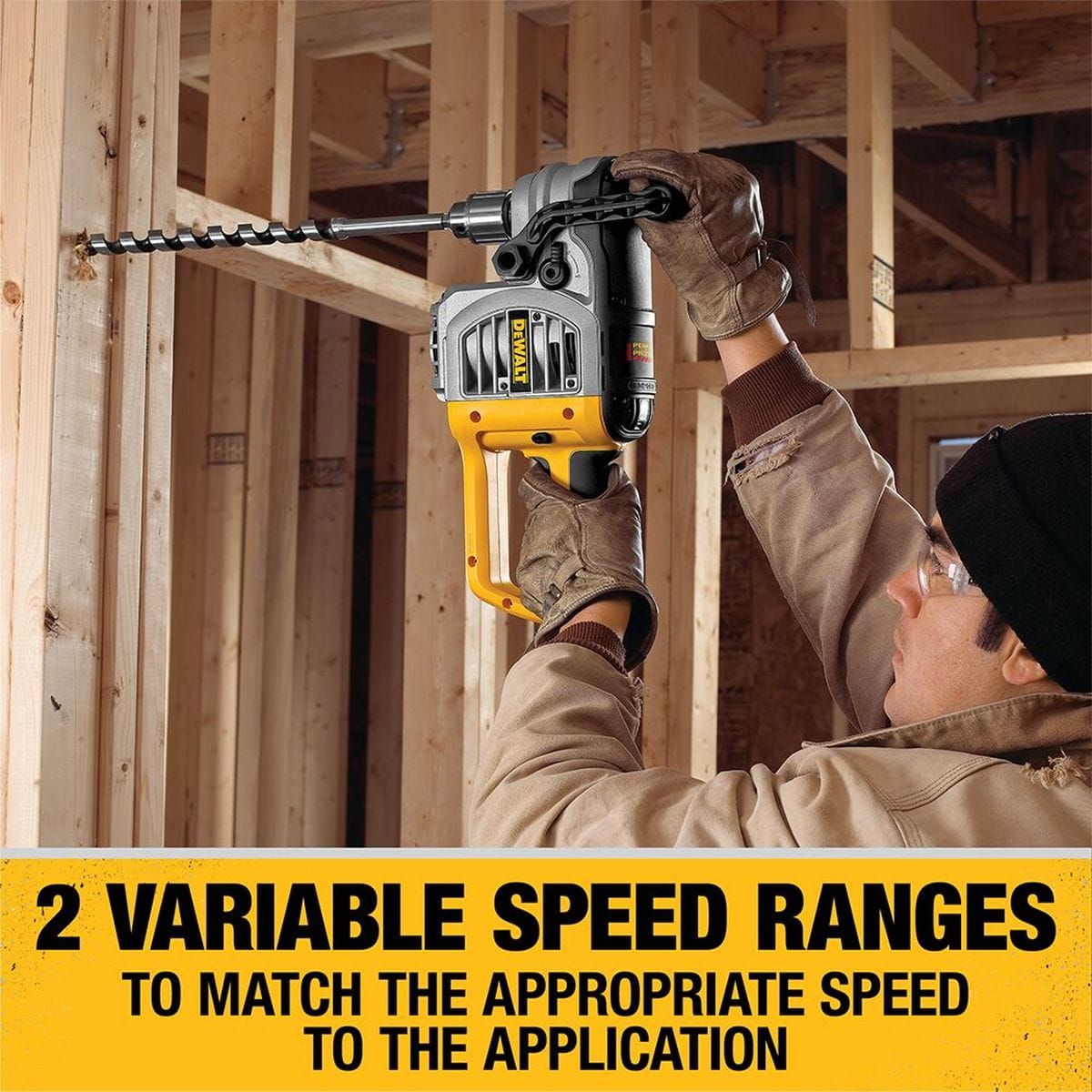

Professional application of the DEWALT right-angle drill boring through a wall stud, illustrating the 2 variable speed ranges that allow the operator to match the appropriate speed to the specific drilling task.

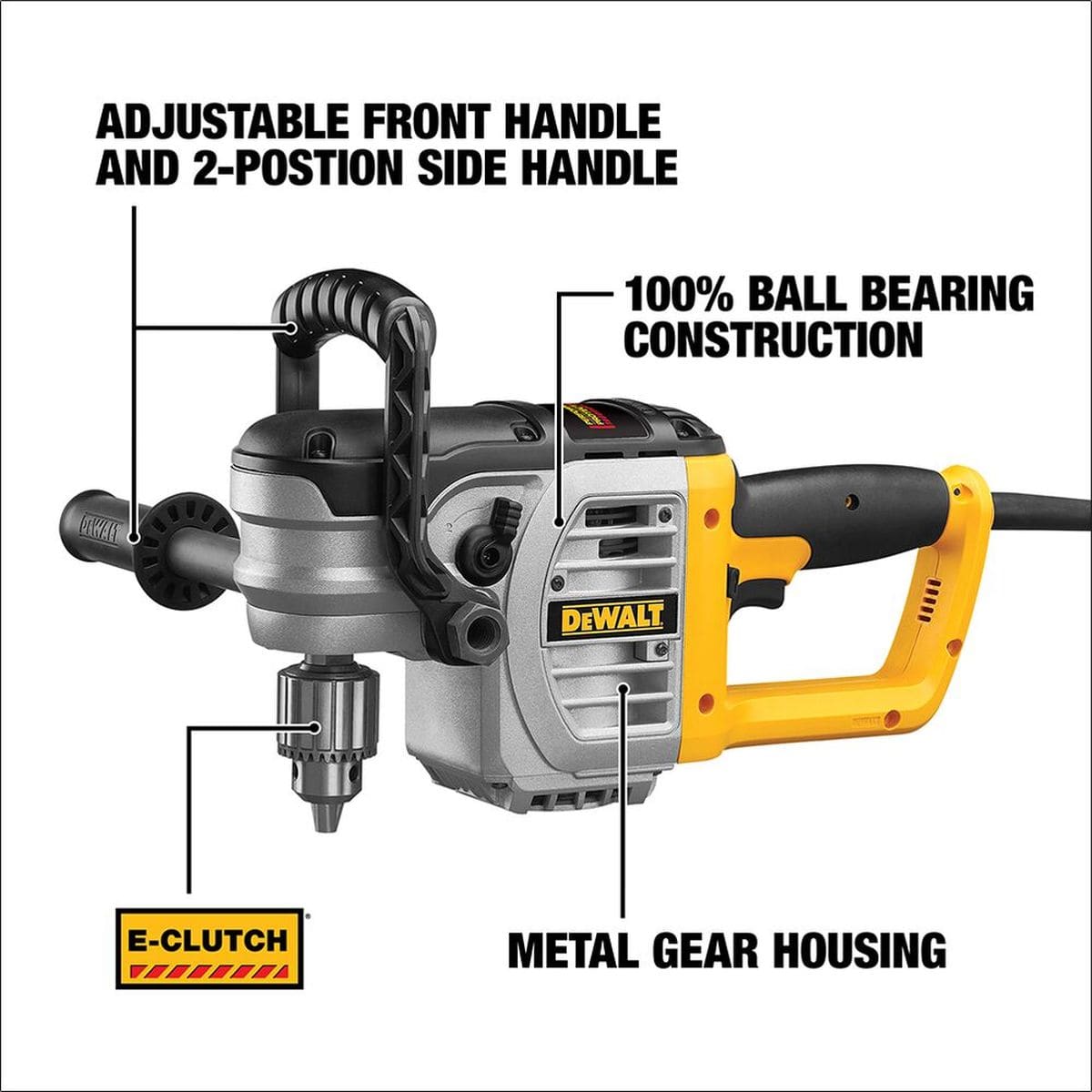

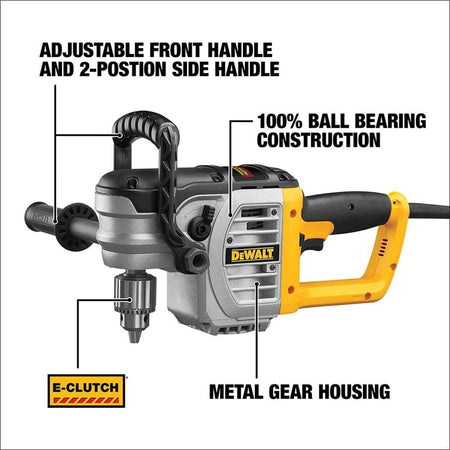

Product infographic for the DEWALT DWD460 detailing professional features including 100% ball bearing construction, metal gear housing, E-Clutch safety system, and fully adjustable handles.
DEWALT® ELITE Series SDS+ & SDS MAX Drill Bits outperform the competition promotional video
Three-quarter studio view of the DEWALT DWD460 1/2 inch VSR stud and joist drill featuring a right-angle design, 1/2 inch keyed chuck, top-mounted bail handle, and a 2-position side handle for maximum leverage.
Cutaway view of the DEWALT right-angle drill highlighting the high-performance 11 Amp motor and industrial metal gear housing designed for heavy-duty jobsite durability and efficient torque transfer.
Action shot of a contractor using the DEWALT DWD460 to bore a large diameter hole in floor joists, demonstrating the maximum control provided by the adjustable front handle and ergonomic side grip.
Close-up of the DEWALT E-Clutch system on the DWD460 stud and joist drill which detects bind-ups and automatically reduces speed to protect the user and maintain control during high-torque boring.
Professional application of the DEWALT right-angle drill boring through a wall stud, illustrating the 2 variable speed ranges that allow the operator to match the appropriate speed to the specific drilling task.
Product infographic for the DEWALT DWD460 detailing professional features including 100% ball bearing construction, metal gear housing, E-Clutch safety system, and fully adjustable handles.
DEWALT® ELITE Series SDS+ & SDS MAX Drill Bits outperform the competition promotional video
DEWALT

DEWALT Stud and Joist Drill DWD460 1/2 Inch Right Angle Drill (11 Amp Motor Two Speed Range Bind-Up Control Wood Boring Plumbers Electricians Corded)

Only 2 left
SKU: DWD460
$489.00 USD

Description

Authorized Dealer Badge DEWALT logout

Prevent High-Torque Kickbacks and Drill Smoothly Through Dense Structural Joists

The DEWALT DWD460 1/2-Inch VSR Stud and Joist Right Angle Drill is an industrial-grade corded power tool driven by an 11.0 Amp heavy-duty motor engineered for large-diameter hole boring. Operating across two variable speed ranges from 0-330 and 0-1,300 RPM, this heavy-duty mechanical asset delivers optimal speed matching and torque performance for trade plumbing and electrical installations. Outfitted with integrated Bind-Up Control stall-sensing technology and a low-gear mechanical clutch, it maximizes workspace safety by managing reactionary twisting forces if a drilling bit catches on jobsite knots or framing nails.

Best Used For:

  • Plumbing Pipe Openings: Boring clean, large-diameter structural pass-through clearance holes for waste stacks and water lines in timber joists.
  • Electrical Conduit Routing: Fast serial drilling through successive structural wood studs to run heavy gauge commercial building wire and conduits.
  • Restricted Framing Workspaces: Executing high-torque right-angle hole placements inside tightly confined stud bays and low-clearance attic intersections.

Key Performance & Safety Features

  • Bind-Up Control Stall Technology: Electronic stall-sensing protection instantly dampens high reactionary kickback spikes to protect the operator's wrists.
  • Low-Speed Mechanical Clutch: Shields internal transmission components in the lower speed range to prevent motor strip damage under intense resistance loads.
  • 11.0 Amp DEWALT Motor: Custom factory-built powertrain ensures consistent torque and professional reliability during heavy continuous framing jobs.
  • Industrial Metal Gear Housing: Hardened metal geartrain enclosure isolates moving components to withstand heavy drops and rough jobsite impacts.
  • Multi-Position Control Handles: Features a robust bail handle and a adjustable 2-position side grip handle to ensure maximum ergonomic leverage.

What's Included

  • (1) DWD460 1/2 in. VSR Right Angle Stud and Joist Drill
  • (1) Heavy-Duty Chuck Key with Molded Storage Holder
  • (1) Rigid Top Bail Handle Grip
  • (1) 2-Position Ergonomic Side Handle Extension

Technical Specifications

Brand Manufacturer: DEWALT
Model Number (SKU): DWD460
Product Tool Type: Right Angle Stud & Joist Drill
Amperage Draw Capacity: 11.0 A
Voltage Profile Rating: 120V AC
Chuck Structural Size: 1/2 in
Chuck Style Interface: Industrial Keyed Jaws
Mechanical Speed Tiers: 2 Speed Ranges (Variable VSR Trigger)
Low Speed Range Output: 0 - 330 RPM
High Speed Range Output: 0 - 1,300 RPM
Integrated Safety Protections: Bind-Up Control Technology / Overload Mechanical Clutch
Gear Case Composition: Industrial Aluminum Metal
Product Condition State: New


PRO-TIP: When boring large plumbing pipe openings using a self-feed spade bit, run the tool exclusively on the low speed (0-330 RPM) gear setting. This optimizes the built-in mechanical clutch protection, ensures maximum cutting torque through embedded nails, and avoids over-speeding your cutter teeth.
