DeWalt Table Saw DWE7485 8-1/4 Inch 15 Amp Compact Jobsite Rip Machine (5800 RPM 24.5 Inch Rip Capacity Folding Stand DW7451)
Regular price
$429.00 USD
Couldn't load pickup availability

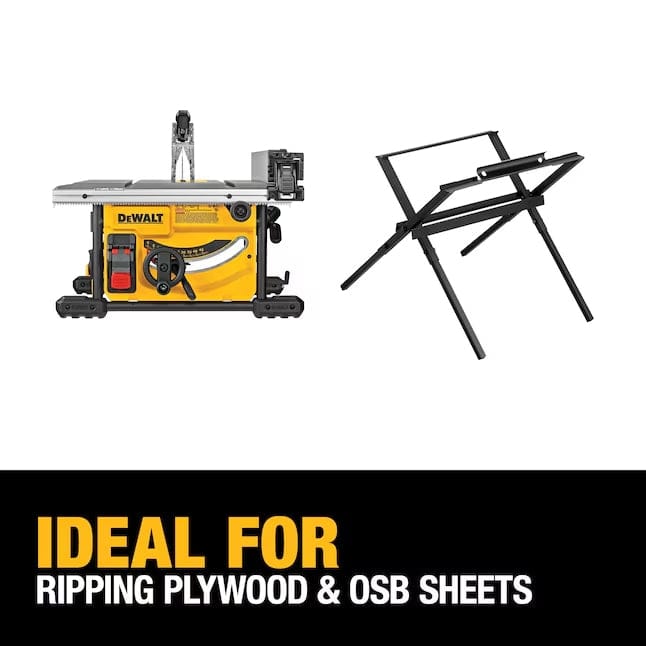

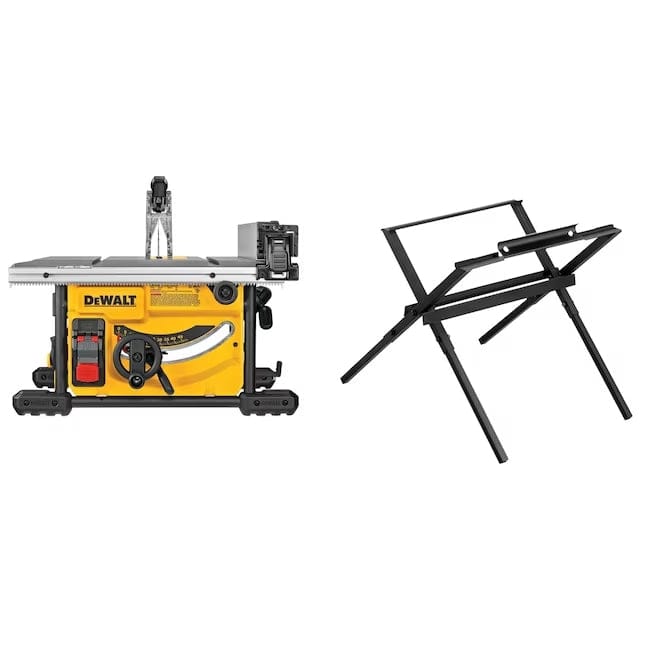

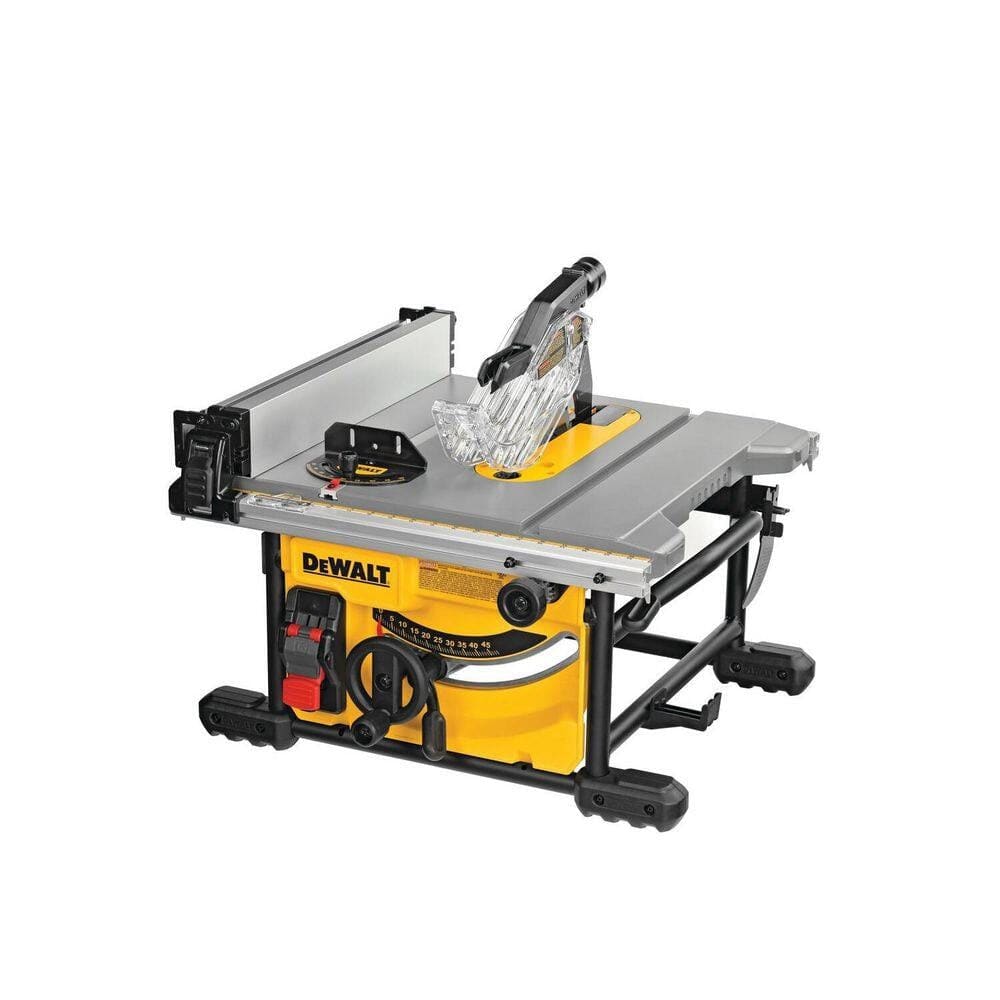

DeWalt DWE7485 8-1/4-Inch 15 Amp Compact Jobsite Table Saw with DW7451 Folding Stand
The DeWalt DWE7485 8-1/4-Inch Compact Jobsite Table Saw is an industrial benchtop wood-cutting system engineered to rip 4x8 sheet goods and dimensional framing lumber. Powered by a 15.0-amp electric motor spinning at 5,800 RPM, this 46-pound portable table saw features a rack and pinion telescoping fence rail that provides a 24.5-inch right-side rip capacity. Equipped with the DW7451 heavy-duty folding tube steel stand, a metal roll cage frame, and the Site-Pro Modular Guarding System, this saw executes precise 2-9/16-inch depth cuts at 90 degrees across OSB subflooring, hardwood plywood, and trim boards.
Best Used For:
- Sheet Goods & Subflooring Ripping: Slicing 4x8 plywood sheets, OSB panels, and MDF boards using the 24.5-inch rack and pinion fence capacity.
- Dimensional Lumber & Framing Saws: Ripping 2x4 and 2x6 framing studs down to custom sizes with a maximum 90-degree cut depth of 2-9/16 inches.
- Mobile Finish Carpentry & Trim Fitting: Trimming hardwood baseboards, door casings, and cabinet filler strips using the DW7451 folding steel stand setup.
Key Performance & Safety Features

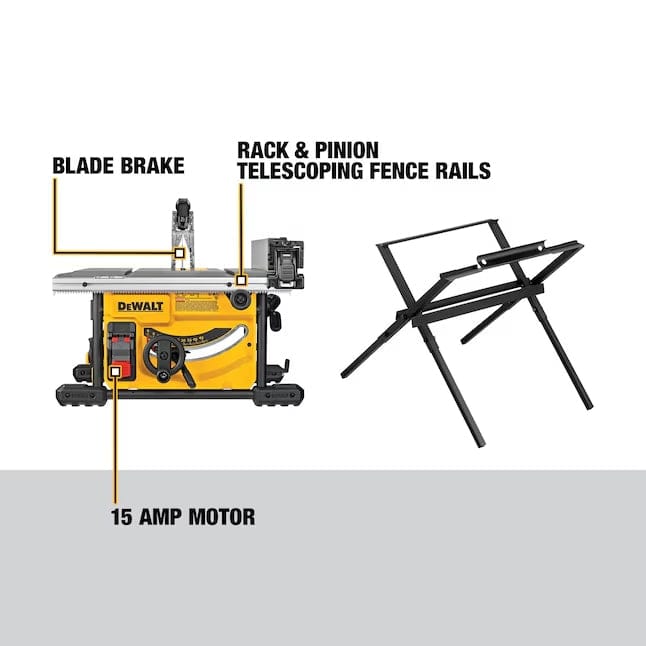

- Precision Rack and Pinion Telescoping Fence: Gear-driven fence rails adjust smoothly and lock parallel to the blade for square rip cuts.
- 15.0-Amp High-Torque Motor: Direct-drive motor maintains 5,800 RPM under load to prevent blade binding in wet or dense lumber.
- Site-Pro Modular Guarding System: Enables tool-free attachment and removal of the blade guard, riving knife, and anti-kickback pawls for non-through cuts.
- Heavy-Duty DW7451 Folding Steel Stand: Tubular steel folding stand provides stable workpiece support and collapses flat for quick truck transport.
- Power-Loss Reset Safety Switch: Prevents unexpected automatic motor restarts following jobsite power outages or cord disconnections.
- On-Board Accessory Storage Compartments: Dedicated retention slots organize the push stick, miter gauge, blade wrenches, and guard assembly.

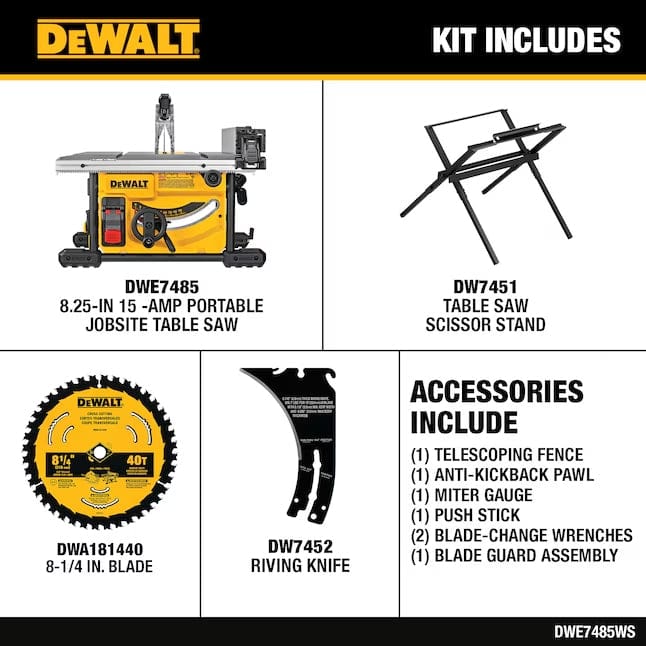

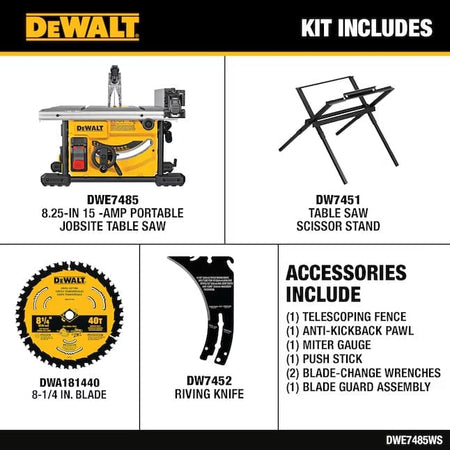

What's Included
- (1) DeWalt DWE7485 8-1/4" Compact Jobsite Table Saw
- (1) DeWalt DW7451 Heavy-Duty Folding Steel Stand
- (1) Modular Blade Guard Assembly
- (1) Non-Through Cut Riving Knife
- (1) Anti-Kickback Pawl Set
- (1) Miter Gauge
- (1) Push Stick
- (2) Blade Change Wrenches
- (1) 8-1/4" Carbide-Tipped Table Saw Blade

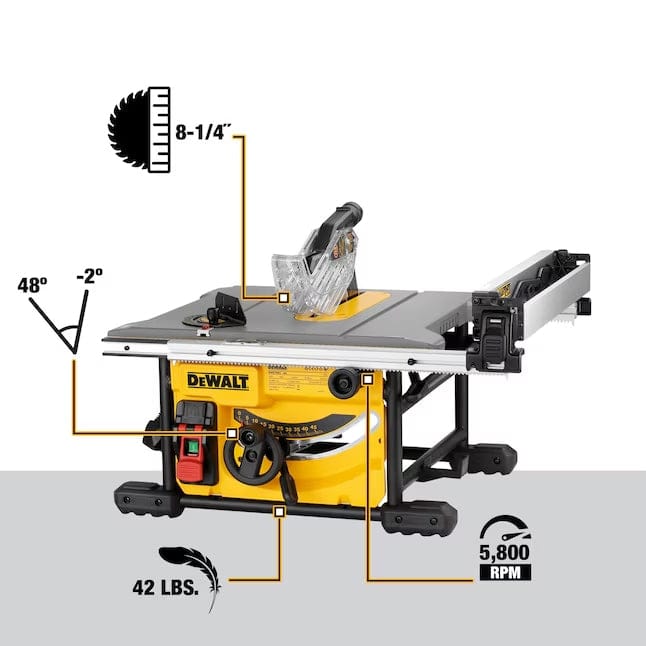

Technical Specifications
| Brand / Manufacturer | DeWalt |
| Model / Part Number | DWE7485 (Includes DW7451 Stand) |
| Motor Amperage & Voltage | 15.0 Amps @ 120V AC / 60 Hz |
| Maximum No-Load Blade Speed | 5,800 RPM |
| Blade Diameter | 8.25 in. (209.55 mm) |
| Arbor Size | 0.625 in. (15.88 mm / 5/8 in.) |
| Max Depth of Cut @ 90° | 2.5625 in. (65.08 mm / 2-9/16 in.) |
| Max Depth of Cut @ 45° | 1.75 in. (44.45 mm / 1-3/4 in.) |
| Right-Side Rip Capacity | 24.5 in. (622.3 mm) |
| Left-Side Rip Capacity | 12.0 in. (304.8 mm) |
| Table Surface Dimensions | 22.75 in. L x 14.188 in. W (577.85 mm x 360.37 mm) |
| Tool Net Weight (Saw Only) | 46.0 lbs (20.86 kg) |
| Dust Collection Port Size | 2.5 in. Rear Dust Port Vacuum Connection |
Pro-Tip: Check and fine-tune the rack and pinion fence alignment using the front pointer adjustment screws before ripping critical trim pieces to ensure identical widths on every pass.
