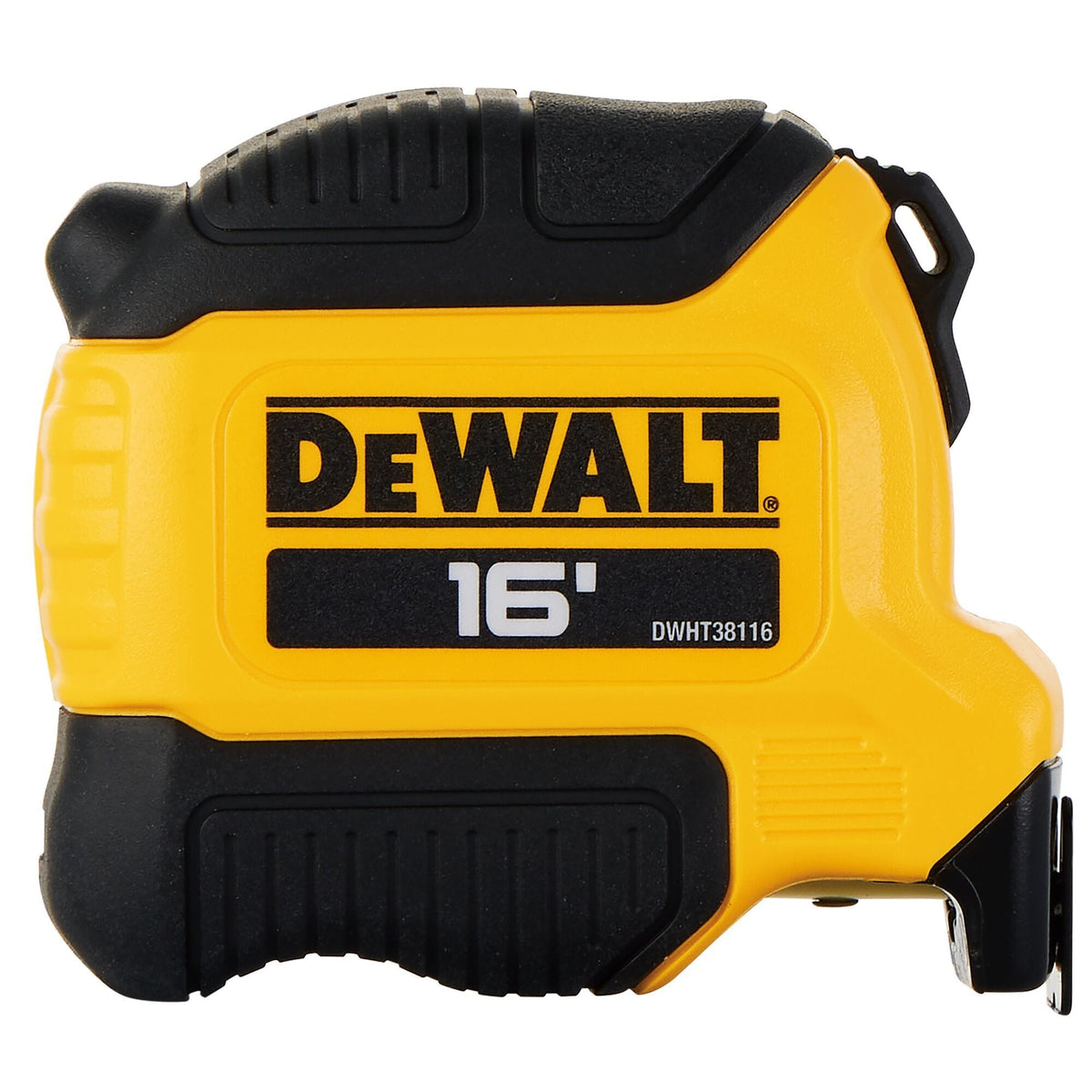

Side view of the yellow and black DEWALT DWHT38116S 16-foot tape measure case, showcasing the compact ATOMIC series housing and bold 16' branding.

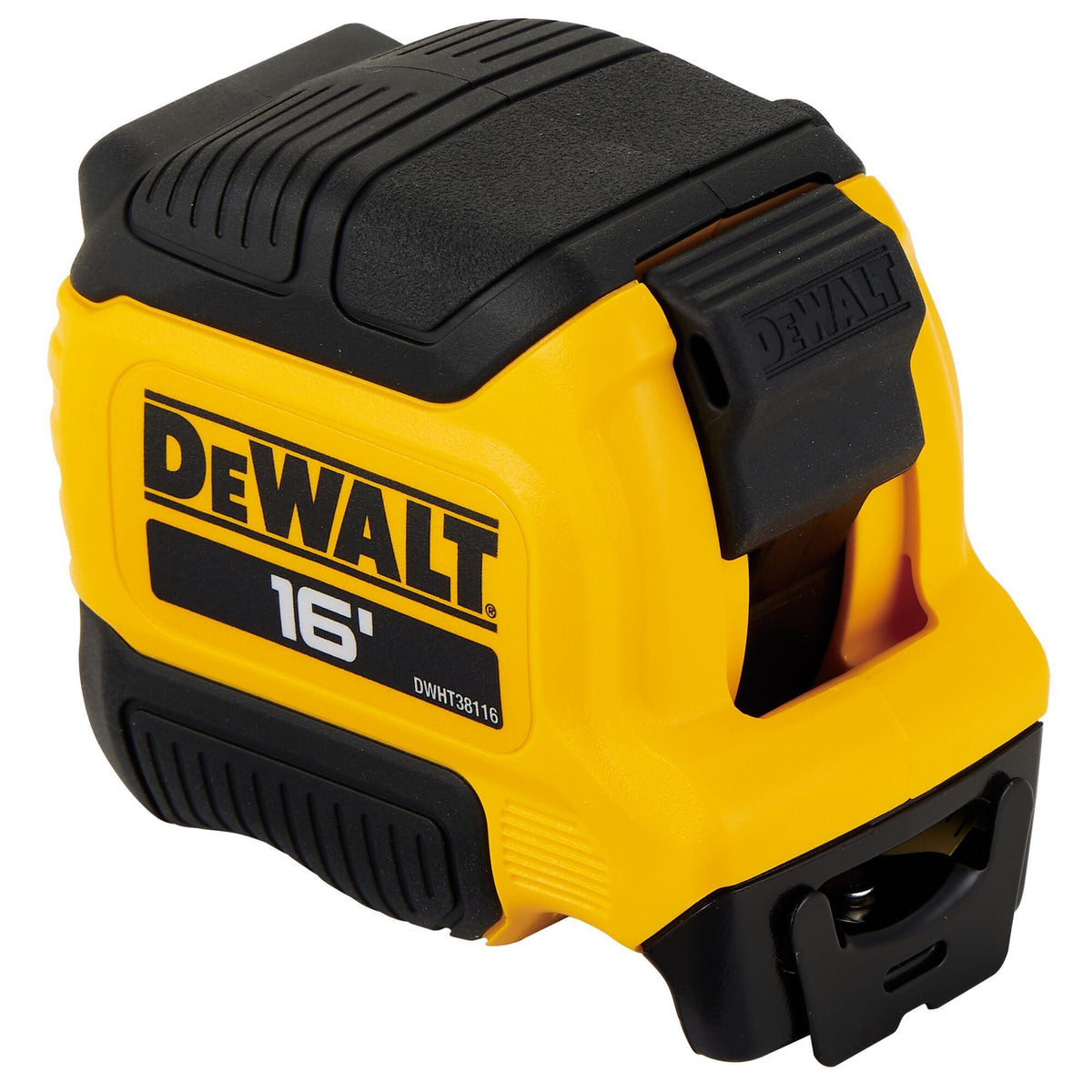

Perspective view of the DEWALT 16' ATOMIC tape measure, highlighting the rugged overmolded grip, integrated finger brake, and durable black locking mechanism.
The DEWALT ATOMIC 16-foot tape measure with the steel blade partially extended, showing the high-visibility yellow blade with fractional markings for quick and accurate readings.

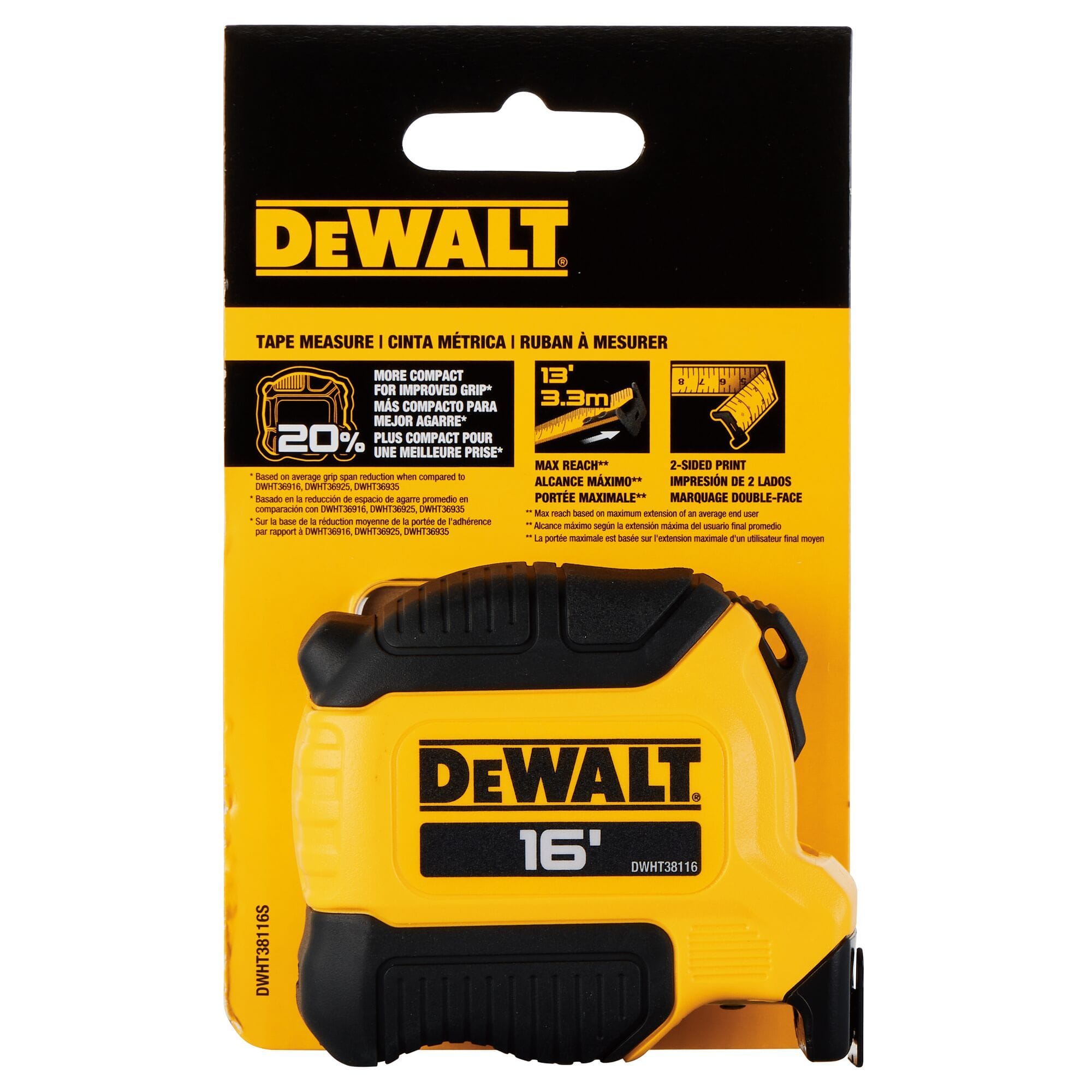

The DEWALT DWHT38116S Tape Measure in its original retail packaging, highlighting key features like the 20% more compact design, 13-foot max reach, and 2-sided blade print.

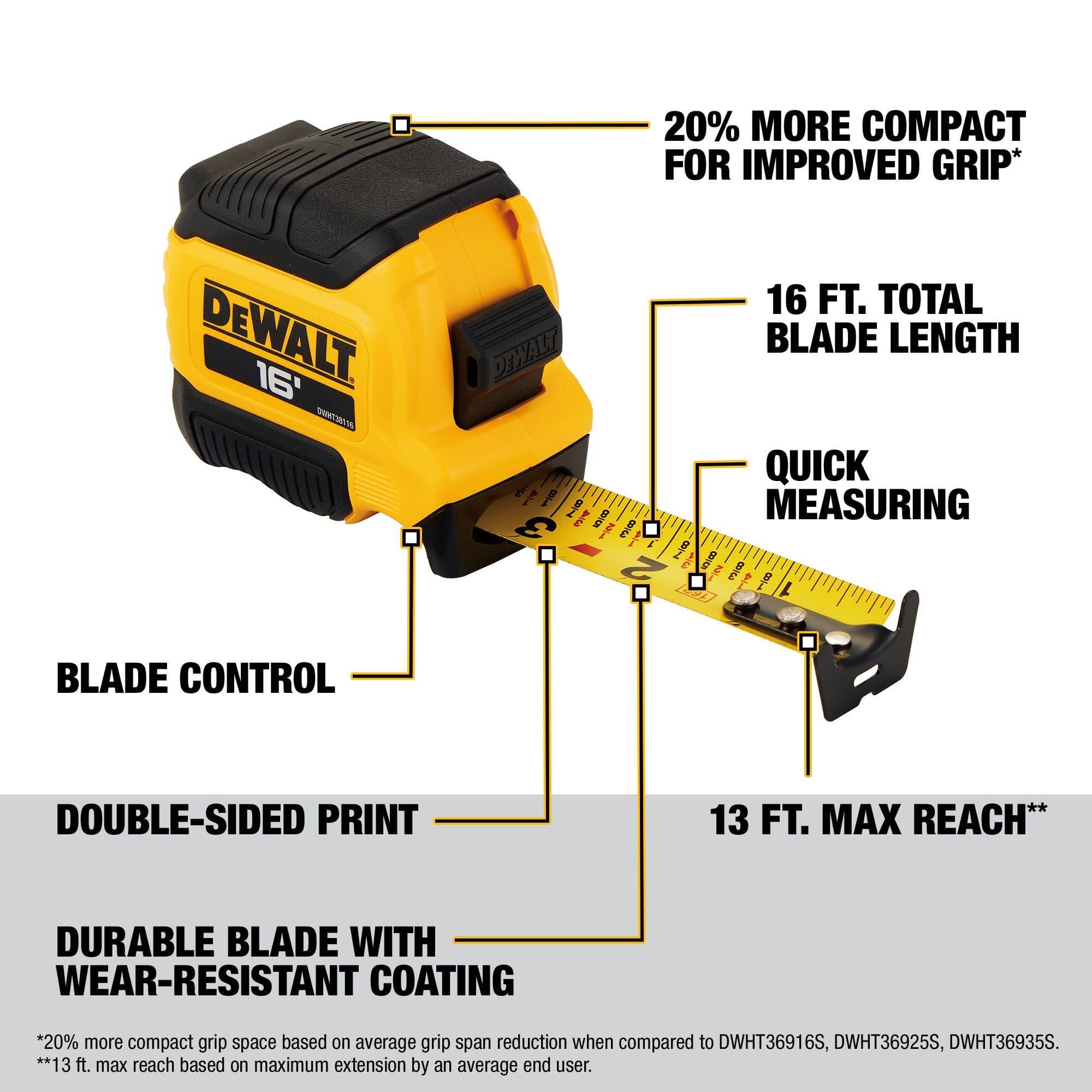

An infographic of the DEWALT ATOMIC 16' Tape Measure with labels pointing to the compact grip, 13-foot reach, double-sided print, blade control, and wear-resistant coating.

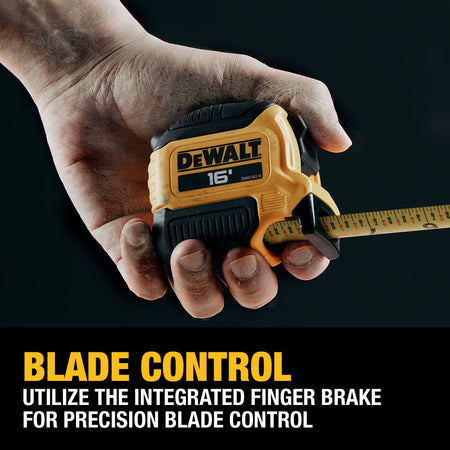

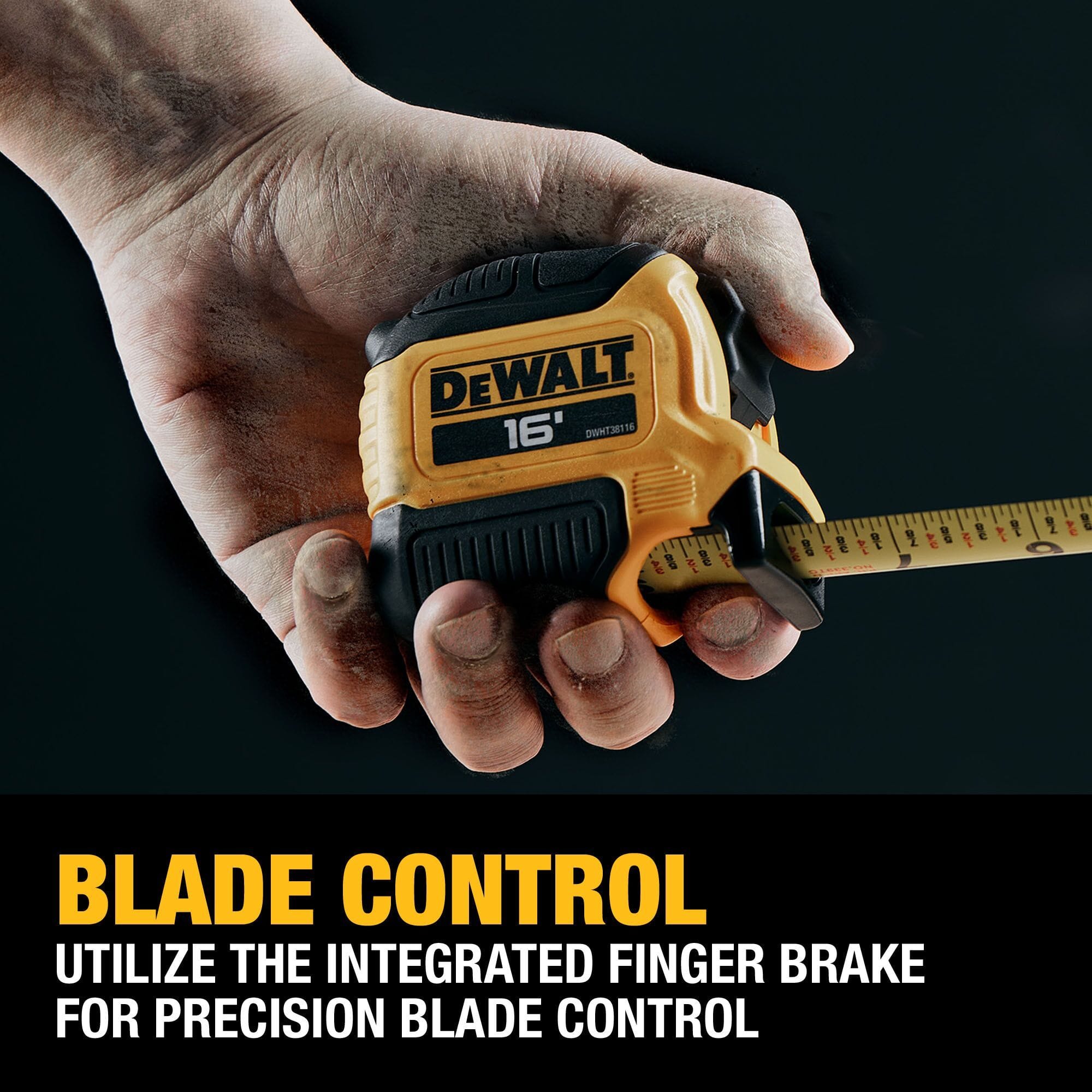

A close-up shot of a worker's hand holding the DEWALT ATOMIC tape measure, demonstrating the use of the integrated finger brake for precise control during blade retraction.

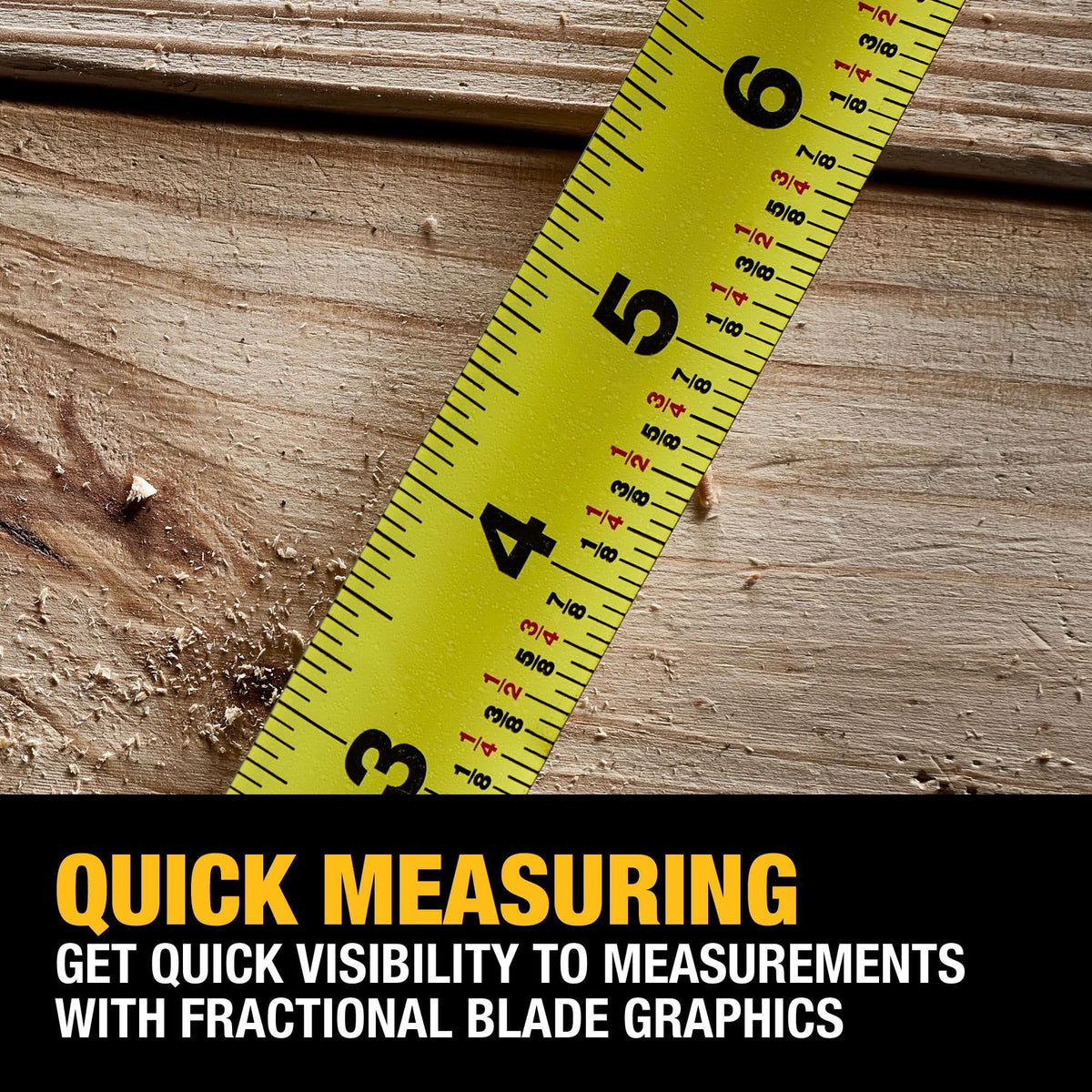

Macro view of the DEWALT tape measure steel blade resting on wood, showcasing the clear fractional markings and easy-to-read numbers for precise woodworking measurements.

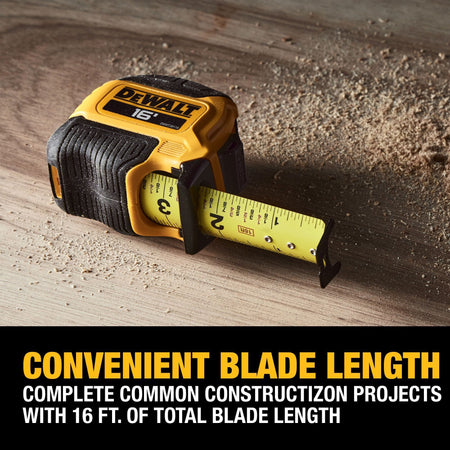

The DEWALT 16-foot ATOMIC tape measure sitting on a wooden work surface with the blade extended, emphasizing its 16' length suitable for common professional construction projects.

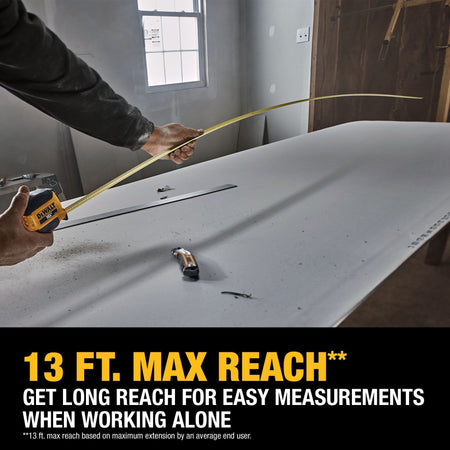

A person using the DEWALT ATOMIC Compact Series 16' Tape Measure on a construction site, demonstrating the 13-foot maximum reach capability for unassisted long-distance measurements.
A close-up of the DEWALT ATOMIC Compact Series 16-foot tape measure blade extended over a wooden surface, highlighting the durable blade construction and the wear-resistant coating that keeps fractional markings fresh and readable.
A demonstration of the compact design of the DEWALT DWHT38116S tape measure being held in two hands, emphasizing the 20% smaller footprint that provides an improved ergonomic grip for working in tight spaces.
The DEWALT 16' ATOMIC tape measure with an inset magnification showing the double-sided blade print, illustrating how the vertical and overhead markings allow for easy-to-read measurements in any orientation.
All About the DEWALT® TOUGHSERIESTM Tape Measures promotional video
Side view of the yellow and black DEWALT DWHT38116S 16-foot tape measure case, showcasing the compact ATOMIC series housing and bold 16' branding.
Perspective view of the DEWALT 16' ATOMIC tape measure, highlighting the rugged overmolded grip, integrated finger brake, and durable black locking mechanism.
The DEWALT ATOMIC 16-foot tape measure with the steel blade partially extended, showing the high-visibility yellow blade with fractional markings for quick and accurate readings.
The DEWALT DWHT38116S Tape Measure in its original retail packaging, highlighting key features like the 20% more compact design, 13-foot max reach, and 2-sided blade print.
An infographic of the DEWALT ATOMIC 16' Tape Measure with labels pointing to the compact grip, 13-foot reach, double-sided print, blade control, and wear-resistant coating.
A close-up shot of a worker's hand holding the DEWALT ATOMIC tape measure, demonstrating the use of the integrated finger brake for precise control during blade retraction.
Macro view of the DEWALT tape measure steel blade resting on wood, showcasing the clear fractional markings and easy-to-read numbers for precise woodworking measurements.
The DEWALT 16-foot ATOMIC tape measure sitting on a wooden work surface with the blade extended, emphasizing its 16' length suitable for common professional construction projects.
A person using the DEWALT ATOMIC Compact Series 16' Tape Measure on a construction site, demonstrating the 13-foot maximum reach capability for unassisted long-distance measurements.
A close-up of the DEWALT ATOMIC Compact Series 16-foot tape measure blade extended over a wooden surface, highlighting the durable blade construction and the wear-resistant coating that keeps fractional markings fresh and readable.
A demonstration of the compact design of the DEWALT DWHT38116S tape measure being held in two hands, emphasizing the 20% smaller footprint that provides an improved ergonomic grip for working in tight spaces.
The DEWALT 16' ATOMIC tape measure with an inset magnification showing the double-sided blade print, illustrating how the vertical and overhead markings allow for easy-to-read measurements in any orientation.
All About the DEWALT® TOUGHSERIESTM Tape Measures promotional video
DEWALT

DEWALT Tape Measure DWHT38116S 16 Foot ATOMIC Compact Steel Blade (Thirteen Reach Double Sided Fractional Markings Finger Brake Layout Measuring Tool)

In stock
SKU: DWHT38116S
$14.99 USD

Description

Authorized Dealer Badge DEWALT logout

Execute Rapid Layout Tasks and Manage Long Spans Unassisted with a 20% More Compact Measuring Frame

The DEWALT DWHT38116S ATOMIC Compact Series 16-Foot Tape Measure is an industrial-grade dimensional layout instrument engineered to deliver a 13-foot maximum reach for unassisted distance evaluations. This professional hand tool features a heavy-duty steel blade housed inside an ergonomic chassis that is 20% more compact than traditional measuring tape configurations. Outfitted with double-sided fractional graphics for immediate vertical tracking and an integrated manual finger brake to control retraction velocities, this structural component optimizes framing and carpentry layouts across restricted commercial workspaces.

Best Used For:

  • Solo Framing Alignment: Extending the rigid steel blade unassisted up to a 13-foot span across open wall plates or overhead floor joist networks.
  • Overhead Trim Scribing: Capturing clear vertical wall dimensions and ceiling elevations utilizing the high-visibility double-sided printed blade metrics.
  • Cramped Cabinet Staging: Pulling precise internal clearances inside tightly confined cabinetry carcasses, built-in millwork arrays, or dark electrical panels.

Key Performance & Safety Features

  • Thirteen-Foot Standout Reach: Stiff blade metal metallurgy maximizes structural straightness to permit long-range solo jobsite layouts without collapsing.
  • Compact ATOMIC Geometry: Form-fitting architectural shell reduces exterior dimensions by 20% to optimize tool belt storage and reduce user hand strain.
  • Double-Sided Blade Graphics: Dual-surface print array places contrasting fractional scales on both blade faces to facilitate smooth overhead parsing.
  • Integrated Safety Finger Brake: Lower casing open aperture exposes a manual brake slot to govern high-speed hook recoil and guard skin.
  • Abrasive Wear Armor Shield: Resilient protective polymer coating covers the underlying steel substrate to block scuffing, scraping, and scale fade.

What's Included

  • (1) DWHT38116S ATOMIC Compact Series 16-Foot Tape Measure

Technical Specifications

Brand Manufacturer: DEWALT
Model Number (SKU): DWHT38116S
Product Type Category: Compact Pocket Tape Measure
Total Tape Blade Length: 16.0 ft
Maximum Extension Reach: 13.0 ft
Core Blade Metallurgy: High-Tensile Carbon Steel
Measurement Scale Layout: Fractional Graphics System (SAE)
Dual-Side Printing: Yes (Vertical and Horizontal Facing)
Manual Brake Mechanism: Under-Housing Finger Brake Pad
Lock Type: Top-Slide Mechanical Blade Lock
Assembled Chassis Length: 3.5 in
Assembled Chassis Width: 6.0 in
Assembled Chassis Height: 2.25 in
Total Structural Weight: 0.78 lbs
Country of Origin Assembly: Thailand

PRO-TIP: When dropping the blade end into deep overhead framing plates, utilize the double-sided print on the reverse face to bypass awkward head tilts. Lightly drag your palm over the finger brake aperture window to cushion incoming spring acceleration, which halts retraction smoothly and shields your multi-rivet end hook from structural impact damage.
