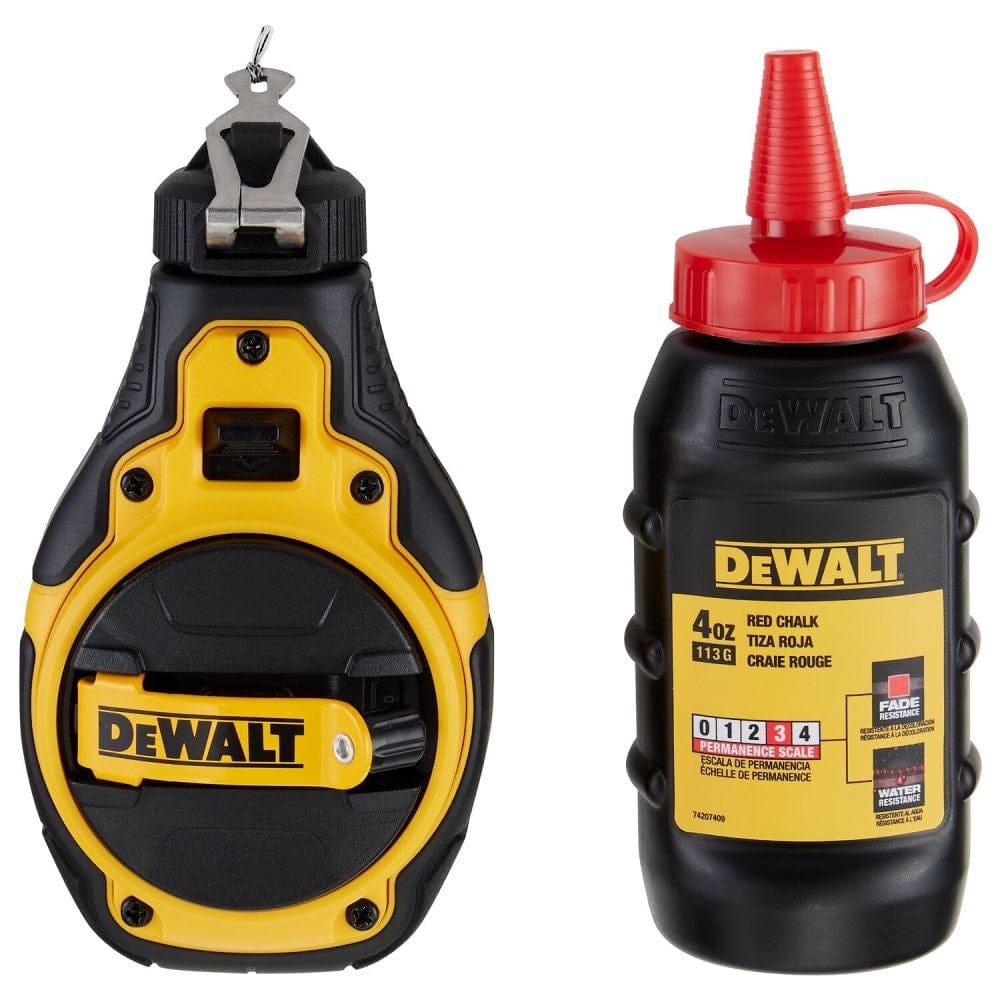

A direct front view of the DEWALT 100-foot chalk reel featuring a yellow and black rubber overmolded case with a folding handle, shown next to a 4 oz. bottle of high-visibility red chalk.

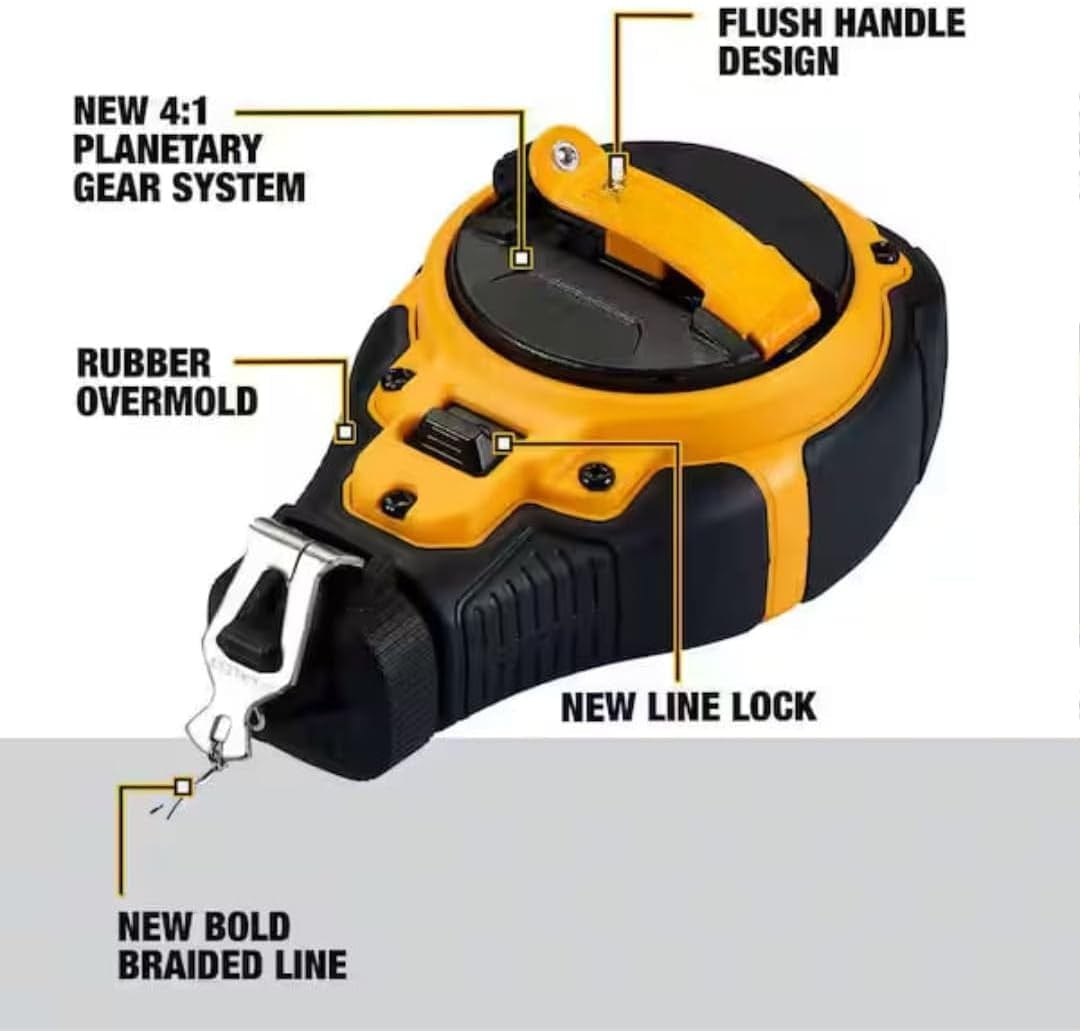

Product informational graphic highlighting the 4:1 planetary gear system, the flush handle design, the rubber overmolded housing, the integrated line lock, and the 1mm bold braided line.

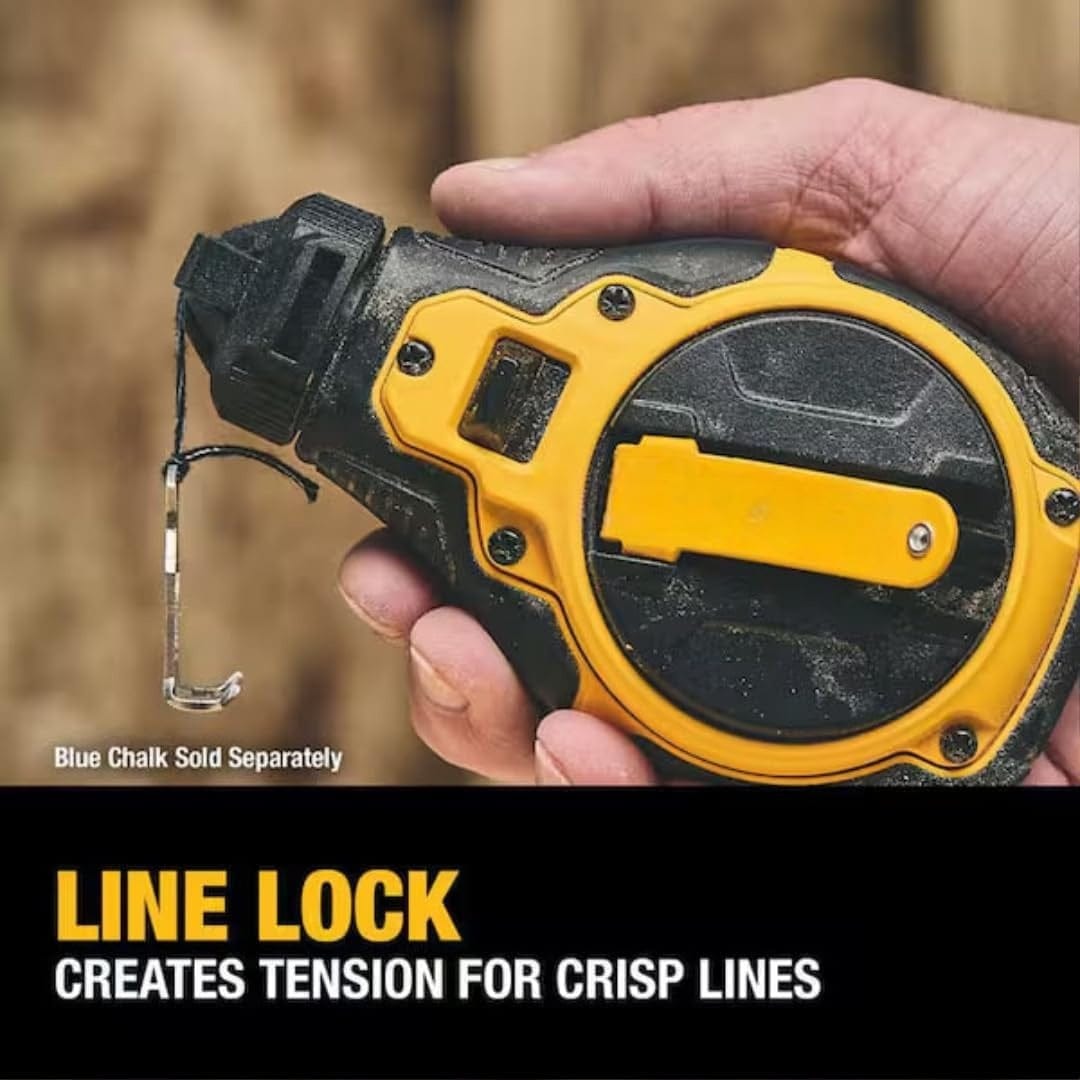

Close-up action shot showing a hand holding the chalk reel and utilizing the line lock feature to create tension for a crisp layout line on a wooden surface.

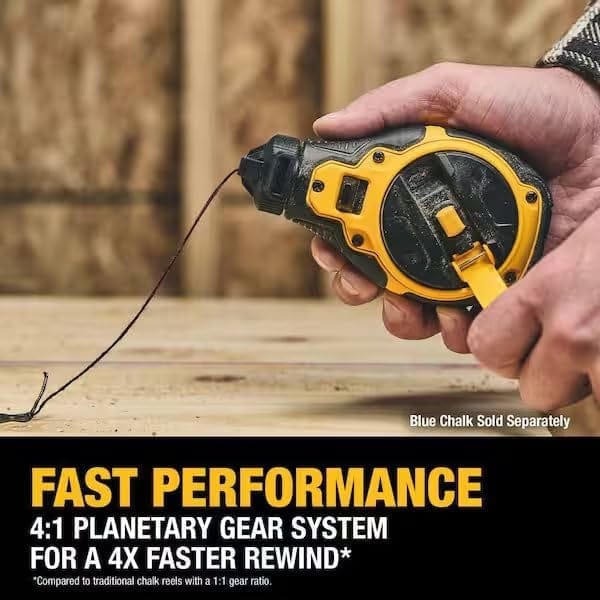

Action shot demonstrating the fast performance of the planetary gear system as a user rewinds the braided string with the high-leverage folding handle.

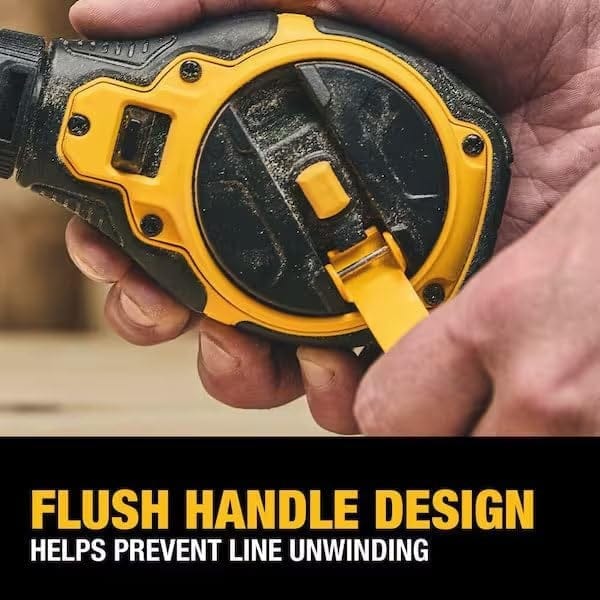

A detailed view of the flush handle design, showing how the yellow rewind handle folds flat into the black housing to prevent accidental line unwinding during transport.

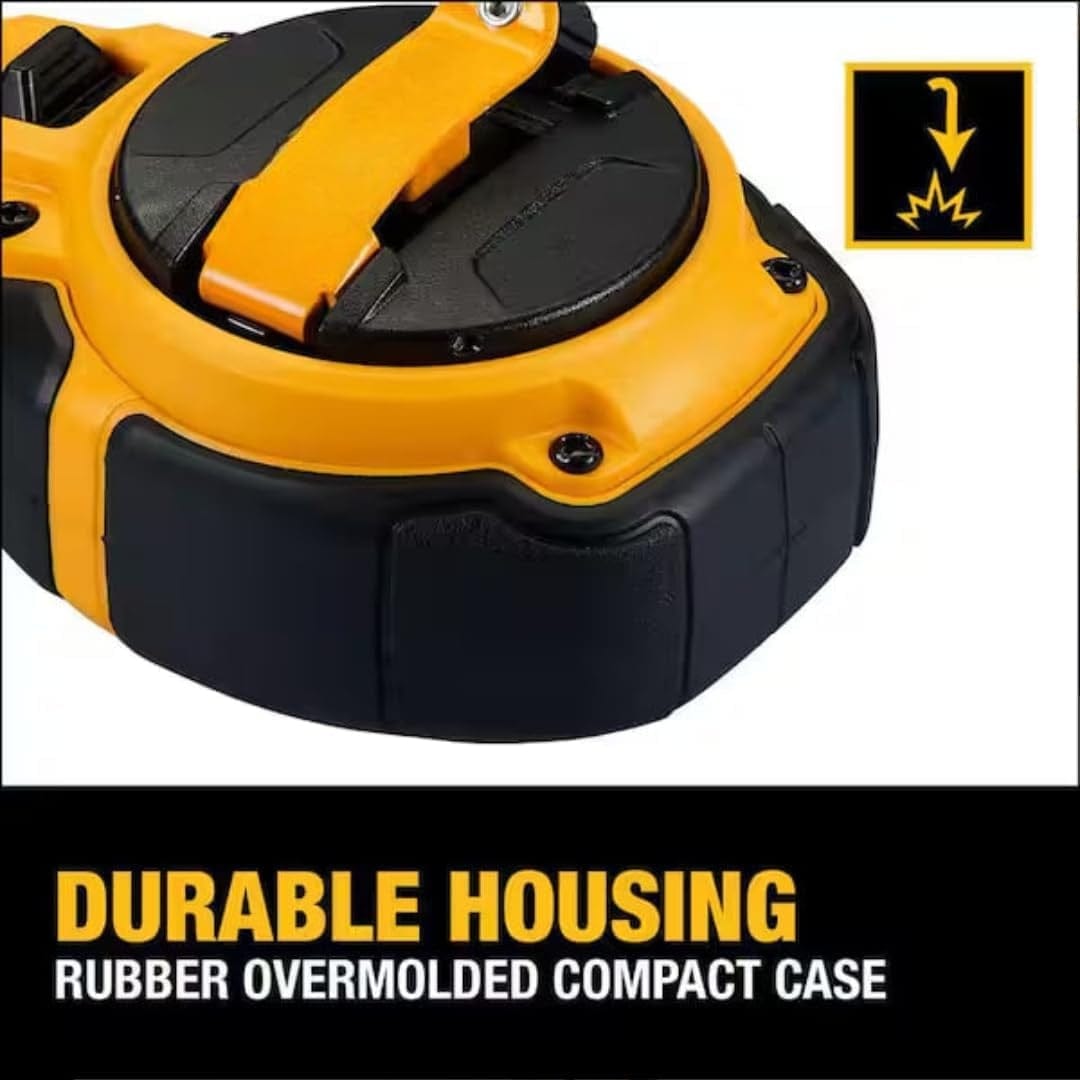

Informational graphic focusing on the durable housing, illustrating the textured rubber overmold on the compact yellow case designed for slip resistance and drop protection.

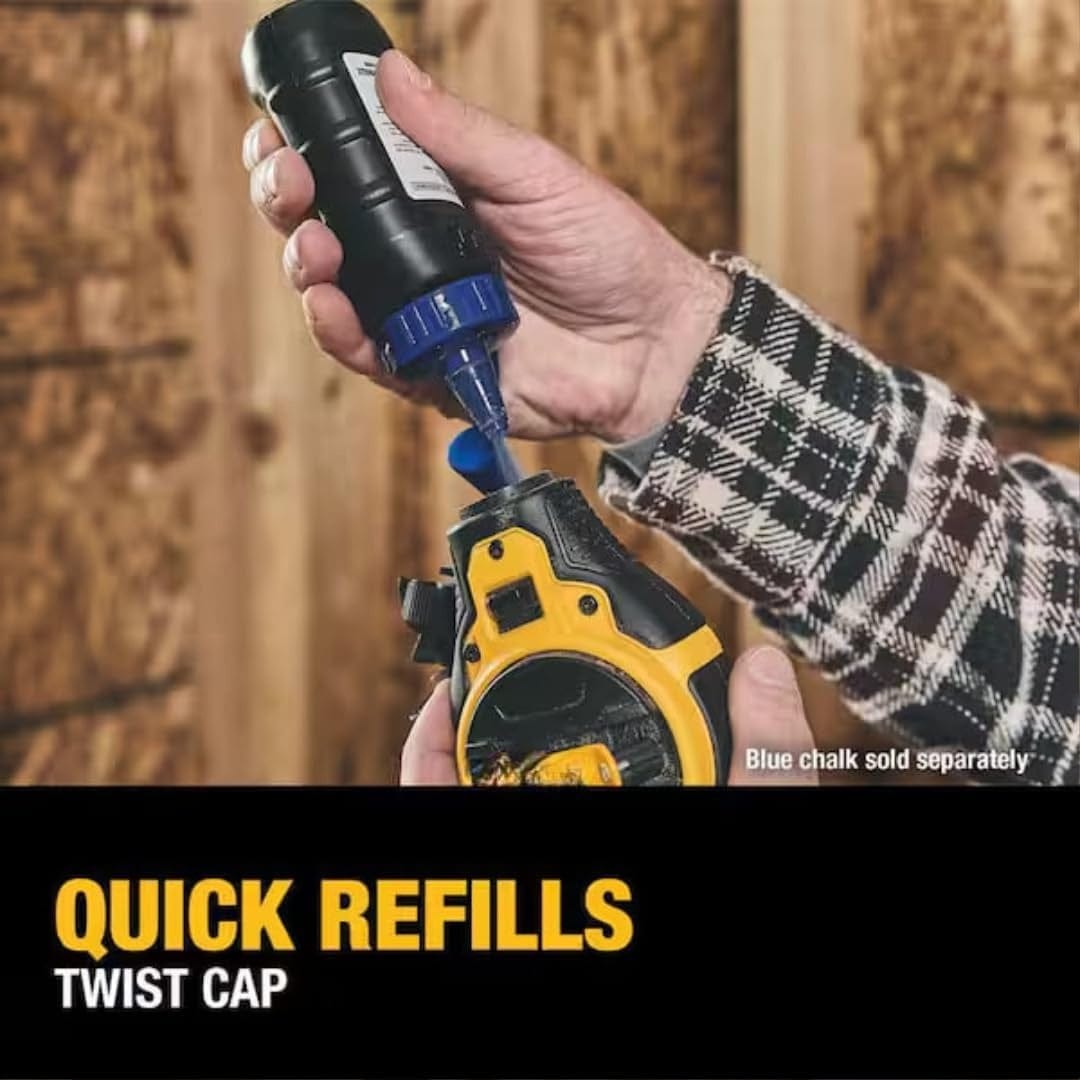

Action shot showing a professional performing a quick refill by twisting off the blue cap and pouring chalk into the top of the ergonomic reel housing.

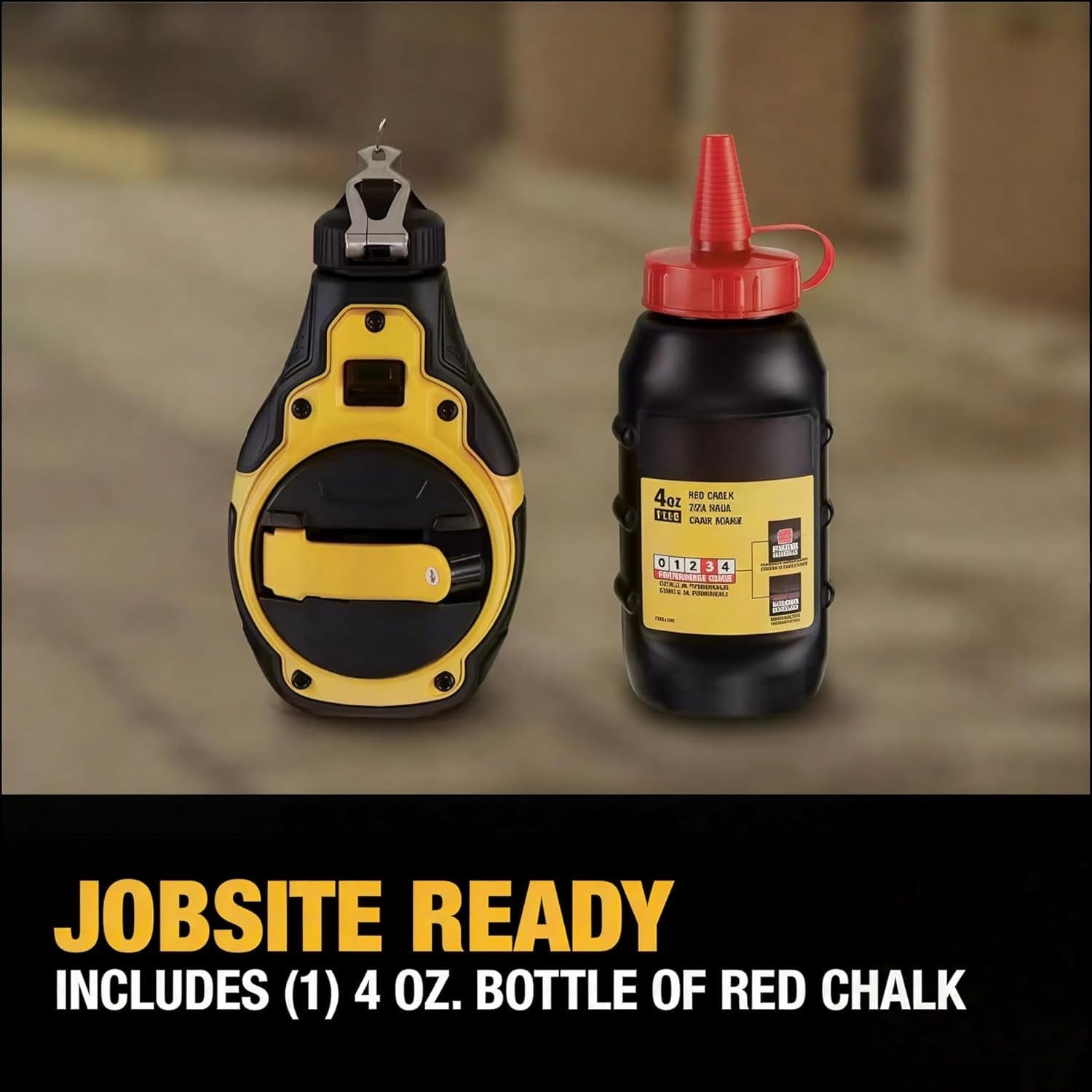

An informational graphic titled Jobsite Ready, showing the complete layout kit which includes one 100-foot bi-material chalk reel and one 4 oz. bottle of red chalk.
Get these in hand or get left behind promotional video
A direct front view of the DEWALT 100-foot chalk reel featuring a yellow and black rubber overmolded case with a folding handle, shown next to a 4 oz. bottle of high-visibility red chalk.
Product informational graphic highlighting the 4:1 planetary gear system, the flush handle design, the rubber overmolded housing, the integrated line lock, and the 1mm bold braided line.
Close-up action shot showing a hand holding the chalk reel and utilizing the line lock feature to create tension for a crisp layout line on a wooden surface.
Action shot demonstrating the fast performance of the planetary gear system as a user rewinds the braided string with the high-leverage folding handle.
A detailed view of the flush handle design, showing how the yellow rewind handle folds flat into the black housing to prevent accidental line unwinding during transport.
Informational graphic focusing on the durable housing, illustrating the textured rubber overmold on the compact yellow case designed for slip resistance and drop protection.
Action shot showing a professional performing a quick refill by twisting off the blue cap and pouring chalk into the top of the ergonomic reel housing.
An informational graphic titled Jobsite Ready, showing the complete layout kit which includes one 100-foot bi-material chalk reel and one 4 oz. bottle of red chalk.
Get these in hand or get left behind promotional video
DEWALT

DEWALT Chalk Reel Kit DWHT48333RC 100 Foot 4 to 1 Gear Ratio (1mm Precision Braided Line Rubber Overmold Case Fast Rewind Framing Layout Set Red)

In stock
SKU: DWHT48333RC
$13.97 USD

Description

Authorized Dealer Badge DEWALT logout

Heavy-Duty 100-Foot Layout Chalk Reel Kit with 4:1 Planetary Gear Fast Rewind System and 1mm Precision Braided Line

The DEWALT DWHT48333RC 100-Foot Bi-Material Chalk Reel Kit delivers professional architectural marking utility and exceptional boundary scaling efficiency across demanding multi-trade jobsites. Engineered with a high-speed 4:1 planetary gear mechanical ratio and a 1mm precision braided string filament, this industrial layout tool produces ultra-fine, razor-sharp registration references over full-length workspaces. This commercial structural marking solution resolves slow retrieval fatigue, messy chalk powder leakage, and uneven snapping tension variations across timber or concrete subfloors by combining an integrated structural mechanical line lock with a secure quick-twist filler cap assembly. Outfitted with a drop-resistant rubber overmolded composite housing casing and accompanied by a 4-ounce high-visibility contrast supply pack, this 1.1 lb framing essential optimizes field alignment workflows during continuous subfloor sheeting, exterior timber wall framing, and commercial cabinet grid installations.

Best Used For:

  • Subfloor Sheet Layouts: Snapping continuous reference grids onto structural plywood or OSB decks to trace joist nail patterns before fastening.
  • Commercial Wall Framing: Marking straight wall plate perimeter alignments across wide concrete foundation pads or multi-family flooring sectors.
  • Finishing Cabinet Grid Alignment: Striking thin precision vertically plumb lines on drywall panels to secure uniform layout heights for heavy casework.

Key Performance & Safety Features

  • 4:1 Gear Drive Transmission: Internal multi-stage gear configuration accelerates line retraction cycles up to four times standard winding rates.
  • 1mm Braided Micro Line: Dense braided cord structure carries optimized powdered load volume to snap clear markings without ghost trails.
  • Mechanical Line Lock Clip: Integrated structural anchor locks spool line extensions fast to maintain static string tension without manual thumb force.
  • Bi-Material Shield Casing: Tough internal frame core bounded by thick impact-absorbing rubber patterns reduces wet jobsite slipping slips.
  • Flush Winding Crank Pivot: Metallic rewind arm nests flat against the body profile during passive transport phases to prevent catching hooks.

What's Included

  • (1) DEWALT 100-Foot Bi-Material Fast Rewind Chalk Reel (DWHT48333RC)
  • (1) 4 oz. Bottle of Premium Jobsite High-Visibility Red Chalk Powder

Technical Specifications

Specification Value
Brand Name DEWALT
Model Number DWHT48333RC
Product Segment Category Chalk Reel Kit
Maximum String Length 100 ft.
Gear Ratio Drive Metric 4:1 Planetary Transmission
String Structural Diameter 1mm (0.039 Inches Precision Width)
String Structural Type Braided Precision Cord Filament
Chalk Volume Capacity 4 oz. Reservoir
Chalk Color Included Red
Housing Material Blend Rubber Overmolded Bi-Material Polymer
Integrated Line Lock Yes (Manual Cam Slide)
Assembled Packaged Weight 1.101 lbs.
Commercial Level Warranty Lifetime against Manufacturer Defect

Pro-Tip: To avoid damp clumps within the internal 4 oz storage tank, tap the plastic housing body firmly against your work boots before drawing out the precision line. Keeping the powder loose ensures uniform loading across the 1mm braid path and prevents line jams under high-humidity field parameters.
