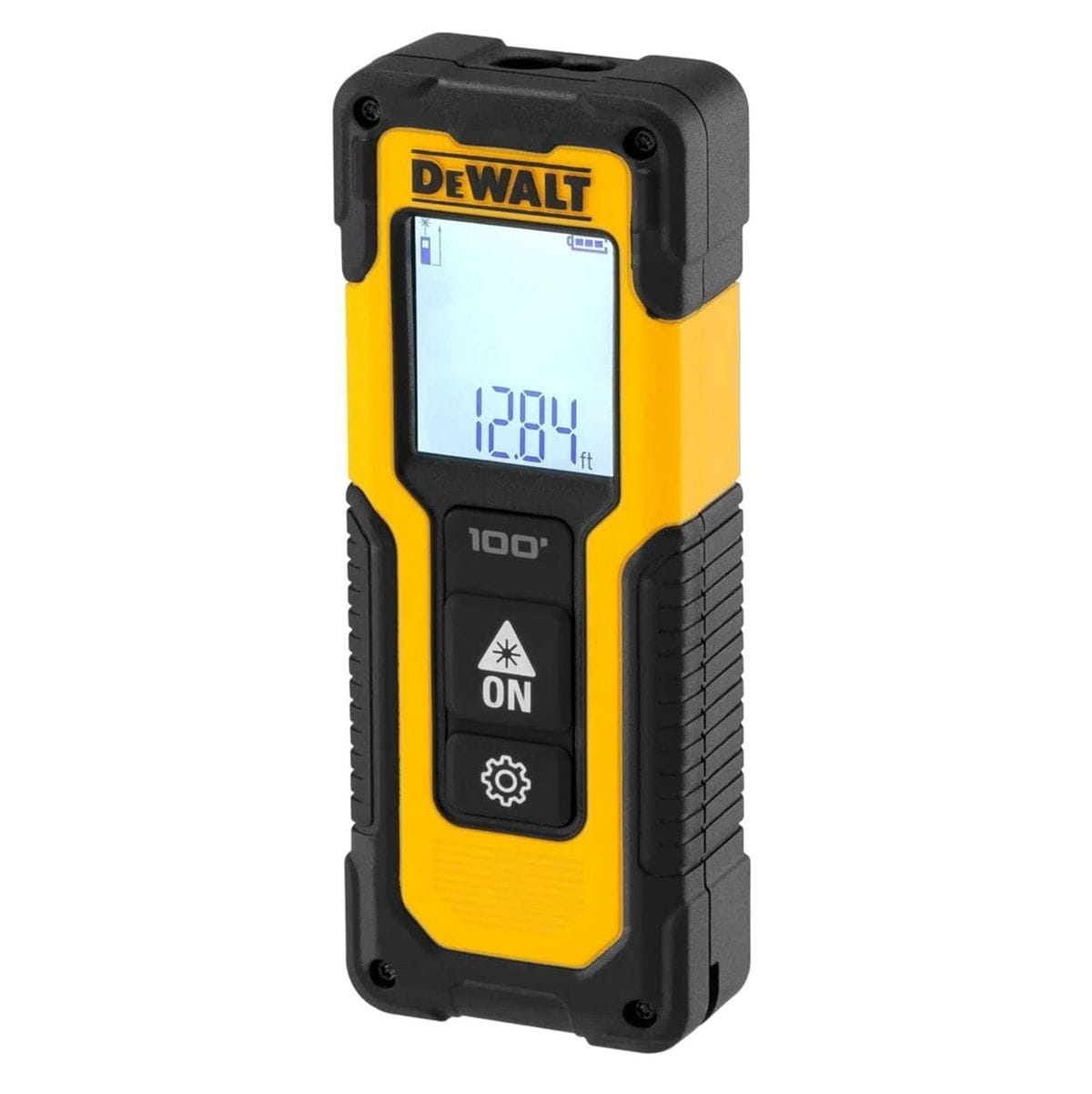

Angled upright view of the handheld laser distance measurer, showcasing the yellow housing, the 100-foot range label, and the user interface with the large ON button.

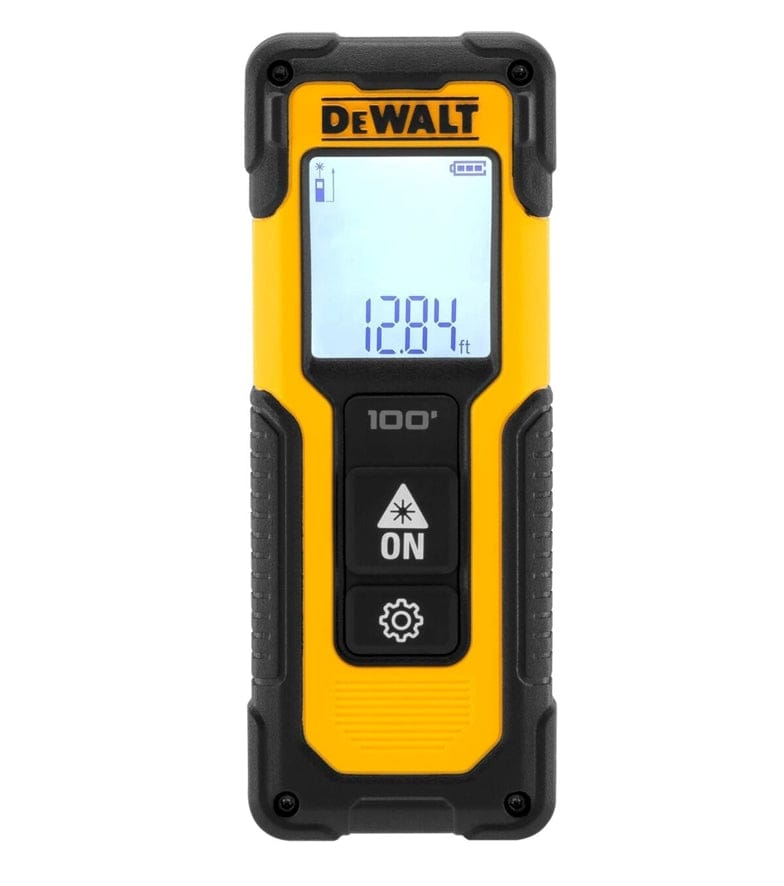

Direct front view of the DeWalt DWHT77100, clearly displaying the backlit LCD screen with battery indicator and the simple two-button control panel for power and settings.

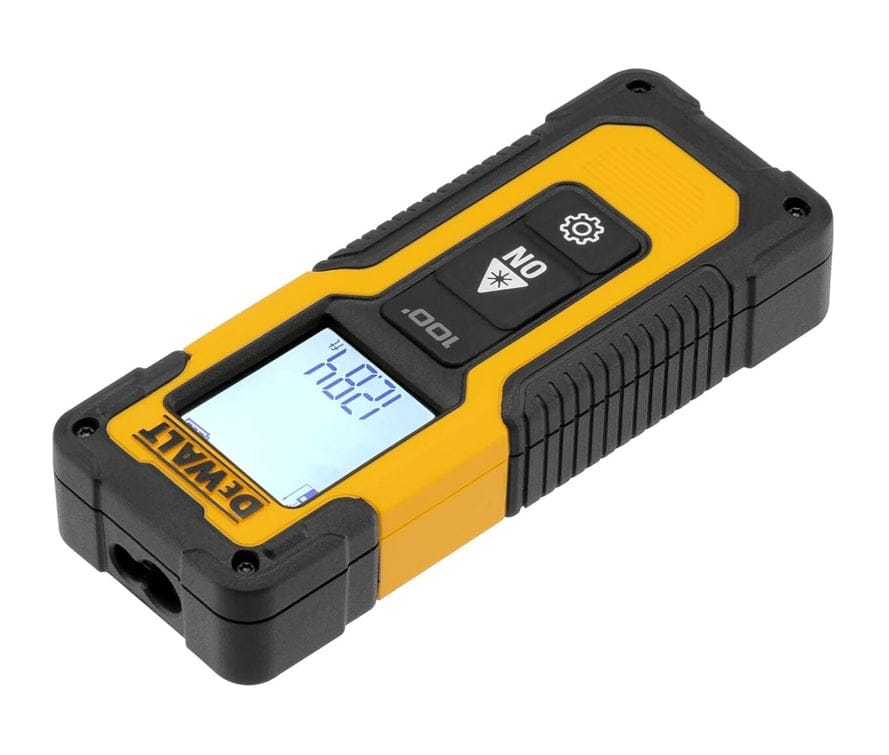

Angled view of the DeWalt laser measurer resting flat, showing the front laser aperture, black rubberized side grips, and the digital screen displaying a measurement of 12.84 ft.

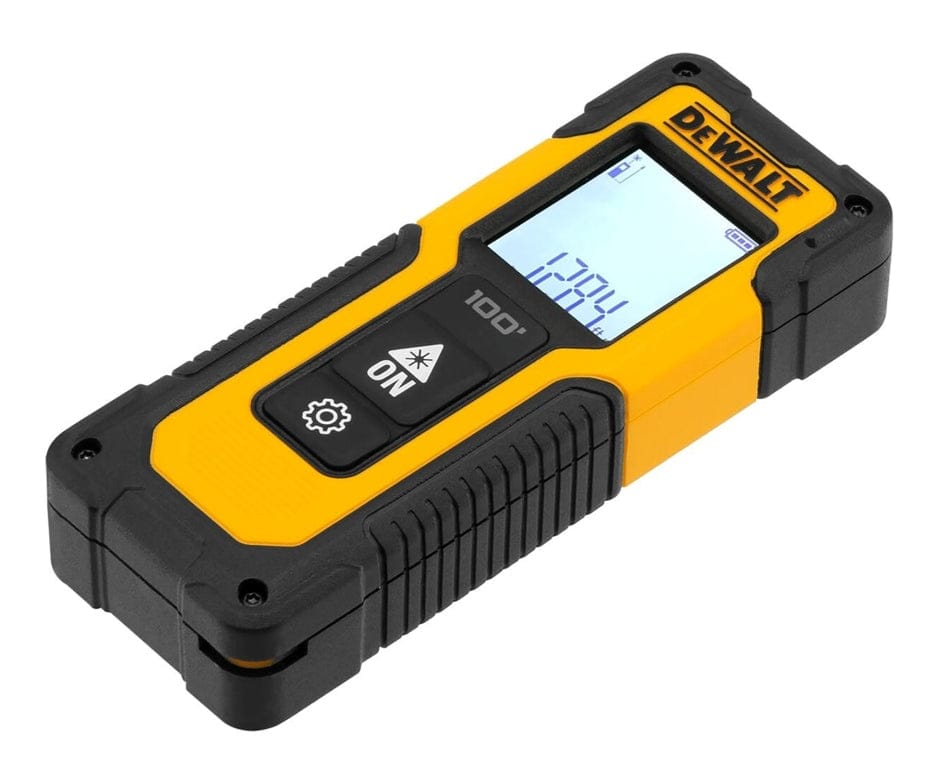

Side angled view of the compact laser measuring tool, highlighting the textured black overmold designed for a secure grip and jobsite durability.

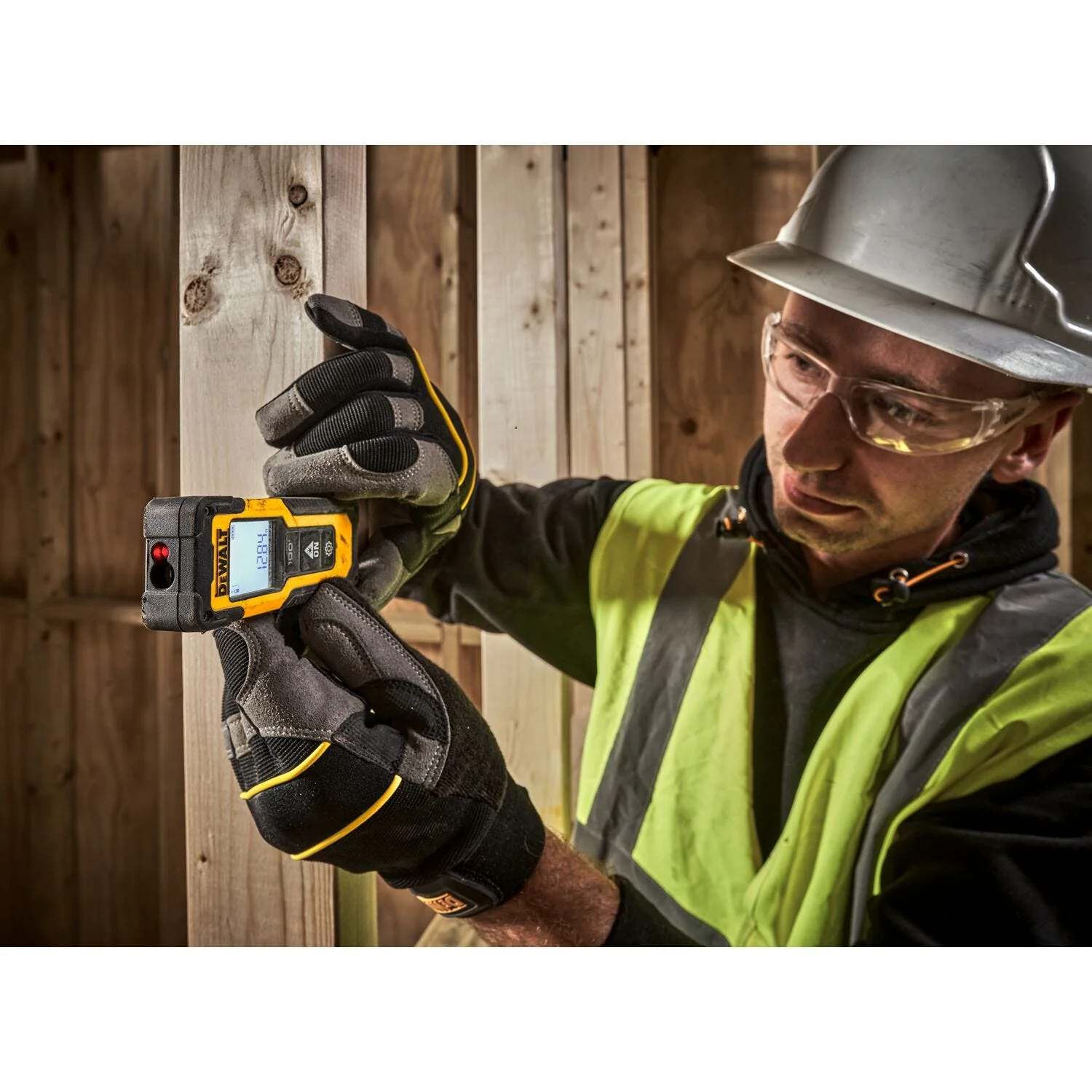

A construction worker wearing a hard hat and safety glasses holding the DeWalt laser measurer against a wooden stud to capture a distance reading.
DEWALT Laser Distance Measurers promotional video
Angled upright view of the handheld laser distance measurer, showcasing the yellow housing, the 100-foot range label, and the user interface with the large ON button.
Direct front view of the DeWalt DWHT77100, clearly displaying the backlit LCD screen with battery indicator and the simple two-button control panel for power and settings.
Angled view of the DeWalt laser measurer resting flat, showing the front laser aperture, black rubberized side grips, and the digital screen displaying a measurement of 12.84 ft.
Side angled view of the compact laser measuring tool, highlighting the textured black overmold designed for a secure grip and jobsite durability.
A construction worker wearing a hard hat and safety glasses holding the DeWalt laser measurer against a wooden stud to capture a distance reading.
DEWALT Laser Distance Measurers promotional video
DEWALT

DeWalt Laser Distance Measurer DWHT77100 100 Foot Range Backlit LCD Screen Area Volume Calculation (Accuracy 1/8 Inch Red Beam Construction Layout)

Only 3 left
SKU: DWHT77100
$59.97 USD

Description

Authorized Dealer Badge DEWALT logout

DeWalt DWHT77100 100-Foot Handheld Laser Distance Measurer

The DeWalt DWHT77100 100-Foot Laser Distance Measurer is an industrial layout and estimation tool engineered for rapid linear, area, and volume calculations across commercial construction, electrical rough-ins, and finish carpentry projects. Delivering a maximum working range of 100 feet (30.5 meters) with a precision accuracy of ±1/8 inch at 32 feet, this compact red-beam laser device eliminates manual tape measuring errors during material takeoffs. Outfitted with an intuitive 2-button interface, a high-visibility white backlit LCD screen, automatic addition and subtraction logic, unit toggling between fractional feet, inches, and meters, TPE overmold impact housing, and two AAA battery power, this tool provides instant measurements for trade contractors.

Best Used For:

  • Flooring & Drywall Square Footage Estimation: Calculating room surface areas automatically for flooring, drywall, and paint material purchasing.
  • HVAC & Electrical Conduit Run Calculations: Measuring long linear wall runs and interior room volumes up to 100 feet to size ductwork and cable trays.
  • Framing & Interior Layout Verification: Verifying stud wall spacing, doorway clearances, and ceiling heights without an assistant holding a tape measure.

Key Performance & Safety Features

  • 100-Foot (30.5 m) Maximum Measuring Range: Projects a clear red laser line to capture extended interior distances quickly across large rooms.
  • ±1/8-Inch Precision Accuracy at 32 Feet: High-precision laser sensor provides reliable measurement data for accurate material bidding.
  • Integrated Area, Volume & Linear Addition Logic: Built-in digital calculator adds or subtracts sequential runs and computes square footage and cubic volume.
  • High-Contrast White Backlit LCD Display: Bright illuminated screen ensures clear text readability in unlit attics, basements, and bright jobsites.
  • Instant Imperial & Metric Unit Conversion: Toggles seamlessly between decimal feet, fractional inches, and metric meters with a single button press.
  • Protective TPE Overmold Rubber Housing: Durable thermoplastic elastomer housing absorbs shock loads and provides a secure, non-slip hand grip.

What's Included

  • (1) DeWalt DWHT77100 100-Foot Handheld Laser Distance Measurer
  • (2) AAA Alkaline Batteries
  • (1) Protective Wrist Lanyard

Technical Specifications

Brand / Manufacturer DeWalt
Model / Part Number DWHT77100
Maximum Measuring Distance 100 ft. (30.5 Meters)
Measurement Accuracy Rating ±1/8 in. at 32 ft. (±3.175 mm at 9.75 m)
Display Screen Type White Backlit Digital LCD
Calculation Function Modes Linear Distance, Area (sq ft), Volume (cu ft), Addition, Subtraction
Measurement Unit Display Options Feet, Inches, Meters (ft, in, m)
Laser Diode / Beam Color Red Laser (Class 2)
Power Supply Source 2 AAA Alkaline Batteries (Included)
Housing Protection Material High-Impact ABS Plastic with TPE Rubber Overmold
Primary Shell Finish Color Yellow and Black
Pro-Tip: Place the flat base of the laser measurer flush against the starting wall or floor plate when taking ceiling or room-length measurements; the tool automatically calculates the target distance from its back edge to ensure true wall-to-wall dimensions.
