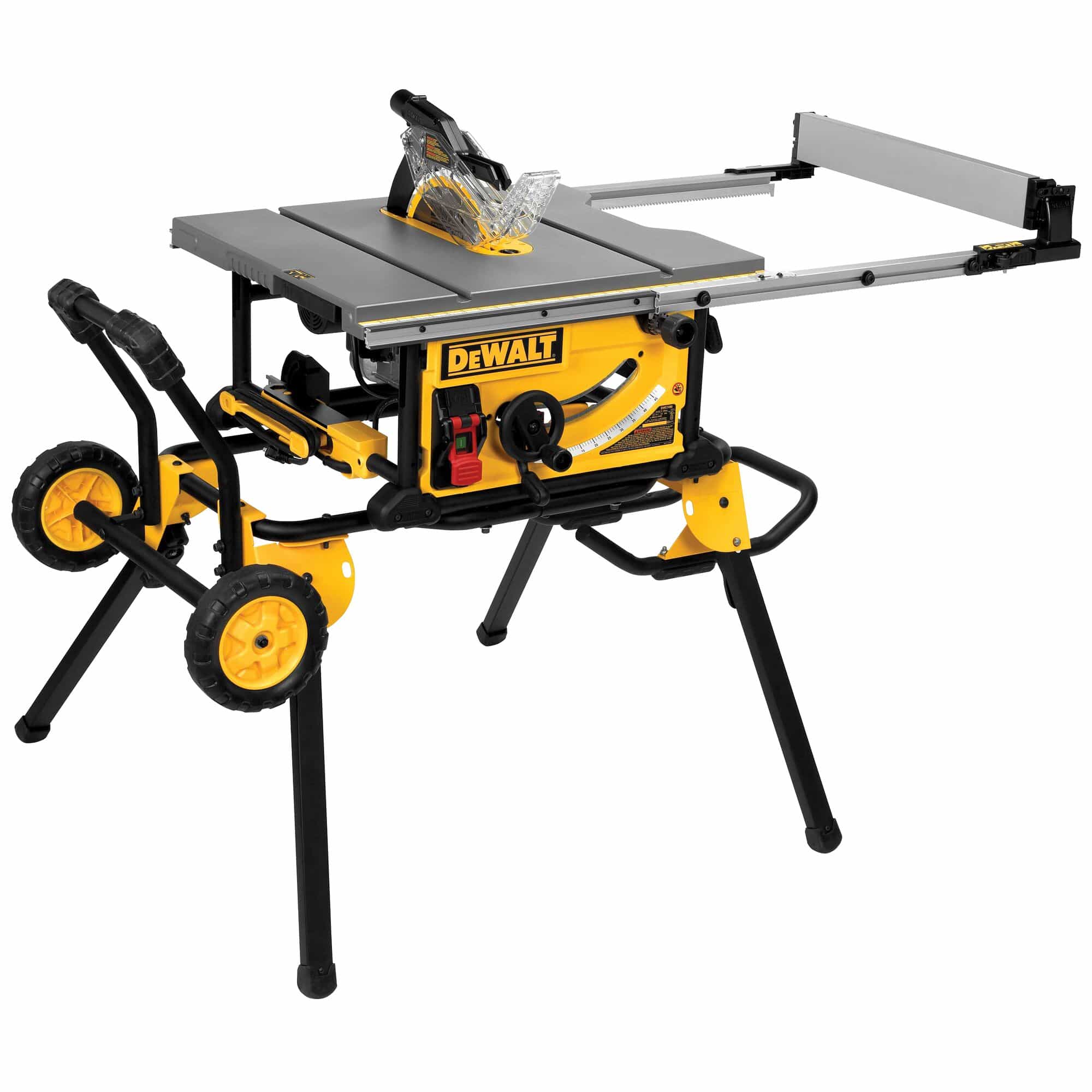

DeWalt DWE7491RS 10-inch 15 Amp jobsite table saw set up on its heavy-duty folding rolling stand with wheels.

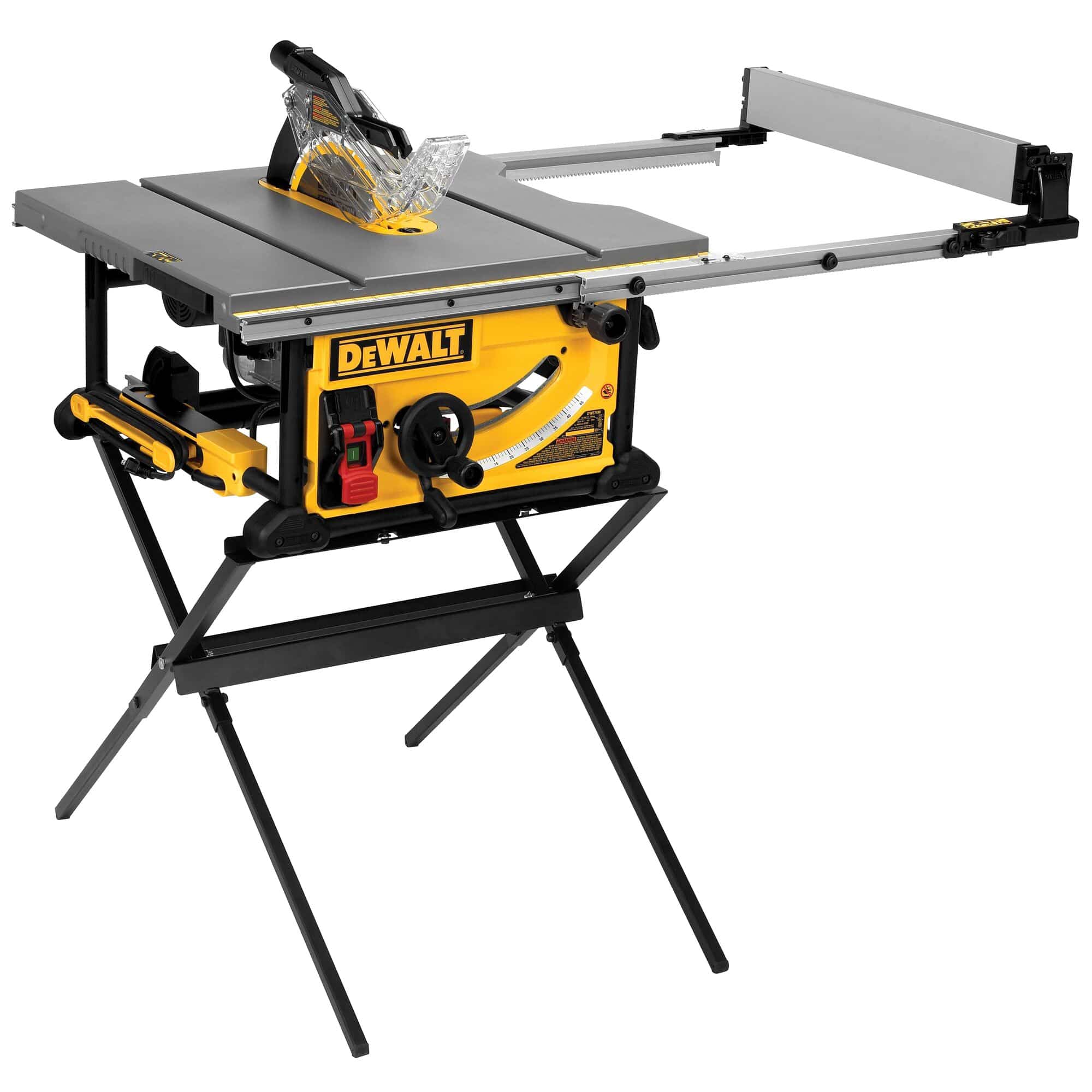

Side view of the DeWalt DWE7491RS jobsite table saw mounted on its open tubular steel folding stand legs.

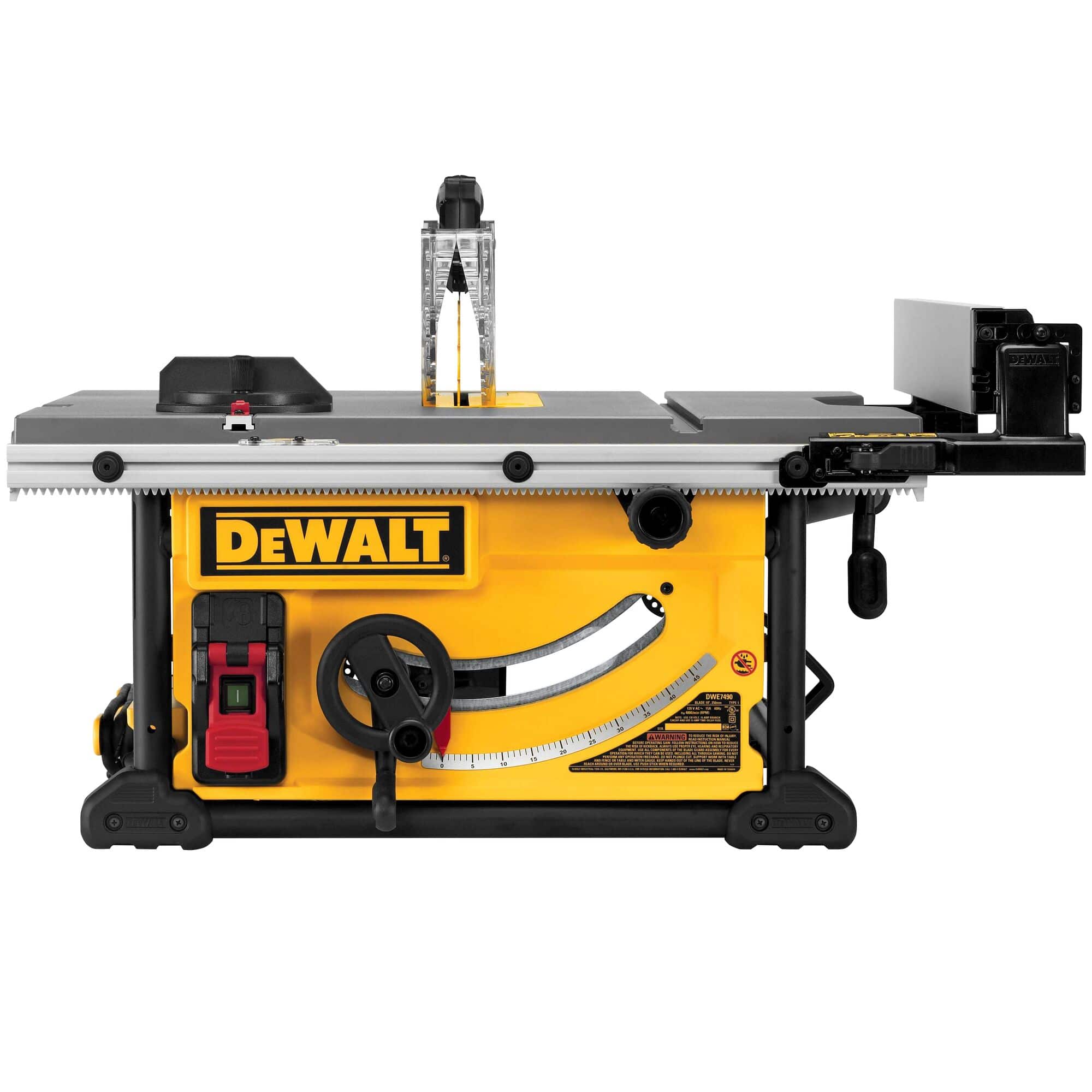

Front view of the DeWalt DWE7491RS table saw showing the power switch, bevel angle wheel, and rack-and-pinion fence rail.

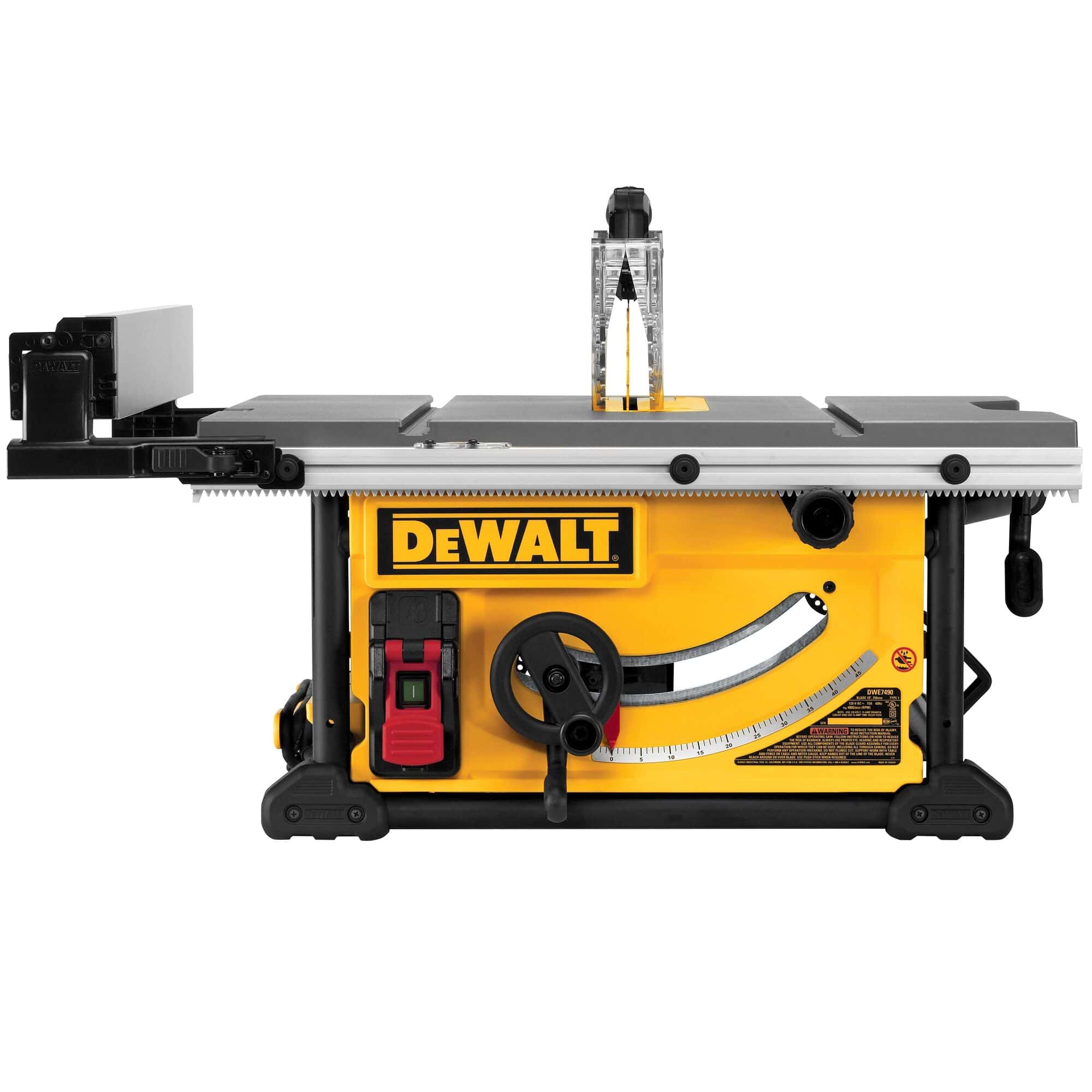

Rear view of the DeWalt DWE7491RS 10-inch jobsite table saw displaying the blade guard assembly and rip fence guide.

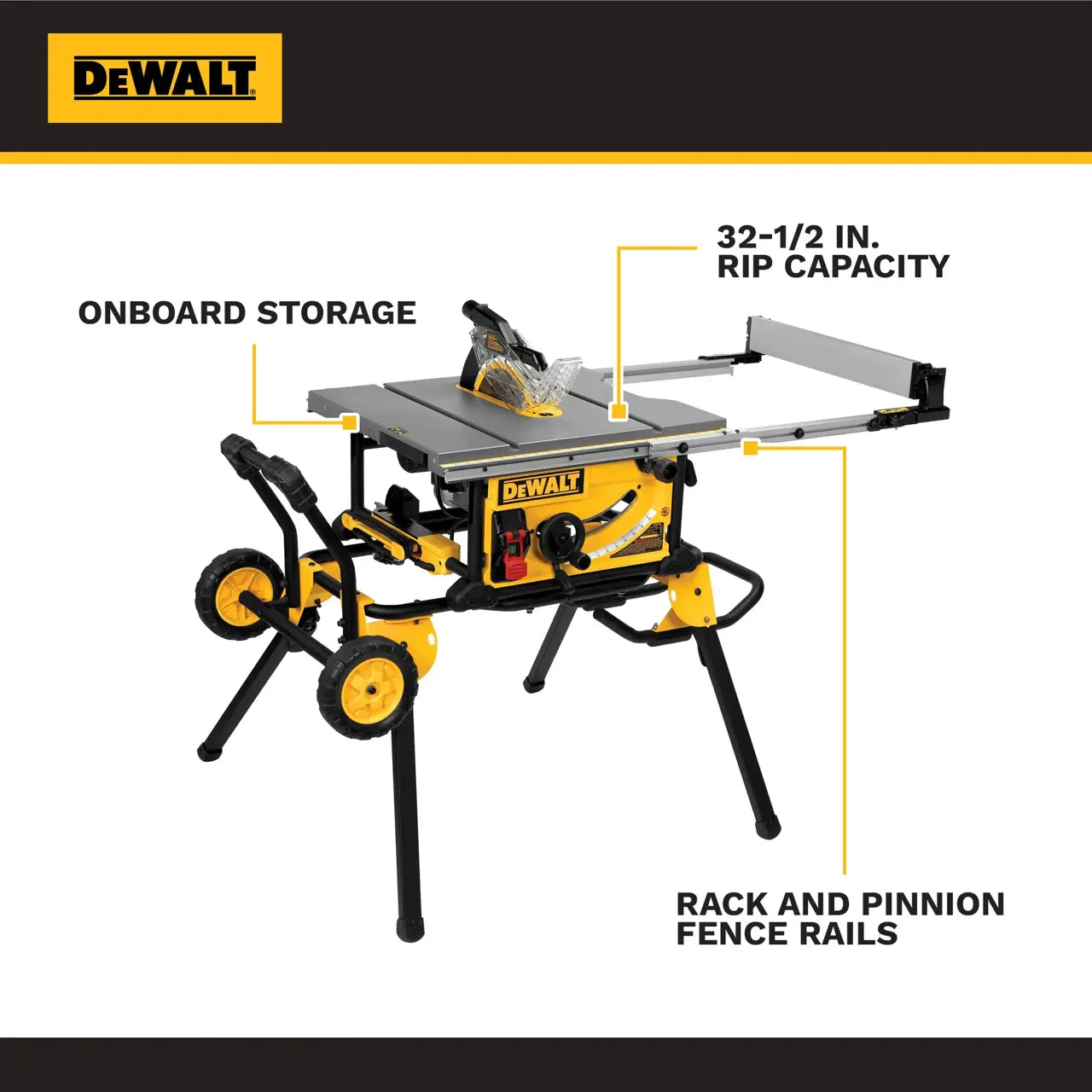

Annotated graphic highlighting the onboard storage, 32-1/2-inch rip capacity, and rack-and-pinion fence rails on the DeWalt DWE7491RS.

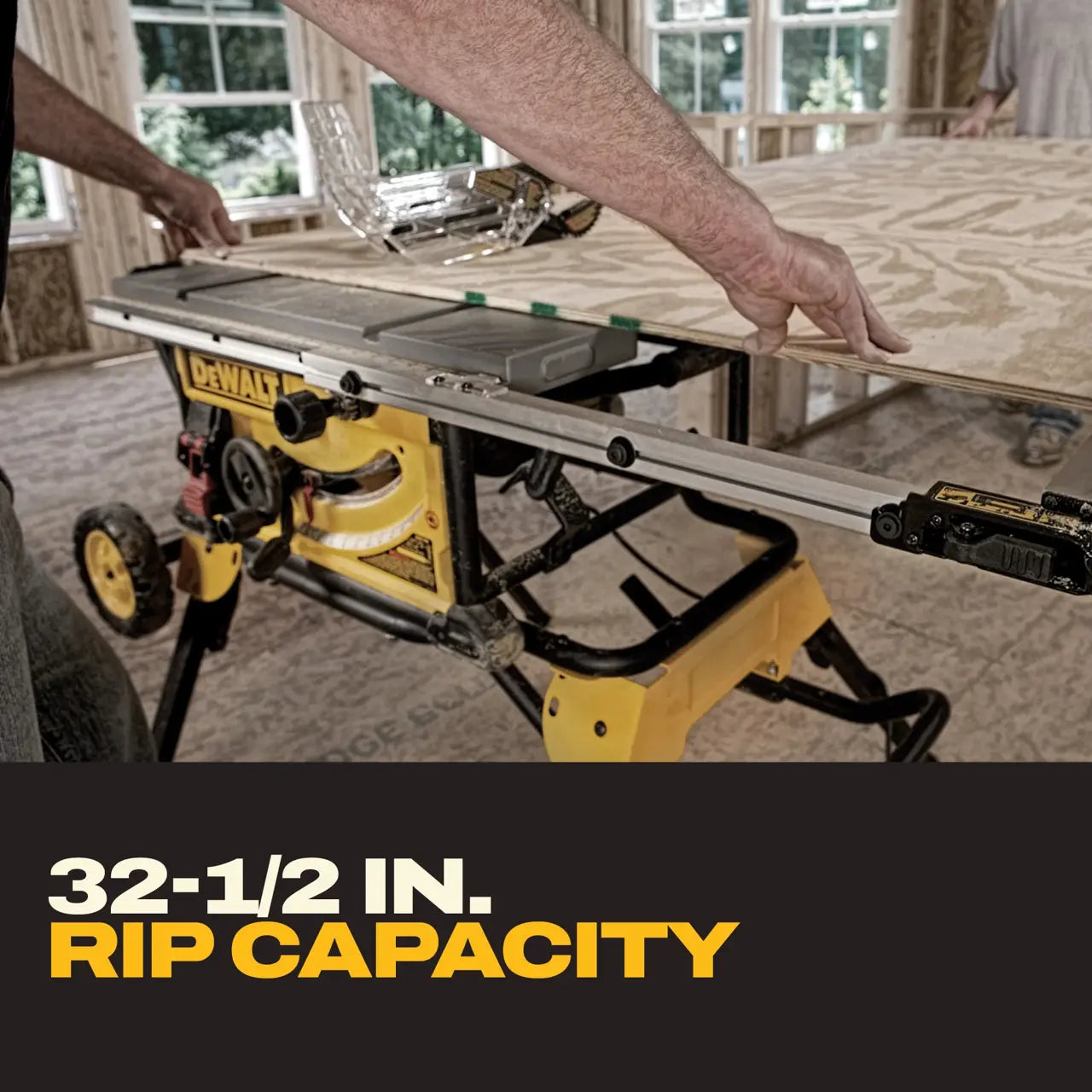

Carpenter pushing a 4x8 plywood sheet through the DeWalt DWE7491RS table saw utilizing its 32-1/2-inch rip capacity.

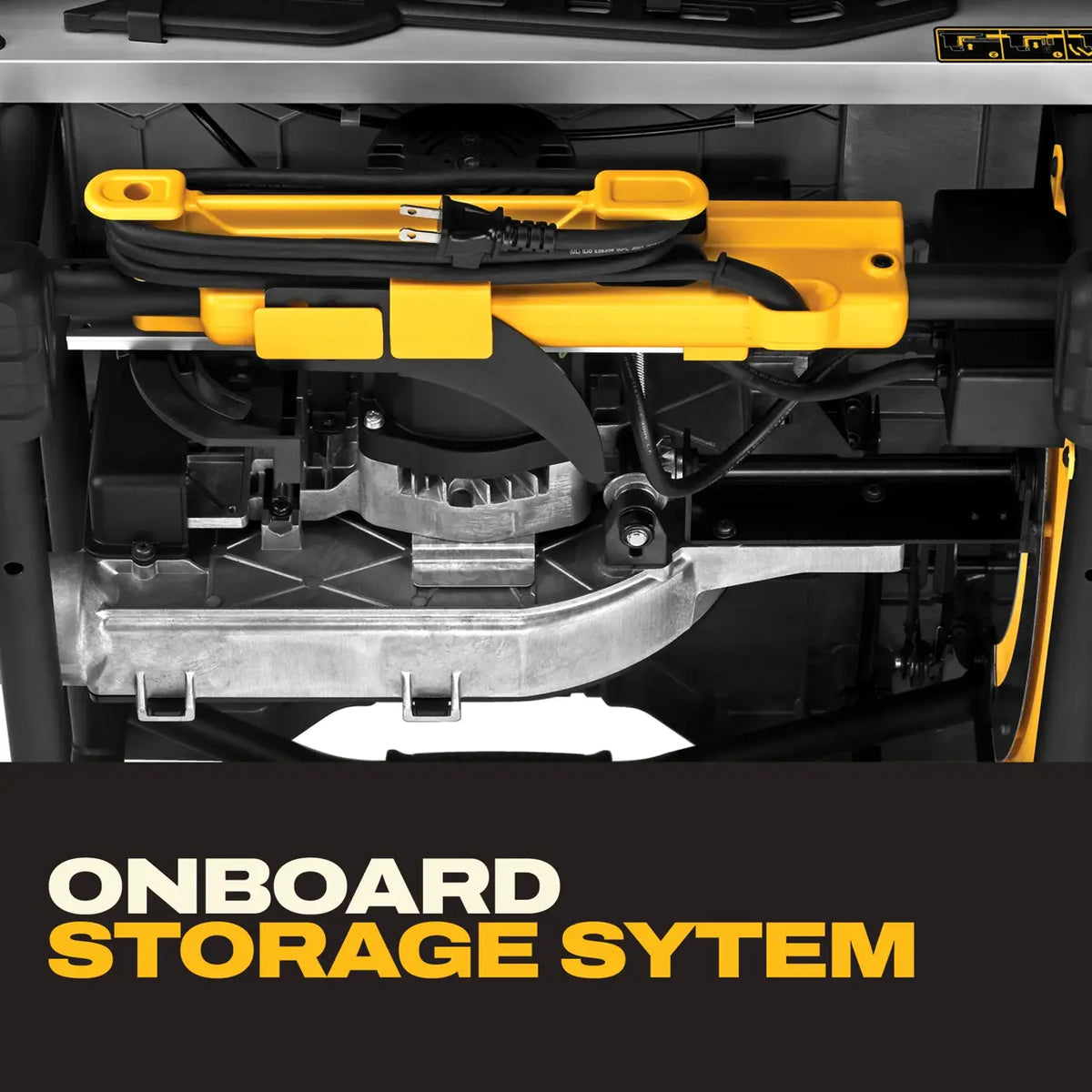

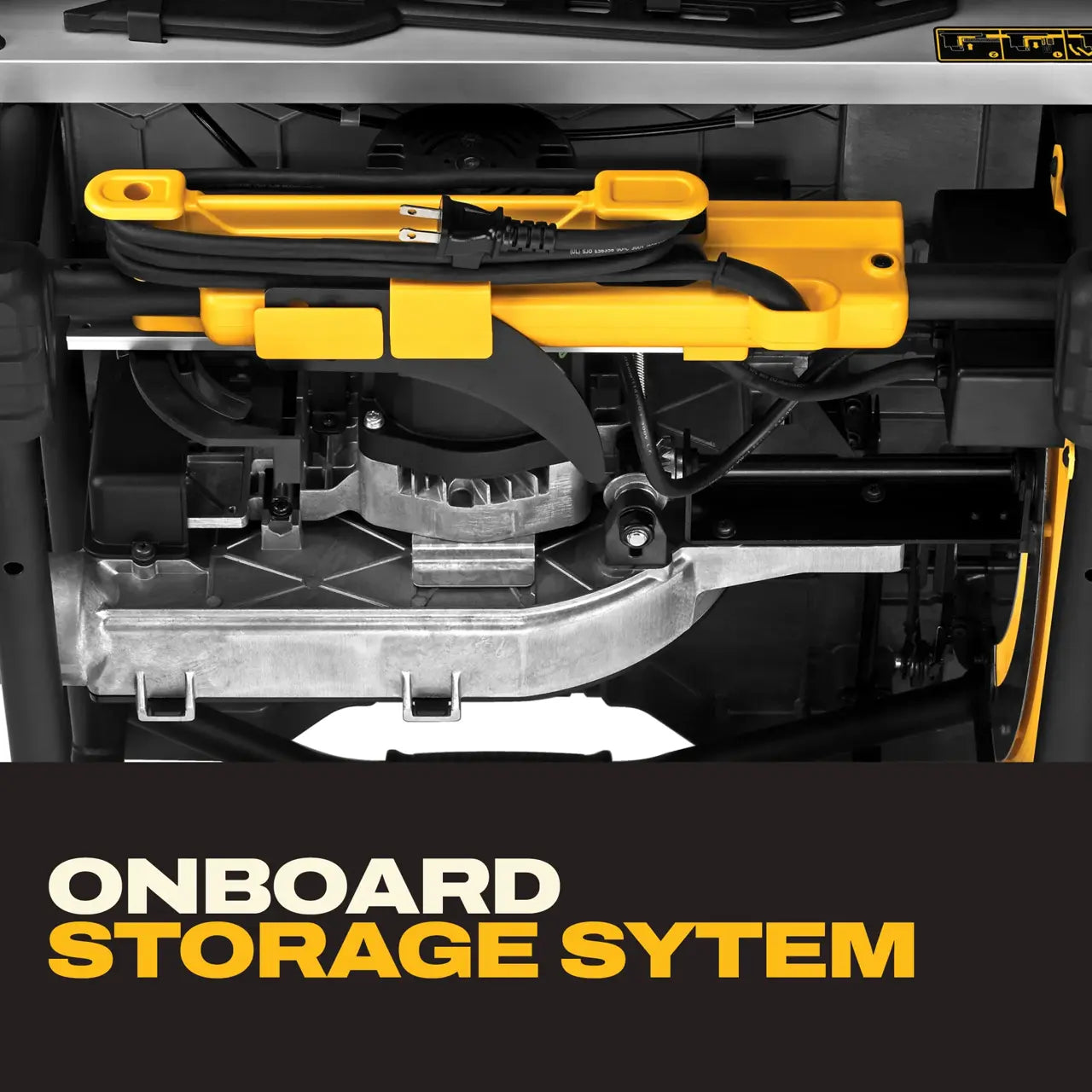

Underside storage compartment on the DeWalt DWE7491RS table saw neatly stowing the power cord, push stick, and wrenches.

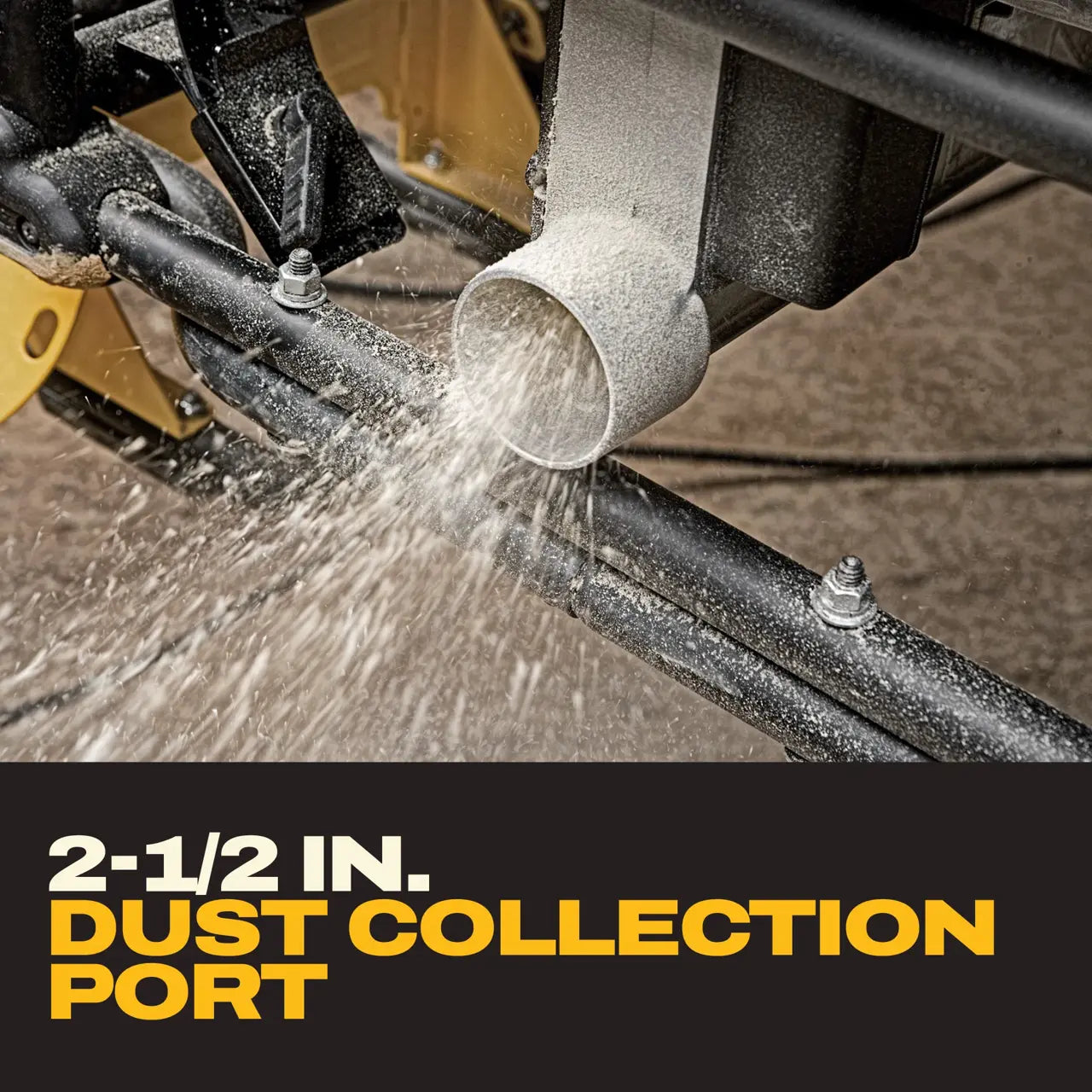

Close-up of sawdust ejecting from the 2-1/2-inch dust collection extraction port beneath the DeWalt DWE7491RS table saw.

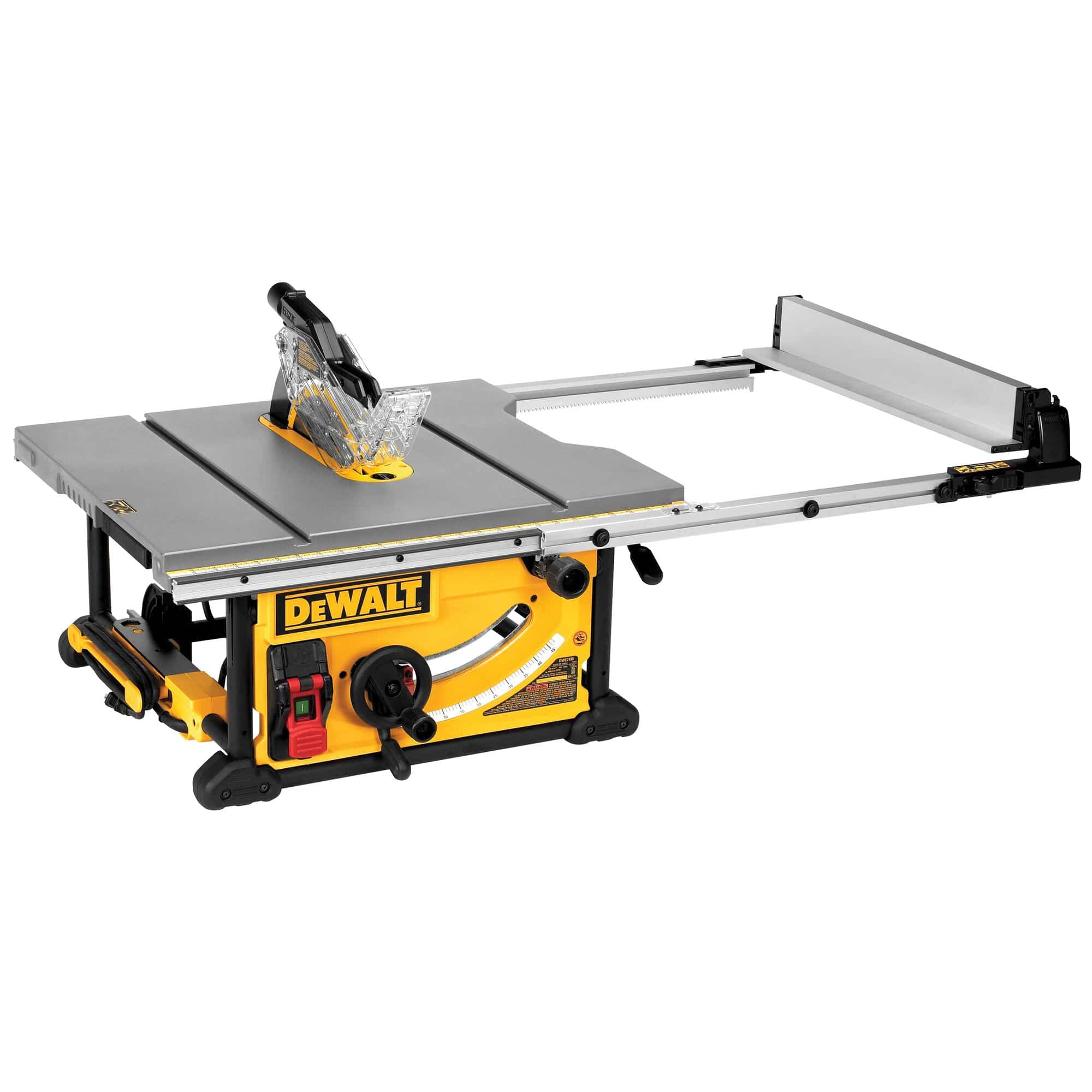

DeWalt DWE7491RS 10-inch benchtop jobsite table saw with telescoping rack-and-pinion fence fully extended.

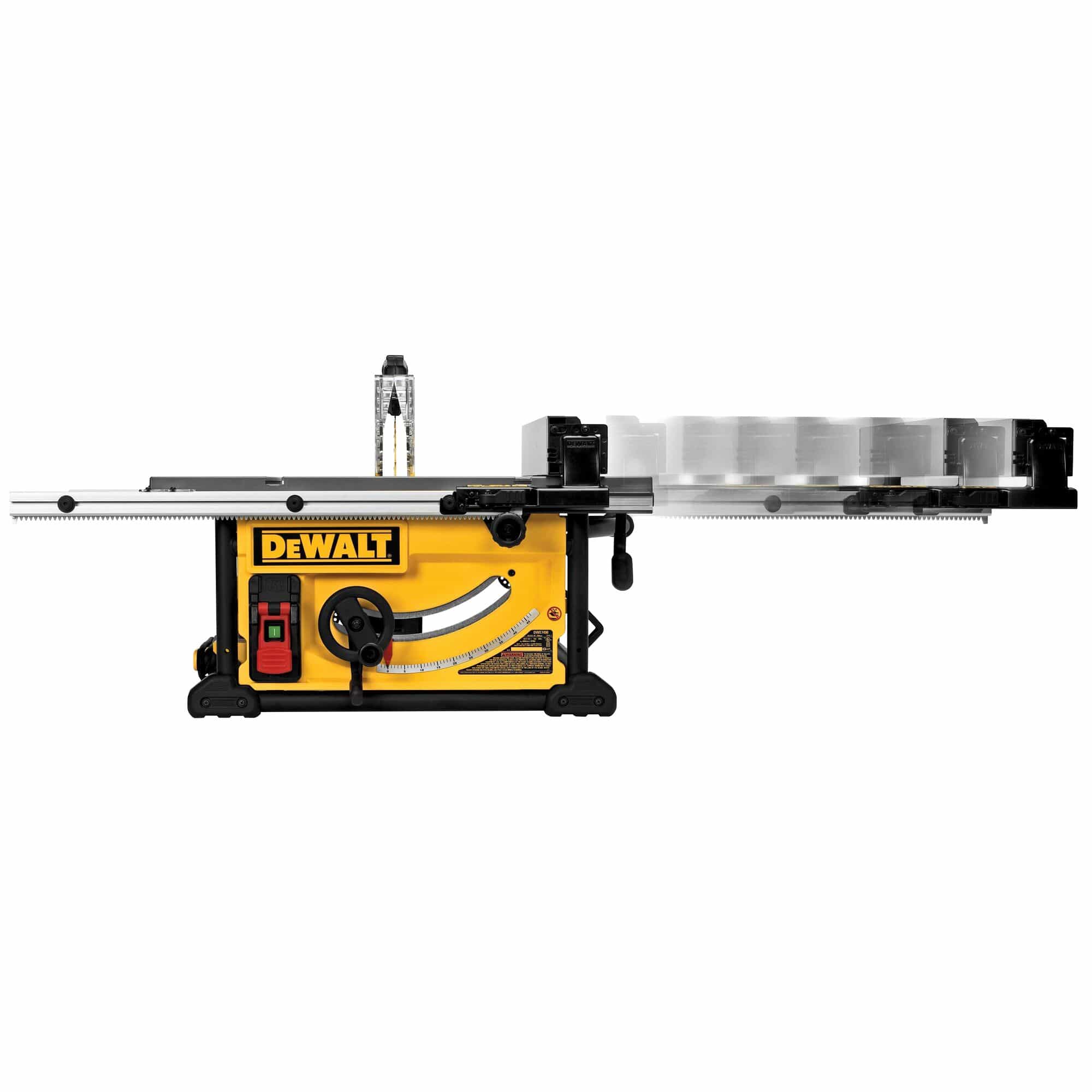

Motion graphic showing the rack-and-pinion telescoping fence on the DeWalt DWE7491RS extending smoothly to 32-1/2 inches.

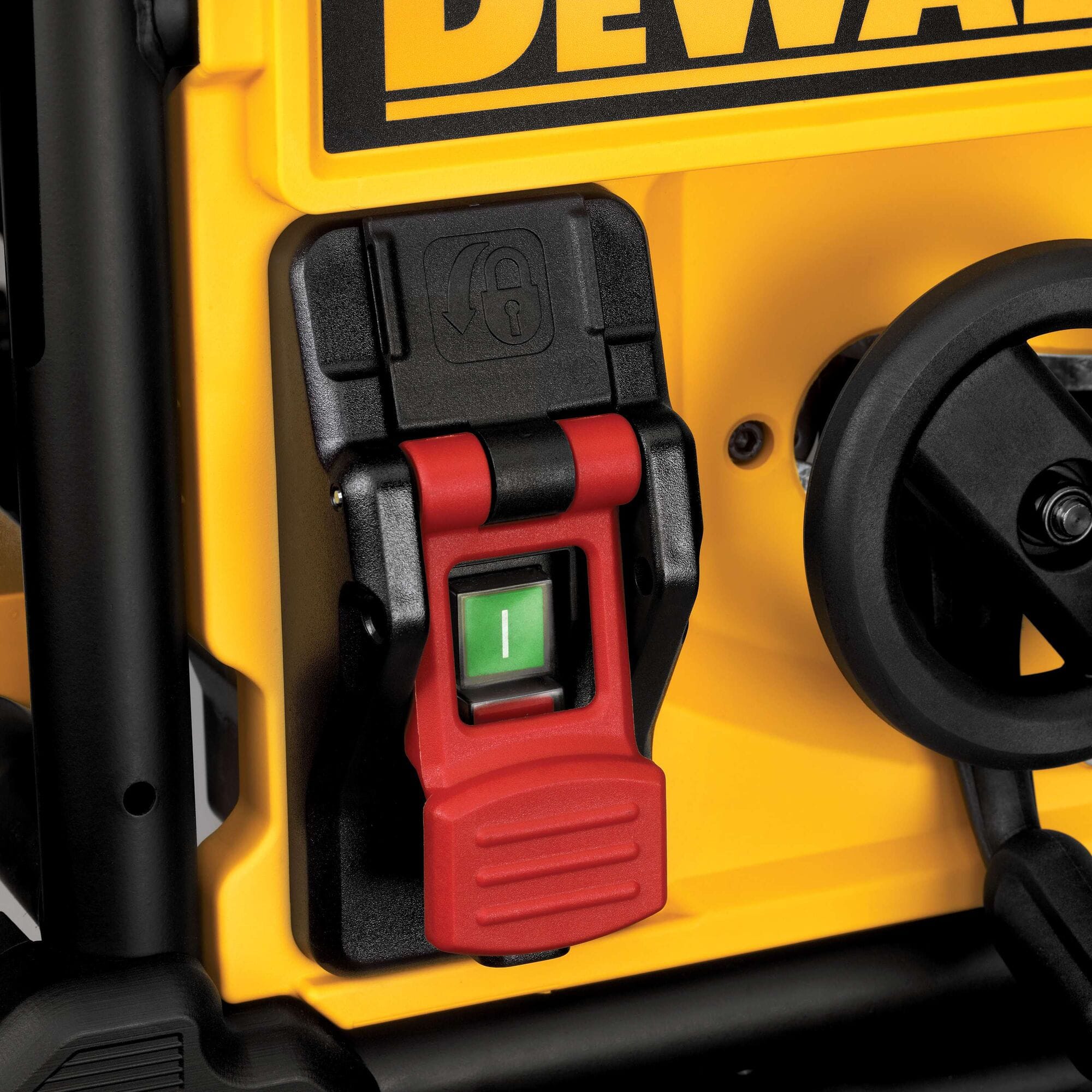

Safety power switch with red lockout cover on the DeWalt DWE7491RS jobsite table saw to prevent accidental startup.

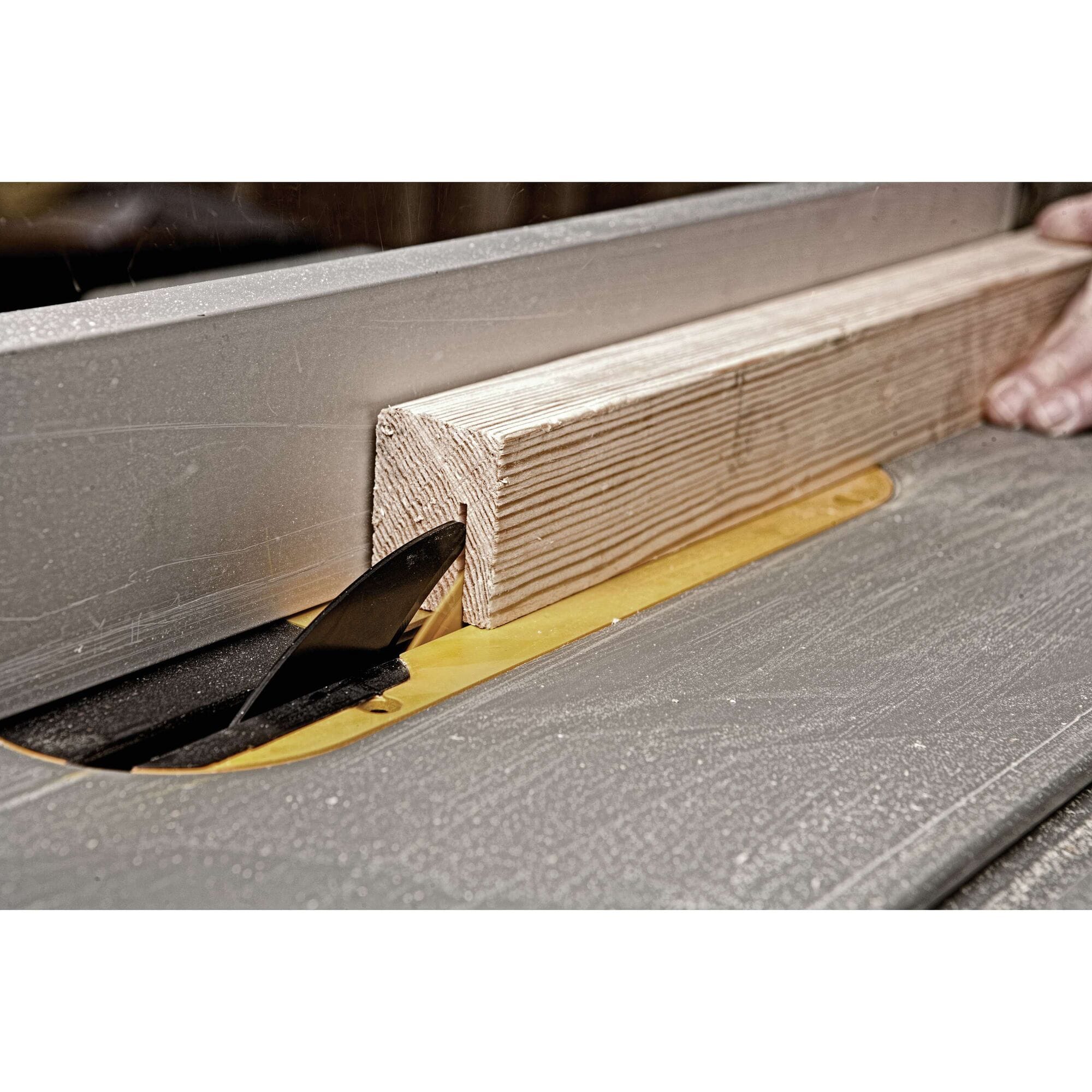

Making a dado groove pass on a wood post using a dado blade set on the DeWalt DWE7491RS table saw.

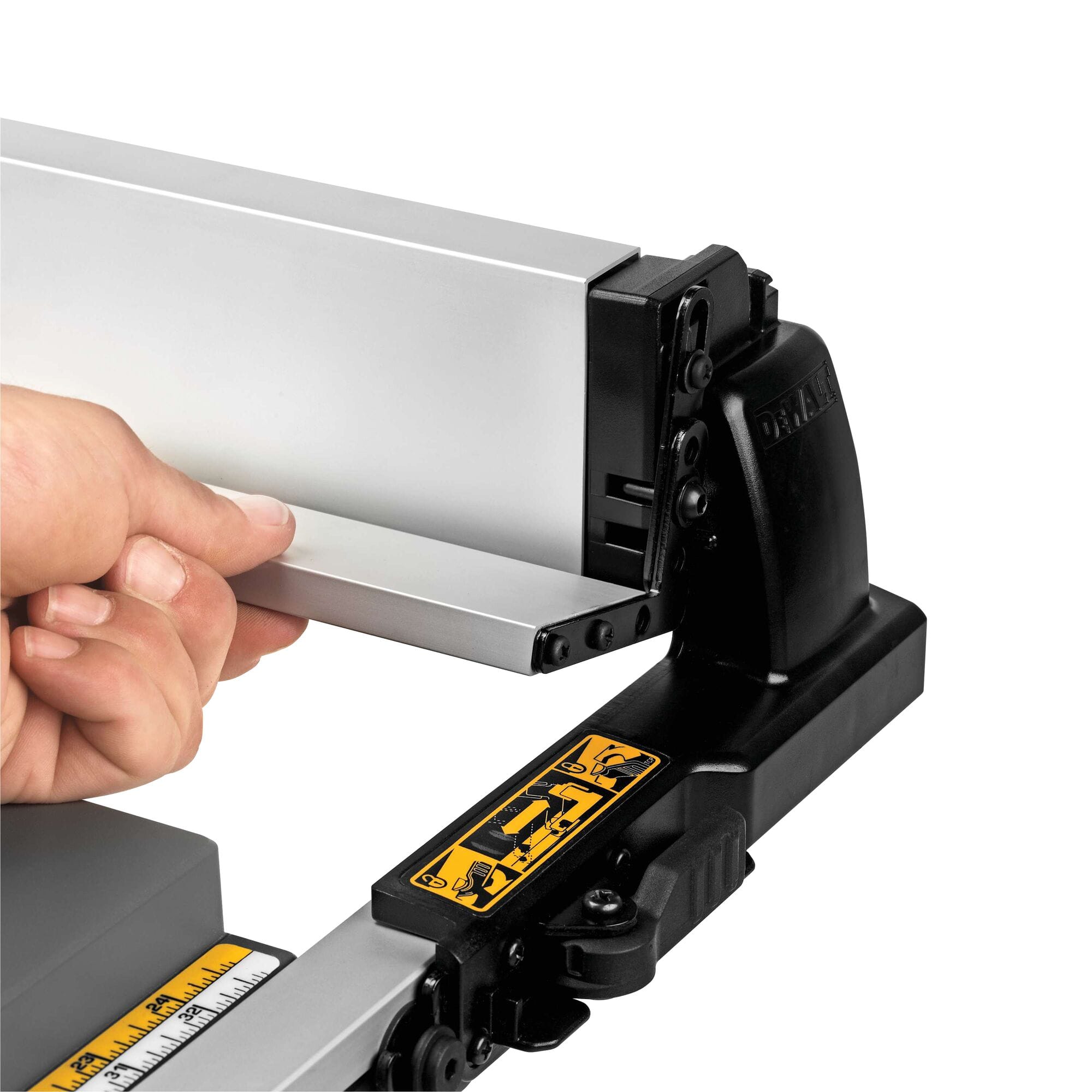

Hand extending the narrow rip flip-over fence support on the DeWalt DWE7491RS table saw for cutting thin wood strips.

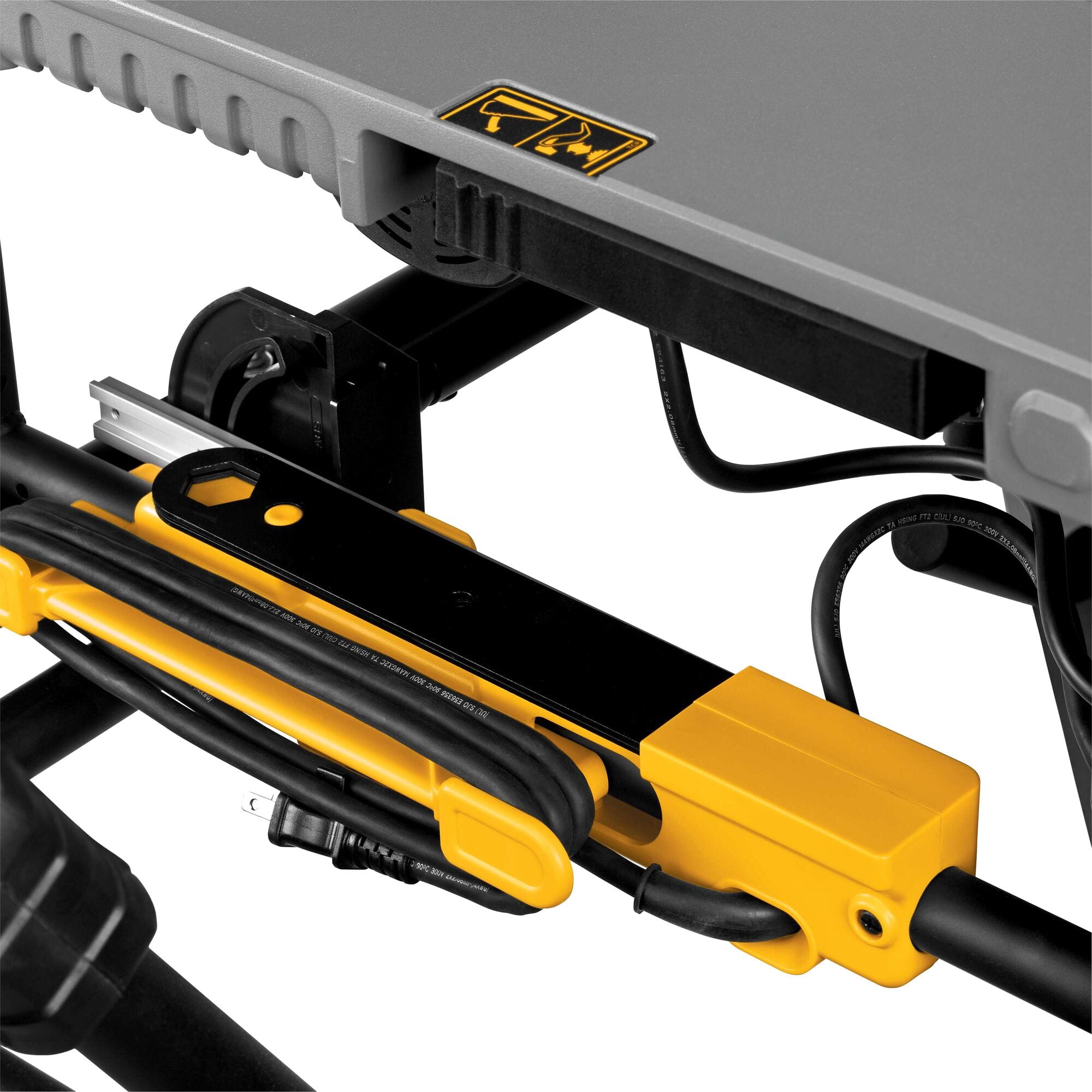

Under-table storage bracket on the DeWalt DWE7491RS table saw holding the coiled 120V power cord and blade wrenches.

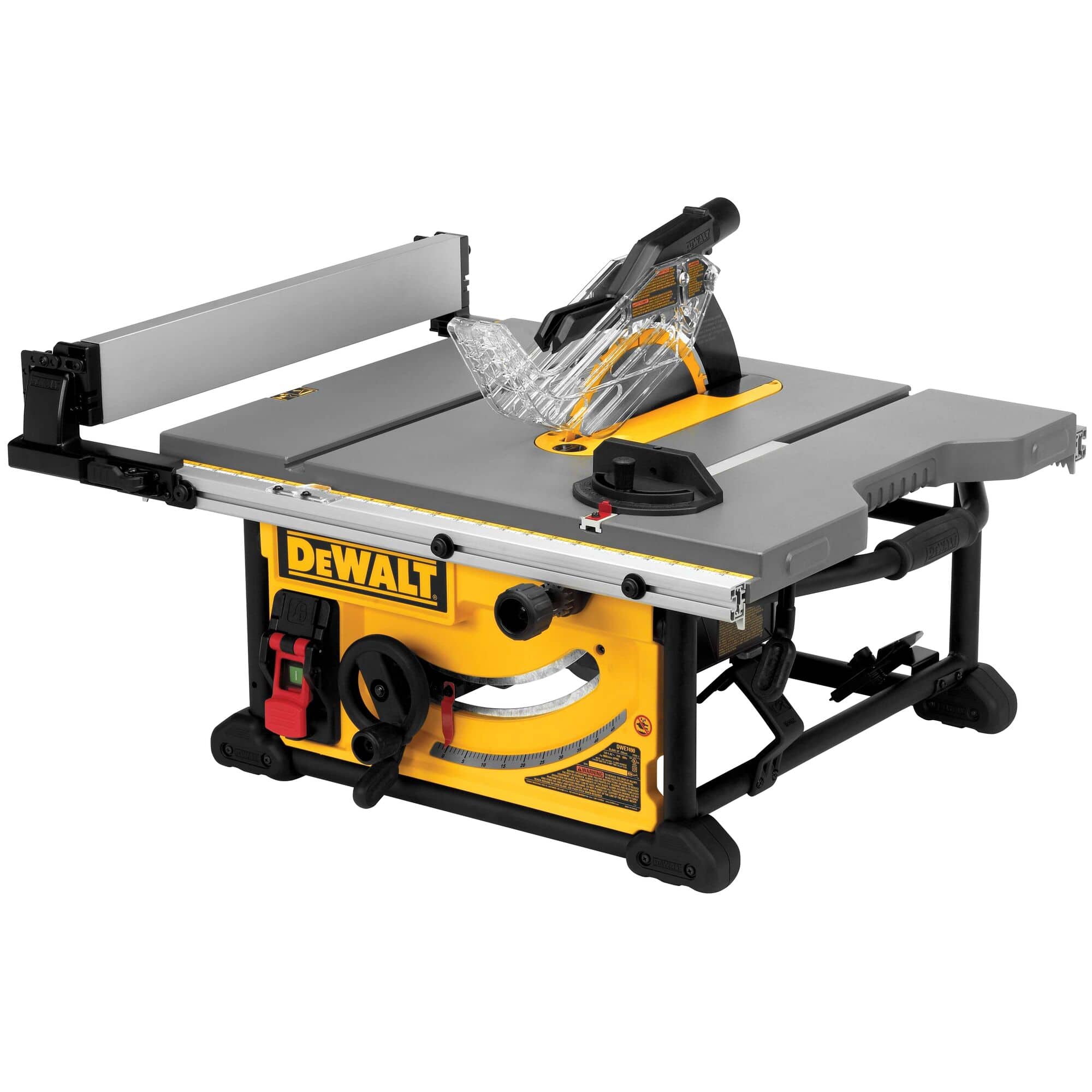

Three-quarter front view of the DeWalt DWE7491RS 10-inch jobsite table saw with its telescoping rack-and-pinion fence set up.
Power cord wrapped neatly around the integrated frame storage hooks on the side of the DeWalt DWE7491RS table saw.

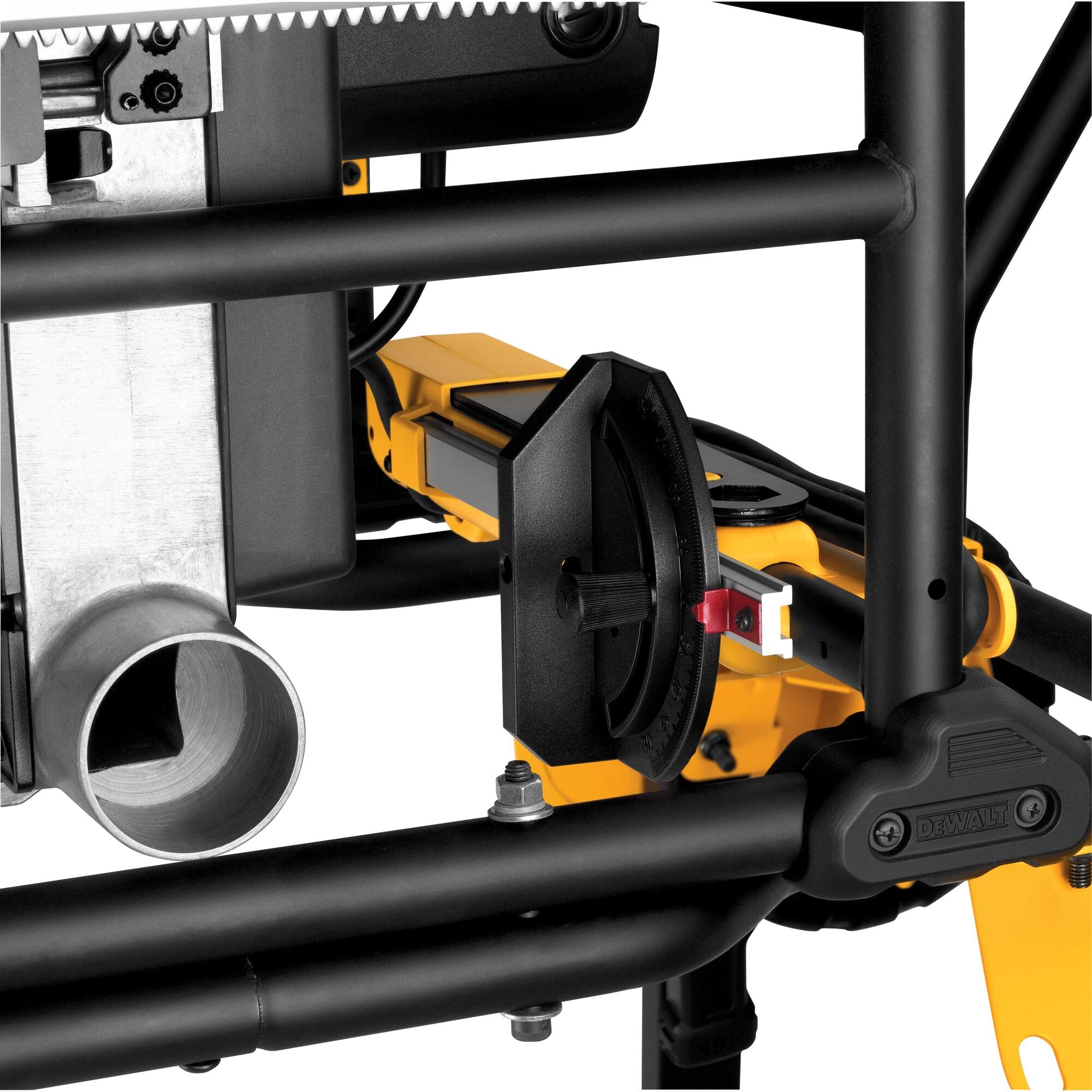

Miter gauge stored securely in the side frame storage clip beneath the dust port on the DeWalt DWE7491RS table saw.

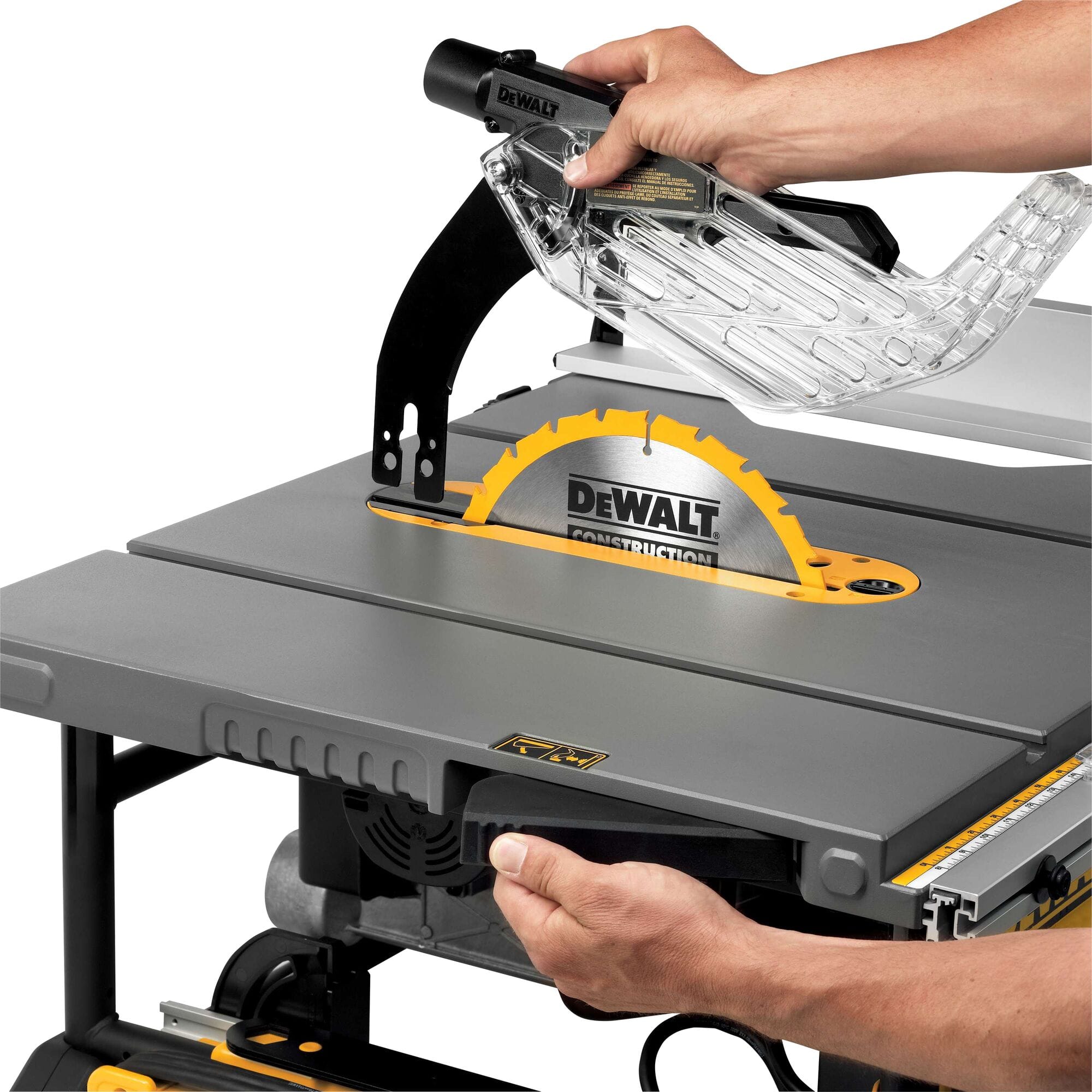

Lifting the clear blade guard off the riving knife using the Site-Pro tool-free release lever on the DeWalt DWE7491RS.

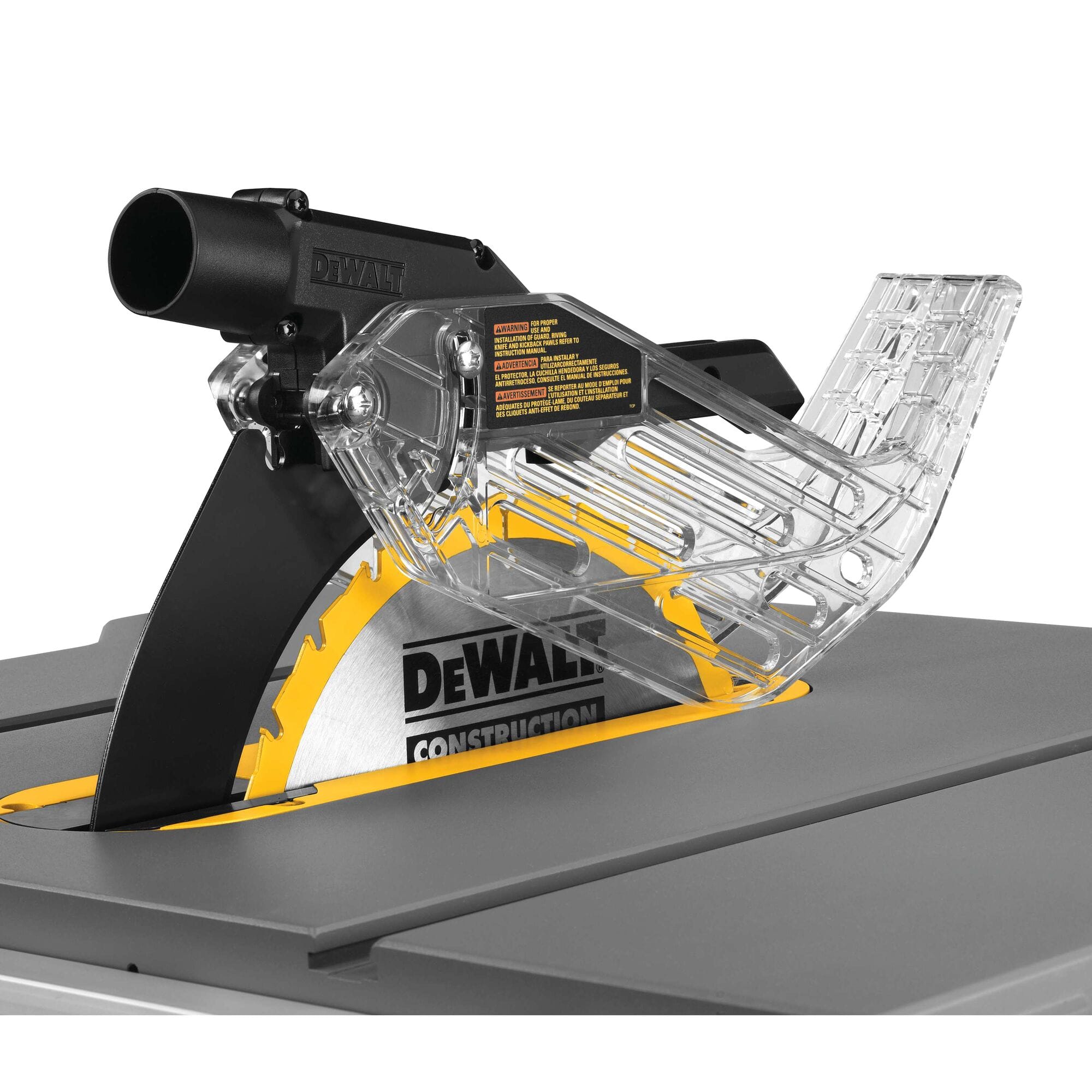

Clear blade guard and riving knife assembly installed over the 10-inch carbide blade on the DeWalt DWE7491RS table saw.

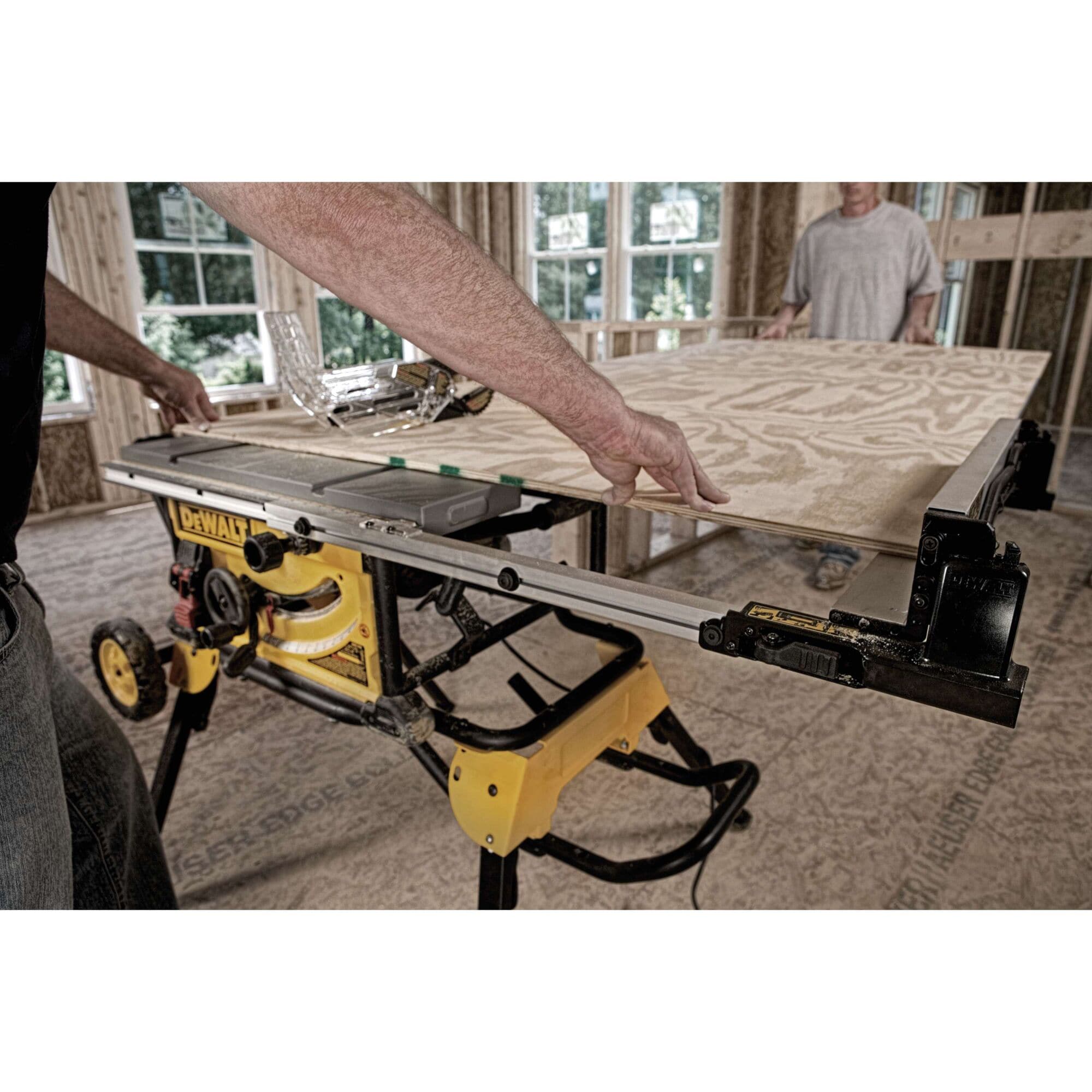

Woodworker feeding a large plywood sheet through the DeWalt DWE7491RS table saw utilizing its 32-1/2-inch rip capacity.

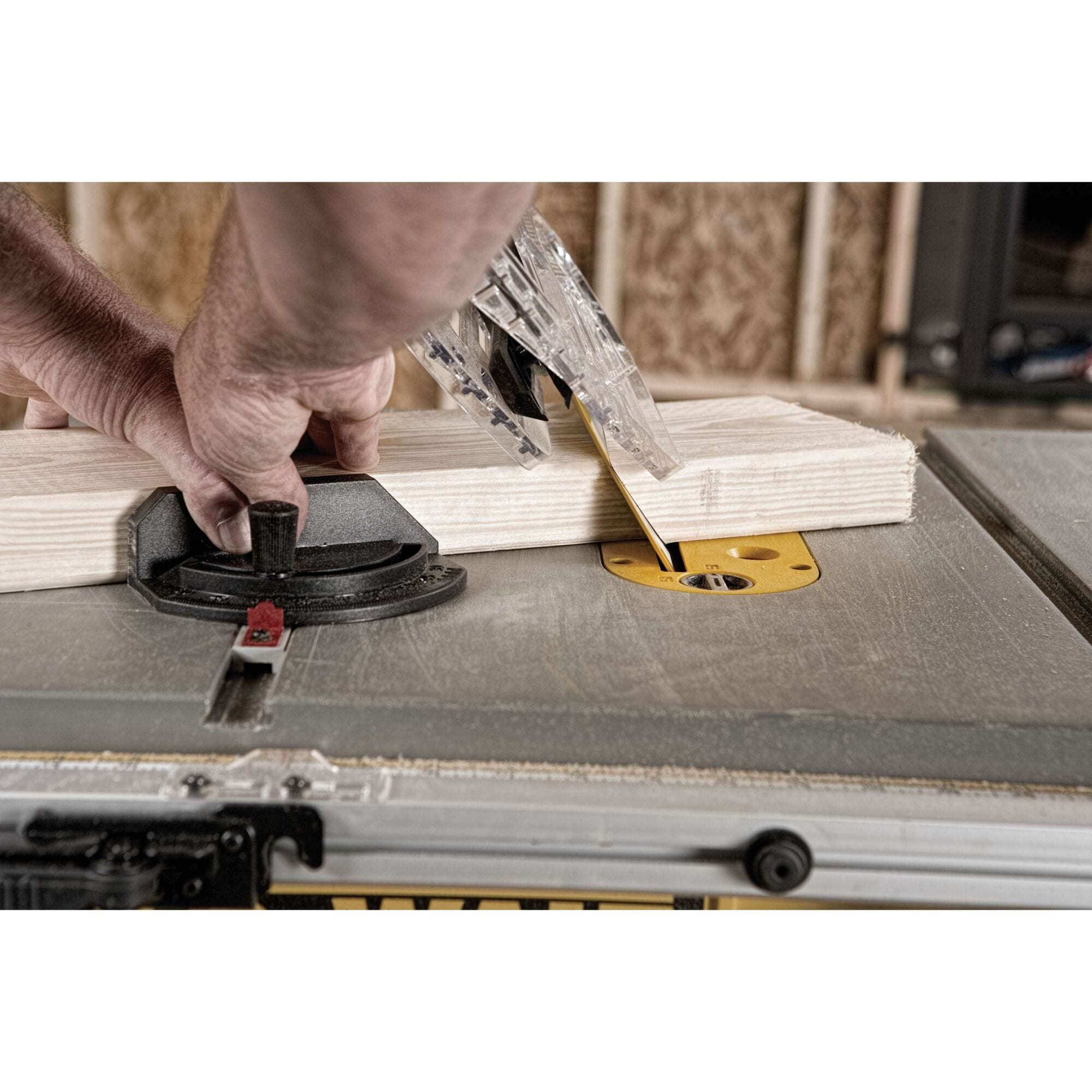

Woodworker guiding a dimensional lumber board through a bevel angle cut on the DeWalt DWE7491RS table saw using the miter gauge.

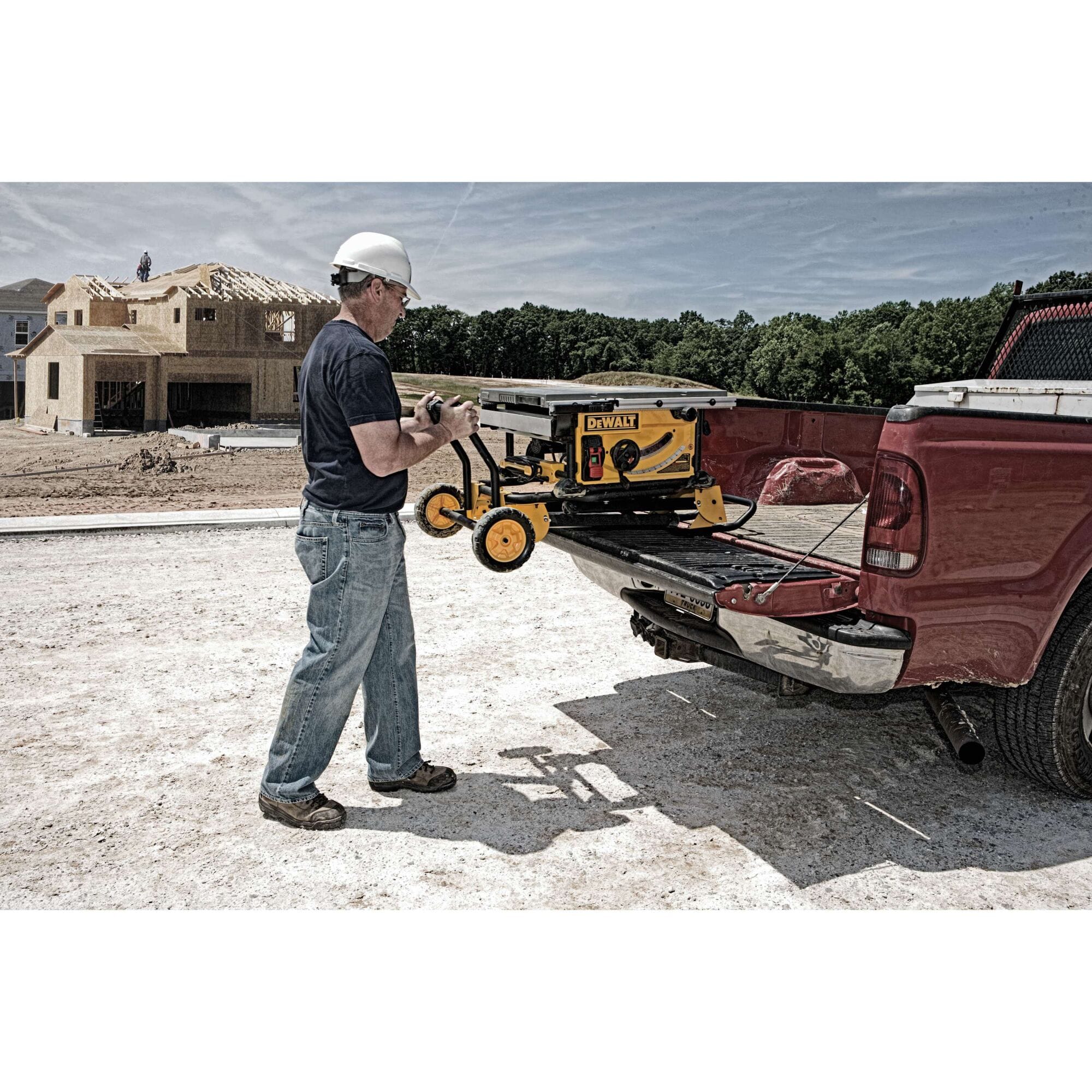

Contractor loading the collapsed DeWalt DWE7491RS jobsite table saw into a pickup truck bed using the integrated rolling stand handles.

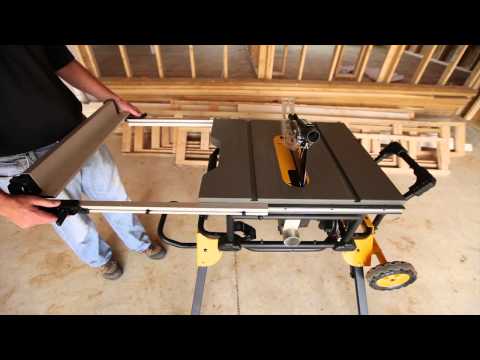

Quick and Easy Table Saw Set Up promotional video
DeWalt DWE7491RS 10-inch 15 Amp jobsite table saw set up on its heavy-duty folding rolling stand with wheels.
Side view of the DeWalt DWE7491RS jobsite table saw mounted on its open tubular steel folding stand legs.
Front view of the DeWalt DWE7491RS table saw showing the power switch, bevel angle wheel, and rack-and-pinion fence rail.
Rear view of the DeWalt DWE7491RS 10-inch jobsite table saw displaying the blade guard assembly and rip fence guide.
Annotated graphic highlighting the onboard storage, 32-1/2-inch rip capacity, and rack-and-pinion fence rails on the DeWalt DWE7491RS.
Carpenter pushing a 4x8 plywood sheet through the DeWalt DWE7491RS table saw utilizing its 32-1/2-inch rip capacity.
Underside storage compartment on the DeWalt DWE7491RS table saw neatly stowing the power cord, push stick, and wrenches.
Close-up of sawdust ejecting from the 2-1/2-inch dust collection extraction port beneath the DeWalt DWE7491RS table saw.
DeWalt DWE7491RS 10-inch benchtop jobsite table saw with telescoping rack-and-pinion fence fully extended.
Motion graphic showing the rack-and-pinion telescoping fence on the DeWalt DWE7491RS extending smoothly to 32-1/2 inches.
Safety power switch with red lockout cover on the DeWalt DWE7491RS jobsite table saw to prevent accidental startup.
Making a dado groove pass on a wood post using a dado blade set on the DeWalt DWE7491RS table saw.
Hand extending the narrow rip flip-over fence support on the DeWalt DWE7491RS table saw for cutting thin wood strips.
Under-table storage bracket on the DeWalt DWE7491RS table saw holding the coiled 120V power cord and blade wrenches.
Three-quarter front view of the DeWalt DWE7491RS 10-inch jobsite table saw with its telescoping rack-and-pinion fence set up.
Power cord wrapped neatly around the integrated frame storage hooks on the side of the DeWalt DWE7491RS table saw.
Miter gauge stored securely in the side frame storage clip beneath the dust port on the DeWalt DWE7491RS table saw.
Lifting the clear blade guard off the riving knife using the Site-Pro tool-free release lever on the DeWalt DWE7491RS.
Clear blade guard and riving knife assembly installed over the 10-inch carbide blade on the DeWalt DWE7491RS table saw.
Woodworker feeding a large plywood sheet through the DeWalt DWE7491RS table saw utilizing its 32-1/2-inch rip capacity.
Woodworker guiding a dimensional lumber board through a bevel angle cut on the DeWalt DWE7491RS table saw using the miter gauge.
Contractor loading the collapsed DeWalt DWE7491RS jobsite table saw into a pickup truck bed using the integrated rolling stand handles.
Quick and Easy Table Saw Set Up promotional video
DEWALT

DeWalt Table Saw DWE7491RS 10 Inch (15 Amp 4800 RPM 32-1/2 Inch Rip Capacity Rack Pinion Telescoping Fence Rolling Stand Jobsite Cutting)

In stock
SKU: DWE7491RS
$699.00 USD

Description

Authorized Dealer Badge DEWALT logout

DeWalt DWE7491RS 10-Inch 15 Amp Jobsite Table Saw with Rolling Stand

The DeWalt DWE7491RS 10-Inch 15 Amp Jobsite Table Saw with Rolling Stand is a mobile woodworking cutting system engineered to rip full-size 4x8 sheet goods, hardwood boards, and narrow trim stock across jobsite locations. Driven by a 15 Amp 120V motor delivering 4,800 RPM, this table saw incorporates a rack-and-pinion telescoping fence system providing a 32-1/2-inch rip capacity to the right of the blade, a 3-1/8-inch depth of cut at 90 degrees, and a 2-1/2-inch dust collection port. Equipped with a heavy-duty folding rolling stand, an onboard tool storage housing, and a narrow rip flip-over fence, this 110-pound saw setup solves sheet sizing constraints, fence parallelism drift, and transport setup delays for framing and trim contractors.

Best Used For:

  • Sheet Goods & Plywood Sizing: Ripping 4x8 hardwood plywood and OSB sheets using the expanded 32-1/2-inch right-side rip capacity.
  • Hardwood & Dimensional Framing Ripping: Cutting 3-1/8-inch thick 2x lumber and dense oak boards cleanly at 4,800 RPM without motor bogging.
  • Narrow Trim & Filler Strip Cutting: Utilizing the narrow rip flip-over fence support to safely guide thin filler strips and edge moldings close to the blade.

Key Performance & Safety Features

  • Rack & Pinion Telescoping Fence Rails: Micro-adjustable geared fence mechanism glides smoothly and locks strictly parallel to the blade for precise rip cuts.
  • 32-1/2-Inch Expanded Rip Capacity: Telescoping rail design extends outward to handle wide shelving panels, cabinets, and exterior sheathings.
  • Heavy-Duty Folding Rolling Stand: Integrated stand features large treaded wheels and folding legs for rapid one-person setup, breakdown, and jobsite transport.
  • Modular Site-Pro Guarding System: Tool-free adjustment of the riving knife, anti-kickback pawls, and clear blade guard for immediate application changes.
  • Narrow Rip Flip-Over Support Fence: Secondary fold-down fence position provides flat material support when cutting narrow wood strips.
  • Complete Onboard Storage Compartments: Securely houses the rip fence, miter gauge, blade guard, riving knife, push stick, and blade wrenches during transport.

What's Included

  • (1) DeWalt DWE7491 10 in. 15 Amp Jobsite Table Saw
  • (1) Heavy-Duty Rolling Stand with Wheels
  • (1) 10 in. 24-Tooth Carbide-Tipped Saw Blade
  • (1) Telescoping Rack & Pinion Rip Fence
  • (1) Adjustable Miter Gauge
  • (1) Modular Blade Guard Assembly
  • (1) Push Stick
  • (2) Blade Change Wrenches

Technical Specifications

Manufacturer Brand DEWALT
Model Part Number (OEM) DWE7491RS
Motor Operating Amperage & Voltage 15.0 A / 120V AC
Maximum No-Load Speed 4,800 RPM
Blade Diameter & Arbor Size 10.0 in. (254 mm) Blade / 5/8 in. Arbor
Maximum Rip Capacity (Right) 32-1/2 in. (825.5 mm)
Maximum Depth of Cut at 90° 3-1/8 in. (79.375 mm)
Maximum Depth of Cut at 45° 2-1/4 in. (57.15 mm)
Table Surface Dimensions 21-7/8 in. x 26-3/8 in. (555.6 mm x 669.9 mm)
Dust Collection Extraction Port 2-1/2 in. Vacuum Hose Port
Total Assembled Net Weight 110.0 lbs (49.9 kg) Saw and Stand
Assembled Tool Package Dimensions 30.63 in. L x 23.58 in. W x 30.25 in. H
Country of Origin Mexico
Pro-Tip: Always lock the rack-and-pinion fence lever firmly before making long rip passes to ensure zero fence movement across 4x8 plywood sheets.
