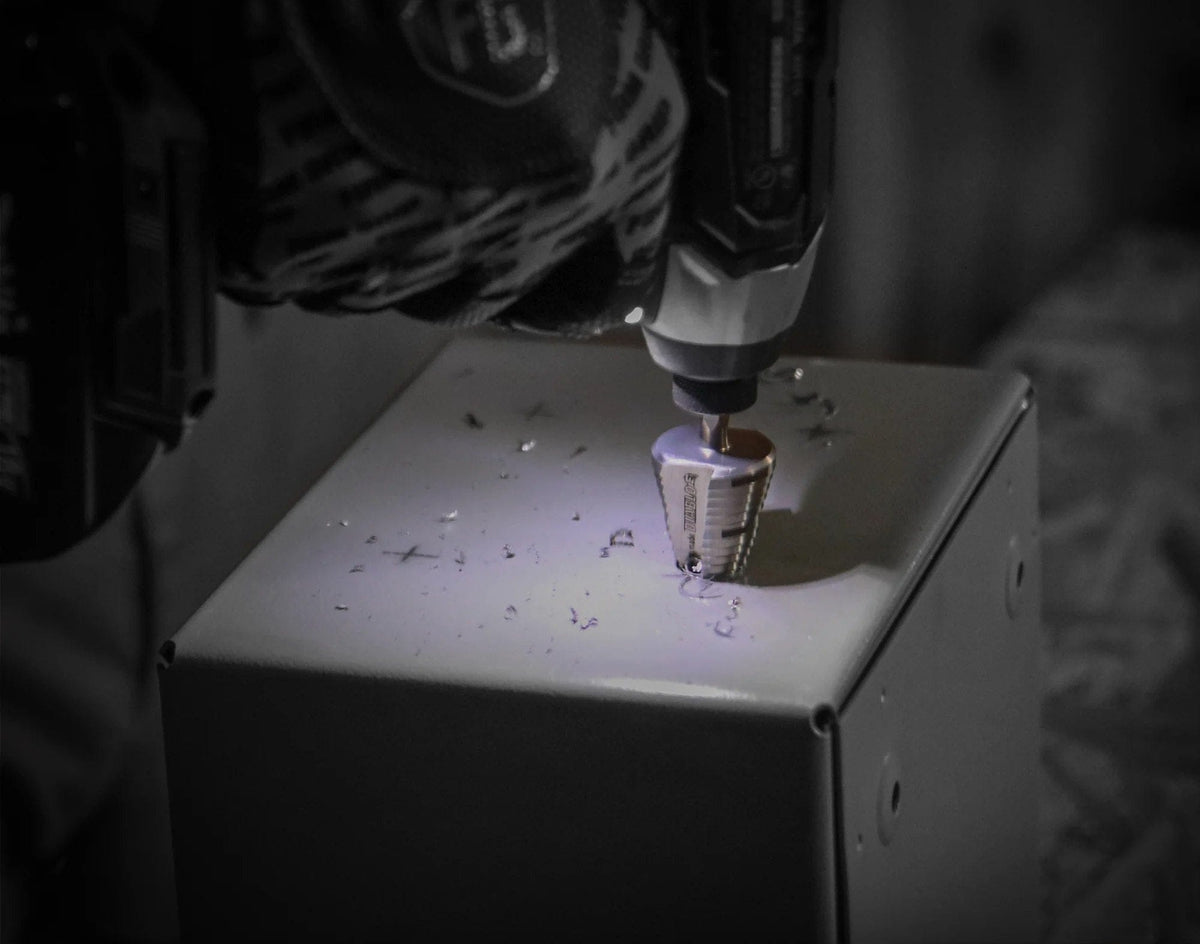

Action shot of a Diablo Impact Strong step drill bit attached to a cordless impact driver while boring a clean hole through a gray metal electrical box.

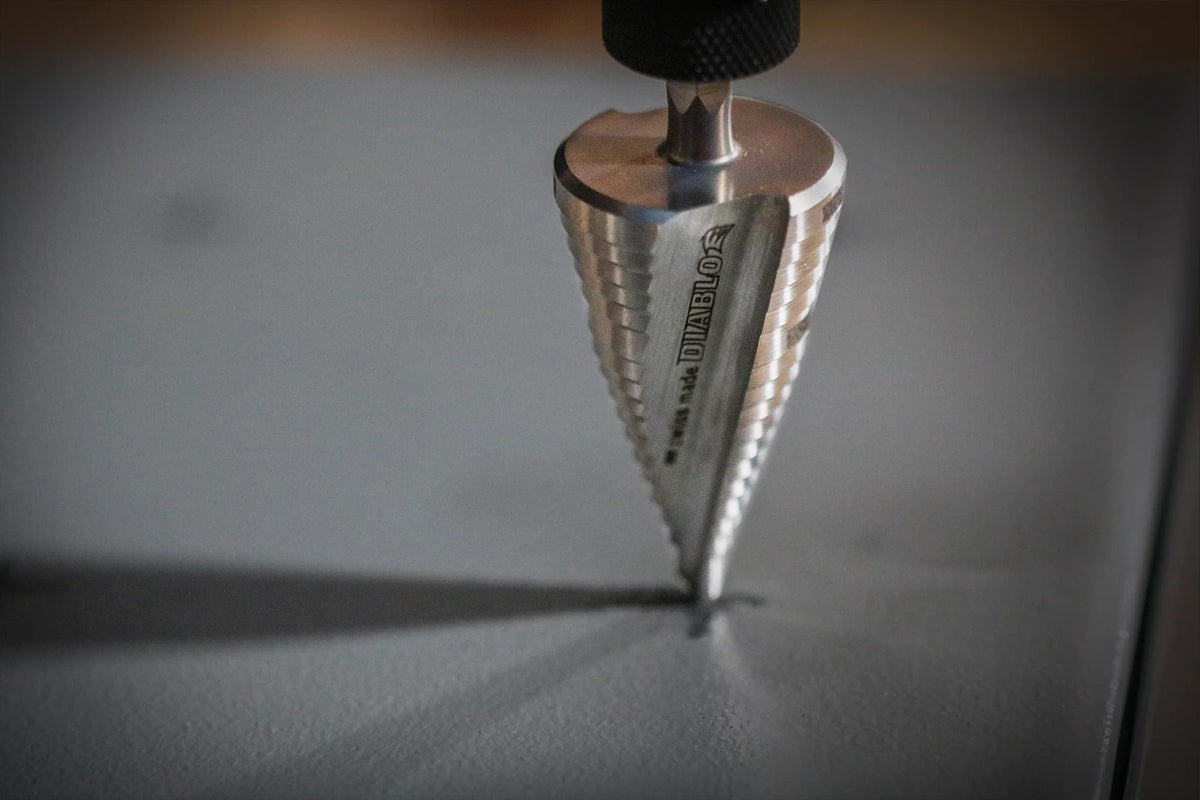

Macro action shot of a Diablo dual flute step drill bit beginning a precise cut into a metal surface, demonstrating the non-slip split point tip.
Individual Diablo 1/2-inch Impact Strong step drill bit featuring a 6-step dual flute design and 1/4-inch hex shank for impact drivers.
Retail packaging for the Diablo DSD0500S06 step drill bit highlighting the 132-degree split point tip, Accu-Grind technology, and compatibility with impact drivers.
Close-up side view of a Diablo 6-step drill bit showcasing the precision CNC-ground dual flutes and laser-etched size markings for metal drilling.
Vertical view of the Diablo 1/2-inch impact step drill bit highlighting the clearly marked increments for 1/4-inch, 3/8-inch, and 1/2-inch hole sizes.
Action shot of a Diablo Impact Strong step drill bit attached to a cordless impact driver while boring a clean hole through a gray metal electrical box.
Macro action shot of a Diablo dual flute step drill bit beginning a precise cut into a metal surface, demonstrating the non-slip split point tip.
DIABLO

Diablo 1/2 Inch Impact Strong Step Drill Bit 6 Steps Dual Flute Self-Feeding Wood Boring Metal Drill Bit 1/4 Inch Hex Shank DSD0500S06

Only 1 left
SKU: DSD0500S06
$23.29

Description

Achieve Surgical Precision and 6X Longer Life with Diablo’s Impact Strong™ Step Drill Bits

The Diablo DSD0500S06 Impact Strong™ Step Drill Bit is the definitive high-performance solution for electricians, plumbers, and HVAC contractors who demand speed and accuracy. Featuring a revolutionary 132° Split Point Tip, this bit eliminates the need for pre-drilling by providing an aggressive, on-point start that prevents "walking" on smooth surfaces. Whether you are drilling through thin sheet metal, stainless steel, or PVC, this bit is engineered to deliver up to 6X longer life than standard bits, making it a rugged essential for your heavy-duty tool kit.

Precision-engineered with an automated CNC grinding process, each of the 6 steps is held to strict tolerances to ensure 2X faster cuts and minimal tool wear. The optimized dual flute design guarantees jam-free operation and rapid chip evacuation, which is critical for maintaining high speeds in cordless high-speed modes. With laser-etched markings for easy size identification and a 1/4-inch hex shank that is Impact Ready, this bit maximizes power transfer and efficiency, allowing for up to 75% more holes per battery charge.

Key Features

  • 132° Split Point Tip: Enables fast, precise starts without the need for a pilot hole, increasing durability and cutting speed.
  • Dual Flute Design: Optimized geometry for smooth, jam-free cuts and superior chip evacuation in metals and plastics.
  • Impact Strong™ Hex Shank: 1/4-inch shank is fully rated for impact drivers and standard drills, providing ultimate stability.
  • CNC Precision Grinding: Automated process ensures consistent step heights and sharp cutting edges for 2X faster hole making.
  • Laser-Etched Markings: Provides permanent, easy-to-read step identification that won't wear off during intense use.

What's Included

  • (1) Diablo 1/2" Impact Strong™ 6-Step Drill Bit (DSD0500S06)

Specifications

Brand Diablo Tools
Model Number DSD0500S06
Maximum Diameter 1/2 Inch
Total Steps 6
Shank Size 1/4 Inch Hex Shank
Overall Length 3-3/8 Inches
Tip Angle 132 Degrees
Impact Rated Yes (Impact Strong™)
Material Application Metal (up to 1/8"), PVC, Plastics
Flute Type Dual Flute
Battery Efficiency Up to 75% more holes per charge

Pro-Tip: When drilling through stainless steel or thicker mild metals, use a small amount of cutting fluid or thread oil to lubricate the bit. This reduces friction and heat buildup, which not only keeps your steps sharp for a longer period but also prevents the metal from hardening around the hole, ensuring a much smoother finish.
