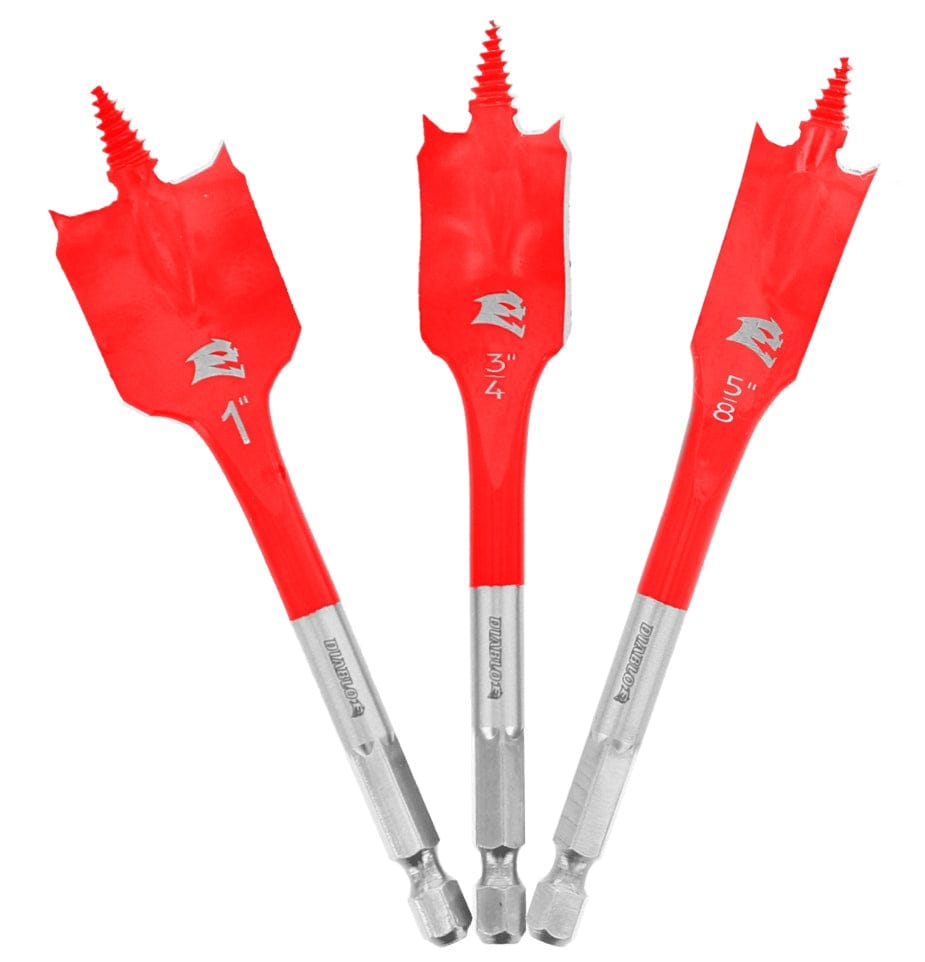

An assortment of three Diablo stubby wood spade bits from the SPEEDemon series, featuring 1-inch, 3/4-inch, and 5/8-inch diameters with red heads and 1/4-inch hex shanks.

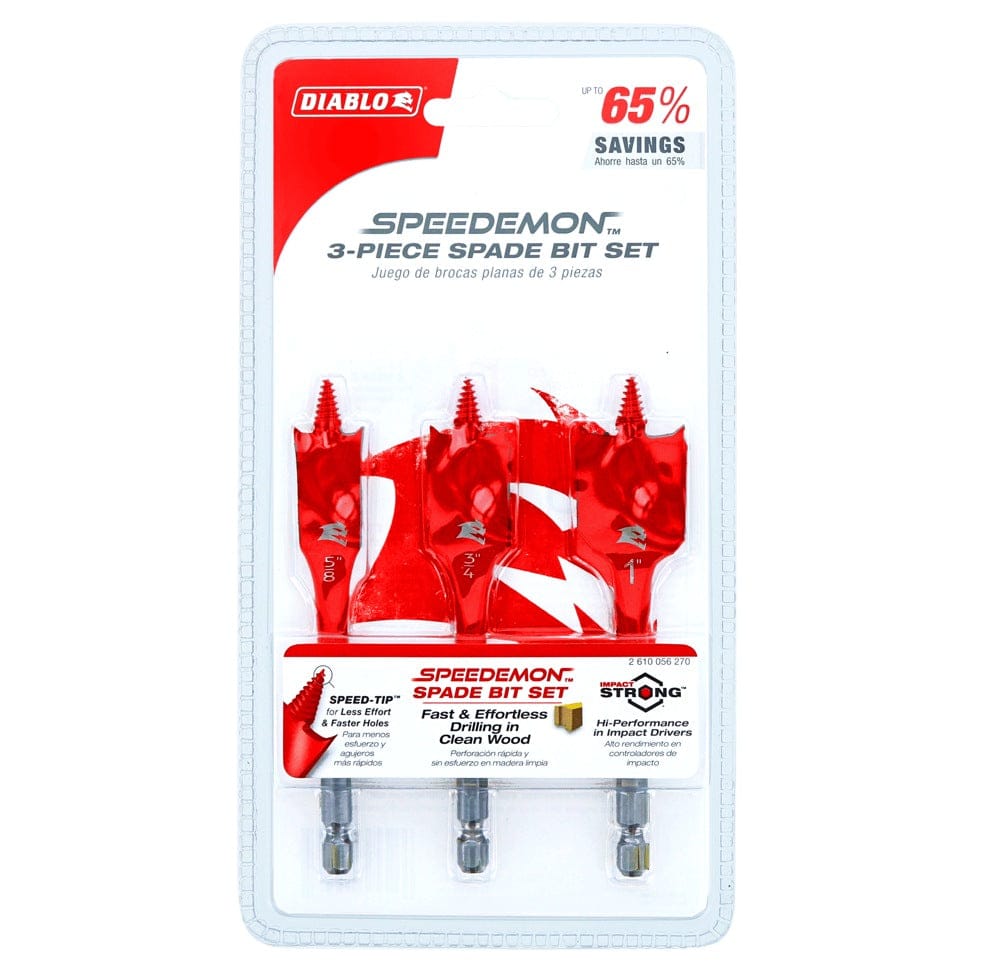

Retail packaging for the Diablo DSP1910-S3 3-Piece Spade Bit Set highlighting up to 65% savings and Speed-TIP technology for fast and effortless drilling in clean wood.

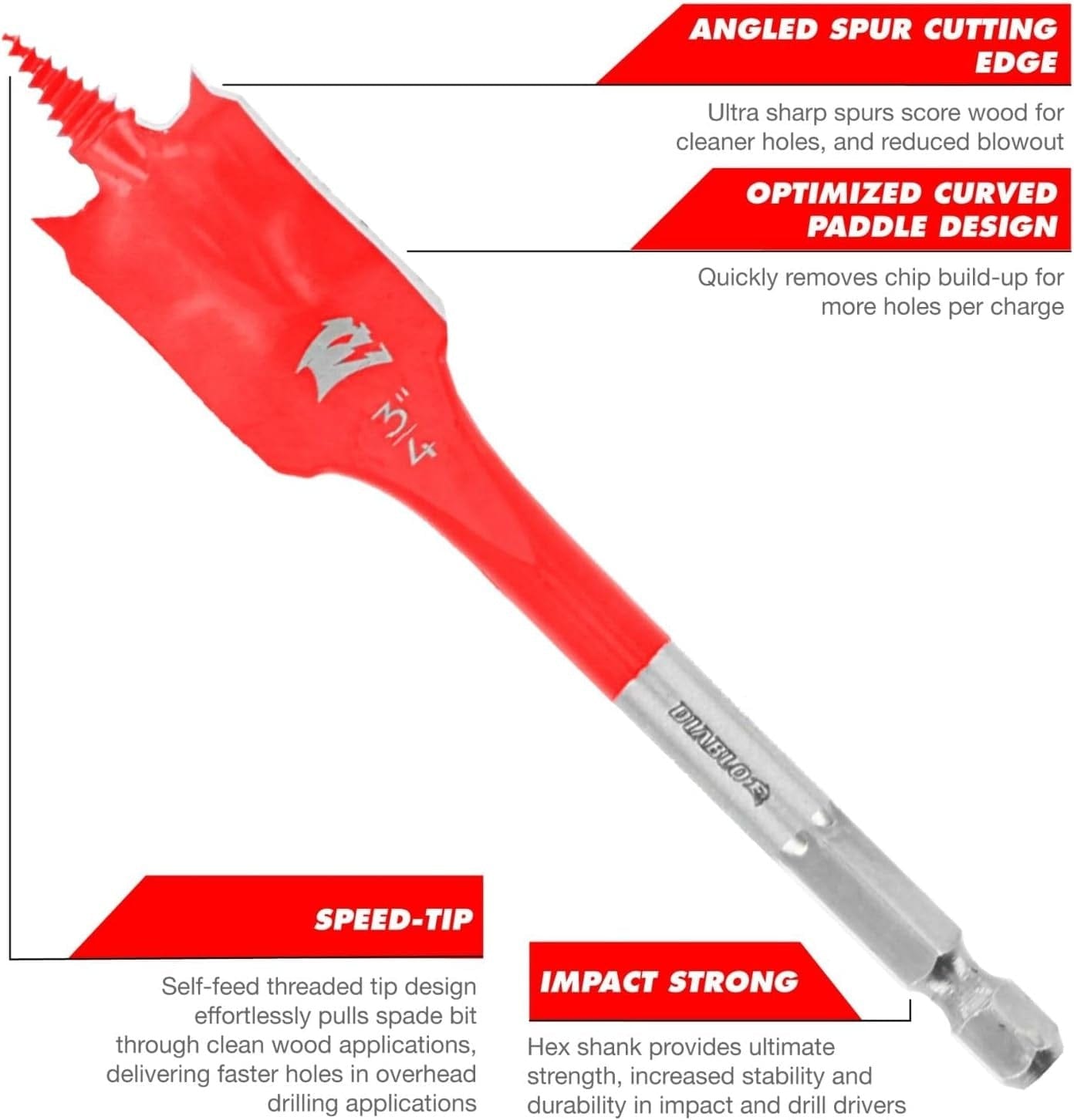

Infographic of a Diablo 3/4-inch stubby spade bit with technical callouts for the angled spur cutting edge, optimized curved paddle design, SPEED-TIP, and Impact Strong hex shank.
Action shot of a Diablo 1-3/8 -inch spade bit attached to a cordless drill boring a clean hole into a vertical wood stud on a construction site.
Diablo Clean Wood Spade Bits promotional video
DIABLO

Diablo 3 Piece SPEEDemon Wood Spade Bit Set 4 Inch Stubby Impact Rated Self-Feeding Wood Boring Drill Bit Assortment 1/4 Inch Hex Shank DSP1910-S3

Only 1 left
SKU: DSP1910-S3
$8.99

Description

Accelerate Your Workflow in Tight Spaces with the Diablo 3-Piece SPEEDemon™ Stubby Spade Bit Set

The Diablo DSP1910-S3 3-Piece SPEEDemon™ Stubby Spade Bit Set is the professional’s ultimate solution for high-speed wood boring in restricted areas. Each bit in this versatile assortment features a compact 4-inch length, specifically engineered to fit between wall studs, floor joists, and inside cabinetry where standard-length bits simply cannot reach. The revolutionary SPEED-TIP™ self-feeding design acts as a lead screw, effortlessly pulling the bit through the wood with minimal physical pressure, which significantly reduces user fatigue and maximizes the battery efficiency of your cordless power tools.

Built to endure the high-torque demands of the modern jobsite, these bits are Impact Strong™, making them fully compatible with both high-torque impact drivers and standard drill drivers. The optimized Curved Paddle design facilitates lightning-fast chip evacuation, preventing wood debris from clogging the hole and causing friction-based heat buildup. Featuring angled spur cutting edges that score the wood surface before the main blade engages, this set ensures professional-grade clean holes and drastically reduced blowout, making it a high-efficiency essential for plumbing and electrical rough-ins in confined framing.

Key Features

  • SPEED-TIP™ Self-Feed Design: Automatically pulls the bit into the material for faster, more controlled hole-making with minimal physical effort.
  • Compact 4-Inch Reach: Stubby length is perfect for drilling in tight framing, cabinets, and other restricted-access wood boring applications.
  • Optimized Curved Paddle: Enhances chip evacuation to prevent binding and increase the total number of holes drilled per battery charge.
  • Impact Strong™ Hex Shank: Provides a secure fit and increased shank stability in impact drivers, eliminating bit slippage in the chuck.
  • Angled Spur Cutting Edge: Precisely scores the wood surface for professional-grade clean holes and significantly reduced surface blowout.
  • Exceptional Value: This 3-piece kit offers up to 65% in savings compared to purchasing bits individually.

What's Included

  • (1) 5/8" x 4" Stubby Wood Spade Bit (DSP1030)
  • (1) 3/4" x 4" Stubby Wood Spade Bit (DSP1040)
  • (1) 1" x 4" Stubby Wood Spade Bit (DSP1060)

Specifications

Brand Diablo Tools
Model Number DSP1910-S3
Set Quantity 3 Pieces
Bit Length 4 Inches (Stubby)
Shank Size 1/4 Inch Hex Shank
Tool Compatibility Impact Drivers & Drill Drivers
Bit Design SPEEDemon™ Speed-TIP™
Self-Feeding Yes (Threaded Tip)
Impact Rated Yes (Impact Strong™)
Application Hardwoods, Softwoods, & Treated Timber

Pro-Tip: Because stubby spade bits are self-feeding, they will "grab" the wood and pull forward very quickly. When working in confined spaces, ensure you have a firm, balanced grip on your tool to prevent it from kicking back if the bit catches a knot or exits the material suddenly. For the cleanest possible exit hole, stop drilling once the lead screw breaks through the back side and finish the hole from the opposite direction.
