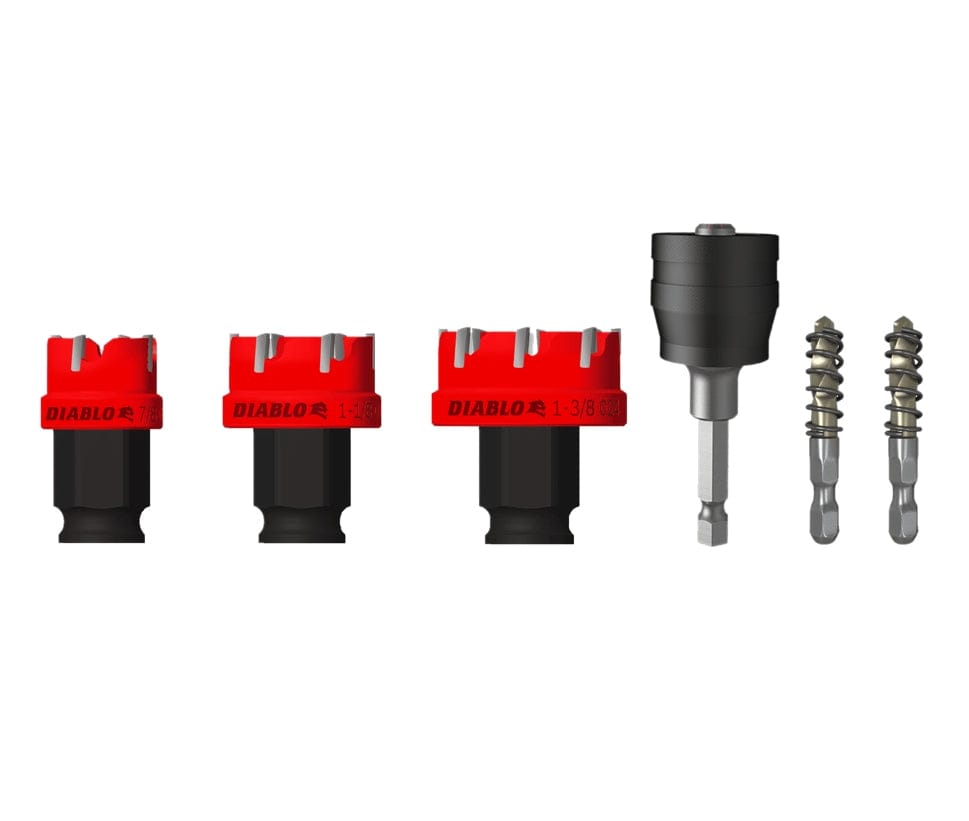

A studio shot of the 6 pieces in the Diablo Steel Demon hole cutter set: three red carbide hole saws, one Snap-Lock mandrel, and two plug eject pilot bits.

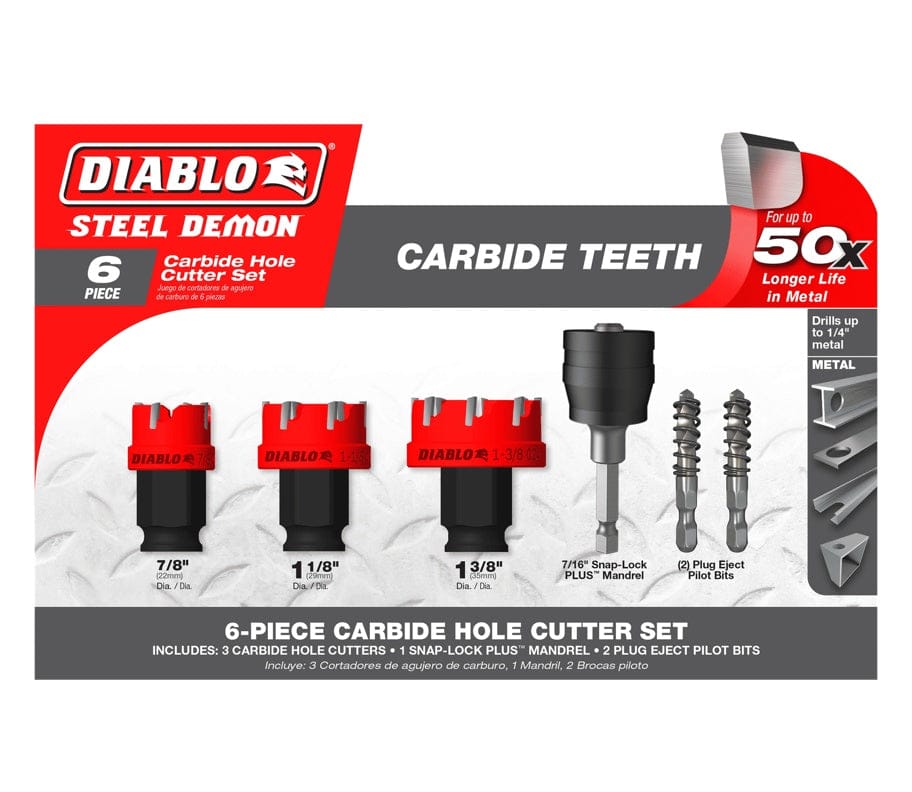

The retail packaging for the Diablo Steel Demon 6-piece carbide hole cutter set, showing the three hole saws, Snap-Lock mandrel, and two pilot bits.
Technical feature infographic for the Diablo Steel Demon carbide hole cutter, highlighting optimized tooth geometry for burr-free holes, a depth stop collar for controlled drilling, and the Snap-Lock Plus mandrel system for quick cup changes.
A studio shot of the 6 pieces in the Diablo Steel Demon hole cutter set: three red carbide hole saws, one Snap-Lock mandrel, and two plug eject pilot bits.
The retail packaging for the Diablo Steel Demon 6-piece carbide hole cutter set, showing the three hole saws, Snap-Lock mandrel, and two pilot bits.

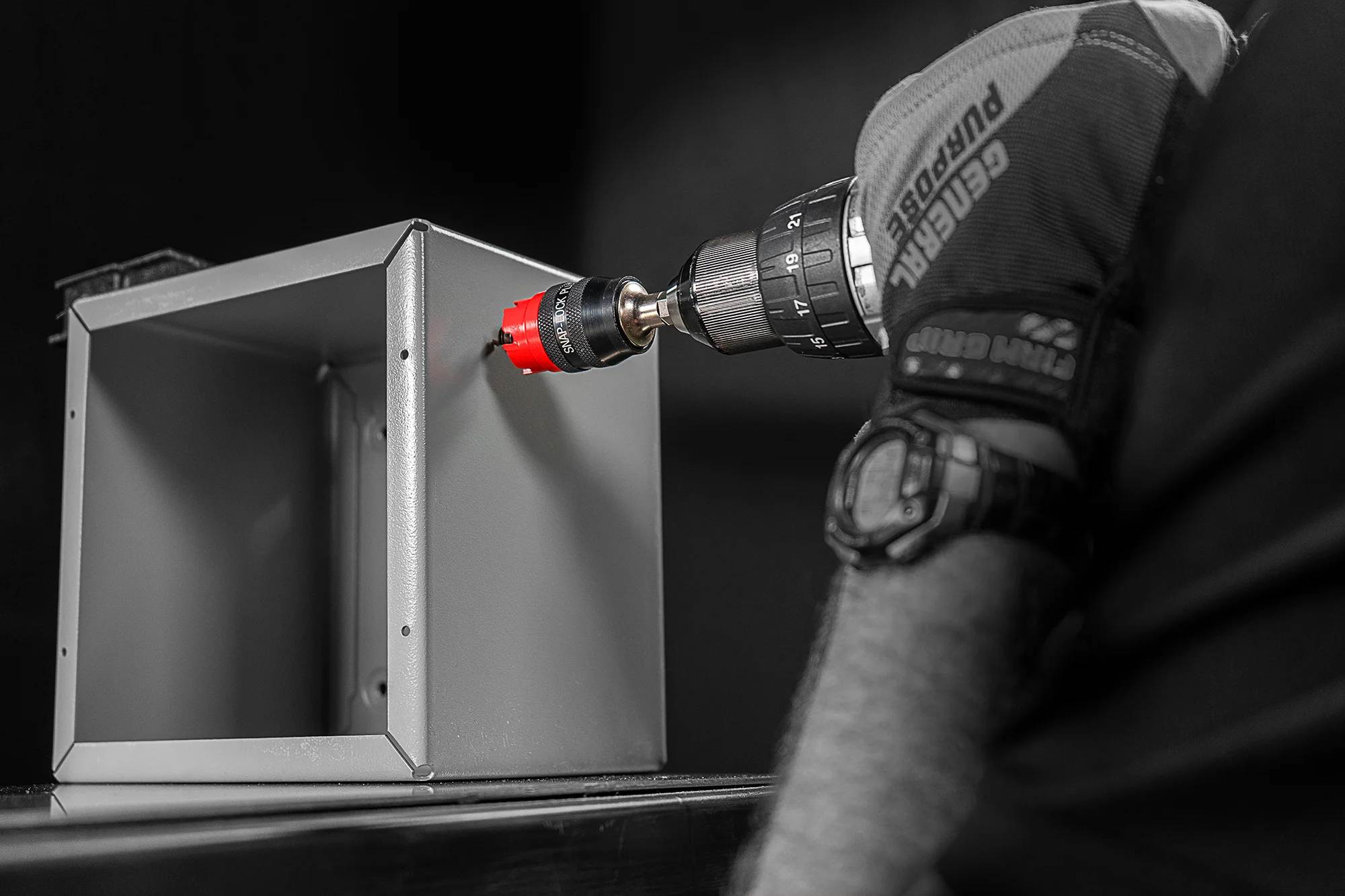

A selective-color action shot of a gloved hand using a drill with a small red Diablo hole saw to drill a hole in the side of a metal electrical box.

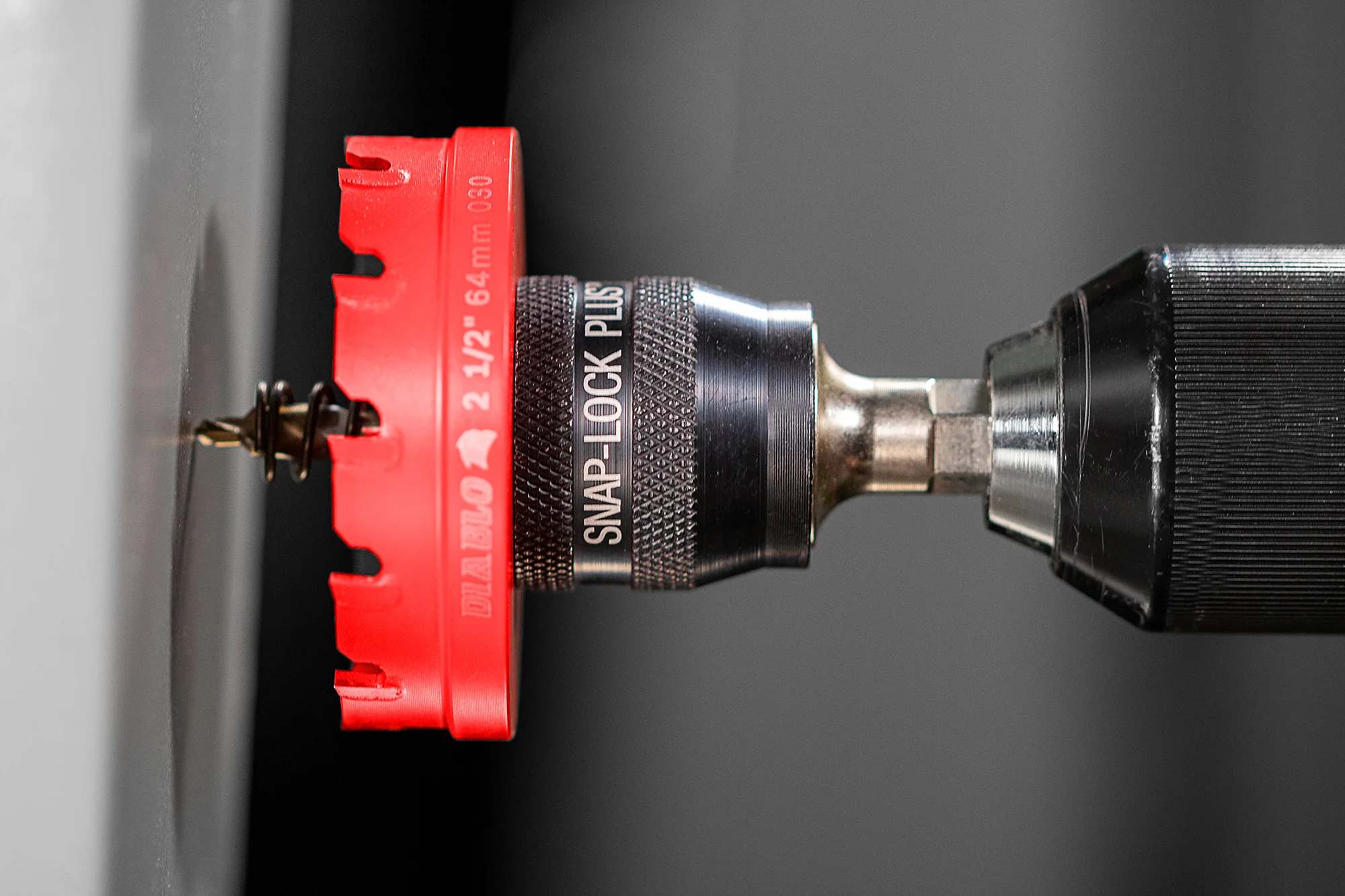

A close-up action shot of a red 2 1/2-inch Diablo hole saw with a Snap-Lock Plus mandrel drilling a hole into a gray metal surface.

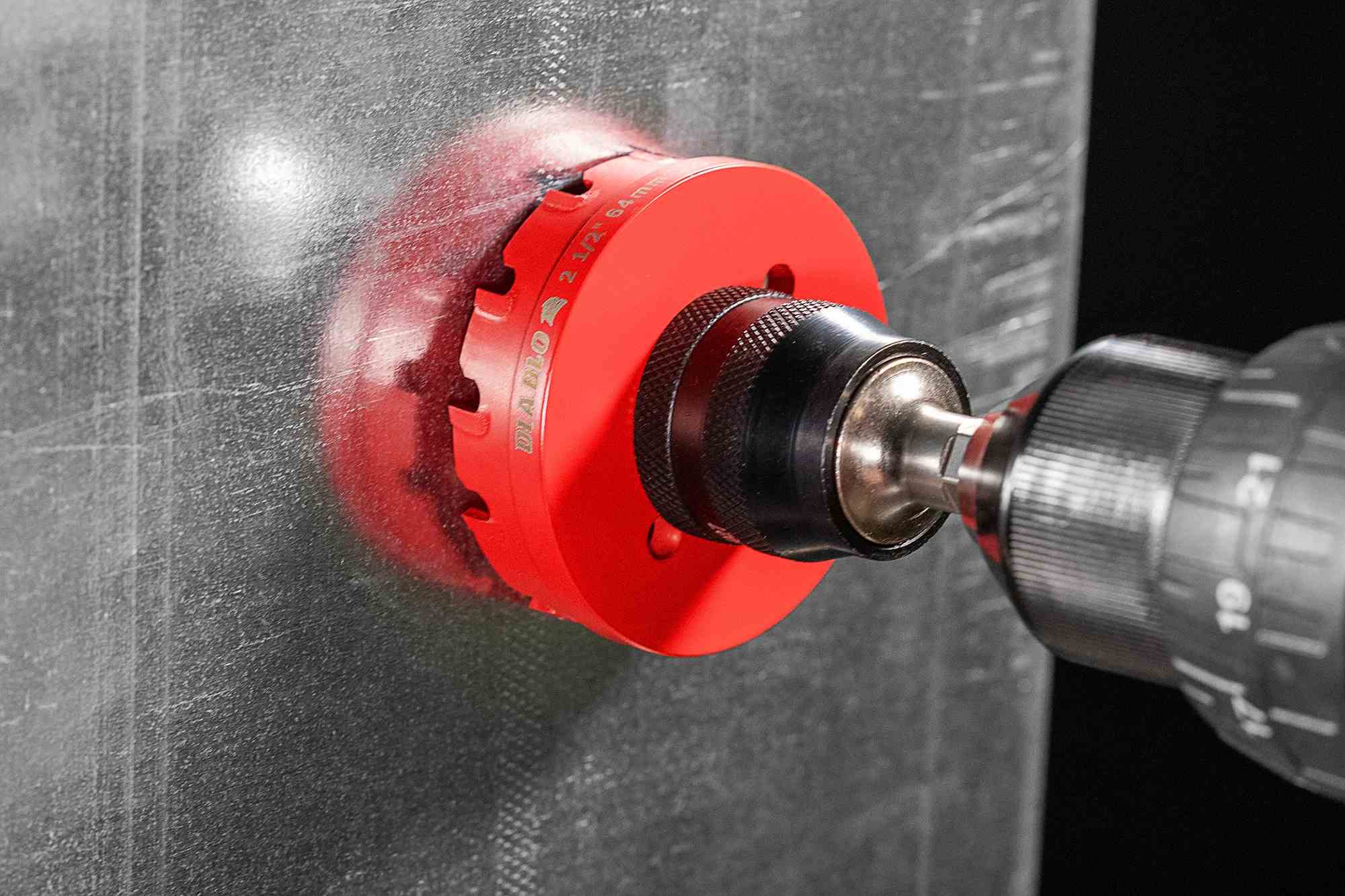

An action shot of a red 2 1/2-inch Diablo hole saw in a drill, cutting a hole in a piece of galvanized sheet metal.

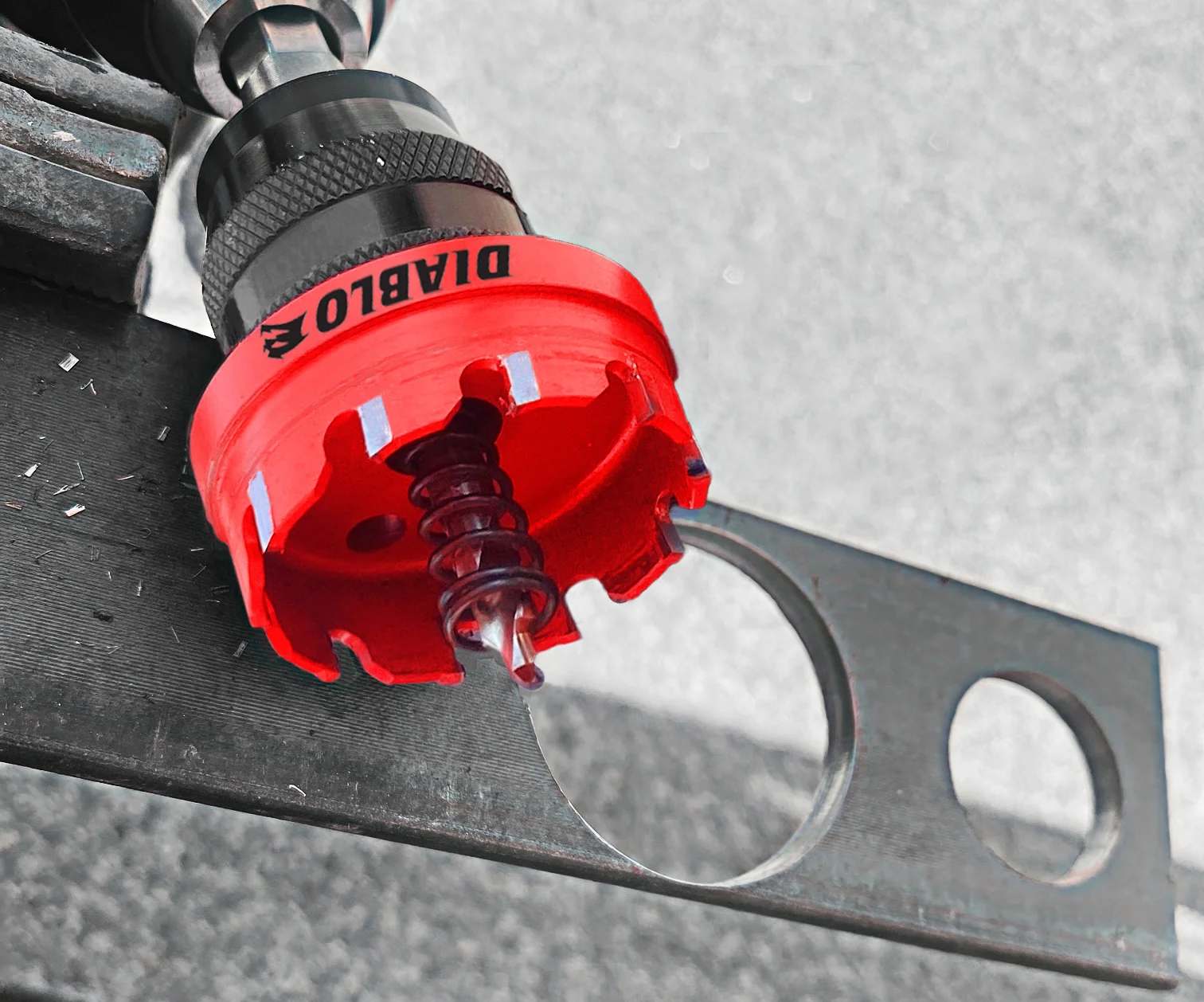

A selective-color action shot highlighting the red Diablo hole saw in a drill, having just completed a clean cut through a metal stud.

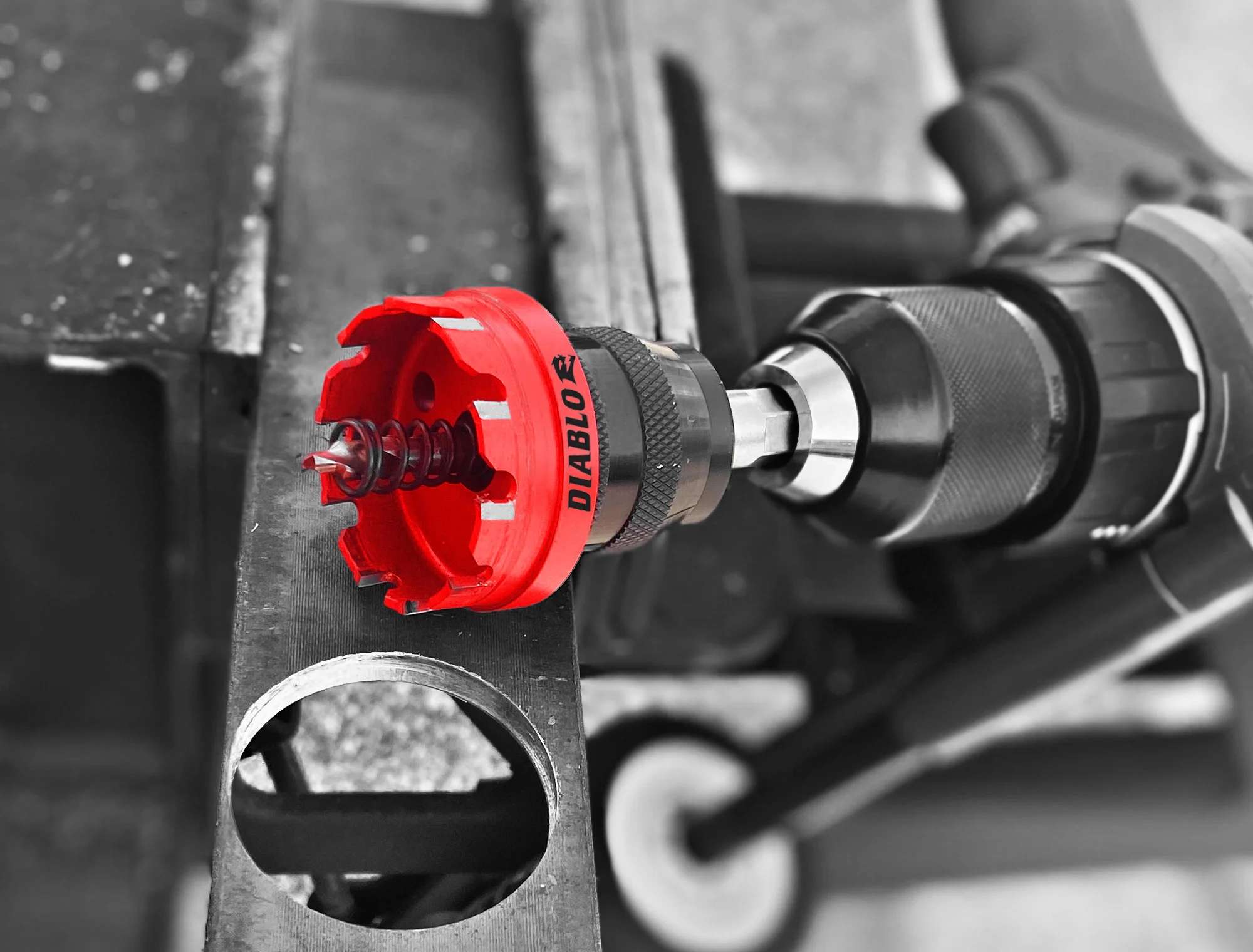

A selective-color action shot, highlighting the red Diablo Steel Demon hole saw in a drill, positioned over a pre-drilled hole in a metal I-beam.

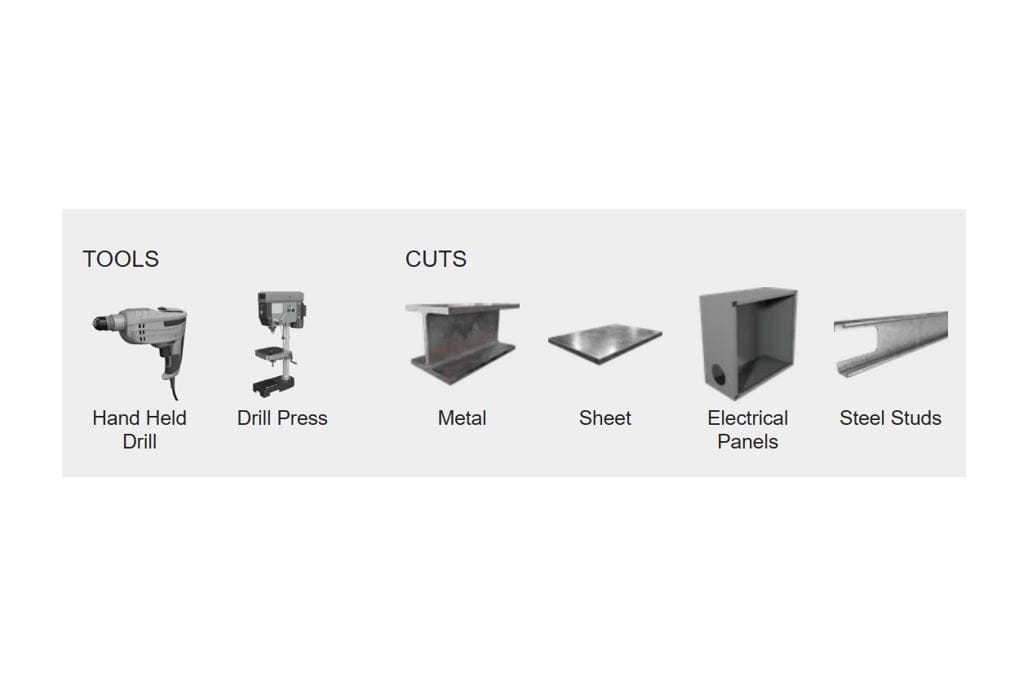

A marketing graphic showing compatible tools, a hand-held drill and drill press, and applications, including cutting metal, sheet, electrical panels, and steel studs.
Diablo's Mandrel Attachment Speed Side by Side promotional video
A studio shot of the 6 pieces in the Diablo Steel Demon hole cutter set: three red carbide hole saws, one Snap-Lock mandrel, and two plug eject pilot bits.
The retail packaging for the Diablo Steel Demon 6-piece carbide hole cutter set, showing the three hole saws, Snap-Lock mandrel, and two pilot bits.
Technical feature infographic for the Diablo Steel Demon carbide hole cutter, highlighting optimized tooth geometry for burr-free holes, a depth stop collar for controlled drilling, and the Snap-Lock Plus mandrel system for quick cup changes.
A studio shot of the 6 pieces in the Diablo Steel Demon hole cutter set: three red carbide hole saws, one Snap-Lock mandrel, and two plug eject pilot bits.
The retail packaging for the Diablo Steel Demon 6-piece carbide hole cutter set, showing the three hole saws, Snap-Lock mandrel, and two pilot bits.
A selective-color action shot of a gloved hand using a drill with a small red Diablo hole saw to drill a hole in the side of a metal electrical box.
A close-up action shot of a red 2 1/2-inch Diablo hole saw with a Snap-Lock Plus mandrel drilling a hole into a gray metal surface.
An action shot of a red 2 1/2-inch Diablo hole saw in a drill, cutting a hole in a piece of galvanized sheet metal.
A selective-color action shot highlighting the red Diablo hole saw in a drill, having just completed a clean cut through a metal stud.
A selective-color action shot, highlighting the red Diablo Steel Demon hole saw in a drill, positioned over a pre-drilled hole in a metal I-beam.
A marketing graphic showing compatible tools, a hand-held drill and drill press, and applications, including cutting metal, sheet, electrical panels, and steel studs.
Diablo's Mandrel Attachment Speed Side by Side promotional video
DIABLO

Diablo Hole Cutter Set DHS06CFS 6-Piece (Steel Demon Carbide Teeth Snap-Lock Plus Mandrel 1/4 Depth Stop Metal Sheet Drilling Boring Tool Kit)

In stock
SKU: DHS06CFS
$76.99 USD

Description

Diablo Tools Logo

Diablo DHS06CFS 6-Piece Steel Demon Carbide Teeth Metal Hole Cutter Set

The Diablo DHS06CFS 6-piece Steel Demon carbide hole cutter set bores clean, burr-free knockout holes through structural steel studs, stainless steel panels, aluminum enclosures, and sheet metal up to 1/4-inch thickness. Engineered with micro-grain TiCo high-density carbide cutting teeth that deliver up to 50X longer cutting life compared to standard bi-metal hole saws, each cutter features an integrated depth stop collar to eliminate work over-penetration. Outfitted with the tool-free Snap-Lock Plus quick-change mandrel system and spring-loaded cobalt pilot bits for rapid core slug ejection, it equips commercial electricians, mechanical contractors, and metal fabricators with precise, non-binding metal drilling performance across hand-held drills and drill presses.

Best Used For:

  • Electrical Panel and Junction Box Knockouts: Drilling precise 7/8-inch, 1-1/8-inch, and 1-3/8-inch conduit pass-through holes in stainless steel and sheet metal enclosures without secondary de-burring.
  • Structural Metal Stud and Framing Penetrations: Slicing utility openings through heavy-gauge steel studs, Unistrut channels, and aluminum framing up to 1/4-inch thick.
  • Mechanical and Automotive Sheet Fabrication: Boring clean, perfectly round holes in truck bodies, ductwork, and structural steel plate with zero material deformation.

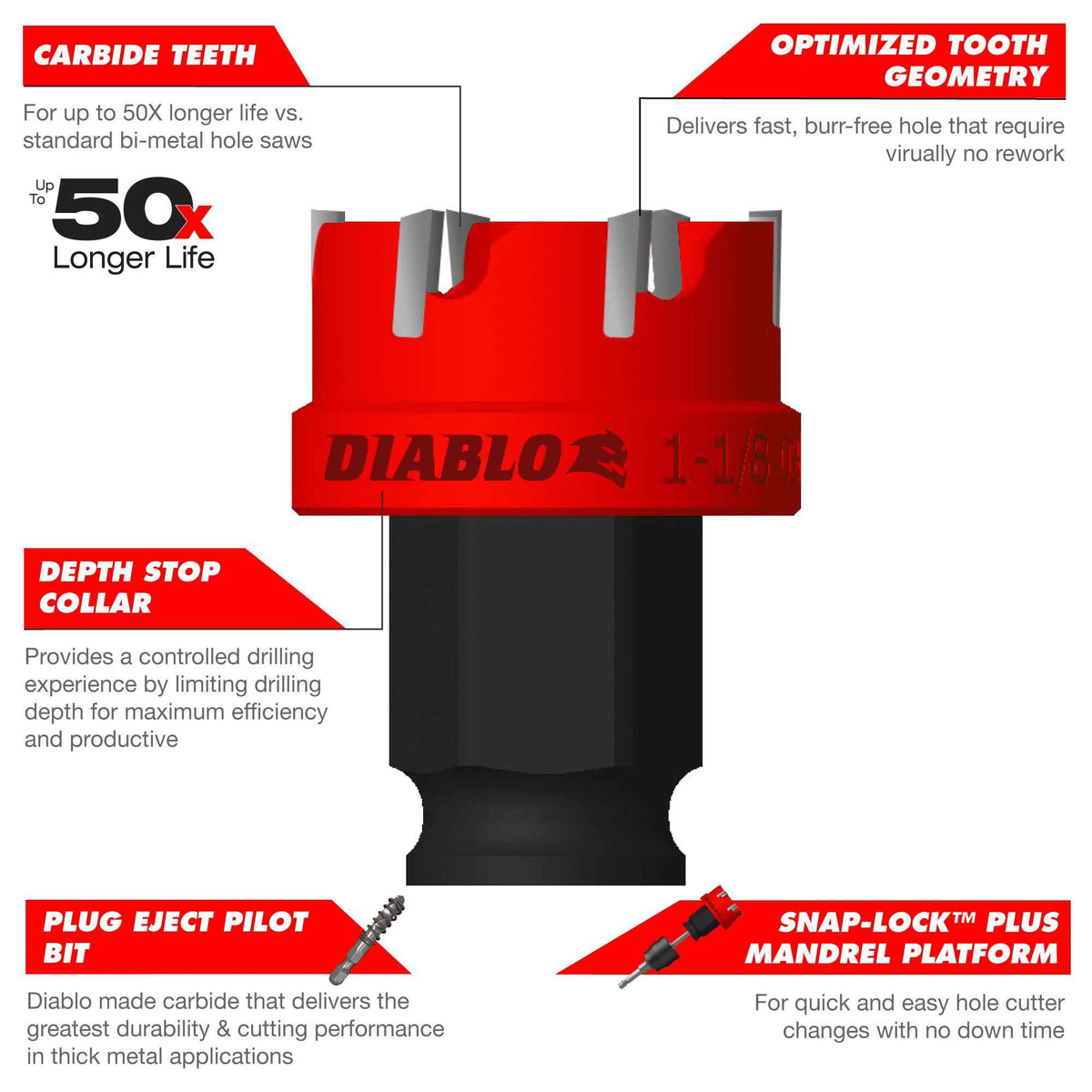

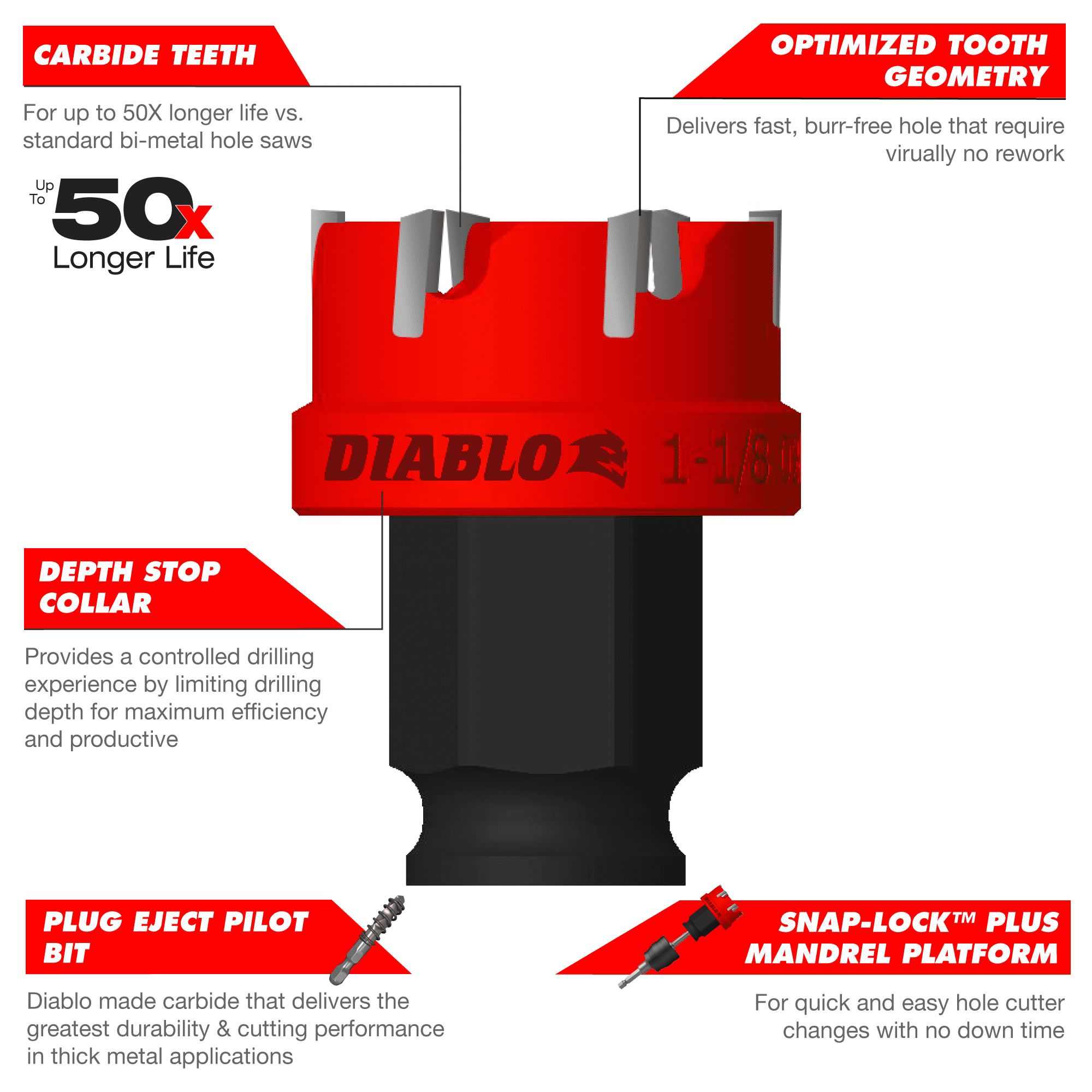

Key Performance & Safety Features

  • TiCo Hi-Density Carbide Teeth: Specially formulated micro-grain carbide delivers maximum wear resistance and up to 50X extended cutting life in demanding metal alloys.
  • Integrated Depth Stop Collar: Mechanical shoulder prevents over-drilling beyond the 1/4-inch cutting depth, protecting internal wiring and sensitive components behind panels.
  • Snap-Lock Plus Mandrel System: Patented quick-change mechanism allows rapid, tool-free cutter diameter swaps in seconds with zero thread binding.
  • Spring-Loaded Cobalt Pilot Bits: Heavy-duty cobalt pilot bits resist extreme heat and automatically eject cut metal slugs upon breakthrough.
  • Optimized Tooth Geometry: Carbide teeth slice through steel cleanly to produce smooth, burr-free edges that eliminate the need for manual deburring files.
  • Universal Handheld and Stationary Drill Fit: Heavy-duty 7/16-inch hex shank locks securely into 1/2-inch portable drill chucks and stationary drill presses.

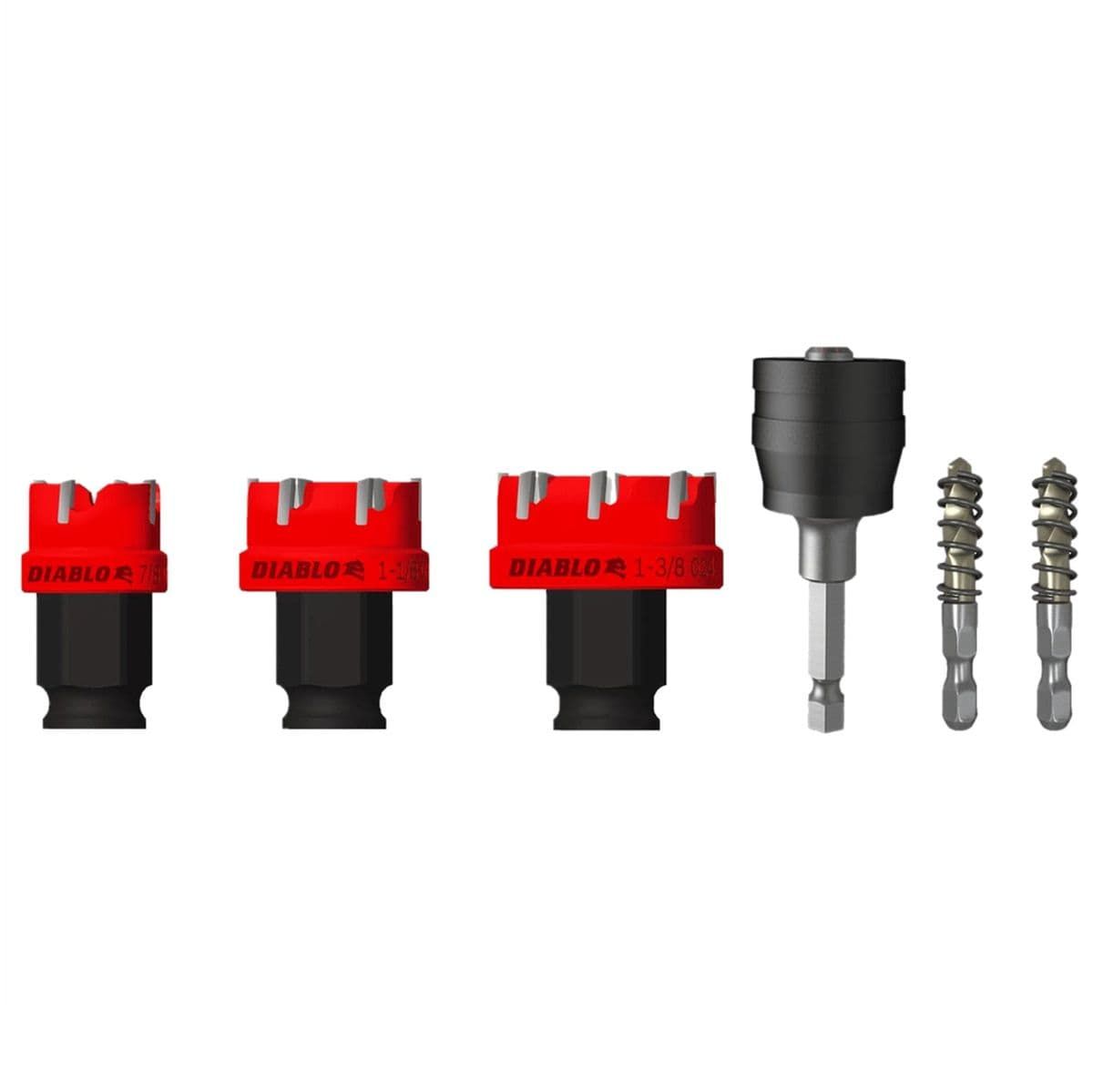

What's Included

  • (1) 7/8" Steel Demon™ Carbide Teeth Hole Cutter (DHS0875CF)
  • (1) 1-1/8" Steel Demon™ Carbide Teeth Hole Cutter (DHS1125CF)
  • (1) 1-3/8" Steel Demon™ Carbide Teeth Hole Cutter (DHS1375CF)
  • (1) 7/16" Snap-Lock Plus™ Mandrel Assembly (DHSAR500)
  • (2) Steel Demon™ Plug Ejection Cobalt Pilot Bits (DHS2BITCB)

Technical Specifications

Manufacturer Freud America Inc. (Diablo Tools)
Model Number DHS06CFS
Product Classification 6-Piece Carbide Metal Hole Cutter Set
Cutter Diameters Included 7/8 in (22.2 mm), 1-1/8 in (28.6 mm), 1-3/8 in (34.9 mm)
Maximum Cutting Depth 0.250 inches (1/4 in / 6.35 mm)
Over-Penetration Protection Integrated Solid Steel Depth Stop Collar
Cutter Edge Metallurgy TiCo High-Density Micro-Grain Carbide
Pilot Bit Material High-Performance Heat-Resistant Cobalt Steel
Mandrel Interface System Snap-Lock Plus Tool-Free Quick-Change
Mandrel Drive Shank Size 0.4375 inches (7/16 in Hex Shank)
Core Plug Ejection Style Spring-Loaded Automatic Plug Ejection
Total Kit Piece Count 6 Pieces (3 Cutters, 1 Mandrel, 2 Pilot Bits)
Assembled Product Weight 1.40 lbs (0.64 kg)
Country of Origin Italy
Target Substrates Stainless Steel, Structural Steel, Sheet Metal, & Aluminum
Compatible Tool Platforms 1/2" Handheld Drills & Stationary Drill Presses

Pro-Tip: When boring through thick stainless steel or structural channel, apply cutting lubricant and run your drill at a steady, moderate RPM; keep the cutter face perpendicular to allow the integrated depth stop shoulder to seat evenly against the metal surface upon completion.
