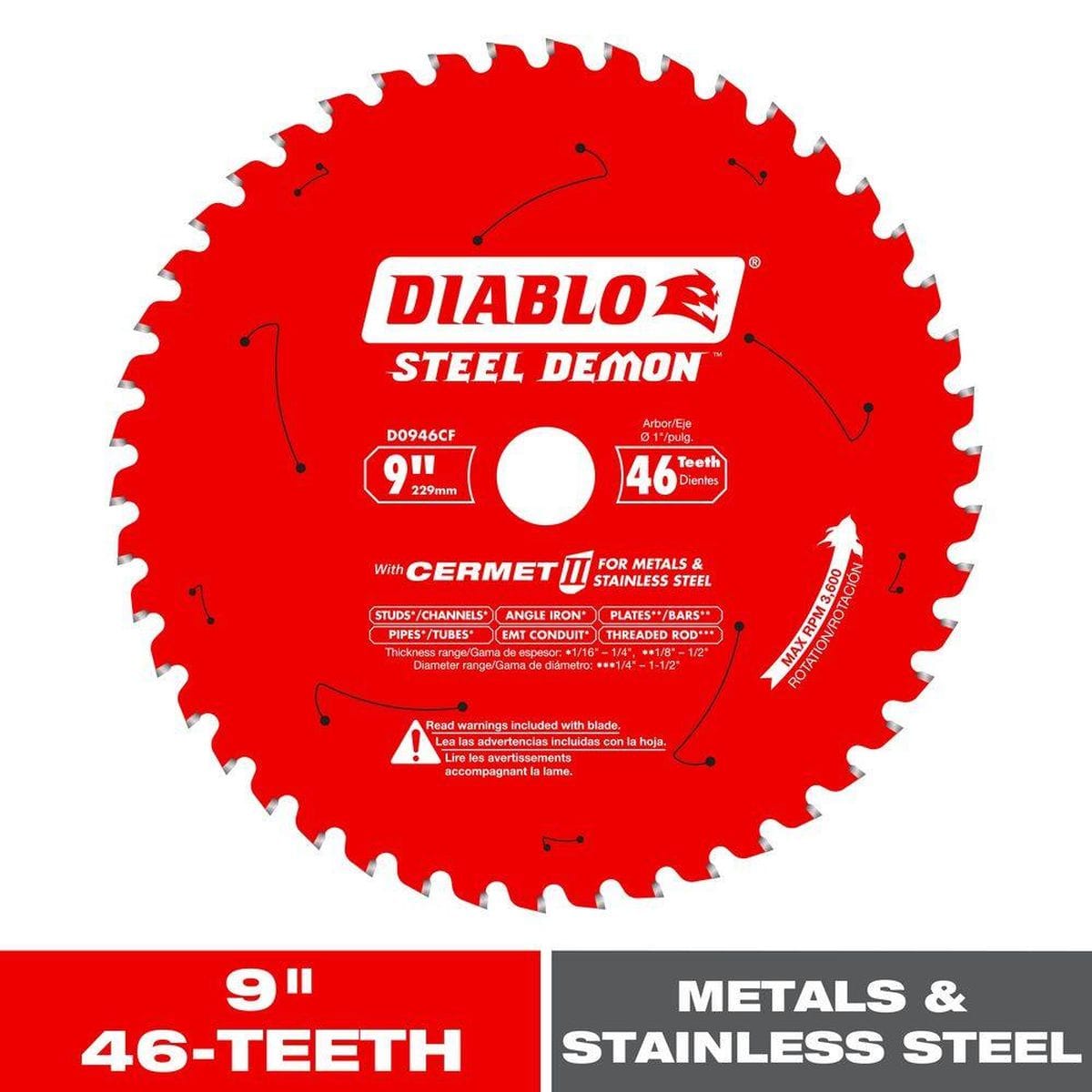

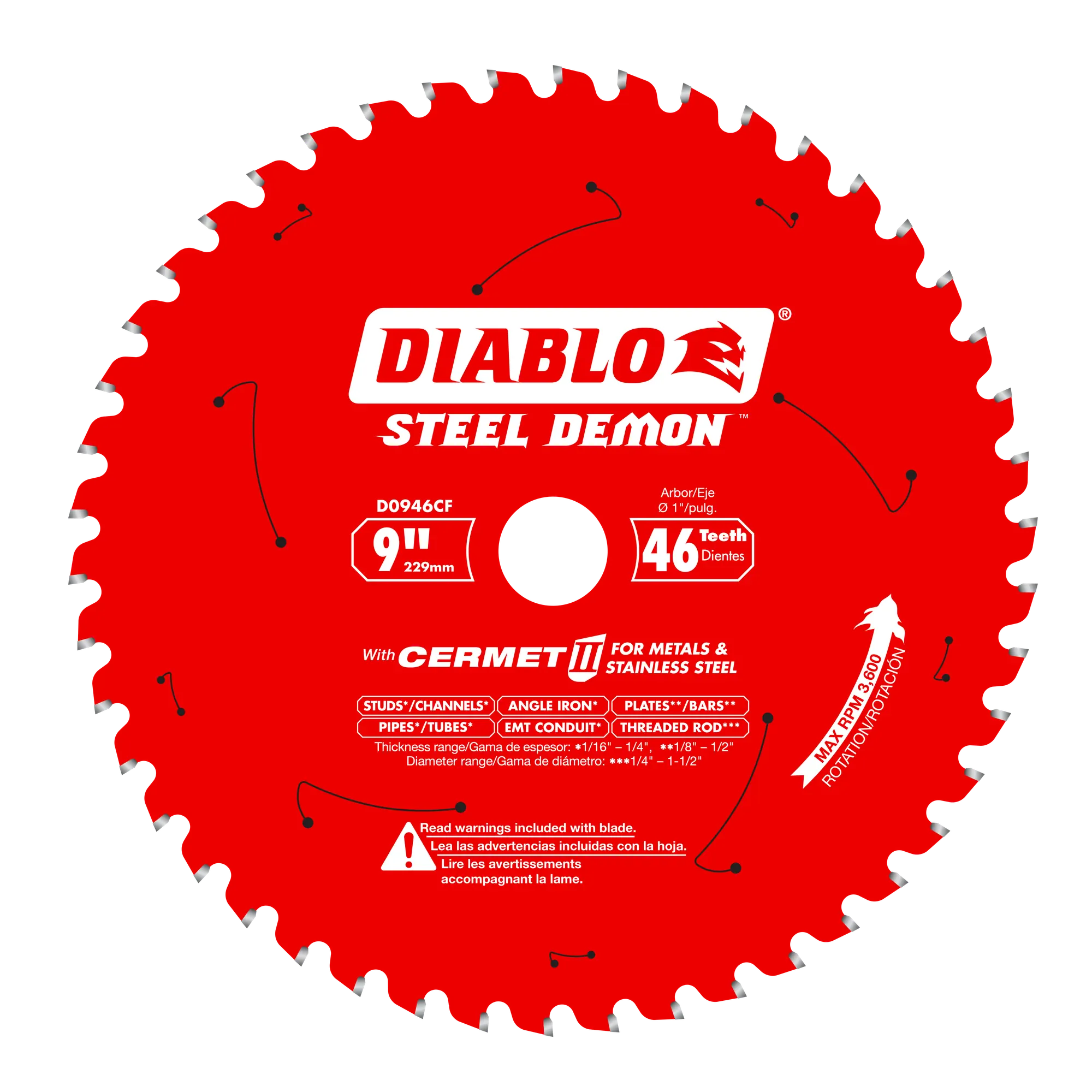

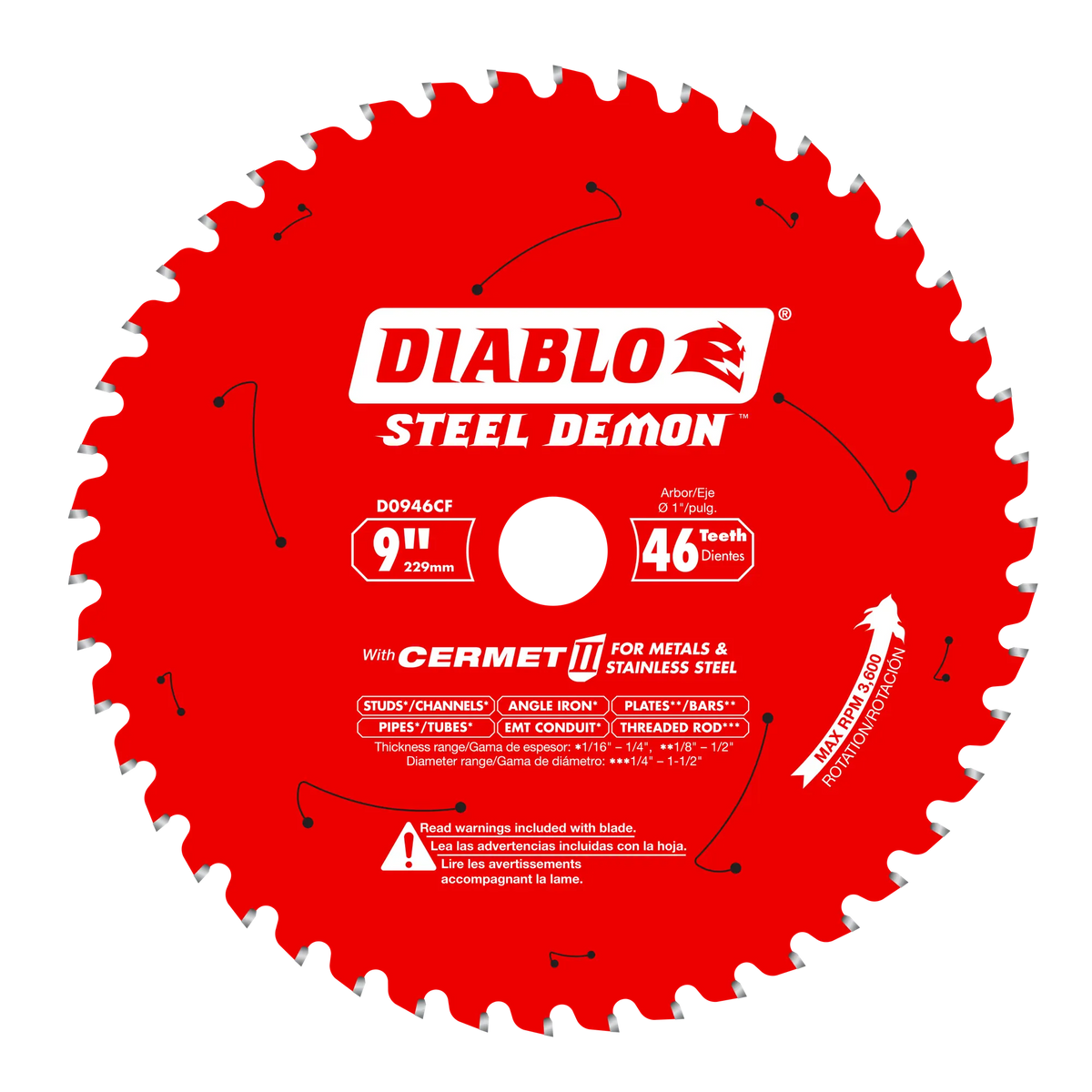

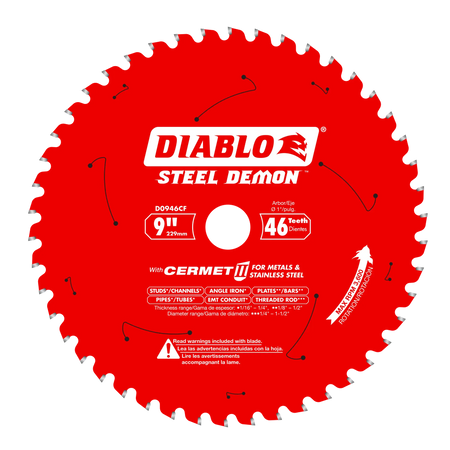

Diablo D0946CF 9 Inch 46 Teeth Steel Demon Cermet II Metal Saw Blade
The Diablo D0946CF 9-Inch 46-Teeth Steel Demon Cermet II Saw Blade operates as a high-velocity metal-cutting circular saw blade engineered to shear stainless steel, structural carbon steel, and EMT conduit. Utilizing a 1 in. arbor and a thin 3/40 in. kerf profile, this 3,600 RPM max blade features Cermet II ceramic-metallic teeth that deliver 25X longer cutting life and 50X cooler cuts compared to standard abrasive wheels. Outfitted with a Triple Chip Grind tooth configuration, Perma-SHIELD friction-reducing coating, and laser-cut vibration stabilizer vents, this blade enables commercial electricians, fabricators, and pipefitters to execute burr-free cuts across 1/16 in. to 1/4 in. wall thickness steel tubing without hot-work hazards.
Best Used For:
- Stainless Steel & Alloy Pipe Slicing: Cutting 1/16 in. to 1/4 in. wall stainless steel tubing and Schedule 40 pipe cleanly without heat discoloration or burrs.
- Structural Angle Iron & Unistrut Sizing: Shearing 1/8 in. to 1/2 in. thick carbon steel flat bar, channel, angle iron, and strut channels for commercial framing.
- EMT Conduit & Metal Stud Crosscutting: Rapidly crosscutting high-density EMT conduit bundles and steel framing studs with minimal spark production.
Key Performance & Safety Features
- Cermet II Ceramic-Metallic Teeth: Specialized tooth formulation provides high heat resistance and edge retention, lasting 25X longer than standard abrasive grinding discs.
- Cool-Cut Burr-Free Technology: Produces cool-to-the-touch cuts that eliminate thermal steel discoloration and minimize jobsite hot-work permit requirements.
- Triple Chip Grind (TCG) Tooth Geometry: Shears smoothly through tough ferrous metals to leave finished edges that do not require secondary deburring.
- Perma-SHIELD Non-Stick Thermal Defense: Proprietary red blade coating reduces drag, guards against pitch gumming, and prevents rust during exterior field work.
- Laser-Cut Vibration Stabilizer Vents: Noise-dampening vents absorb operational chatter to ensure laser-straight tracking and prolonged tooth life.
- Thin Kerf Cordless Efficiency: Ultra-thin 3/40 in. kerf width demands less draw from cordless saw motors, maximizing battery cuts per charge.
What's Included
- (1) Diablo Steel Demon™ Cermet II 9-Inch 46-Teeth Medium Metal Saw Blade (D0946CF)
Technical Specifications
| Brand Manufacturer | Diablo® Tools |
| Model Part Number OEM SKU | D0946CF |
| Blade Series Family | Steel Demon™ Cermet II |
| Outer Blade Diameter | 9 in. |
| Total Blade Tooth Count | 46 Teeth |
| Tooth Grind Configuration | Triple Chip Grind (TCG) |
| Center Hole Arbor Bore Size | 1 in. Round Arbor |
| Blade Kerf Cutting Width | 3/40 in. (0.075 in.) Thin Kerf |
| Blade Body Plate Thickness | 1/16 in. (0.063 in.) |
| Tooth Hook Angle Setting | 0° Neutral Hook Angle |
| Maximum Rotational Speed Rating | 3,600 RPM Maximum |
| Structural Steel Wall Cutting Capacity | 1/16 in. to 1/4 in. Wall Thickness |
| Solid Steel Plate Cutting Capacity | 1/8 in. to 1/2 in. Plate Thickness |
Pro-Tip: When cutting thick 1/4 in. stainless steel angle iron or Schedule 40 pipe with the Diablo D0946CF blade, allow the saw's speed and Cermet II teeth to do the work without forcing forward pressure. Maintaining a steady, moderate feed rate at 3,600 RPM maximizes tooth engagement while producing burr-free cuts that require zero secondary grinding.
